Venn Diagrams and Probability
How do sets, indicator variables, and Venn regions describe the same probability event?
How this lesson unfolds.
Begin with What does probability describe? The sequence then connects An event is a subset and builds toward Daily counts become a long-run average.
What does probability describe?
A random process produces one outcome in a sample space. Events collect outcomes, set operations combine events, indicator variables answer yes or no, and expectation summarizes those answers over repeated trials.
- Learning goalExplain probability language architecture and translate between a region, set notation, and an indicator when appropriate.
- Helpful foundationssets and subsets · fractions · basic probability
- Common trapAn event is a subset, its indicator is a 0-1 function, disjointness is not independence, and OR includes overlap unless stated otherwise.
- Next connectionAn event is a subset
More context
The portrait diagram reads from the visual event model to exact notation, interpretation checkpoints, and a concise conclusion.

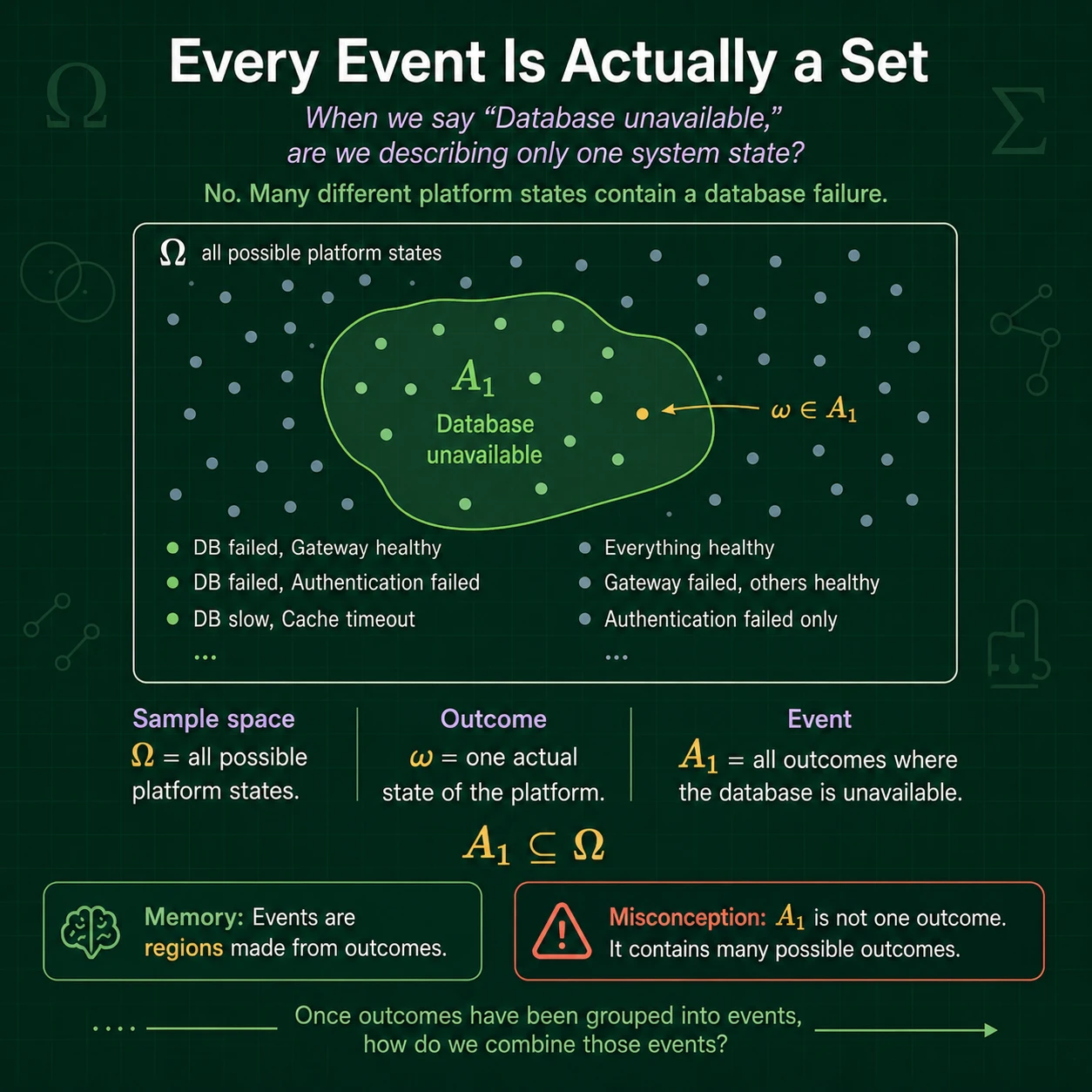

Is an event one outcome or a set of outcomes?
The sample space contains every possible outcome. An event is a subset of that space, so the event occurs exactly when the observed outcome belongs to that subset.
- Learning goalExplain sample space event subset and translate between a region, set notation, and an indicator when appropriate.
- Helpful foundationssets and subsets · fractions · basic probability
- Common trapAn event is a subset, its indicator is a 0-1 function, disjointness is not independence, and OR includes overlap unless stated otherwise.
- Next connectionTurn an event into yes or no
More context
The portrait diagram reads from the visual event model to exact notation, interpretation checkpoints, and a concise conclusion.

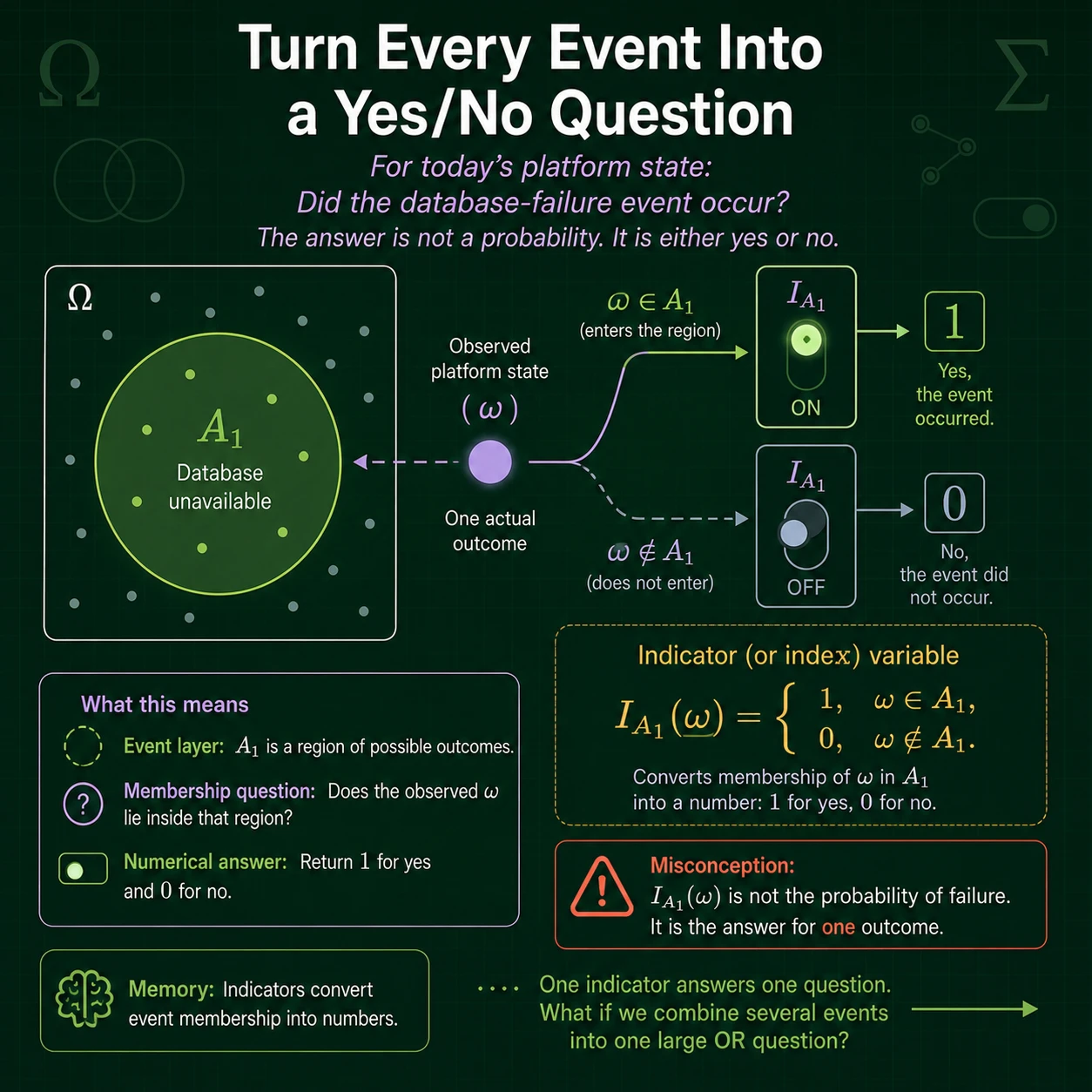

How can one event become a number?
The indicator of event A equals 1 when the observed outcome lies in A and 0 otherwise. It converts membership into arithmetic without changing what the event means.
The indicator of event A equals 1 when the observed outcome lies in A and 0 otherwise.
- Learning goalExplain event indicator definition and translate between a region, set notation, and an indicator when appropriate.
- Helpful foundationssets and subsets · fractions · basic probability
- Common trapAn event is a subset, its indicator is a 0-1 function, disjointness is not independence, and OR includes overlap unless stated otherwise.
- Next connectionThe set and its indicator do different jobs
More context
The portrait diagram reads from the visual event model to exact notation, interpretation checkpoints, and a concise conclusion.
What is the difference between A and its indicator?
A is a fixed subset of possible outcomes. The indicator I_A is a function that reads the realized outcome and returns 0 or 1. The set defines the event; the indicator records whether it occurred.
- Learning goalExplain set versus indicator and translate between a region, set notation, and an indicator when appropriate.
- Helpful foundationssets and subsets · fractions · basic probability
- Common trapAn event is a subset, its indicator is a 0-1 function, disjointness is not independence, and OR includes overlap unless stated otherwise.
- Next connectionAsk whether anything happened
More context
The portrait diagram reads from the visual event model to exact notation, interpretation checkpoints, and a concise conclusion.

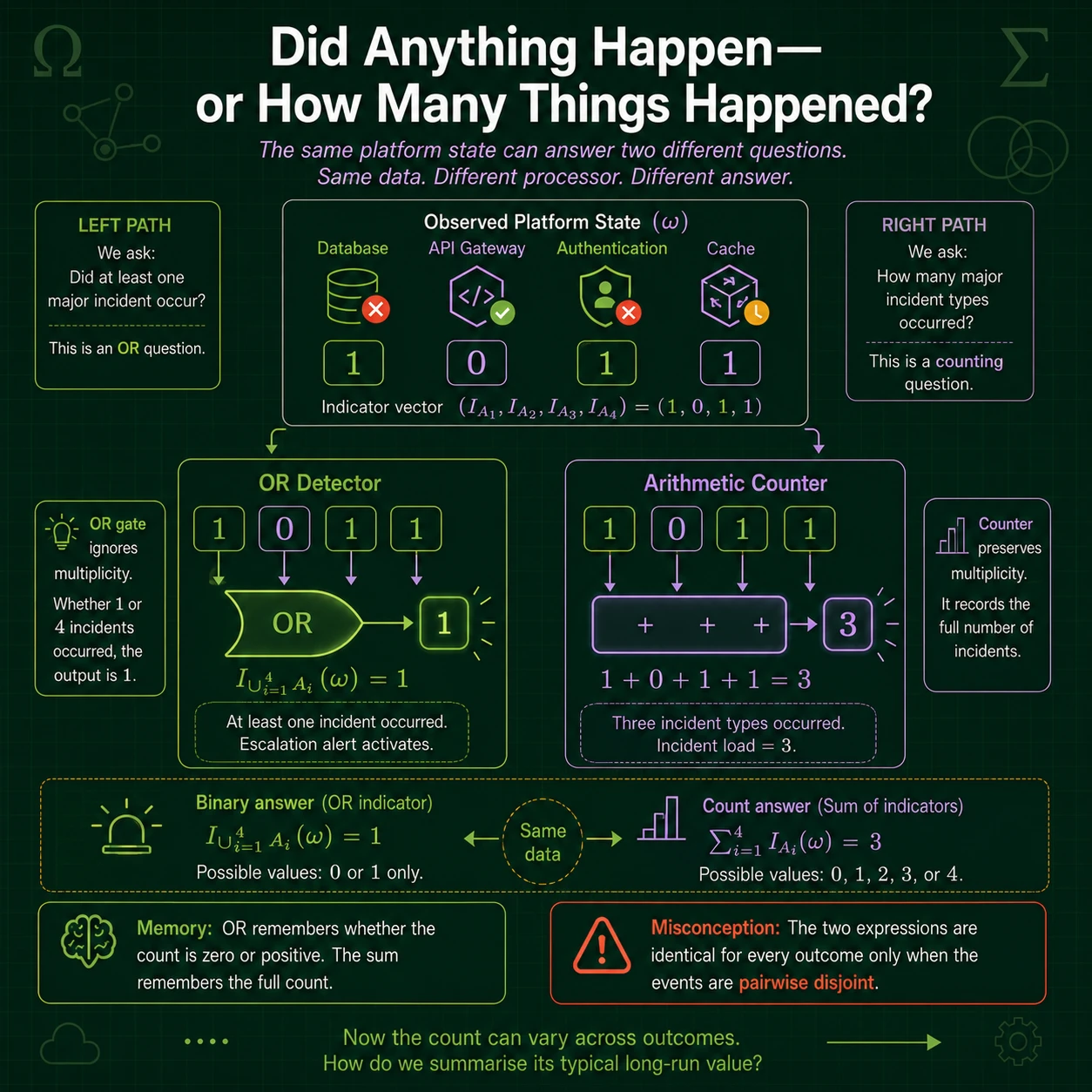

How are occurrence and count different questions?
For several events, a combined indicator answers whether at least one occurred, while a sum of indicators counts how many occurred. The same 0-1 inputs support two different questions.
- Learning goalExplain occurrence versus count and translate between a region, set notation, and an indicator when appropriate.
- Helpful foundationssets and subsets · fractions · basic probability
- Common trapAn event is a subset, its indicator is a 0-1 function, disjointness is not independence, and OR includes overlap unless stated otherwise.
- Next connectionAdding indicators counts events
More context
The portrait diagram reads from the visual event model to exact notation, interpretation checkpoints, and a concise conclusion.

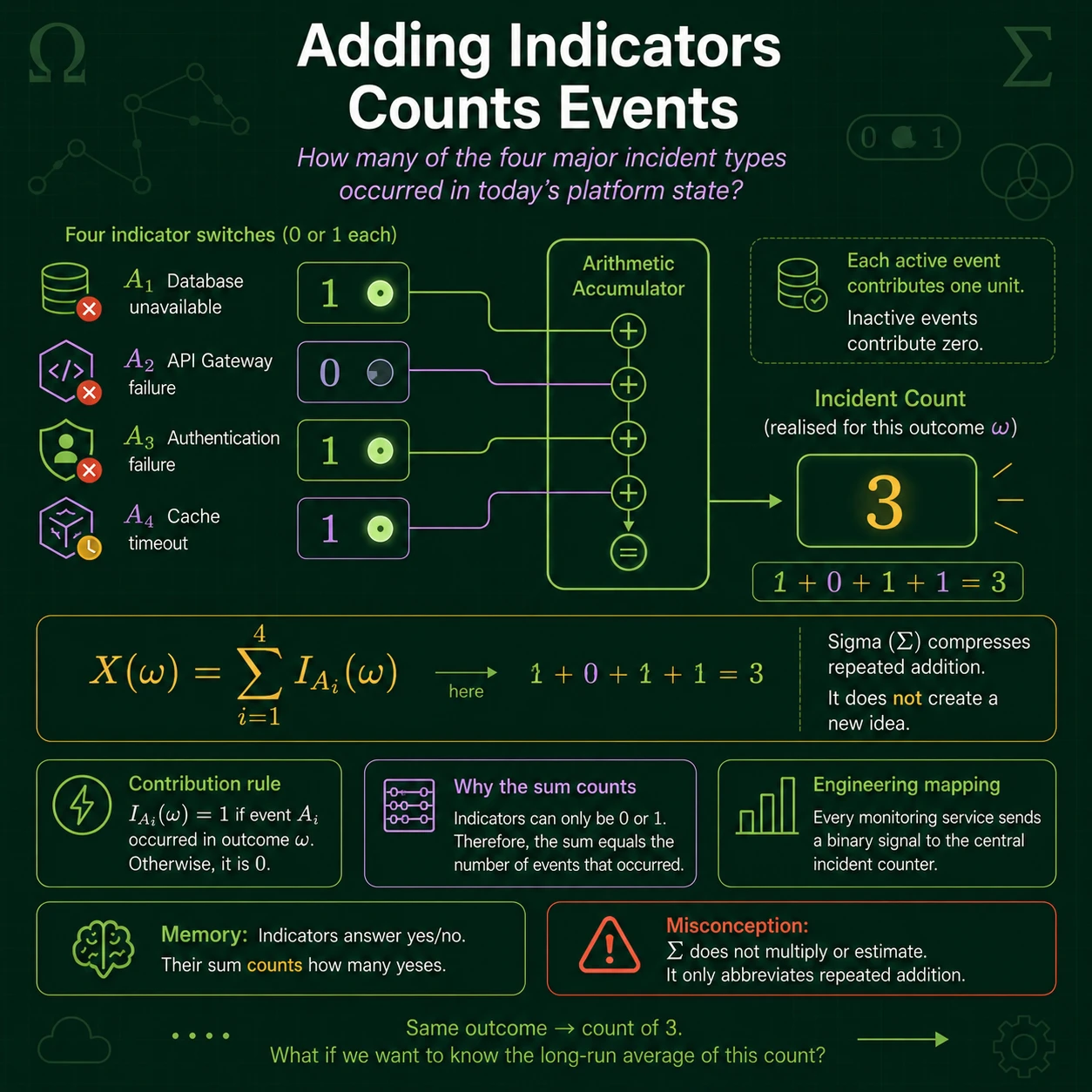

How many listed events occurred?
Each indicator contributes either 0 or 1. Their sum is therefore the number of events that occur for the realized outcome, including multiple simultaneous events.
- Learning goalExplain indicator sum count and translate between a region, set notation, and an indicator when appropriate.
- Helpful foundationssets and subsets · fractions · basic probability
- Common trapAn event is a subset, its indicator is a 0-1 function, disjointness is not independence, and OR includes overlap unless stated otherwise.
- Next connectionThe event that did not happen
More context
The portrait diagram reads from the visual event model to exact notation, interpretation checkpoints, and a concise conclusion.

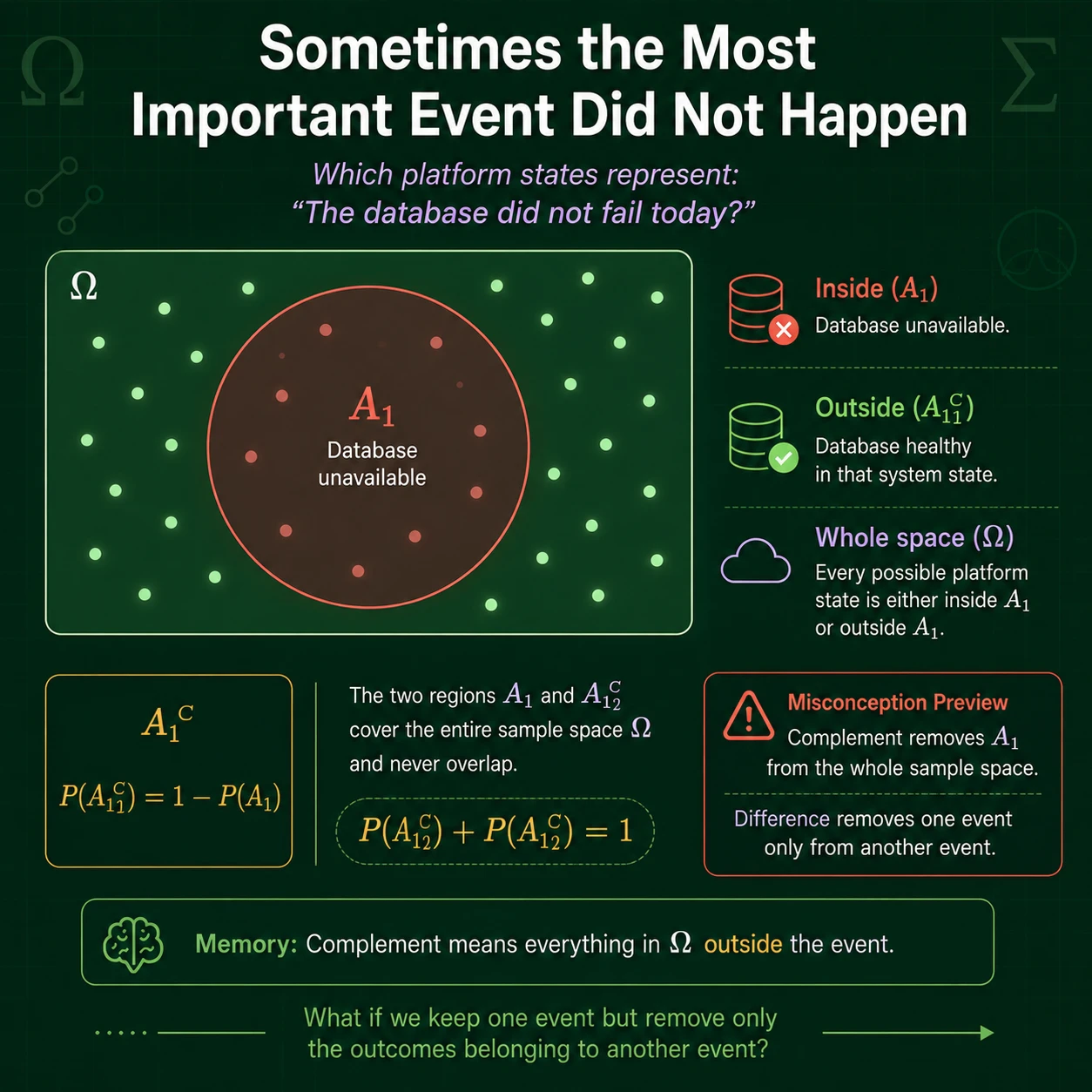

How does a complement complete the sample space?
The complement A^c contains every outcome outside A. Exactly one of A and A^c occurs, so their indicators add to 1 and their probabilities add to 1.
The complement A^c contains every outcome outside A.Exactly one of A and A^c occurs, so their indicators add to 1 and their probabilities add to 1.
- Learning goalExplain event complement and translate between a region, set notation, and an indicator when appropriate.
- Helpful foundationssets and subsets · fractions · basic probability
- Common trapAn event is a subset, its indicator is a 0-1 function, disjointness is not independence, and OR includes overlap unless stated otherwise.
- Next connectionOne dashboard, four mathematical views
More context
The portrait diagram reads from the visual event model to exact notation, interpretation checkpoints, and a concise conclusion.

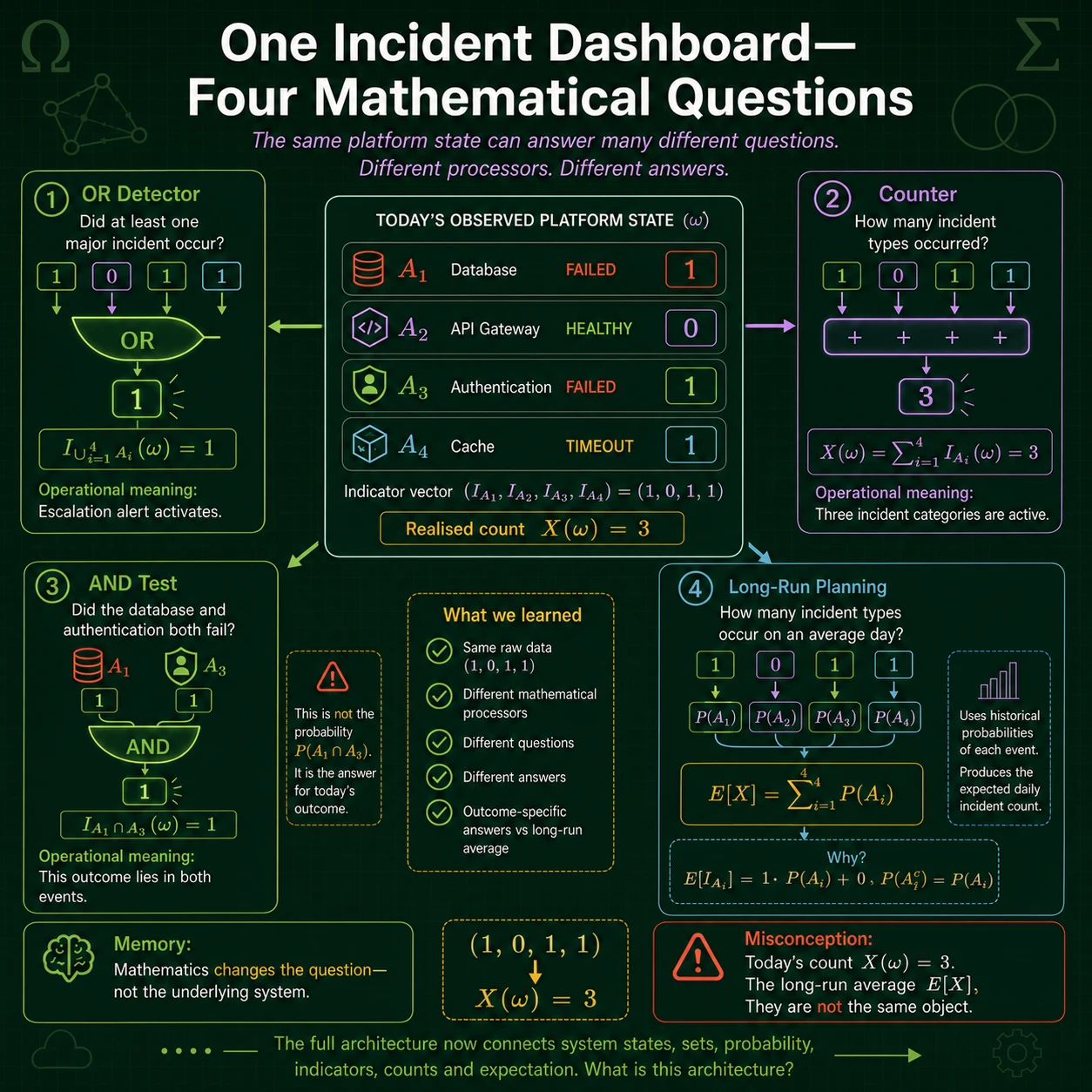

Which mathematical question is the dashboard asking?
The same incident state can be represented by individual indicators, a count, a union indicator, or a probability across repeated states. Choosing the view depends on the question, not on the raw data alone.
- Learning goalExplain incident dashboard views and translate between a region, set notation, and an indicator when appropriate.
- Helpful foundationssets and subsets · fractions · basic probability
- Common trapAn event is a subset, its indicator is a 0-1 function, disjointness is not independence, and OR includes overlap unless stated otherwise.
- Next connectionOR means union
More context
The portrait diagram reads from the visual event model to exact notation, interpretation checkpoints, and a concise conclusion.

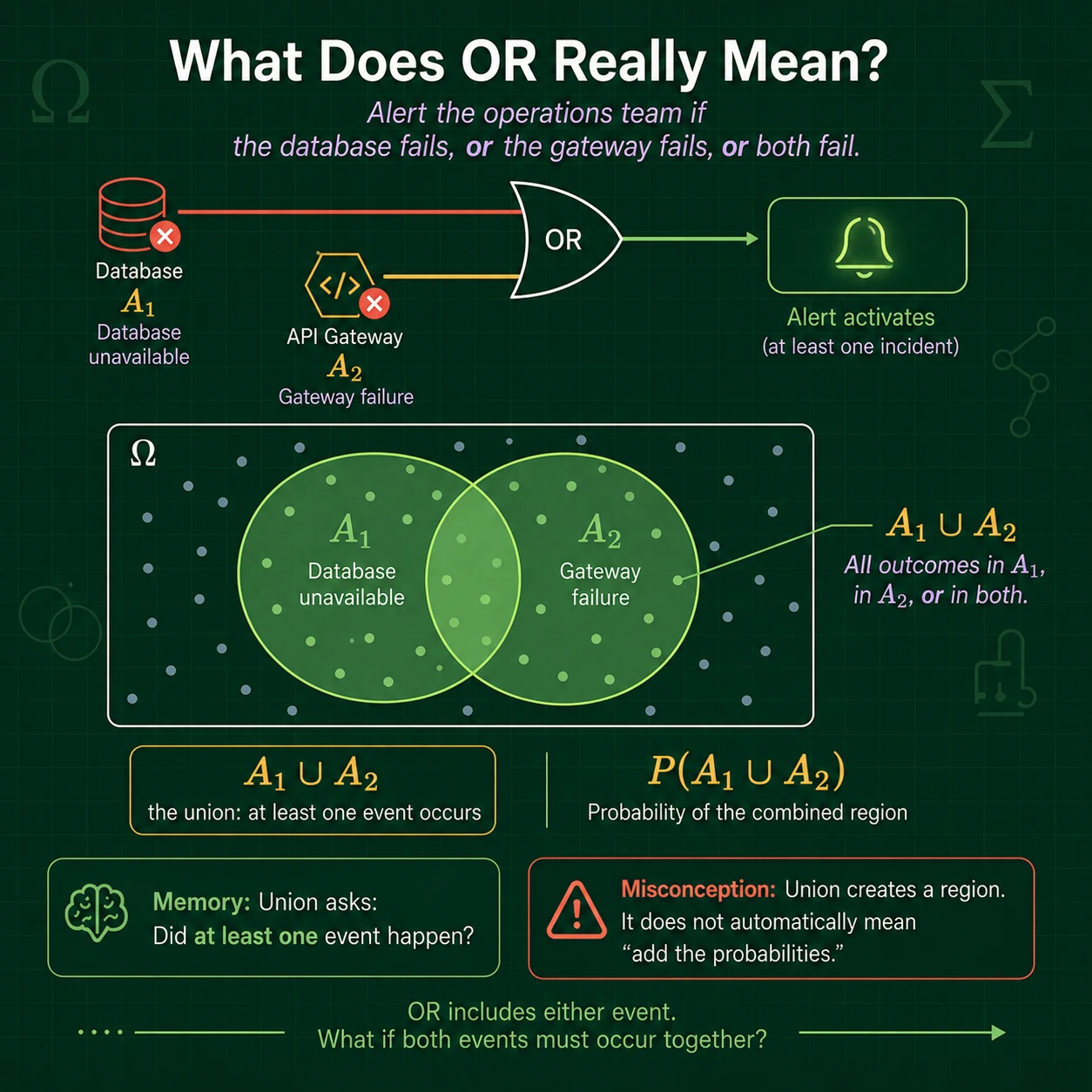

What does OR mean in probability?
A union A union B occurs when A occurs, B occurs, or both occur. The word OR is inclusive unless the problem explicitly says exactly one.
- Learning goalExplain union inclusive or and translate between a region, set notation, and an indicator when appropriate.
- Helpful foundationssets and subsets · fractions · basic probability
- Common trapAn event is a subset, its indicator is a 0-1 function, disjointness is not independence, and OR includes overlap unless stated otherwise.
- Next connectionOverlap must be counted once
More context
The portrait diagram reads from the visual event model to exact notation, interpretation checkpoints, and a concise conclusion.

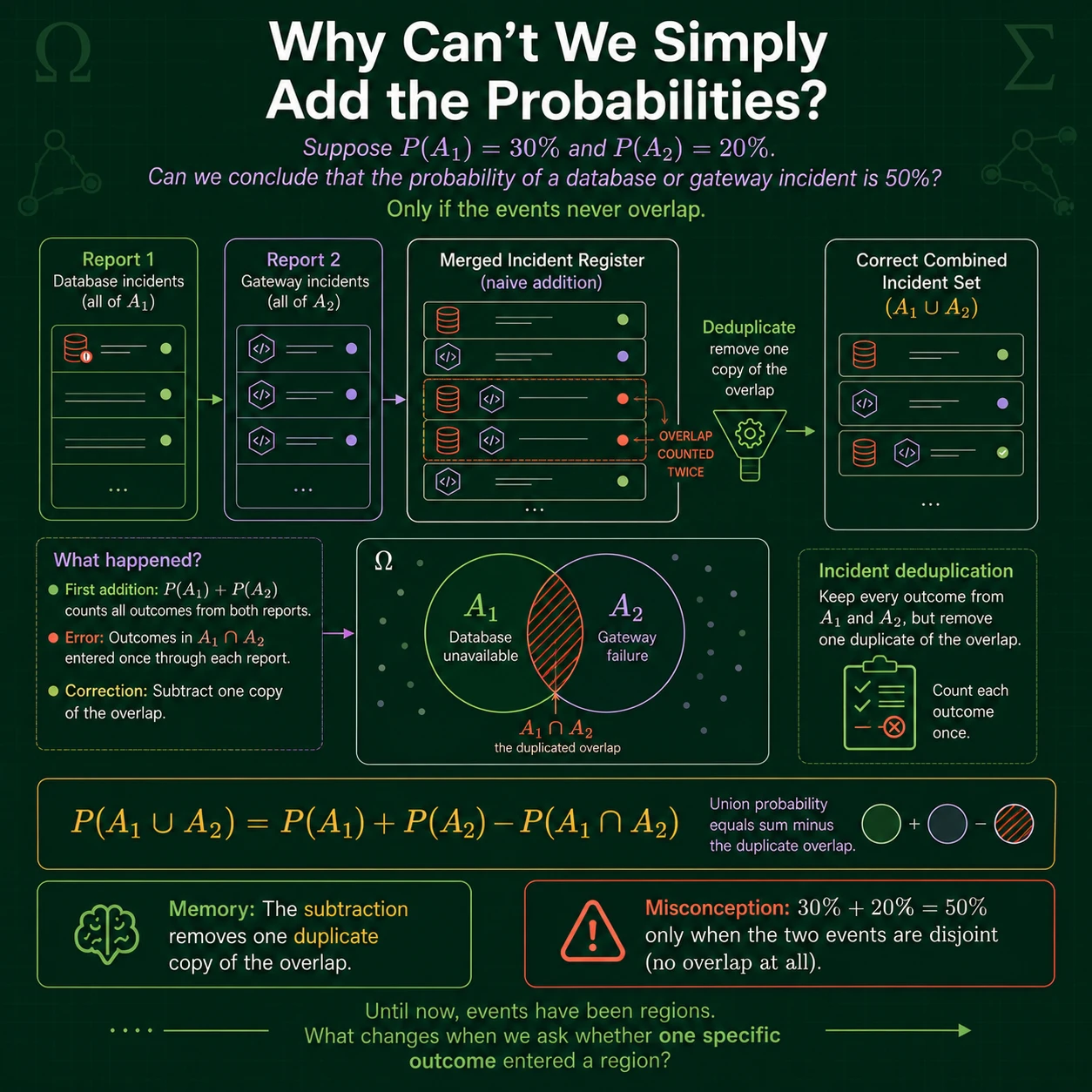

Why can probabilities not always be added directly?
Adding P(A) and P(B) counts their overlap twice. Inclusion-exclusion subtracts one copy: P(A union B) equals P(A) plus P(B) minus P(A intersection B).
Inclusion-exclusion subtracts one copy: P(A union B) equals P(A) plus P(B) minus P(A intersection B).
- Learning goalExplain two event inclusion exclusion and translate between a region, set notation, and an indicator when appropriate.
- Helpful foundationssets and subsets · fractions · basic probability
- Common trapAn event is a subset, its indicator is a 0-1 function, disjointness is not independence, and OR includes overlap unless stated otherwise.
- Next connectionOne big OR needs one indicator
More context
The portrait diagram reads from the visual event model to exact notation, interpretation checkpoints, and a concise conclusion.

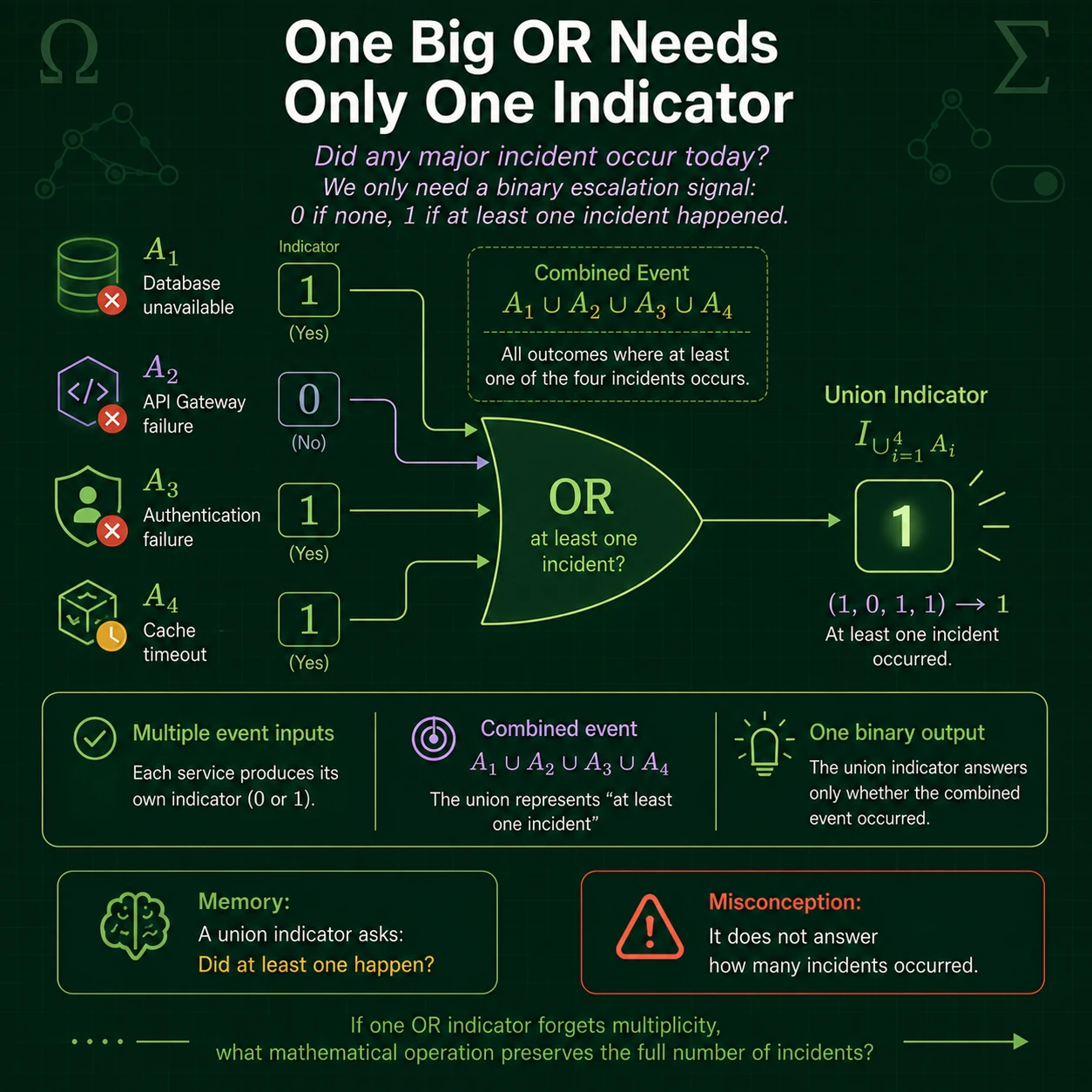

How do many events become one escalation signal?
The indicator of a union returns 1 when at least one event occurs. It does not count how many events occurred; the sum of individual indicators does that.
- Learning goalExplain multi event union indicator and translate between a region, set notation, and an indicator when appropriate.
- Helpful foundationssets and subsets · fractions · basic probability
- Common trapAn event is a subset, its indicator is a 0-1 function, disjointness is not independence, and OR includes overlap unless stated otherwise.
- Next connectionCircles reveal probability regions
More context
The portrait diagram reads from the visual event model to exact notation, interpretation checkpoints, and a concise conclusion.

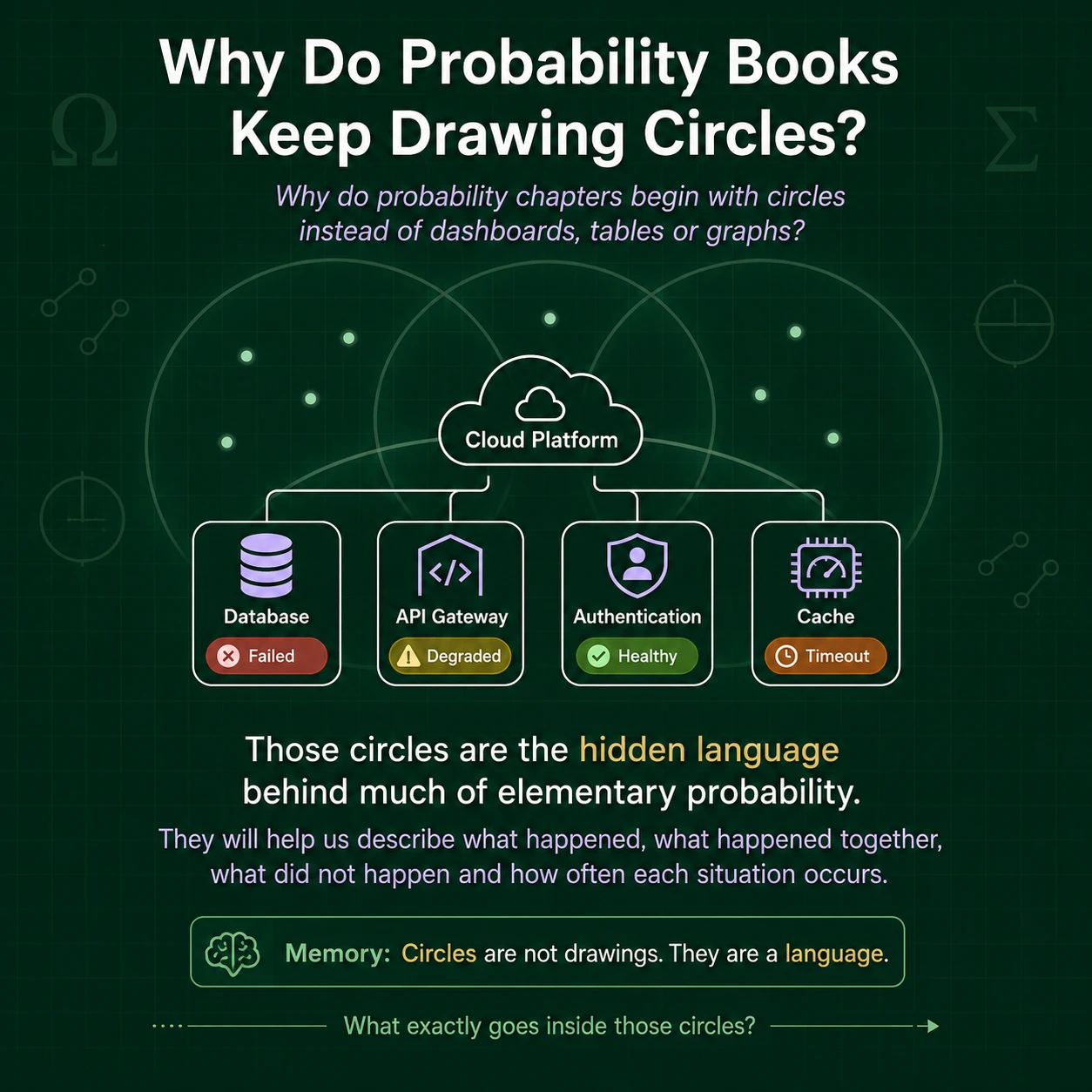

Why do probability books draw circles?
Venn circles make event regions visible: union means either circle, intersection means overlap, complement means outside a circle, and difference means one circle without the overlap.
- Learning goalExplain venn region reading and translate between a region, set notation, and an indicator when appropriate.
- Helpful foundationssets and subsets · fractions · basic probability
- Common trapAn event is a subset, its indicator is a 0-1 function, disjointness is not independence, and OR includes overlap unless stated otherwise.
- Next connectionAND means intersection
More context
The portrait diagram reads from the visual event model to exact notation, interpretation checkpoints, and a concise conclusion.

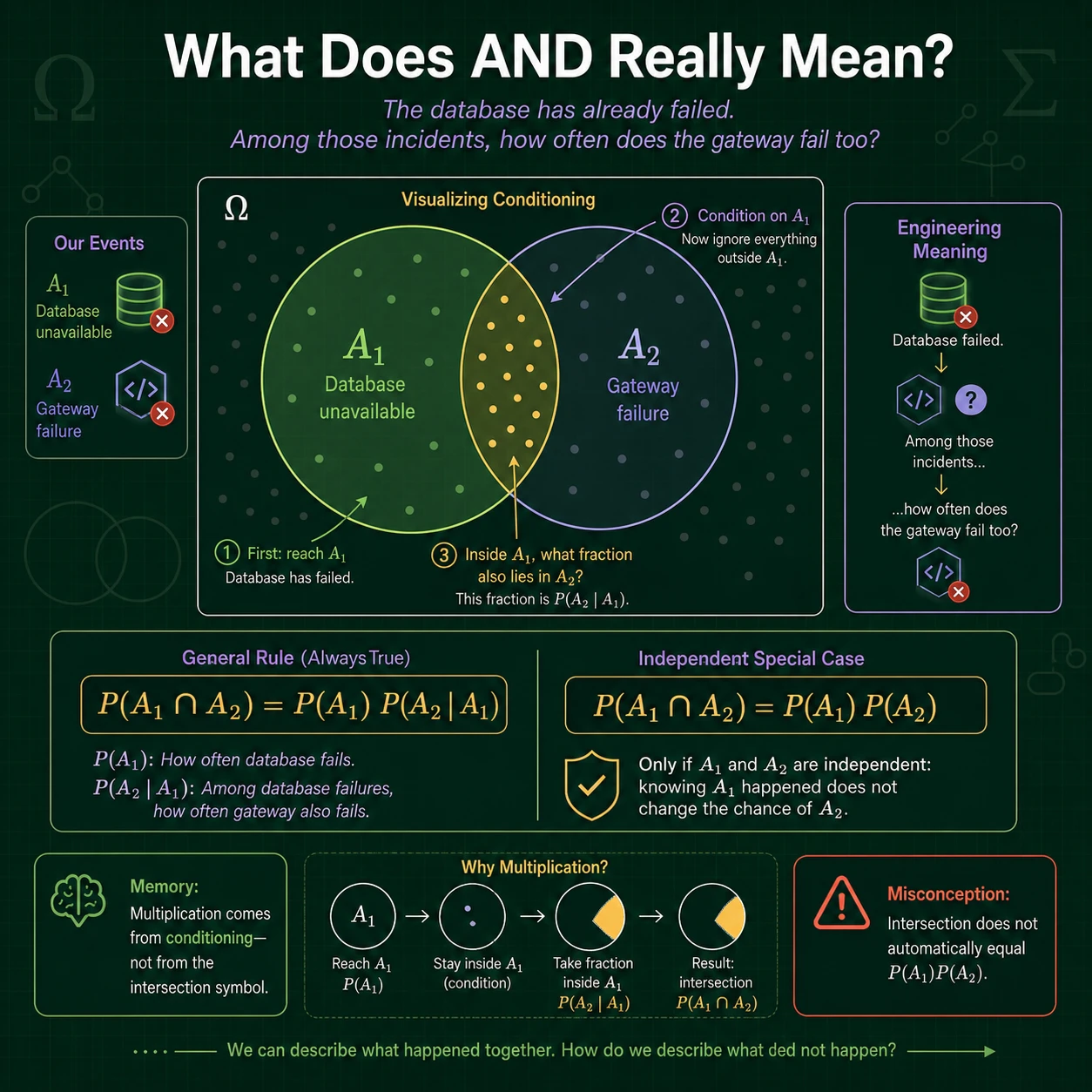

What does AND mean, and how does conditioning change the view?
An intersection A intersection B is the overlap where both events occur. Conditioning on A restricts the reference space to A, so P(B given A) is the fraction of A occupied by the overlap, provided P(A) is positive.
- Learning goalExplain intersection and conditioning and translate between a region, set notation, and an indicator when appropriate.
- Helpful foundationssets and subsets · fractions · basic probability
- Common trapAn event is a subset, its indicator is a 0-1 function, disjointness is not independence, and OR includes overlap unless stated otherwise.
- Next connectionIndependence changes products, not sums
More context
The portrait diagram reads from the visual event model to exact notation, interpretation checkpoints, and a concise conclusion.

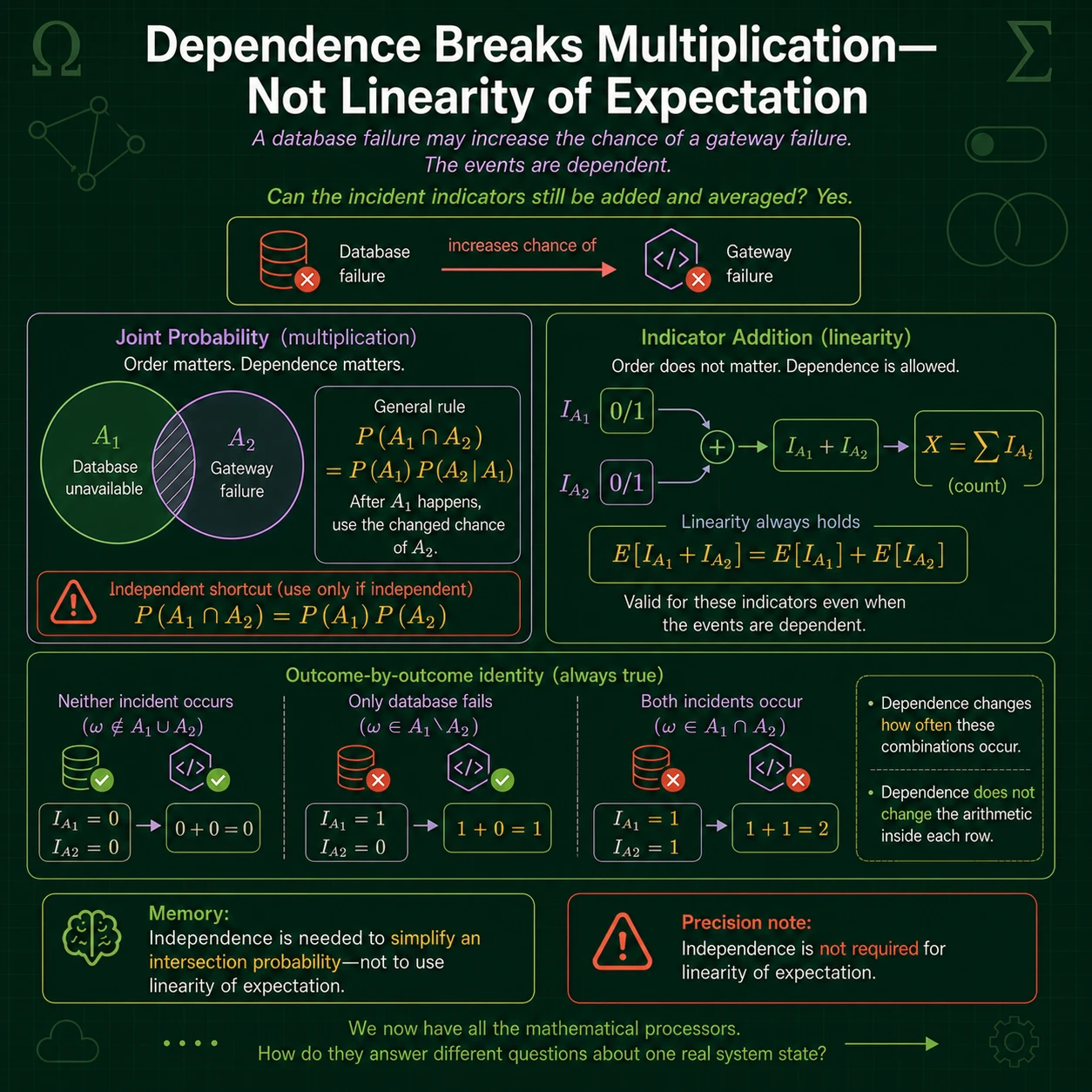

Where does independence matter?
Linearity always gives E[I_A plus I_B] equals P(A) plus P(B). Independence is instead relevant to products: when A and B are independent, P(A intersection B) equals P(A)P(B). Disjoint nonempty events are not independent.
Linearity always gives E[I_A plus I_B] equals P(A) plus P(B).Independence is instead relevant to products: when A and B are independent, P(A intersection B) equals P(A)P(B).
- Learning goalExplain independence linearity disjointness and translate between a region, set notation, and an indicator when appropriate.
- Helpful foundationssets and subsets · fractions · basic probability
- Common trapAn event is a subset, its indicator is a 0-1 function, disjointness is not independence, and OR includes overlap unless stated otherwise.
- Next connectionDifferent notation, same count
More context
The portrait diagram reads from the visual event model to exact notation, interpretation checkpoints, and a concise conclusion.

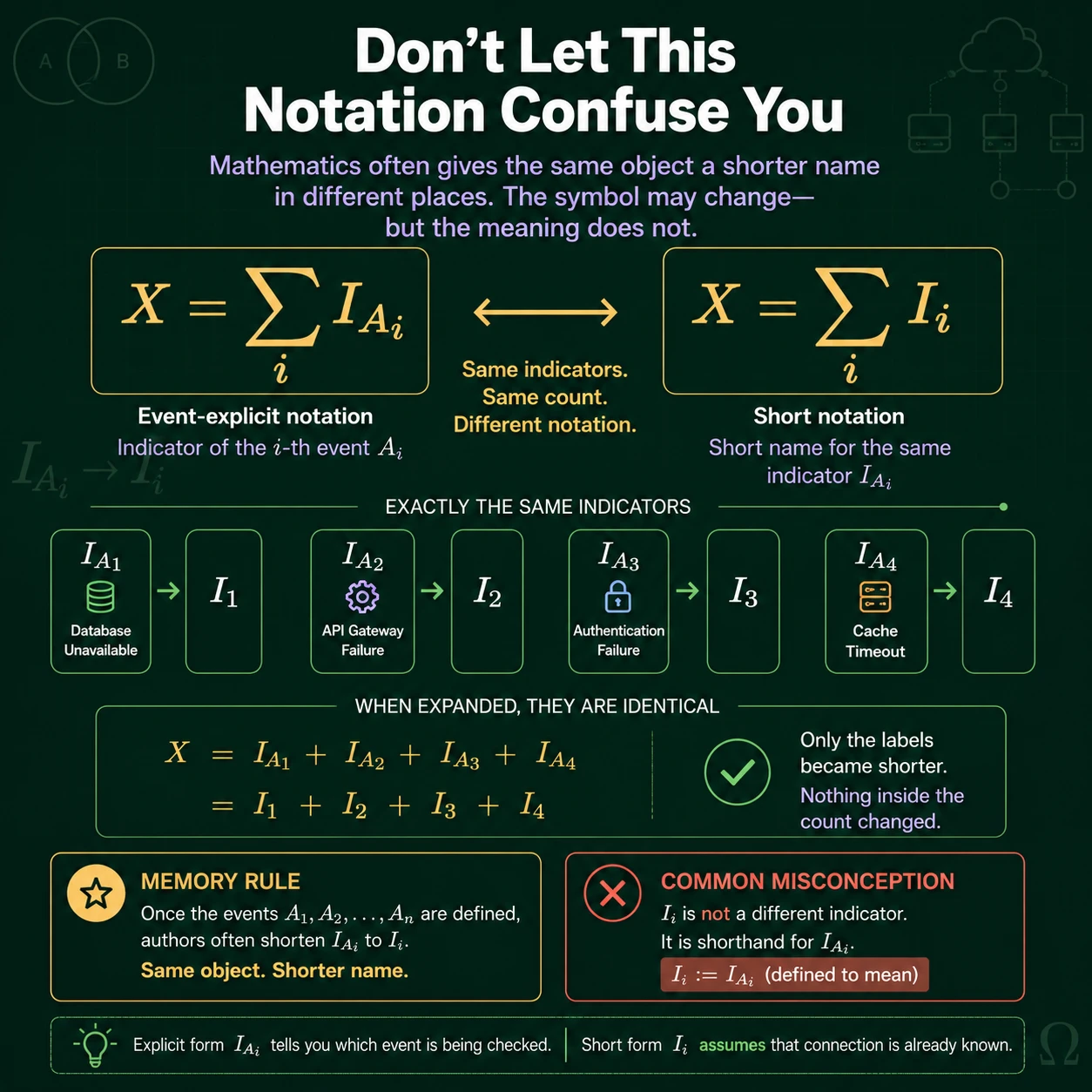

Why can the same count have two formulas?
A long sum of named indicators and a compact indexed sum can represent the same count. The index is only a naming shortcut; each event and its indicator must still be defined.
- Learning goalExplain indicator sum notation and translate between a region, set notation, and an indicator when appropriate.
- Helpful foundationssets and subsets · fractions · basic probability
- Common trapAn event is a subset, its indicator is a 0-1 function, disjointness is not independence, and OR includes overlap unless stated otherwise.
- Next connectionDaily counts become a long-run average
More context
The portrait diagram reads from the visual event model to exact notation, interpretation checkpoints, and a concise conclusion.

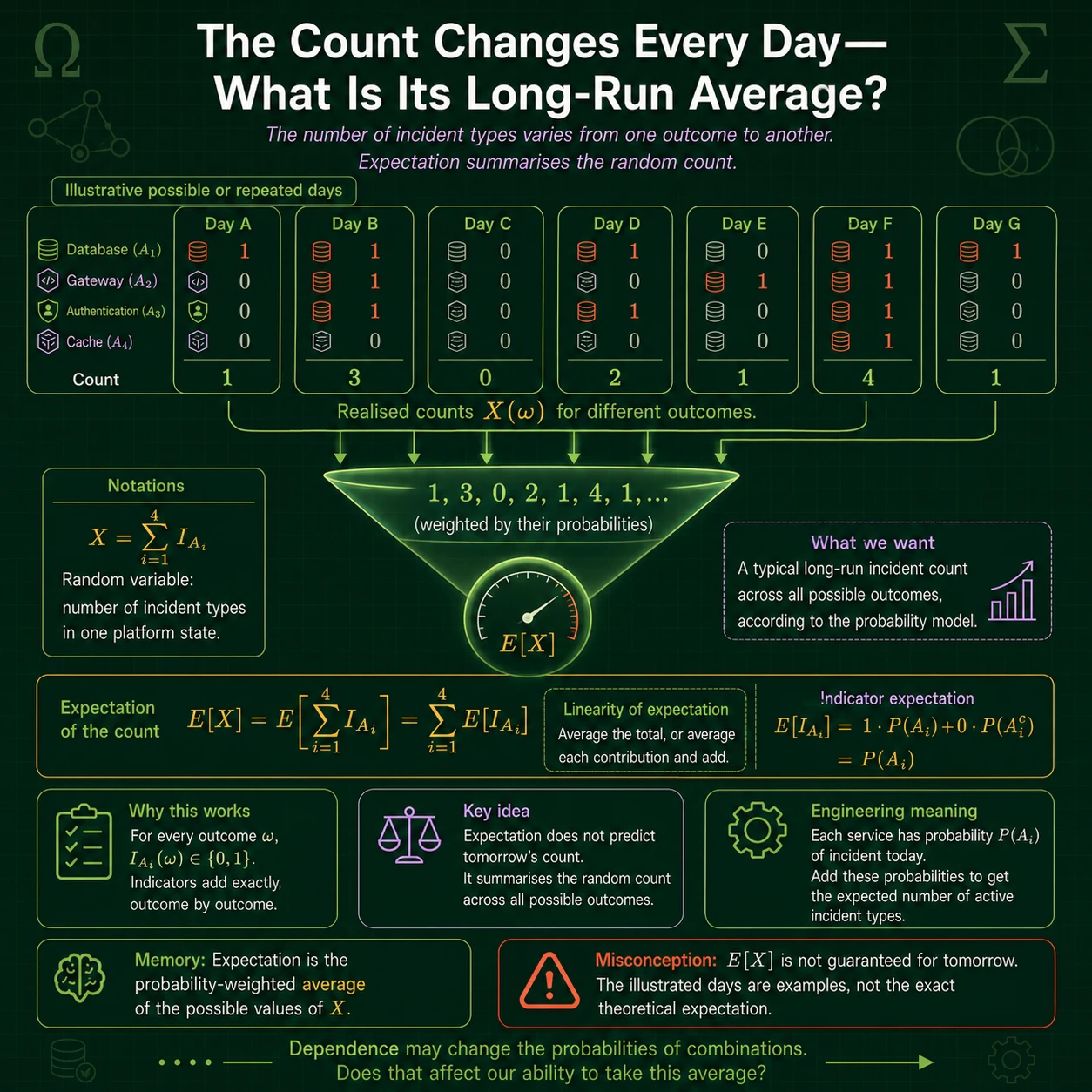

What does the count average toward?
If X is the number of listed events occurring in a trial, then X is a sum of indicators and E[X] is the sum of their probabilities. This expectation is the long-run average count under repeated comparable trials; independence is not required.
- Learning goalExplain expected event count and translate between a region, set notation, and an indicator when appropriate.
- Helpful foundationssets and subsets · fractions · basic probability
- Common trapAn event is a subset, its indicator is a 0-1 function, disjointness is not independence, and OR includes overlap unless stated otherwise.
- Next connectionUse regions and indicators to solve a new event problem
More context
The portrait diagram reads from the visual event model to exact notation, interpretation checkpoints, and a concise conclusion.
