VISUAL LESSON · 20 PICTURES

Know Statistics Through Its Branches

How do the major branches of statistics connect one dataset to a trustworthy decision?

MODULE 4 / 6LESSON 22 / 46PICTURE 1 / 20
Progress stays on this device · no login
BEFORE THE FIRST PICTURE

How this lesson unfolds.

Begin with Where do all the branches of statistics fit? The sequence then connects Distributions turn values into a model and builds toward Reinforcement learning closes the loop.

Picture 1 of 20 · tap to inspect in full resolution
01

Where do all the branches of statistics fit?

INTUITION

Statistics begins by describing observed data, uses probability to model uncertainty, learns from samples, builds models of patterns and time, and supports decisions. A branch is a tool family, not a separate subject.

  • Learning goalExplain how branch map contributes to a statistical workflow.
  • Helpful foundationsdata and variables · mean and variation · basic probability
  • Common trapStatistical branches are connected tools chosen for a question and data structure, not isolated formula lists.
  • Next connectionDistributions turn values into a model
Picture 2 of 20 · tap to inspect in full resolution

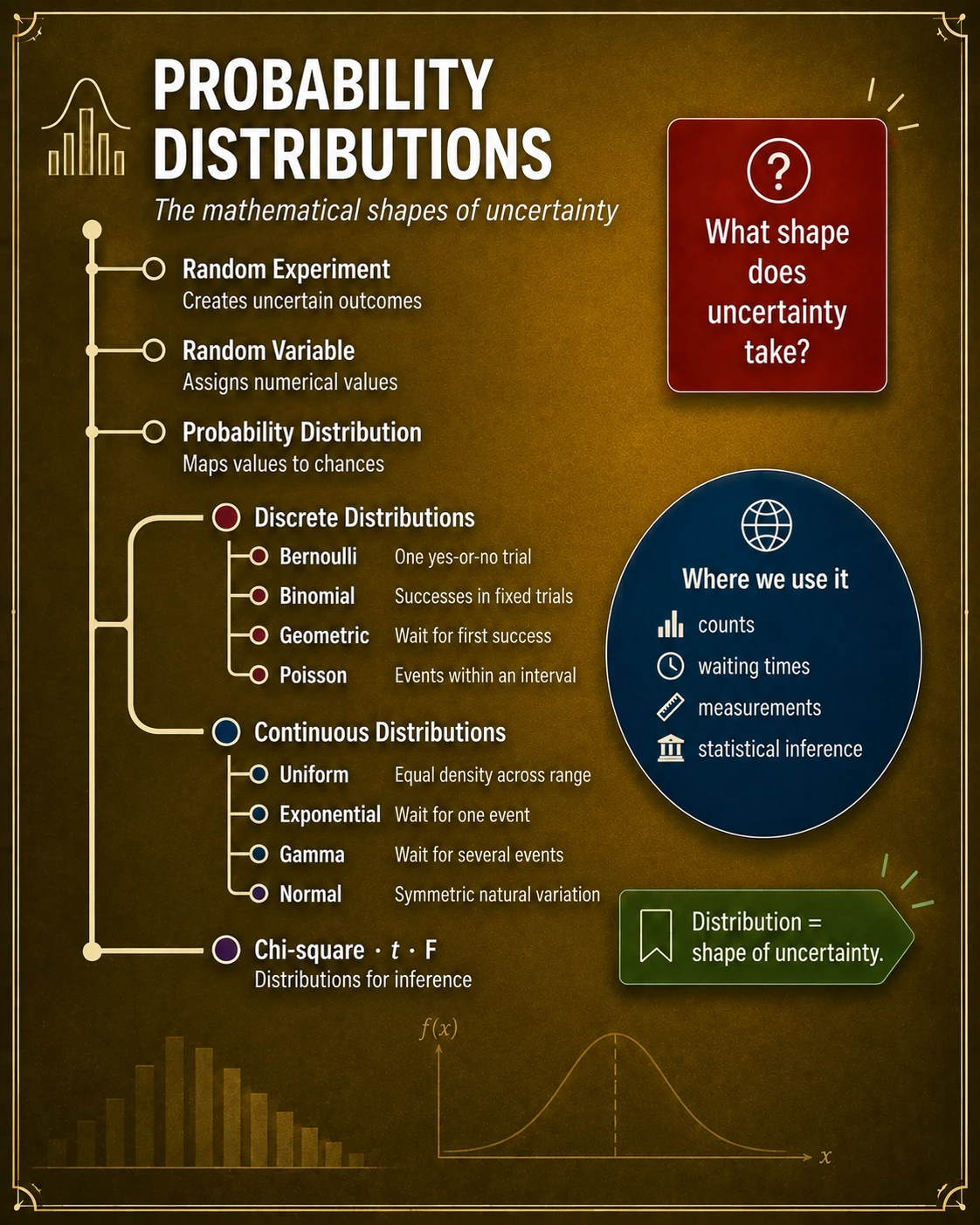

02

What shape does uncertainty take?

INTUITION

A probability distribution assigns probability to possible values. Discrete models describe countable outcomes; continuous models use density, whose area over an interval gives probability.

  • Learning goalExplain how probability distributions contributes to a statistical workflow.
  • Helpful foundationsdata and variables · mean and variation · basic probability
  • Common trapStatistical branches are connected tools chosen for a question and data structure, not isolated formula lists.
  • Next connectionProbability bounds guarantee what averages can do
Picture 3 of 20 · tap to inspect in full resolution
03

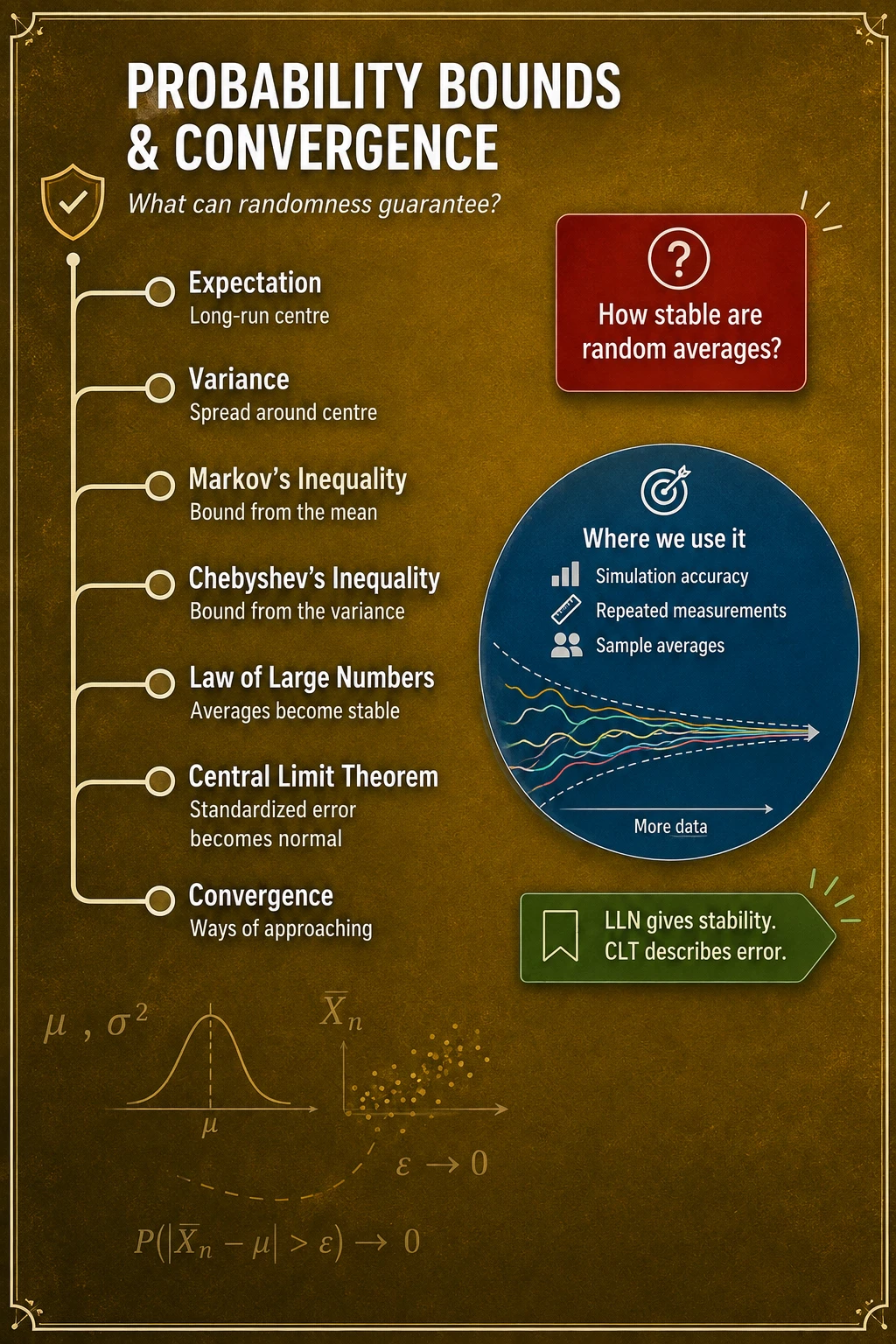

What can probability guarantee without exact prediction?

INTUITION

Expectation locates a long-run center, variance measures spread, Markov and Chebyshev bounds limit tail probability, and laws of large numbers explain when sample averages approach a target.

  • Learning goalExplain how bounds convergence contributes to a statistical workflow.
  • Helpful foundationsdata and variables · mean and variation · basic probability
  • Common trapStatistical branches are connected tools chosen for a question and data structure, not isolated formula lists.
  • Next connectionSampling connects a population to observed data
Picture 4 of 20 · tap to inspect in full resolution

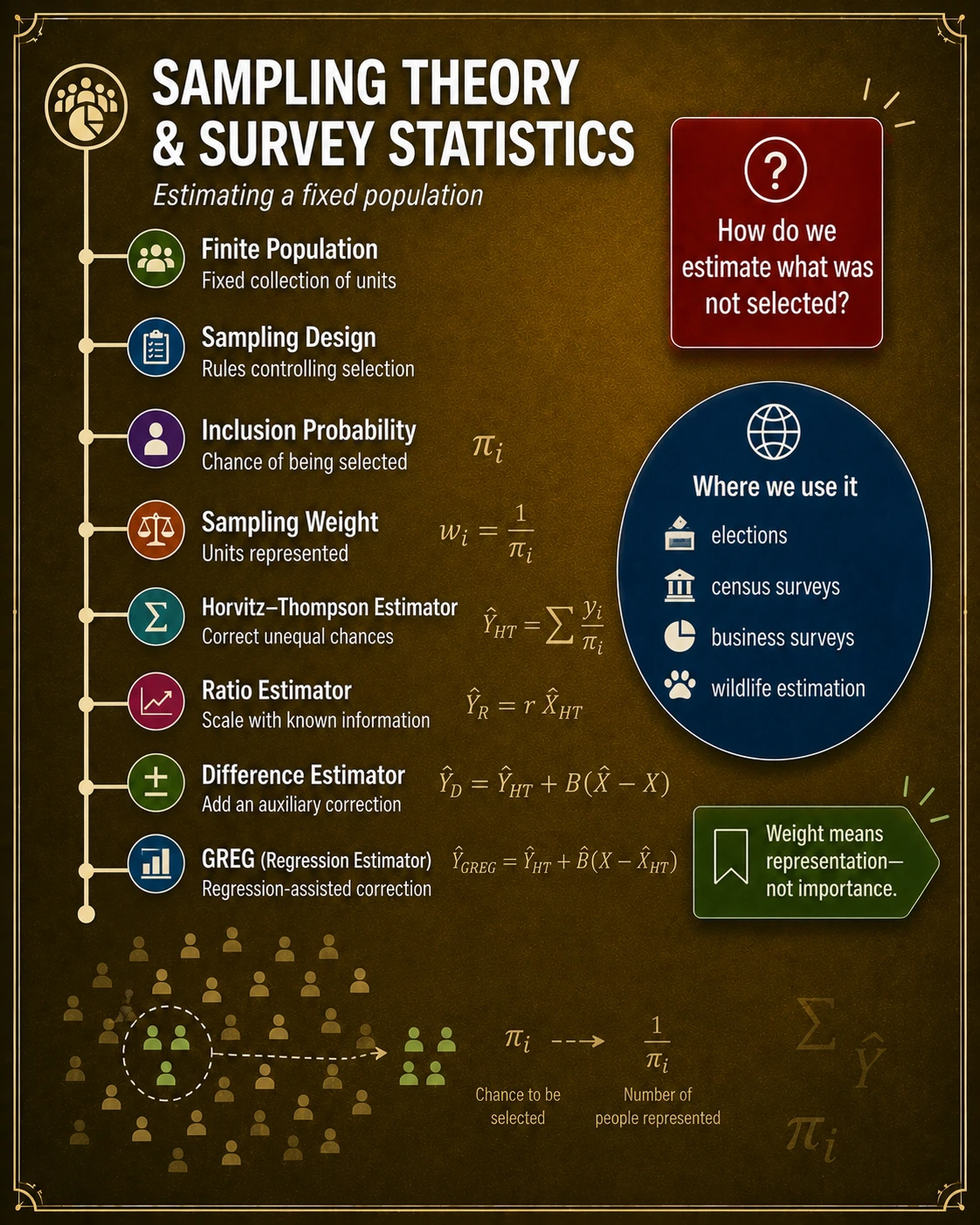

04

How can a sample represent a population?

INTUITION

Define the target population, choose a sampling frame and probability design, record inclusion probabilities, then weight observations when selection chances differ. Representation is created by design, not by sample size alone.

  • Learning goalExplain how sampling surveys contributes to a statistical workflow.
  • Helpful foundationsdata and variables · mean and variation · basic probability
  • Common trapStatistical branches are connected tools chosen for a question and data structure, not isolated formula lists.
  • Next connectionClassical inference learns from sampling variation
Picture 5 of 20 · tap to inspect in full resolution

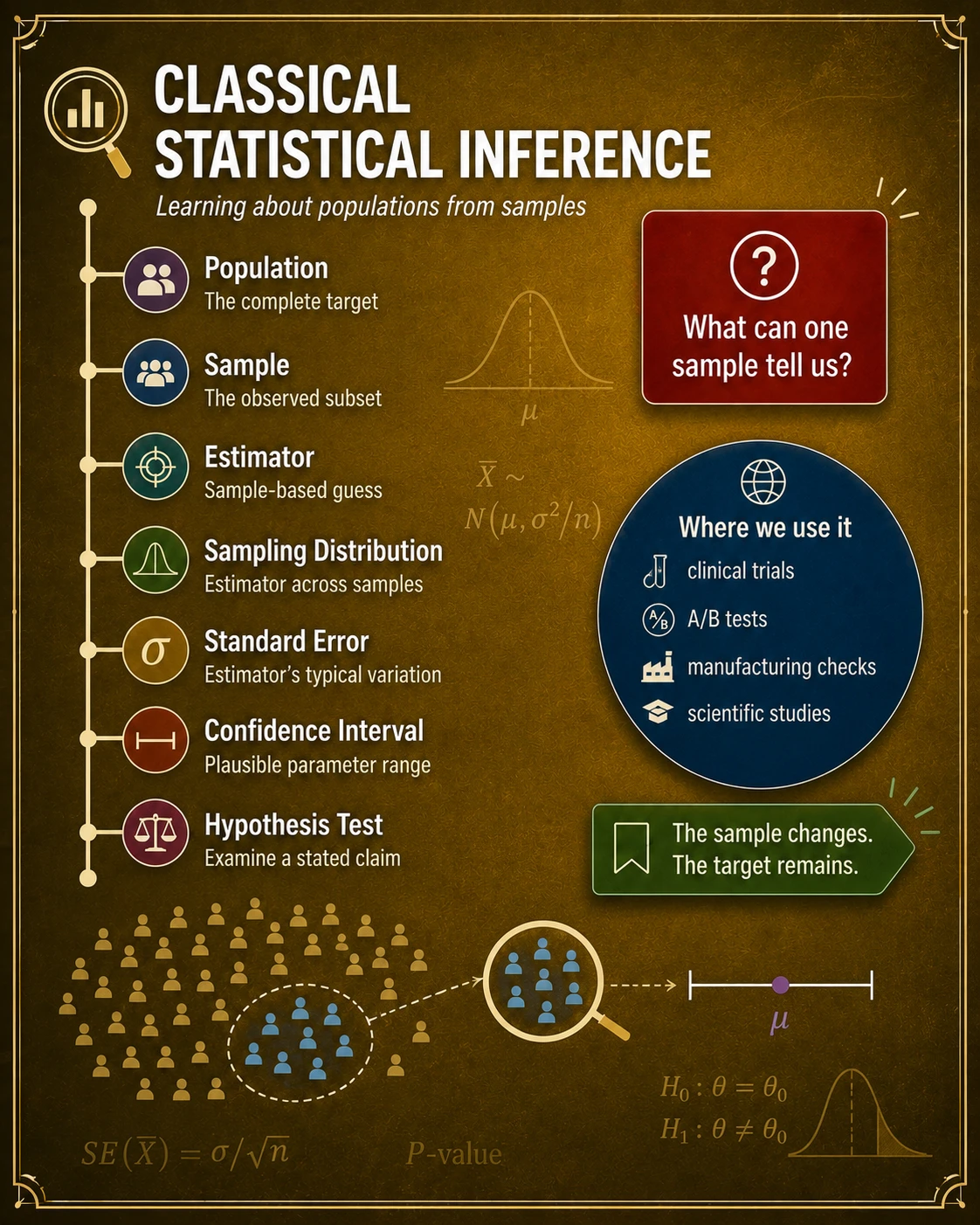

05

How does one sample support a population claim?

INTUITION

A statistic estimates an unknown parameter. Its sampling distribution supplies standard error, confidence intervals, and hypothesis tests that quantify what repeated valid samples could change.

  • Learning goalExplain how classical inference contributes to a statistical workflow.
  • Helpful foundationsdata and variables · mean and variation · basic probability
  • Common trapStatistical branches are connected tools chosen for a question and data structure, not isolated formula lists.
  • Next connectionBayesian inference updates uncertainty
Picture 6 of 20 · tap to inspect in full resolution
06

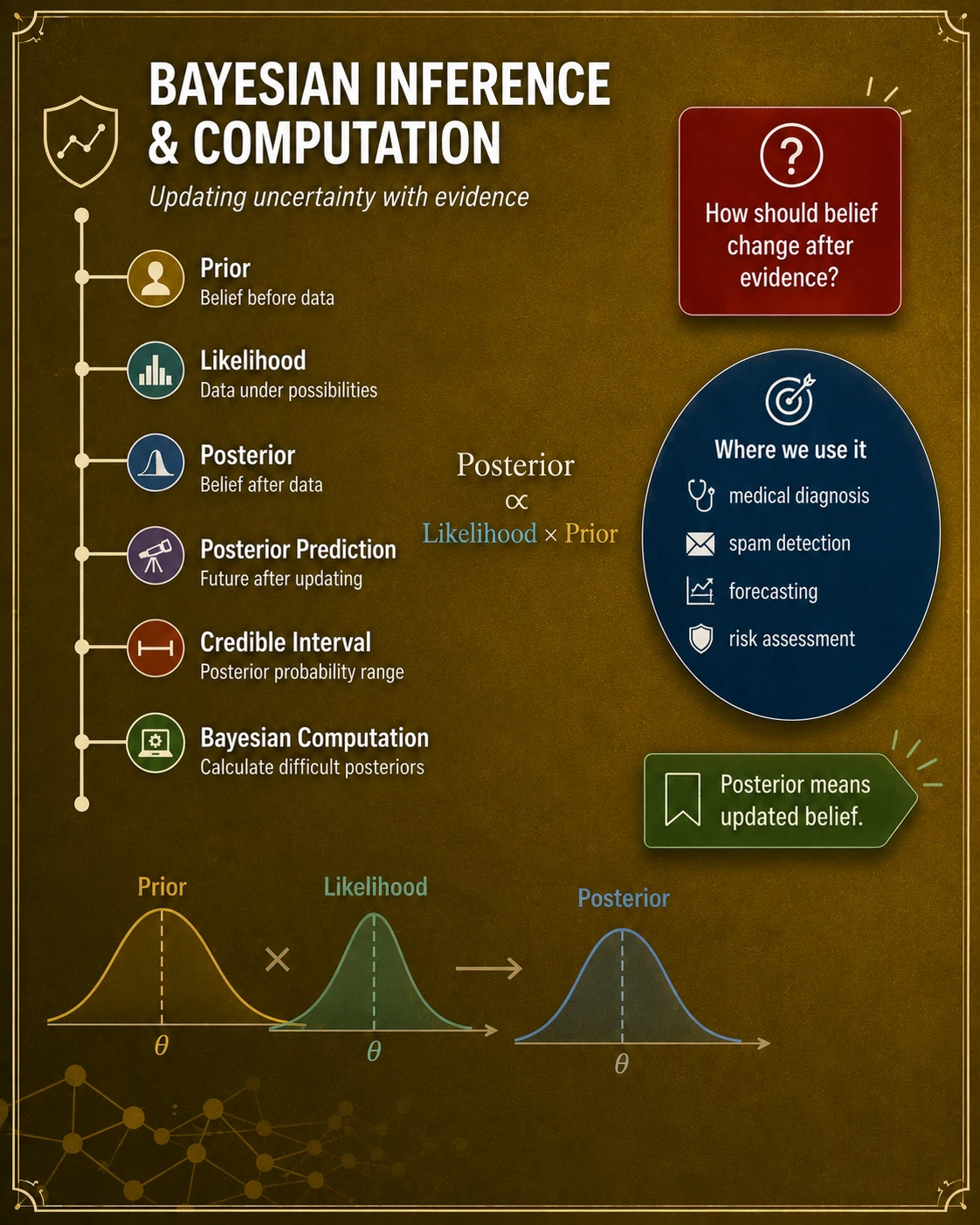

How does evidence revise what we believe?

INTUITION

Bayesian inference combines a prior distribution with the likelihood of observed data to form a posterior distribution. Posterior predictions and credible intervals express uncertainty after the update.

  • Learning goalExplain how bayesian inference contributes to a statistical workflow.
  • Helpful foundationsdata and variables · mean and variation · basic probability
  • Common trapStatistical branches are connected tools chosen for a question and data structure, not isolated formula lists.
  • Next connectionBootstrap reuses the sample to estimate uncertainty
Picture 7 of 20 · tap to inspect in full resolution
07

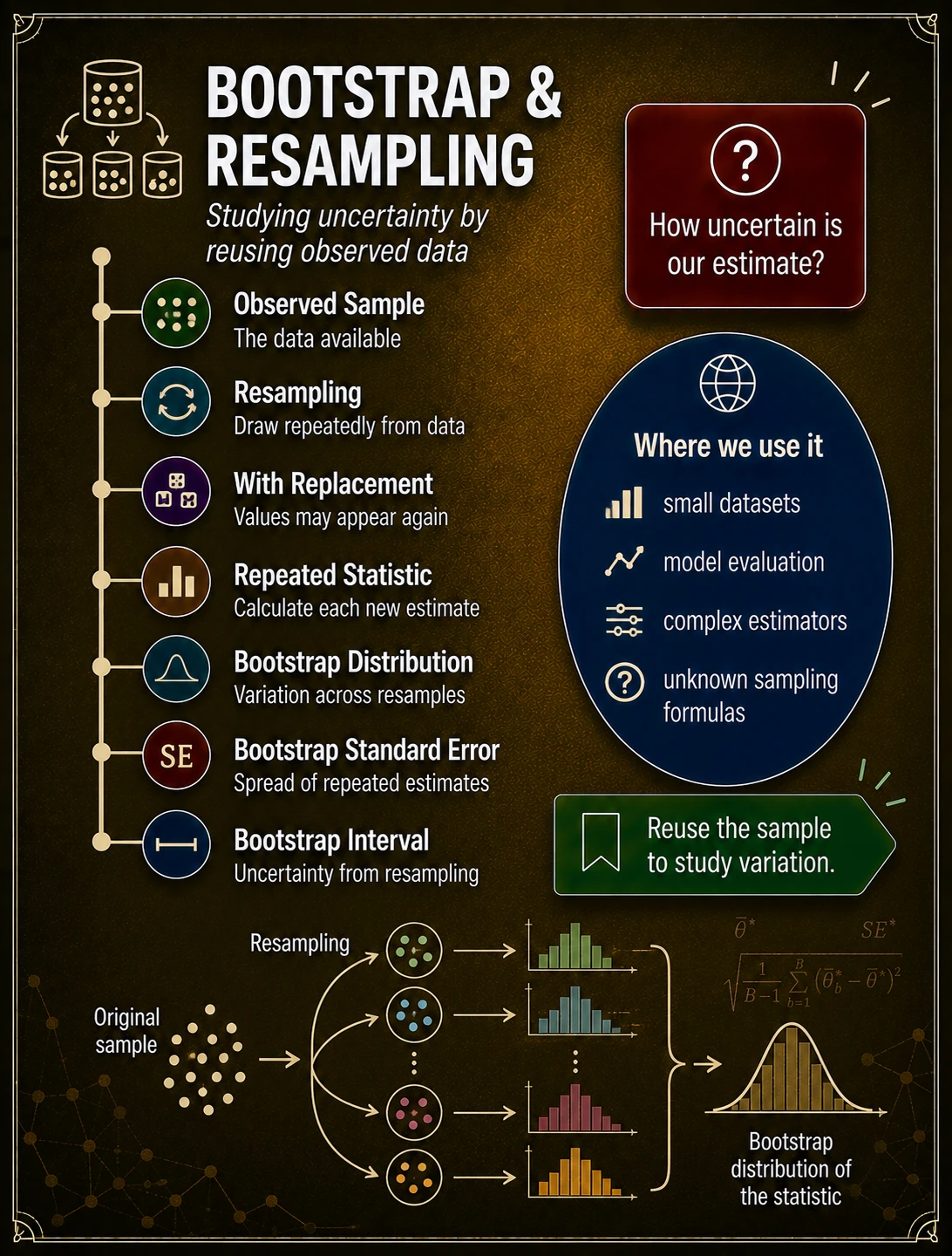

What if a standard-error formula is difficult?

INTUITION

Bootstrap resampling repeatedly draws samples with replacement from the observed data, recomputes the statistic, and uses the resulting empirical distribution to estimate bias, standard error, or an interval.

  • Learning goalExplain how bootstrap contributes to a statistical workflow.
  • Helpful foundationsdata and variables · mean and variation · basic probability
  • Common trapStatistical branches are connected tools chosen for a question and data structure, not isolated formula lists.
  • Next connectionRegression links predictors to an outcome
Picture 8 of 20 · tap to inspect in full resolution
08

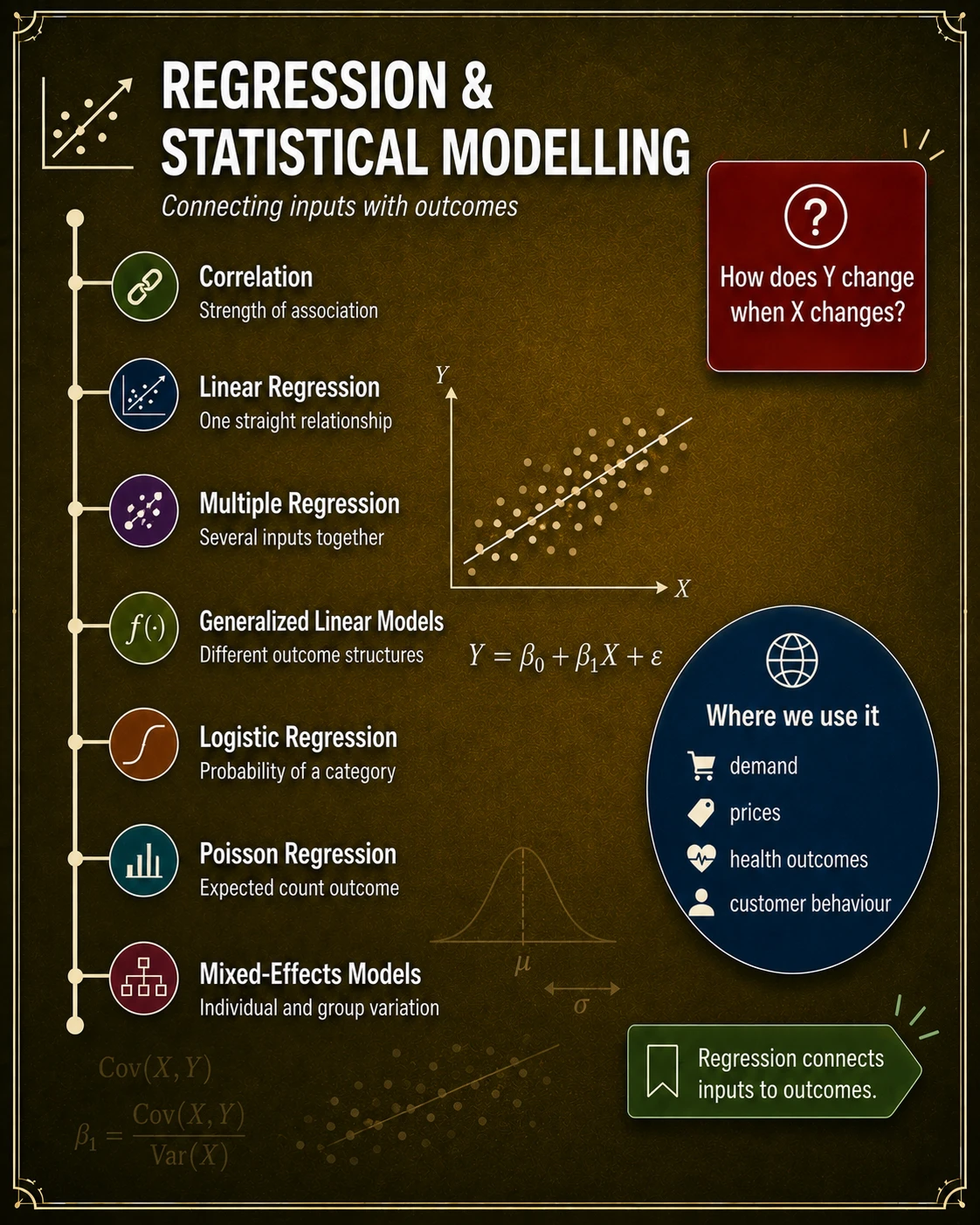

How do inputs relate to an outcome?

INTUITION

Regression models a conditional outcome from predictors. Linear, multiple, logistic, count, and mixed-effects models answer different questions because outcome type and dependence structure differ.

  • Learning goalExplain how regression contributes to a statistical workflow.
  • Helpful foundationsdata and variables · mean and variation · basic probability
  • Common trapStatistical branches are connected tools chosen for a question and data structure, not isolated formula lists.
  • Next connectionMachine learning tests whether patterns generalize

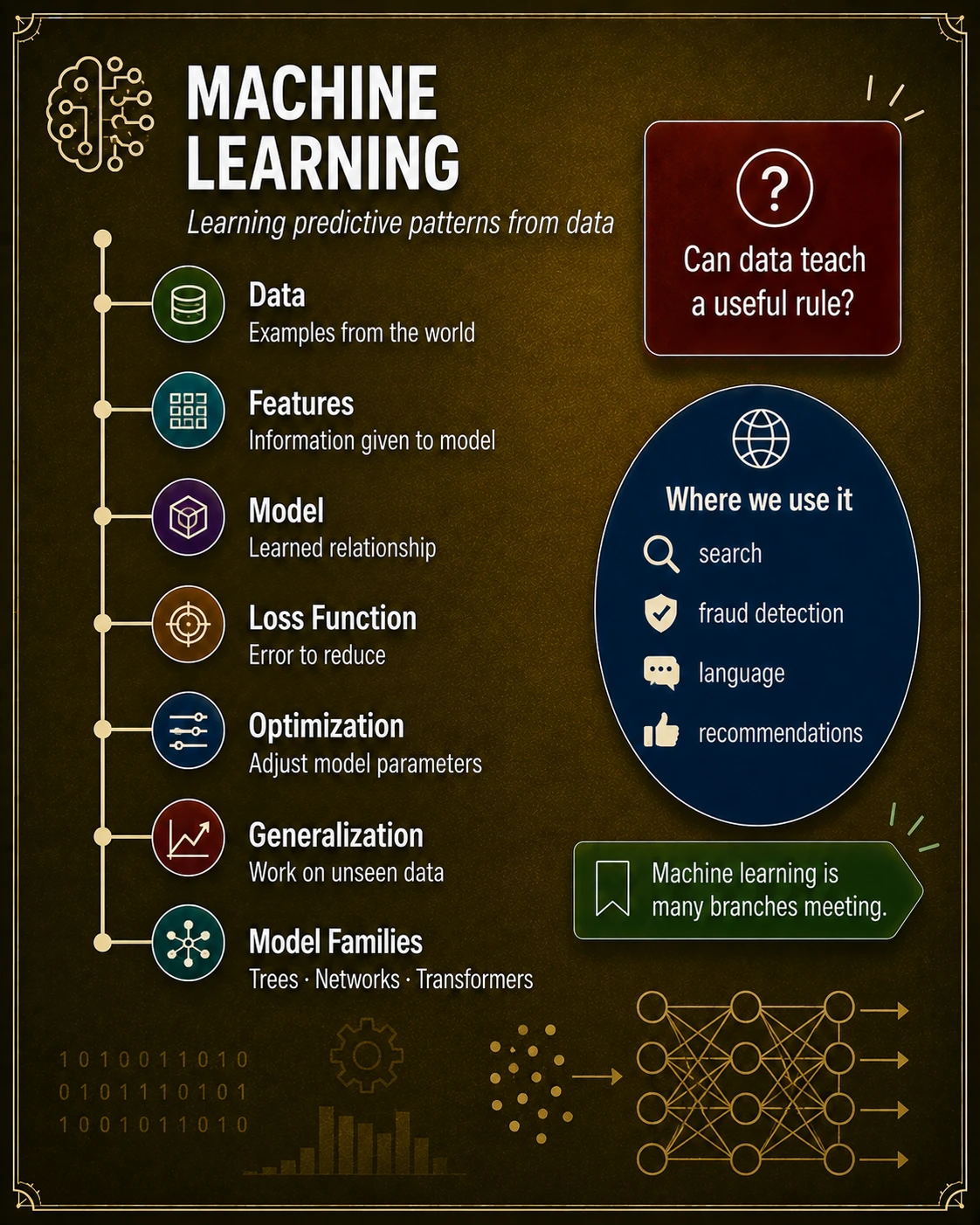

Picture 9 of 20 · tap to inspect in full resolution
09

Can a learned pattern work on unseen data?

INTUITION

Machine learning maps features to predictions by minimizing a loss. Train, validation, and test roles must be separated; performance on unseen data, not training fit, measures generalization.

  • Learning goalExplain how machine learning contributes to a statistical workflow.
  • Helpful foundationsdata and variables · mean and variation · basic probability
  • Common trapStatistical branches are connected tools chosen for a question and data structure, not isolated formula lists.
  • Next connectionTime-series analysis respects order
Picture 10 of 20 · tap to inspect in full resolution

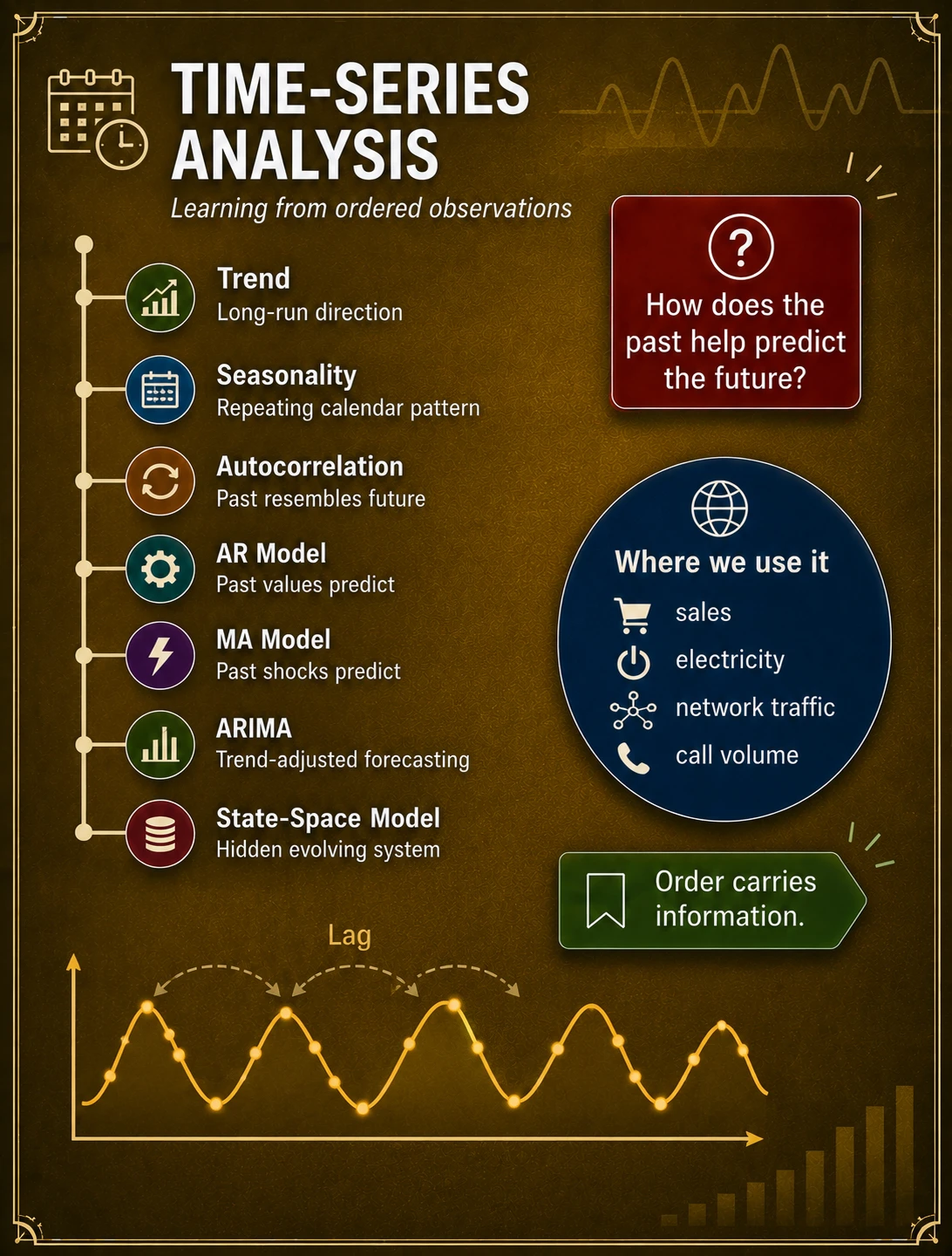

10

What changes when observations arrive through time?

INTUITION

Time-series data can contain trend, seasonality, autocorrelation, and shocks. Models such as AR, MA, ARIMA, and state-space systems use temporal order rather than treating observations as exchangeable.

  • Learning goalExplain how time series contributes to a statistical workflow.
  • Helpful foundationsdata and variables · mean and variation · basic probability
  • Common trapStatistical branches are connected tools chosen for a question and data structure, not isolated formula lists.
  • Next connectionA stochastic process is a random path
Picture 11 of 20 · tap to inspect in full resolution
11

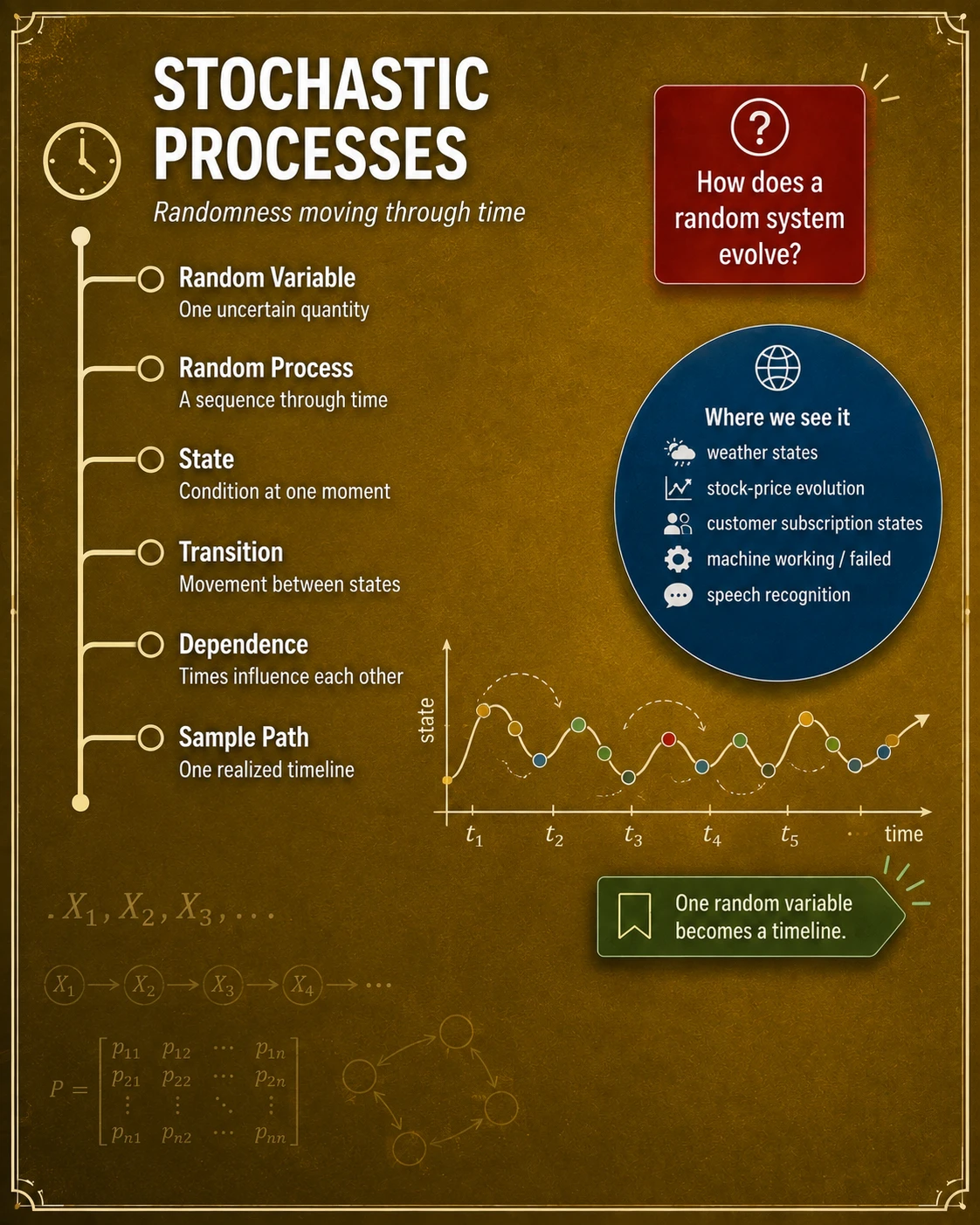

How do random variables evolve over time?

INTUITION

A stochastic process is a collection of random variables indexed by time or space. Its state, transition rule, dependence, and sample paths describe both what can occur and how trajectories unfold.

  • Learning goalExplain how stochastic processes contributes to a statistical workflow.
  • Helpful foundationsdata and variables · mean and variation · basic probability
  • Common trapStatistical branches are connected tools chosen for a question and data structure, not isolated formula lists.
  • Next connectionContinuous-time models track every instant
Picture 12 of 20 · tap to inspect in full resolution

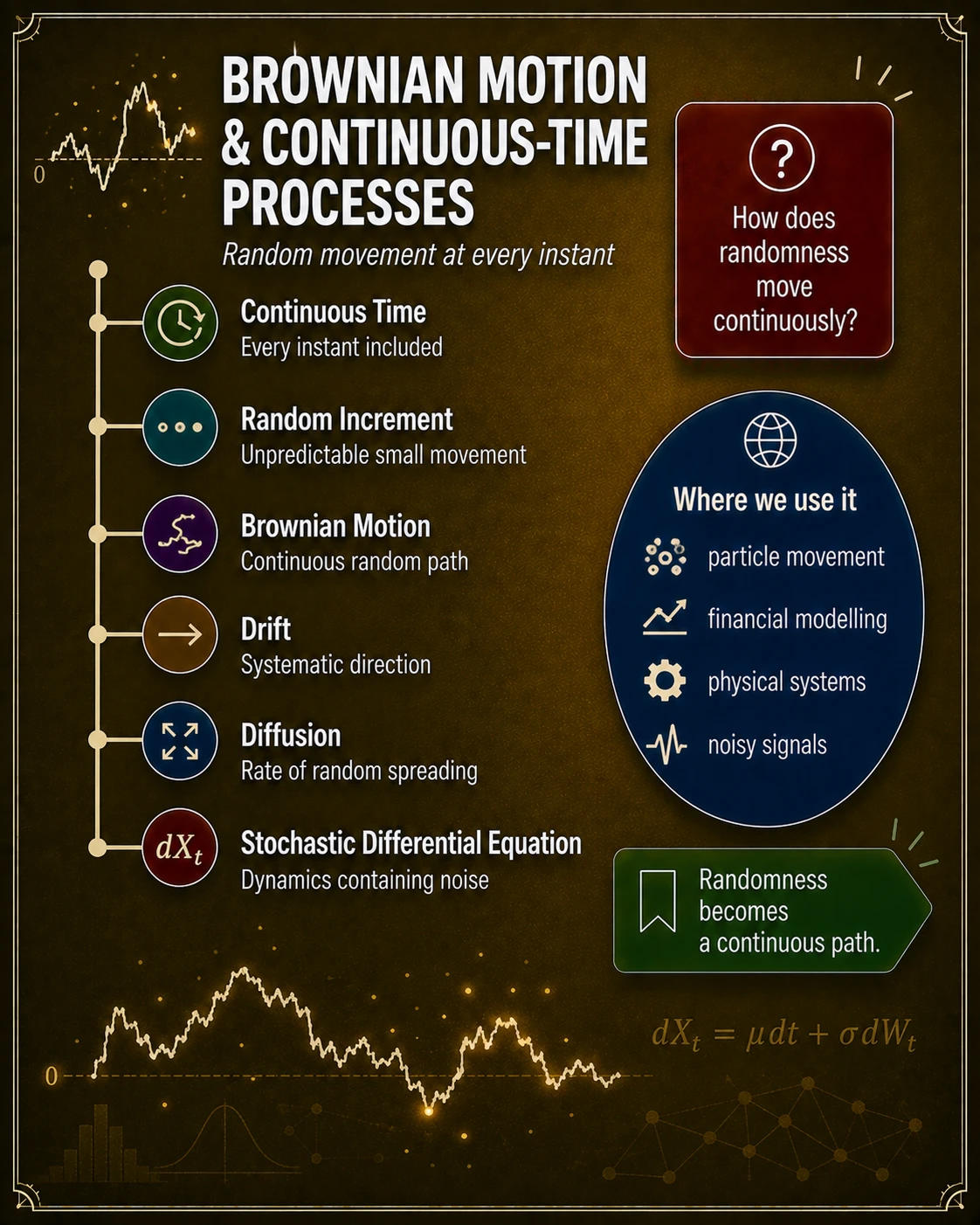

12

How does randomness move over time?

INTUITION

Brownian motion has continuous paths, independent Gaussian increments, and variance proportional to elapsed time. Adding drift and diffusion produces stochastic differential models used for noisy evolving systems.

  • Learning goalExplain how continuous time contributes to a statistical workflow.
  • Helpful foundationsdata and variables · mean and variation · basic probability
  • Common trapStatistical branches are connected tools chosen for a question and data structure, not isolated formula lists.
  • Next connectionMarkov chains move using the current state
Picture 13 of 20 · tap to inspect in full resolution

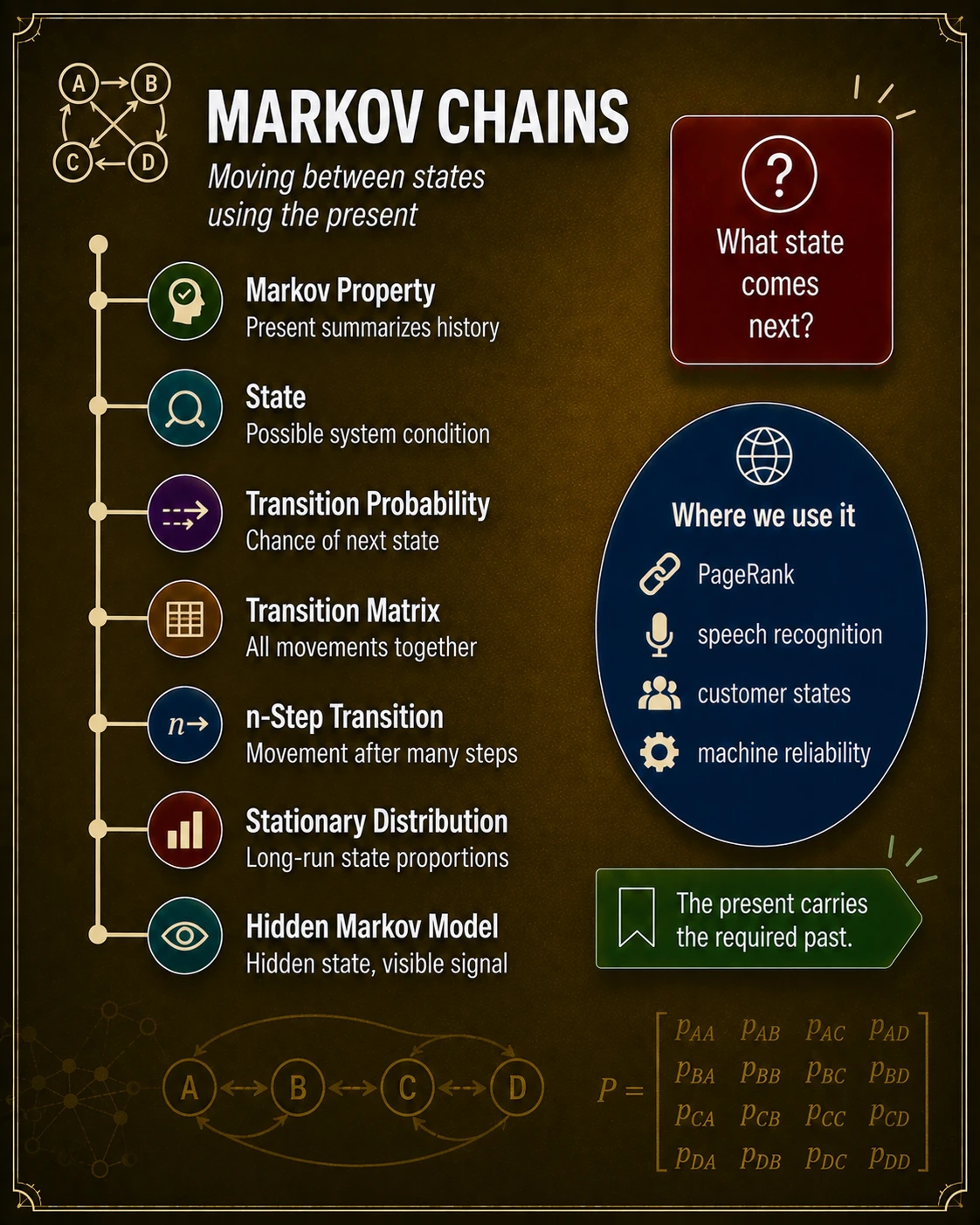

13

When is the present enough to predict the next move?

INTUITION

A Markov chain moves among states with transition probabilities depending on the current state. A transition matrix describes one-step motion; powers describe multiple steps and may approach a stationary distribution.

  • Learning goalExplain how markov chains contributes to a statistical workflow.
  • Helpful foundationsdata and variables · mean and variation · basic probability
  • Common trapStatistical branches are connected tools chosen for a question and data structure, not isolated formula lists.
  • Next connectionMonte Carlo answers questions by simulation
Picture 14 of 20 · tap to inspect in full resolution

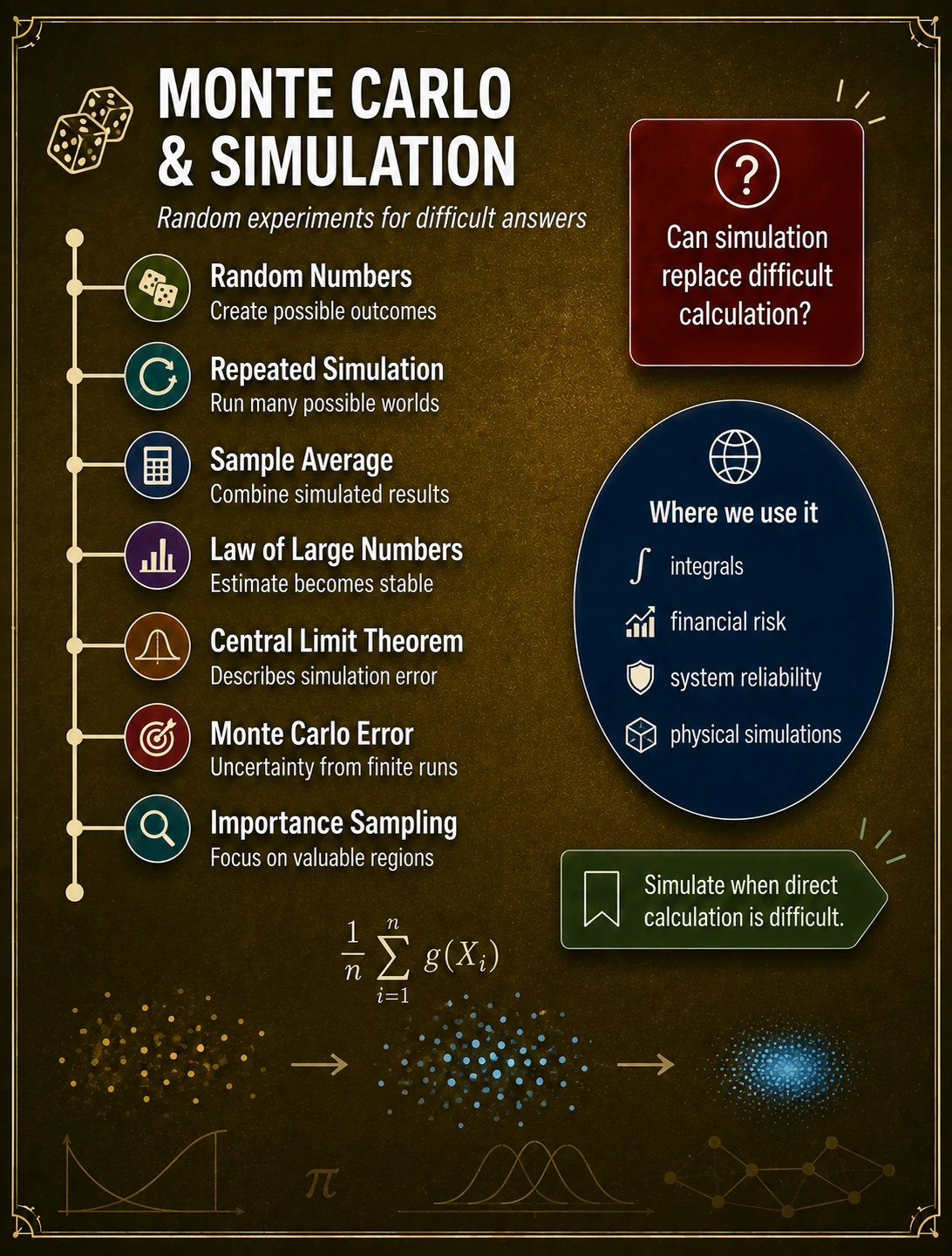

14

Can simulation replace a difficult calculation?

INTUITION

Monte Carlo generates random inputs, computes an output for each run, and averages the results. Accuracy improves at the familiar one-over-square-root-of-runs rate when variance is finite.

  • Learning goalExplain how monte carlo contributes to a statistical workflow.
  • Helpful foundationsdata and variables · mean and variation · basic probability
  • Common trapStatistical branches are connected tools chosen for a question and data structure, not isolated formula lists.
  • Next connectionMCMC samples a hard target through a chain

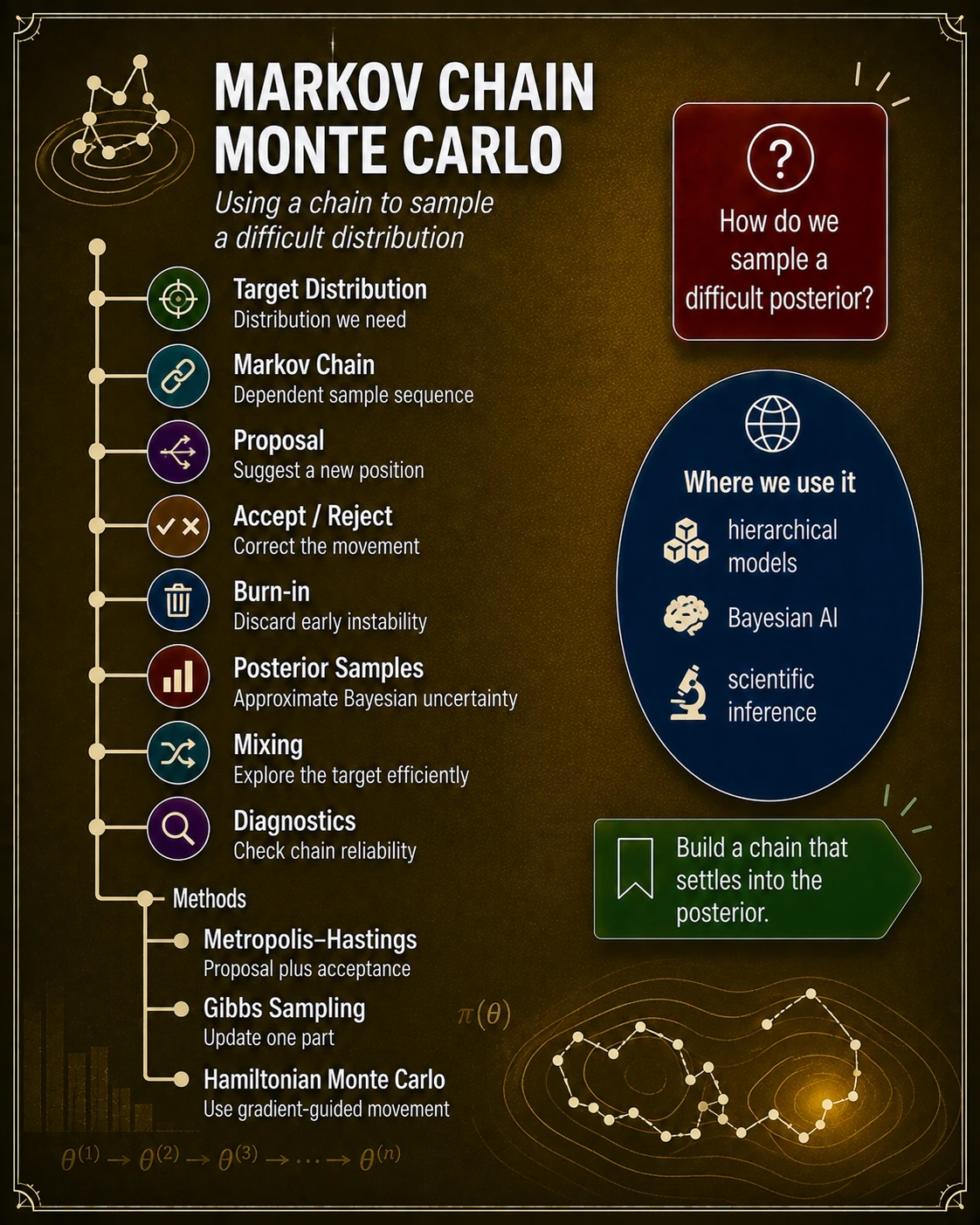

Picture 15 of 20 · tap to inspect in full resolution
15

How can a chain explore a distribution we cannot sample directly?

INTUITION

Markov chain Monte Carlo proposes moves, accepts or rejects them so the chain targets a desired distribution, discards warm-up, and checks mixing and effective sample size before using posterior summaries.

  • Learning goalExplain how mcmc contributes to a statistical workflow.
  • Helpful foundationsdata and variables · mean and variation · basic probability
  • Common trapStatistical branches are connected tools chosen for a question and data structure, not isolated formula lists.
  • Next connectionSurvival analysis studies time until an event
Picture 16 of 20 · tap to inspect in full resolution

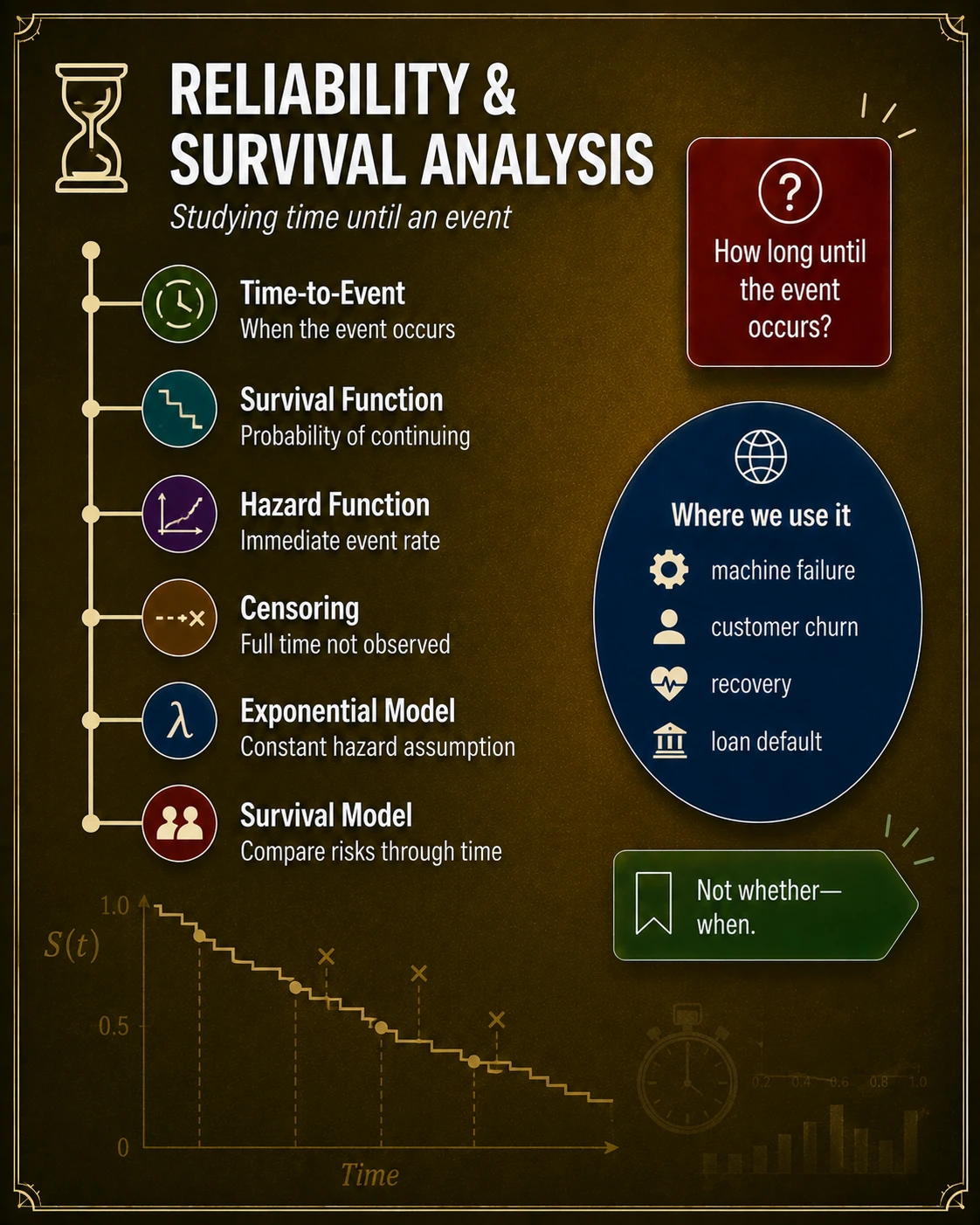

16

How do we analyze an event that has not happened yet?

INTUITION

Survival analysis models event time while accounting for censoring. The survival function gives the chance of remaining event-free; the hazard describes the instantaneous event rate among those still at risk.

  • Learning goalExplain how survival reliability contributes to a statistical workflow.
  • Helpful foundationsdata and variables · mean and variation · basic probability
  • Common trapStatistical branches are connected tools chosen for a question and data structure, not isolated formula lists.
  • Next connectionQueueing theory connects demand, capacity, and delay
Picture 17 of 20 · tap to inspect in full resolution
17

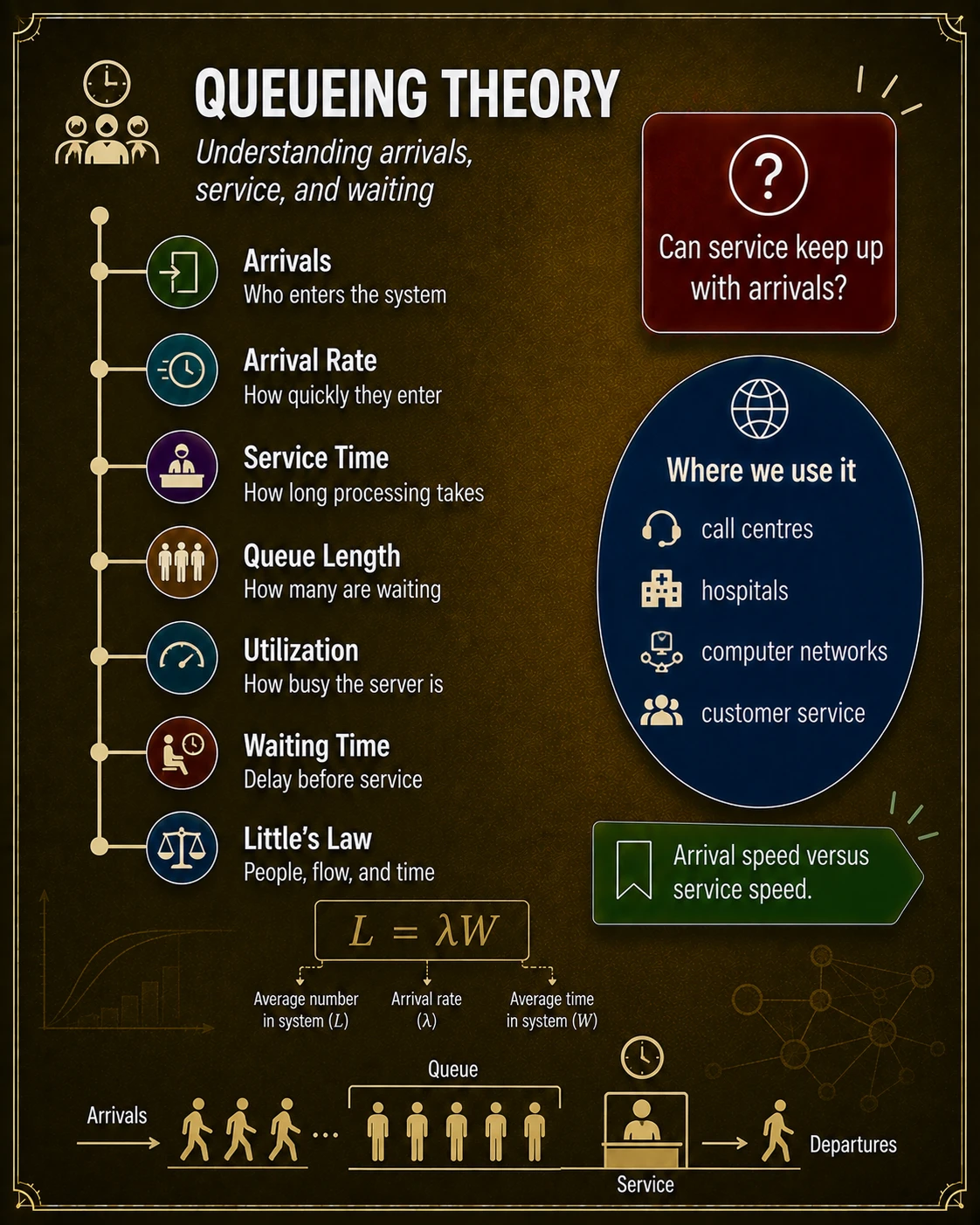

Why do waiting lines grow?

INTUITION

Arrival rate, service rate, server count, and variability determine congestion. When stable, Little's Law links average number in a system, throughput, and average time: L equals lambda times W.

MATHEMATICAL STATEMENT
  1. When stable, Little's Law links average number in a system, throughput, and average time: L equals lambda times W.
  • Learning goalExplain how queueing contributes to a statistical workflow.
  • Helpful foundationsdata and variables · mean and variation · basic probability
  • Common trapStatistical branches are connected tools chosen for a question and data structure, not isolated formula lists.
  • Next connectionInformation theory measures surprise and compression
Picture 18 of 20 · tap to inspect in full resolution
18

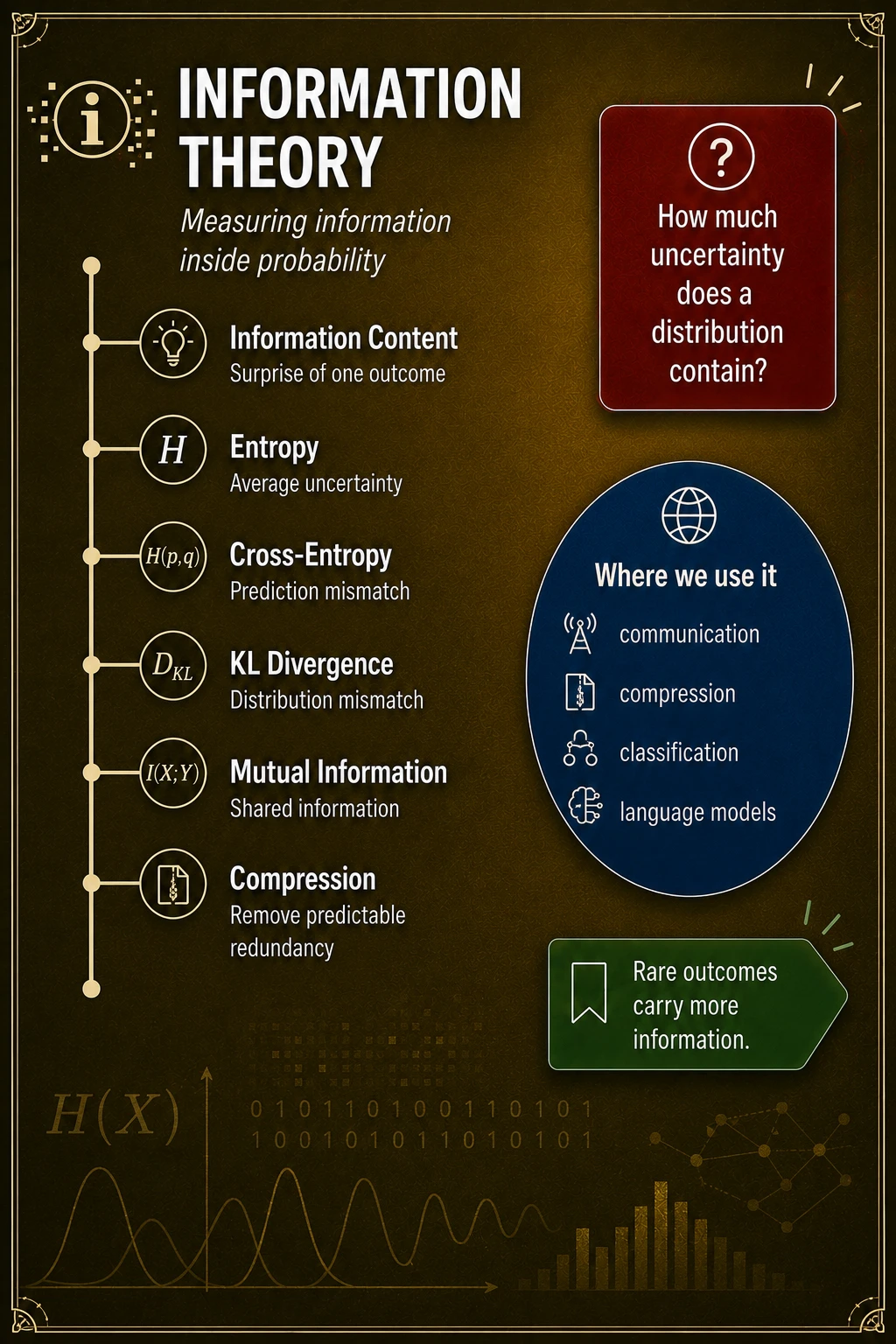

How much uncertainty does a message contain?

INTUITION

Self-information measures surprise, entropy averages surprise, cross-entropy scores predictive distributions, KL divergence measures directional mismatch, and mutual information measures shared dependence.

  • Learning goalExplain how information theory contributes to a statistical workflow.
  • Helpful foundationsdata and variables · mean and variation · basic probability
  • Common trapStatistical branches are connected tools chosen for a question and data structure, not isolated formula lists.
  • Next connectionDecision theory turns uncertainty into action
Picture 19 of 20 · tap to inspect in full resolution
19

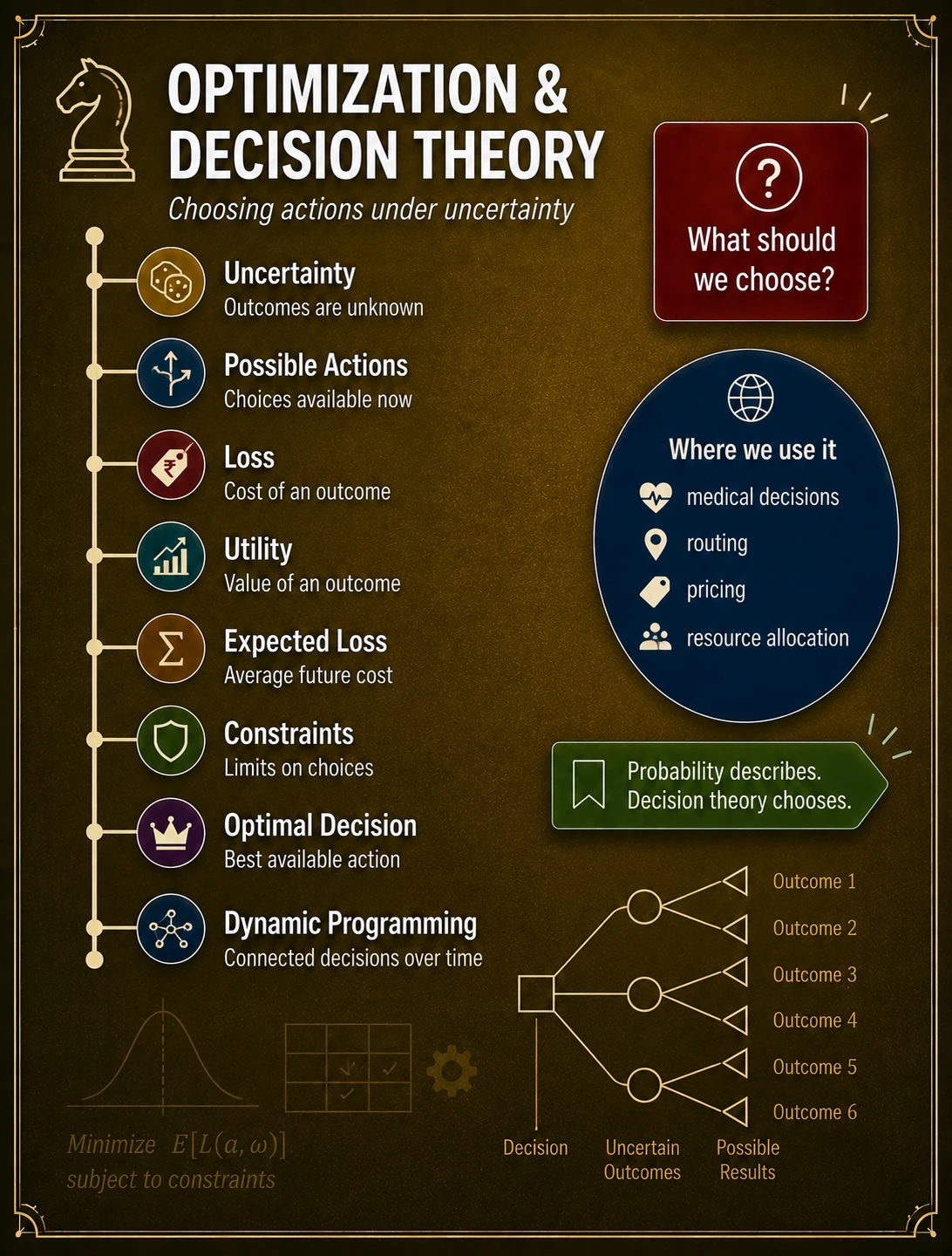

Which action is best when outcomes are uncertain?

INTUITION

Decision theory lists actions, uncertain states, losses or utilities, and constraints. An optimal action minimizes expected loss under a probability model; sensitivity analysis checks whether the decision is robust.

  • Learning goalExplain how decision theory contributes to a statistical workflow.
  • Helpful foundationsdata and variables · mean and variation · basic probability
  • Common trapStatistical branches are connected tools chosen for a question and data structure, not isolated formula lists.
  • Next connectionReinforcement learning closes the loop

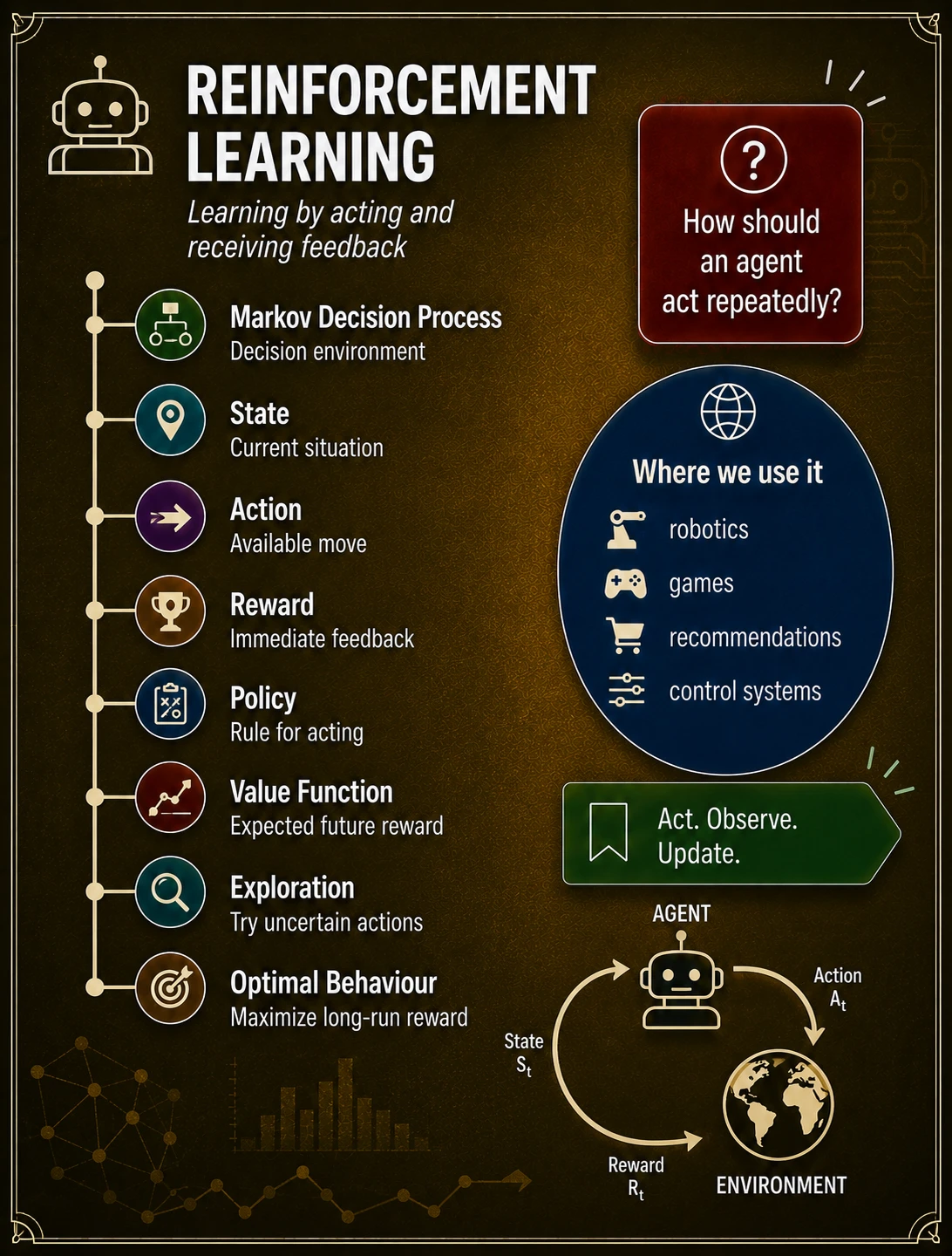

Picture 20 of 20 · tap to inspect in full resolution
20

How do decisions improve with feedback?

INTUITION

An agent observes a state, chooses an action, receives a reward, and transitions to a new state. A policy balances exploration and exploitation to maximize expected cumulative reward, connecting models to sequential decisions.

  • Learning goalExplain how reinforcement learning contributes to a statistical workflow.
  • Helpful foundationsdata and variables · mean and variation · basic probability
  • Common trapStatistical branches are connected tools chosen for a question and data structure, not isolated formula lists.
  • Next connectionChoose a branch for a real data problem
