VISUAL LESSON · 20 PICTURES

Probability Indicators: From Local Events to Global Decisions

How do precise zero-one questions turn a complex scene into counts, expectations, uncertainty, and decisions?

MODULE 3 / 6LESSON 37 / 50PICTURE 1 / 20
Progress stays on this device · no login
BEFORE THE FIRST PICTURE

How this lesson unfolds.

Begin with How can tiny answers guide a big decision? The sequence then connects Four mathematical layers and builds toward The complete design checklist.

Picture 1 of 20 · tap to inspect in full resolution
01

How can tiny answers guide a big decision?

INTUITION

A system asks precise local yes-or-no questions, records zero-one indicators, and combines them into a count, estimate, or action.

  • Helpful foundationsevents and sample spaces · finite sums · basic probability
  • Next connectionFour mathematical layers
More context

The portrait diagram uses a clear top-to-bottom reading order and deterministic notation.

Picture 2 of 20 · tap to inspect in full resolution
02

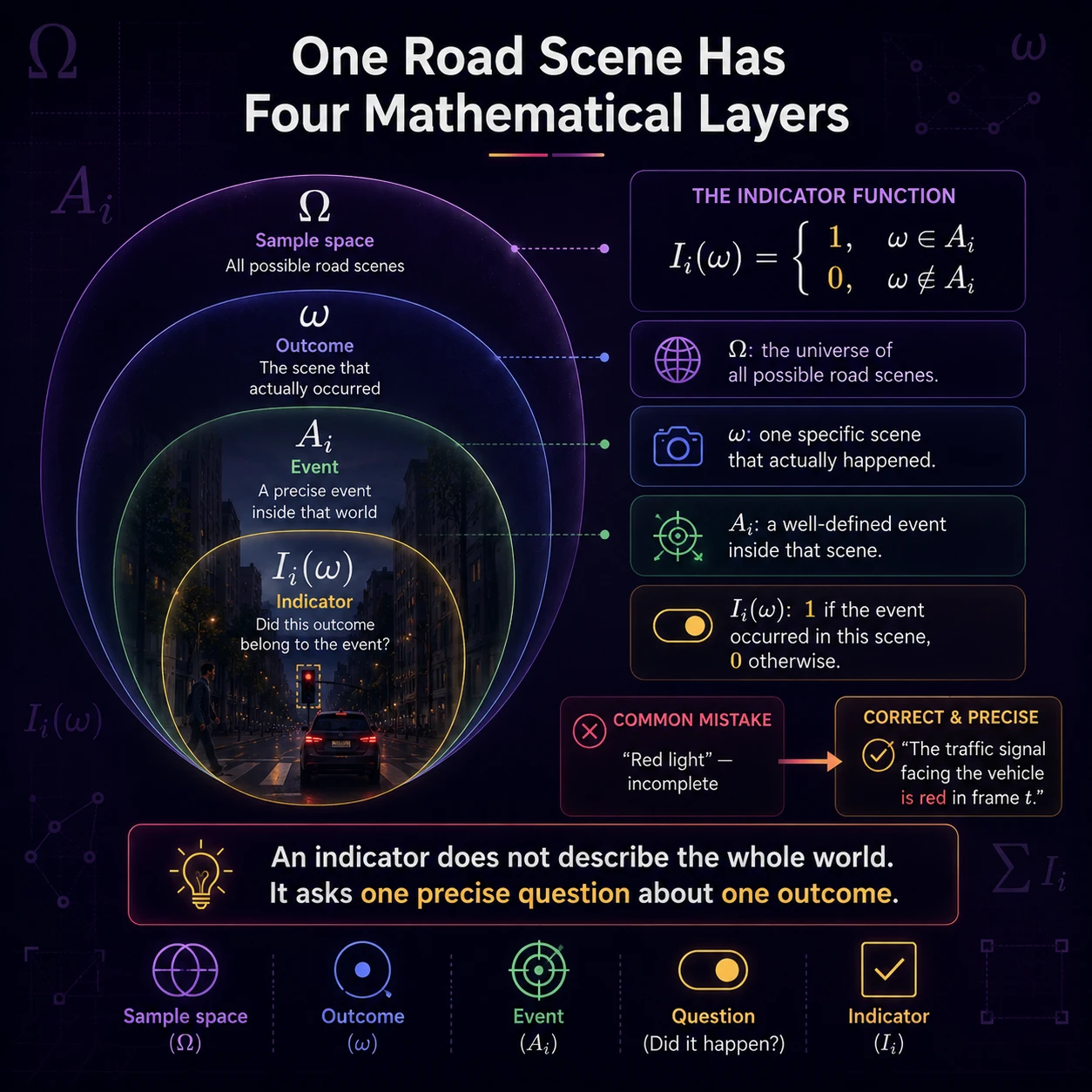

Where does an indicator live?

INTUITION

A sample space contains possible outcomes; an event selects outcomes of interest; the indicator reports whether the observed outcome belongs to that event.

  • Helpful foundationsevents and sample spaces · finite sums · basic probability
  • Next connectionIndicator versus probability
More context

The portrait diagram uses a clear top-to-bottom reading order and deterministic notation.

Picture 3 of 20 · tap to inspect in full resolution
03

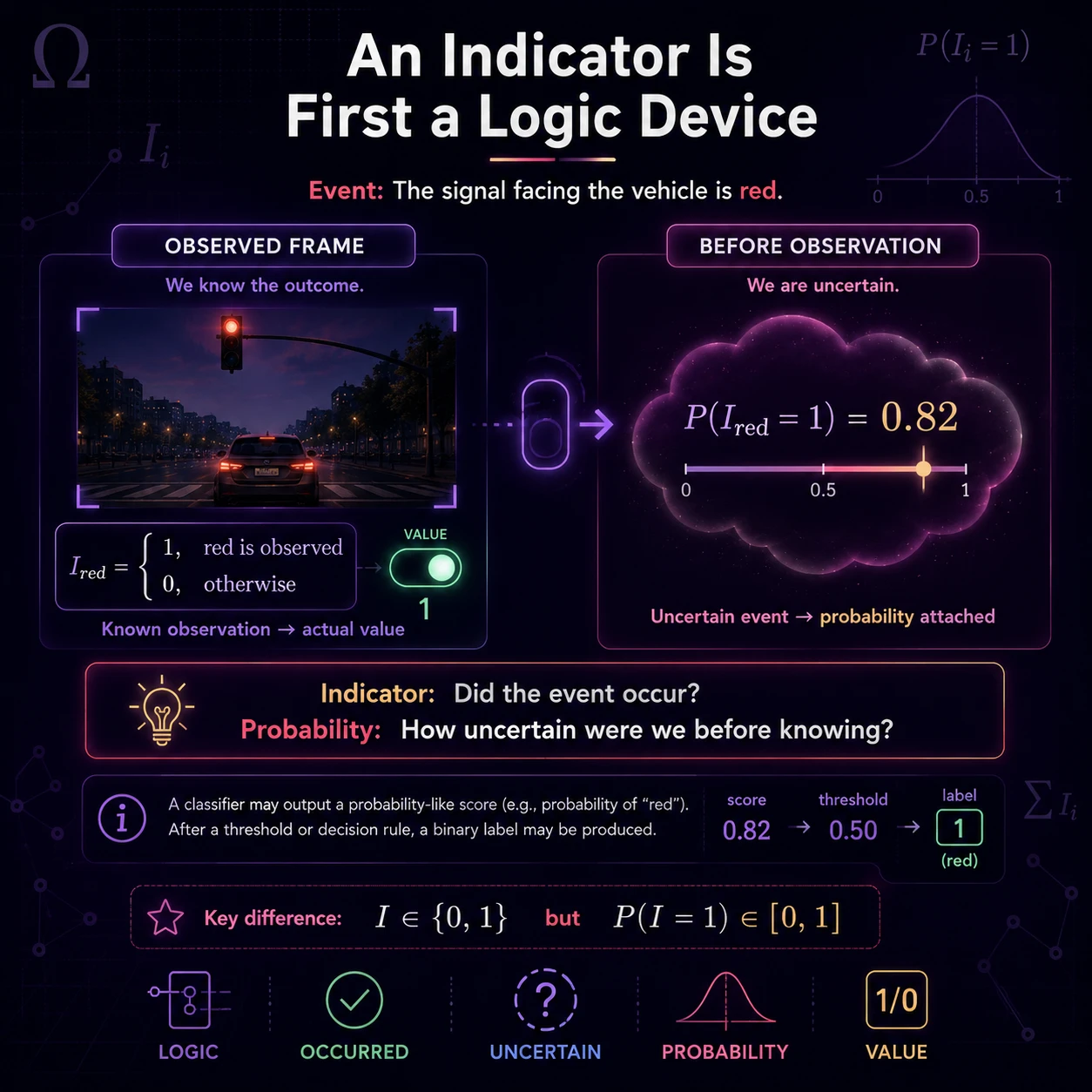

Is an indicator the same as a probability?

INTUITION

No. After observation an indicator is exactly zero or one; before observation, probability describes uncertainty about which value it will take.

  • Helpful foundationsevents and sample spaces · finite sums · basic probability
  • Next connectionMake the event precise
More context

The portrait diagram uses a clear top-to-bottom reading order and deterministic notation.

Picture 4 of 20 · tap to inspect in full resolution
04

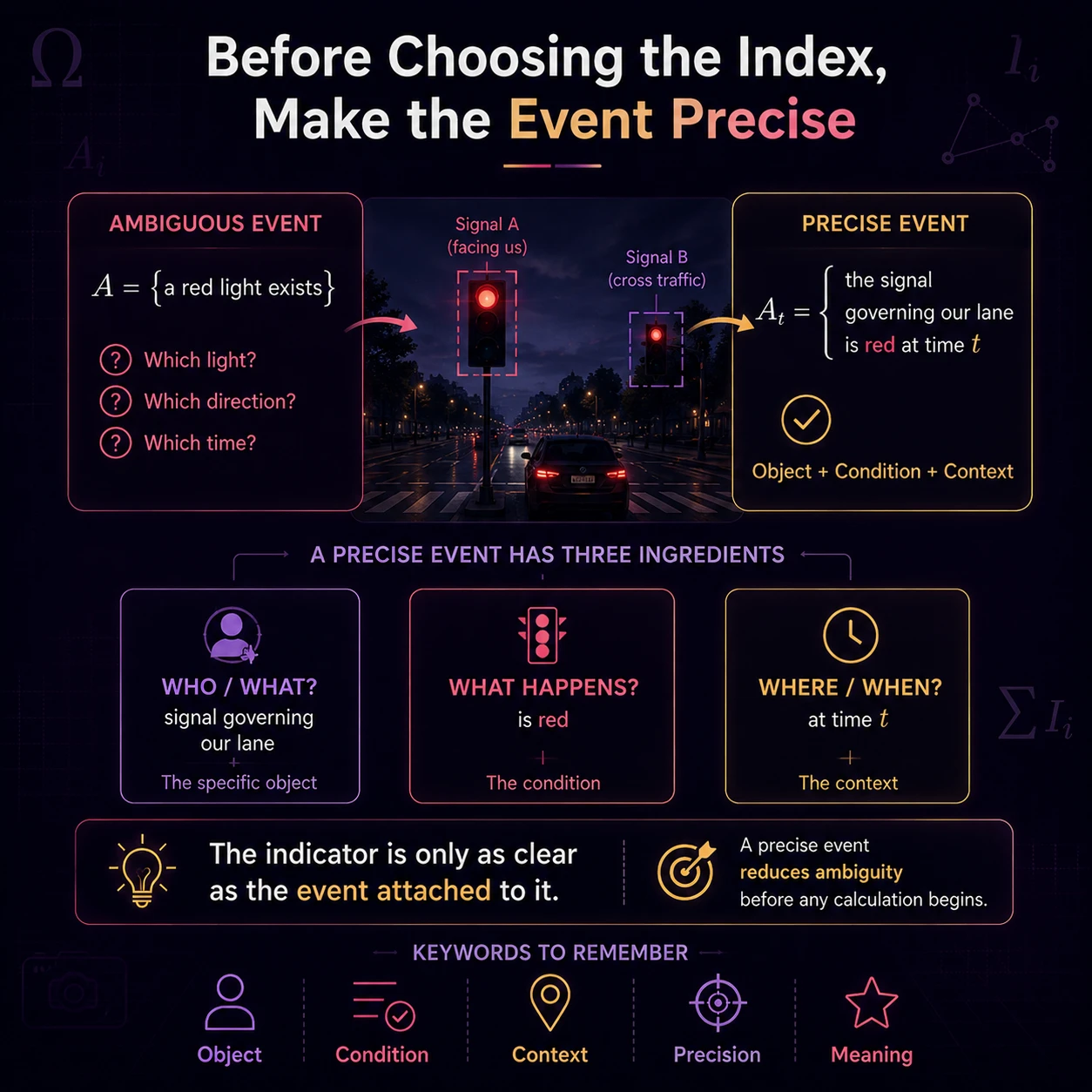

What makes a useful event?

INTUITION

A useful event names the object, the condition, and the relevant context, such as which signal, which lane, and which time.

  • Helpful foundationsevents and sample spaces · finite sums · basic probability
  • Next connectionEvidence precedes decisions
More context

The portrait diagram uses a clear top-to-bottom reading order and deterministic notation.

Picture 5 of 20 · tap to inspect in full resolution
05

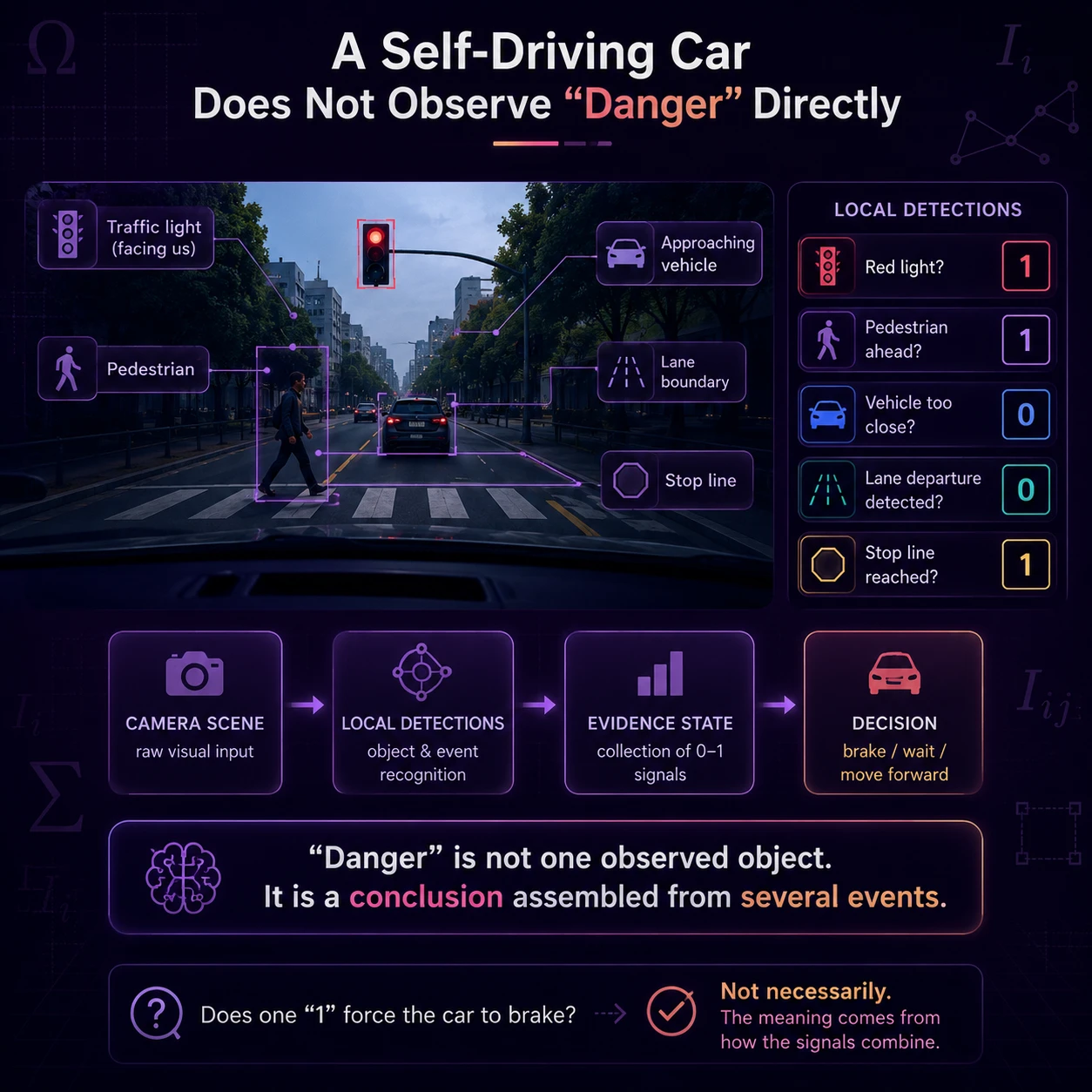

Does one signal determine the action?

INTUITION

A self-driving system assembles several local detections into an evidence state; the decision rule, not any single indicator, determines the action.

  • Helpful foundationsevents and sample spaces · finite sums · basic probability
  • Next connectionDeclare the target first
More context

The portrait diagram uses a clear top-to-bottom reading order and deterministic notation.

Picture 6 of 20 · tap to inspect in full resolution
06

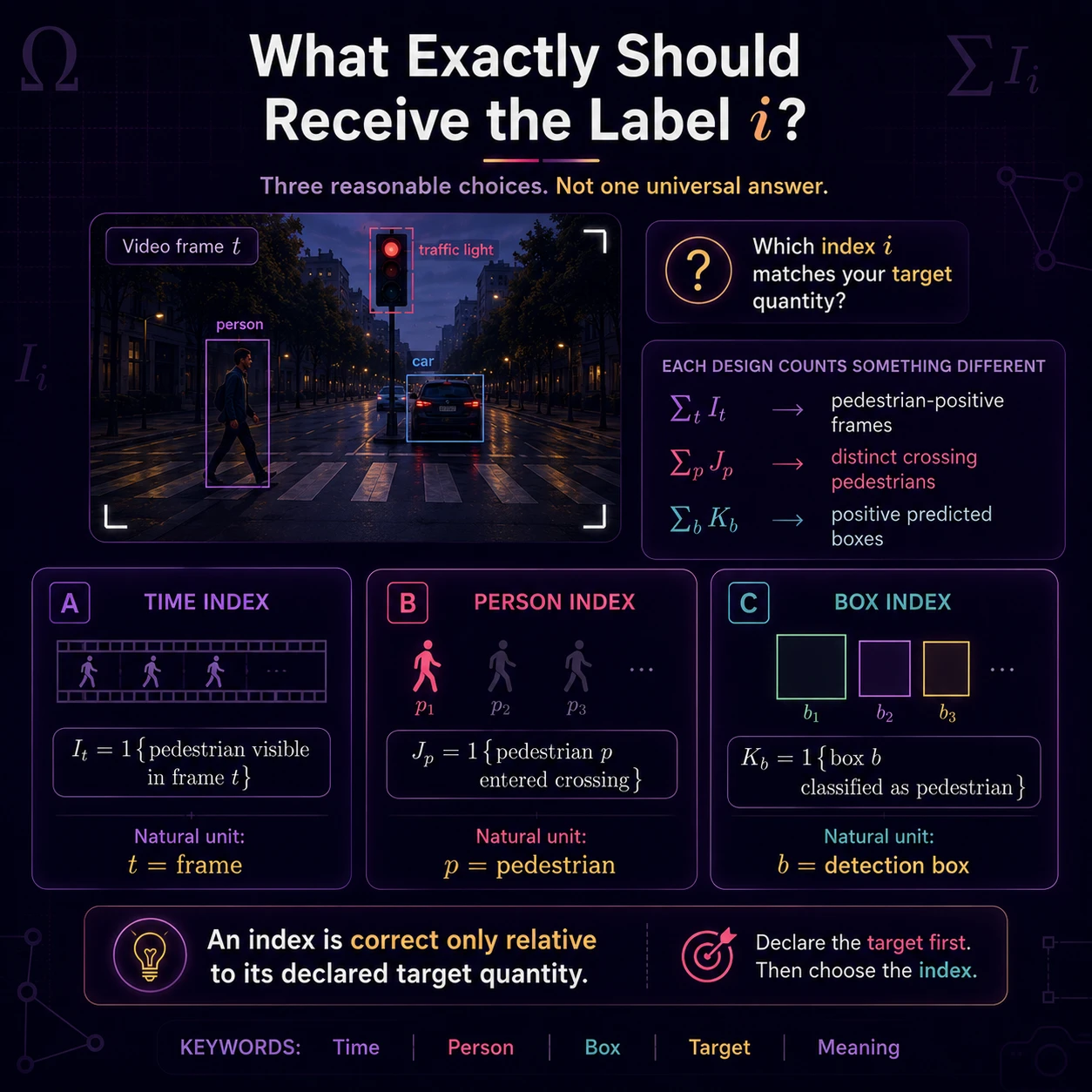

What should receive the index?

INTUITION

The target quantity determines whether the natural unit is a frame, person, detection box, position, pair, or another contribution unit.

  • Helpful foundationsevents and sample spaces · finite sums · basic probability
  • Next connectionSimplify without changing the mathematics
More context

The portrait diagram uses a clear top-to-bottom reading order and deterministic notation.

Picture 7 of 20 · tap to inspect in full resolution
07

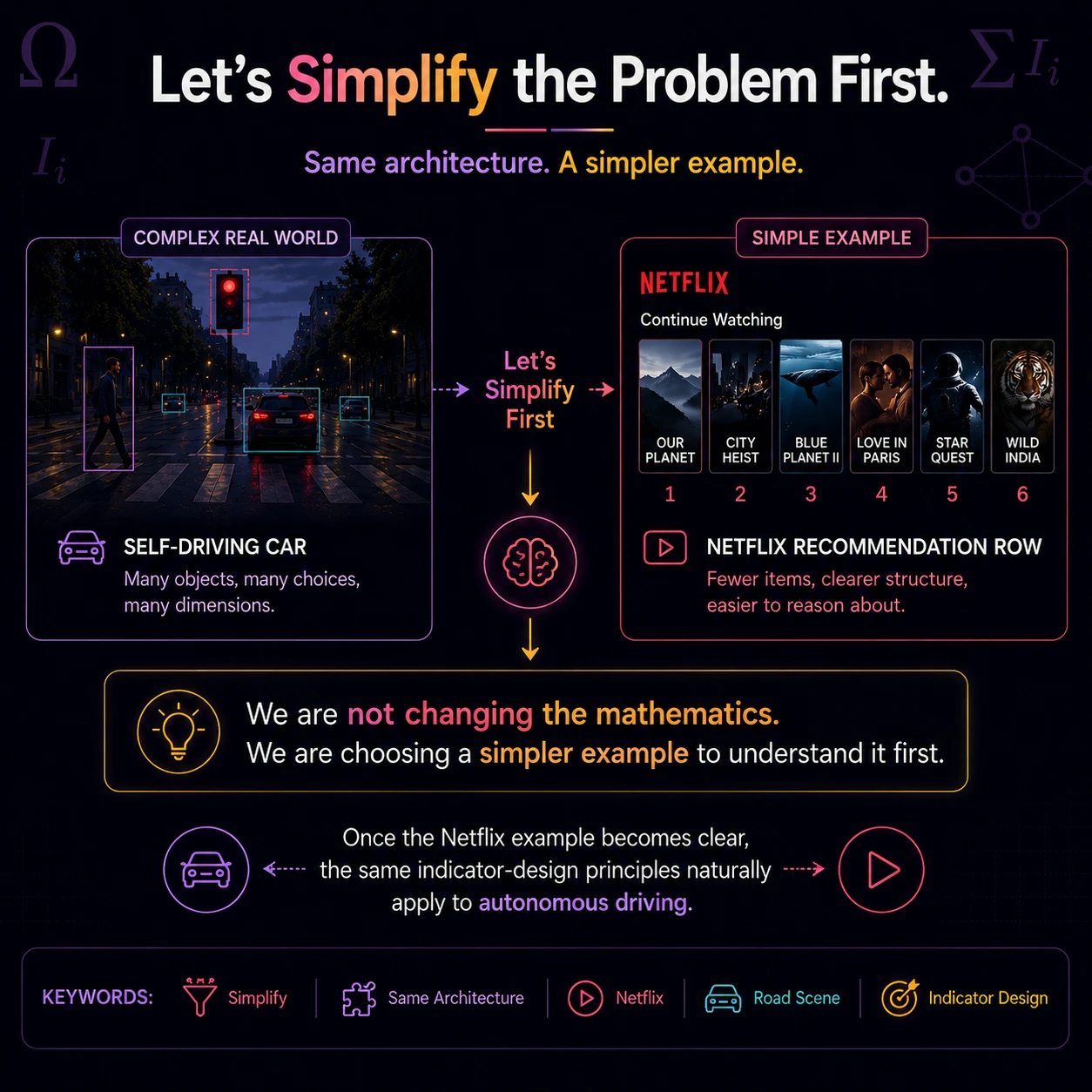

Why begin with a simpler system?

INTUITION

A short recommendation row exposes the same indicator architecture as a complex road scene with fewer objects and clearer counting units.

  • Helpful foundationsevents and sample spaces · finite sums · basic probability
  • Next connectionOne count, two coordinate systems
More context

The portrait diagram uses a clear top-to-bottom reading order and deterministic notation.

Picture 8 of 20 · tap to inspect in full resolution
08

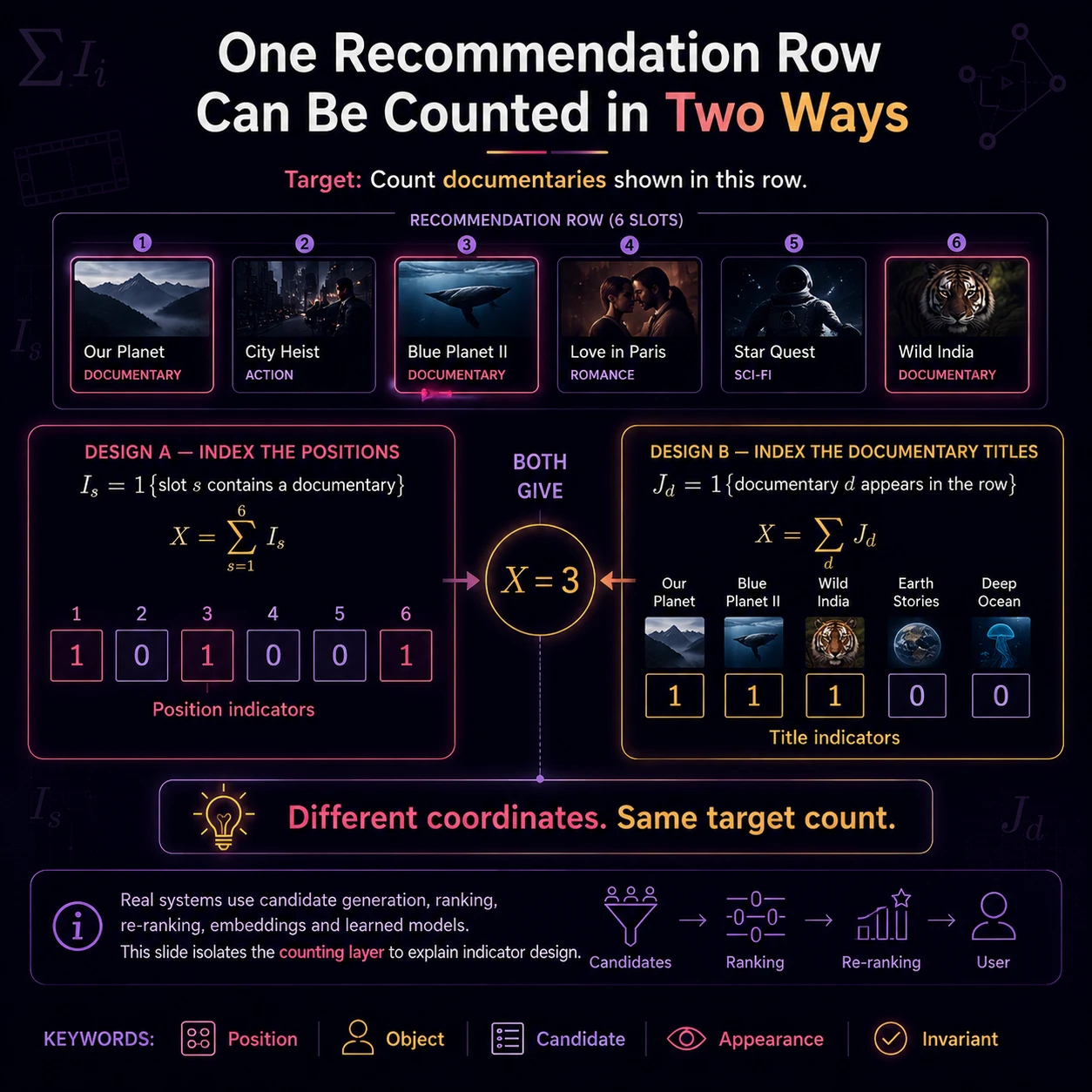

Can one count use different indexes?

INTUITION

The number of documentaries in a row can be reconstructed by indexing positions or by indexing candidate titles, provided each shown documentary contributes exactly once.

  • Helpful foundationsevents and sample spaces · finite sums · basic probability
  • Next connectionThe exactly-once accounting test
More context

The portrait diagram uses a clear top-to-bottom reading order and deterministic notation.

Picture 9 of 20 · tap to inspect in full resolution
09

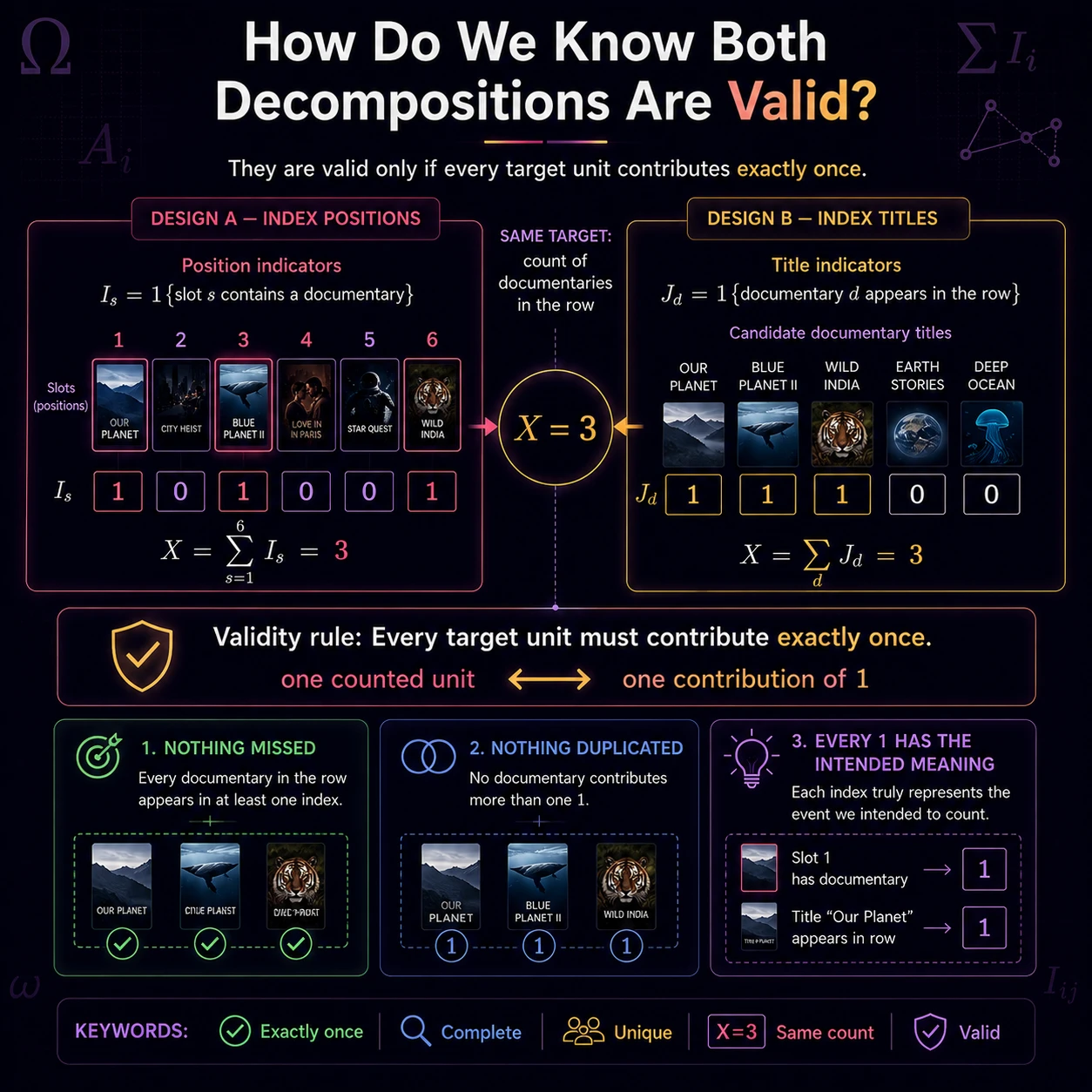

When is a decomposition valid?

INTUITION

A decomposition is valid when nothing is missed, nothing is duplicated, and every one has the intended meaning.

  • Helpful foundationsevents and sample spaces · finite sums · basic probability
  • Next connectionCommon index families
More context

The portrait diagram uses a clear top-to-bottom reading order and deterministic notation.

Picture 10 of 20 · tap to inspect in full resolution
10

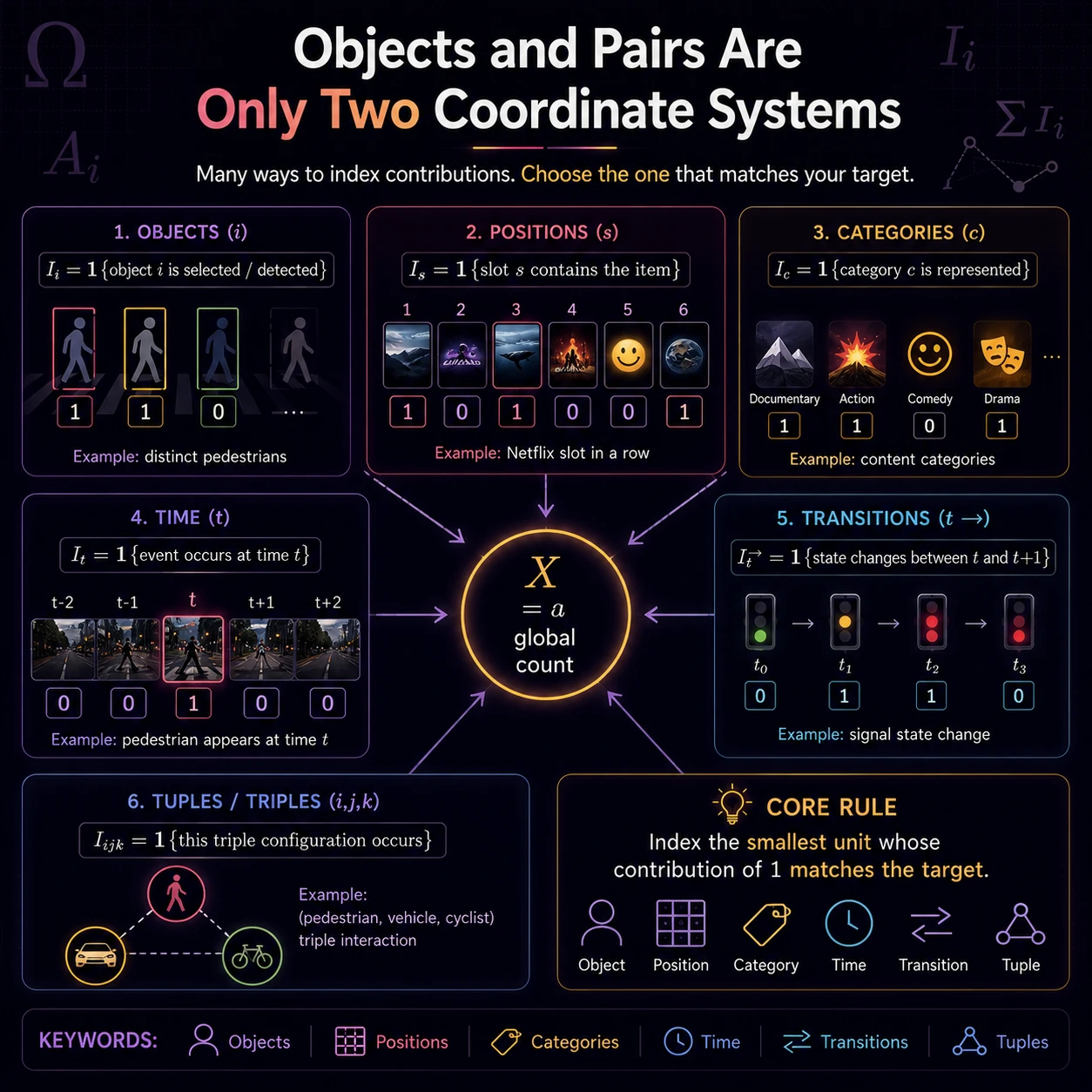

Which coordinates can indicators use?

INTUITION

Indicators may be indexed by objects, positions, categories, times, transitions, pairs, or tuples; the smallest meaningful contribution unit is usually best.

  • Helpful foundationsevents and sample spaces · finite sums · basic probability
  • Next connectionRepeated observations can overcount
More context

The portrait diagram uses a clear top-to-bottom reading order and deterministic notation.

Picture 11 of 20 · tap to inspect in full resolution
11

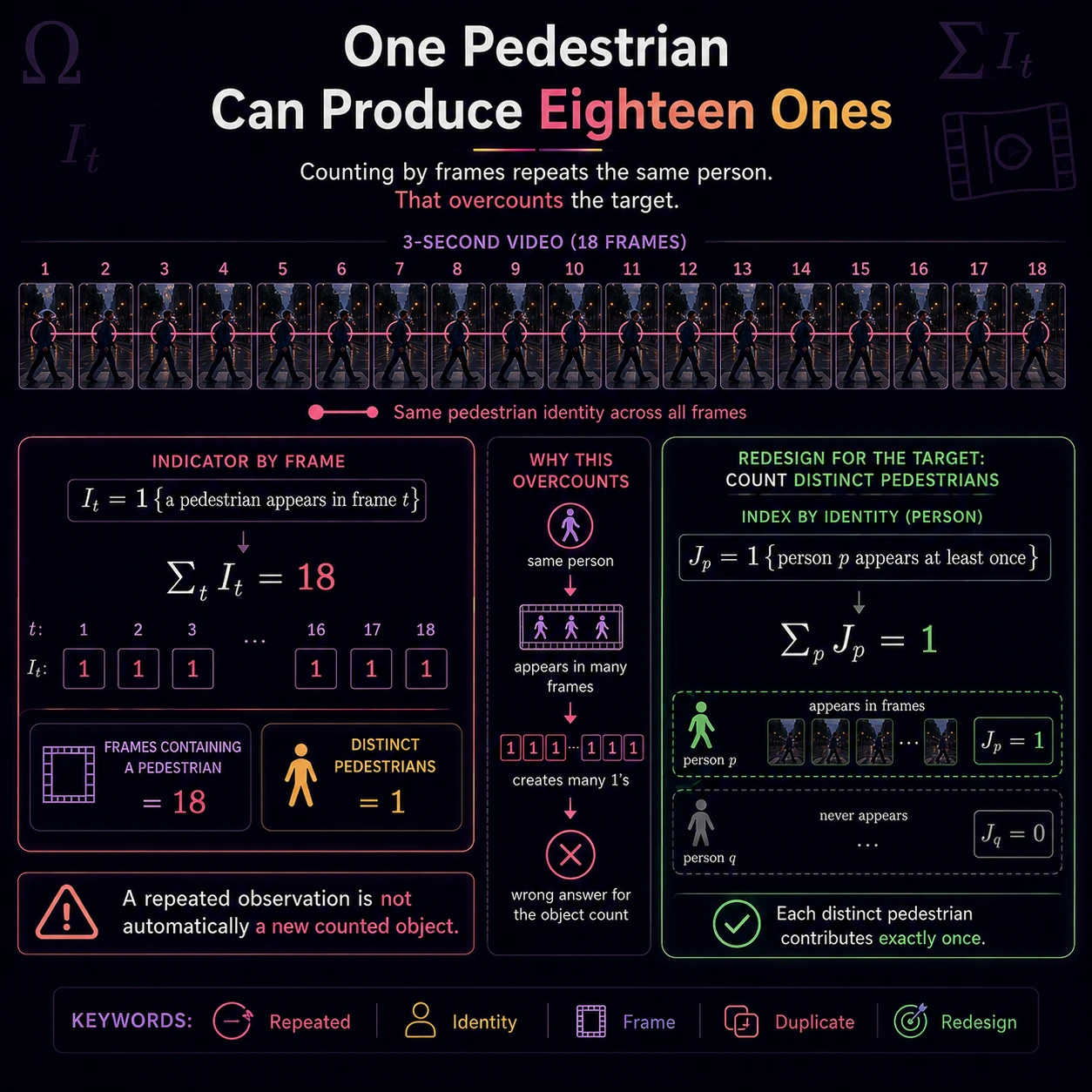

Can one person create many ones?

INTUITION

Yes. A frame indicator counts appearances, so one pedestrian visible in 18 frames contributes 18; an identity indicator counts that pedestrian once.

  • Helpful foundationsevents and sample spaces · finite sums · basic probability
  • Next connectionThe target changes the index
More context

The portrait diagram uses a clear top-to-bottom reading order and deterministic notation.

Picture 12 of 20 · tap to inspect in full resolution
12

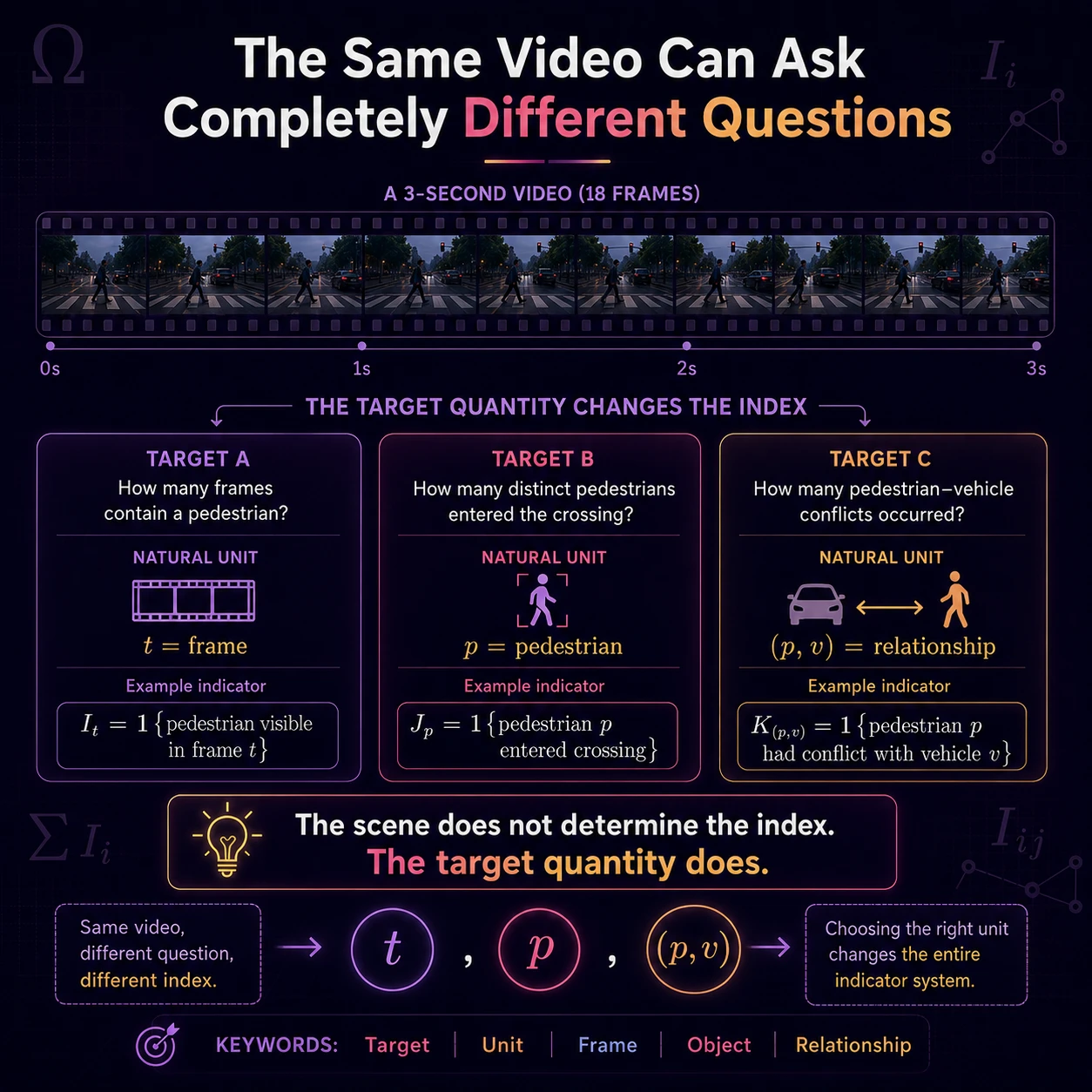

Can one video answer different questions?

INTUITION

The same video may count positive frames, distinct pedestrians, or pedestrian-vehicle conflicts, requiring time, object, or pair indexes respectively.

  • Helpful foundationsevents and sample spaces · finite sums · basic probability
  • Next connectionRelationships need pair indexes
More context

The portrait diagram uses a clear top-to-bottom reading order and deterministic notation.

Picture 13 of 20 · tap to inspect in full resolution
13

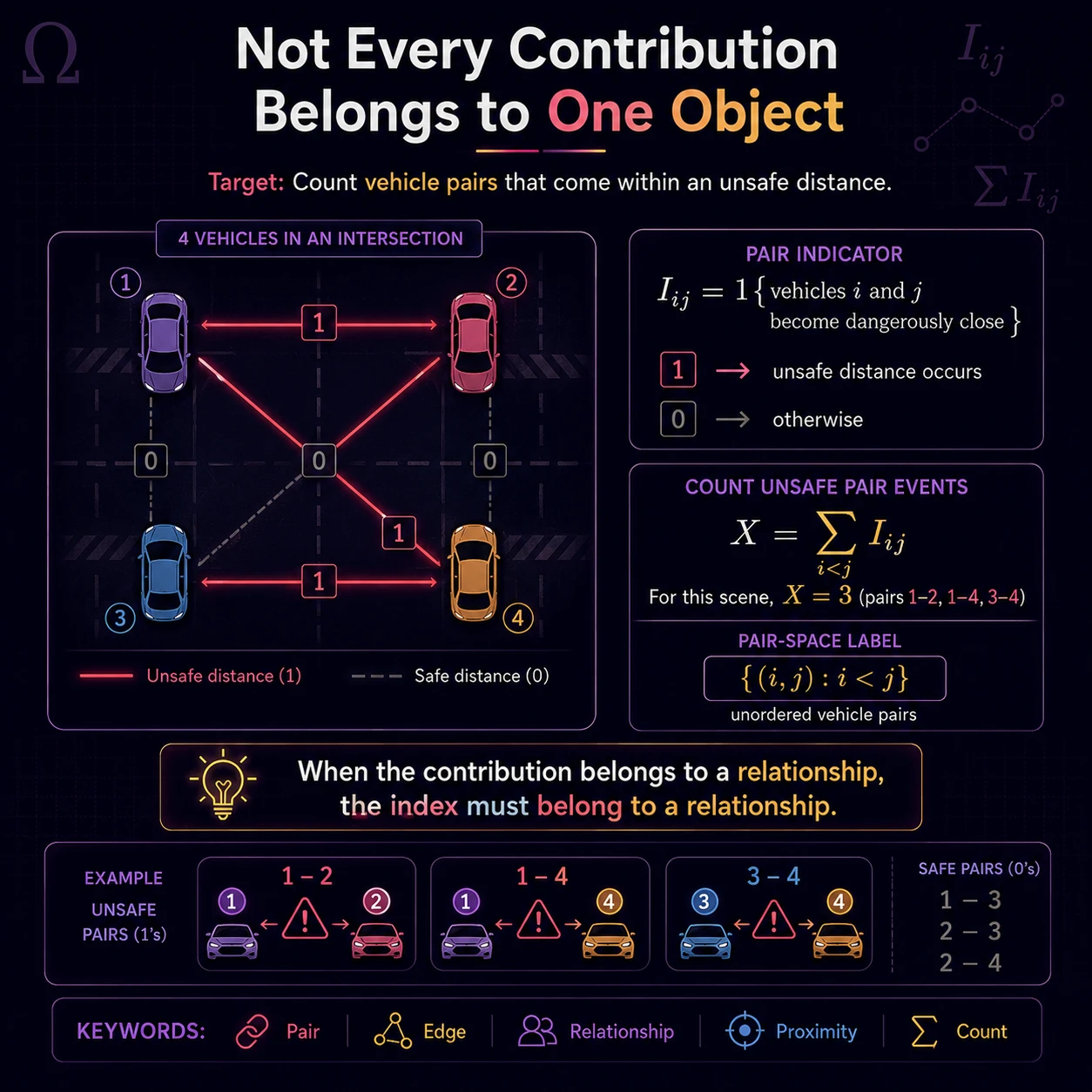

What if the contribution belongs to a pair?

INTUITION

To count unsafe vehicle pairs, define one indicator per unordered pair and sum over i less than j; object indicators cannot represent a relationship faithfully.

  • Helpful foundationsevents and sample spaces · finite sums · basic probability
  • Next connectionOrdered and unordered pairs
More context

The portrait diagram uses a clear top-to-bottom reading order and deterministic notation.

Picture 14 of 20 · tap to inspect in full resolution
14

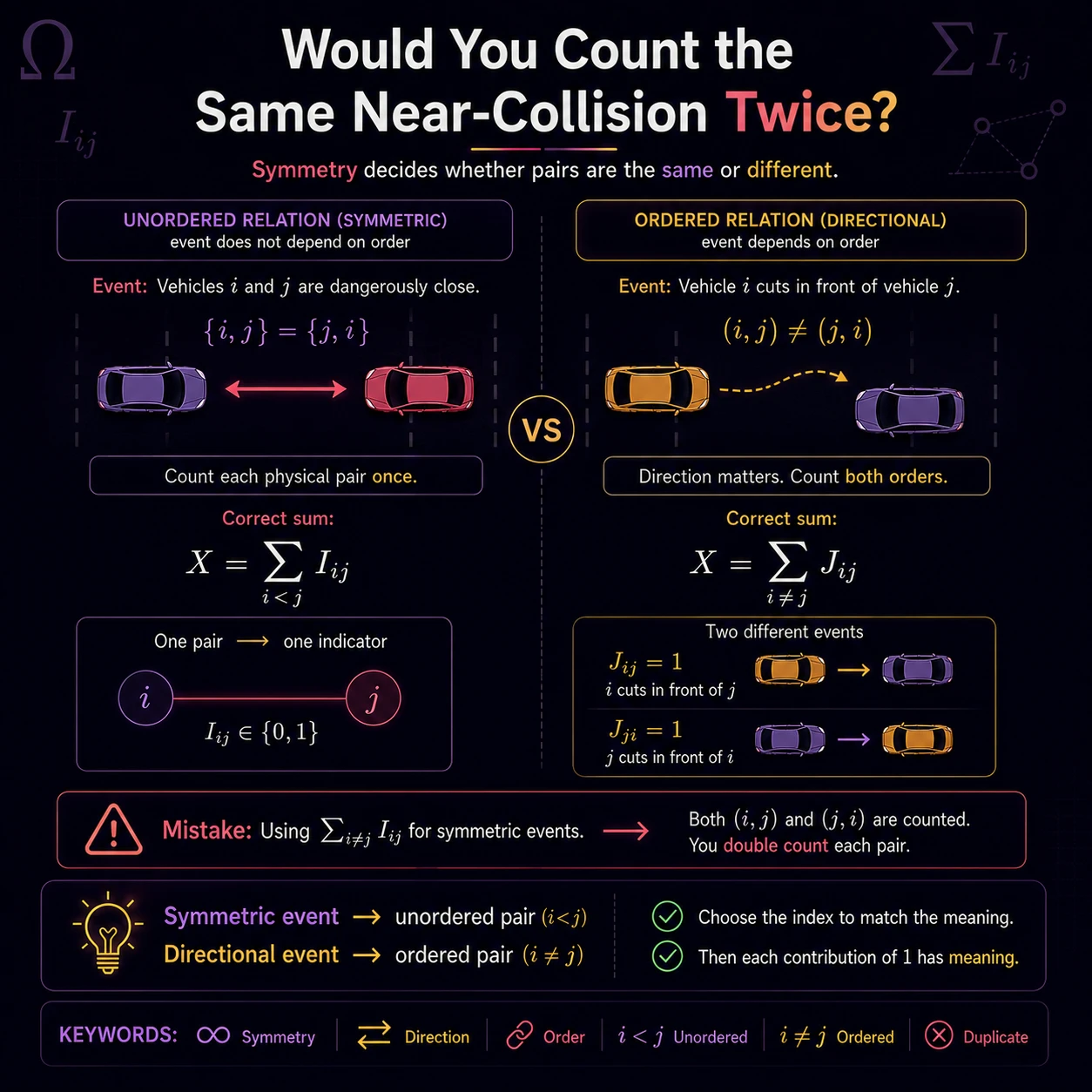

When does pair order matter?

INTUITION

Symmetric relations use unordered pairs and count each physical pair once; directional relations use ordered pairs because reversing the order changes the event.

  • Helpful foundationsevents and sample spaces · finite sums · basic probability
  • Next connectionThreshold indicators reconstruct counts
More context

The portrait diagram uses a clear top-to-bottom reading order and deterministic notation.

Picture 15 of 20 · tap to inspect in full resolution
15

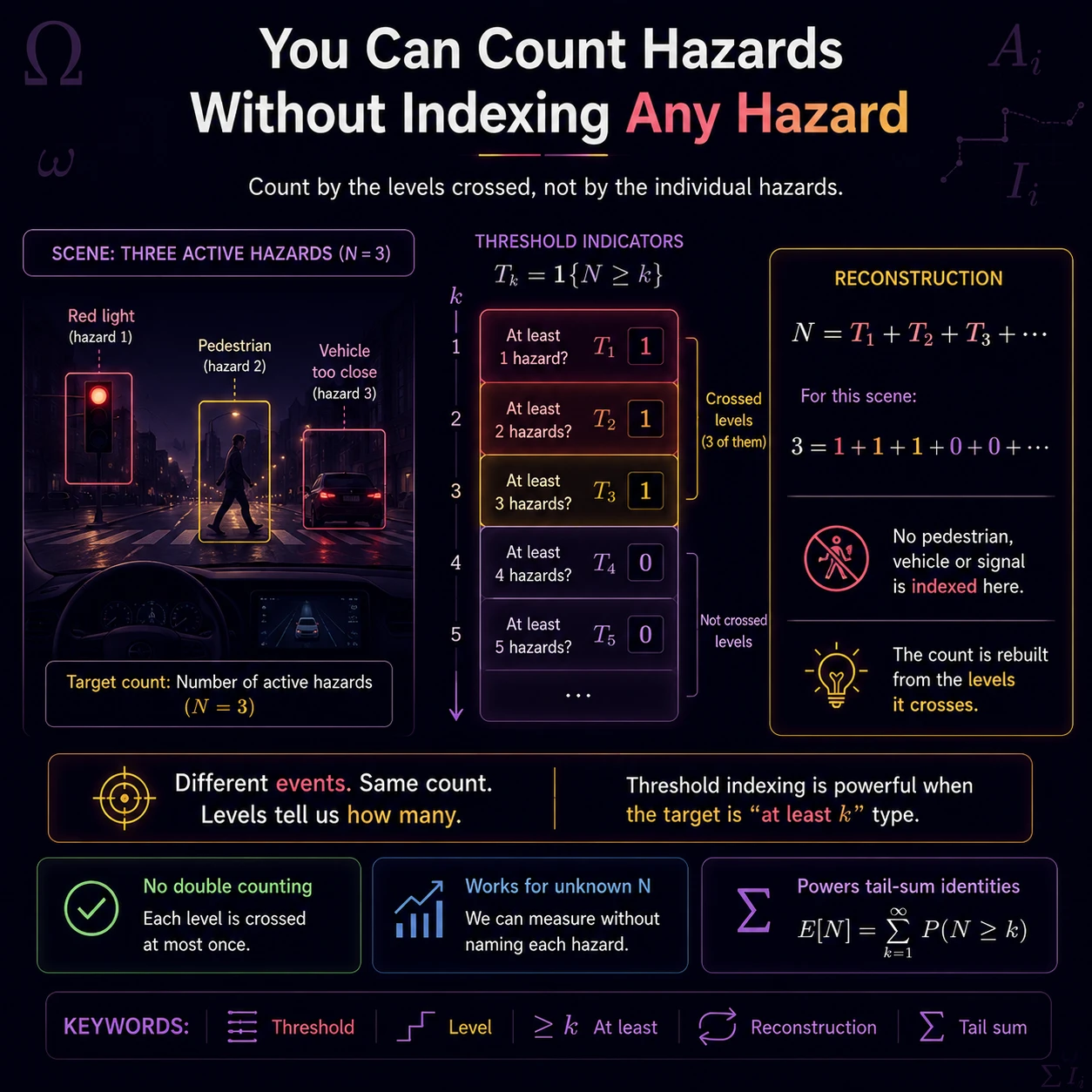

Can levels rebuild a count?

INTUITION

For a nonnegative integer count N, the threshold indicator T_k records whether N is at least k, and N equals the sum of all crossed-level indicators.

MATHEMATICAL STATEMENT
  1. For a nonnegative integer count N, the threshold indicator T_k records whether N is at least k, and N equals the sum of all crossed-level indicators.
  • Helpful foundationsevents and sample spaces · finite sums · basic probability
  • Next connectionLinearity makes the mean local
More context

The portrait diagram uses a clear top-to-bottom reading order and deterministic notation.

Picture 16 of 20 · tap to inspect in full resolution
16

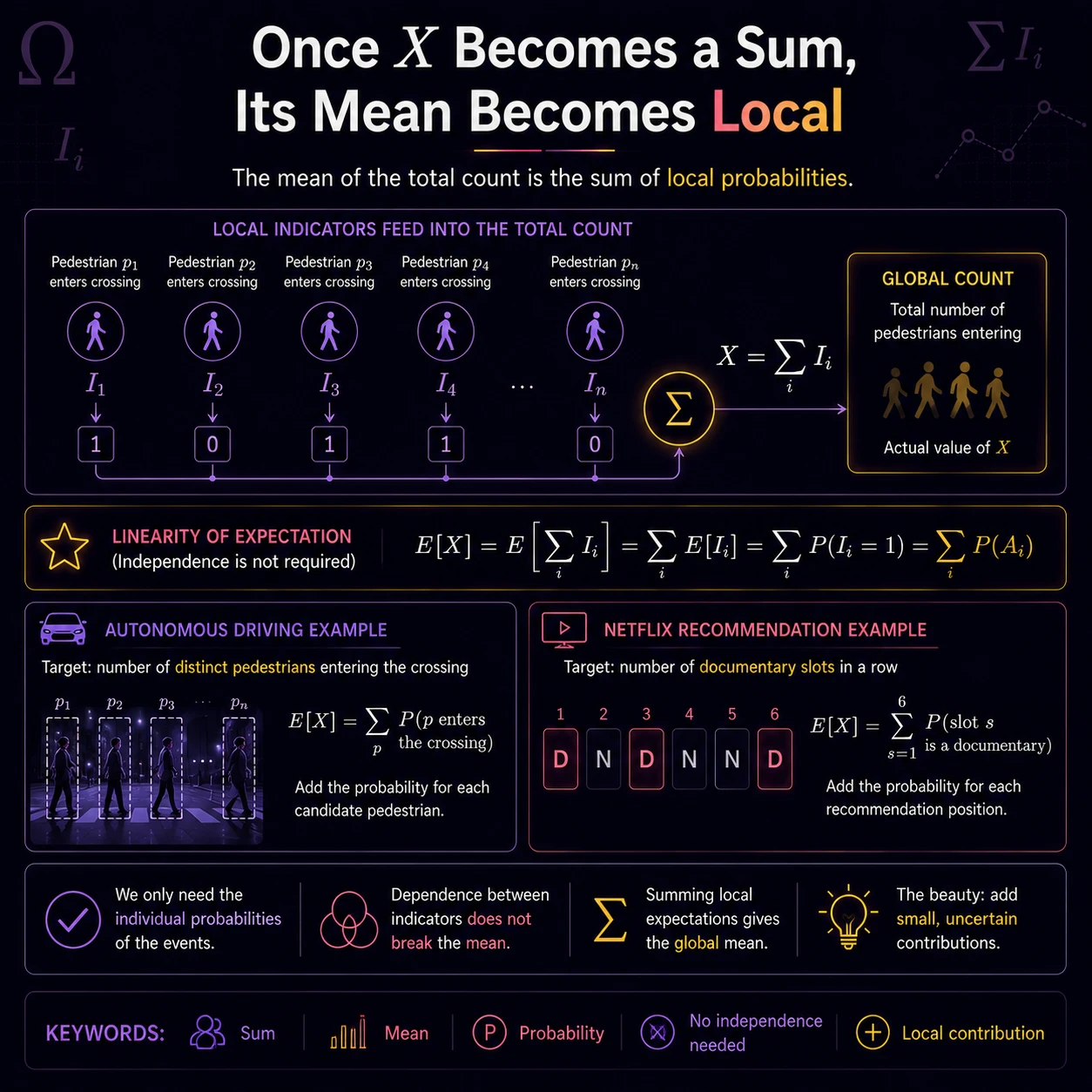

How does a sum reveal its mean?

INTUITION

If X is a sum of indicators, linearity gives E[X] as the sum of their event probabilities; independence is not required for this mean identity.

  • Helpful foundationsevents and sample spaces · finite sums · basic probability
  • Next connectionCovariance records relationships
More context

The portrait diagram uses a clear top-to-bottom reading order and deterministic notation.

Picture 17 of 20 · tap to inspect in full resolution
17

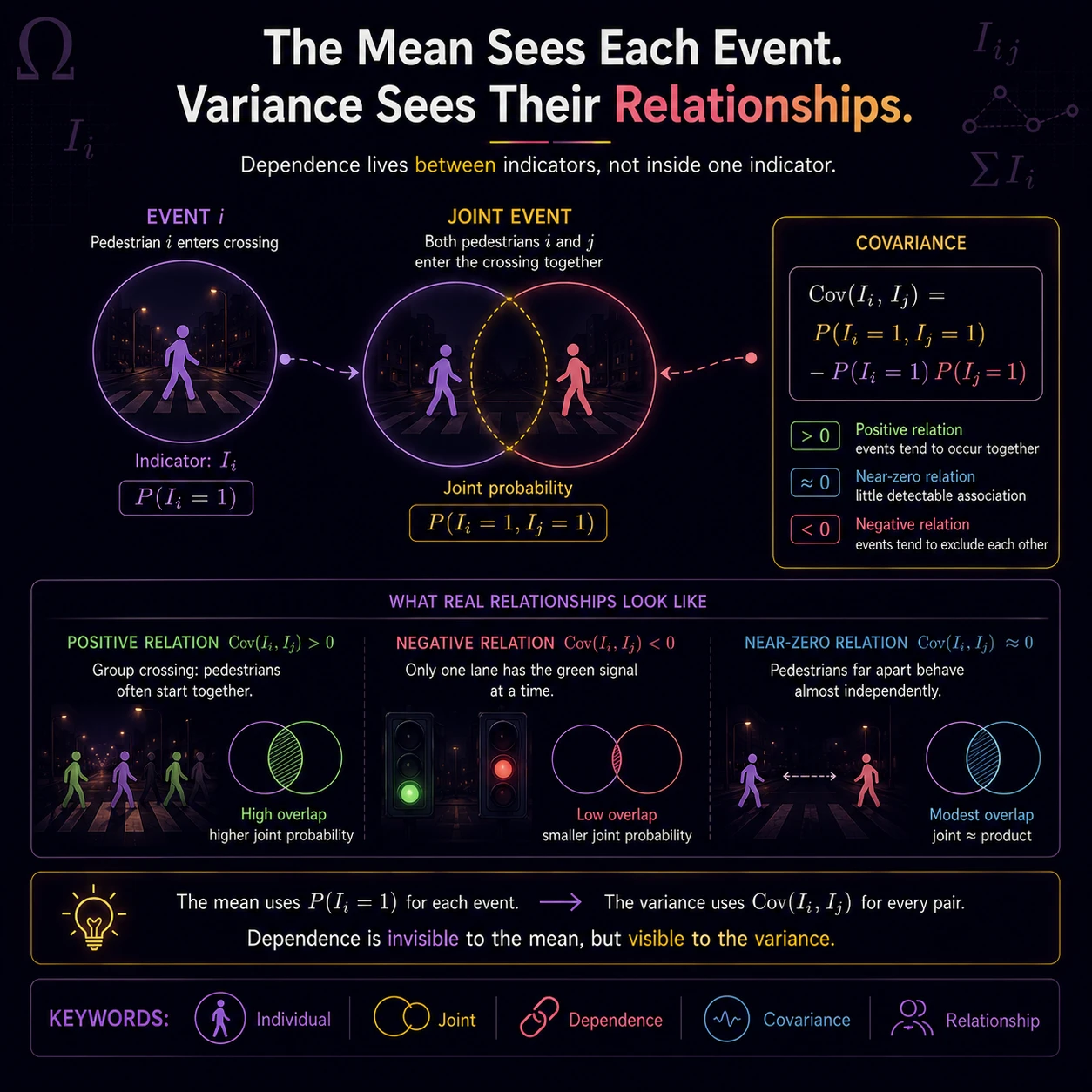

How are two indicators related?

INTUITION

Covariance compares their joint probability with the product of their individual probabilities, revealing positive, negative, or near-zero association.

  • Helpful foundationsevents and sample spaces · finite sums · basic probability
  • Next connectionVariance combines nodes and edges
More context

The portrait diagram uses a clear top-to-bottom reading order and deterministic notation.

Picture 18 of 20 · tap to inspect in full resolution
18

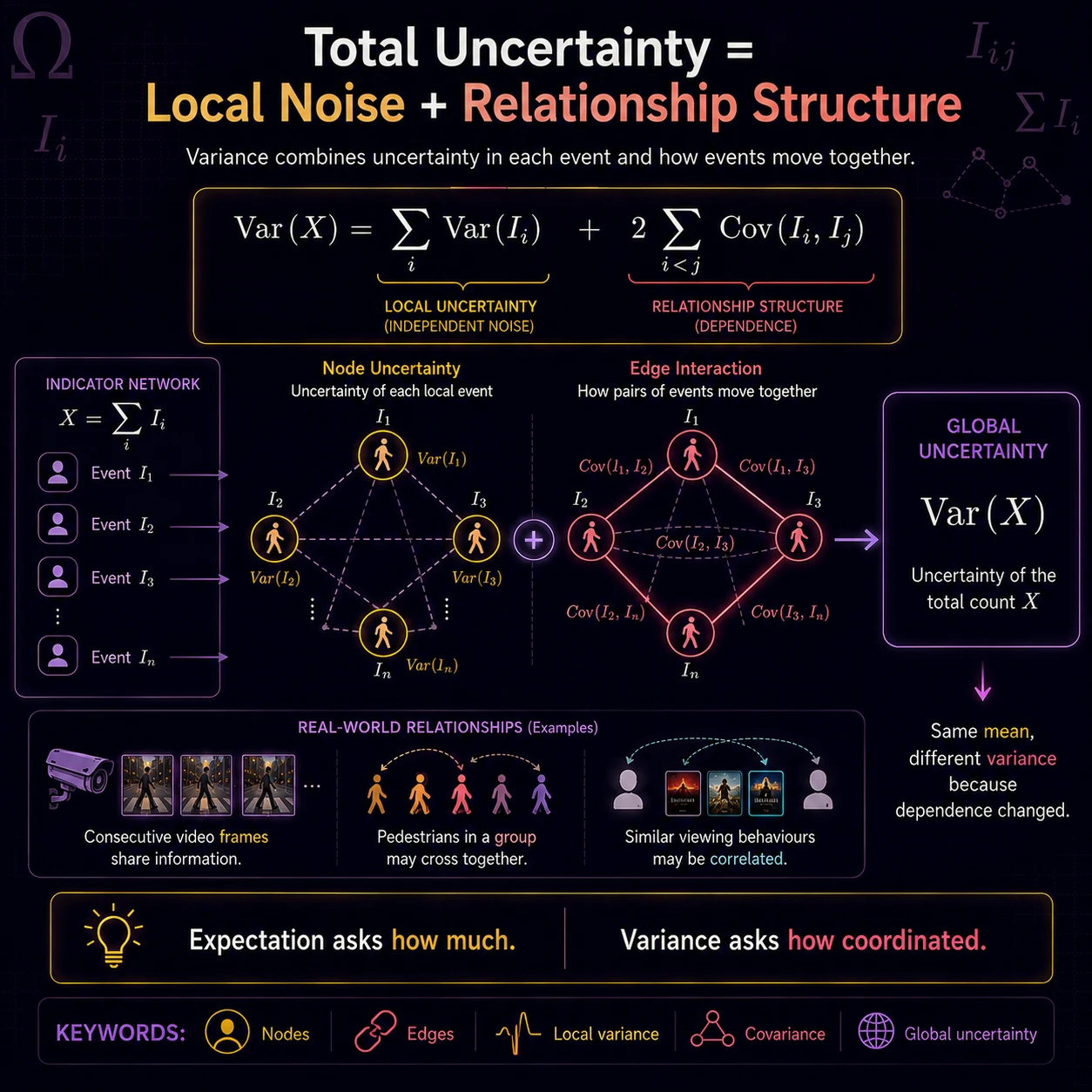

What controls total uncertainty?

INTUITION

The variance of an indicator sum contains local variances plus pairwise covariance terms, so dependence can change uncertainty without changing the mean.

  • Helpful foundationsevents and sample spaces · finite sums · basic probability
  • Next connectionChoose the contribution unit
More context

The portrait diagram uses a clear top-to-bottom reading order and deterministic notation.

Picture 19 of 20 · tap to inspect in full resolution
19

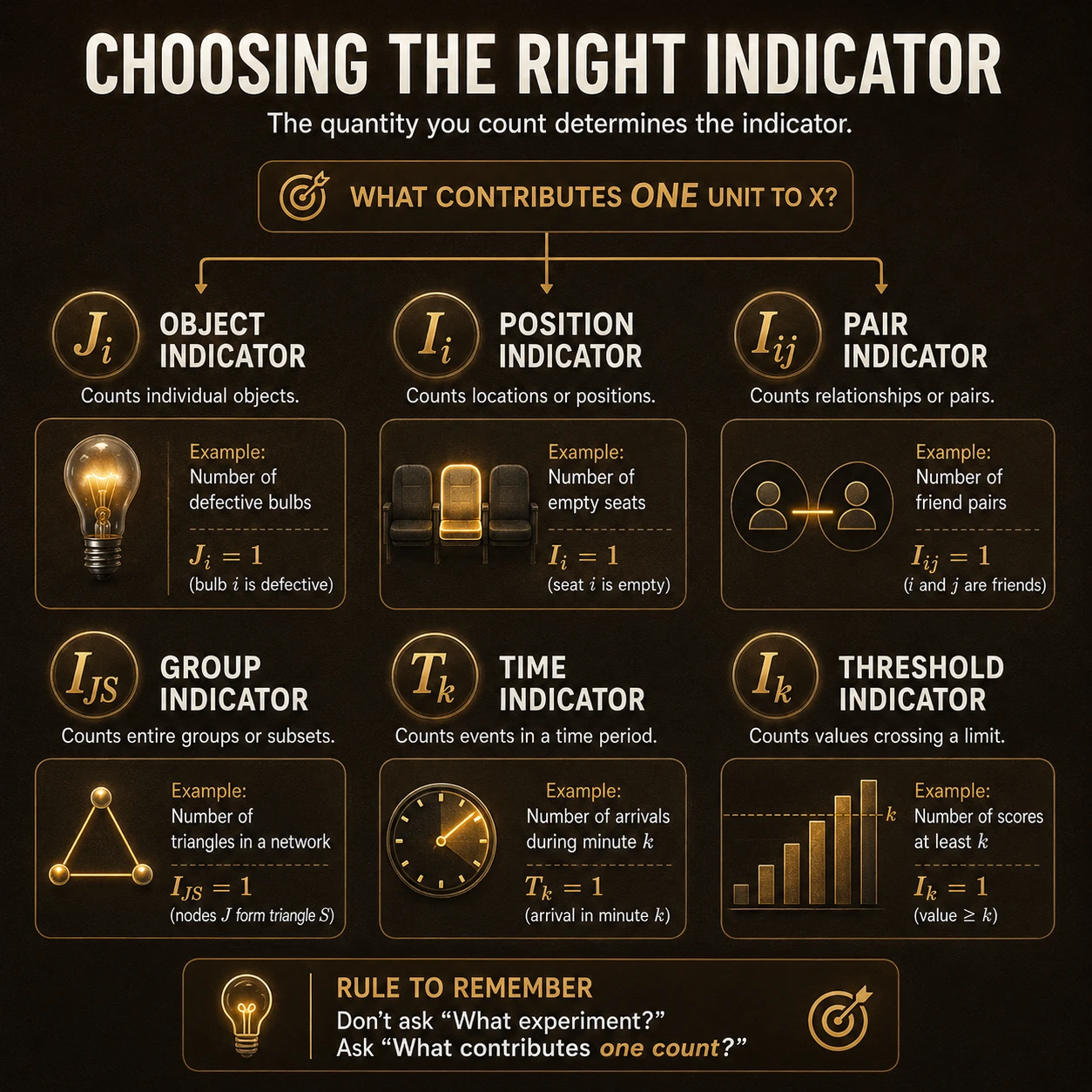

Which indicator should you choose?

INTUITION

Ask what contributes exactly one unit to the target, then select an object, position, pair, group, time, or threshold indicator that matches that meaning.

  • Helpful foundationsevents and sample spaces · finite sums · basic probability
  • Next connectionThe complete design checklist
More context

The portrait diagram uses a clear top-to-bottom reading order and deterministic notation.

Picture 20 of 20 · tap to inspect in full resolution
20

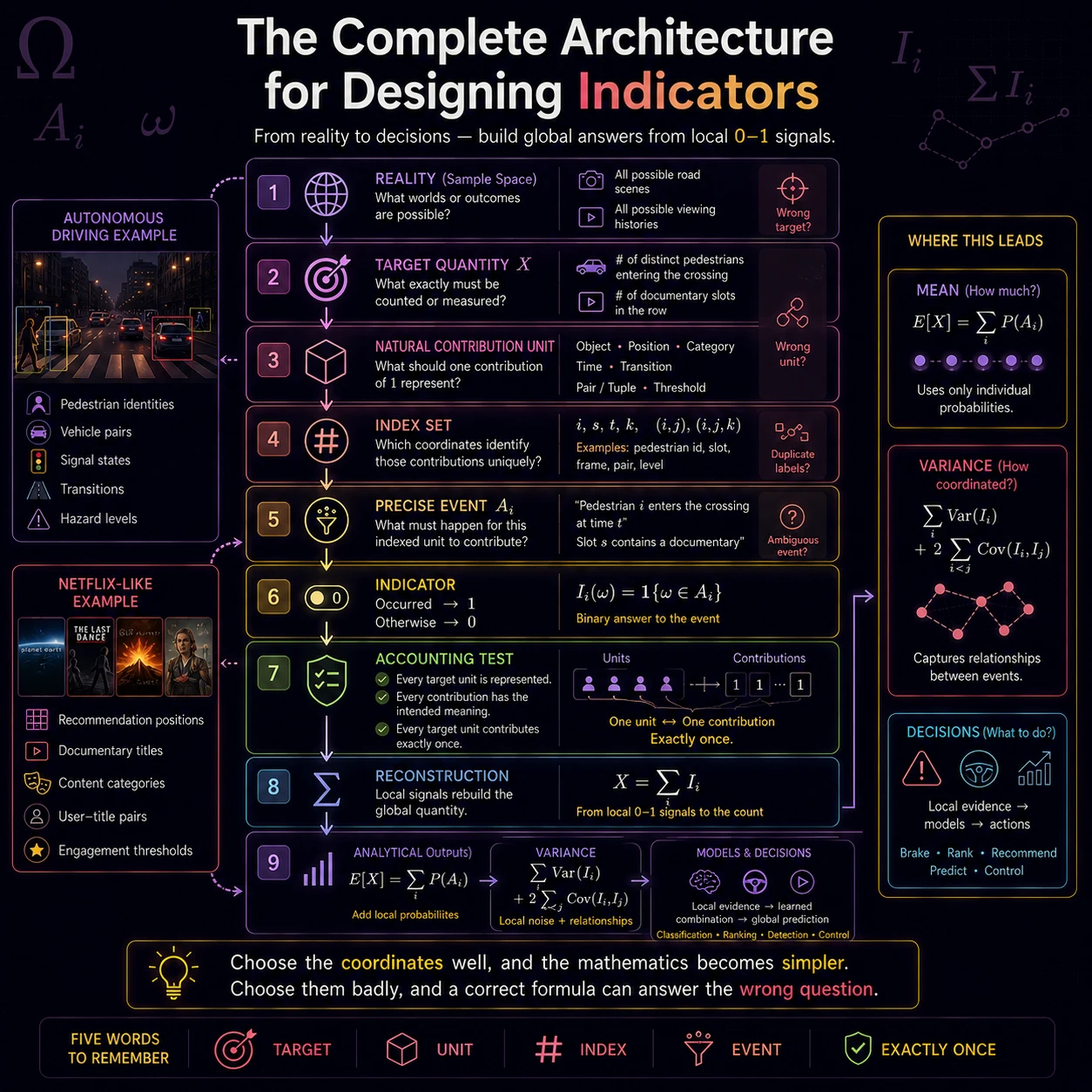

How do you design an indicator system?

INTUITION

Start with reality and a target, choose the natural contribution unit and index set, define a precise event, test exactly-once accounting, reconstruct the target, then analyze and decide.

  • Helpful foundationsevents and sample spaces · finite sums · basic probability
  • Next connectionBernoulli sums, concentration, and graph models
More context

The portrait diagram uses a clear top-to-bottom reading order and deterministic notation.
