VISUAL LESSON · 15 PICTURES

Conditional Probability: Shrink the World First

What changes when new information restricts the world in which probability is measured?

MODULE 3 / 6LESSON 3 / 50PICTURE 1 / 15
Progress stays on this device · no login
BEFORE THE FIRST PICTURE

How this lesson unfolds.

Begin with What exactly is random? The sequence then connects One outcome is an ordered pair and builds toward Break complex notation into small worlds.

Picture 1 of 15 · tap to inspect in full resolution
01

What exactly is random?

INTUITION

Draw two balls without replacement from 10 red and 10 blue distinguishable balls; order matters.

  • Learning goalExplain experiment using the restricted-sample-space model.
  • Helpful foundationssample space · events · intersection · fractions
  • Common trapThe conditioning bar does not mean intersection; it changes the denominator to the known event, while the numerator is the intersection.
  • Next connectionOne outcome is an ordered pair
More context

The visual connects exact notation to nested sets, counts, or a probability tree.

Picture 2 of 15 · tap to inspect in full resolution
02

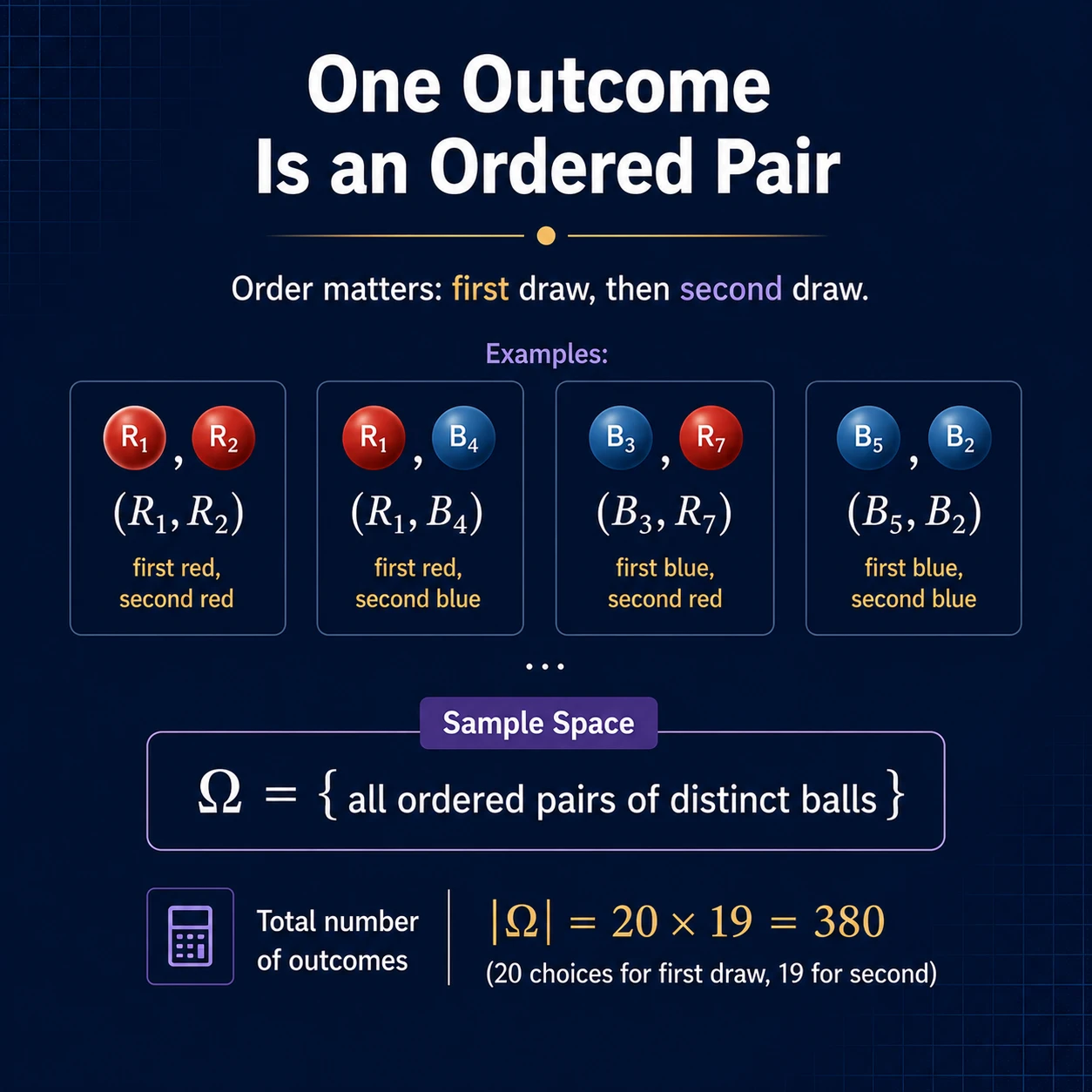

What belongs in the sample space?

INTUITION

An outcome records both draws in order, such as (R1,B4), so the full sample space contains 20x19=380 outcomes.

MATHEMATICAL STATEMENT
  1. An outcome records both draws in order, such as (R1,B4), so the full sample space contains 20x19=380 outcomes.
  • Learning goalExplain ordered outcomes using the restricted-sample-space model.
  • Helpful foundationssample space · events · intersection · fractions
  • Common trapThe conditioning bar does not mean intersection; it changes the denominator to the known event, while the numerator is the intersection.
  • Next connectionAn event contains many outcomes
More context

The visual connects exact notation to nested sets, counts, or a probability tree.

Picture 3 of 15 · tap to inspect in full resolution

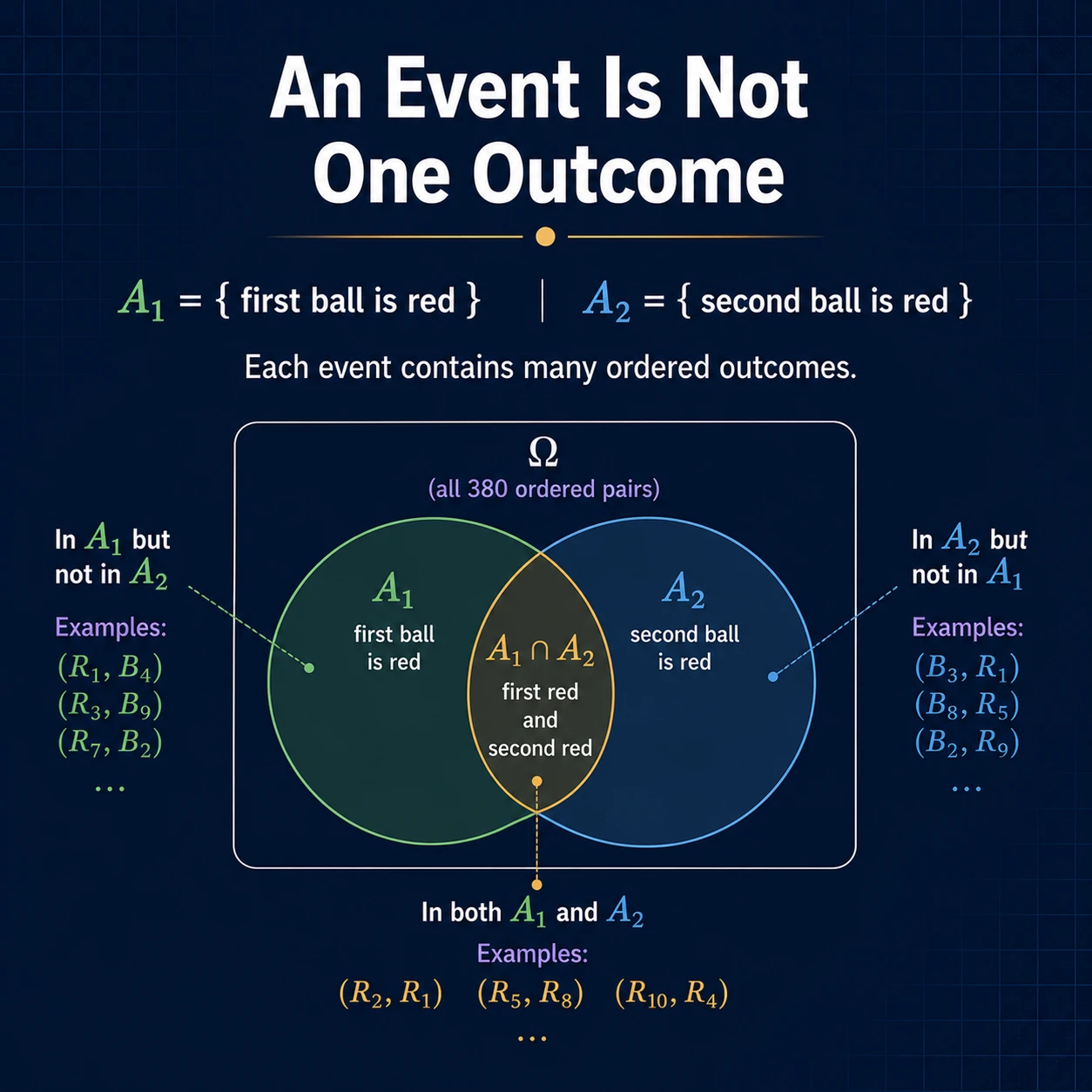

03

Why is an event not one result?

INTUITION

A1 is the set of all outcomes whose first ball is red; A2 is the set whose second ball is red.

  • Learning goalExplain events as sets using the restricted-sample-space model.
  • Helpful foundationssample space · events · intersection · fractions
  • Common trapThe conditioning bar does not mean intersection; it changes the denominator to the known event, while the numerator is the intersection.
  • Next connectionThe comma means AND
More context

The visual connects exact notation to nested sets, counts, or a probability tree.

Picture 4 of 15 · tap to inspect in full resolution

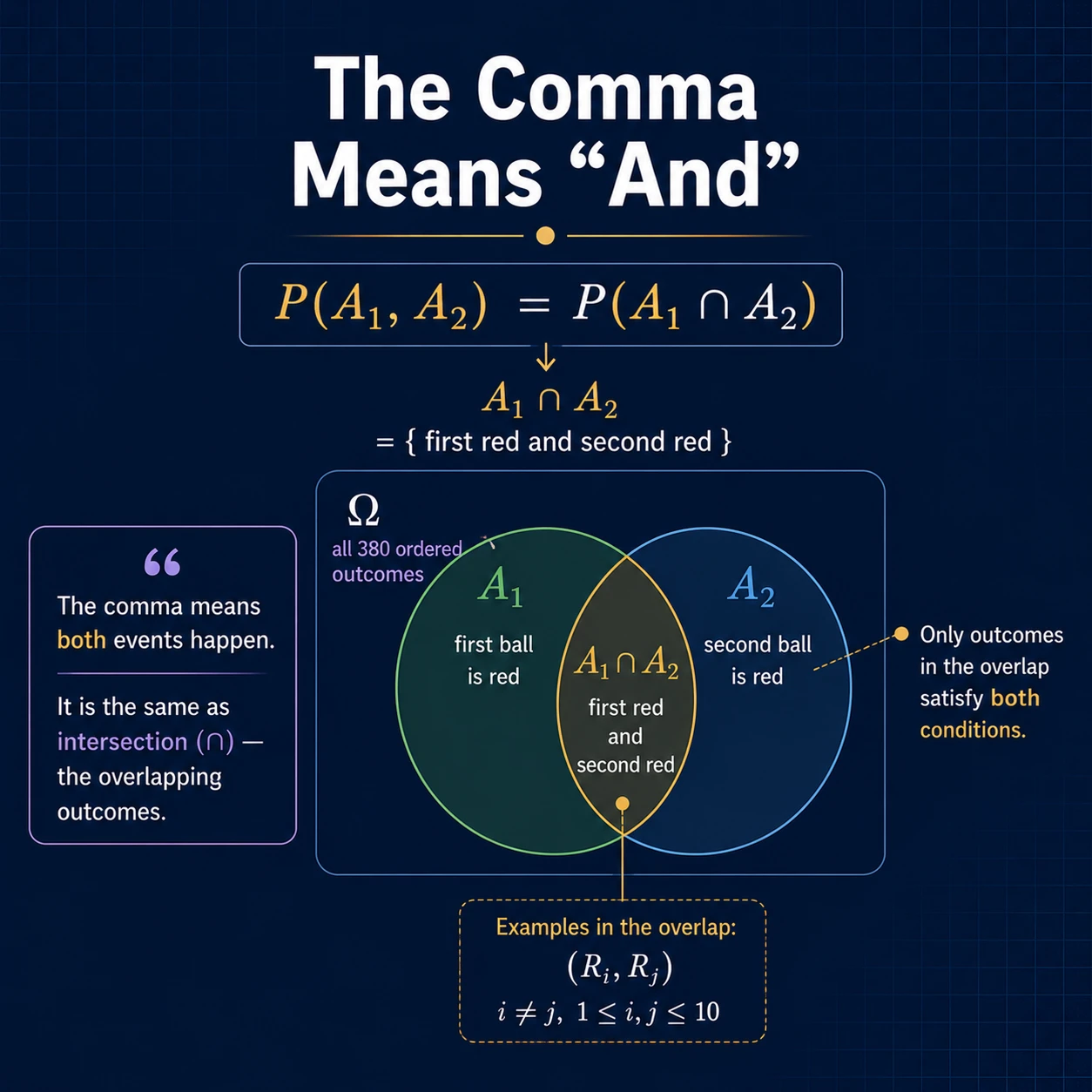

04

What does P(A1,A2) mean?

INTUITION

The comma is shorthand for intersection: both the first and second balls are red.

  • Learning goalExplain intersection notation using the restricted-sample-space model.
  • Helpful foundationssample space · events · intersection · fractions
  • Common trapThe conditioning bar does not mean intersection; it changes the denominator to the known event, while the numerator is the intersection.
  • Next connectionThe conditioning bar restricts the world
More context

The visual connects exact notation to nested sets, counts, or a probability tree.

Picture 5 of 15 · tap to inspect in full resolution
05

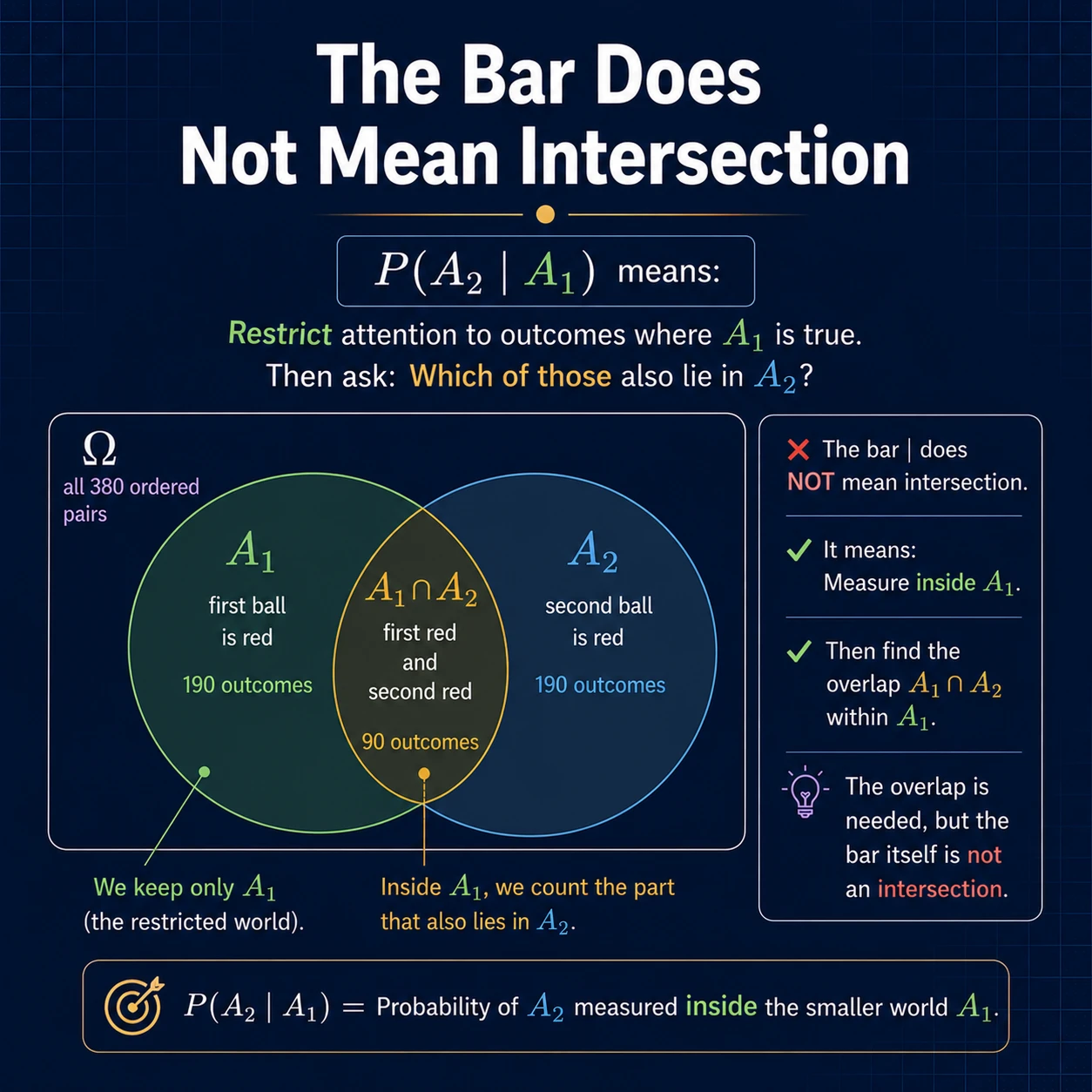

What does P(A2 | A1) ask?

INTUITION

First enter the world where A1 is true, then measure the part of that smaller world also inside A2.

  • Learning goalExplain conditioning meaning using the restricted-sample-space model.
  • Helpful foundationssample space · events · intersection · fractions
  • Common trapThe conditioning bar does not mean intersection; it changes the denominator to the known event, while the numerator is the intersection.
  • Next connectionThe original denominator disappears
More context

The visual connects exact notation to nested sets, counts, or a probability tree.

Picture 6 of 15 · tap to inspect in full resolution
06

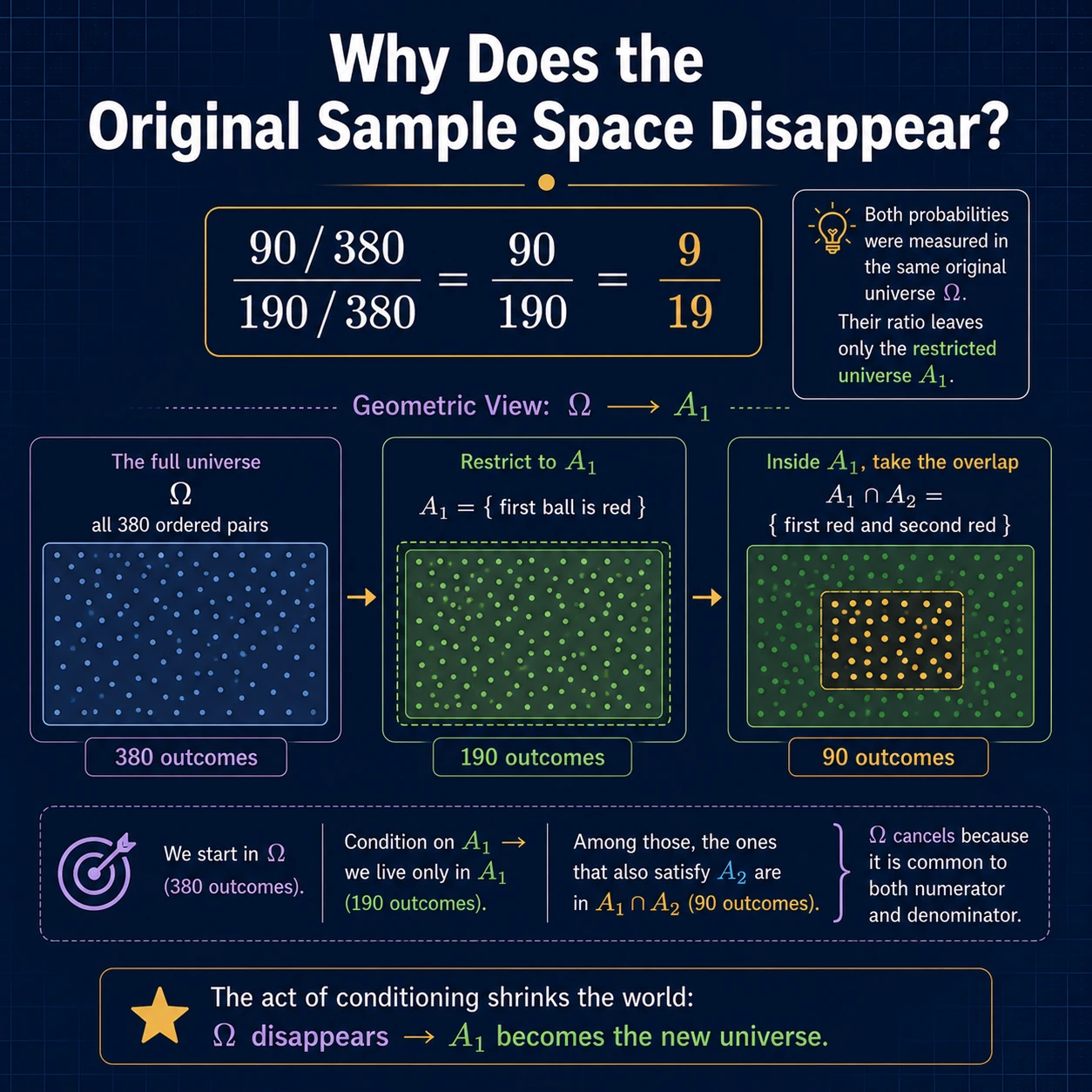

Why does the sample space shrink?

INTUITION

Conditioning on A1 replaces all 380 outcomes with the 190 outcomes in which the first ball is red.

  • Learning goalExplain restricted denominator using the restricted-sample-space model.
  • Helpful foundationssample space · events · intersection · fractions
  • Common trapThe conditioning bar does not mean intersection; it changes the denominator to the known event, while the numerator is the intersection.
  • Next connectionCount the remaining important set
More context

The visual connects exact notation to nested sets, counts, or a probability tree.

Picture 7 of 15 · tap to inspect in full resolution
07

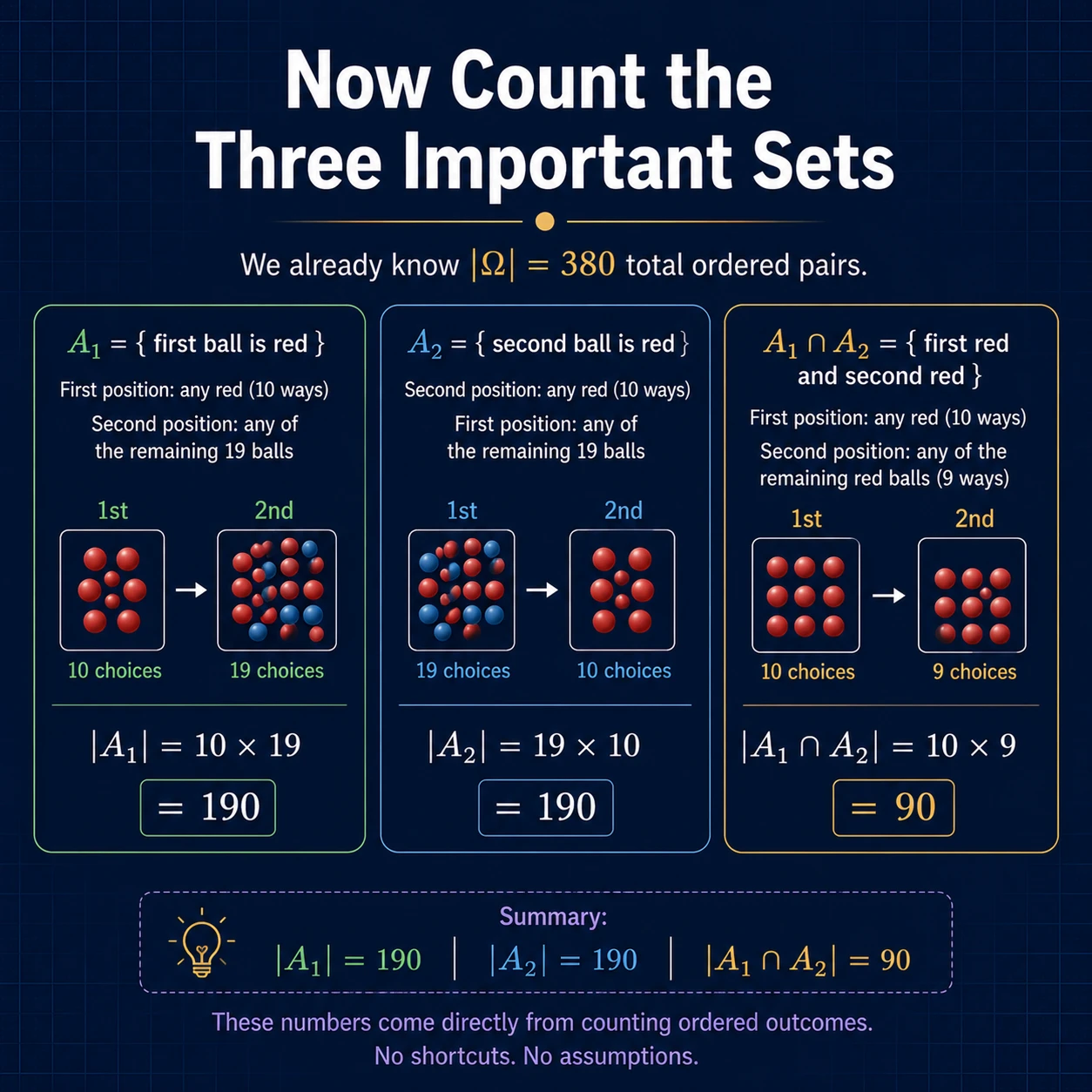

How many favorable outcomes survive?

INTUITION

Inside A1, 10 choices for the first red ball and 9 remaining red choices give 90 outcomes in A1 intersection A2.

  • Learning goalExplain restricted numerator using the restricted-sample-space model.
  • Helpful foundationssample space · events · intersection · fractions
  • Common trapThe conditioning bar does not mean intersection; it changes the denominator to the known event, while the numerator is the intersection.
  • Next connectionNow derive nine nineteenths
More context

The visual connects exact notation to nested sets, counts, or a probability tree.

Picture 8 of 15 · tap to inspect in full resolution

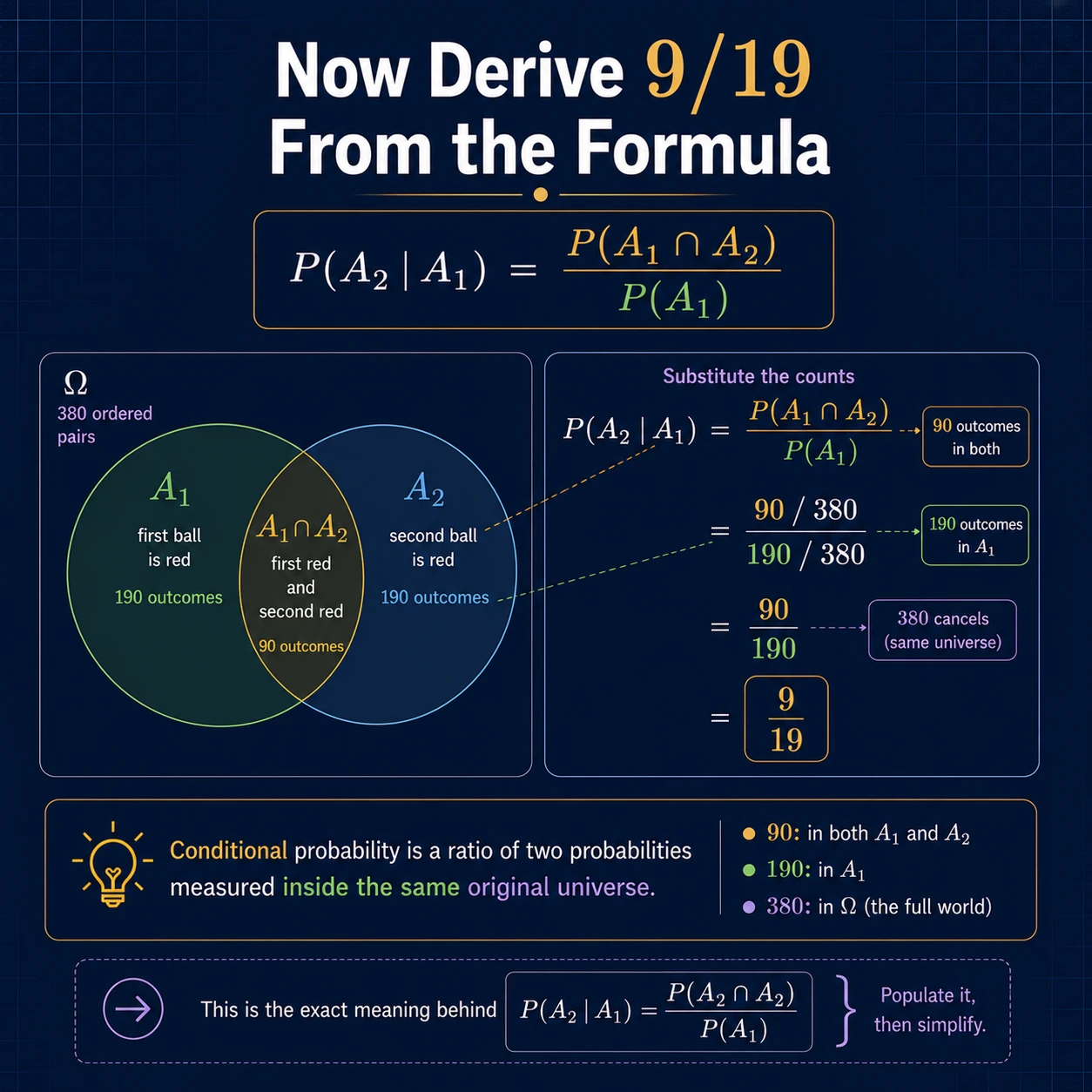

08

How does counting become conditional probability?

INTUITION

P(A2|A1)=90/190=9/19 because the restricted numerator and denominator share a factor of 10.

MATHEMATICAL STATEMENT
  1. P(A2|A1)=90/190=9/19 because the restricted numerator and denominator share a factor of 10.
  • Learning goalExplain worked result using the restricted-sample-space model.
  • Helpful foundationssample space · events · intersection · fractions
  • Common trapThe conditioning bar does not mean intersection; it changes the denominator to the known event, while the numerator is the intersection.
  • Next connectionMarginal and conditional probabilities answer different questions
More context

The visual connects exact notation to nested sets, counts, or a probability tree.

Picture 9 of 15 · tap to inspect in full resolution
09

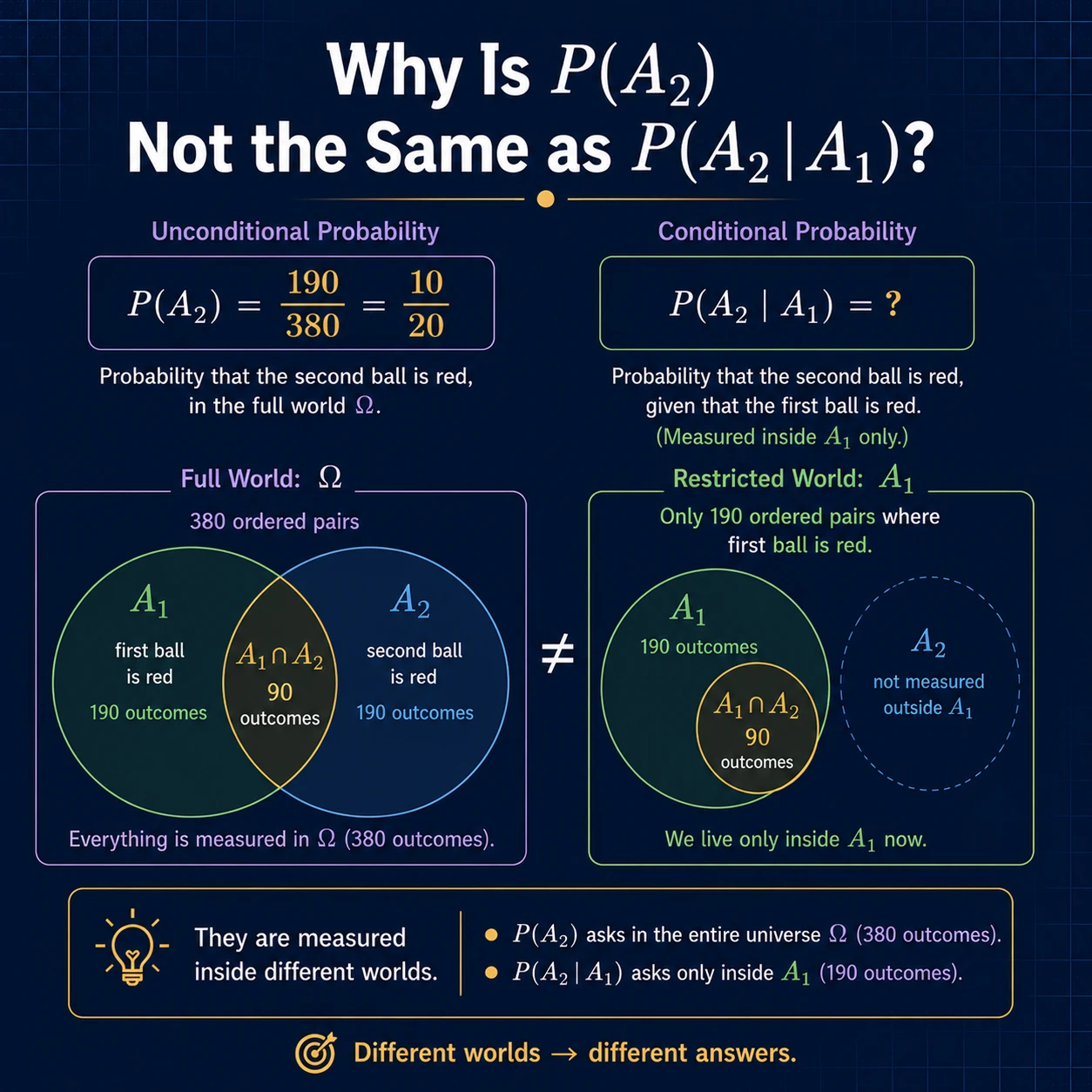

Why is P(A2) not P(A2 | A1)?

INTUITION

Before information P(A2)=10/20=1/2; after a red first draw P(A2|A1)=9/19.

MATHEMATICAL STATEMENT
  1. Before information P(A2)=10/20=1/2; after a red first draw P(A2|A1)=9/19.
  • Learning goalExplain comparison using the restricted-sample-space model.
  • Helpful foundationssample space · events · intersection · fractions
  • Common trapThe conditioning bar does not mean intersection; it changes the denominator to the known event, while the numerator is the intersection.
  • Next connectionThe set formula matches the physical story
More context

The visual connects exact notation to nested sets, counts, or a probability tree.

Picture 10 of 15 · tap to inspect in full resolution

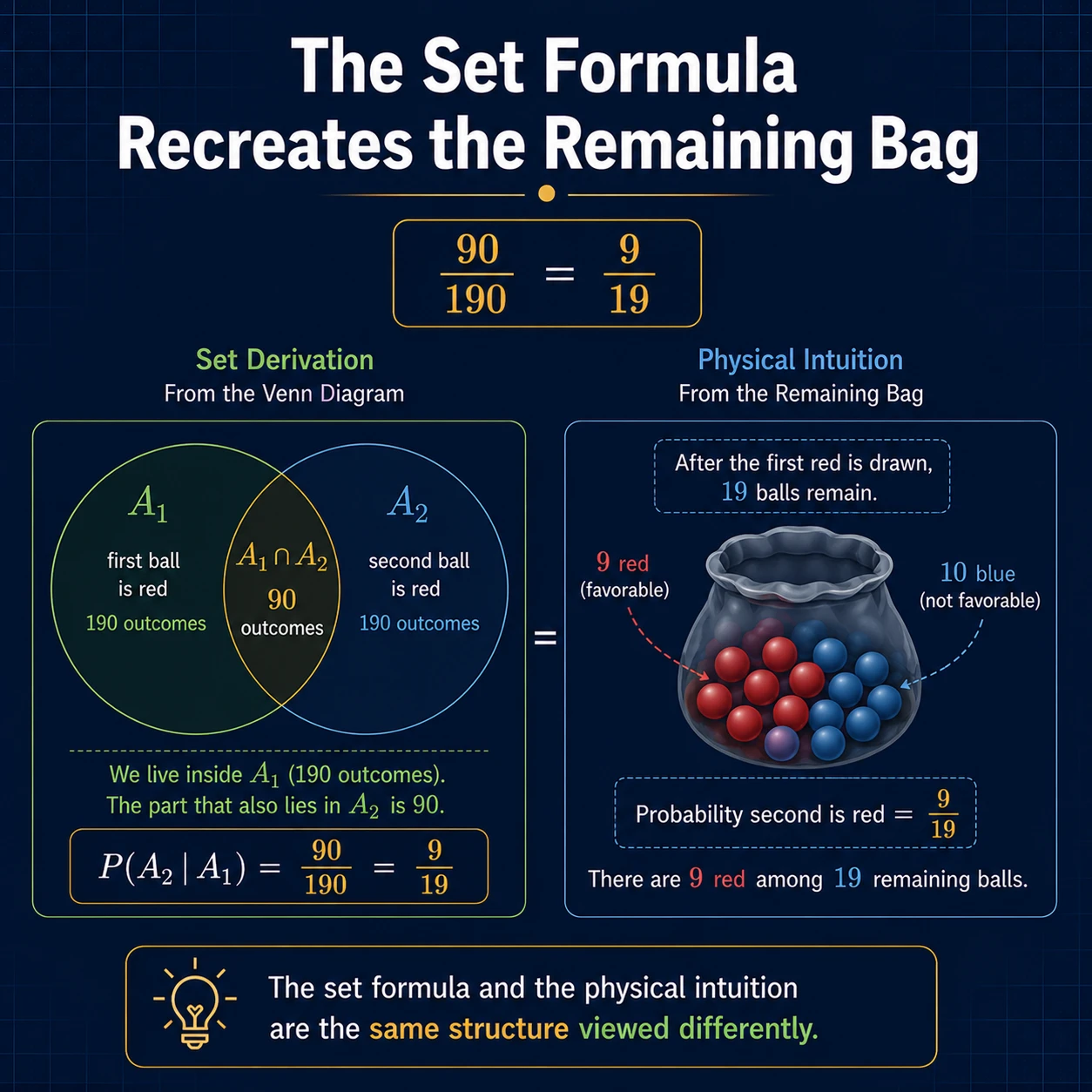

10

Where does the formula come from?

INTUITION

P(B|A)=P(A intersection B)/P(A) is the ratio of the overlap to the conditioning set, provided P(A)>0.

MATHEMATICAL STATEMENT
  1. P(B|A)=P(A intersection B)/P(A) is the ratio of the overlap to the conditioning set, provided P(A)>0.
  • Learning goalExplain formula derivation using the restricted-sample-space model.
  • Helpful foundationssample space · events · intersection · fractions
  • Common trapThe conditioning bar does not mean intersection; it changes the denominator to the known event, while the numerator is the intersection.
  • Next connectionMultiplication rebuilds the joint event
More context

The visual connects exact notation to nested sets, counts, or a probability tree.

Picture 11 of 15 · tap to inspect in full resolution
11

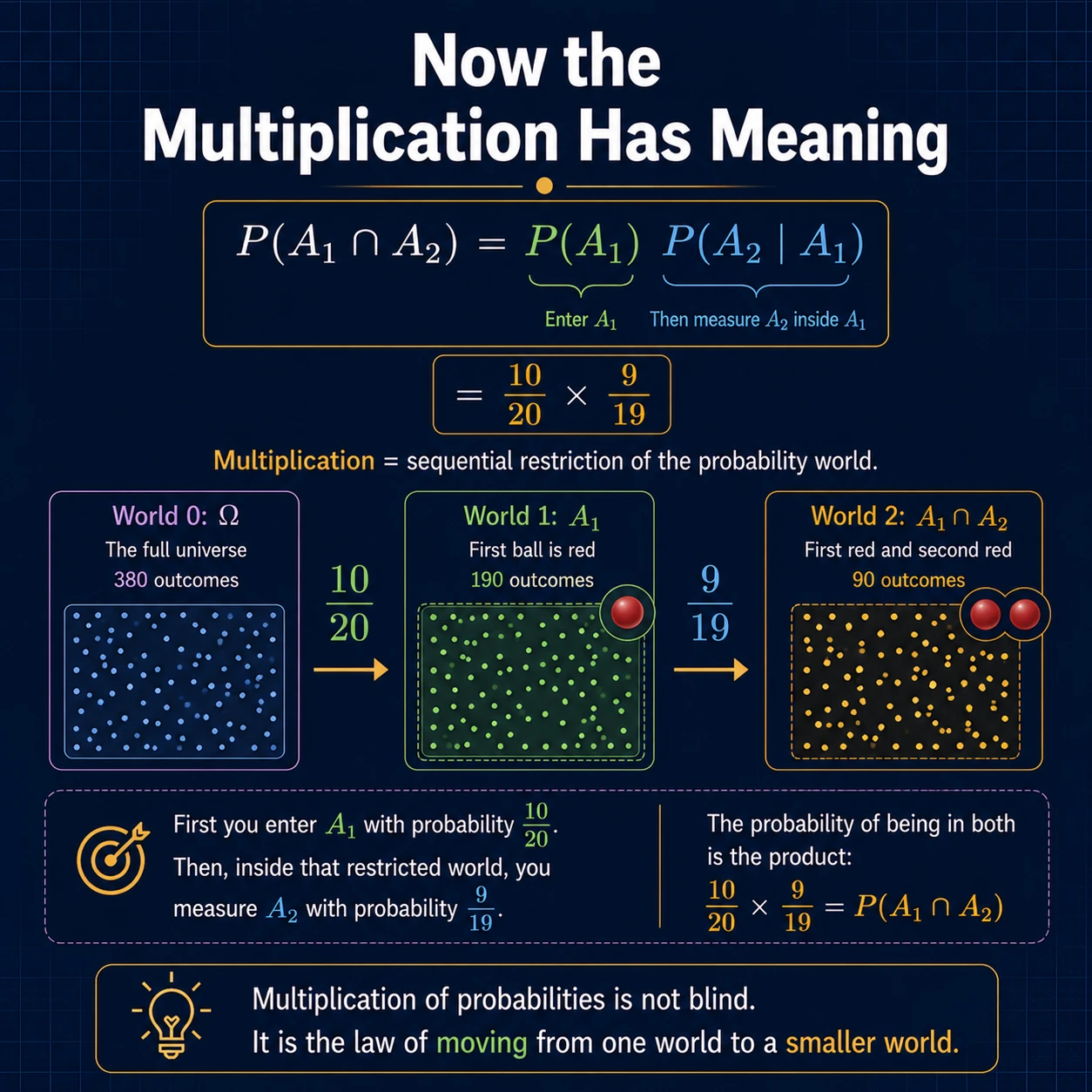

How do conditional pieces reconnect?

INTUITION

Rearranging gives P(A1 intersection A2)=P(A1)P(A2|A1)=10/20 times 9/19.

MATHEMATICAL STATEMENT
  1. Rearranging gives P(A1 intersection A2)=P(A1)P(A2|A1)=10/20 times 9/19.
  • Learning goalExplain multiplication rule using the restricted-sample-space model.
  • Helpful foundationssample space · events · intersection · fractions
  • Common trapThe conditioning bar does not mean intersection; it changes the denominator to the known event, while the numerator is the intersection.
  • Next connectionEvery new condition creates a smaller world
More context

The visual connects exact notation to nested sets, counts, or a probability tree.

Picture 12 of 15 · tap to inspect in full resolution

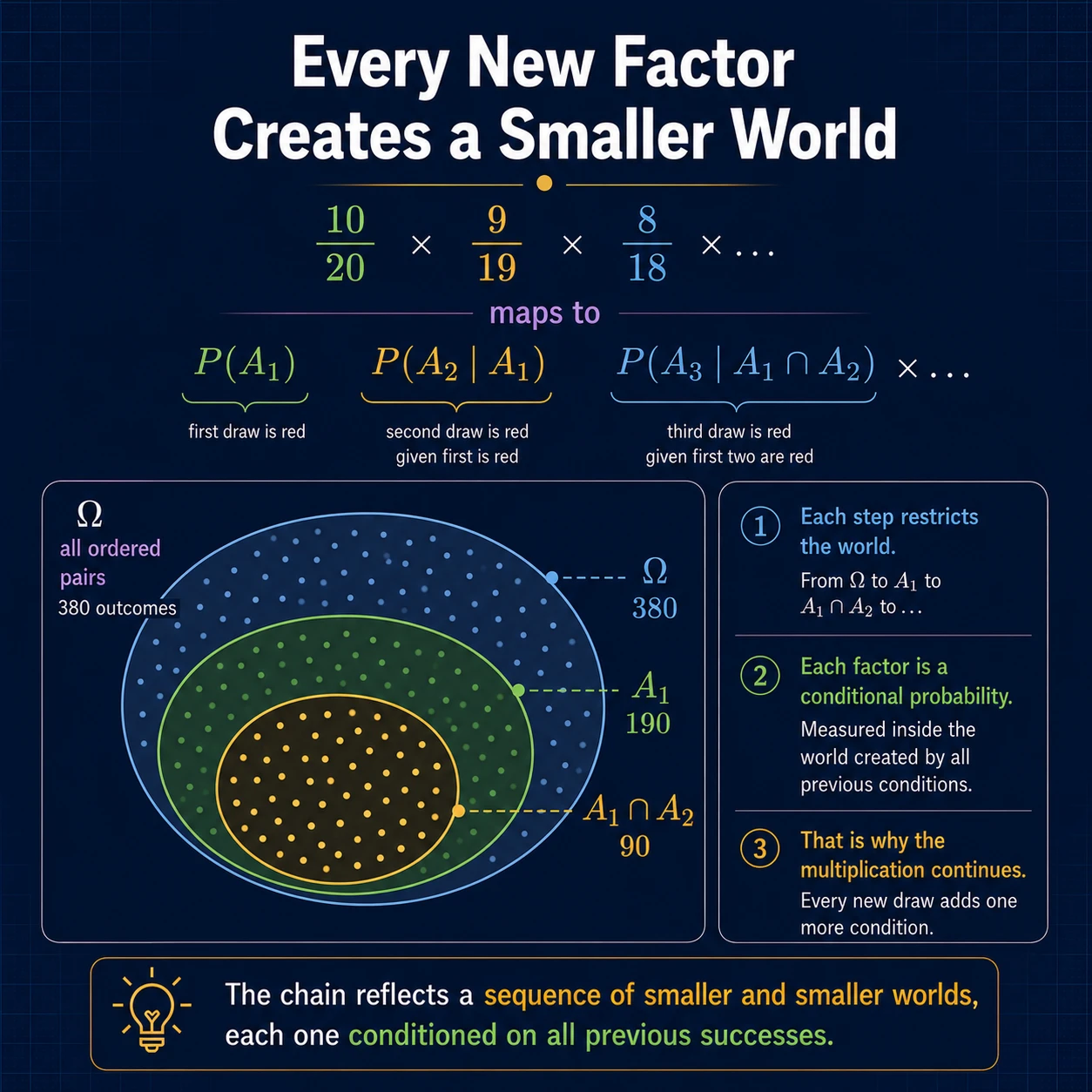

12

How does a probability chain grow?

INTUITION

For sequential events, each factor is measured inside all information that came before it.

  • Learning goalExplain chain rule using the restricted-sample-space model.
  • Helpful foundationssample space · events · intersection · fractions
  • Common trapThe conditioning bar does not mean intersection; it changes the denominator to the known event, while the numerator is the intersection.
  • Next connectionIndependence is the special case
More context

The visual connects exact notation to nested sets, counts, or a probability tree.

Picture 13 of 15 · tap to inspect in full resolution
13

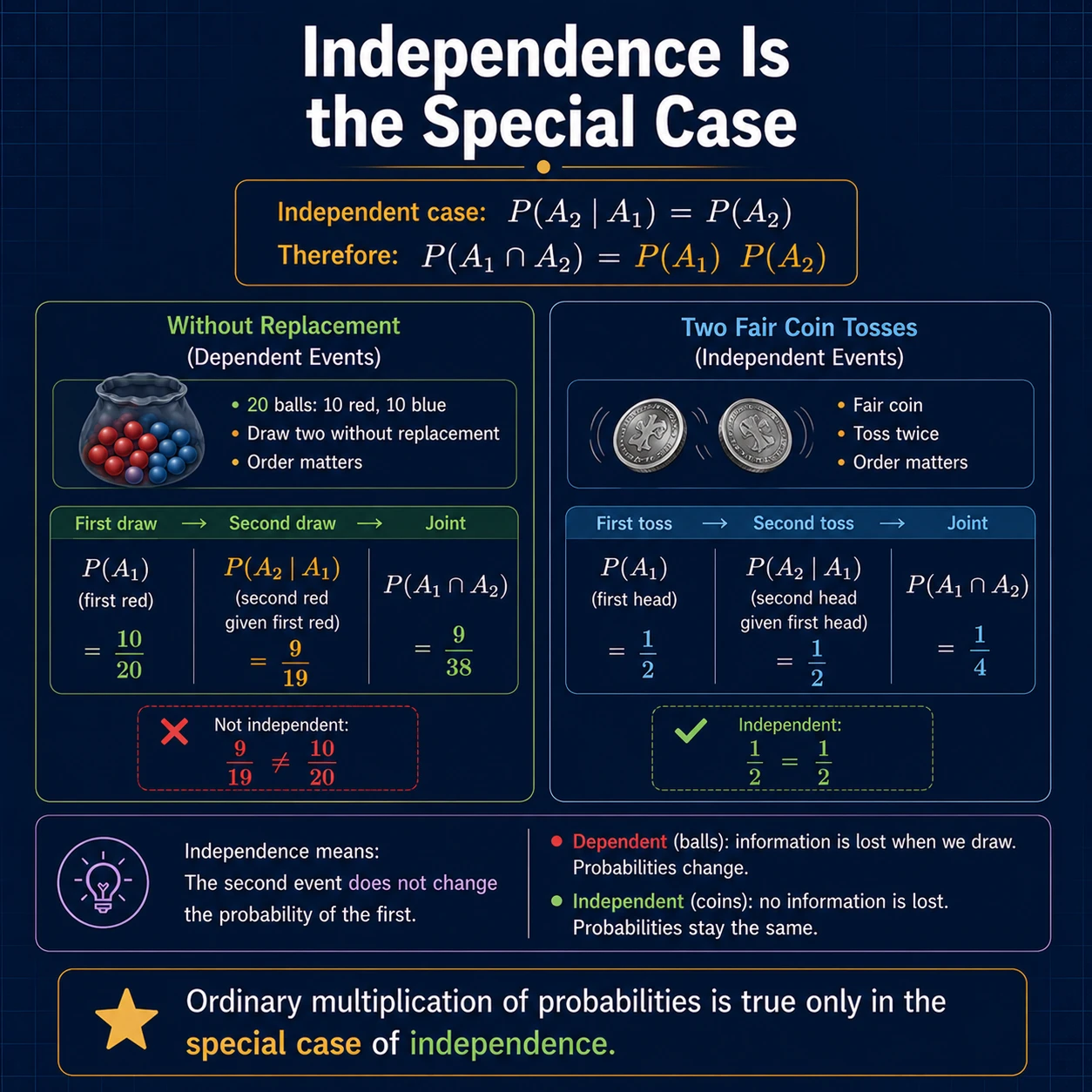

When does conditioning change nothing?

INTUITION

If A and B are independent, P(B|A)=P(B), so the multiplication rule becomes P(A intersection B)=P(A)P(B).

MATHEMATICAL STATEMENT
  1. If A and B are independent, P(B|A)=P(B), so the multiplication rule becomes P(A intersection B)=P(A)P(B).
  • Learning goalExplain independence using the restricted-sample-space model.
  • Helpful foundationssample space · events · intersection · fractions
  • Common trapThe conditioning bar does not mean intersection; it changes the denominator to the known event, while the numerator is the intersection.
  • Next connectionThe multiplication is a sequence of restrictions
More context

The visual connects exact notation to nested sets, counts, or a probability tree.

Picture 14 of 15 · tap to inspect in full resolution

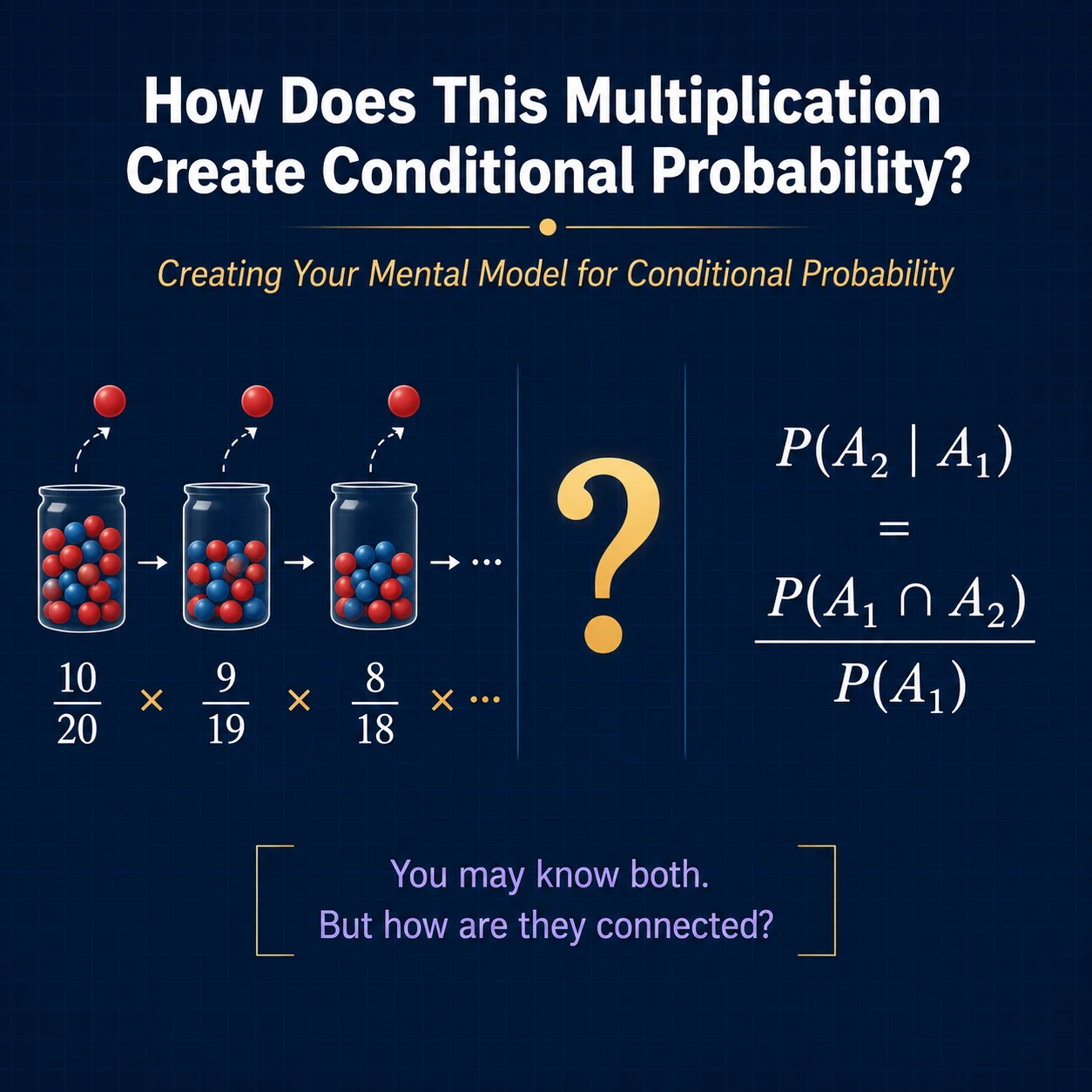

14

Why is multiplying probabilities not blind arithmetic?

INTUITION

Each factor represents entering a smaller valid set; multiplication combines the successive fractions of the original world.

  • Learning goalExplain multiplication intuition using the restricted-sample-space model.
  • Helpful foundationssample space · events · intersection · fractions
  • Common trapThe conditioning bar does not mean intersection; it changes the denominator to the known event, while the numerator is the intersection.
  • Next connectionBreak complex notation into small worlds
More context

The visual connects exact notation to nested sets, counts, or a probability tree.

Picture 15 of 15 · tap to inspect in full resolution
15

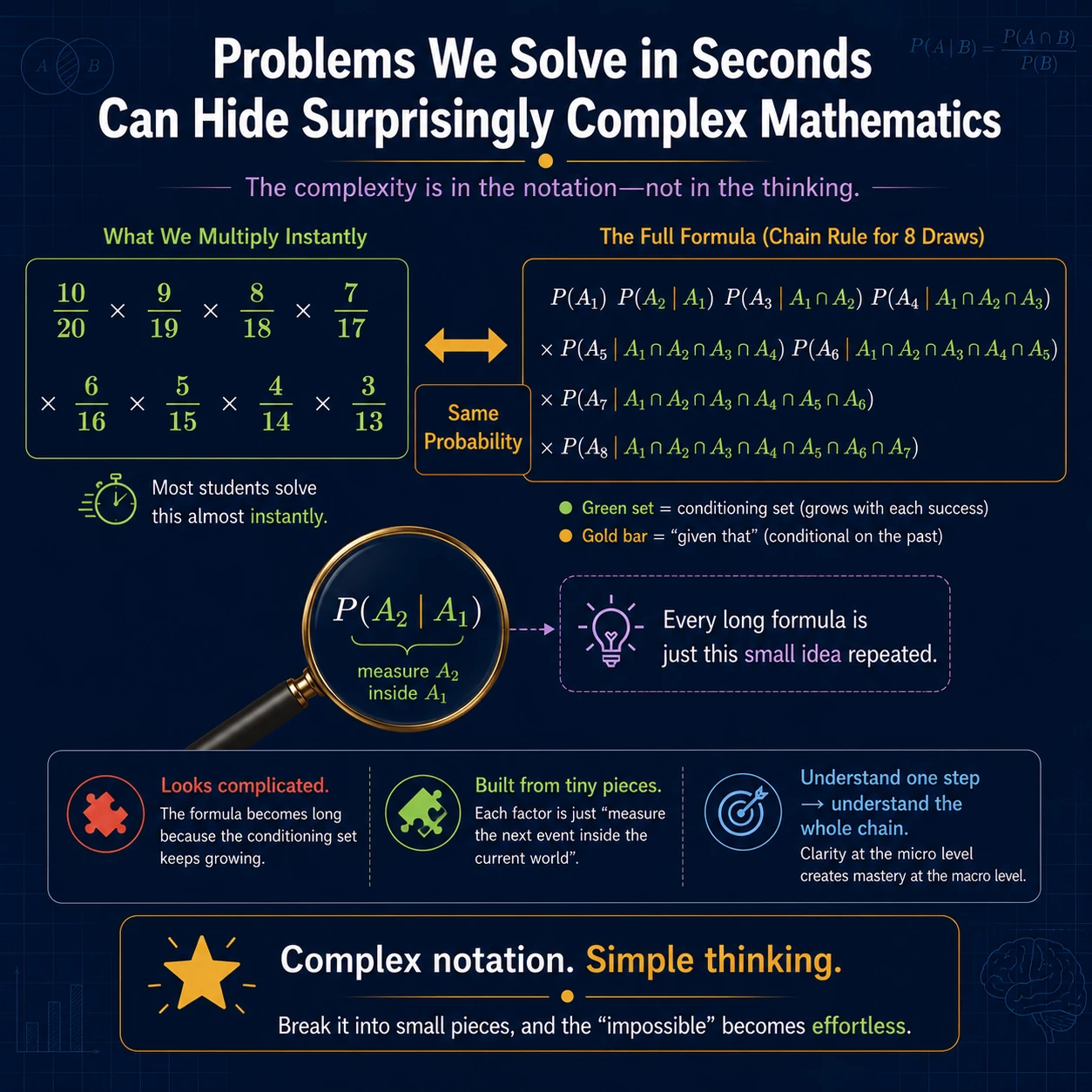

How should we solve a long conditional problem?

INTUITION

Name events, state the current world, count or measure the overlap, then multiply only when the chain rule justifies it.

  • Learning goalExplain workflow using the restricted-sample-space model.
  • Helpful foundationssample space · events · intersection · fractions
  • Common trapThe conditioning bar does not mean intersection; it changes the denominator to the known event, while the numerator is the intersection.
  • Next connectionApply restricted-world reasoning to Bayes rules and probability trees
More context

The visual connects exact notation to nested sets, counts, or a probability tree.
