Mental Model Behind Mean and Variance

How do center and squared distance work together to describe a distribution?

MODULE 4 / 6LESSON 28 / 46PICTURE 1 / 17
Progress stays on this device · no login
BEFORE THE FIRST PICTURE

How this lesson unfolds.

Begin with How do raw values become mean and variance? The sequence then connects The mean is a balance point and builds toward Bell-shaped data allow a sharper shortcut.

Picture 1 of 17 · tap to inspect in full resolution
01

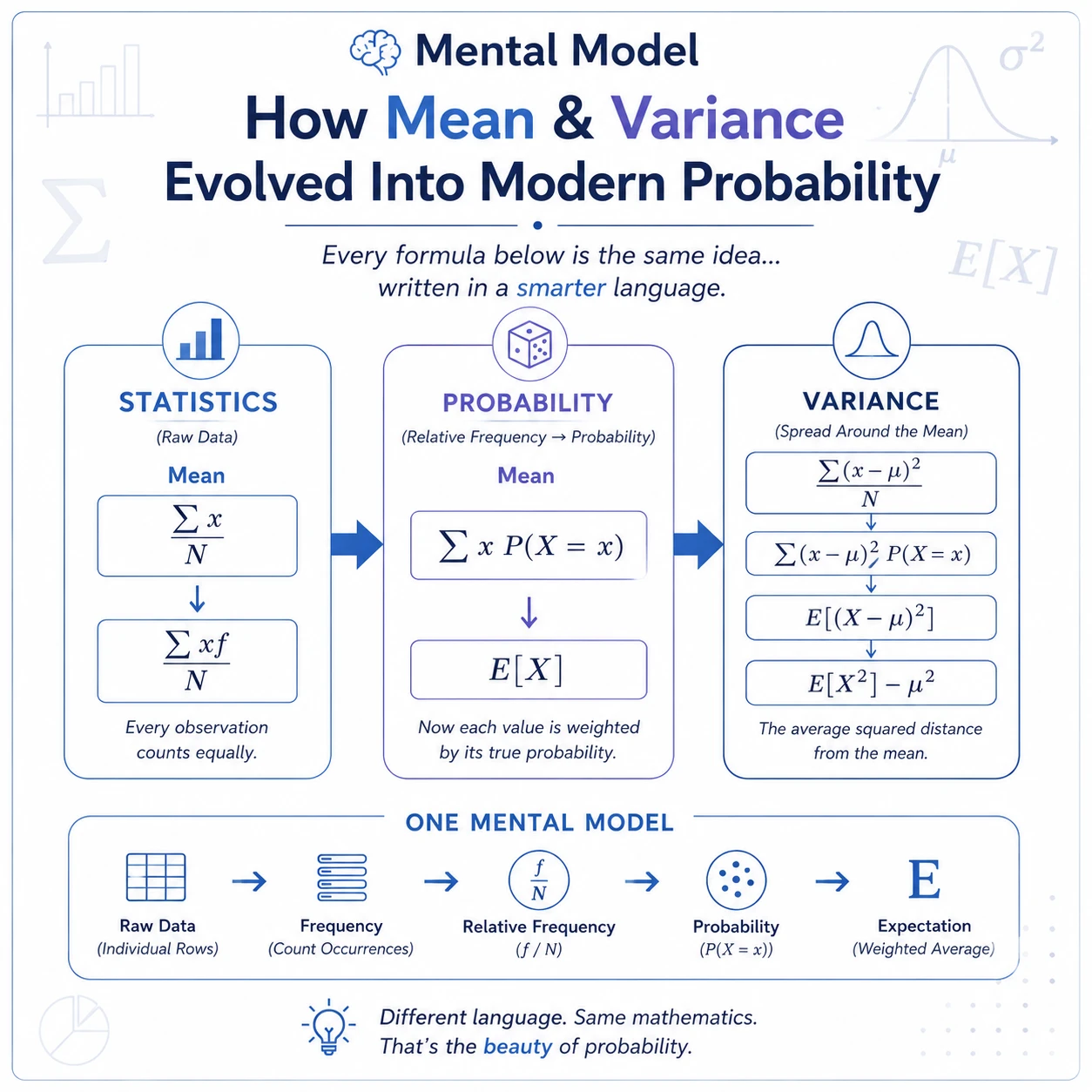

How do raw values become mean and variance?

INTUITION

Counts become relative frequencies, relative frequencies act as probabilities, expectation locates the center, and variance averages squared distance from that center. The notation changes, but the weighting idea stays the same.

  • Learning goalExplain lesson map without confusing a population quantity with a sample estimator.
  • Helpful foundationsarithmetic mean · squared numbers · relative frequency · basic probability
  • Common trapMean locates the center but does not determine spread; population variance averages squared deviations and is distinct from a sample-variance estimator.
  • Next connectionThe mean is a balance point
More context

The portrait diagram reads top to bottom through an exact relationship, three checkpoints, a visual model, and a conclusion.

Picture 2 of 17 · tap to inspect in full resolution
02

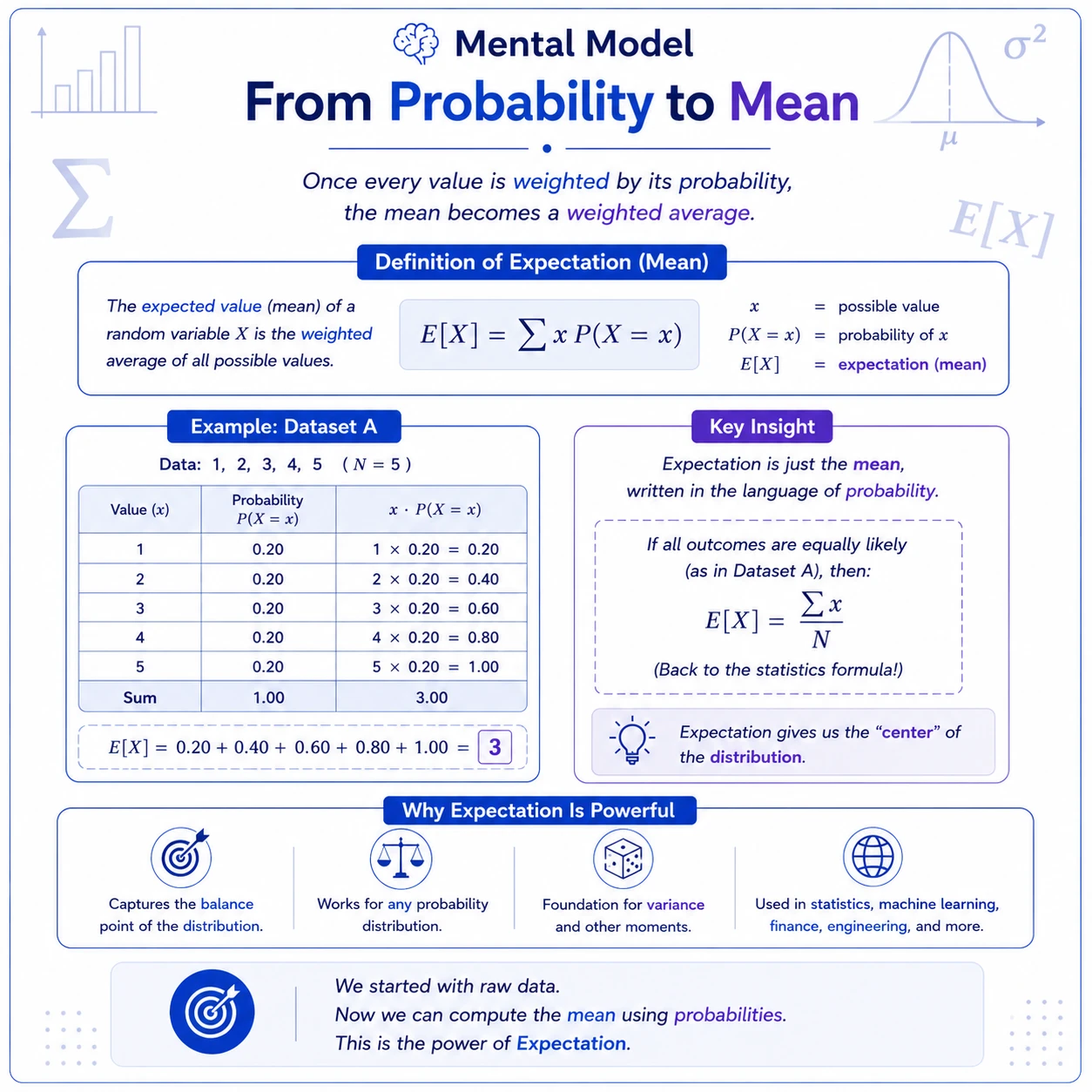

How does probability define the center?

INTUITION

For a discrete random variable, the population mean mu=E[X]=sum xP(X=x) is a probability-weighted average. Equal probabilities recover the ordinary arithmetic mean.

MATHEMATICAL STATEMENTS
  1. For a discrete random variable, the population mean mu=E[X]=sum xP(X=x) is a probability-weighted average.
  2. Equal probabilities recover the ordinary arithmetic mean.
  • Learning goalExplain expectation as center without confusing a population quantity with a sample estimator.
  • Helpful foundationsarithmetic mean · squared numbers · relative frequency · basic probability
  • Common trapMean locates the center but does not determine spread; population variance averages squared deviations and is distinct from a sample-variance estimator.
  • Next connectionThe mean alone cannot describe spread
More context

The portrait diagram reads top to bottom through an exact relationship, three checkpoints, a visual model, and a conclusion.

Picture 3 of 17 · tap to inspect in full resolution
03

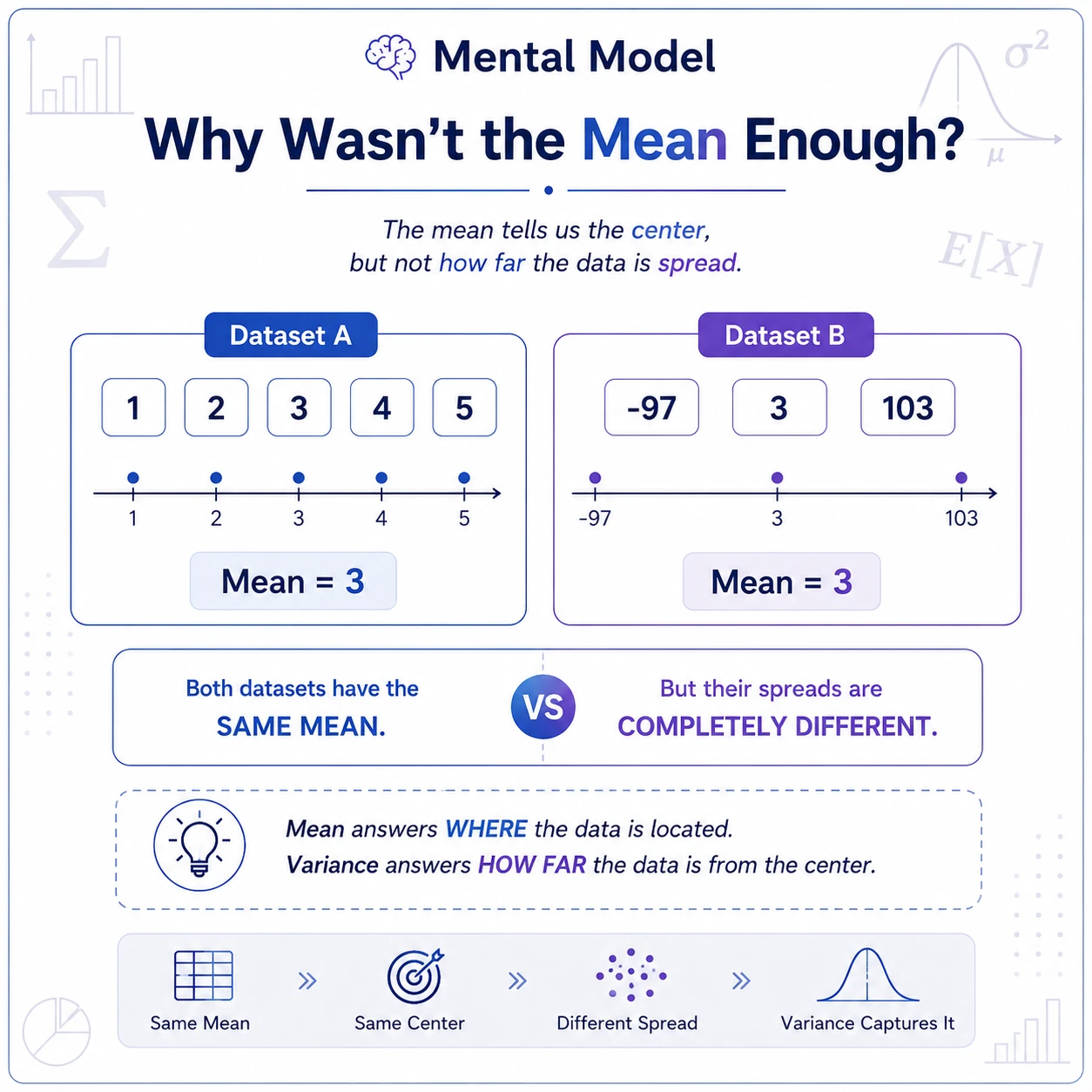

Can two datasets share a mean but look different?

INTUITION

The datasets 1,2,3,4,5 and -97,3,3,3,103 both have mean 3, yet the second is far more dispersed. Mean answers where the center is; variance answers how far values lie from it.

  • Learning goalExplain same center different spread without confusing a population quantity with a sample estimator.
  • Helpful foundationsarithmetic mean · squared numbers · relative frequency · basic probability
  • Common trapMean locates the center but does not determine spread; population variance averages squared deviations and is distinct from a sample-variance estimator.
  • Next connectionExpectation is an averaging operator
More context

The portrait diagram reads top to bottom through an exact relationship, three checkpoints, a visual model, and a conclusion.

Picture 4 of 17 · tap to inspect in full resolution
04

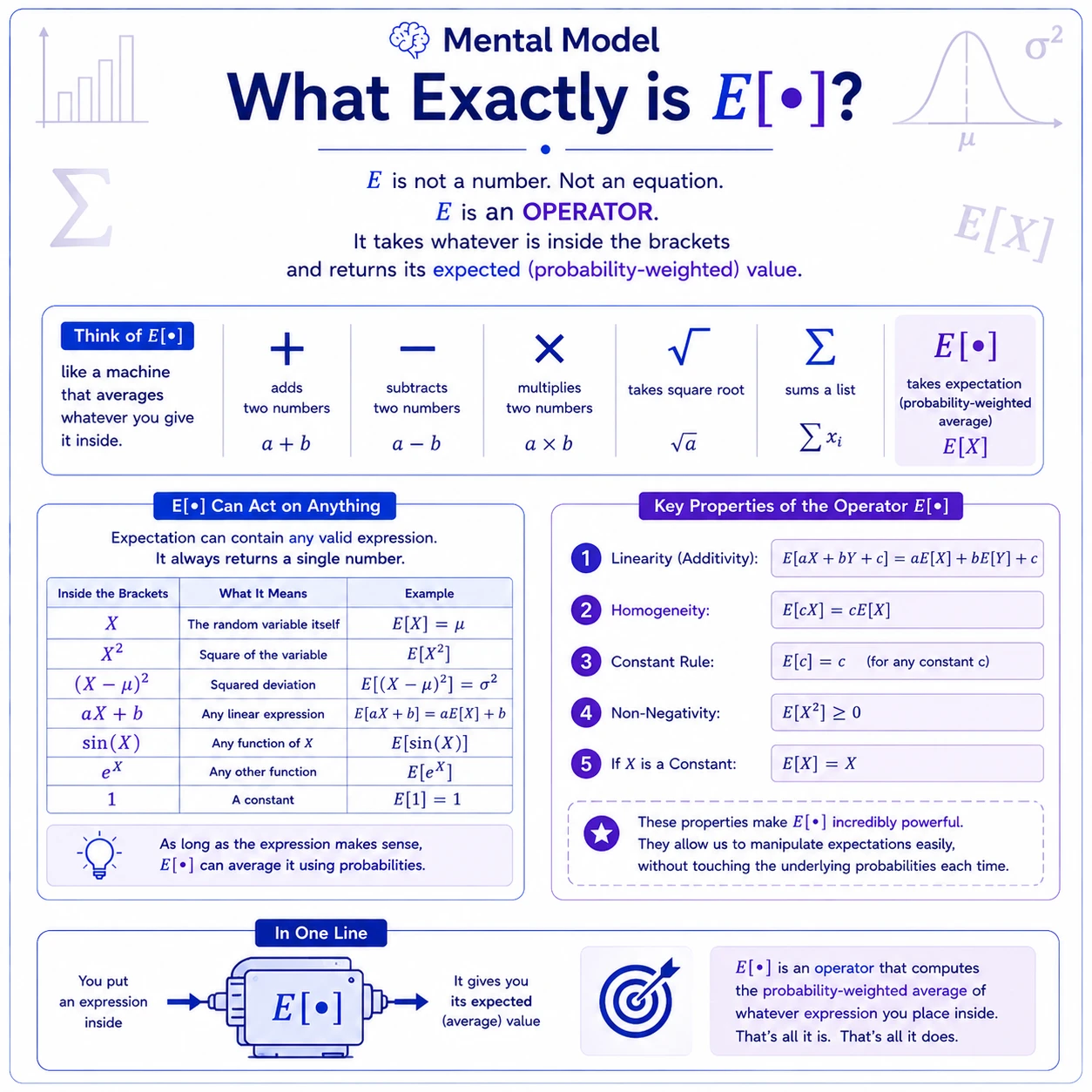

What does E of an expression mean?

INTUITION

E is an operator: it takes a valid expression of X and returns its probability-weighted average. It is linear, leaves constants unchanged, and can average X, X squared, or squared deviations.

  • Learning goalExplain expectation operator without confusing a population quantity with a sample estimator.
  • Helpful foundationsarithmetic mean · squared numbers · relative frequency · basic probability
  • Common trapMean locates the center but does not determine spread; population variance averages squared deviations and is distinct from a sample-variance estimator.
  • Next connectionExpectation compresses a weighted sum
More context

The portrait diagram reads top to bottom through an exact relationship, three checkpoints, a visual model, and a conclusion.

Picture 5 of 17 · tap to inspect in full resolution
05

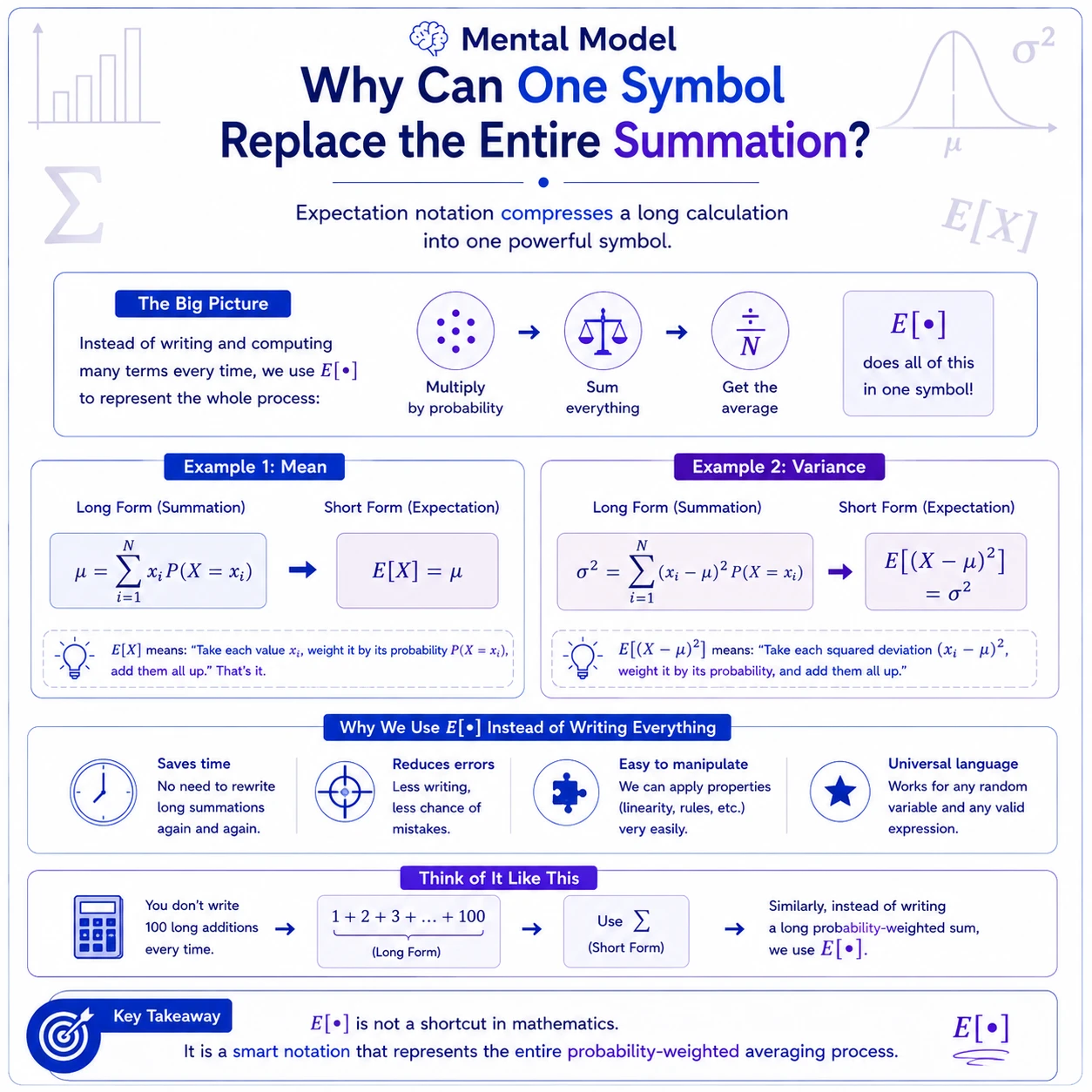

What calculation is hidden inside E brackets?

INTUITION

E[g(X)] is shorthand for sum g(x)P(X=x). For g(X)=X it gives the mean; for g(X)=(X-mu)^2 it gives population variance.

MATHEMATICAL STATEMENTS
  1. E[g(X)] is shorthand for sum g(x)P(X=x).
  2. For g(X)=X it gives the mean; for g(X)=(X-mu)^2 it gives population variance.
  • Learning goalExplain expectation notation without confusing a population quantity with a sample estimator.
  • Helpful foundationsarithmetic mean · squared numbers · relative frequency · basic probability
  • Common trapMean locates the center but does not determine spread; population variance averages squared deviations and is distinct from a sample-variance estimator.
  • Next connectionCounts become probability weights
More context

The portrait diagram reads top to bottom through an exact relationship, three checkpoints, a visual model, and a conclusion.

Picture 6 of 17 · tap to inspect in full resolution
06

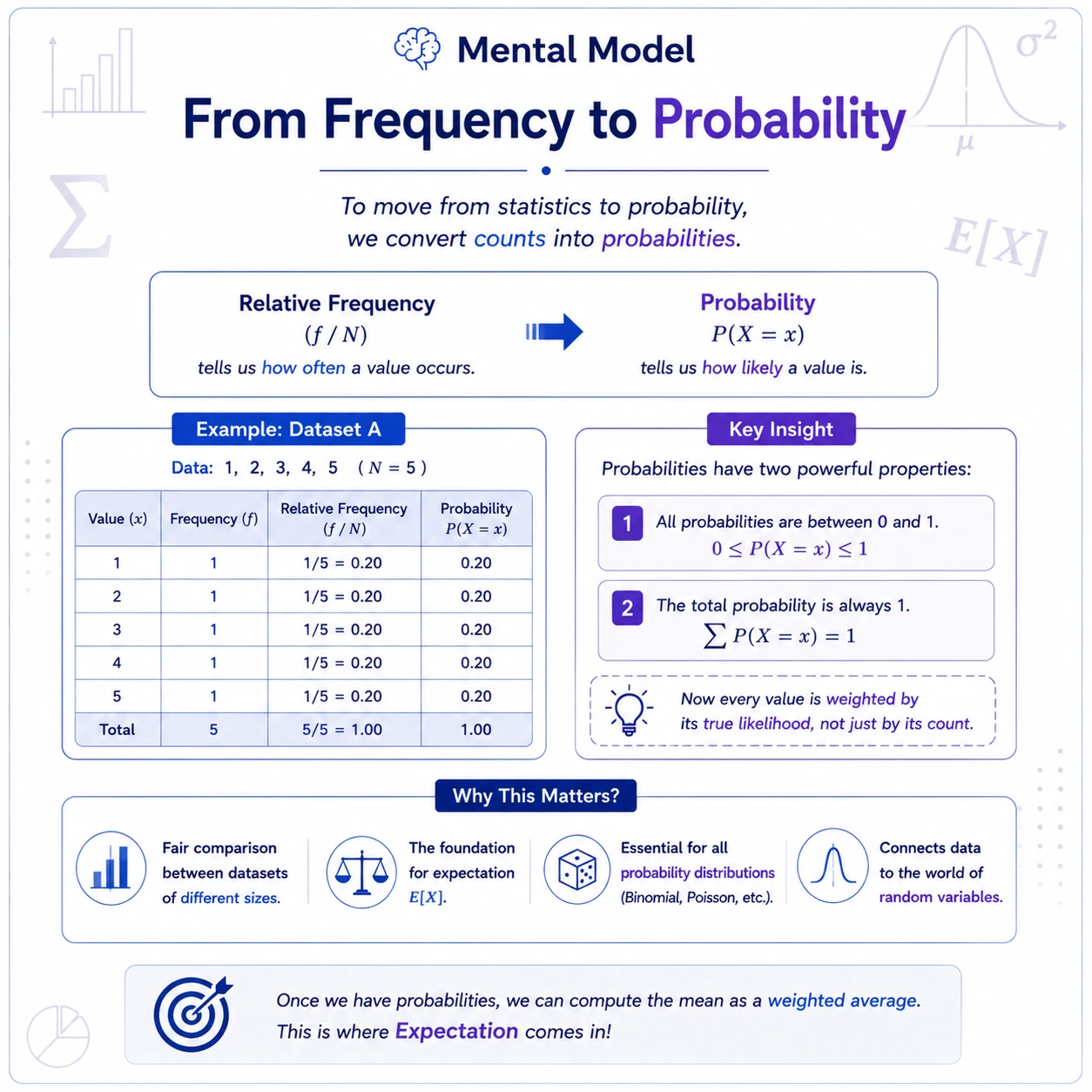

How do frequencies become probabilities?

INTUITION

For a dataset of size N, a value occurring f times has relative frequency f/N. These nonnegative weights sum to one and can be used as the empirical probability distribution.

  • Learning goalExplain frequency to probability without confusing a population quantity with a sample estimator.
  • Helpful foundationsarithmetic mean · squared numbers · relative frequency · basic probability
  • Common trapMean locates the center but does not determine spread; population variance averages squared deviations and is distinct from a sample-variance estimator.
  • Next connectionRaw-data formulas become expectations
More context

The portrait diagram reads top to bottom through an exact relationship, three checkpoints, a visual model, and a conclusion.

Picture 7 of 17 · tap to inspect in full resolution
07

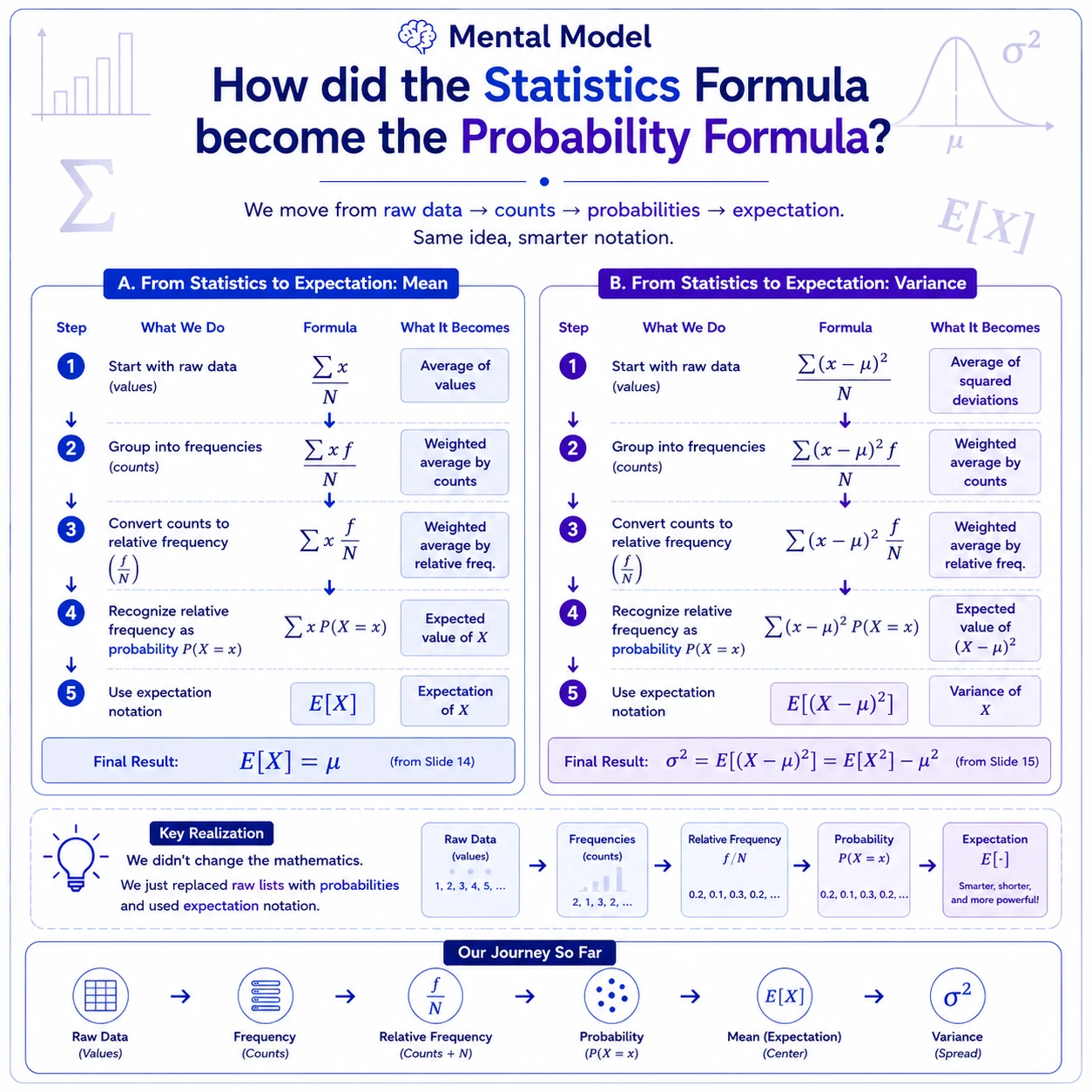

Why do statistics and probability formulas look different?

INTUITION

Grouping identical observations replaces repeated additions by frequency weights. Dividing frequencies by N turns them into probabilities, so the arithmetic mean and mean squared deviation become expectations under the empirical distribution.

  • Learning goalExplain statistics to probability without confusing a population quantity with a sample estimator.
  • Helpful foundationsarithmetic mean · squared numbers · relative frequency · basic probability
  • Common trapMean locates the center but does not determine spread; population variance averages squared deviations and is distinct from a sample-variance estimator.
  • Next connectionThe denominator becomes part of probability
More context

The portrait diagram reads top to bottom through an exact relationship, three checkpoints, a visual model, and a conclusion.

Picture 8 of 17 · tap to inspect in full resolution
08

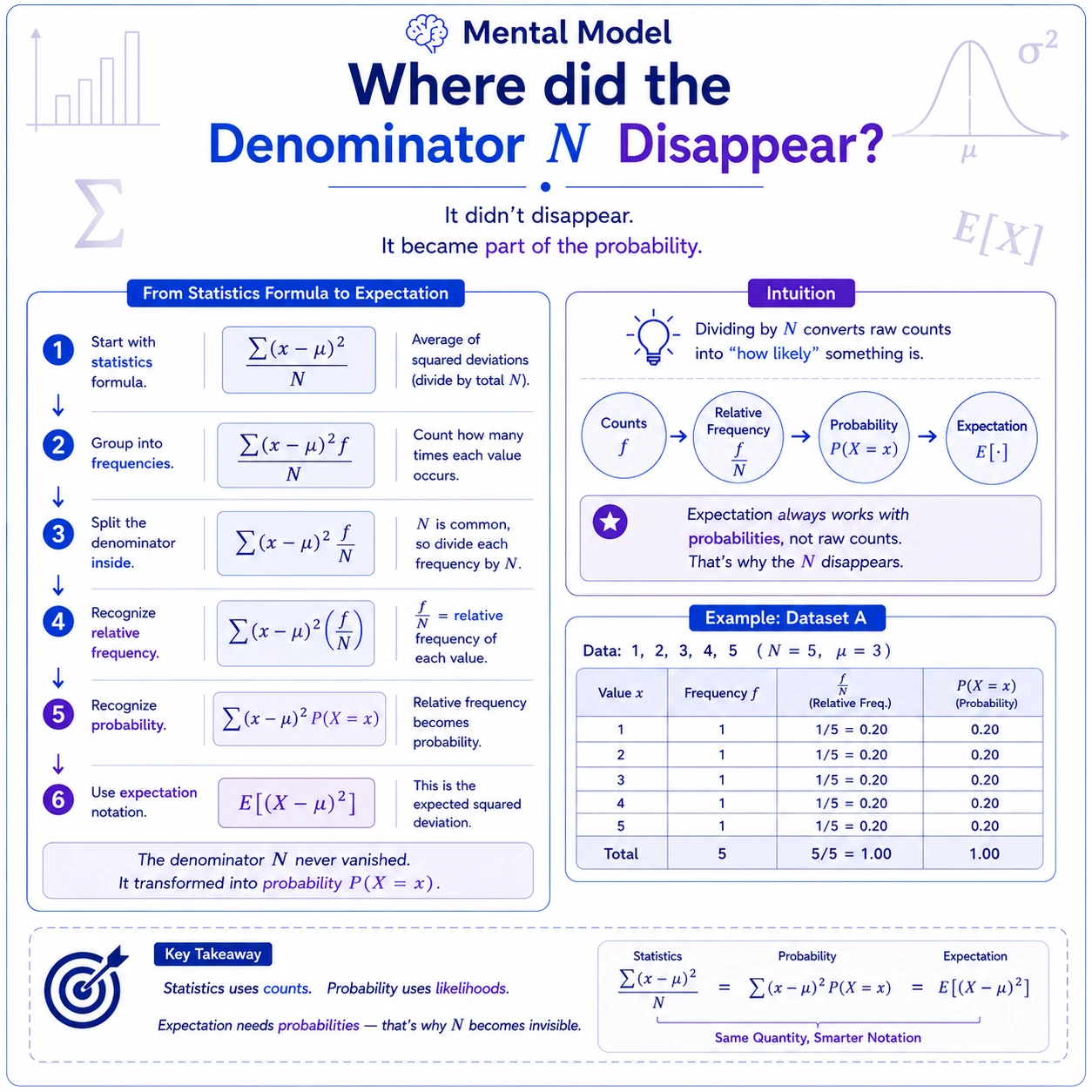

Where does the denominator N go?

INTUITION

The denominator does not vanish: f/N becomes P(X=x). Thus (1/N) times a grouped sum is rewritten as a probability-weighted sum.

MATHEMATICAL STATEMENT
  1. The denominator does not vanish: f/N becomes P(X=x).
  • Learning goalExplain denominator as weight without confusing a population quantity with a sample estimator.
  • Helpful foundationsarithmetic mean · squared numbers · relative frequency · basic probability
  • Common trapMean locates the center but does not determine spread; population variance averages squared deviations and is distinct from a sample-variance estimator.
  • Next connectionSquaring and averaging do not commute
More context

The portrait diagram reads top to bottom through an exact relationship, three checkpoints, a visual model, and a conclusion.

Picture 9 of 17 · tap to inspect in full resolution
09

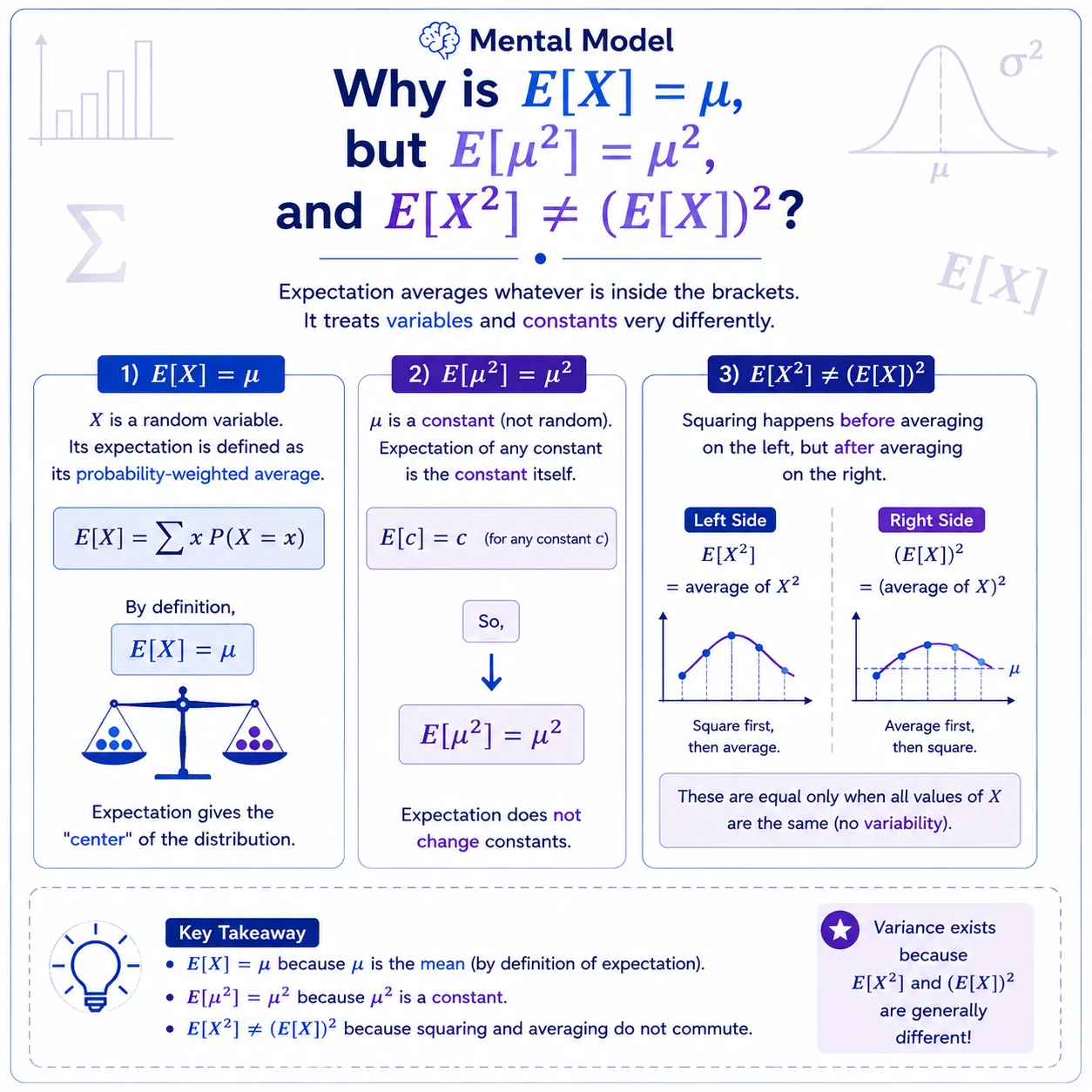

Why is E[X squared] not usually E[X] squared?

INTUITION

E[X]=mu and E[mu squared]=mu squared because mu is constant. But E[X squared] averages squared values, whereas E[X] squared squares the average; they are equal only when X has zero variability.

MATHEMATICAL STATEMENTS
  1. E[X]=mu and E[mu squared]=mu squared because mu is constant.
  2. But E[X squared] averages squared values, whereas E[X] squared squares the average; they are equal only when X has zero variability.
  • Learning goalExplain expectation vs square without confusing a population quantity with a sample estimator.
  • Helpful foundationsarithmetic mean · squared numbers · relative frequency · basic probability
  • Common trapMean locates the center but does not determine spread; population variance averages squared deviations and is distinct from a sample-variance estimator.
  • Next connectionSigned deviations cancel
More context

The portrait diagram reads top to bottom through an exact relationship, three checkpoints, a visual model, and a conclusion.

Picture 10 of 17 · tap to inspect in full resolution
10

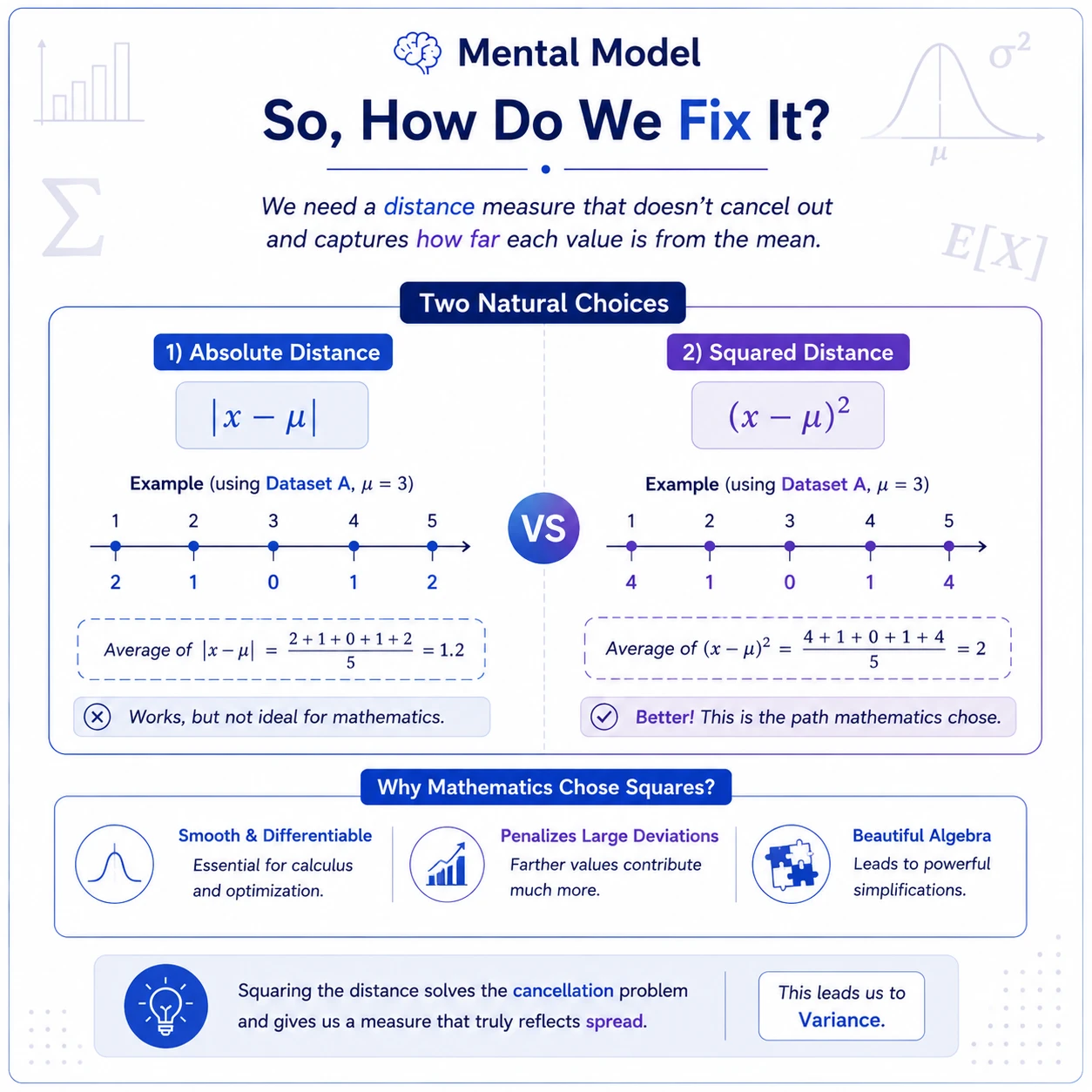

How can we measure distance without cancellation?

INTUITION

Deviations x-mu sum or average to zero, so they cannot measure spread directly. Absolute deviations and squared deviations both avoid cancellation; variance chooses squares for smooth optimization, useful algebra, and stronger penalties for large deviations.

  • Learning goalExplain cancellation and squares without confusing a population quantity with a sample estimator.
  • Helpful foundationsarithmetic mean · squared numbers · relative frequency · basic probability
  • Common trapMean locates the center but does not determine spread; population variance averages squared deviations and is distinct from a sample-variance estimator.
  • Next connectionPopulation variance is mean squared distance
More context

The portrait diagram reads top to bottom through an exact relationship, three checkpoints, a visual model, and a conclusion.

Picture 11 of 17 · tap to inspect in full resolution
11

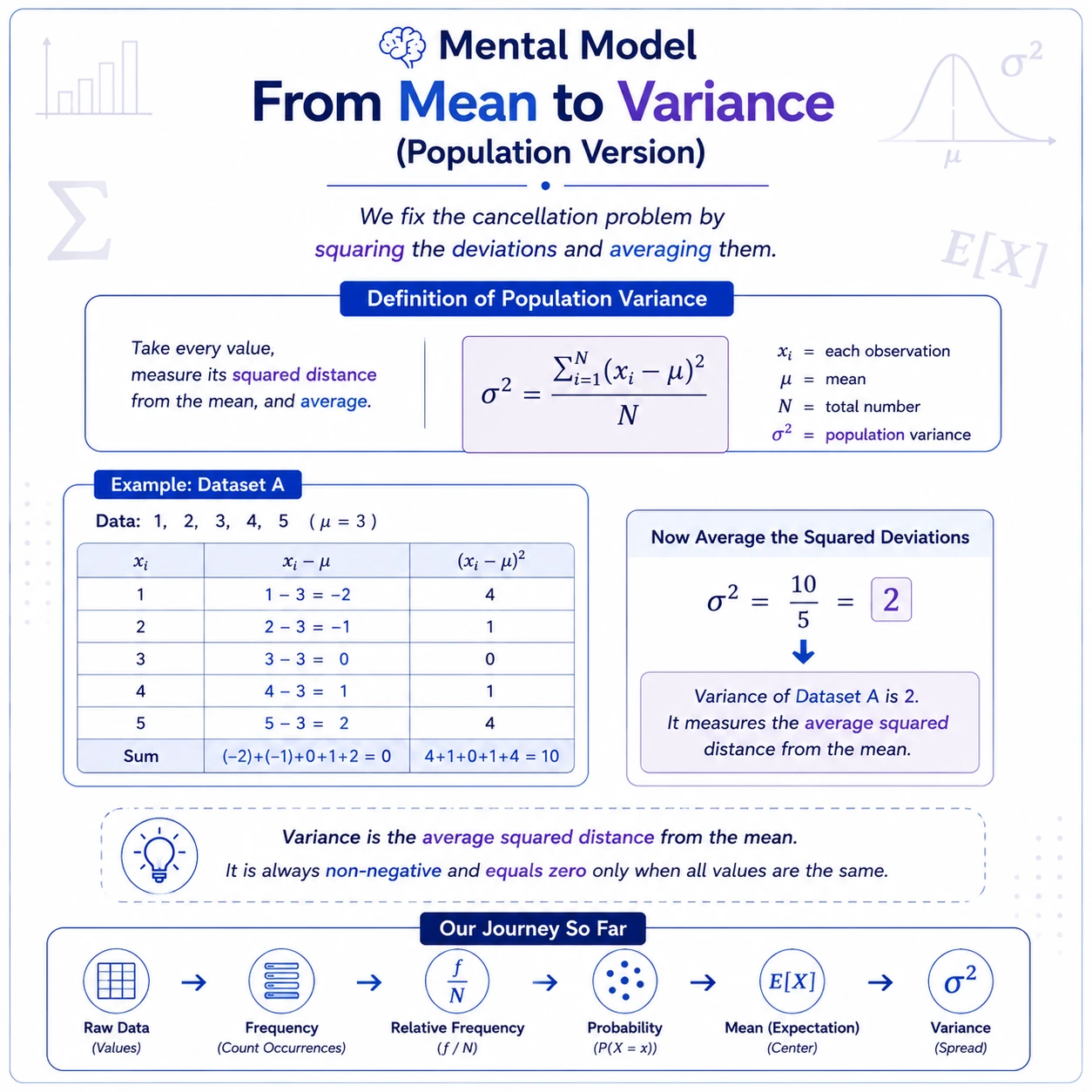

How is population variance calculated?

INTUITION

For a finite population, sigma squared=(1/N)sum(x_i-mu)^2. It is nonnegative and equals zero exactly when every population value is the same. This is a population quantity, not the n-1 sample estimator.

MATHEMATICAL STATEMENTS
  1. For a finite population, sigma squared=(1/N)sum(x_i-mu)^2.
  2. It is nonnegative and equals zero exactly when every population value is the same.
  • Learning goalExplain population variance without confusing a population quantity with a sample estimator.
  • Helpful foundationsarithmetic mean · squared numbers · relative frequency · basic probability
  • Common trapMean locates the center but does not determine spread; population variance averages squared deviations and is distinct from a sample-variance estimator.
  • Next connectionProbability variance uses the same distances
More context

The portrait diagram reads top to bottom through an exact relationship, three checkpoints, a visual model, and a conclusion.

Picture 12 of 17 · tap to inspect in full resolution
12

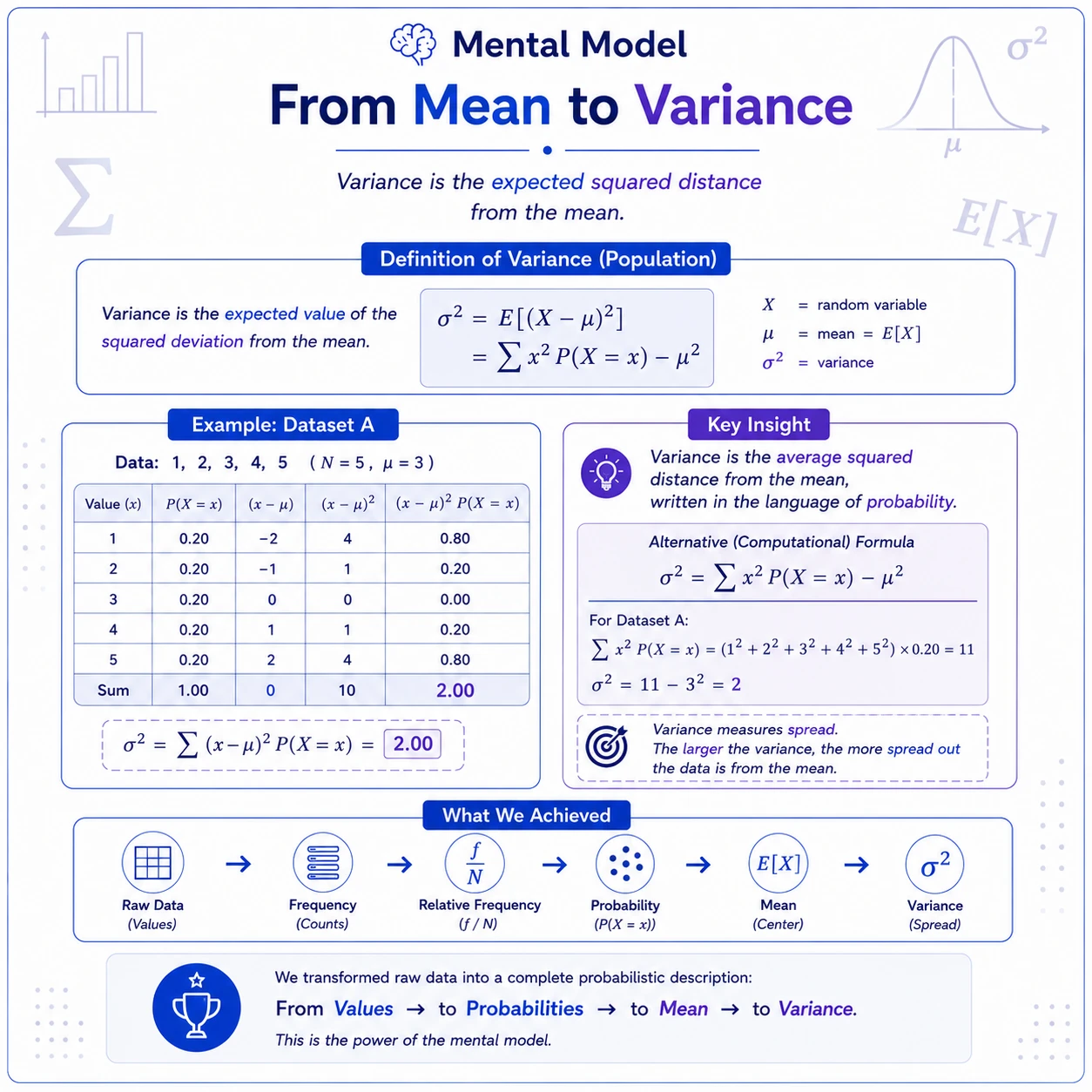

How is variance written for a random variable?

INTUITION

Population variance is sigma squared=E[(X-mu)^2]=sum(x-mu)^2P(X=x). The weights describe the distribution and the squared deviations describe distance from its mean.

MATHEMATICAL STATEMENT
  1. Population variance is sigma squared=E[(X-mu)^2]=sum(x-mu)^2P(X=x).
  • Learning goalExplain probability variance without confusing a population quantity with a sample estimator.
  • Helpful foundationsarithmetic mean · squared numbers · relative frequency · basic probability
  • Common trapMean locates the center but does not determine spread; population variance averages squared deviations and is distinct from a sample-variance estimator.
  • Next connectionVariance has a useful computational identity
More context

The portrait diagram reads top to bottom through an exact relationship, three checkpoints, a visual model, and a conclusion.

Picture 13 of 17 · tap to inspect in full resolution
13

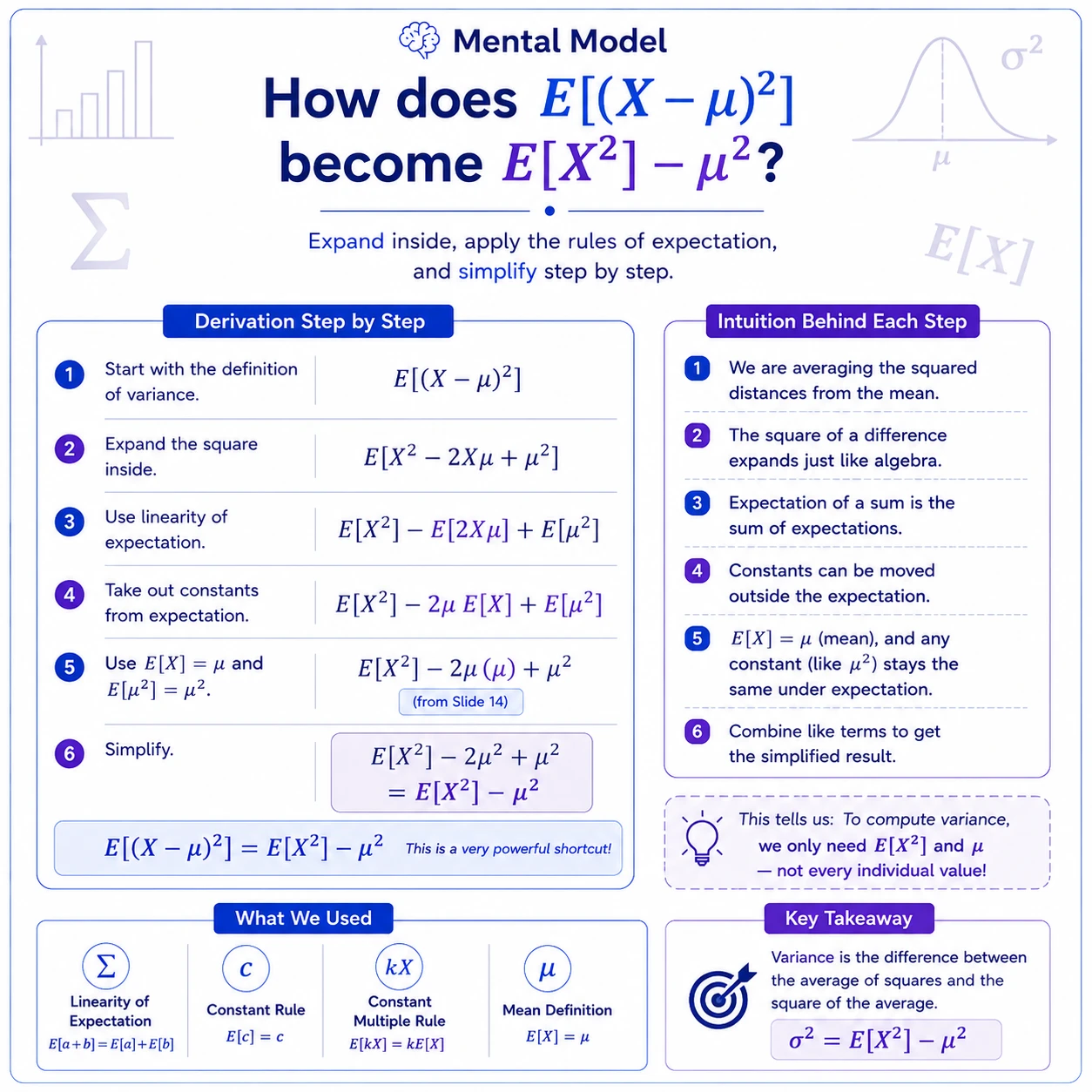

Why does variance equal E[X squared] minus mu squared?

INTUITION

Expanding (X-mu)^2, using linearity, E[X]=mu, and the constant rule gives Var(X)=E[X^2]-mu^2. The identity is computationally useful but represents the same squared-distance definition.

MATHEMATICAL STATEMENT
  1. Expanding (X-mu)^2, using linearity, E[X]=mu, and the constant rule gives Var(X)=E[X^2]-mu^2.
  • Learning goalExplain variance shortcut without confusing a population quantity with a sample estimator.
  • Helpful foundationsarithmetic mean · squared numbers · relative frequency · basic probability
  • Common trapMean locates the center but does not determine spread; population variance averages squared deviations and is distinct from a sample-variance estimator.
  • Next connectionStandard deviation restores the original unit
More context

The portrait diagram reads top to bottom through an exact relationship, three checkpoints, a visual model, and a conclusion.

Picture 14 of 17 · tap to inspect in full resolution
14

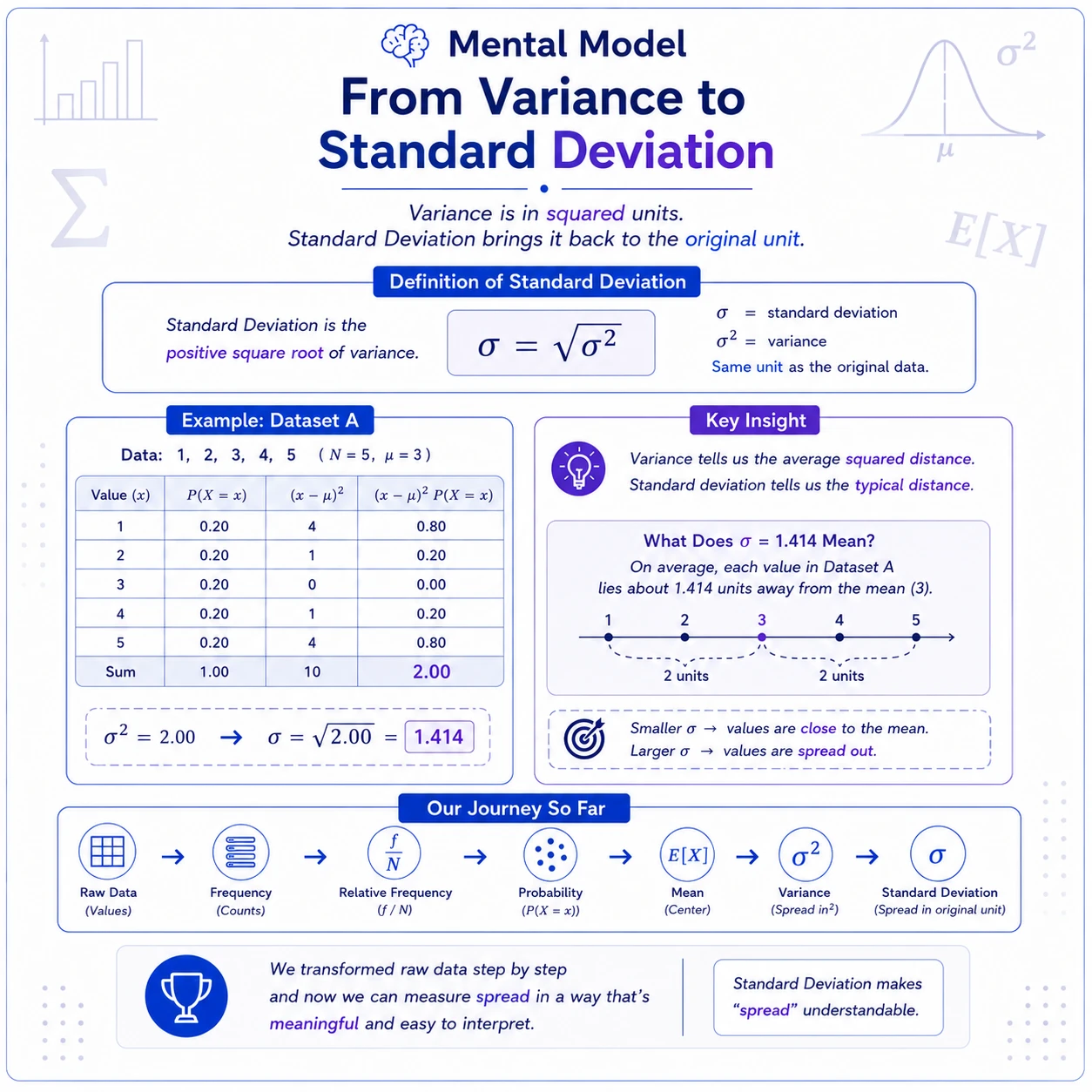

Why take the square root of variance?

INTUITION

Variance is measured in squared units. Standard deviation sigma=sqrt(variance) returns spread to the original data unit, making distance from the mean easier to interpret.

MATHEMATICAL STATEMENT
  1. Standard deviation sigma=sqrt(variance) returns spread to the original data unit, making distance from the mean easier to interpret.
  • Learning goalExplain standard deviation without confusing a population quantity with a sample estimator.
  • Helpful foundationsarithmetic mean · squared numbers · relative frequency · basic probability
  • Common trapMean locates the center but does not determine spread; population variance averages squared deviations and is distinct from a sample-variance estimator.
  • Next connectionCenter and scale transform predictably
More context

The portrait diagram reads top to bottom through an exact relationship, three checkpoints, a visual model, and a conclusion.

Picture 15 of 17 · tap to inspect in full resolution
15

How do shifts, rescaling, and outliers affect spread?

INTUITION

Adding c to every value shifts the mean by c but leaves variance unchanged. Multiplying values by a multiplies the mean by a, variance by a squared, and standard deviation by absolute a. Squaring also makes variance sensitive to outliers.

  • Learning goalExplain shift scale outliers without confusing a population quantity with a sample estimator.
  • Helpful foundationsarithmetic mean · squared numbers · relative frequency · basic probability
  • Common trapMean locates the center but does not determine spread; population variance averages squared deviations and is distinct from a sample-variance estimator.
  • Next connectionChebyshev gives a shape-free guarantee
More context

The portrait diagram reads top to bottom through an exact relationship, three checkpoints, a visual model, and a conclusion.

Picture 16 of 17 · tap to inspect in full resolution
16

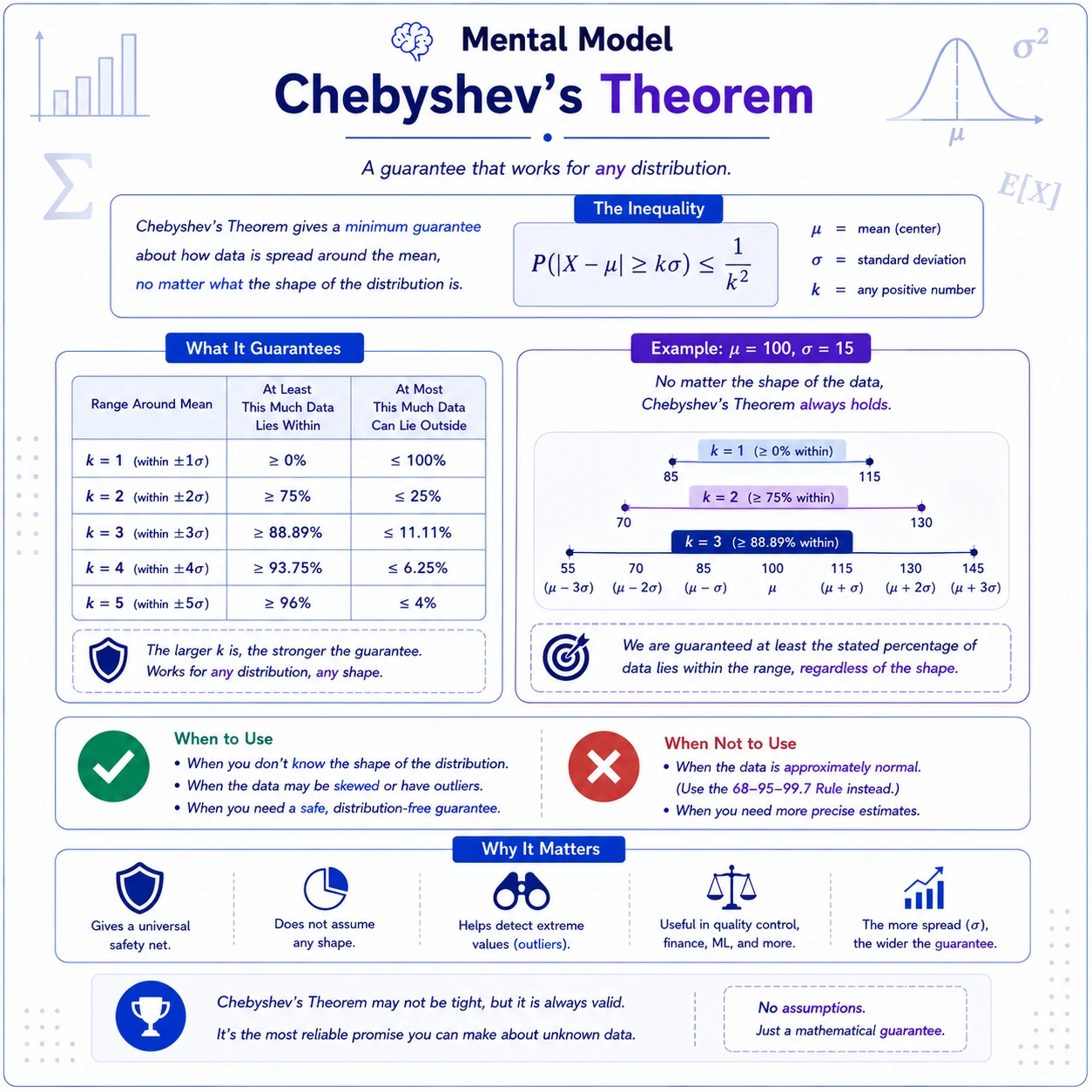

What can standard deviation guarantee for any shape?

INTUITION

For any distribution with finite variance and any k>0, at least 1-1/k^2 of probability lies within k standard deviations of the mean. The guarantee is conservative but allows skewness and outliers.

MATHEMATICAL STATEMENT
  1. For any distribution with finite variance and any k>0, at least 1-1/k^2 of probability lies within k standard deviations of the mean.
  • Learning goalExplain chebyshev guarantee without confusing a population quantity with a sample estimator.
  • Helpful foundationsarithmetic mean · squared numbers · relative frequency · basic probability
  • Common trapMean locates the center but does not determine spread; population variance averages squared deviations and is distinct from a sample-variance estimator.
  • Next connectionBell-shaped data allow a sharper shortcut
More context

The portrait diagram reads top to bottom through an exact relationship, three checkpoints, a visual model, and a conclusion.

Picture 17 of 17 · tap to inspect in full resolution
17

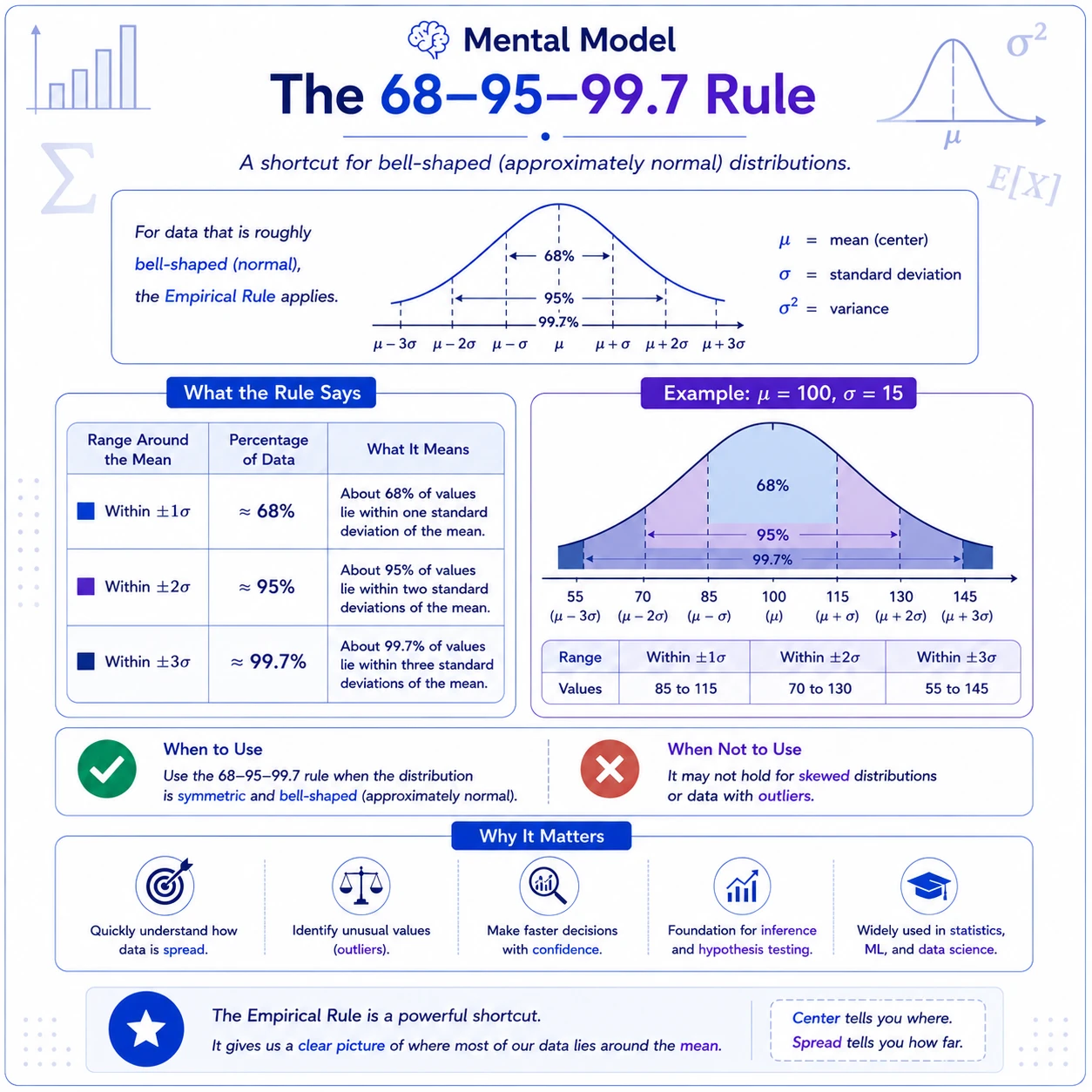

When does the 68-95-99.7 rule apply?

INTUITION

For an approximately normal bell-shaped distribution, about 68%, 95%, and 99.7% of values lie within one, two, and three standard deviations of the mean. This empirical rule is not a guarantee for arbitrary skewed data.

  • Learning goalExplain empirical rule without confusing a population quantity with a sample estimator.
  • Helpful foundationsarithmetic mean · squared numbers · relative frequency · basic probability
  • Common trapMean locates the center but does not determine spread; population variance averages squared deviations and is distinct from a sample-variance estimator.
  • Next connectionCompare robust measures of center and spread
More context

The portrait diagram reads top to bottom through an exact relationship, three checkpoints, a visual model, and a conclusion.
