Measurement, Parameters, and Statistics: From Raw Data to Meaning

How do we turn many observations into a trustworthy statistical summary?

MODULE 4 / 6LESSON 26 / 46PICTURE 1 / 21
Progress stays on this device · no login
BEFORE THE FIRST PICTURE

How this lesson unfolds.

Begin with Can one number represent a crowd of data? The sequence then connects A useful representative serves a purpose and builds toward Covariance asks whether two variables move together.

Picture 1 of 21 · tap to inspect in full resolution
01

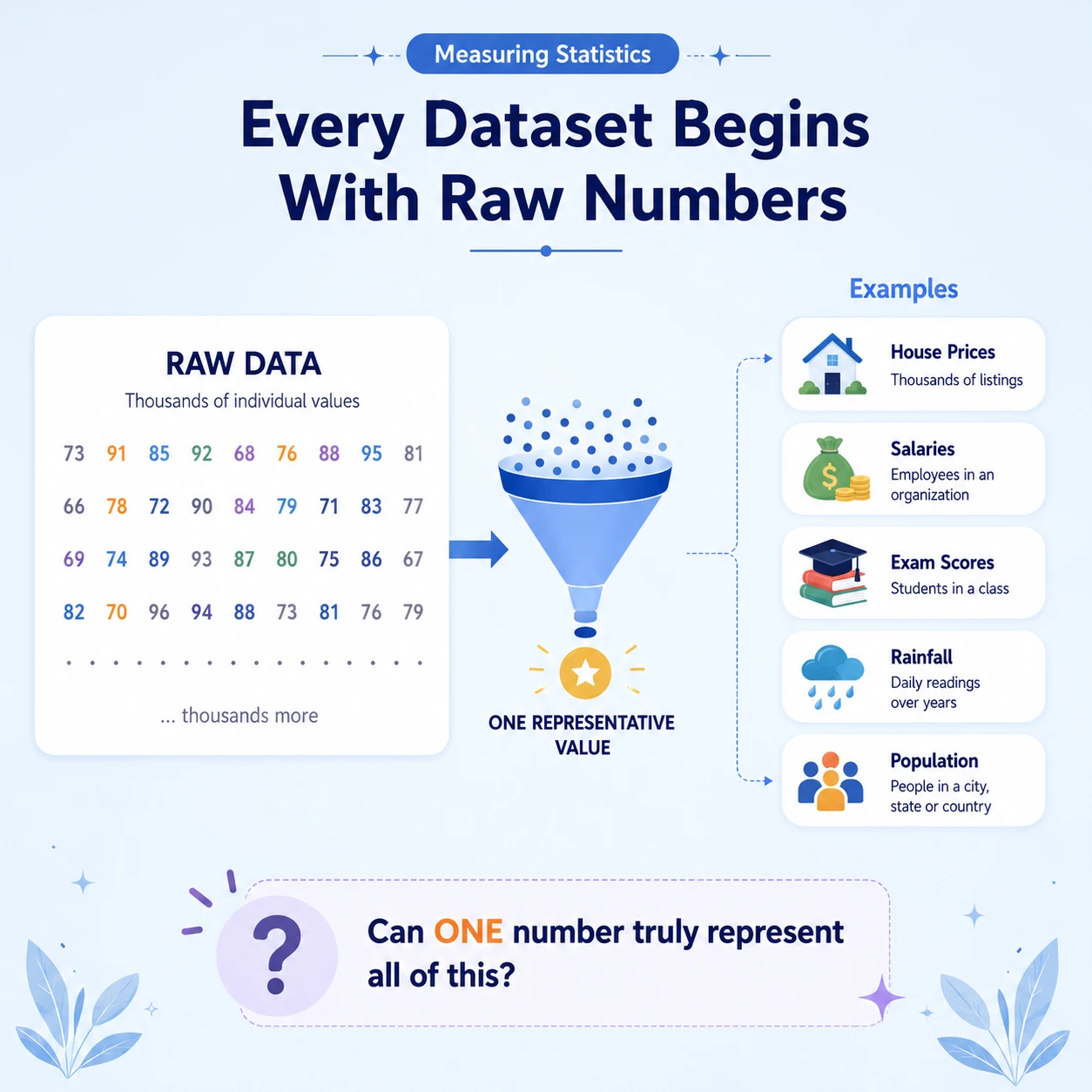

Can one number represent a crowd of data?

INTUITION

Raw data records individual observations. Statistics begins when we ask which smaller summary preserves the feature needed for a decision.

  • Helpful foundationsarithmetic · fractions and percentages · reading ordered data
  • Next connectionA useful representative serves a purpose
More context

The portrait diagram presents the comparison and arithmetic in a clear top-to-bottom reading order.

Picture 2 of 21 · tap to inspect in full resolution
02

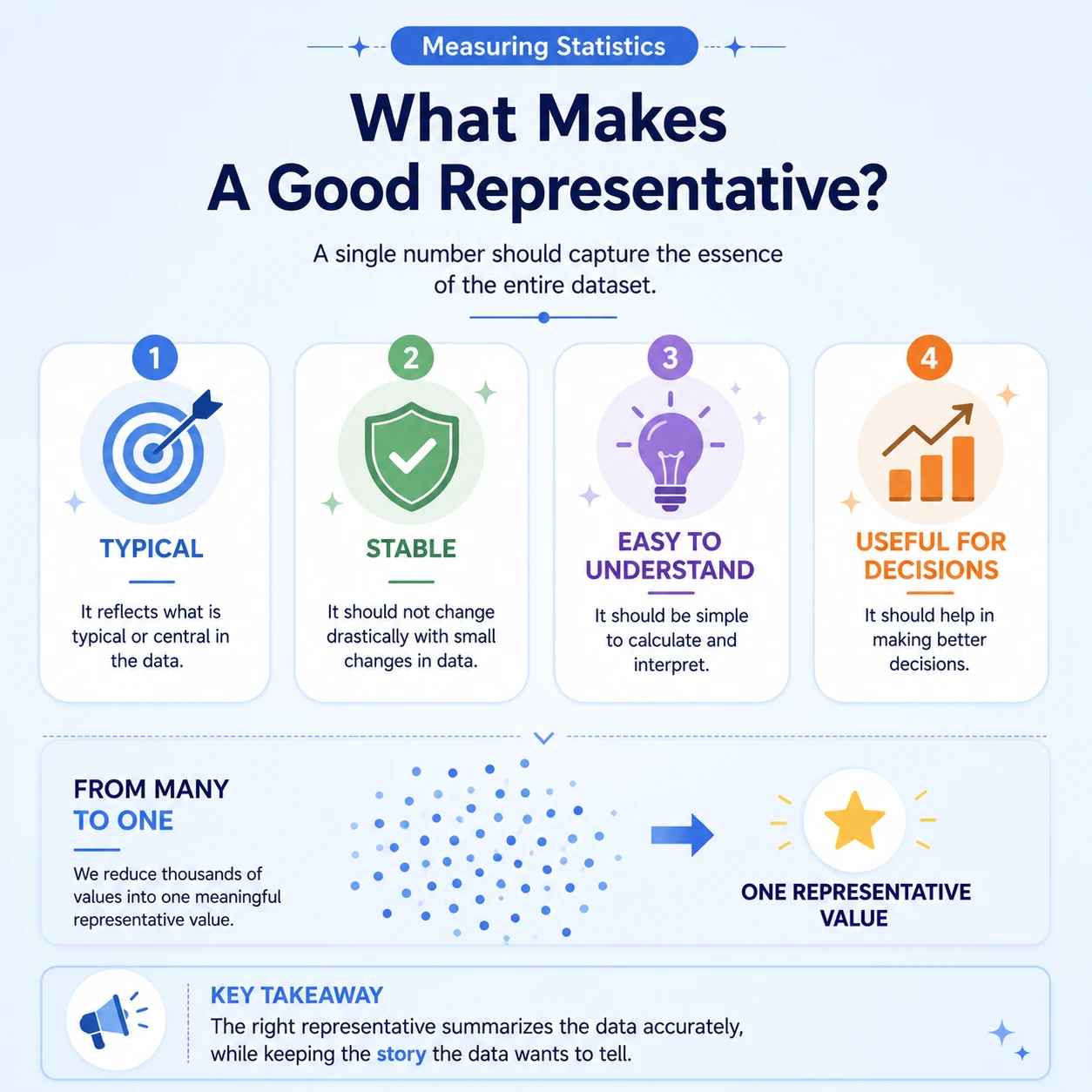

What makes a one-number summary useful?

INTUITION

A representative value should capture the relevant center, remain interpretable, avoid unnecessary instability, and support the decision at hand.

  • Helpful foundationsarithmetic · fractions and percentages · reading ordered data
  • Next connectionPopulation, sample, parameter, statistic
More context

The portrait diagram presents the comparison and arithmetic in a clear top-to-bottom reading order.

Picture 3 of 21 · tap to inspect in full resolution
03

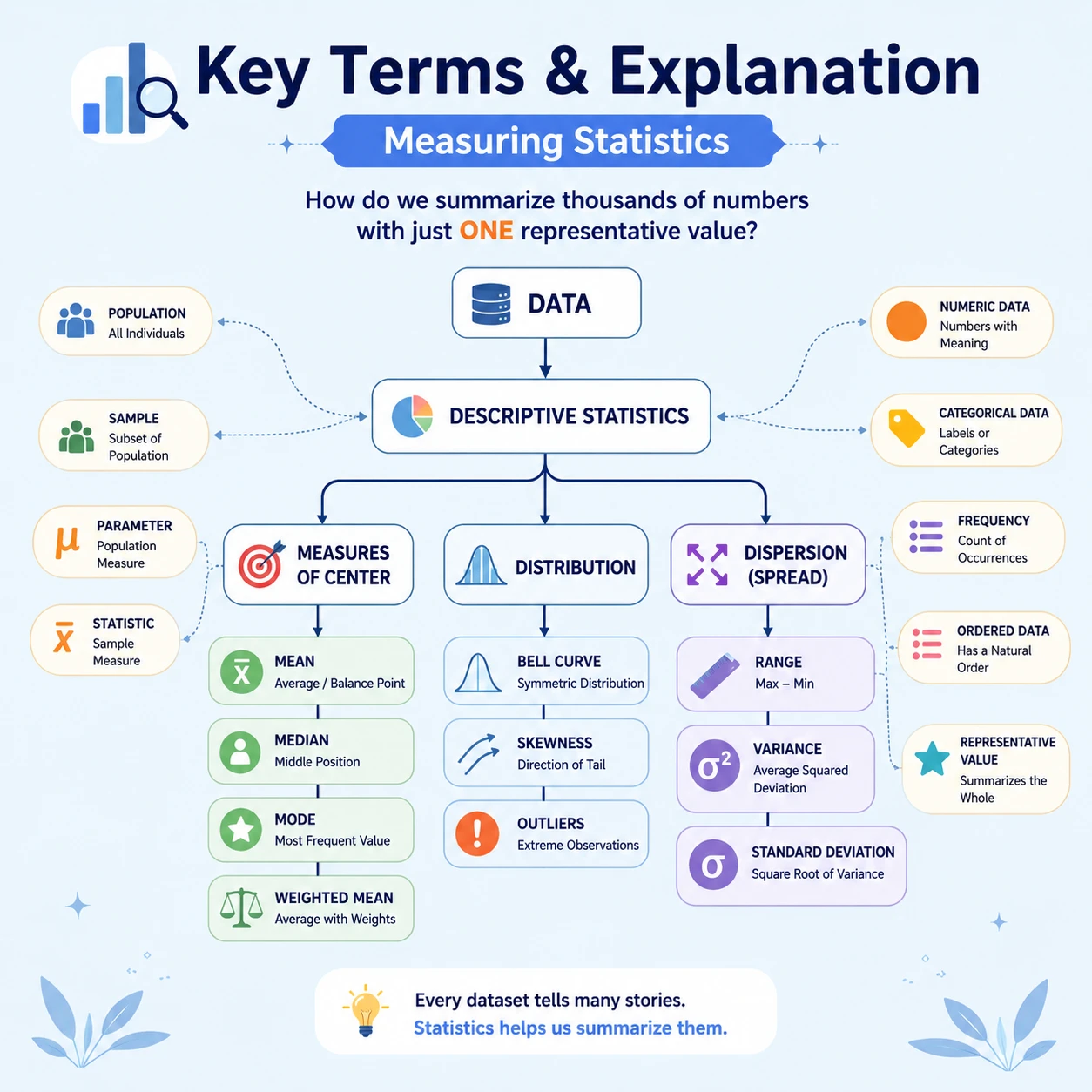

Which number describes whom?

INTUITION

A population is the full group of interest and a sample is the observed subset. A parameter describes the population; a statistic is calculated from the sample.

  • Helpful foundationsarithmetic · fractions and percentages · reading ordered data
  • Next connectionMean, median, and mode tell different stories
More context

The portrait diagram presents the comparison and arithmetic in a clear top-to-bottom reading order.

Picture 4 of 21 · tap to inspect in full resolution
04

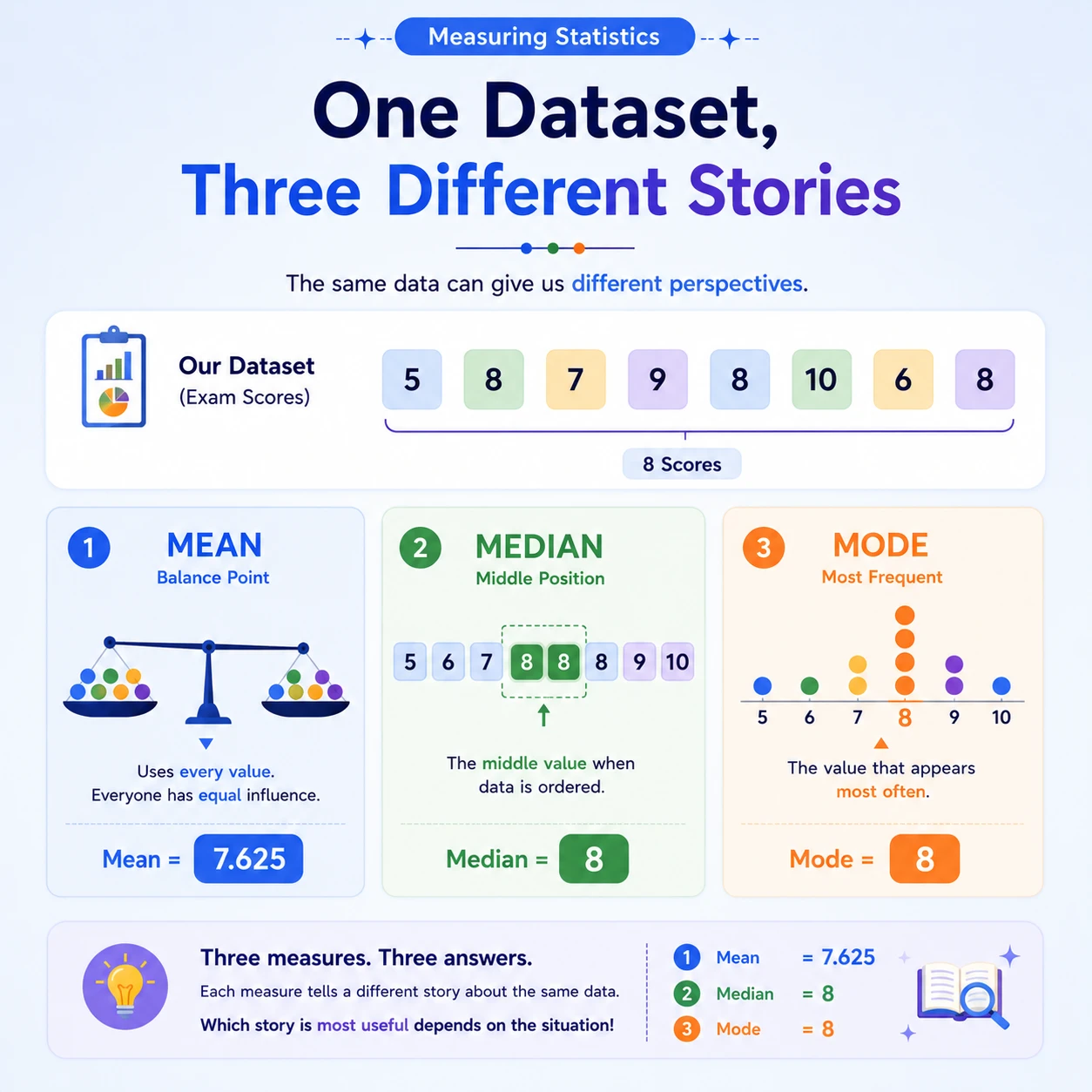

How can one dataset have several centers?

INTUITION

The mean is a balance point, the median is the ordered middle, and the mode is the most frequent value. For 5, 6, 7, 8, 8, 8, 9, 10 they are 7.625, 8, and 8.

  • Helpful foundationsarithmetic · fractions and percentages · reading ordered data
  • Next connectionChoose the measure that answers the question
More context

The portrait diagram presents the comparison and arithmetic in a clear top-to-bottom reading order.

Picture 5 of 21 · tap to inspect in full resolution
05

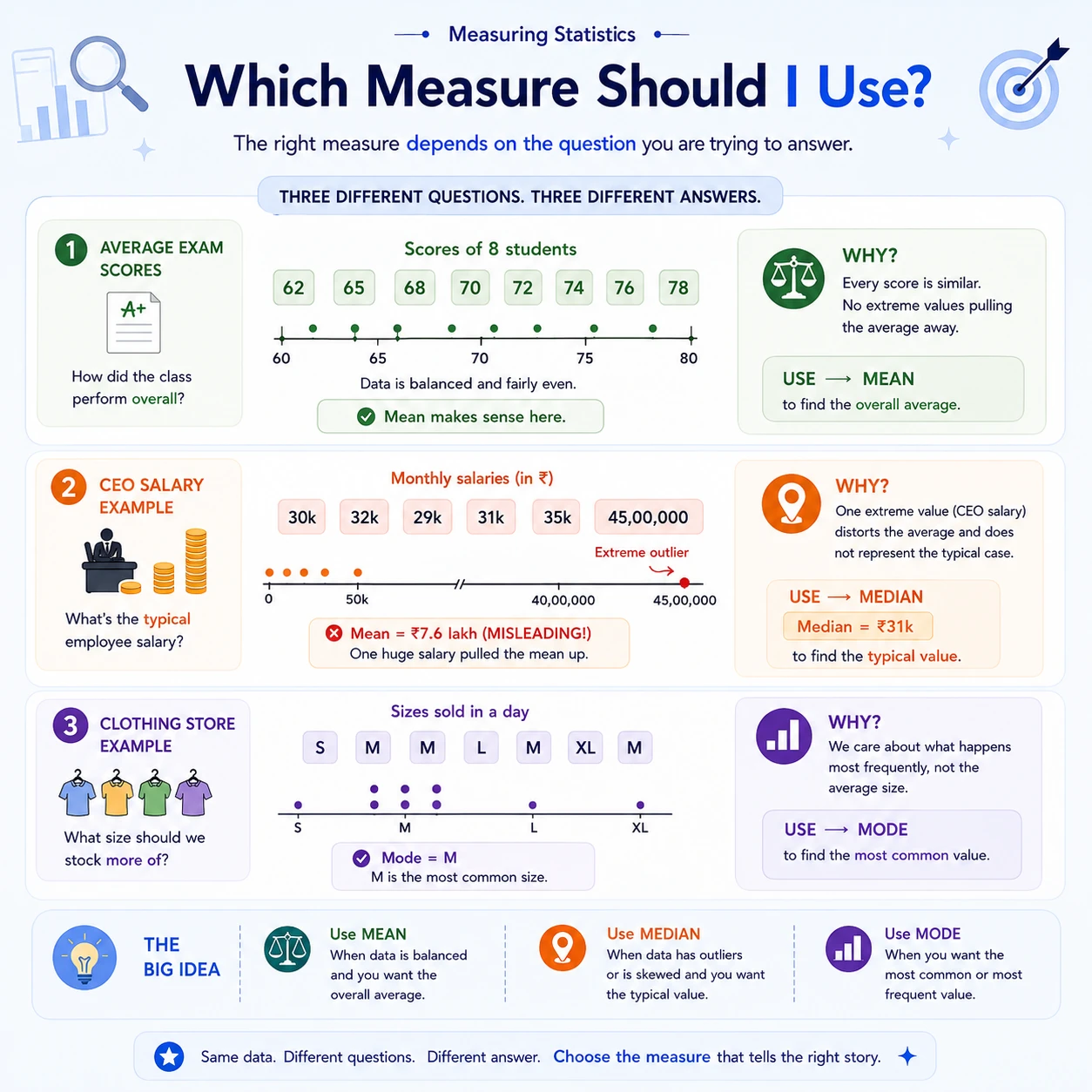

When should we use mean, median, or mode?

INTUITION

Use the mean for an overall level when values are comparable, the median for a typical value under skew or outliers, and the mode for the most common category or value.

  • Helpful foundationsarithmetic · fractions and percentages · reading ordered data
  • Next connectionOutliers pull the mean
More context

The portrait diagram presents the comparison and arithmetic in a clear top-to-bottom reading order.

Picture 6 of 21 · tap to inspect in full resolution
06

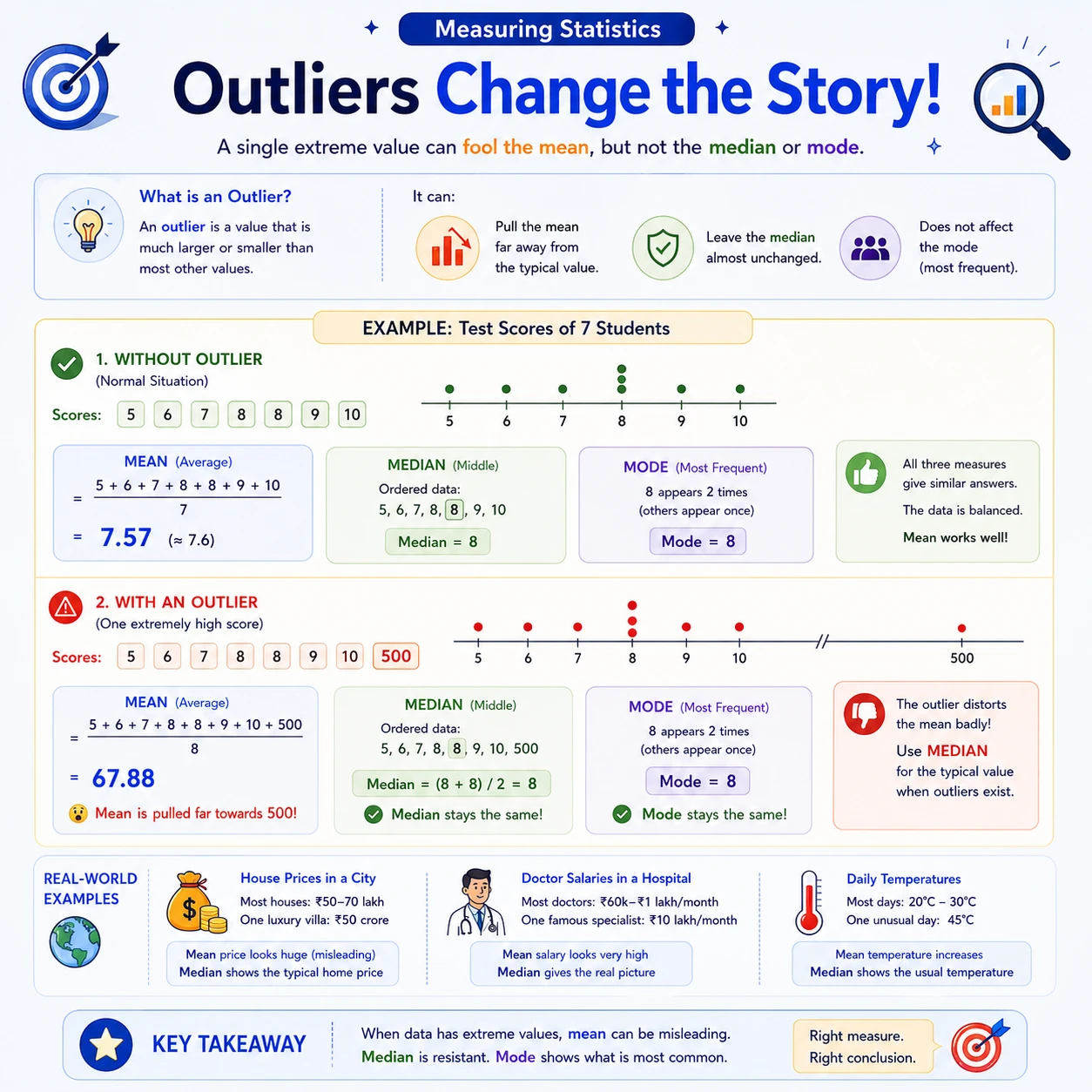

What changes when one value becomes extreme?

INTUITION

Changing 5, 6, 7, 8, 8, 9, 10 into a dataset that also includes 500 pulls the mean to 67.875, while the median remains 8 and the mode remains 8.

  • Helpful foundationsarithmetic · fractions and percentages · reading ordered data
  • Next connectionWeights encode influence
More context

The portrait diagram presents the comparison and arithmetic in a clear top-to-bottom reading order.

Picture 7 of 21 · tap to inspect in full resolution
07

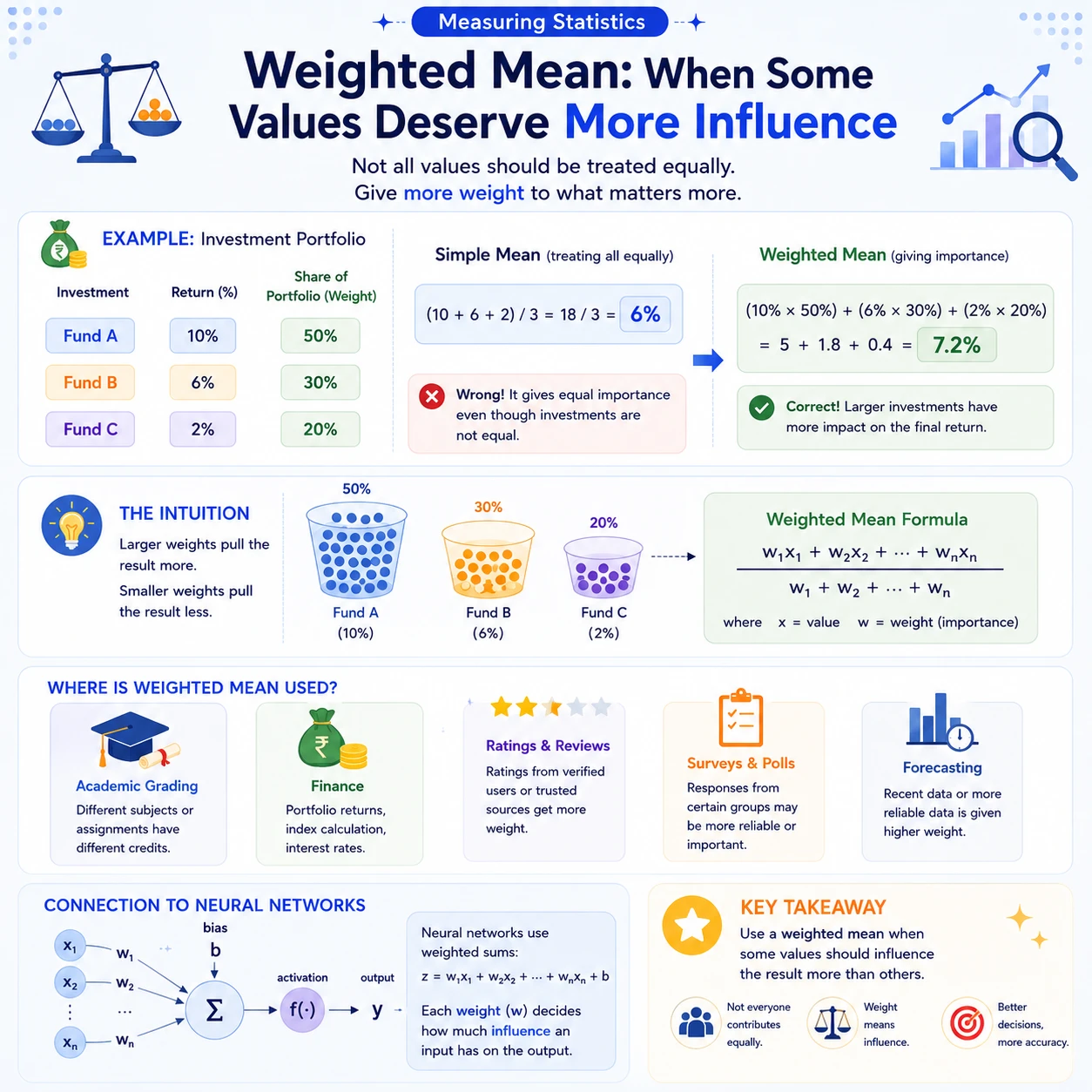

What if some values should count more?

INTUITION

A weighted mean multiplies each value by its importance. Portfolio returns 10%, 6%, and 2% with weights 50%, 30%, and 20% produce 7.2%, not the simple mean 6%.

  • Helpful foundationsarithmetic · fractions and percentages · reading ordered data
  • Next connectionGroup means must be weighted by group size
More context

The portrait diagram presents the comparison and arithmetic in a clear top-to-bottom reading order.

Picture 8 of 21 · tap to inspect in full resolution
08

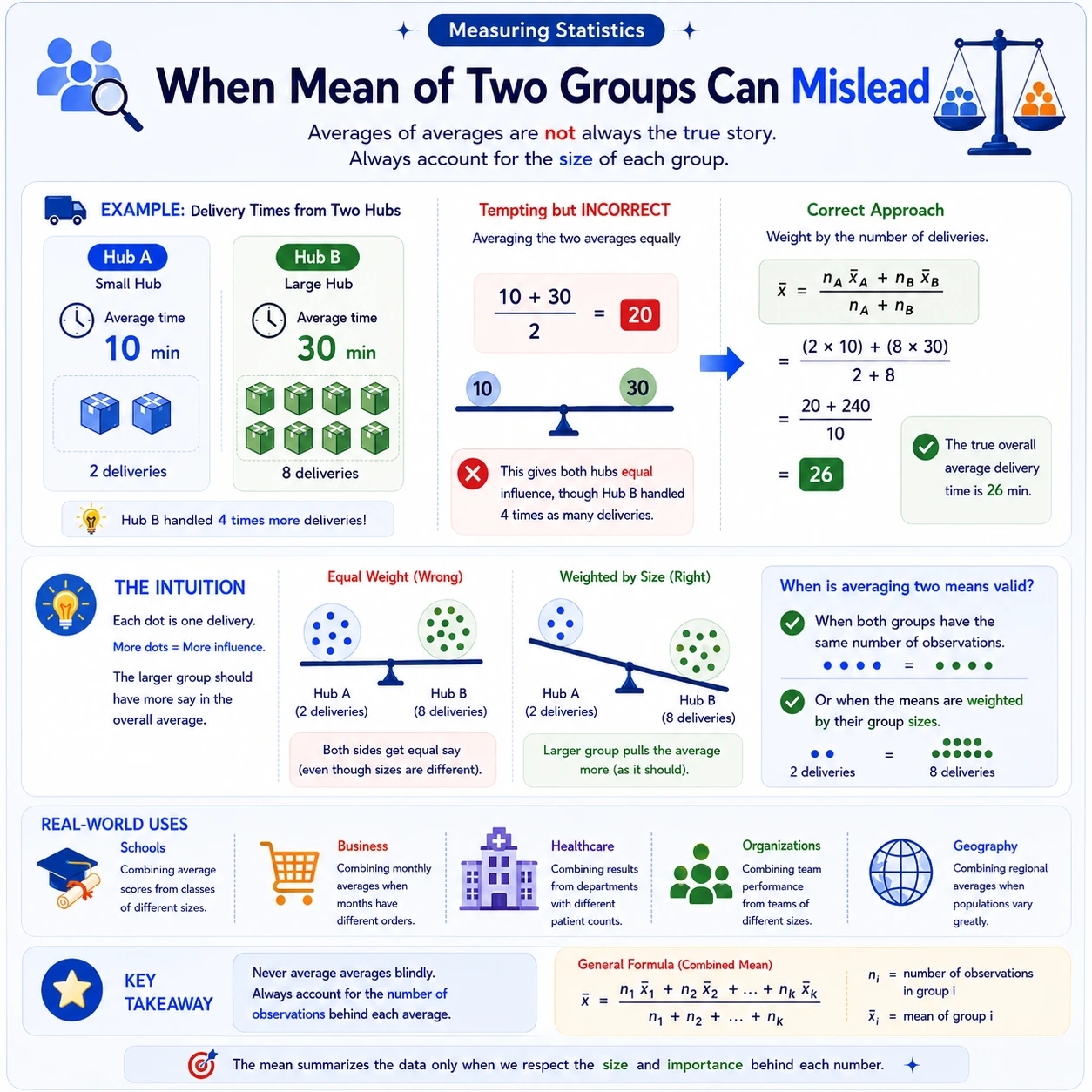

Why can averaging two averages be wrong?

INTUITION

A hub with 2 deliveries averaging 10 minutes and a hub with 8 averaging 30 minutes have combined mean 26 minutes. The unweighted mean of 20 ignores group sizes.

  • Helpful foundationsarithmetic · fractions and percentages · reading ordered data
  • Next connectionThe mean tracks the total
More context

The portrait diagram presents the comparison and arithmetic in a clear top-to-bottom reading order.

Picture 9 of 21 · tap to inspect in full resolution
09

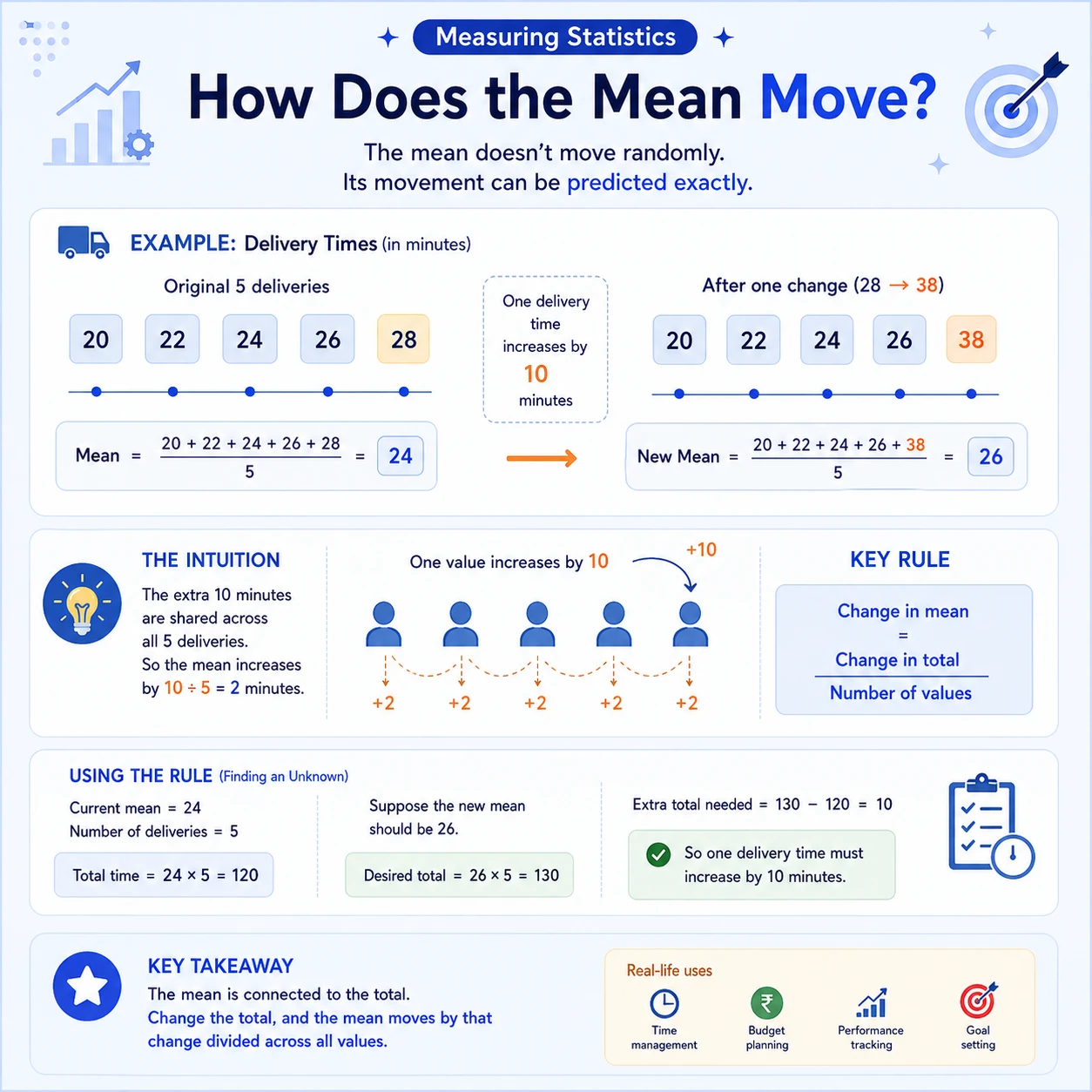

How far does the mean move when one value changes?

INTUITION

For a fixed count n, a change Delta in the total changes the mean by Delta divided by n. Adding 10 minutes across five deliveries raises the mean by 2 minutes.

  • Helpful foundationsarithmetic · fractions and percentages · reading ordered data
  • Next connectionCenter does not reveal spread
More context

The portrait diagram presents the comparison and arithmetic in a clear top-to-bottom reading order.

Picture 10 of 21 · tap to inspect in full resolution
10

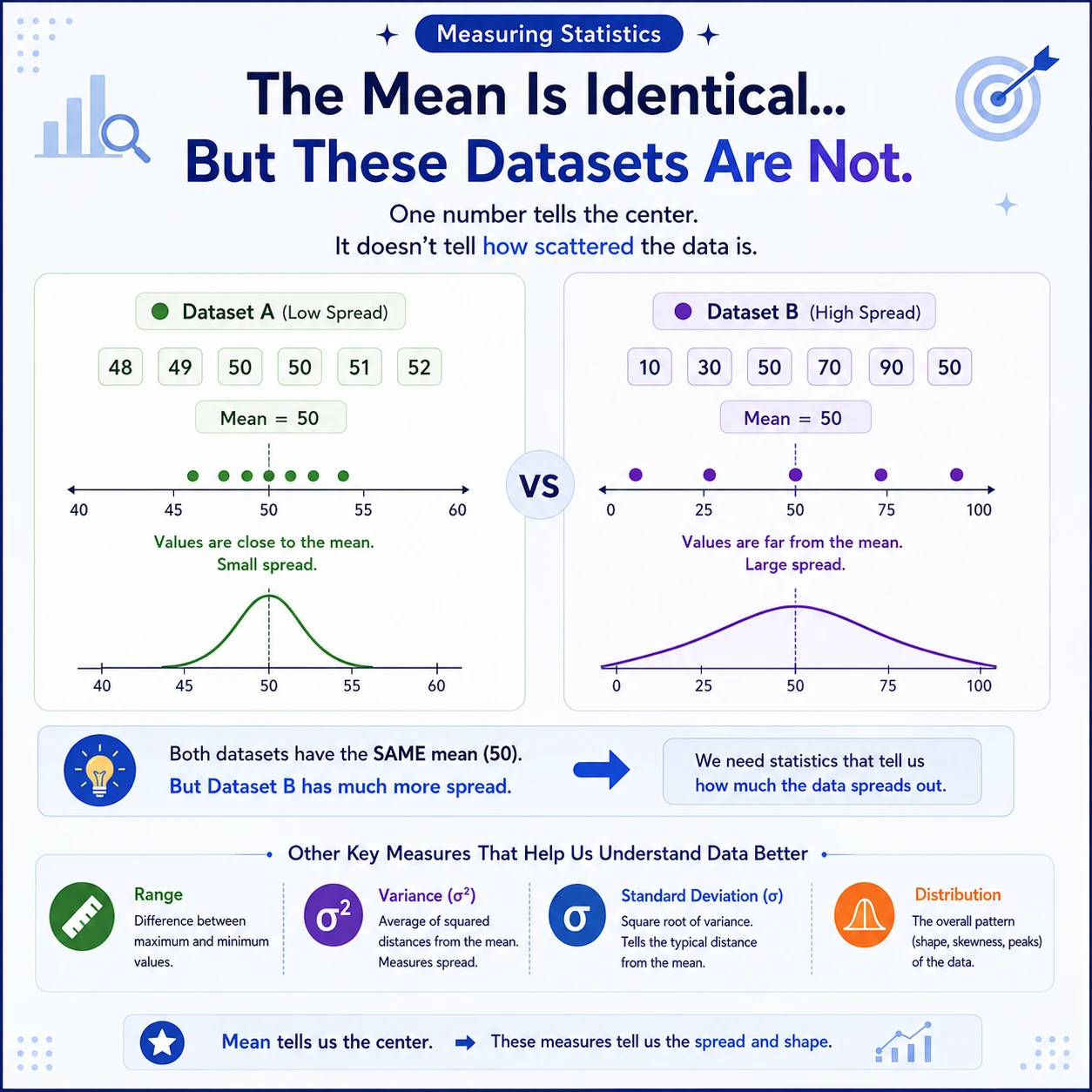

Can two datasets share a mean but feel completely different?

INTUITION

The datasets 48, 49, 50, 51, 52 and 10, 30, 50, 70, 90 both have mean 50, but their distances from the mean are very different.

  • Helpful foundationsarithmetic · fractions and percentages · reading ordered data
  • Next connectionVariance averages squared distances
More context

The portrait diagram presents the comparison and arithmetic in a clear top-to-bottom reading order.

Picture 11 of 21 · tap to inspect in full resolution
11

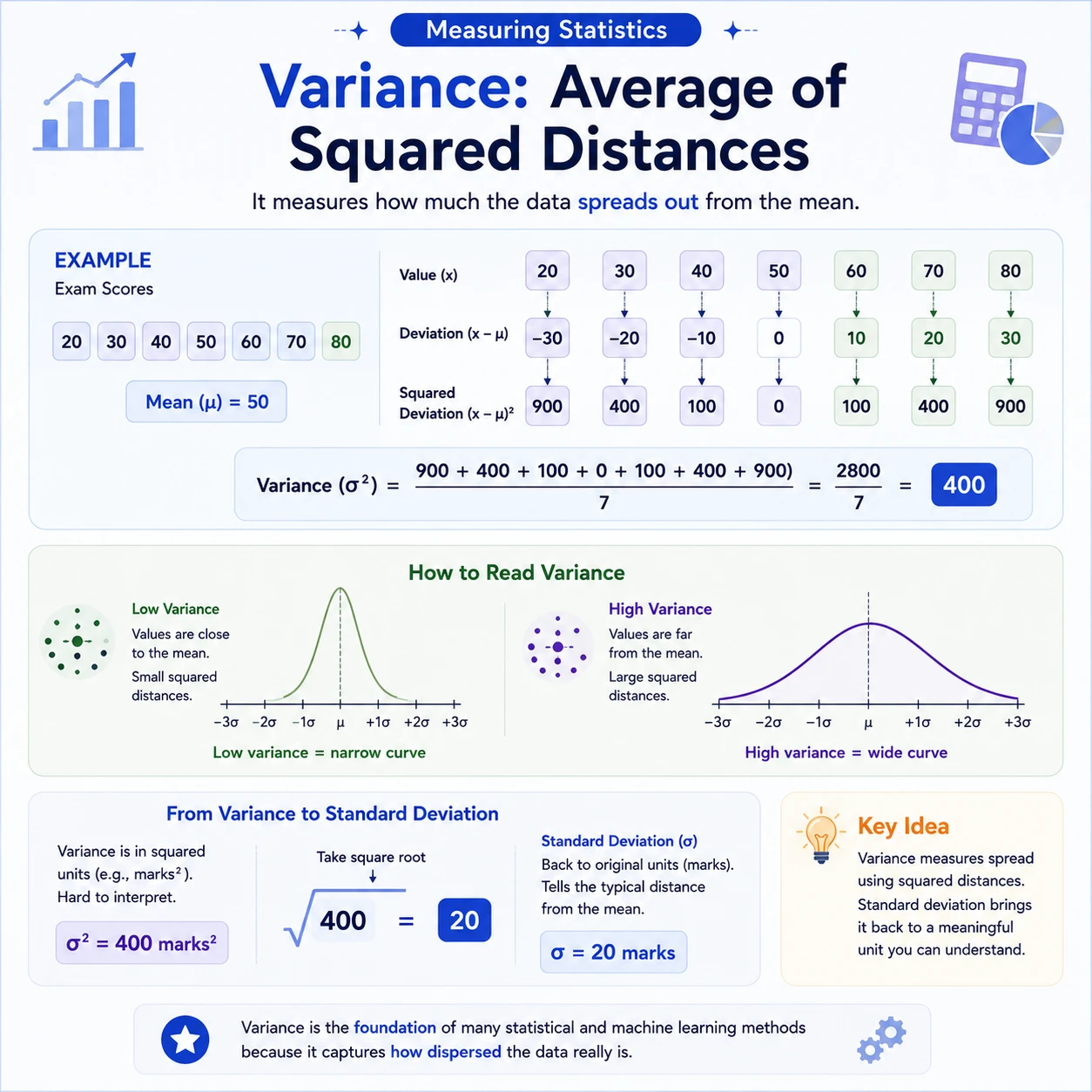

How do we measure spread around the mean?

INTUITION

For 20, 30, 40, 50, 60, 70, 80, the mean is 50 and the population variance is 400. The population standard deviation is 20 in the original score units.

  • Helpful foundationsarithmetic · fractions and percentages · reading ordered data
  • Next connectionSquaring prevents cancellation
More context

The portrait diagram presents the comparison and arithmetic in a clear top-to-bottom reading order.

Picture 12 of 21 · tap to inspect in full resolution
12

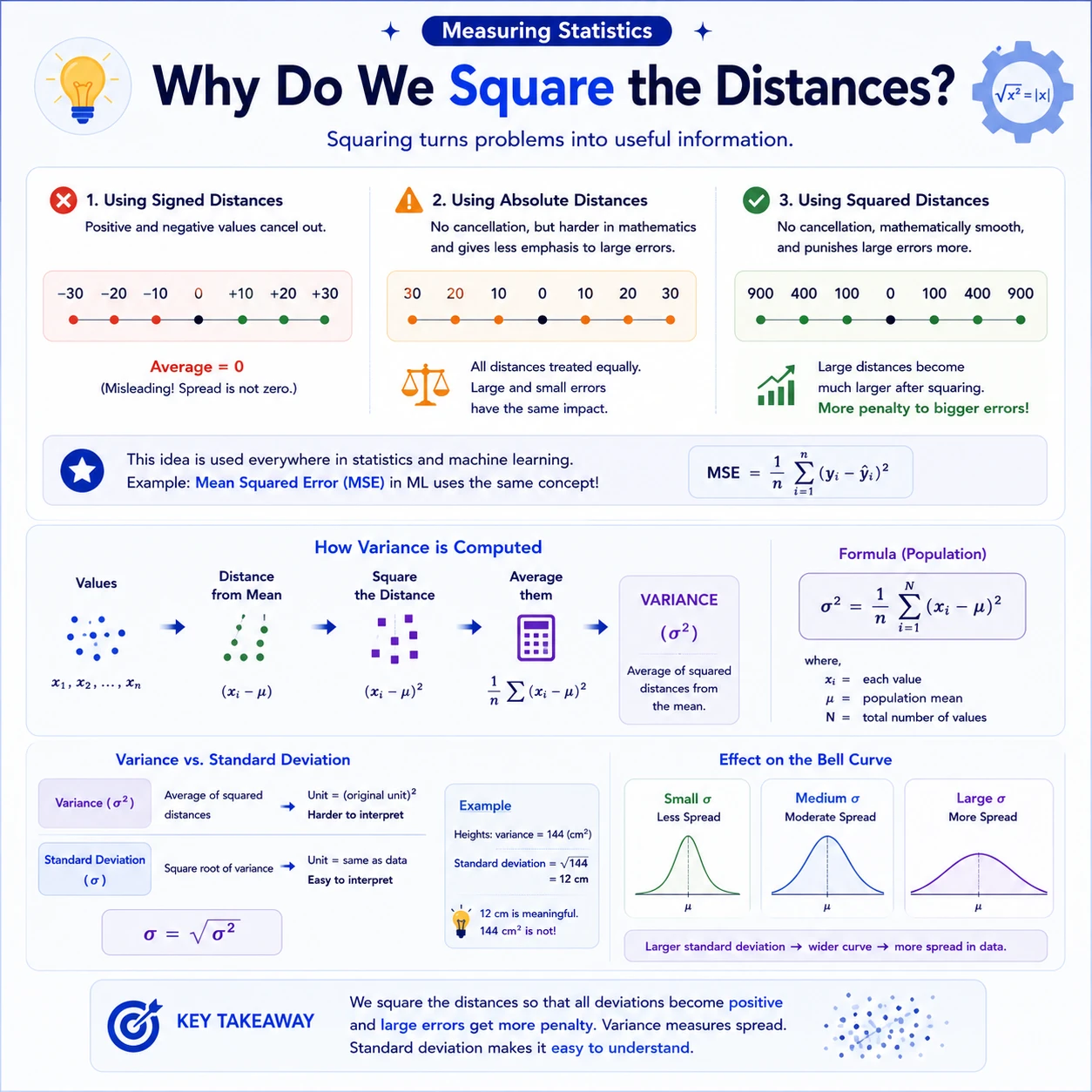

Why square deviations instead of adding signed distances?

INTUITION

Signed deviations from the mean sum to zero. Squaring makes every contribution nonnegative, gives larger deviations more influence, and yields a smooth objective used throughout statistics and machine learning.

  • Helpful foundationsarithmetic · fractions and percentages · reading ordered data
  • Next connectionStandard deviation measures scale, not shape
More context

The portrait diagram presents the comparison and arithmetic in a clear top-to-bottom reading order.

Picture 13 of 21 · tap to inspect in full resolution
13

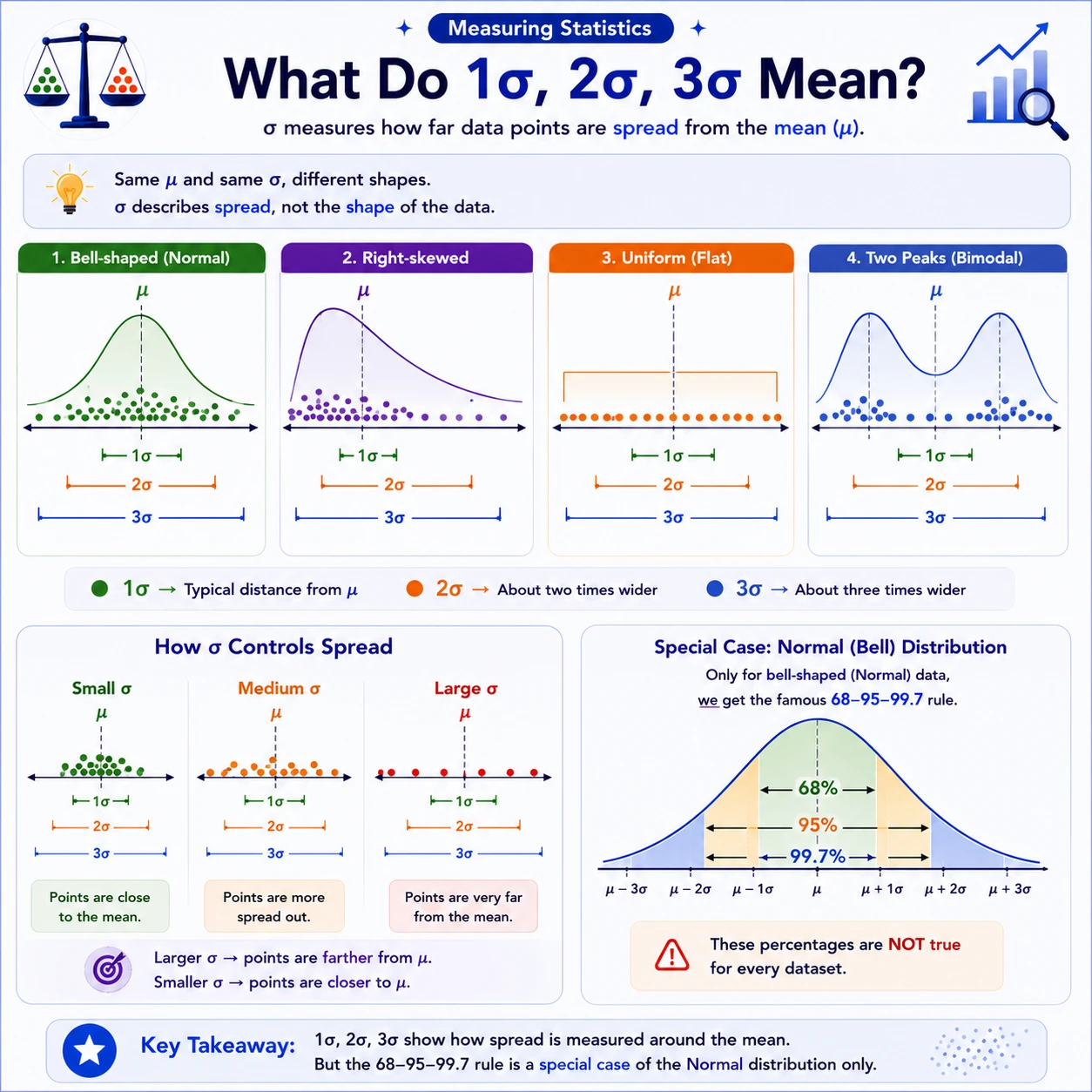

What do one, two, and three standard deviations mean?

INTUITION

Standard deviation sets a distance scale around the mean, but identical mean and standard deviation do not determine distribution shape. The 68-95-99.7 rule applies specifically to a normal model.

  • Helpful foundationsarithmetic · fractions and percentages · reading ordered data
  • Next connectionPopulation and sample variance use different denominators
More context

The portrait diagram presents the comparison and arithmetic in a clear top-to-bottom reading order.

Picture 14 of 21 · tap to inspect in full resolution
14

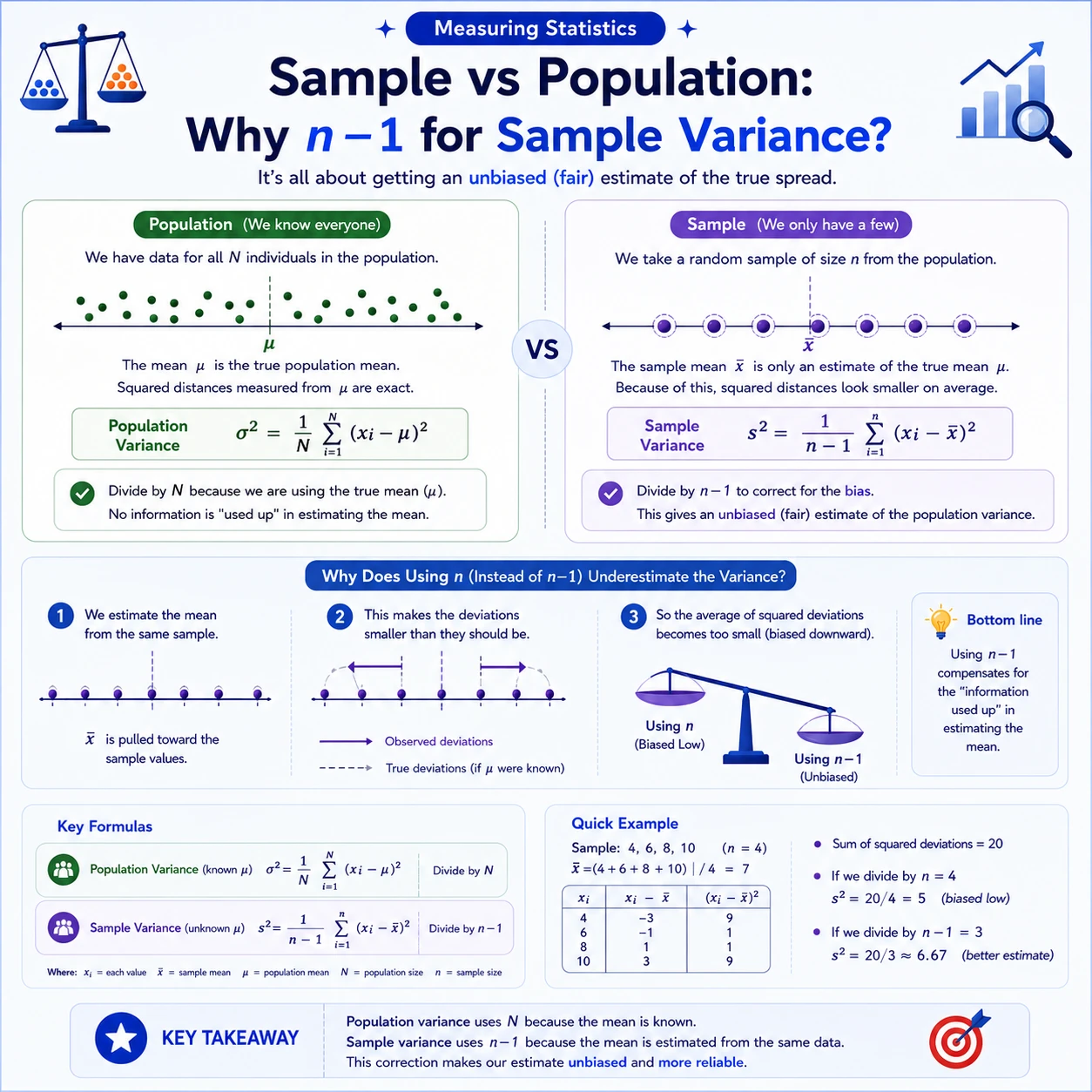

Why does the usual sample variance divide by n minus 1?

INTUITION

Population variance uses N with the known population mean. When the sample mean is estimated from the same n observations, dividing the squared-deviation sum by n minus 1 removes the downward bias under random sampling.

  • Helpful foundationsarithmetic · fractions and percentages · reading ordered data
  • Next connectionA sample estimates the population
More context

The portrait diagram presents the comparison and arithmetic in a clear top-to-bottom reading order.

Picture 15 of 21 · tap to inspect in full resolution
15

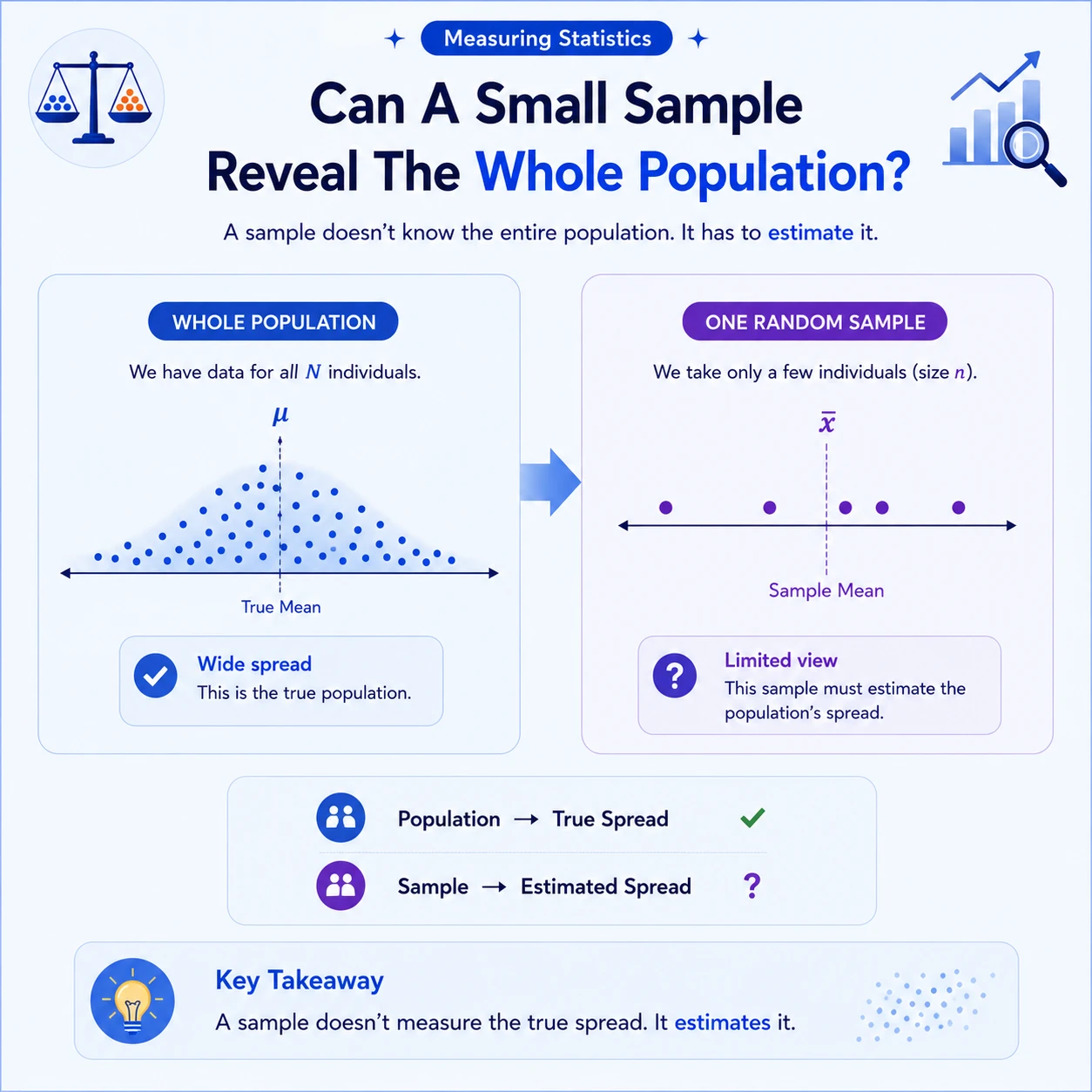

Can a small sample reveal the whole population?

INTUITION

A sample supplies limited evidence. Its mean and variance are statistics that estimate unknown population parameters, so repeated samples need not give the same answer.

  • Helpful foundationsarithmetic · fractions and percentages · reading ordered data
  • Next connectionThe fitted sample mean makes spread look smaller
More context

The portrait diagram presents the comparison and arithmetic in a clear top-to-bottom reading order.

Picture 16 of 21 · tap to inspect in full resolution
16

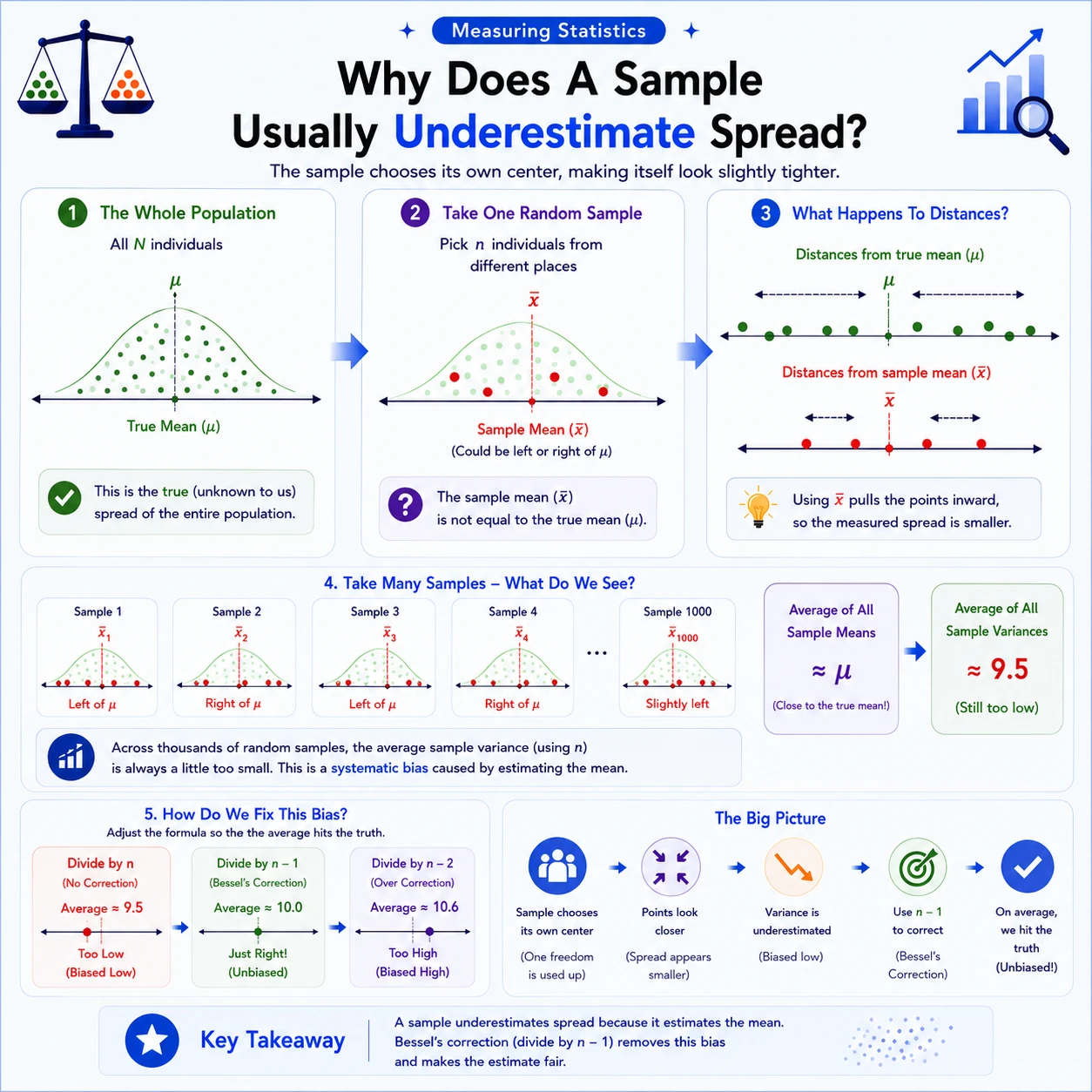

Where does the downward variance bias come from?

INTUITION

The sample mean is chosen to minimize squared distances within its own sample. One degree of freedom is used to fit that center, so averaging by n underestimates population variance; n minus 1 corrects this on average.

  • Helpful foundationsarithmetic · fractions and percentages · reading ordered data
  • Next connectionQuartiles divide ordered data
More context

The portrait diagram presents the comparison and arithmetic in a clear top-to-bottom reading order.

Picture 17 of 21 · tap to inspect in full resolution
17

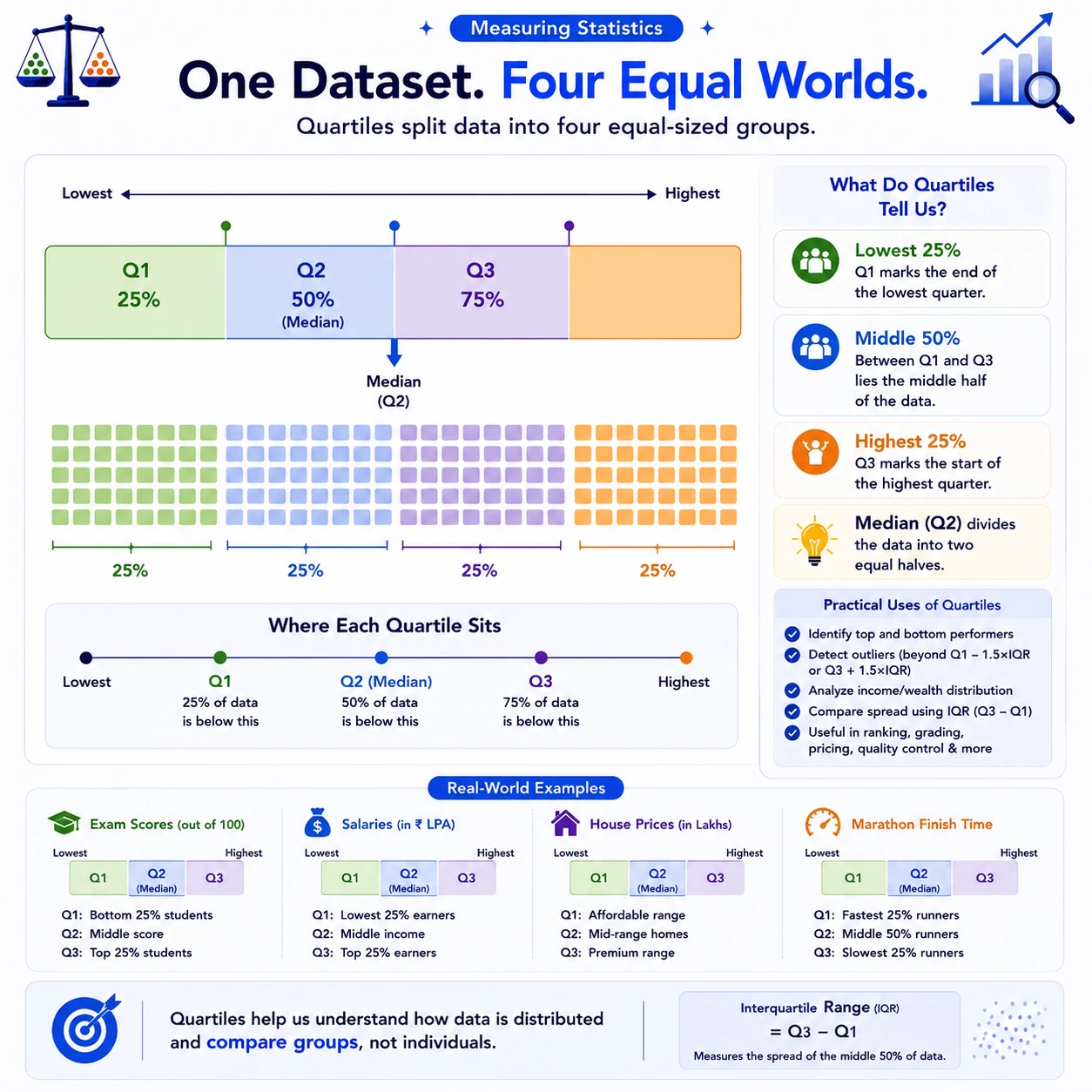

How can four cut points summarize position and spread?

INTUITION

Q1, Q2, and Q3 mark the 25th, 50th, and 75th percentiles under a chosen convention. The interquartile range Q3 minus Q1 describes the middle half of the data.

  • Helpful foundationsarithmetic · fractions and percentages · reading ordered data
  • Next connectionA percentile locates a relative position
More context

The portrait diagram presents the comparison and arithmetic in a clear top-to-bottom reading order.

Picture 18 of 21 · tap to inspect in full resolution
18

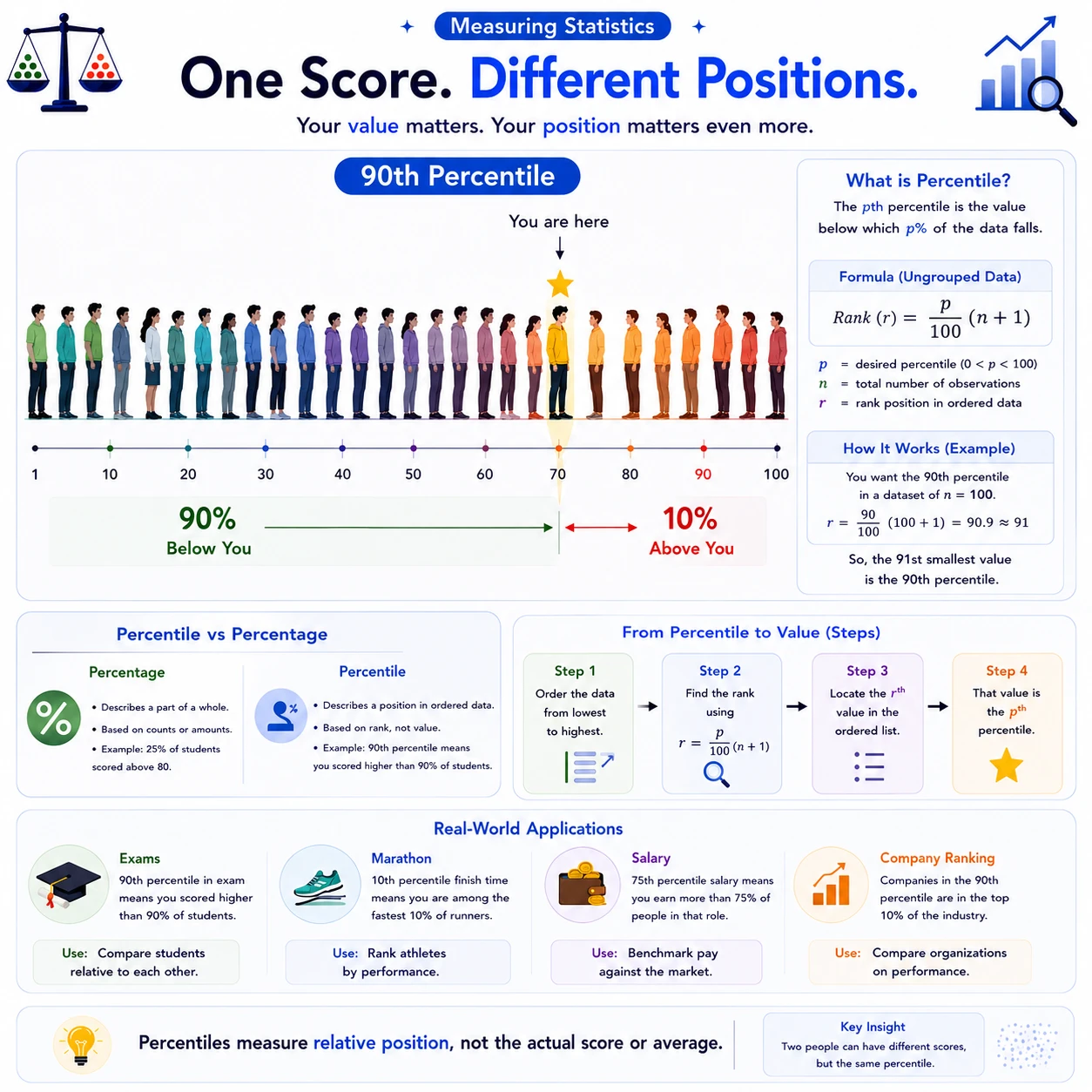

What does the 90th percentile actually say?

INTUITION

Being near the 90th percentile means about 90% of observations are at or below that position, subject to the percentile convention used. It describes rank, not how much of a test was answered correctly.

  • Helpful foundationsarithmetic · fractions and percentages · reading ordered data
  • Next connectionPercentage measures amount; percentile measures rank
More context

The portrait diagram presents the comparison and arithmetic in a clear top-to-bottom reading order.

Picture 19 of 21 · tap to inspect in full resolution
19

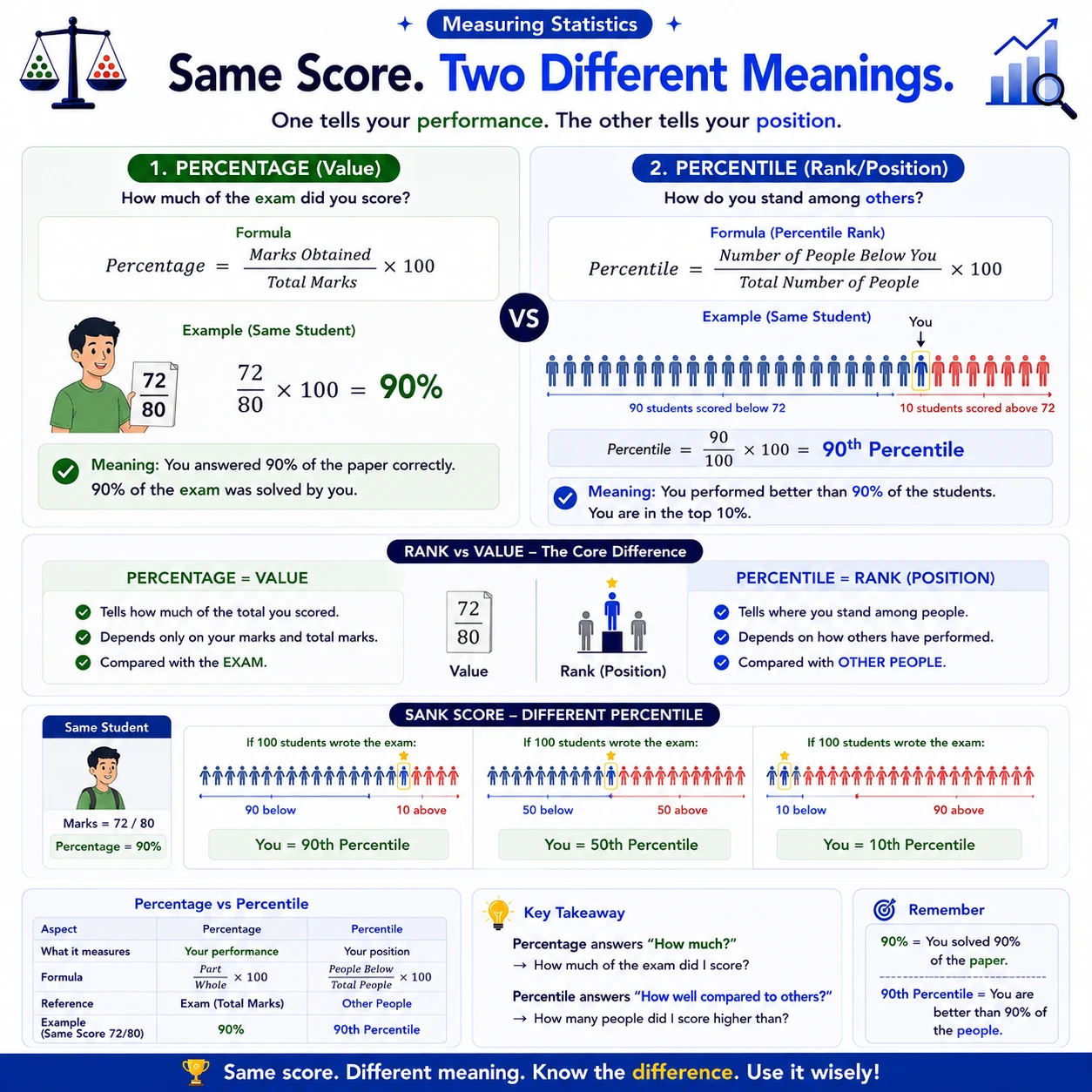

How can the same score have two meanings?

INTUITION

A score of 72 out of 80 is 90%. Its percentile depends on other scores: it may rank near the top, middle, or bottom in different groups.

  • Helpful foundationsarithmetic · fractions and percentages · reading ordered data
  • Next connectionA z-score uses the dataset's ruler
More context

The portrait diagram presents the comparison and arithmetic in a clear top-to-bottom reading order.

Picture 20 of 21 · tap to inspect in full resolution
20

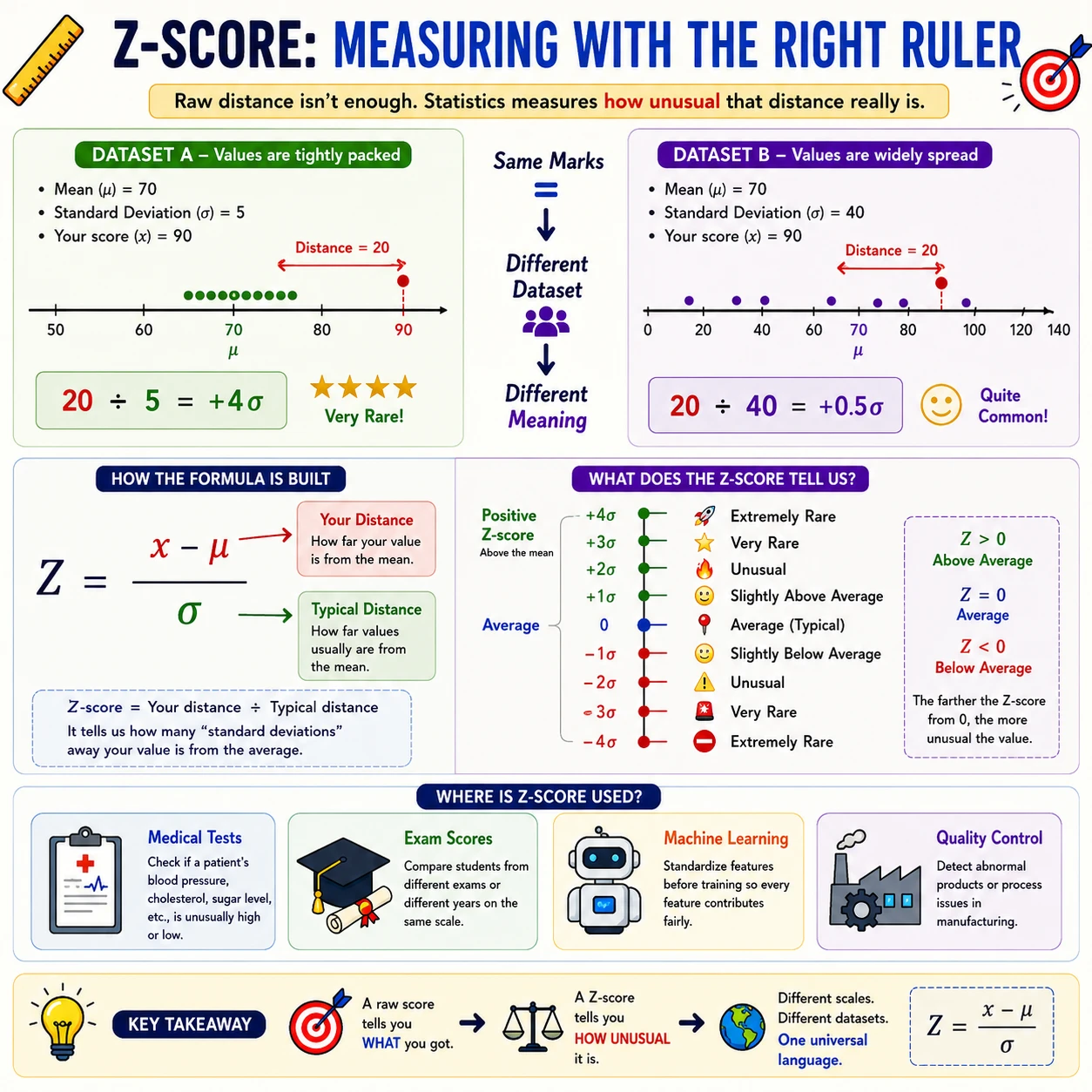

Why is the same raw distance not equally unusual everywhere?

INTUITION

The z-score z = (x minus mu) divided by sigma expresses signed distance from the mean in standard-deviation units. A score 20 above the mean gives z = 4 when sigma is 5 but z = 0.5 when sigma is 40.

MATHEMATICAL STATEMENTS
  1. The z-score z = (x minus mu) divided by sigma expresses signed distance from the mean in standard-deviation units.
  2. A score 20 above the mean gives z = 4 when sigma is 5 but z = 0.5 when sigma is 40.
  • Helpful foundationsarithmetic · fractions and percentages · reading ordered data
  • Next connectionCovariance asks whether two variables move together
More context

The portrait diagram presents the comparison and arithmetic in a clear top-to-bottom reading order.

Picture 21 of 21 · tap to inspect in full resolution
21

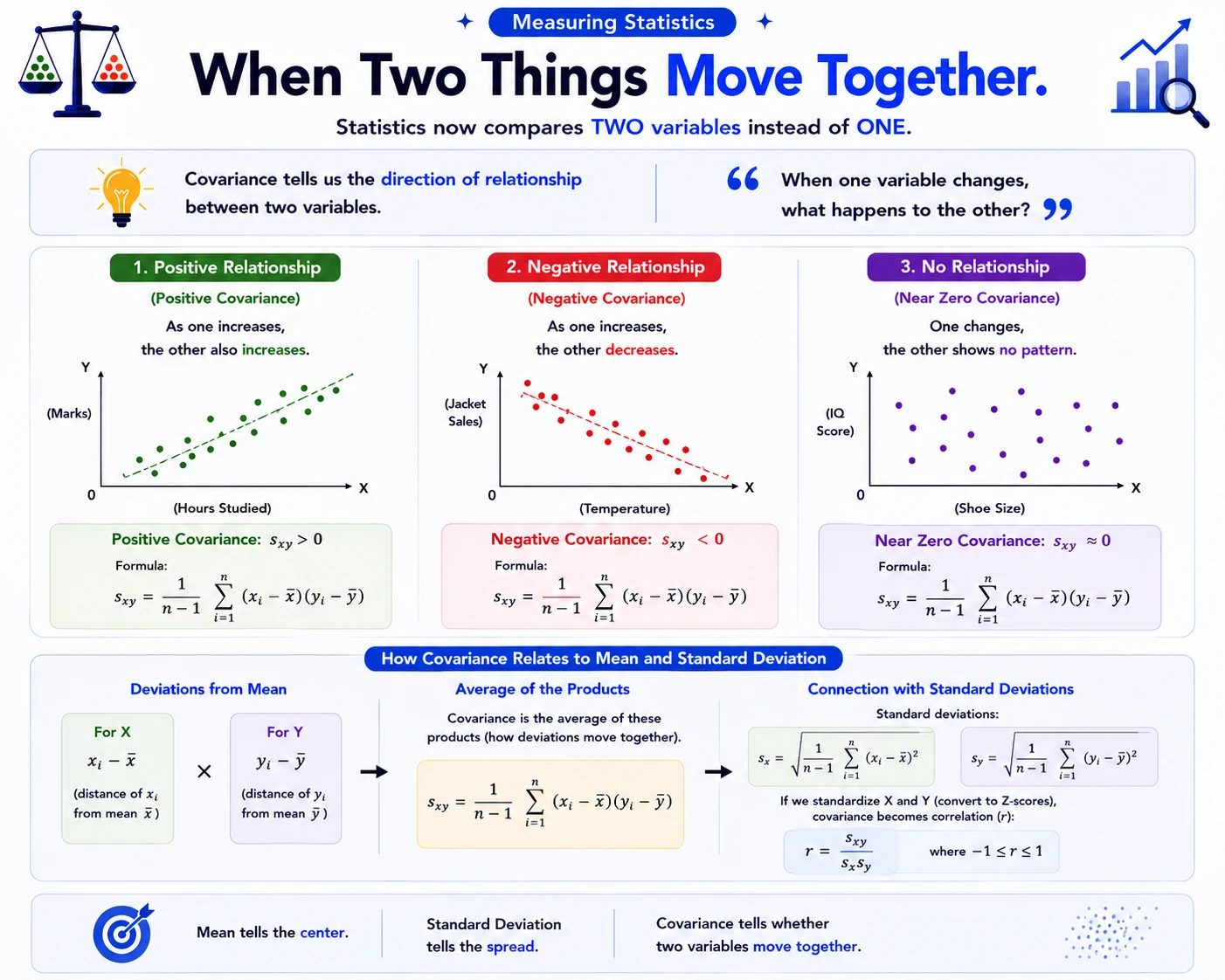

What changes when we measure two variables at once?

INTUITION

Covariance averages paired deviation products: positive values indicate same-direction movement, negative values opposite-direction movement, and values near zero no linear co-movement. Correlation standardizes by both standard deviations.

  • Helpful foundationsarithmetic · fractions and percentages · reading ordered data
  • Next connectionInference from statistics to uncertainty
More context

The portrait diagram presents the comparison and arithmetic in a clear top-to-bottom reading order.
