VISUAL LESSON · 8 PICTURES

What Limited Information Can Still Guarantee

What can mean and variance alone tell us about extreme values and sample averages?

MODULE 3 / 6LESSON 46 / 50PICTURE 1 / 8
Progress stays on this device · no login
BEFORE THE FIRST PICTURE

How this lesson unfolds.

Begin with What can mean and variance guarantee without knowing the distribution? The sequence then connects A small mean limits a very large upper tail and builds toward One result builds the next.

Picture 1 of 8 · tap to inspect in full resolution
01

What can mean and variance guarantee without knowing the distribution?

INTUITION

Markov uses nonnegativity and a mean, Chebyshev adds variance, and the weak law applies the shrinking variance of an average.

  • Learning goalExplain roadmap with its assumptions and bound interpretation.
  • Helpful foundationsexpectation · variance · sample mean
  • Common trapAn inequality gives an upper or lower guarantee, not an exact probability; each result has explicit moment and support assumptions.
  • Next connectionA small mean limits a very large upper tail
Picture 2 of 8 · tap to inspect in full resolution
02

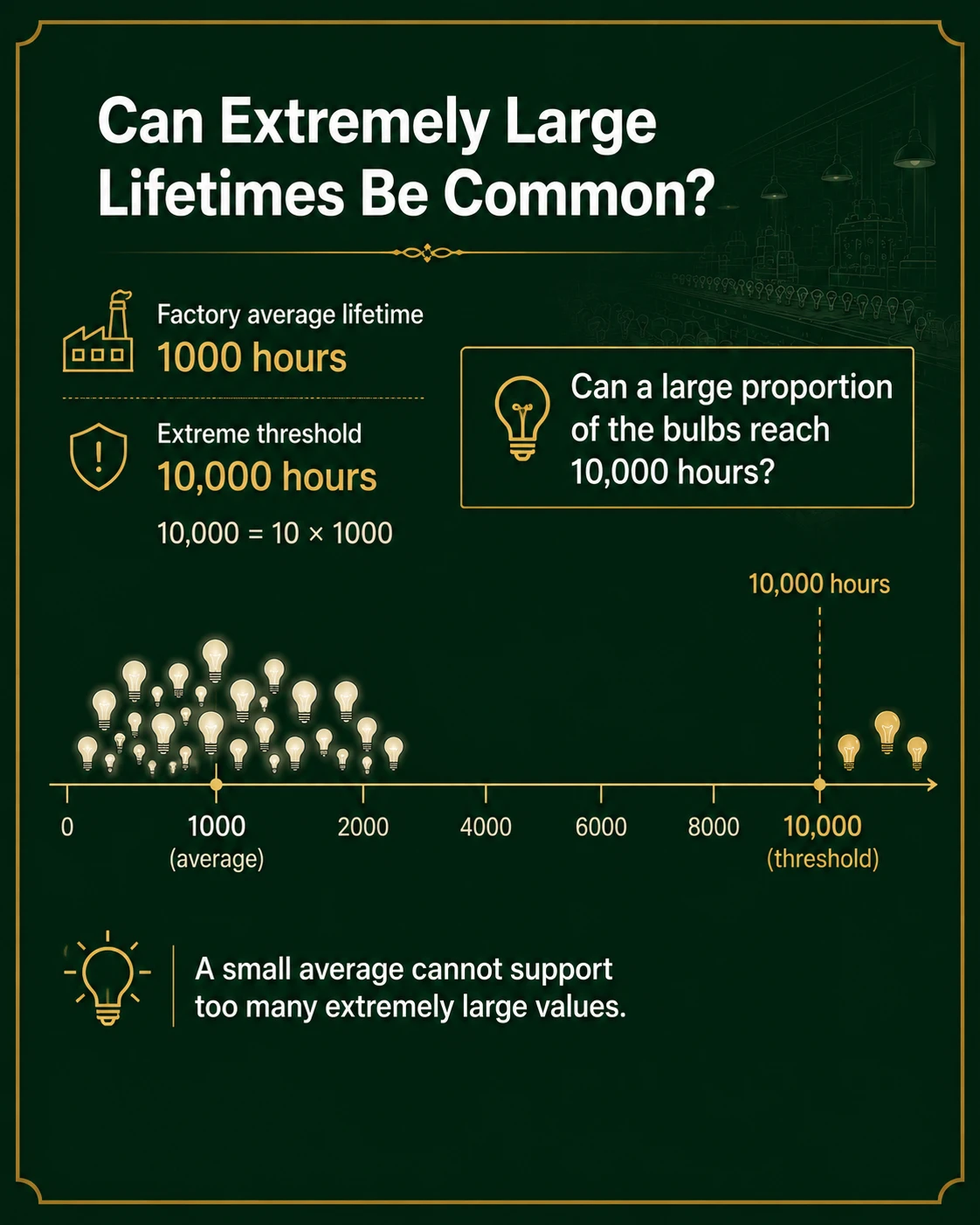

Can many lifetimes exceed ten times the mean?

INTUITION

For a nonnegative lifetime with mean 1000 hours, the fraction reaching at least 10000 hours cannot exceed one tenth.

  • Learning goalExplain markov intuition with its assumptions and bound interpretation.
  • Helpful foundationsexpectation · variance · sample mean
  • Common trapAn inequality gives an upper or lower guarantee, not an exact probability; each result has explicit moment and support assumptions.
  • Next connectionMarkov gives a ceiling, not an exact answer
Picture 3 of 8 · tap to inspect in full resolution
03

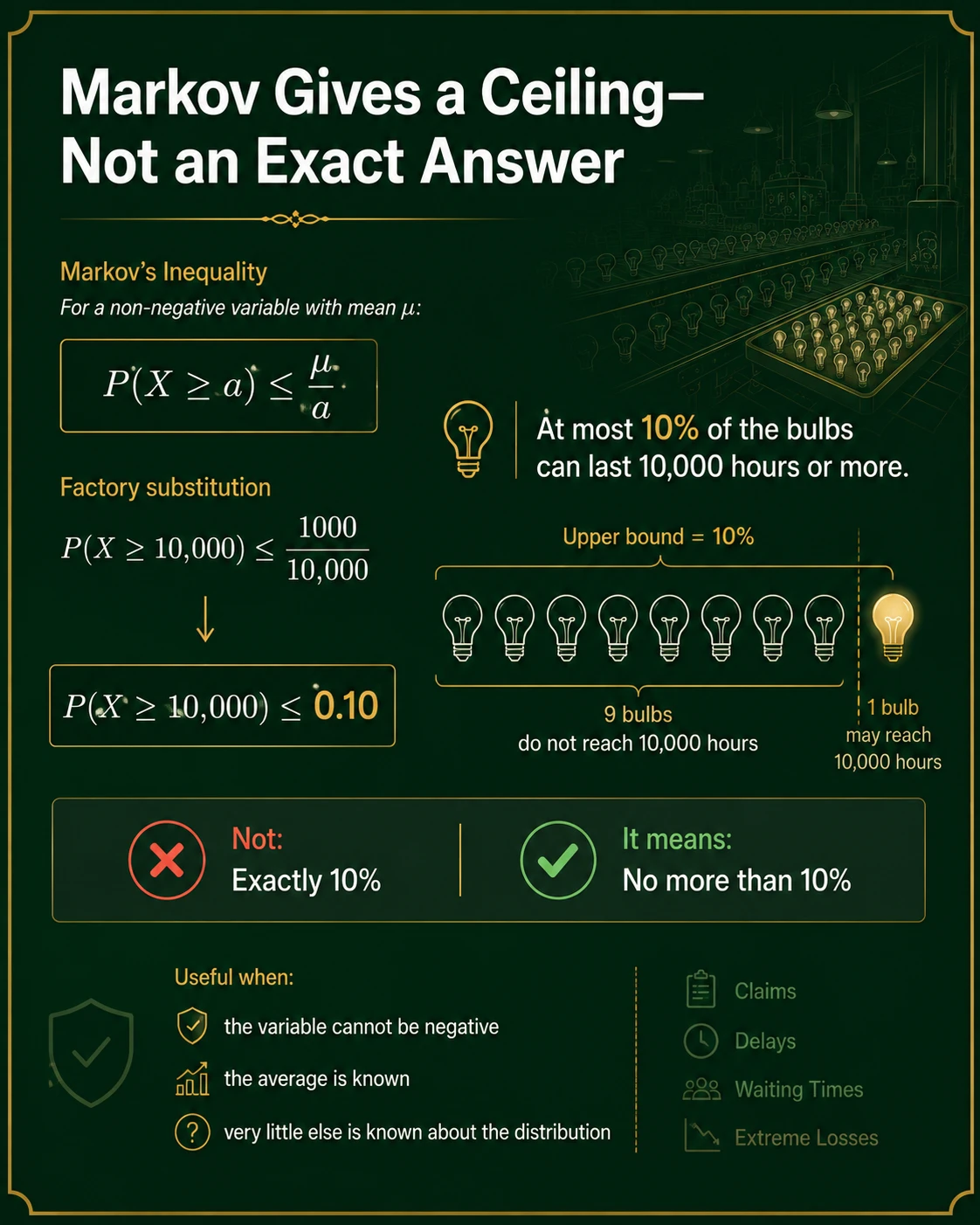

What does at most ten percent really mean?

INTUITION

Markov gives P(X>=a)<=E[X]/a; it permits any true probability from zero up to the bound and needs X to be nonnegative.

MATHEMATICAL STATEMENT
  1. Markov gives P(X>=a)<=E[X]/a; it permits any true probability from zero up to the bound and needs X to be nonnegative.
  • Learning goalExplain markov bound with its assumptions and bound interpretation.
  • Helpful foundationsexpectation · variance · sample mean
  • Common trapAn inequality gives an upper or lower guarantee, not an exact probability; each result has explicit moment and support assumptions.
  • Next connectionChebyshev applies Markov to squared distance
Picture 4 of 8 · tap to inspect in full resolution
04

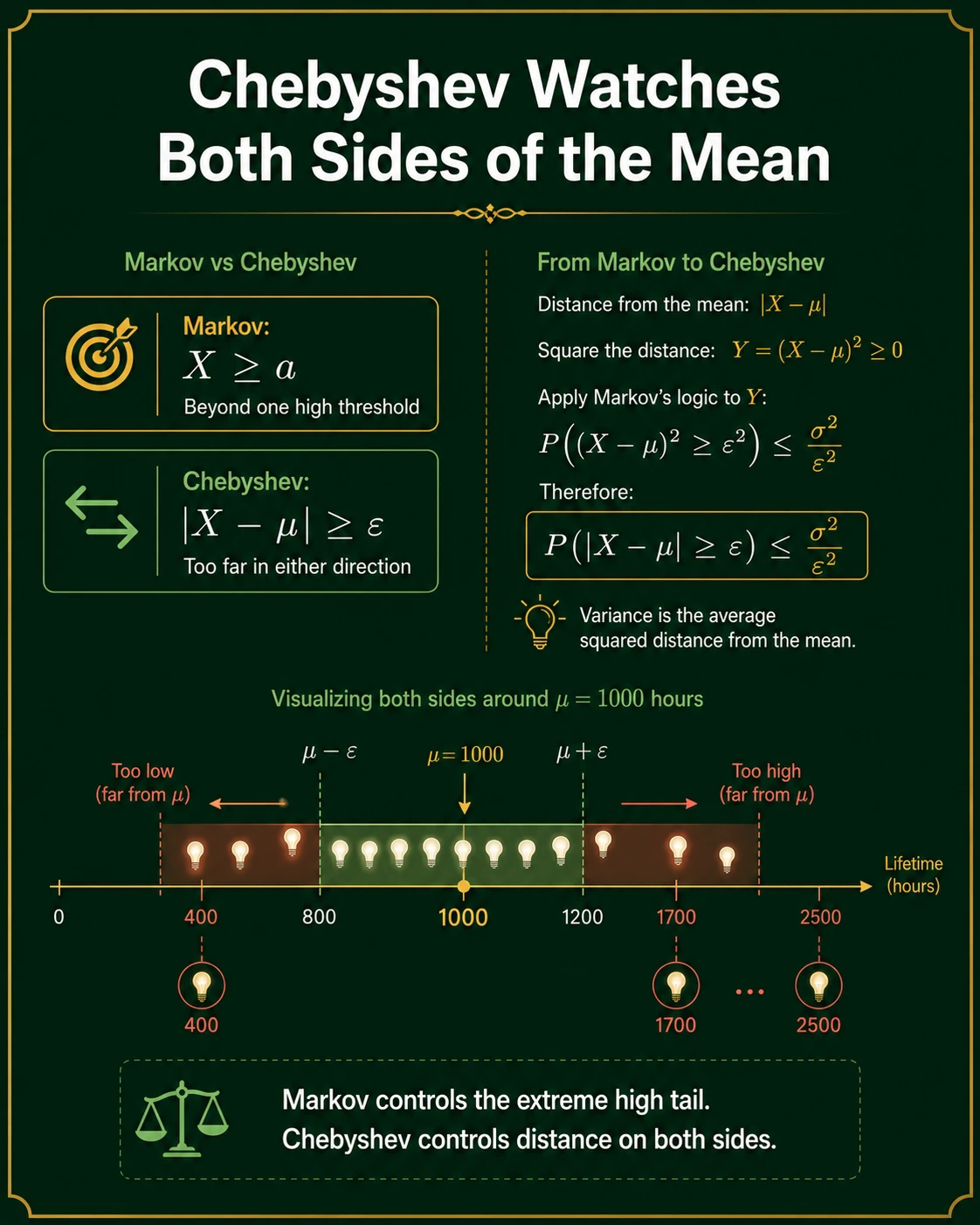

How do we control both sides of the mean?

INTUITION

Apply Markov to Y=(X-mu)^2 to obtain P(|X-mu|>=epsilon)<=sigma^2/epsilon^2.

MATHEMATICAL STATEMENT
  1. Apply Markov to Y=(X-mu)^2 to obtain P(|X-mu|>=epsilon)<=sigma^2/epsilon^2.
  • Learning goalExplain chebyshev derivation with its assumptions and bound interpretation.
  • Helpful foundationsexpectation · variance · sample mean
  • Common trapAn inequality gives an upper or lower guarantee, not an exact probability; each result has explicit moment and support assumptions.
  • Next connectionVariance becomes a distribution-free quality band
Picture 5 of 8 · tap to inspect in full resolution
05

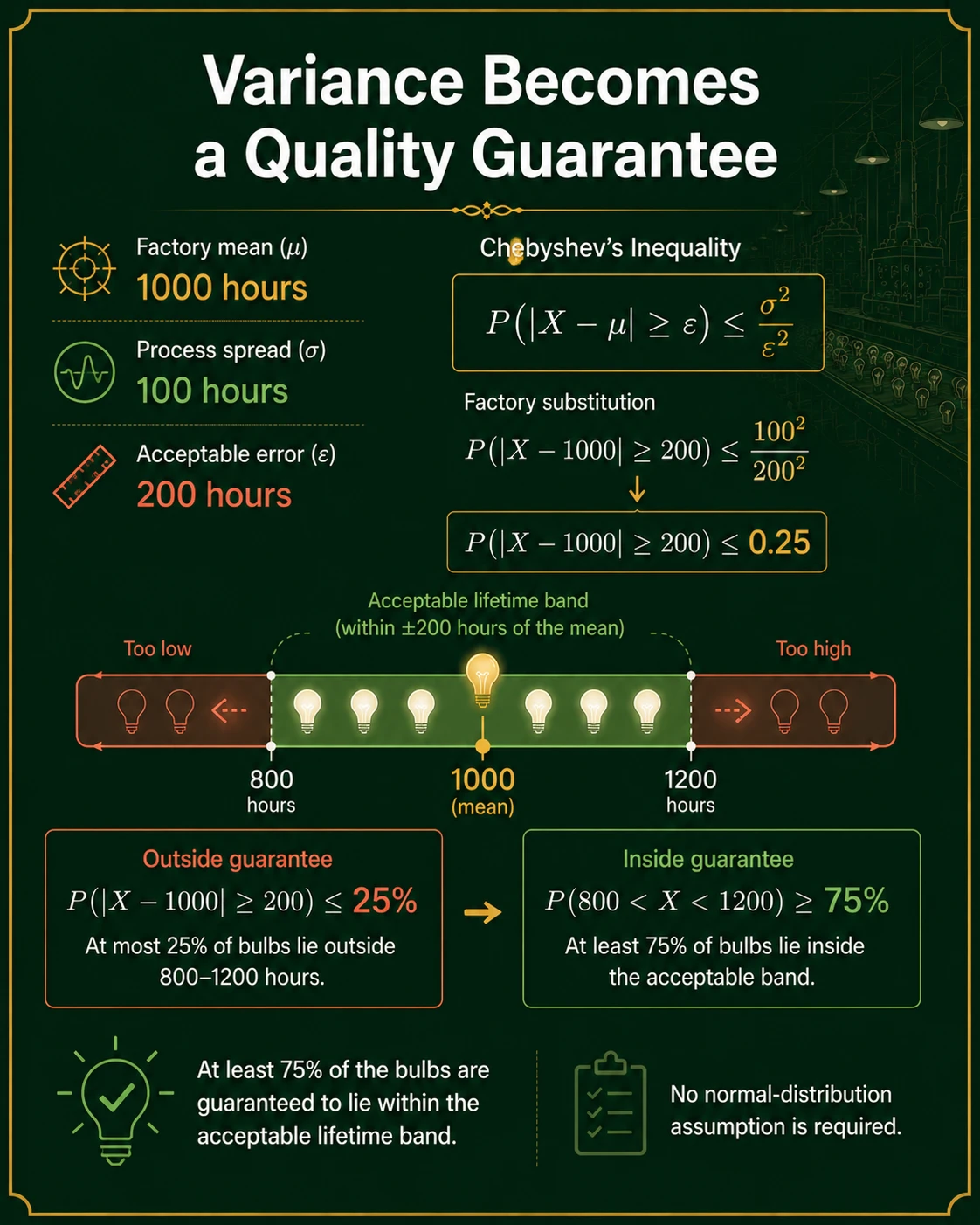

How much must lie near the mean?

INTUITION

With mean 1000, standard deviation 100 and tolerance 200, Chebyshev guarantees at least 75 percent lies between 800 and 1200.

  • Learning goalExplain chebyshev example with its assumptions and bound interpretation.
  • Helpful foundationsexpectation · variance · sample mean
  • Common trapAn inequality gives an upper or lower guarantee, not an exact probability; each result has explicit moment and support assumptions.
  • Next connectionAverages vary less than individual observations
Picture 6 of 8 · tap to inspect in full resolution
06

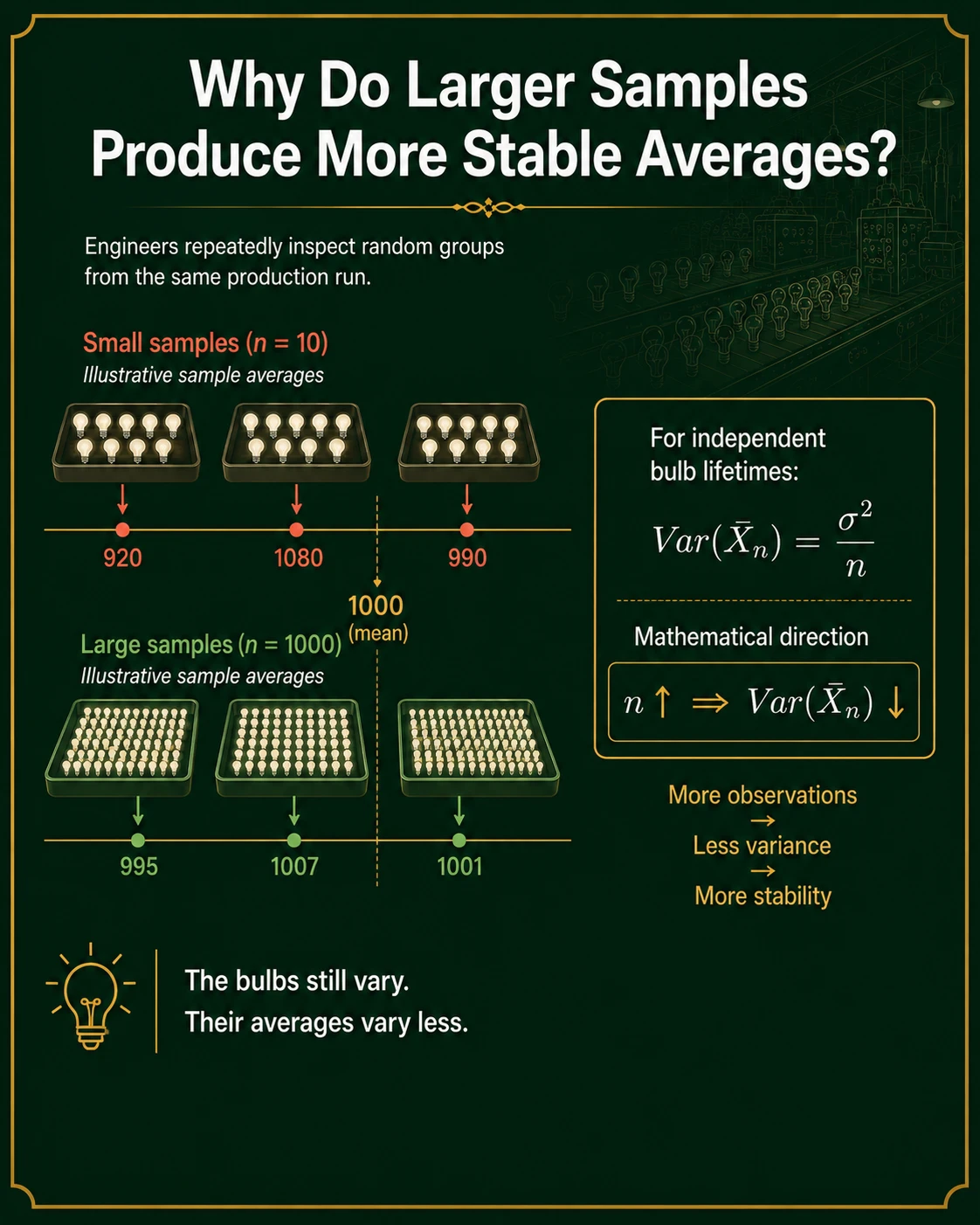

Why do larger samples stabilize the mean?

INTUITION

For independent common-variance observations, Var(Xbar_n)=sigma^2/n even though individual variance remains sigma^2.

MATHEMATICAL STATEMENT
  1. For independent common-variance observations, Var(Xbar_n)=sigma^2/n even though individual variance remains sigma^2.
  • Learning goalExplain sample mean variance with its assumptions and bound interpretation.
  • Helpful foundationsexpectation · variance · sample mean
  • Common trapAn inequality gives an upper or lower guarantee, not an exact probability; each result has explicit moment and support assumptions.
  • Next connectionChebyshev turns shrinking variance into convergence
Picture 7 of 8 · tap to inspect in full resolution
07

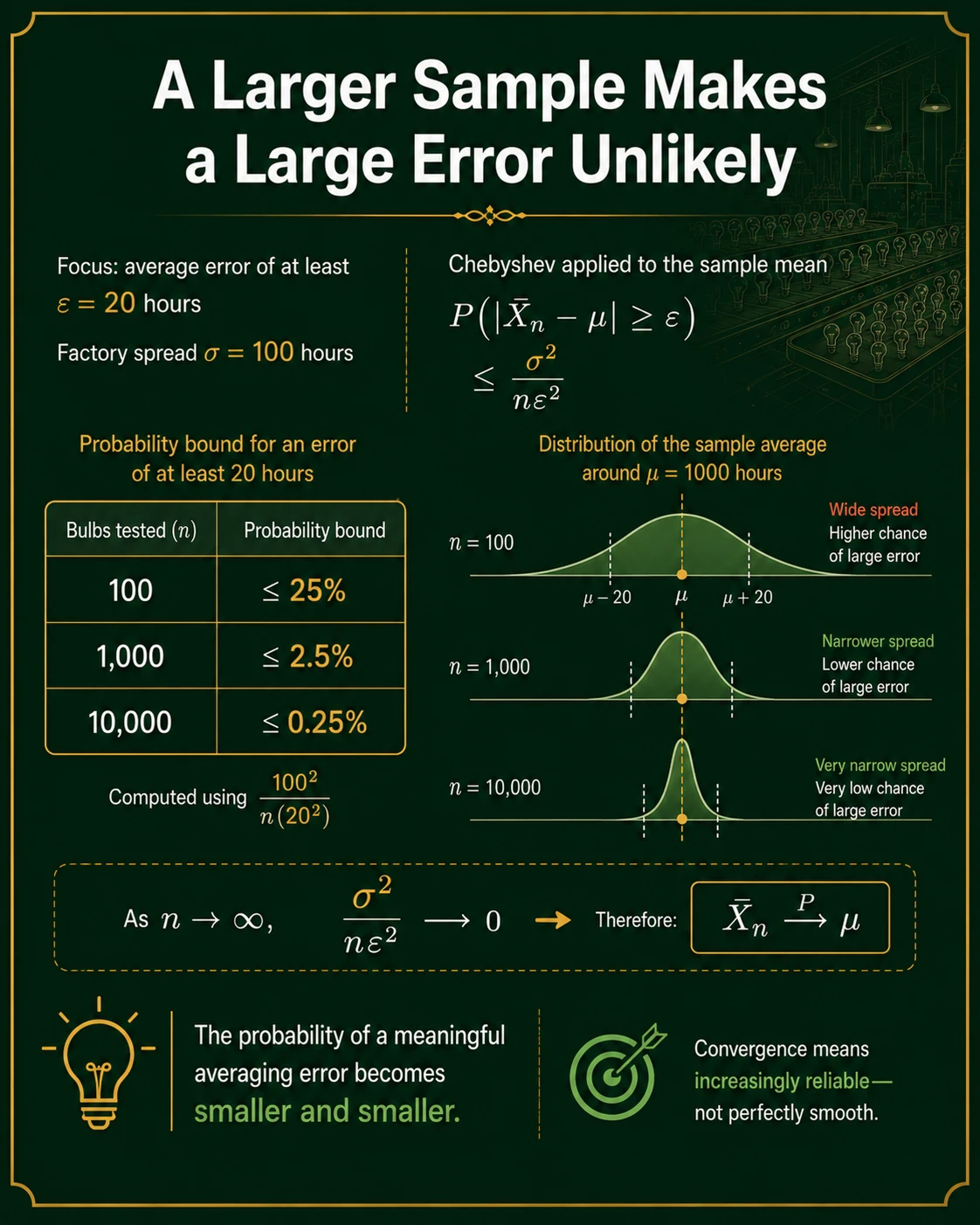

Why does a large averaging error become unlikely?

INTUITION

P(|Xbar_n-mu|>=epsilon)<=sigma^2/(n epsilon^2), so the upper bound tends to zero as n grows.

MATHEMATICAL STATEMENT
  1. P(|Xbar_n-mu|>=epsilon)<=sigma^2/(n epsilon^2), so the upper bound tends to zero as n grows.
  • Learning goalExplain weak law bound with its assumptions and bound interpretation.
  • Helpful foundationsexpectation · variance · sample mean
  • Common trapAn inequality gives an upper or lower guarantee, not an exact probability; each result has explicit moment and support assumptions.
  • Next connectionOne result builds the next
Picture 8 of 8 · tap to inspect in full resolution
08

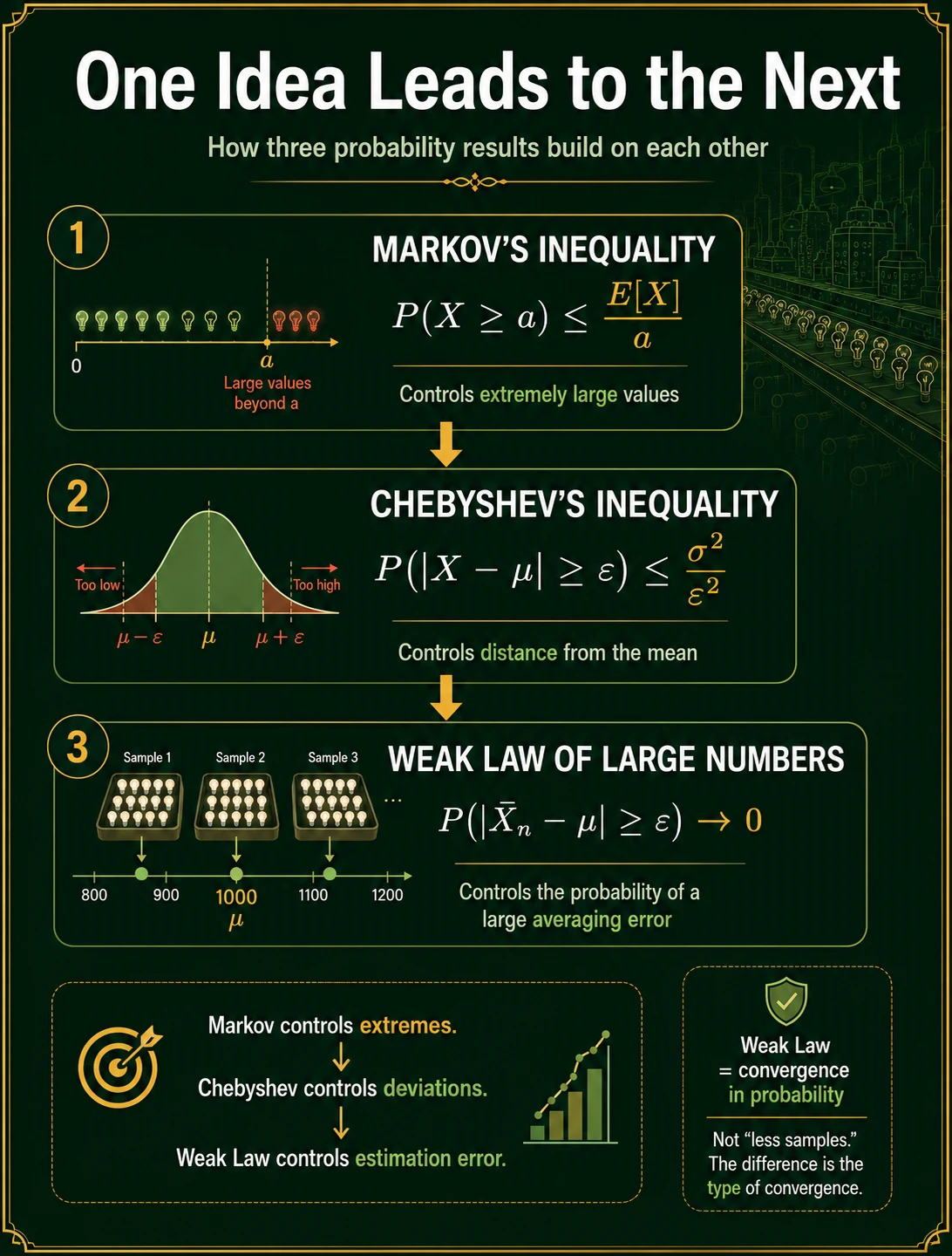

How do Markov, Chebyshev and the weak law connect?

INTUITION

Markov bounds a nonnegative tail, Chebyshev applies it to squared deviation, and the weak law applies Chebyshev to an average whose variance shrinks.

  • Learning goalExplain synthesis with its assumptions and bound interpretation.
  • Helpful foundationsexpectation · variance · sample mean
  • Common trapAn inequality gives an upper or lower guarantee, not an exact probability; each result has explicit moment and support assumptions.
  • Next connectionCompare convergence in probability with stronger convergence modes
