VISUAL LESSON · 20 PICTURES

Indicator Symbols: From Conditions to Counts

How do indicator symbols turn logical conditions into exact sums, expectations, and variance calculations?

MODULE 3 / 6LESSON 18 / 50PICTURE 1 / 20
Progress stays on this device · no login
BEFORE THE FIRST PICTURE

How this lesson unfolds.

Begin with How can a condition become a number? The sequence then connects Read the condition before the symbol and builds toward Read complex expressions from the inside out.

Picture 1 of 20 · tap to inspect in full resolution
01

How can a condition become a number?

INTUITION

For an event A, the indicator 1_A equals 1 when A occurs and 0 otherwise. It is a random variable, so logical statements can enter arithmetic without losing their meaning.

MATHEMATICAL STATEMENT
  1. For an event A, the indicator 1_A equals 1 when A occurs and 0 otherwise.
  • Learning goalRead, construct, and interpret definition in an indicator-based expression.
  • Helpful foundationssets and events · basic summation notation · random variables
  • Common trapAn indicator does not estimate truth; it encodes the truth of a precisely stated event for one outcome.
  • Next connectionRead the condition before the symbol
More context

The portrait diagram reads from top to bottom: an exact notation panel, a worked visual or comparison, two labeled interpretation cards, and a concise caution.

Picture 2 of 20 · tap to inspect in full resolution
02

What exactly sits inside the braces?

INTUITION

In 1{x > 3}, the braces state the condition being tested. First read the condition in words, then evaluate whether it is true for the current object or outcome.

  • Learning goalRead, construct, and interpret reading condition in an indicator-based expression.
  • Helpful foundationssets and events · basic summation notation · random variables
  • Common trapNever evaluate the symbol before translating its condition into a plain-language yes-or-no question.
  • Next connectionThe index names the object being tested
More context

The portrait diagram reads from top to bottom: an exact notation panel, a worked visual or comparison, two labeled interpretation cards, and a concise caution.

Picture 3 of 20 · tap to inspect in full resolution
03

What does the subscript tell you?

INTUITION

An indexed indicator I_i asks the same yes-or-no question about object i. The index may identify a customer, machine, trial, edge, time, or sample position.

  • Learning goalRead, construct, and interpret indexing in an indicator-based expression.
  • Helpful foundationssets and events · basic summation notation · random variables
  • Common trapWrite what i labels beside the formula. That small habit prevents many indexing errors.
  • Next connectionA sum of indicators is a count
More context

The portrait diagram reads from top to bottom: an exact notation panel, a worked visual or comparison, two labeled interpretation cards, and a concise caution.

Picture 4 of 20 · tap to inspect in full resolution
04

Why does adding zeros and ones count?

INTUITION

Every qualifying object contributes 1 and every non-qualifying object contributes 0. Therefore the sum of indicators equals the number of objects that satisfy the condition.

MATHEMATICAL STATEMENT
  1. Therefore the sum of indicators equals the number of objects that satisfy the condition.
  • Learning goalRead, construct, and interpret counting in an indicator-based expression.
  • Helpful foundationssets and events · basic summation notation · random variables
  • Common trapA sum counts only because every term is exactly zero or one.
  • Next connectionCount or collect: decide what the answer should be
More context

The portrait diagram reads from top to bottom: an exact notation panel, a worked visual or comparison, two labeled interpretation cards, and a concise caution.

Picture 5 of 20 · tap to inspect in full resolution

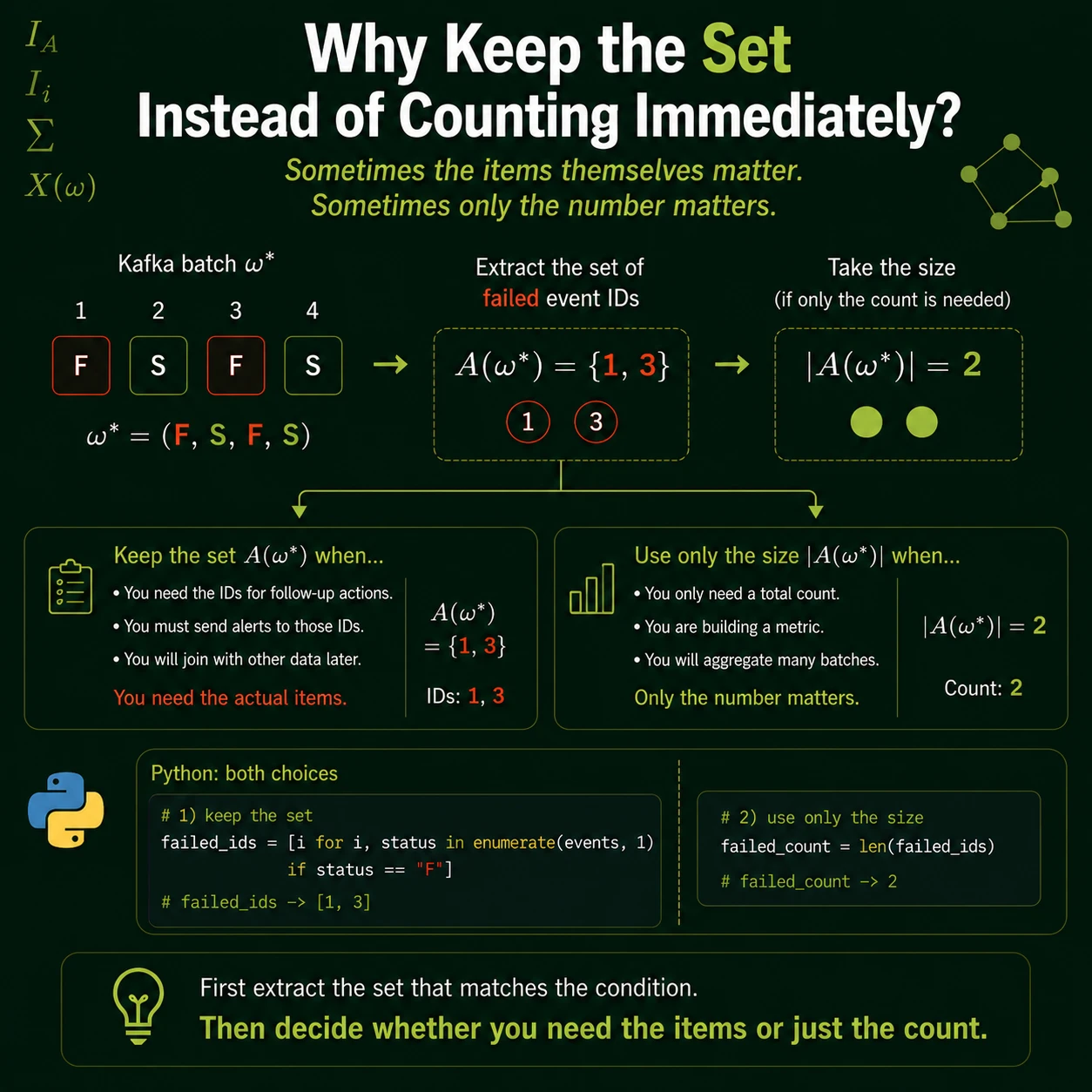

05

Do you need the items or only their number?

INTUITION

Set-builder notation returns the matching objects; a sum of indicators returns how many match. Choose the expression that has the same output type as the question.

  • Learning goalRead, construct, and interpret count versus set in an indicator-based expression.
  • Helpful foundationssets and events · basic summation notation · random variables
  • Common trapIf the question asks “which?”, return a collection. If it asks “how many?”, return a count.
  • Next connectionA permutation is a function on positions
More context

The portrait diagram reads from top to bottom: an exact notation panel, a worked visual or comparison, two labeled interpretation cards, and a concise caution.

Picture 6 of 20 · tap to inspect in full resolution

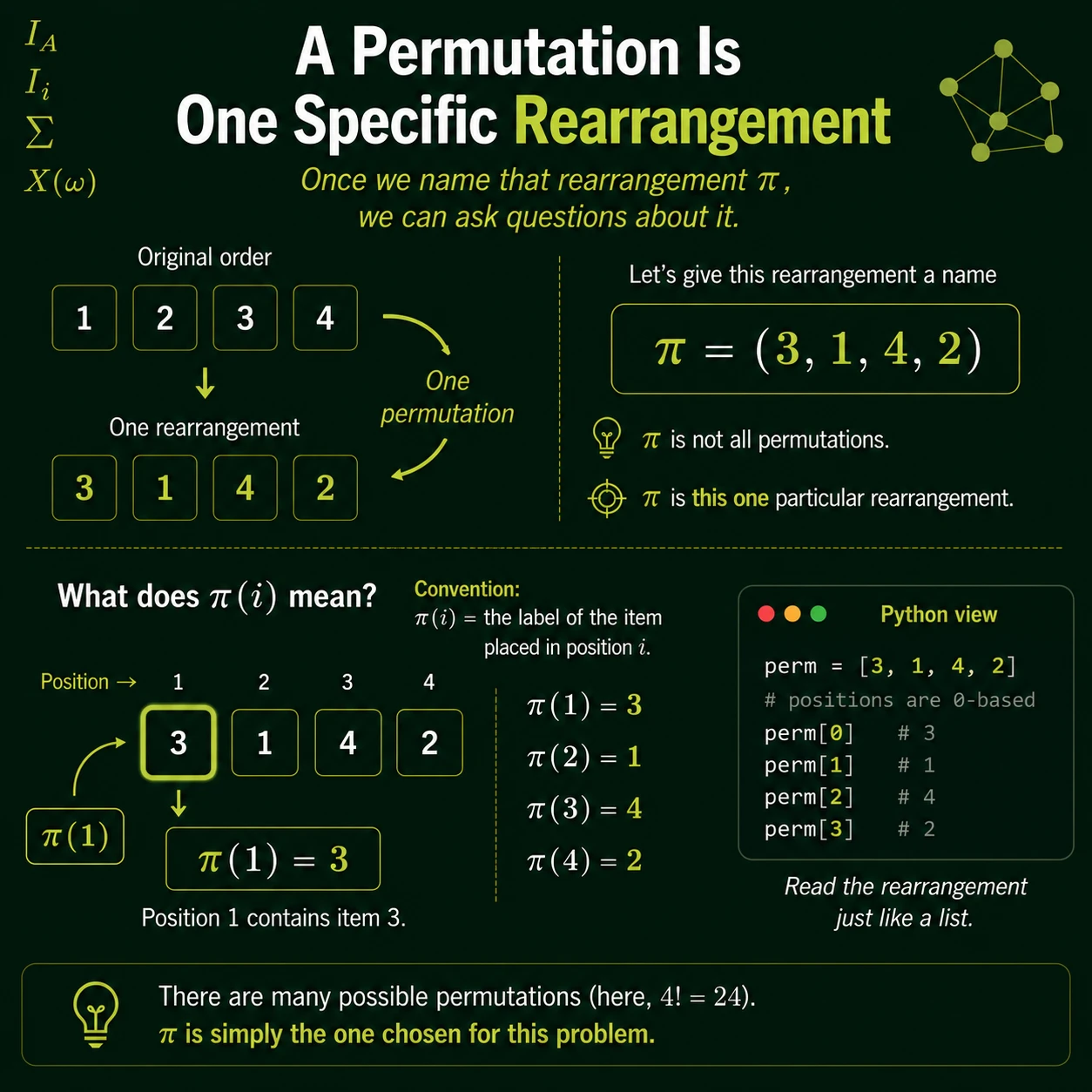

06

How do we read a permutation symbol?

INTUITION

A permutation pi maps each position i to one item pi(i). Treat pi as a function call, not as the number 3.14159; context tells which meaning is intended.

  • Learning goalRead, construct, and interpret permutation function in an indicator-based expression.
  • Helpful foundationssets and events · basic summation notation · random variables
  • Common trapRead π(i) as a function call whenever π has been defined as a permutation.
  • Next connectionOrdering restrictions remove duplicate tuples
More context

The portrait diagram reads from top to bottom: an exact notation panel, a worked visual or comparison, two labeled interpretation cards, and a concise caution.

Picture 7 of 20 · tap to inspect in full resolution

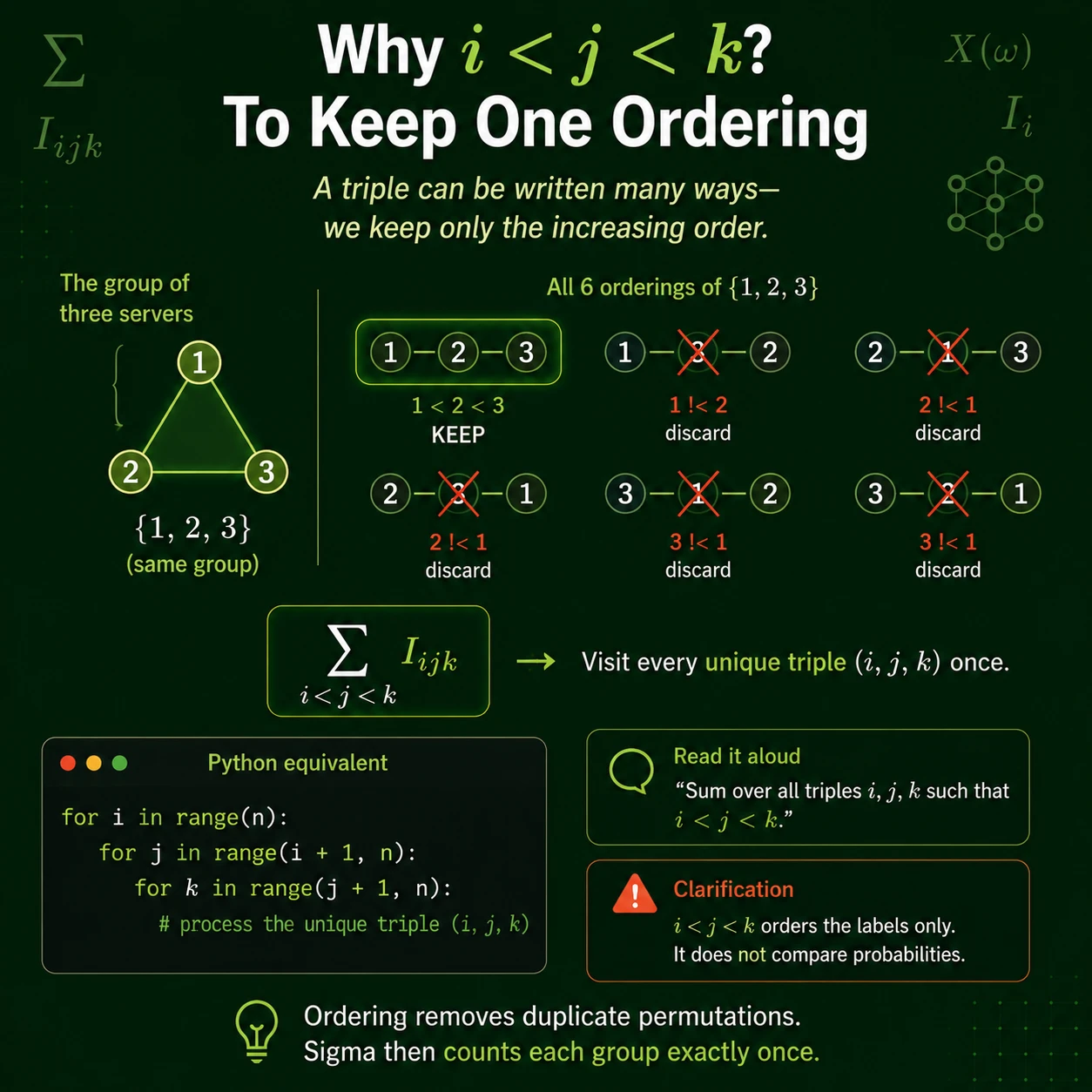

07

Why write i < j < k?

INTUITION

The rule i < j < k keeps only increasing triples. It selects one canonical ordering for each three-element choice, avoiding all six permutations of the same set.

  • Learning goalRead, construct, and interpret ordered indices in an indicator-based expression.
  • Helpful foundationssets and events · basic summation notation · random variables
  • Common trapThe inequality i < j < k is an anti-duplication rule, not a numerical comparison of measurements.
  • Next connectionThe summation subscript is a filter
More context

The portrait diagram reads from top to bottom: an exact notation panel, a worked visual or comparison, two labeled interpretation cards, and a concise caution.

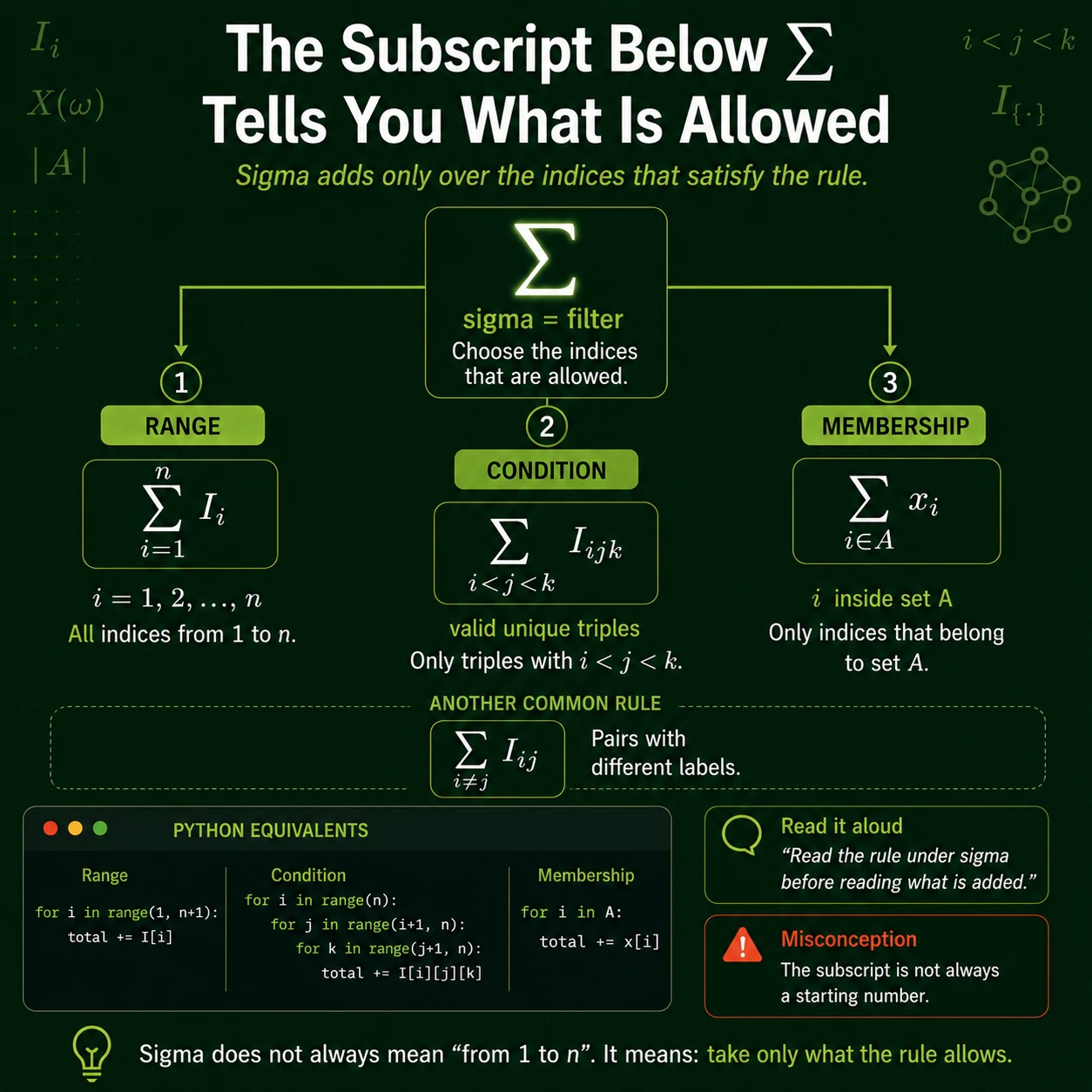

Picture 8 of 20 · tap to inspect in full resolution
08

Which index values are allowed into the sum?

INTUITION

A condition written below Sigma restricts the index set. Read it as: add the summand only over indices that satisfy this rule.

  • Learning goalRead, construct, and interpret filtered sum in an indicator-based expression.
  • Helpful foundationssets and events · basic summation notation · random variables
  • Common trapSeparate the index restriction from the quantity being added: filter first, accumulate second.
  • Next connectionA local indicator answers one local question
More context

The portrait diagram reads from top to bottom: an exact notation panel, a worked visual or comparison, two labeled interpretation cards, and a concise caution.

Picture 9 of 20 · tap to inspect in full resolution

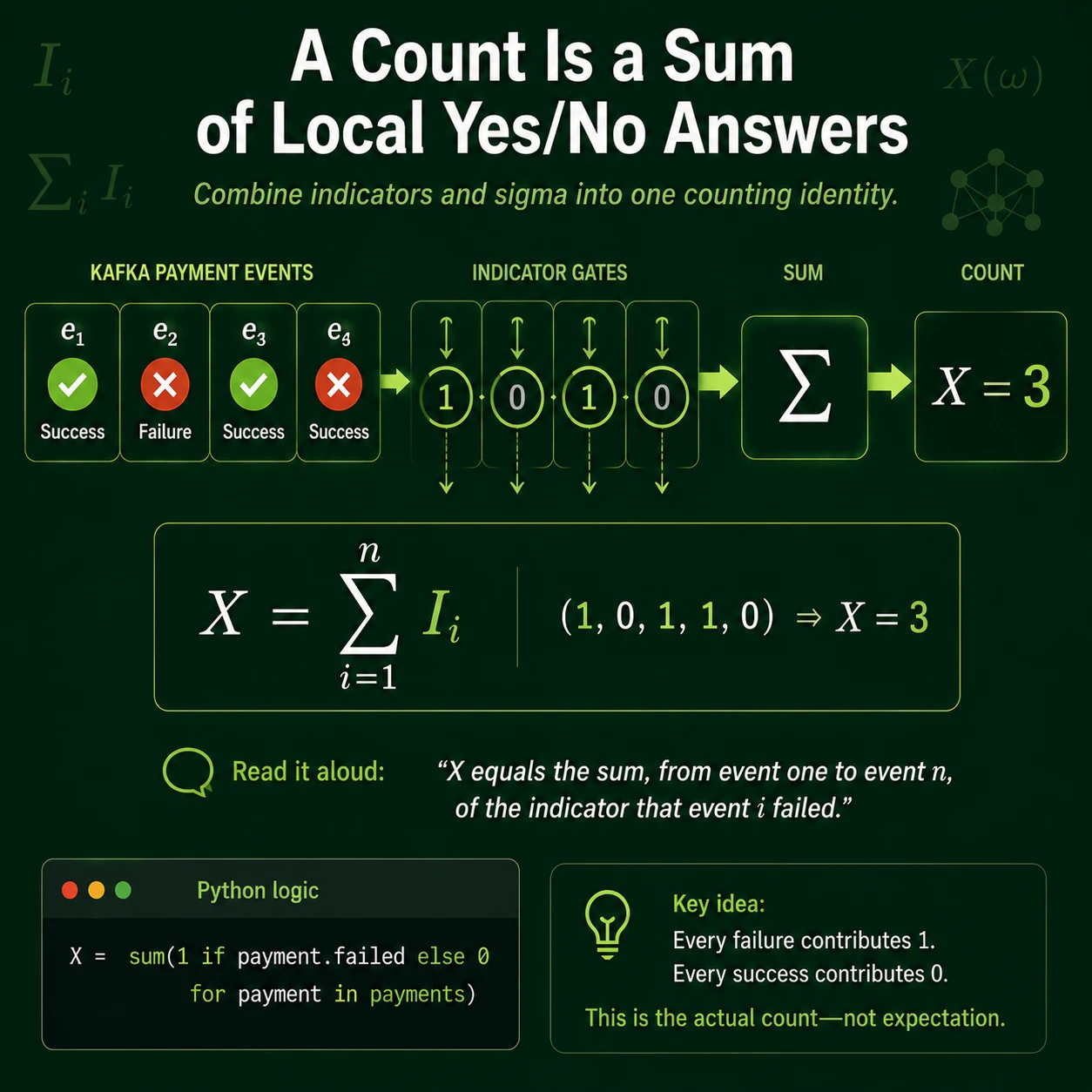

09

How does each event contribute to a total?

INTUITION

Define I_i for one event, evaluate it as 0 or 1, then sum across i. Separating the local rule from the global sum makes the counting logic auditable.

  • Learning goalRead, construct, and interpret local to global in an indicator-based expression.
  • Helpful foundationssets and events · basic summation notation · random variables
  • Common trapA good counting proof defines one local bit clearly before writing the total sum.
  • Next connectionSymbols inherit meaning from their definition
More context

The portrait diagram reads from top to bottom: an exact notation panel, a worked visual or comparison, two labeled interpretation cards, and a concise caution.

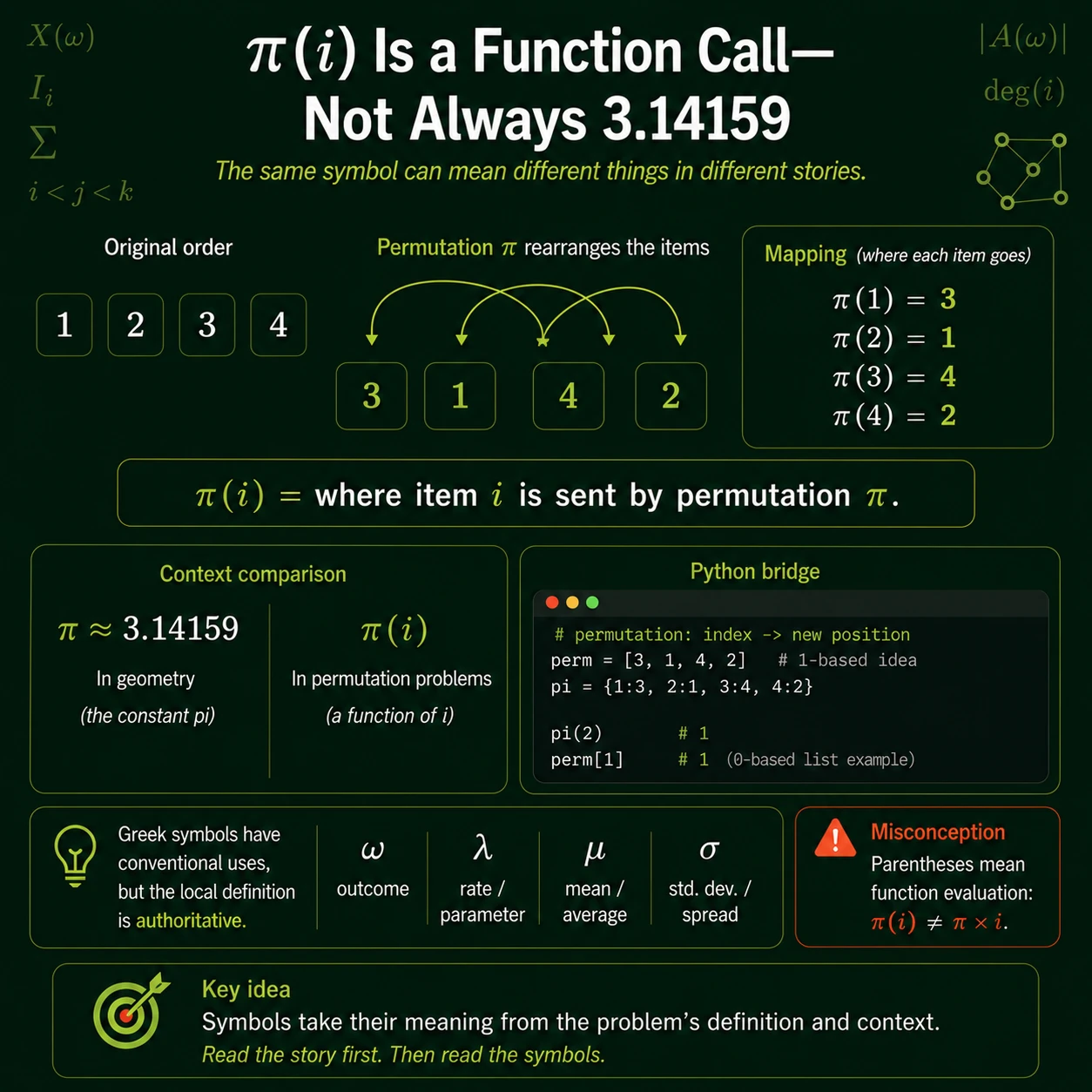

Picture 10 of 20 · tap to inspect in full resolution
10

Can the same letter mean different things?

INTUITION

Letters such as pi, lambda, mu, and sigma have common conventions but no universal meaning. Always find the local definition, domain, and output type before calculating.

  • Learning goalRead, construct, and interpret symbol context in an indicator-based expression.
  • Helpful foundationssets and events · basic summation notation · random variables
  • Common trapConventions help recognition, but the nearby definition controls the meaning.
  • Next connectionAn index is a label, not a value
More context

The portrait diagram reads from top to bottom: an exact notation panel, a worked visual or comparison, two labeled interpretation cards, and a concise caution.

Picture 11 of 20 · tap to inspect in full resolution

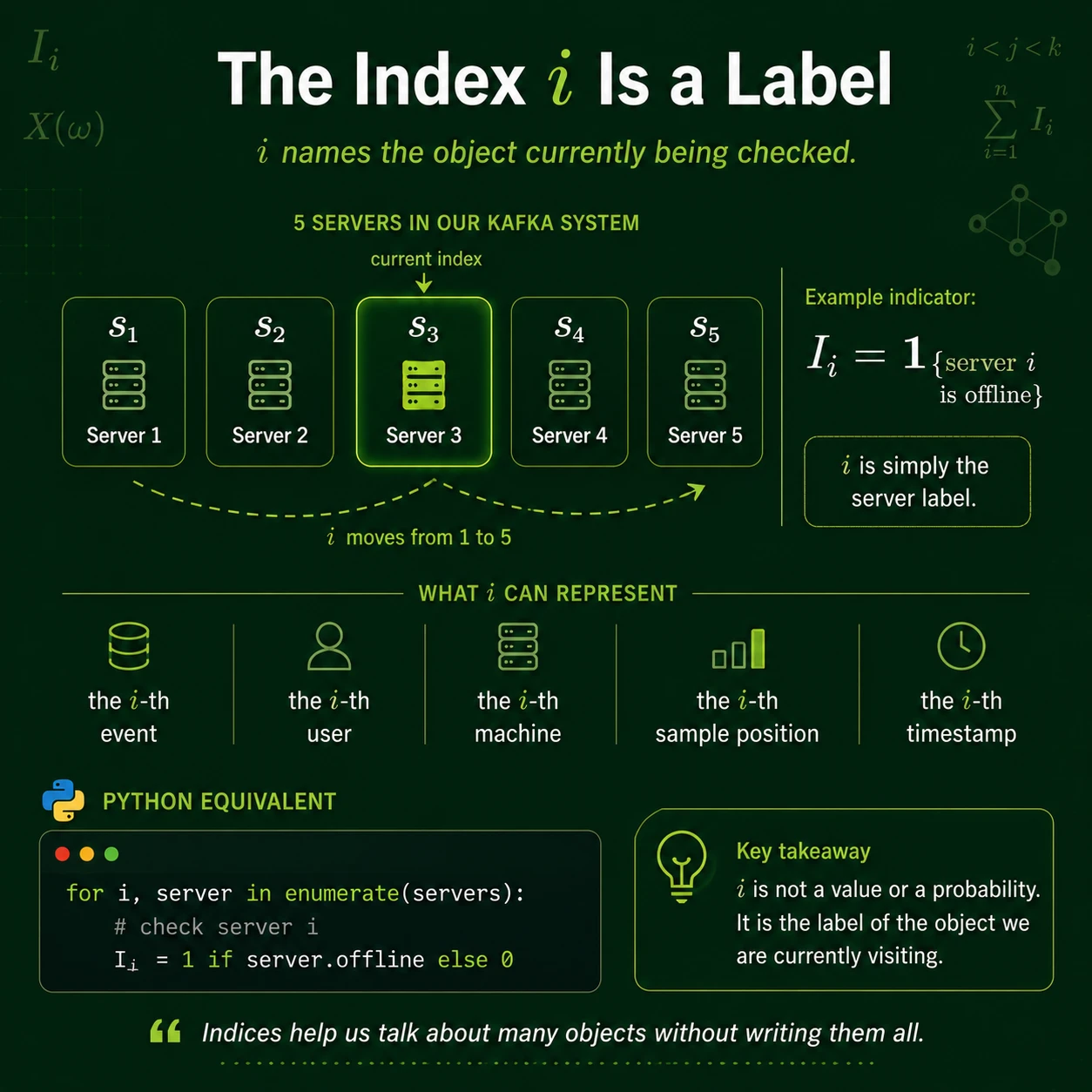

11

What can an index represent?

INTUITION

The index i can label the i-th user, server, trial, edge, or time point. Its job is to identify which object receives the condition; it need not equal an observed measurement.

MATHEMATICAL STATEMENT
  1. Its job is to identify which object receives the condition; it need not equal an observed measurement.
  • Learning goalRead, construct, and interpret index label in an indicator-based expression.
  • Helpful foundationssets and events · basic summation notation · random variables
  • Common trapAn index identifies where a value lives; it is not the value itself.
  • Next connectionCardinality counts a selected set
More context

The portrait diagram reads from top to bottom: an exact notation panel, a worked visual or comparison, two labeled interpretation cards, and a concise caution.

Picture 12 of 20 · tap to inspect in full resolution

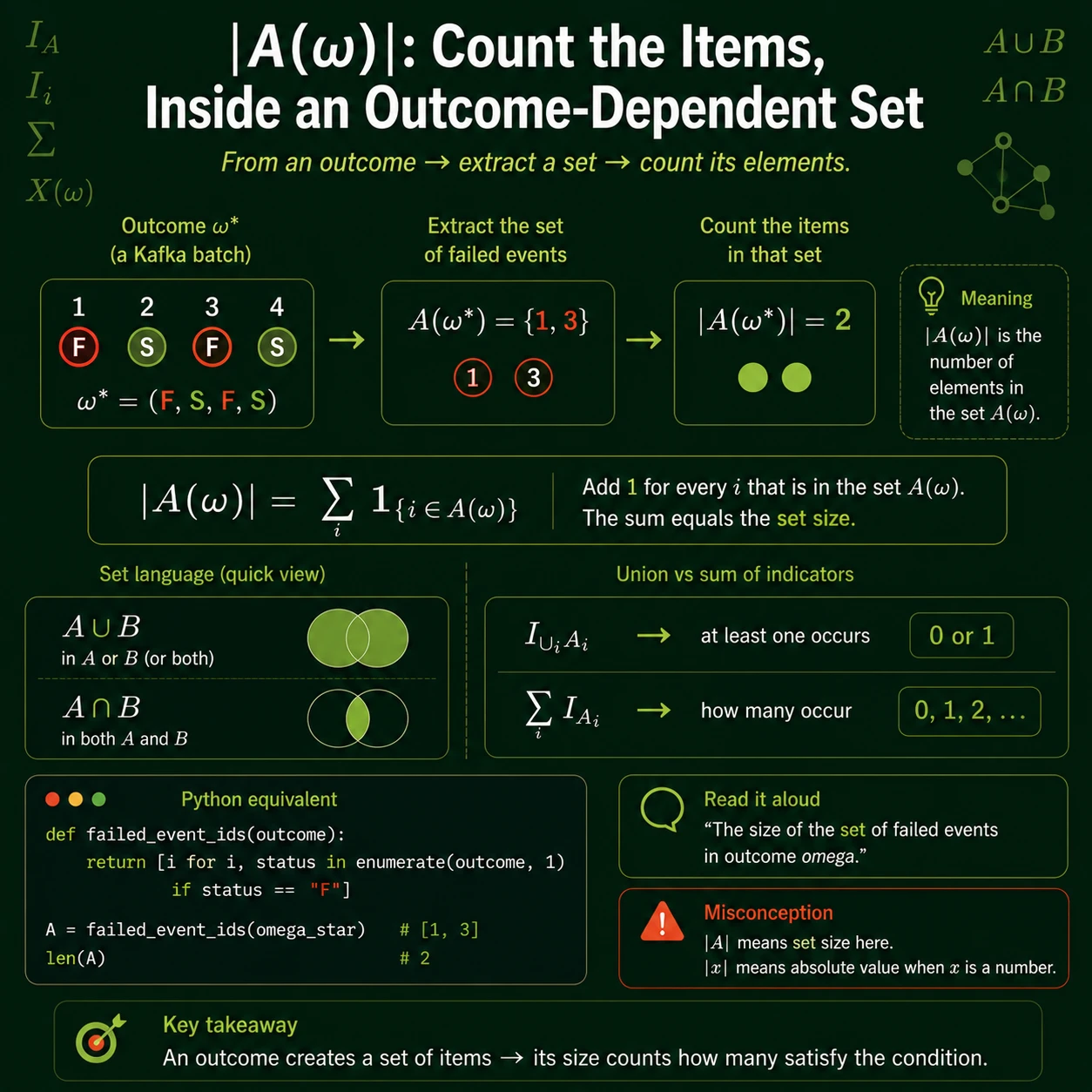

12

How does set size match an indicator sum?

INTUITION

If A(omega) is the set of failed events in outcome omega, then its cardinality |A(omega)| equals the sum of failure indicators over all events.

MATHEMATICAL STATEMENT
  1. If A(omega) is the set of failed events in outcome omega, then its cardinality |A(omega)| equals the sum of failure indicators over all events.
  • Learning goalRead, construct, and interpret cardinality in an indicator-based expression.
  • Helpful foundationssets and events · basic summation notation · random variables
  • Common trapSet notation preserves identities; cardinality and indicator sums preserve only the count.
  • Next connectionExpectation passes through a finite sum
More context

The portrait diagram reads from top to bottom: an exact notation panel, a worked visual or comparison, two labeled interpretation cards, and a concise caution.

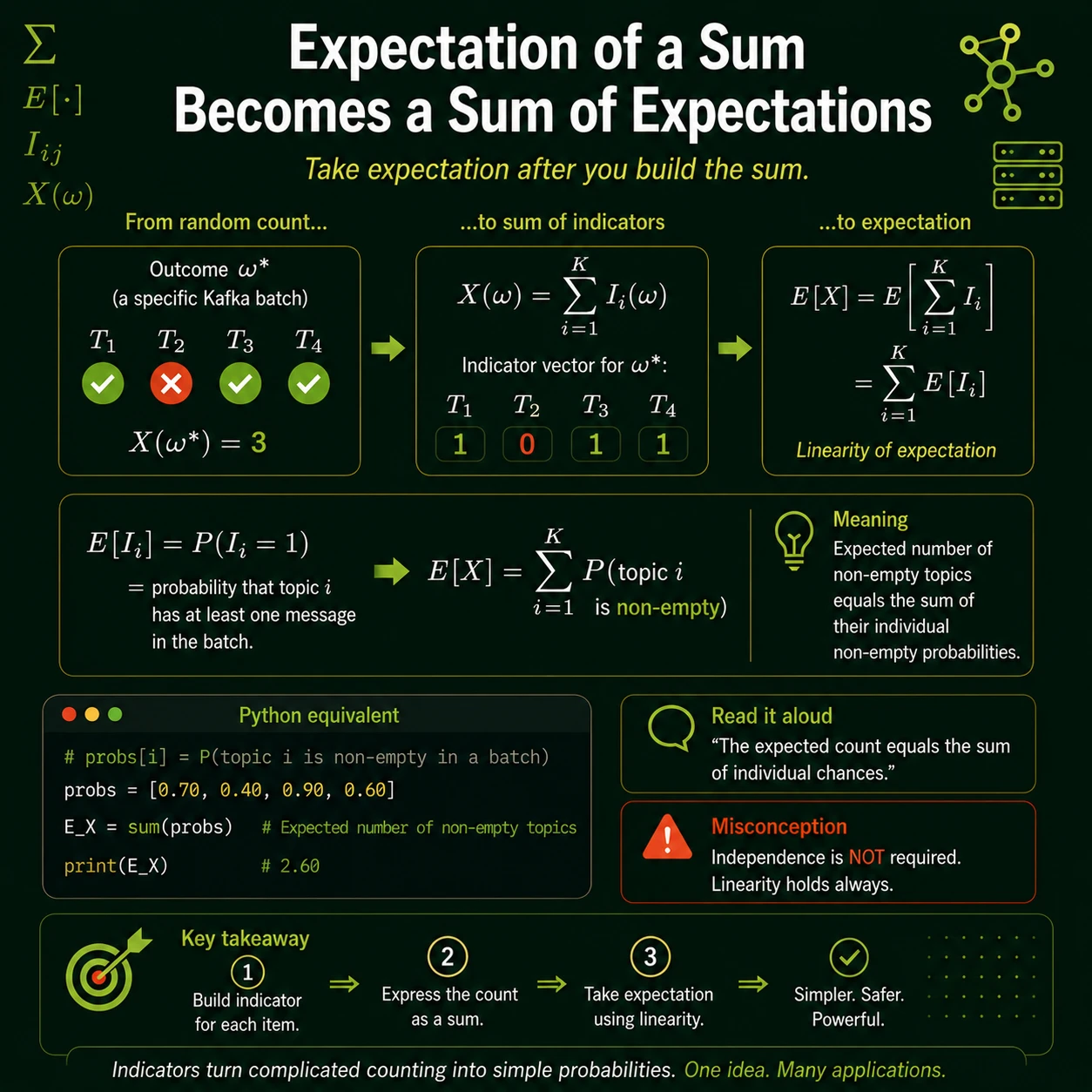

Picture 13 of 20 · tap to inspect in full resolution
13

How do we find the expected count?

INTUITION

Linearity of expectation gives E[sum I_i] = sum E[I_i] even when the indicators are dependent. Since E[I_i] = P(A_i), expected count is the sum of event probabilities.

MATHEMATICAL STATEMENTS
  1. Linearity of expectation gives E[sum I_i] = sum E[I_i] even when the indicators are dependent.
  2. Since E[I_i] = P(A_i), expected count is the sum of event probabilities.
  • Learning goalRead, construct, and interpret expectation in an indicator-based expression.
  • Helpful foundationssets and events · basic summation notation · random variables
  • Common trapExpected counts add even under dependence; variance calculations generally do not simplify the same way.
  • Next connectionUse one indicator for each relation
More context

The portrait diagram reads from top to bottom: an exact notation panel, a worked visual or comparison, two labeled interpretation cards, and a concise caution.

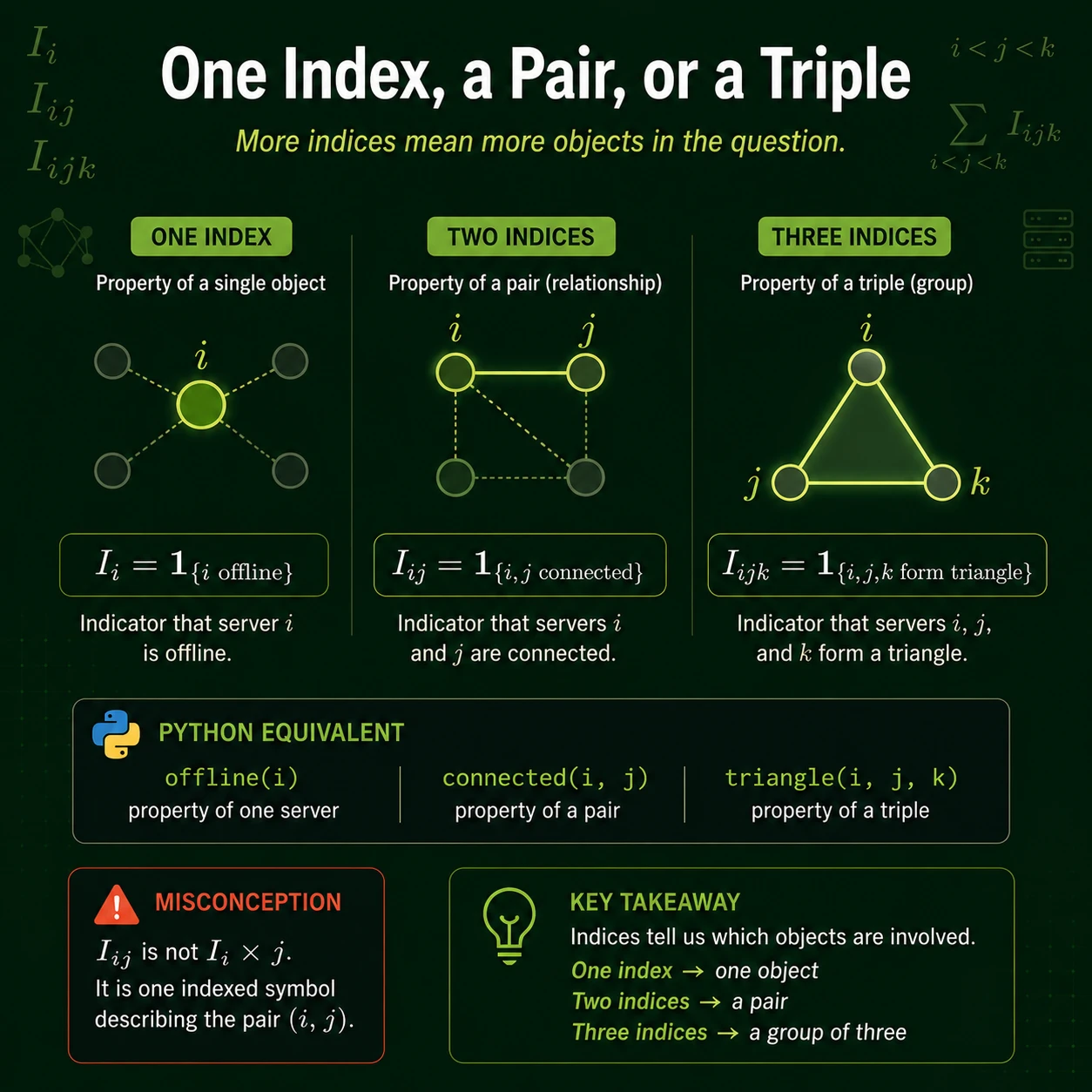

Picture 14 of 20 · tap to inspect in full resolution
14

How do pair and triple indicators differ?

INTUITION

I_ij describes a property of a pair; I_ijk describes a property of a triple. More indices mean more objects participate in the local condition, not a larger numerical value.

  • Learning goalRead, construct, and interpret pair triple in an indicator-based expression.
  • Helpful foundationssets and events · basic summation notation · random variables
  • Common trapAdd indices only when the condition genuinely involves additional objects.
  • Next connectionA function can return a number, set, or object
More context

The portrait diagram reads from top to bottom: an exact notation panel, a worked visual or comparison, two labeled interpretation cards, and a concise caution.

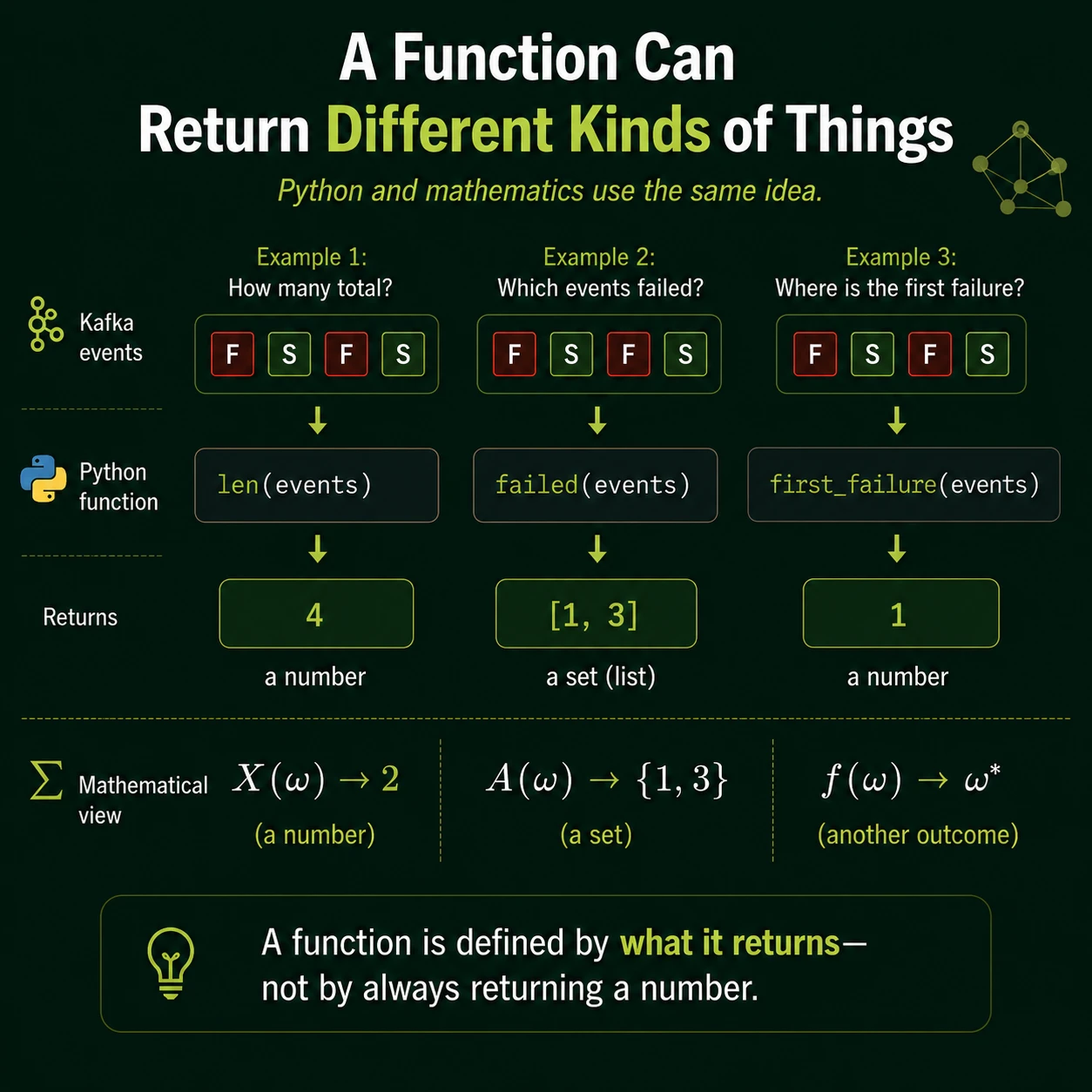

Picture 15 of 20 · tap to inspect in full resolution
15

What kind of thing does this function return?

INTUITION

A function is defined by its input and output. An indicator returns 0 or 1, a counting function returns a number, and a selection function may return a set or list.

  • Learning goalRead, construct, and interpret output type in an indicator-based expression.
  • Helpful foundationssets and events · basic summation notation · random variables
  • Common trapBefore manipulating a function, ask what type of object comes out.
  • Next connectionNested sums accumulate in layers
More context

The portrait diagram reads from top to bottom: an exact notation panel, a worked visual or comparison, two labeled interpretation cards, and a concise caution.

Picture 16 of 20 · tap to inspect in full resolution

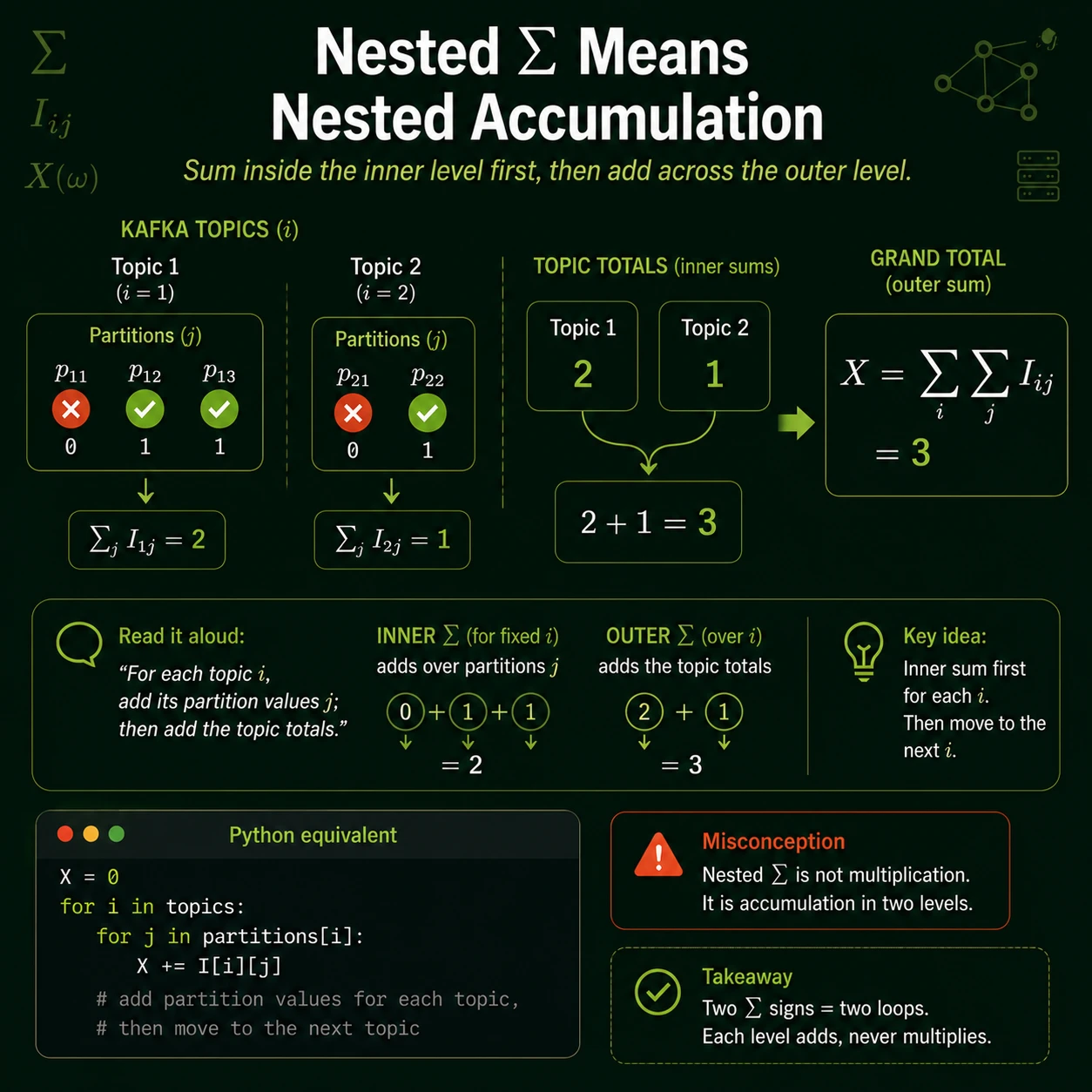

16

How do nested sums work?

INTUITION

Evaluate the inner sum for a fixed outer index, producing a subtotal. Then add those subtotals across the outer index. Reading from the inside out prevents index confusion.

  • Learning goalRead, construct, and interpret nested sums in an indicator-based expression.
  • Helpful foundationssets and events · basic summation notation · random variables
  • Common trapKeep the other indices fixed while evaluating an inner sum, then move outward one layer.
  • Next connectionA random variable maps outcomes to numbers
More context

The portrait diagram reads from top to bottom: an exact notation panel, a worked visual or comparison, two labeled interpretation cards, and a concise caution.

Picture 17 of 20 · tap to inspect in full resolution

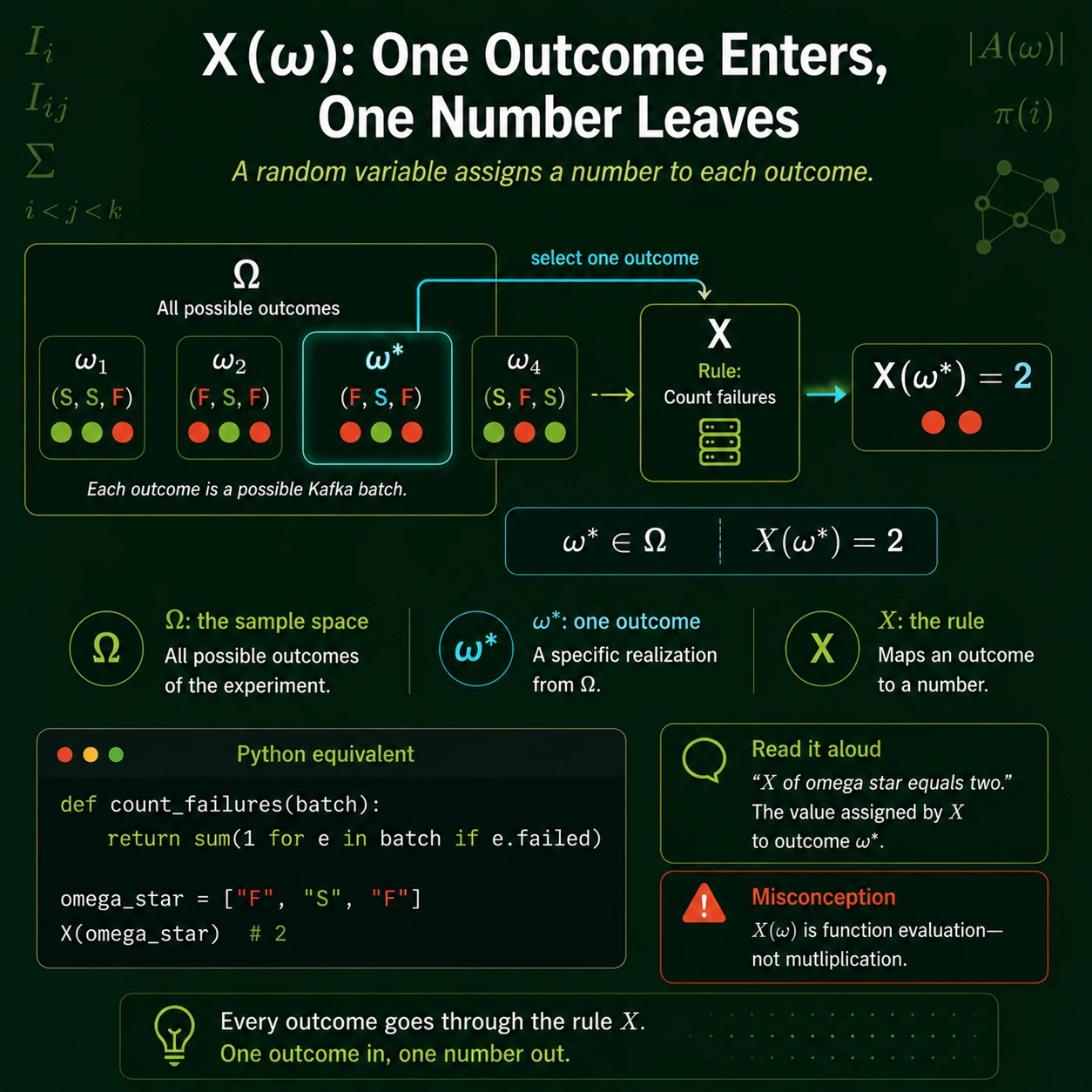

17

What does X(omega) mean?

INTUITION

Omega is one outcome in the sample space and X is a rule that assigns a number to it. The expression X(omega) is the realized value when outcome omega occurs.

  • Learning goalRead, construct, and interpret random variable in an indicator-based expression.
  • Helpful foundationssets and events · basic summation notation · random variables
  • Common trapRandomness lies in which outcome occurs; X itself is the fixed rule that reads that outcome.
  • Next connectionThe same logic can be written three ways
More context

The portrait diagram reads from top to bottom: an exact notation panel, a worked visual or comparison, two labeled interpretation cards, and a concise caution.

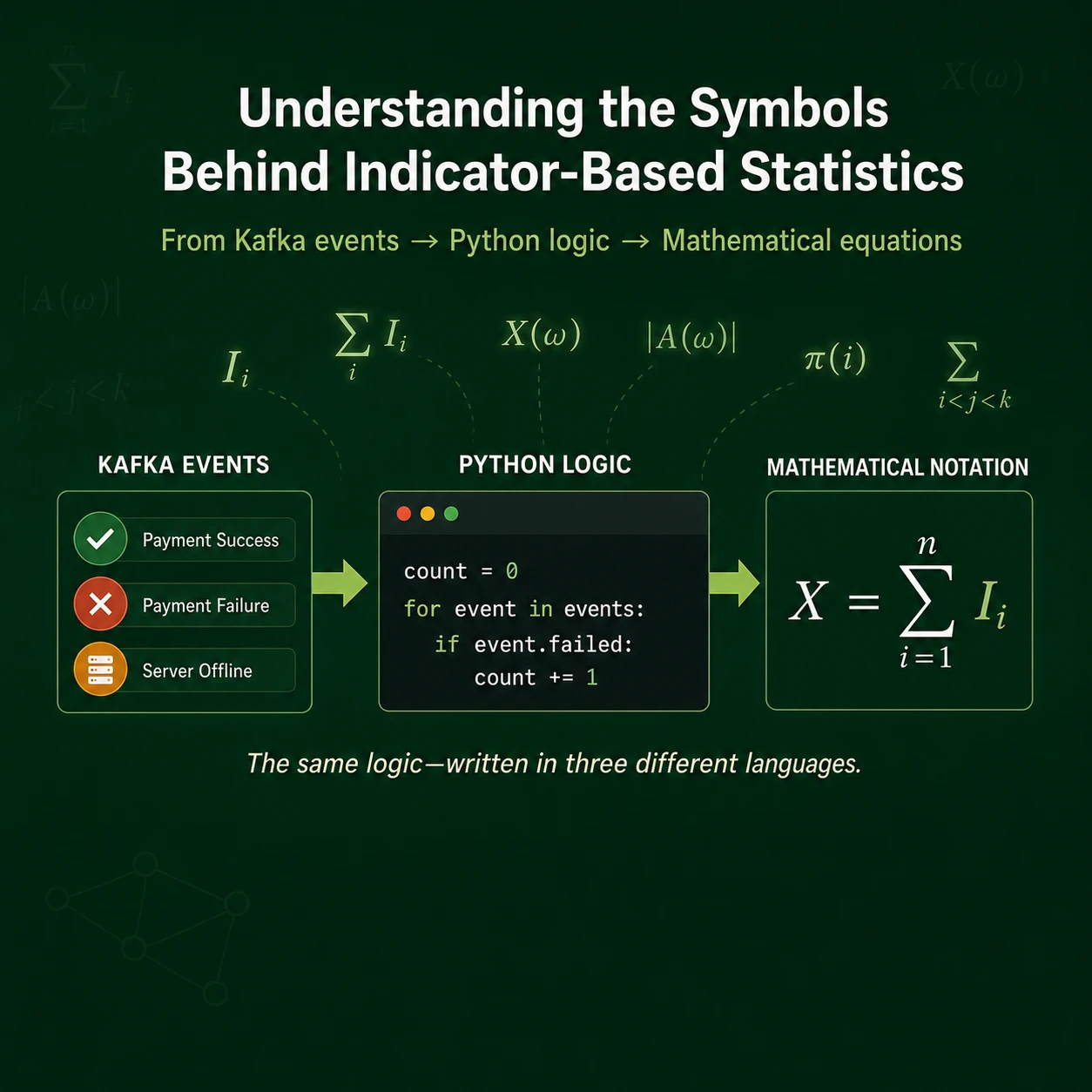

Picture 18 of 20 · tap to inspect in full resolution
18

How do words, code, and notation connect?

INTUITION

A counting statement, a program loop, and a sum of indicators can encode the same procedure. Translating among them is a strong check that the indices and condition are correct.

  • Learning goalRead, construct, and interpret translation in an indicator-based expression.
  • Helpful foundationssets and events · basic summation notation · random variables
  • Common trapTranslation exposes mistakes: every loop range, condition, and increment should match one piece of the notation.
  • Next connectionVariance needs dependence information
More context

The portrait diagram reads from top to bottom: an exact notation panel, a worked visual or comparison, two labeled interpretation cards, and a concise caution.

Picture 19 of 20 · tap to inspect in full resolution
19

Why is expected count easier than variance?

INTUITION

Variance of a sum contains individual variances and pairwise covariances. Independence makes covariance terms zero; without it, shared causes can increase or decrease total variability.

  • Learning goalRead, construct, and interpret variance in an indicator-based expression.
  • Helpful foundationssets and events · basic summation notation · random variables
  • Common trapShared causes create covariance. Ignoring them can badly understate or overstate the variability of a count.
  • Next connectionRead complex expressions from the inside out
More context

The portrait diagram reads from top to bottom: an exact notation panel, a worked visual or comparison, two labeled interpretation cards, and a concise caution.

Picture 20 of 20 · tap to inspect in full resolution

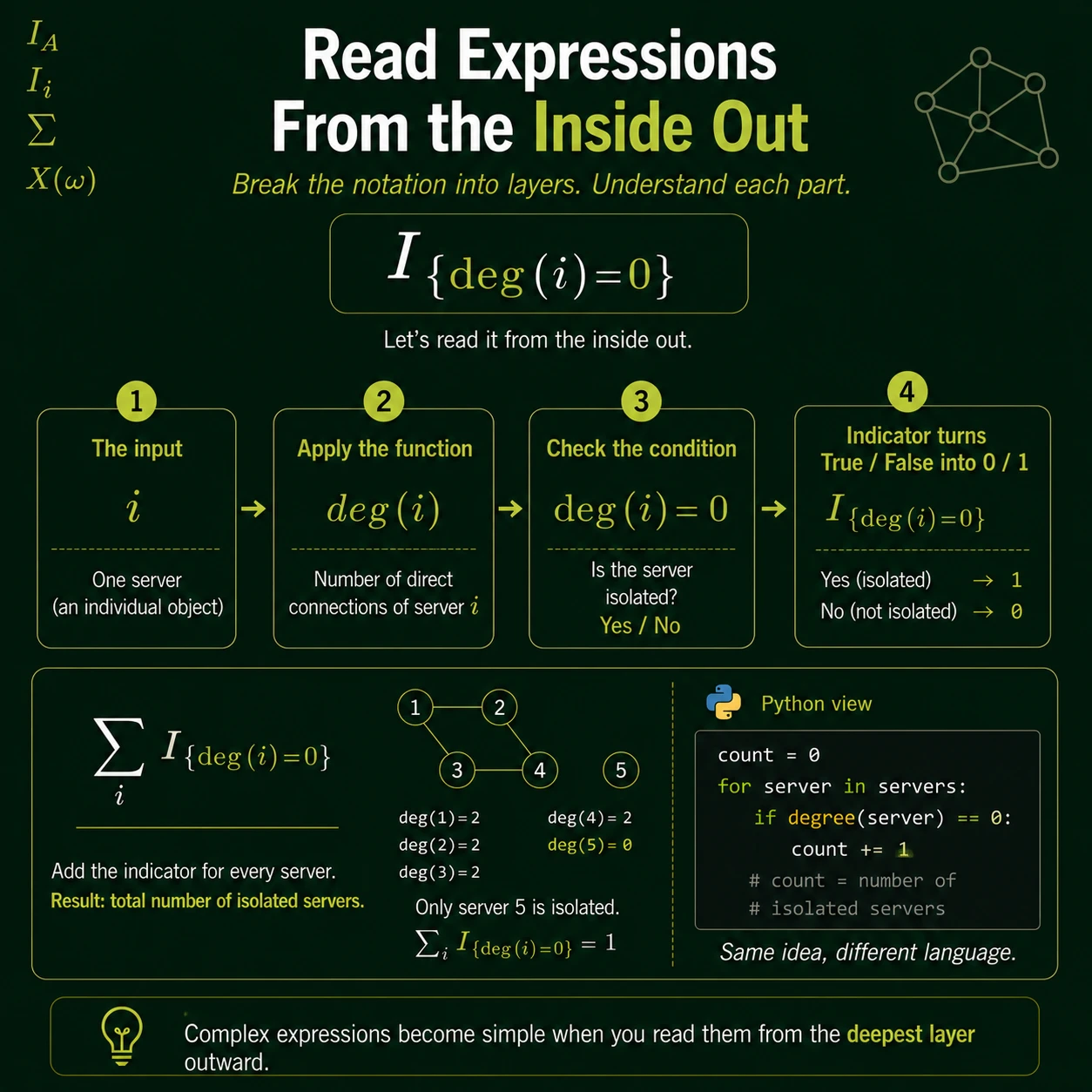

20

What is the reliable reading order?

INTUITION

Identify the innermost condition, evaluate its indicator, apply the function or summand, check the index restriction, then accumulate outward. At every layer, state the output type and unit.

  • Learning goalRead, construct, and interpret reading workflow in an indicator-based expression.
  • Helpful foundationssets and events · basic summation notation · random variables
  • Common trapInside-out reading turns a dense formula into a sequence of small typed operations.
  • Next connectionConstruct an indicator model for a real counting problem
More context

The portrait diagram reads from top to bottom: an exact notation panel, a worked visual or comparison, two labeled interpretation cards, and a concise caution.
