How Probability Is Built: From Choices to a Useful Number

How do we turn a real selection rule into favorable outcomes, total outcomes and a defensible probability?

MODULE 3 / 6LESSON 12 / 50PICTURE 1 / 16
Progress stays on this device · no login
BEFORE THE FIRST PICTURE

How this lesson unfolds.

Begin with What exactly can we ask about selecting six people from three departments? The sequence then connects One dataset can support many decisions and builds toward The same architecture appears in real decisions.

Picture 1 of 16 · tap to inspect in full resolution
01

What exactly can we ask about selecting six people from three departments?

INTUITION

Begin with 8 developers, 9 designers and 7 test engineers, then distinguish total-team counting, a department restriction and the probability of that restriction.

  • Learning goalExplain case study setup and select the correct counting operation.
  • Helpful foundationsfactorials · finite sample spaces · fractions
  • Common trapFavorable divided by possible is valid here only because every six-person team is assumed equally likely.
  • Next connectionOne dataset can support many decisions
Picture 2 of 16 · tap to inspect in full resolution

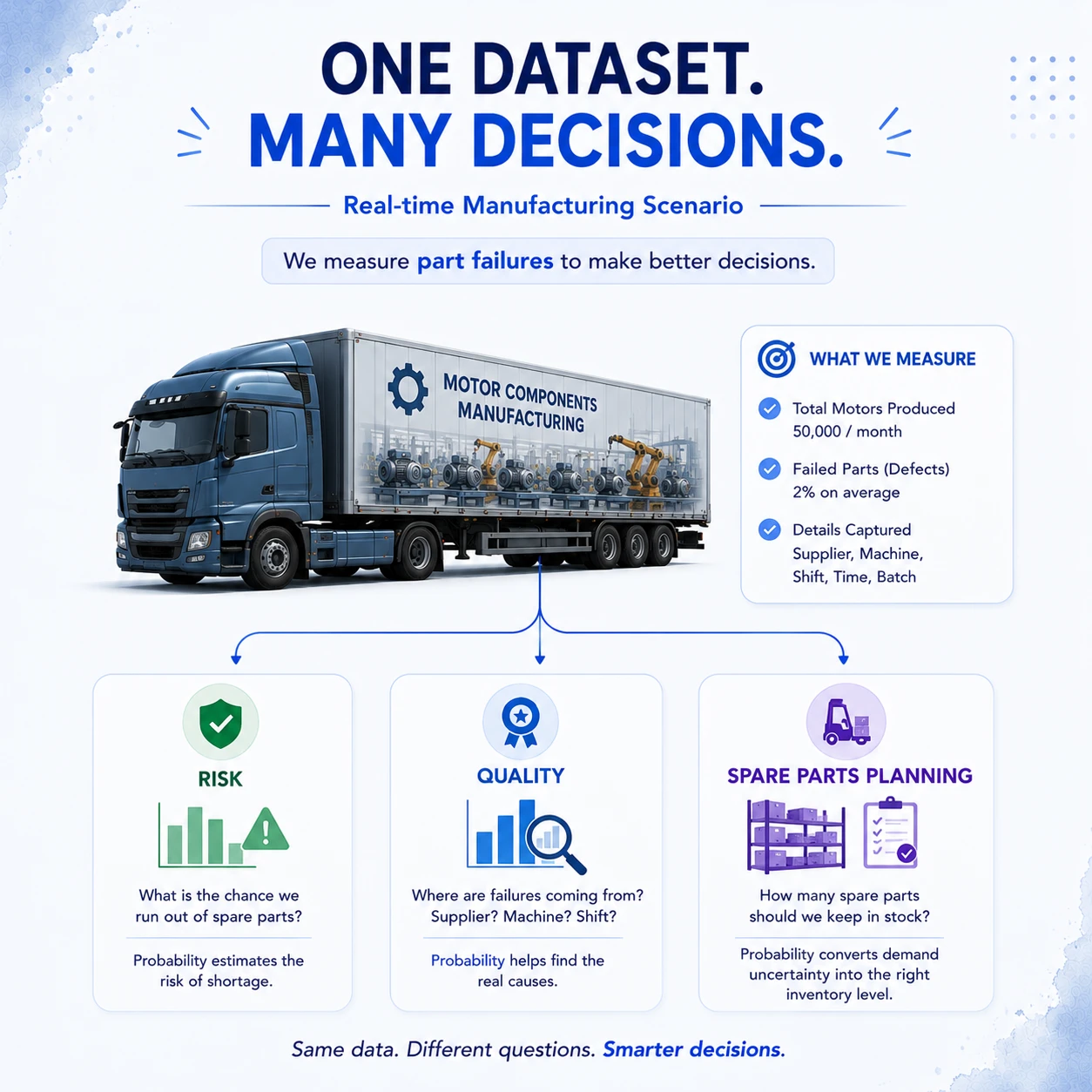

02

Why is the business question part of the mathematics?

INTUITION

The same manufacturing observations can answer reliability, quality and inventory questions only after the event of interest is defined.

  • Learning goalExplain problem framing and select the correct counting operation.
  • Helpful foundationsfactorials · finite sample spaces · fractions
  • Common trapFavorable divided by possible is valid here only because every six-person team is assumed equally likely.
  • Next connectionDifferent teams ask different questions
Picture 3 of 16 · tap to inspect in full resolution

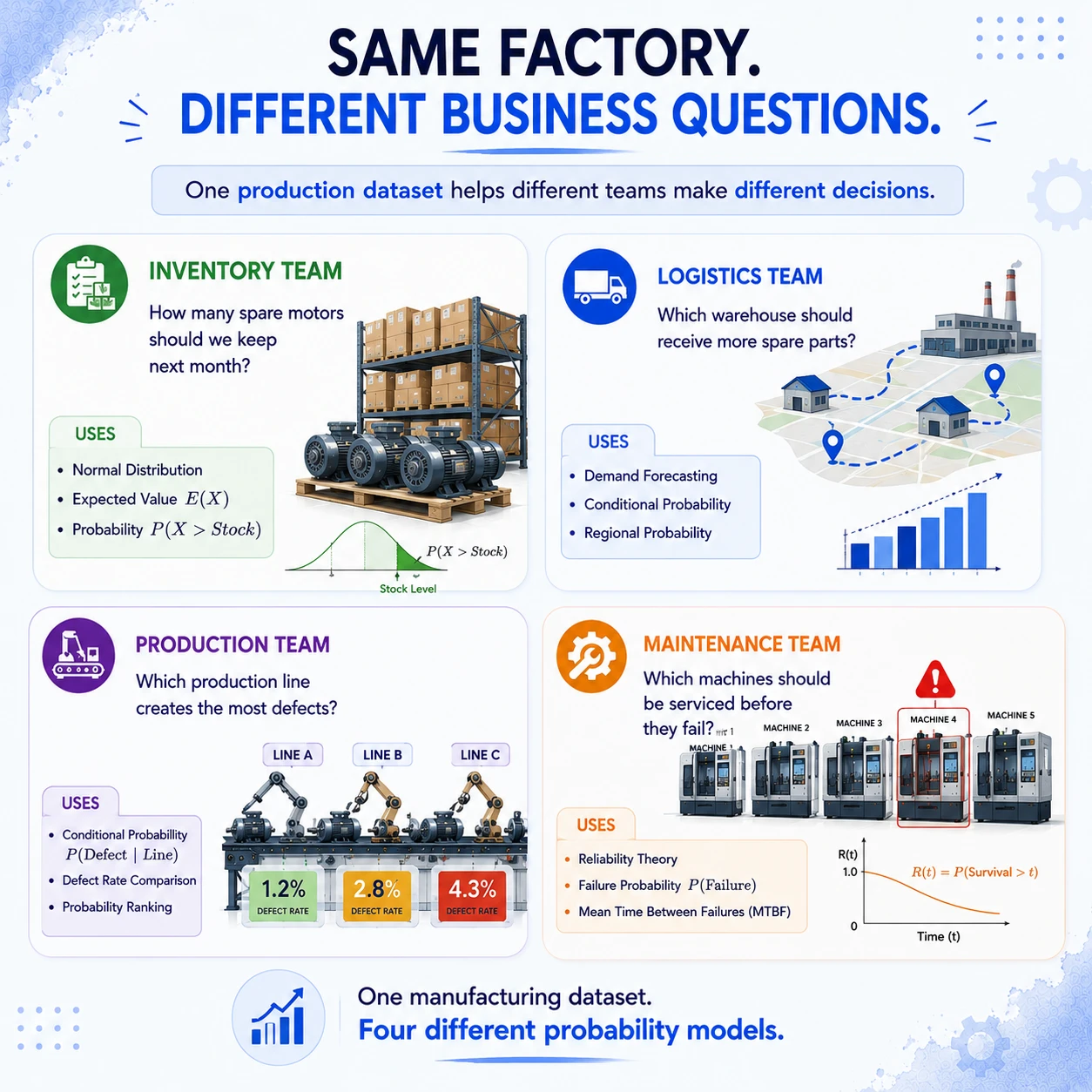

03

How can one factory produce several probability models?

INTUITION

Inventory, logistics, production and maintenance select different outcomes, variables and methods from the same operating environment.

  • Learning goalExplain question to model map and select the correct counting operation.
  • Helpful foundationsfactorials · finite sample spaces · fractions
  • Common trapFavorable divided by possible is valid here only because every six-person team is assumed equally likely.
  • Next connectionThe event determines the answer
Picture 4 of 16 · tap to inspect in full resolution

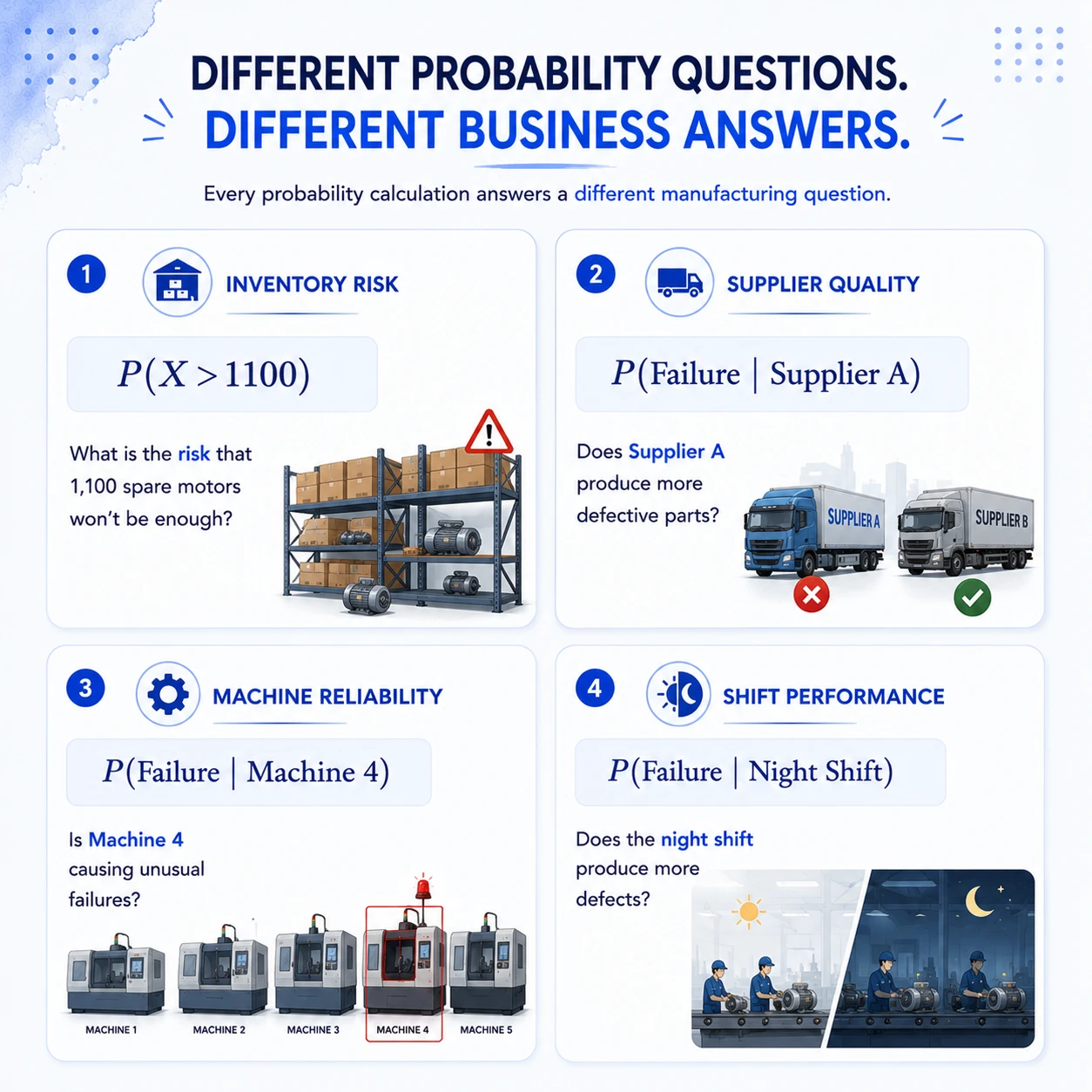

04

Why do four valid probability questions lead to four different business answers?

INTUITION

Inventory risk, supplier failure, machine reliability and shift performance require different events and conditional information.

  • Learning goalExplain event definition and select the correct counting operation.
  • Helpful foundationsfactorials · finite sample spaces · fractions
  • Common trapFavorable divided by possible is valid here only because every six-person team is assumed equally likely.
  • Next connectionProbability is built from counting choices
Picture 5 of 16 · tap to inspect in full resolution

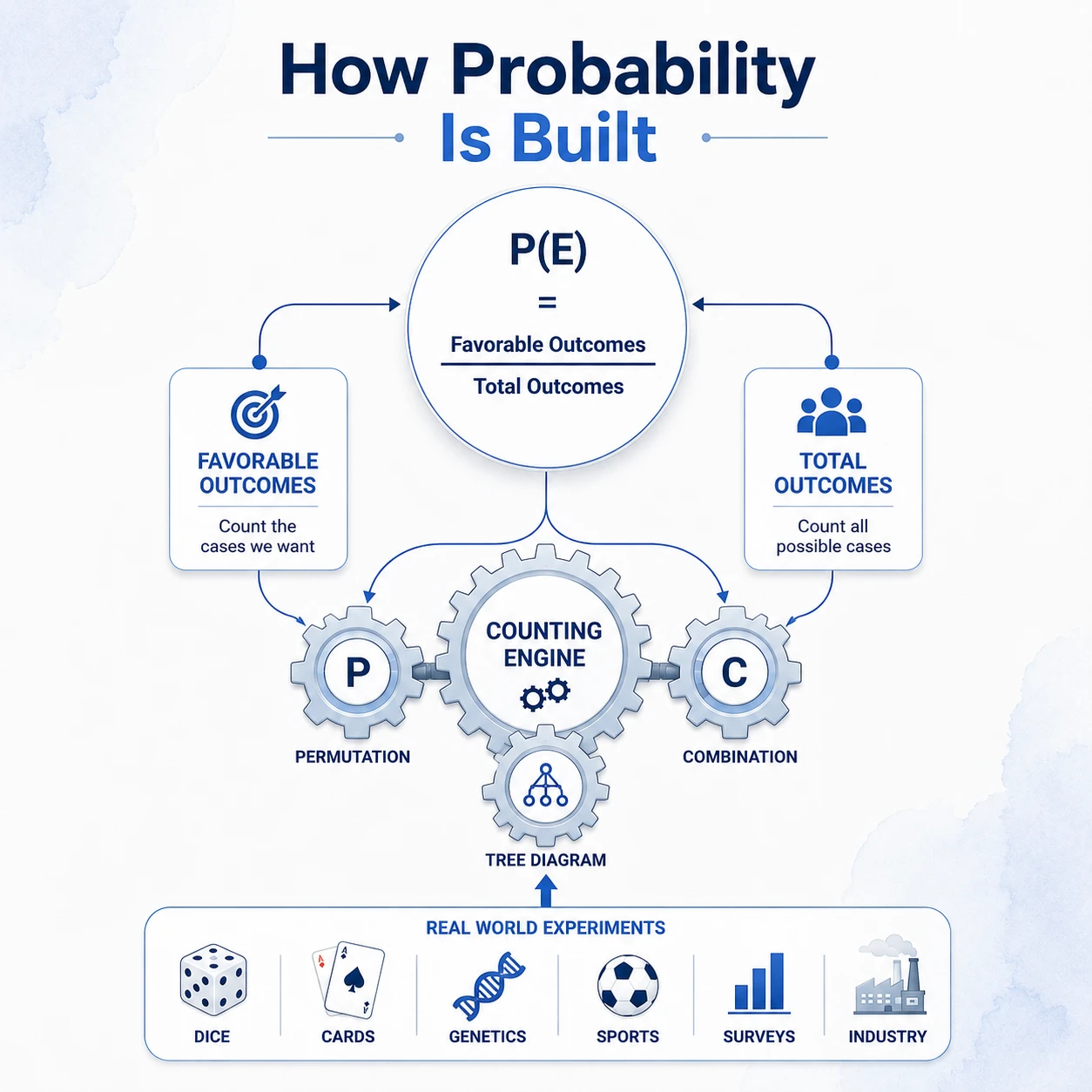

05

What must be counted before dividing?

INTUITION

Classical probability compares favorable outcomes with all possible outcomes; permutations and combinations are counting tools chosen according to whether order matters.

  • Learning goalExplain core mental model and select the correct counting operation.
  • Helpful foundationsfactorials · finite sample spaces · fractions
  • Common trapFavorable divided by possible is valid here only because every six-person team is assumed equally likely.
  • Next connectionPermutation or combination?
Picture 6 of 16 · tap to inspect in full resolution

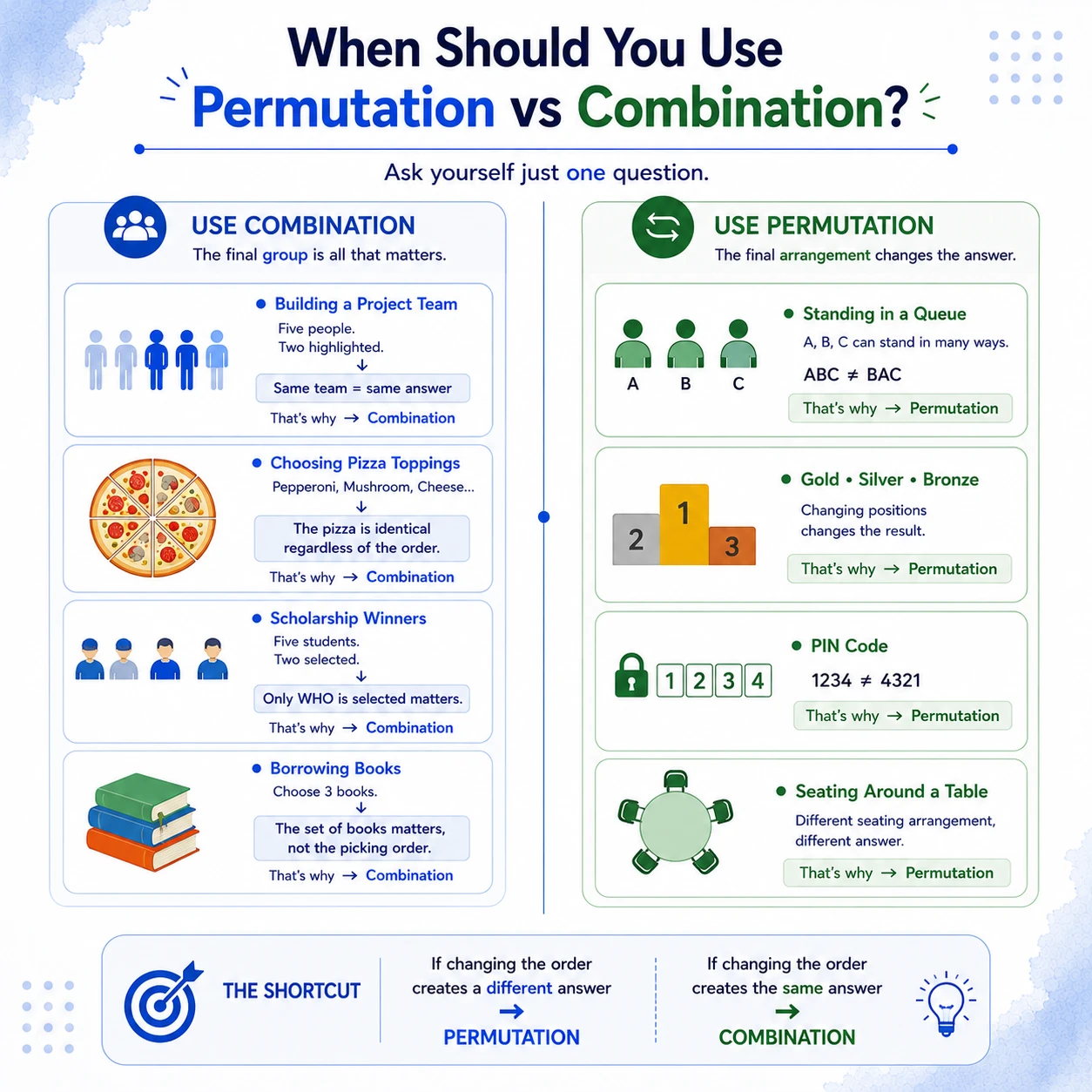

06

Does changing the order create a new outcome?

INTUITION

Use permutations when order changes the result and combinations when the same selected group remains the same outcome.

  • Learning goalExplain method selection and select the correct counting operation.
  • Helpful foundationsfactorials · finite sample spaces · fractions
  • Common trapFavorable divided by possible is valid here only because every six-person team is assumed equally likely.
  • Next connectionA team is a group, not a line
Picture 7 of 16 · tap to inspect in full resolution

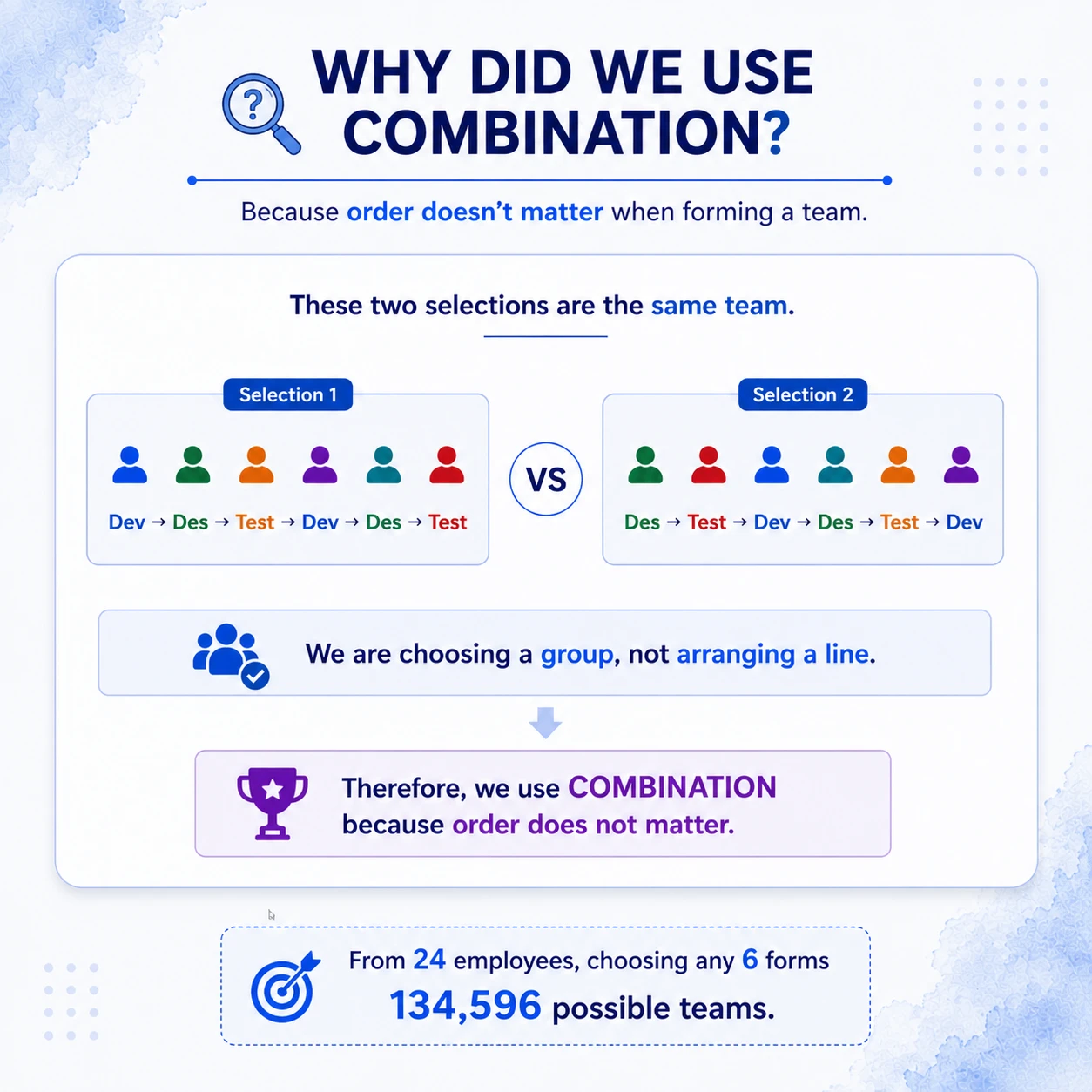

07

Why is this selection counted with combinations?

INTUITION

Reordering the same six employees does not create a different team, so 24 choose 6 counts the distinct possible teams.

  • Learning goalExplain method justification and select the correct counting operation.
  • Helpful foundationsfactorials · finite sample spaces · fractions
  • Common trapFavorable divided by possible is valid here only because every six-person team is assumed equally likely.
  • Next connectionCount all possible six-person teams
Picture 8 of 16 · tap to inspect in full resolution

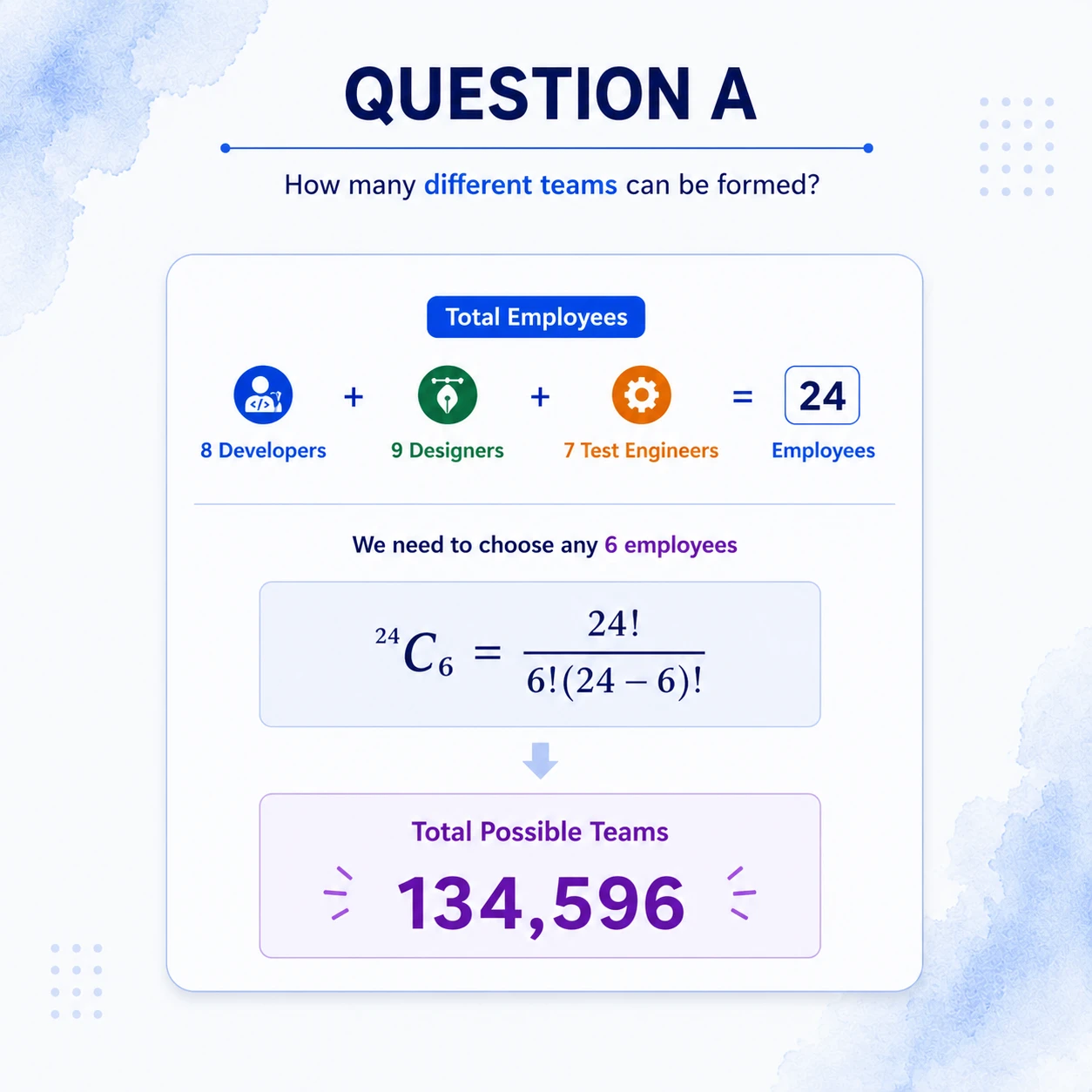

08

How many teams can be selected from 24 employees?

INTUITION

The unrestricted sample space contains C(24,6)=134,596 different six-person teams.

MATHEMATICAL STATEMENT
  1. The unrestricted sample space contains C(24,6)=134,596 different six-person teams.
  • Learning goalExplain denominator derivation and select the correct counting operation.
  • Helpful foundationsfactorials · finite sample spaces · fractions
  • Common trapFavorable divided by possible is valid here only because every six-person team is assumed equally likely.
  • Next connectionAdd the department restriction
Picture 9 of 16 · tap to inspect in full resolution

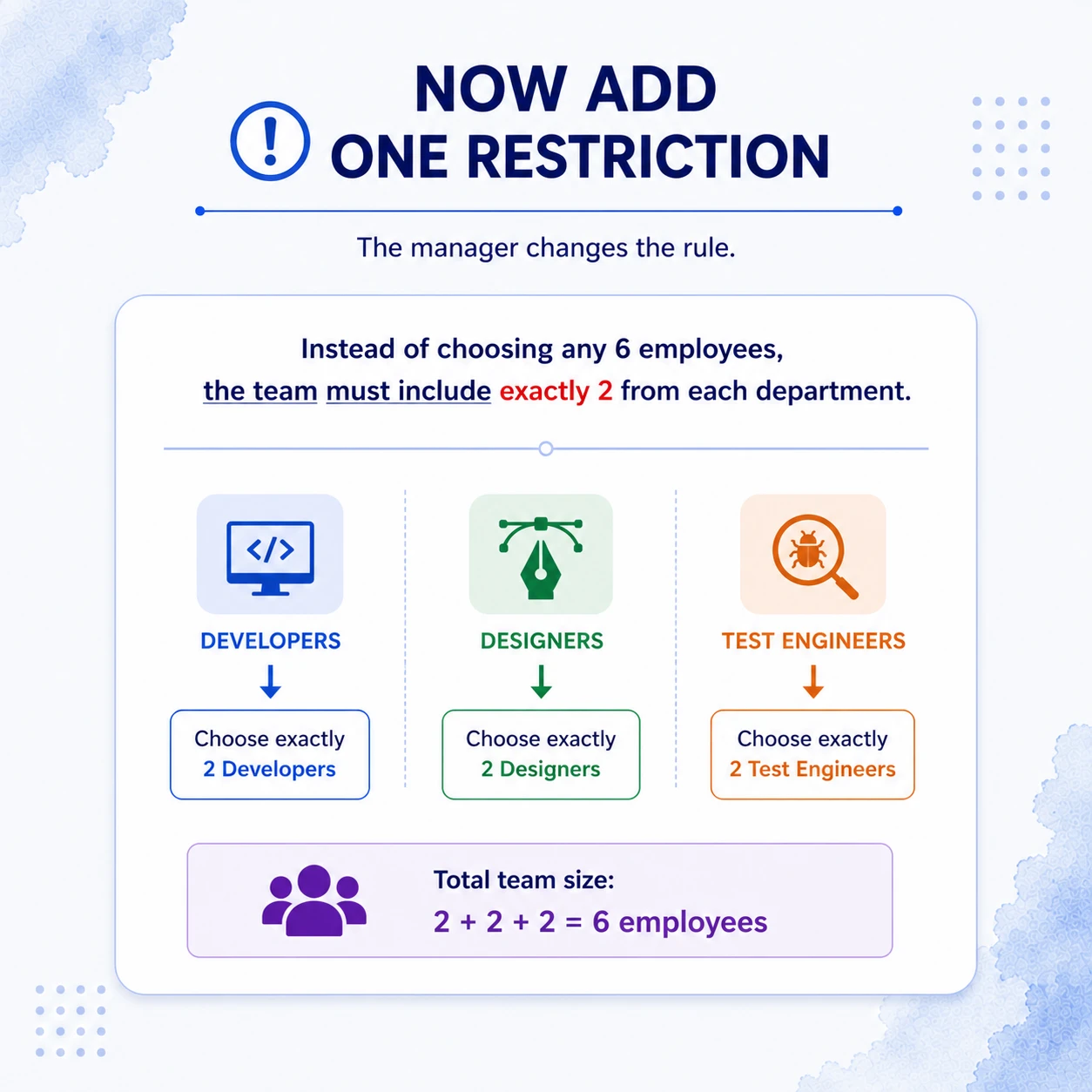

09

What changes when the team must contain exactly two people from each department?

INTUITION

The favorable event is decomposed into choosing 2 developers, 2 designers and 2 test engineers.

  • Learning goalExplain event decomposition and select the correct counting operation.
  • Helpful foundationsfactorials · finite sample spaces · fractions
  • Common trapFavorable divided by possible is valid here only because every six-person team is assumed equally likely.
  • Next connectionSolve each department separately
Picture 10 of 16 · tap to inspect in full resolution

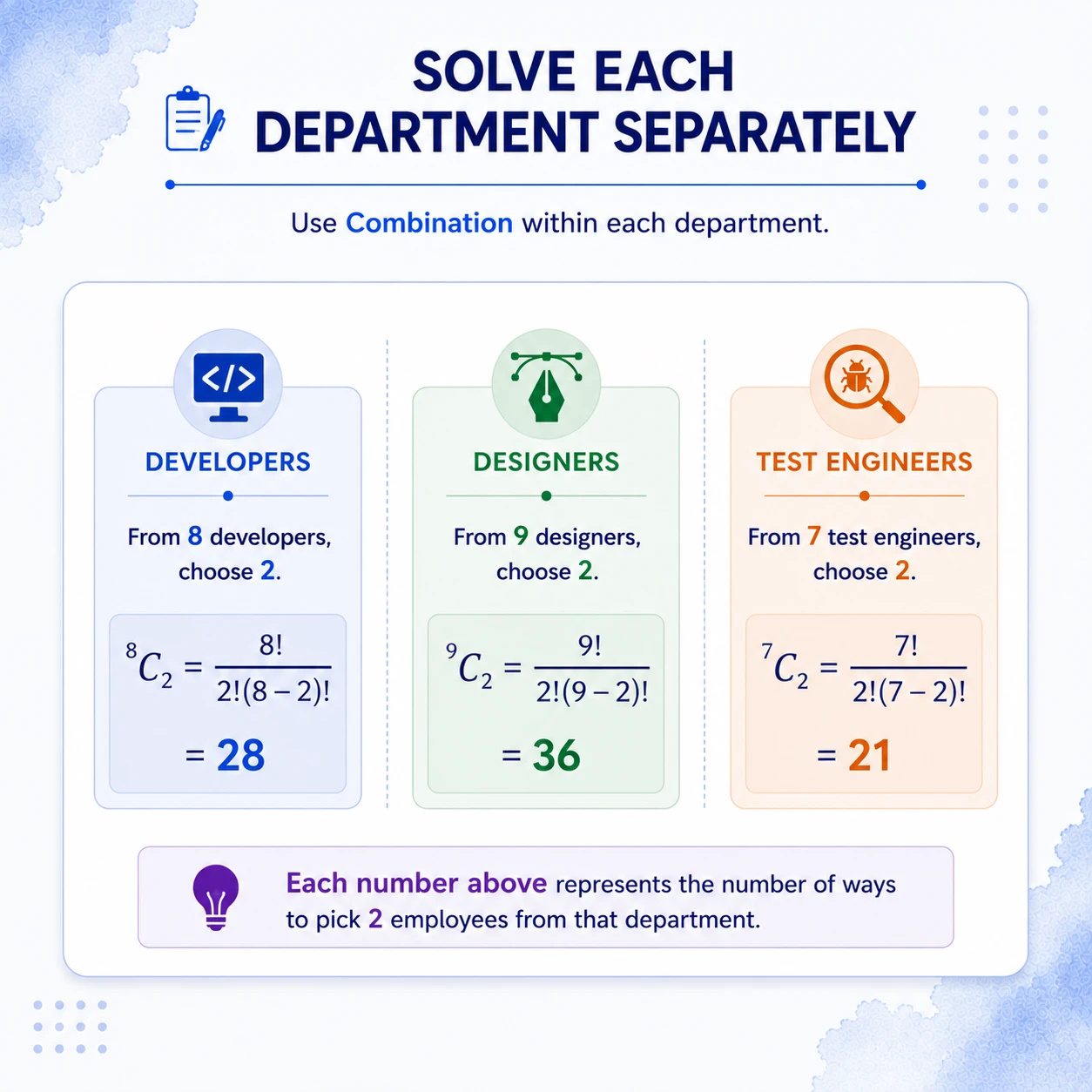

10

How many valid pairs can each department provide?

INTUITION

The three counts are C(8,2)=28, C(9,2)=36 and C(7,2)=21.

MATHEMATICAL STATEMENT
  1. The three counts are C(8,2)=28, C(9,2)=36 and C(7,2)=21.
  • Learning goalExplain component counts and select the correct counting operation.
  • Helpful foundationsfactorials · finite sample spaces · fractions
  • Common trapFavorable divided by possible is valid here only because every six-person team is assumed equally likely.
  • Next connectionMultiply compatible choices
Picture 11 of 16 · tap to inspect in full resolution

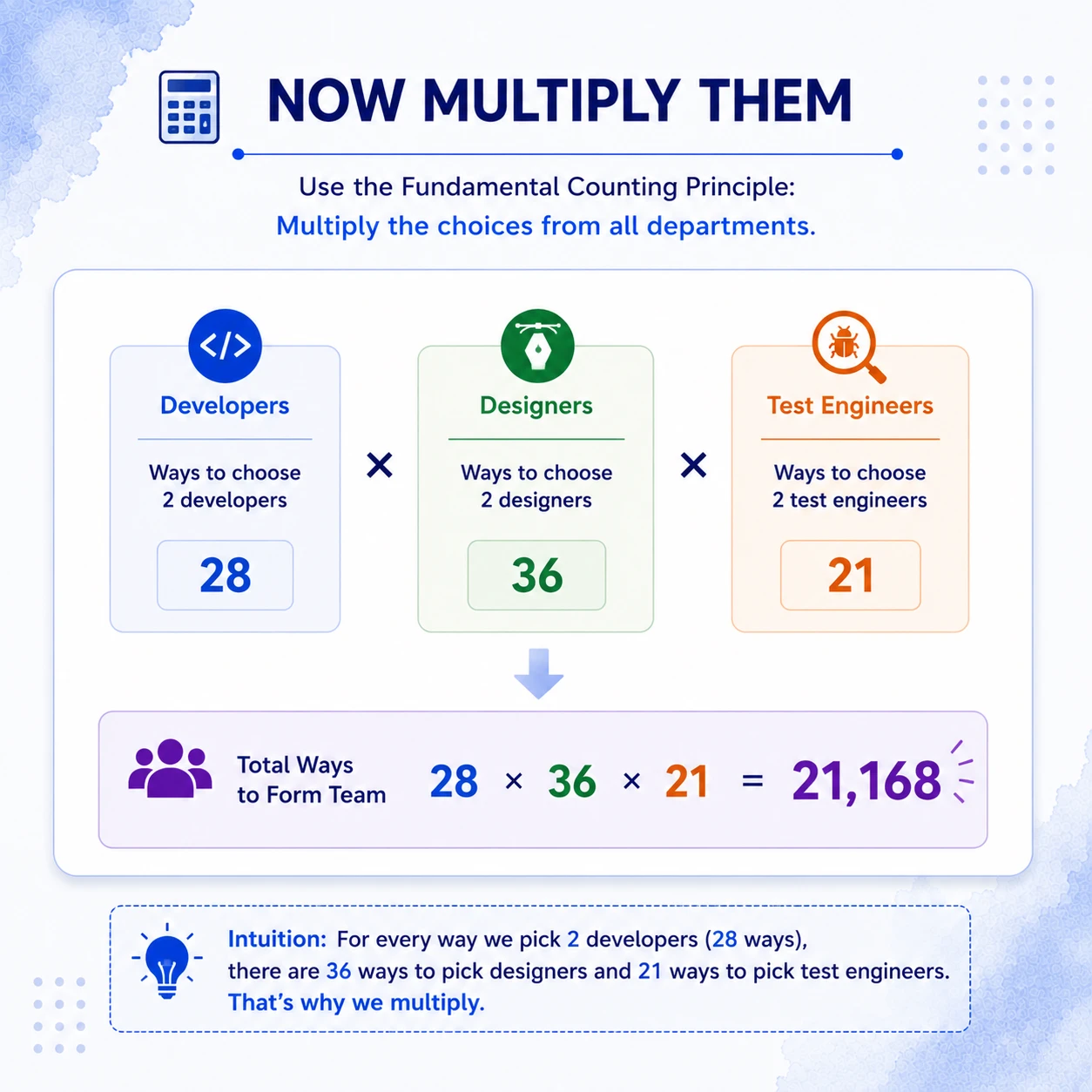

11

How many teams satisfy all three department conditions?

INTUITION

The fundamental counting principle multiplies the three pair choices: 28 x 36 x 21 = 21,168 favorable teams.

MATHEMATICAL STATEMENT
  1. The fundamental counting principle multiplies the three pair choices: 28 x 36 x 21 = 21,168 favorable teams.
  • Learning goalExplain numerator calculation and select the correct counting operation.
  • Helpful foundationsfactorials · finite sample spaces · fractions
  • Common trapFavorable divided by possible is valid here only because every six-person team is assumed equally likely.
  • Next connectionWhy multiplication is the right operation
Picture 12 of 16 · tap to inspect in full resolution

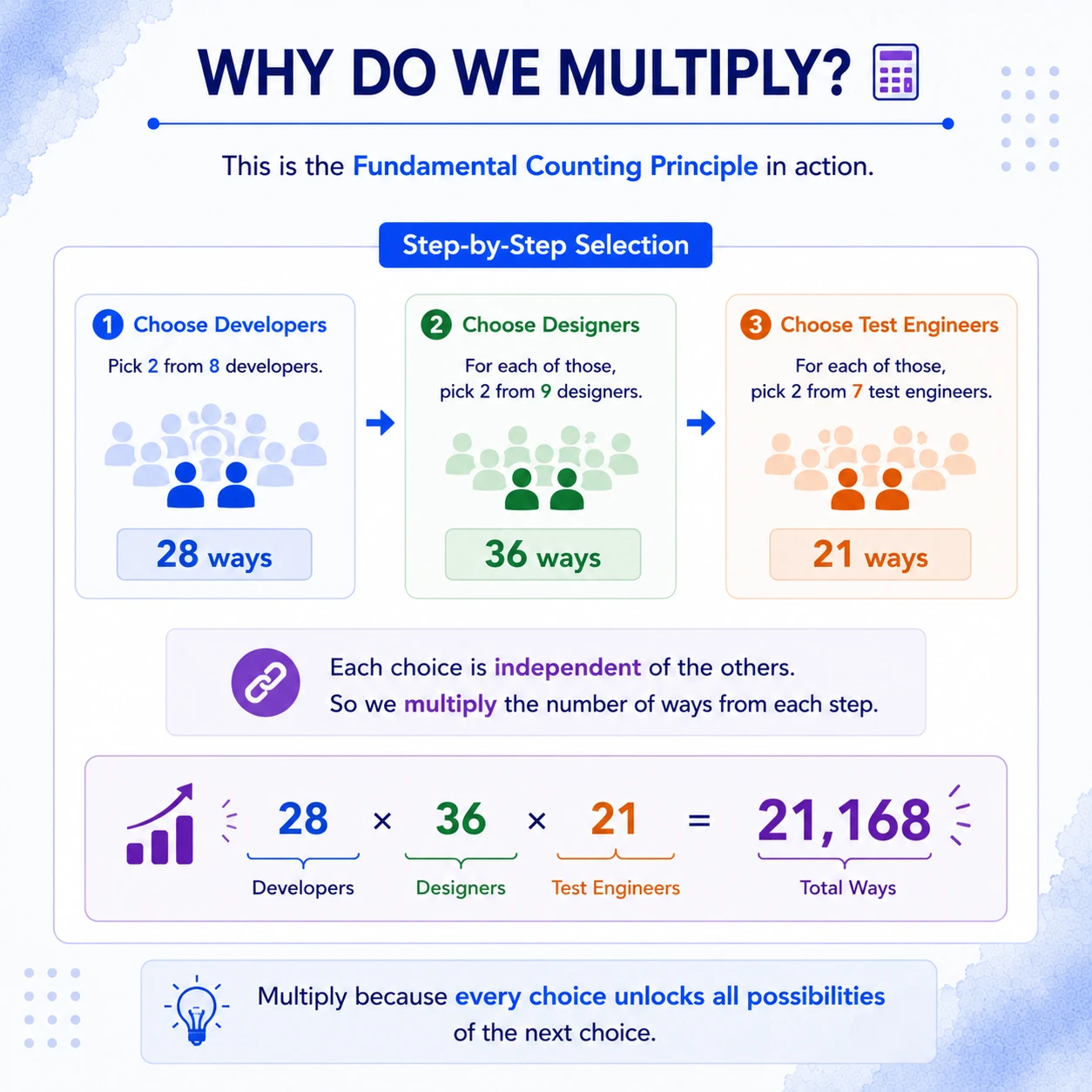

12

Why do the department counts multiply rather than add?

INTUITION

Each developer pair can be completed by every designer pair and every test-engineer pair, so the choices form a Cartesian product.

  • Learning goalExplain multiplication intuition and select the correct counting operation.
  • Helpful foundationsfactorials · finite sample spaces · fractions
  • Common trapFavorable divided by possible is valid here only because every six-person team is assumed equally likely.
  • Next connectionDivide favorable by possible
Picture 13 of 16 · tap to inspect in full resolution

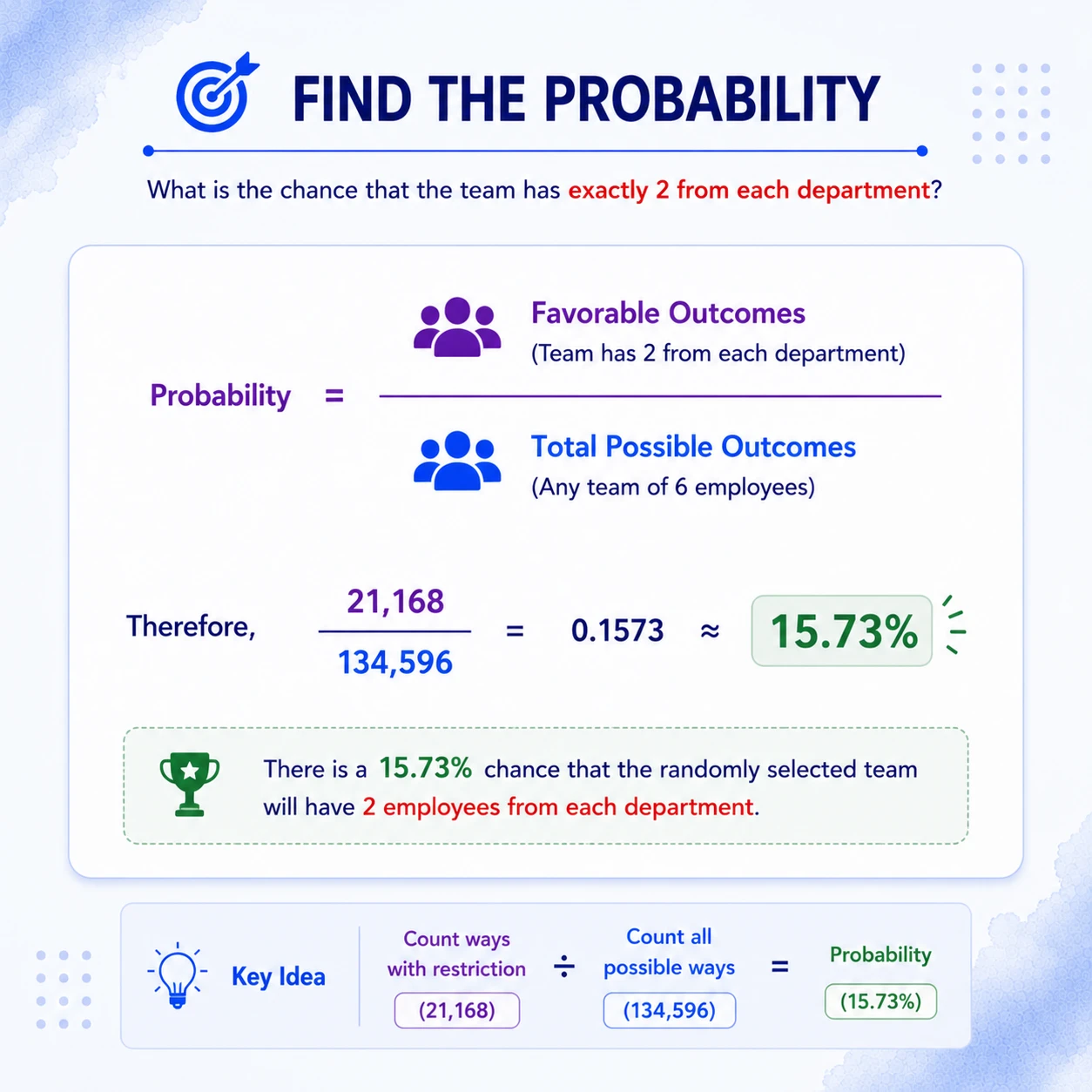

13

What is the chance of exactly two people from each department?

INTUITION

Under uniformly random selection, 21,168 divided by 134,596 is about 0.1573, or 15.73 percent.

  • Learning goalExplain probability result and select the correct counting operation.
  • Helpful foundationsfactorials · finite sample spaces · fractions
  • Common trapFavorable divided by possible is valid here only because every six-person team is assumed equally likely.
  • Next connectionThe complete counting-to-probability workflow
Picture 14 of 16 · tap to inspect in full resolution

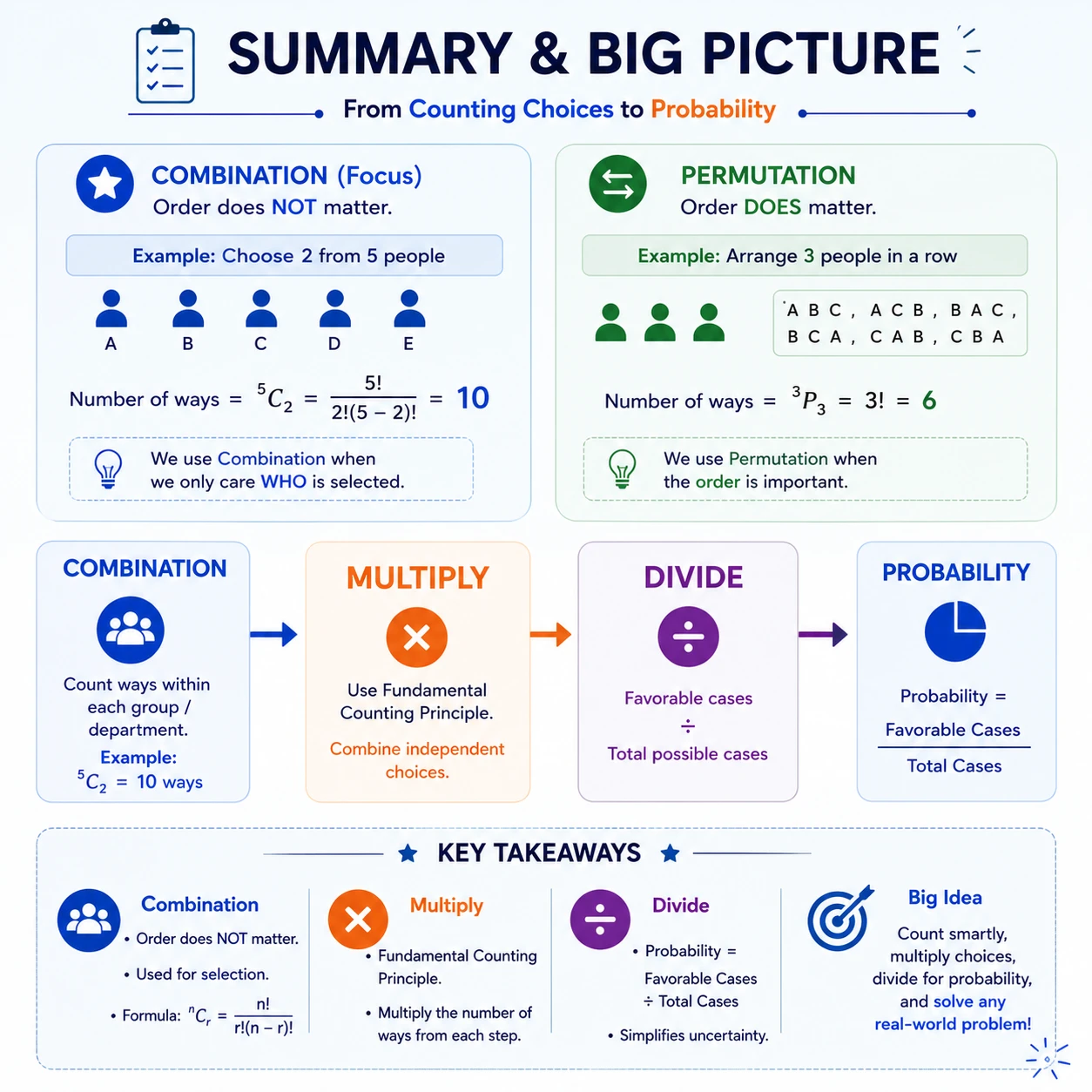

14

How do combination, multiplication and division fit together?

INTUITION

Count within each unordered group, multiply sequential compatible choices, then divide favorable outcomes by the complete sample space.

  • Learning goalExplain workflow synthesis and select the correct counting operation.
  • Helpful foundationsfactorials · finite sample spaces · fractions
  • Common trapFavorable divided by possible is valid here only because every six-person team is assumed equally likely.
  • Next connectionA compact probability formula handbook
Picture 15 of 16 · tap to inspect in full resolution

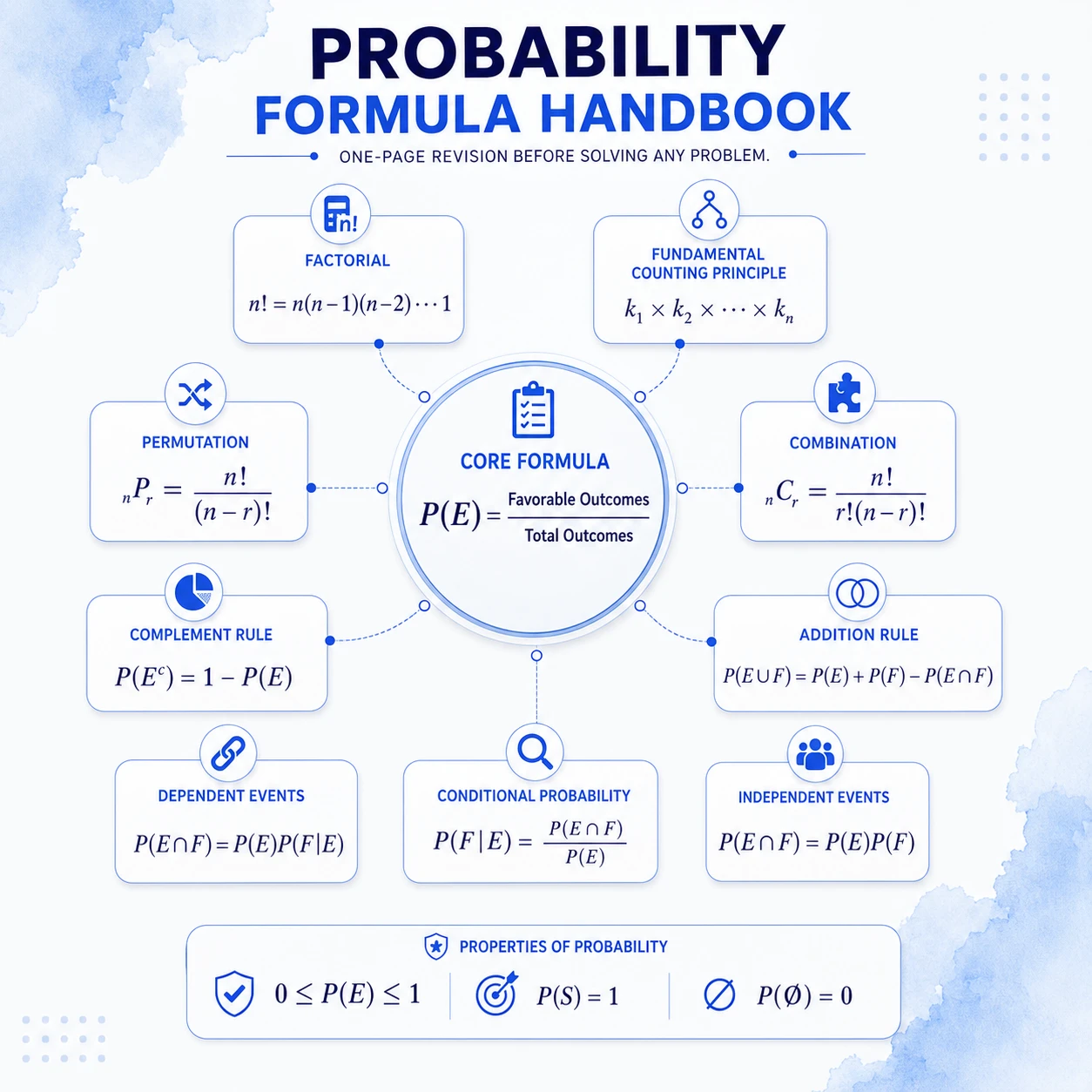

15

Which nearby rules extend this workflow?

INTUITION

Connect factorials, permutations, combinations, complements, addition, multiplication, conditional probability and independence without treating them as interchangeable.

  • Learning goalExplain reference map and select the correct counting operation.
  • Helpful foundationsfactorials · finite sample spaces · fractions
  • Common trapFavorable divided by possible is valid here only because every six-person team is assumed equally likely.
  • Next connectionThe same architecture appears in real decisions
Picture 16 of 16 · tap to inspect in full resolution

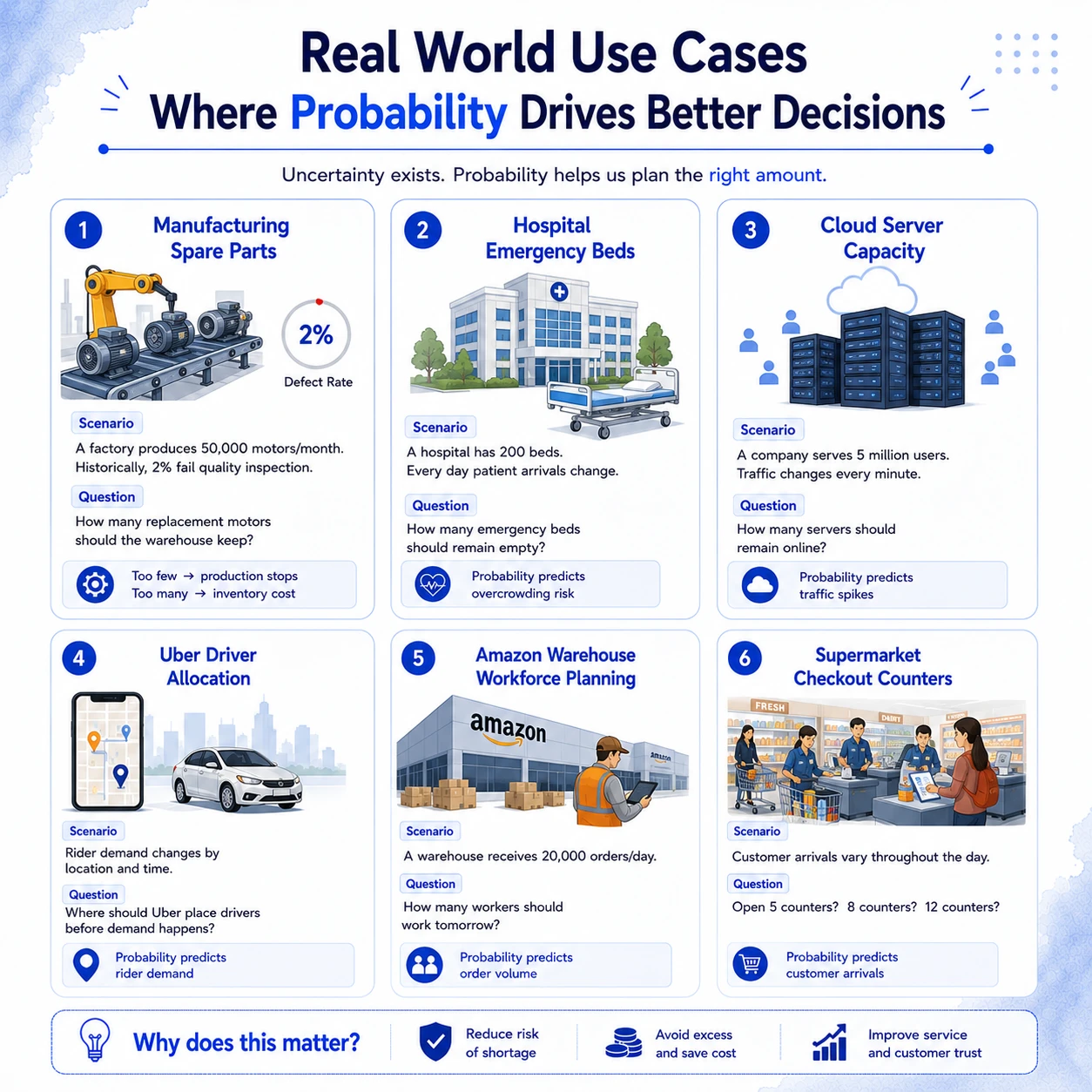

16

Where does event-definition plus counting improve decisions?

INTUITION

Manufacturing, hospitals, cloud capacity, ride services, warehouses and quality inspection all depend on choosing the right event and denominator.

  • Learning goalExplain application transfer and select the correct counting operation.
  • Helpful foundationsfactorials · finite sample spaces · fractions
  • Common trapFavorable divided by possible is valid here only because every six-person team is assumed equally likely.
  • Next connectionBuild a probability model for a new decision
