Empirical Rule vs Chebyshev's Theorem

How much data lies near the mean, and what can we guarantee when the distribution shape is unknown?

MODULE 4 / 6LESSON 11 / 46PICTURE 1 / 16
Progress stays on this device · no login
BEFORE THE FIRST PICTURE

How this lesson unfolds.

Begin with What is a distribution? The sequence then connects A recurring bell-shaped pattern and builds toward Choose the rule from the evidence.

Picture 1 of 16 · tap to inspect in full resolution
01

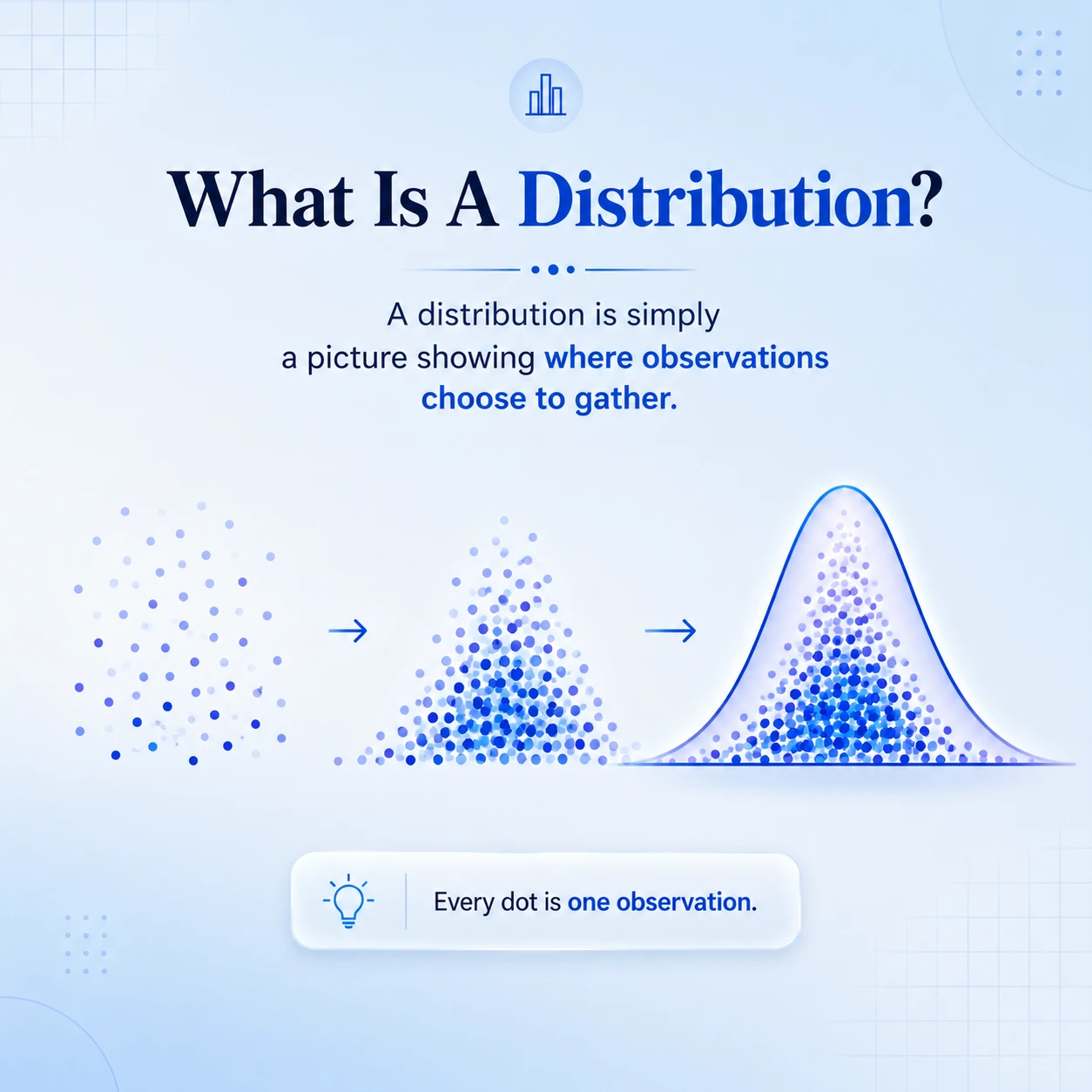

What is a distribution?

INTUITION

A distribution records where observations fall and how densely they gather across possible values.

  • Learning goalExplain distribution foundation and state the assumptions behind the bound.
  • Helpful foundationsmean · variance · standard deviation
  • Common trapThe Empirical Rule is approximately valid for bell-shaped data; Chebyshev is a conservative guarantee for any distribution with finite nonzero variance.
  • Next connectionA recurring bell-shaped pattern
Picture 2 of 16 · tap to inspect in full resolution
02

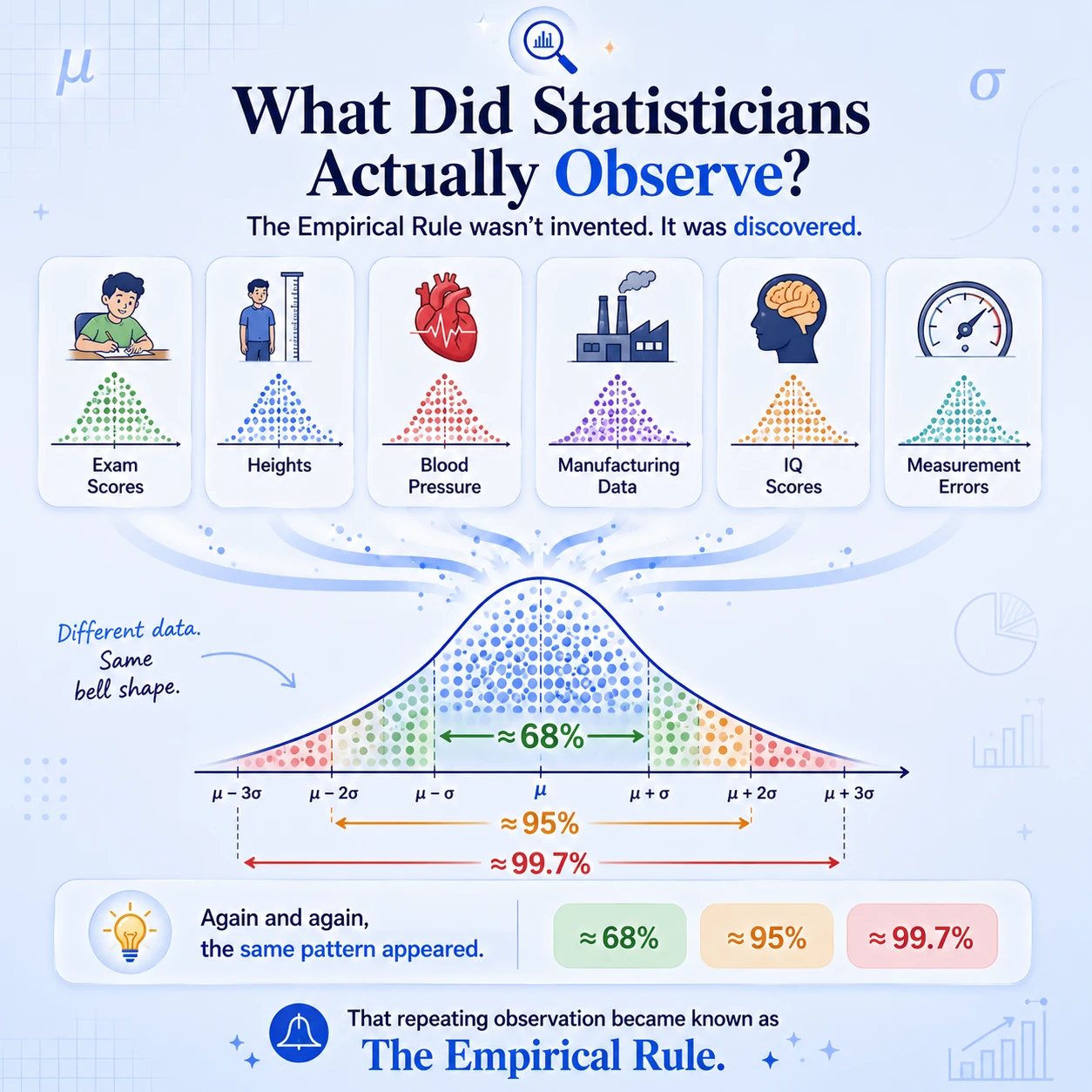

What did statisticians repeatedly observe?

INTUITION

Many measured phenomena looked roughly bell-shaped, motivating the empirical 68-95-99.7 pattern.

  • Learning goalExplain historical observation and state the assumptions behind the bound.
  • Helpful foundationsmean · variance · standard deviation
  • Common trapThe Empirical Rule is approximately valid for bell-shaped data; Chebyshev is a conservative guarantee for any distribution with finite nonzero variance.
  • Next connectionThe Empirical Rule needs a bell shape
Picture 3 of 16 · tap to inspect in full resolution
03

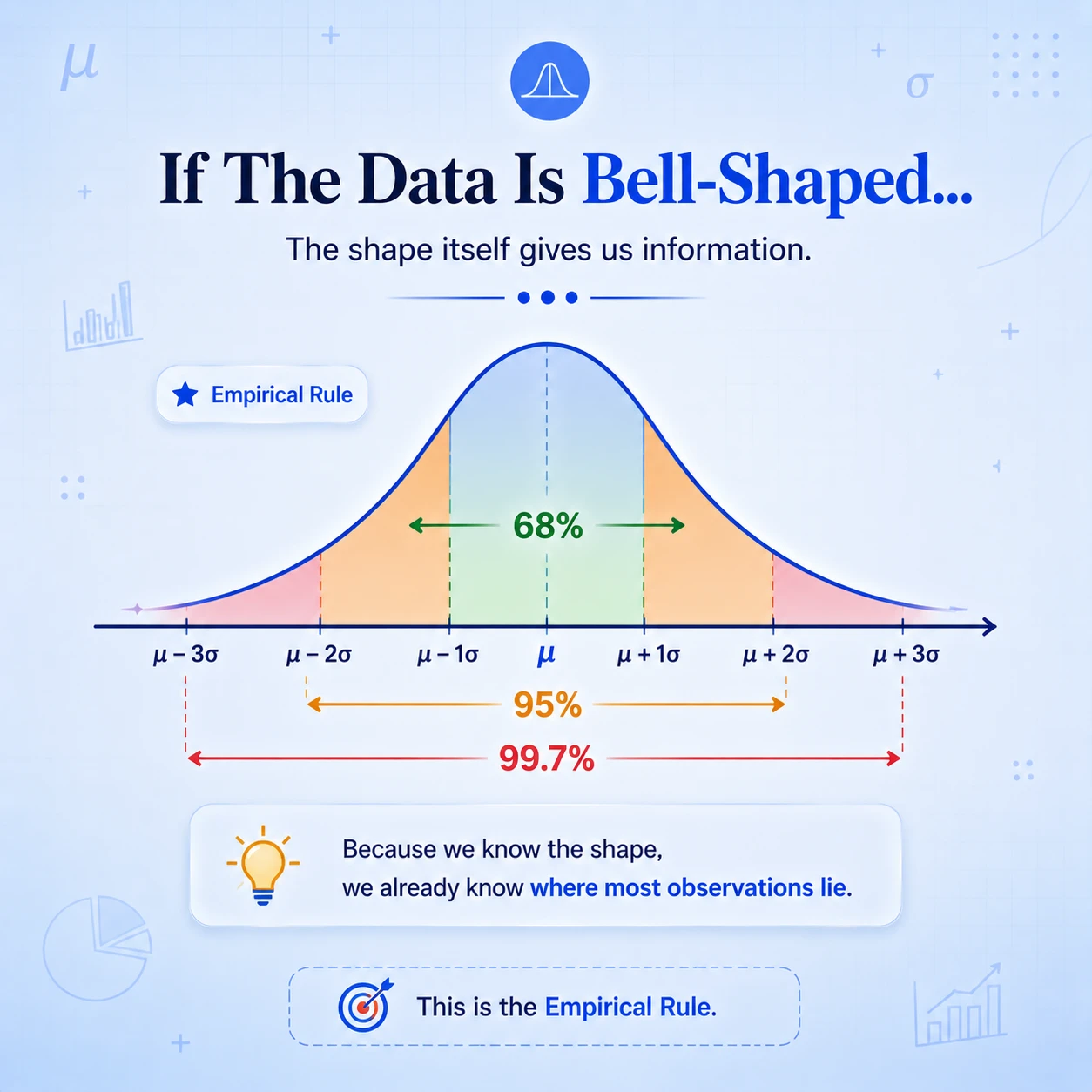

When does the 68-95-99.7 rule apply?

INTUITION

For an approximately normal distribution, about 68%, 95% and 99.7% lie within one, two and three standard deviations of the mean.

  • Learning goalExplain empirical rule and state the assumptions behind the bound.
  • Helpful foundationsmean · variance · standard deviation
  • Common trapThe Empirical Rule is approximately valid for bell-shaped data; Chebyshev is a conservative guarantee for any distribution with finite nonzero variance.
  • Next connectionA classroom with mean 150 cm and SD 10 cm
Picture 4 of 16 · tap to inspect in full resolution

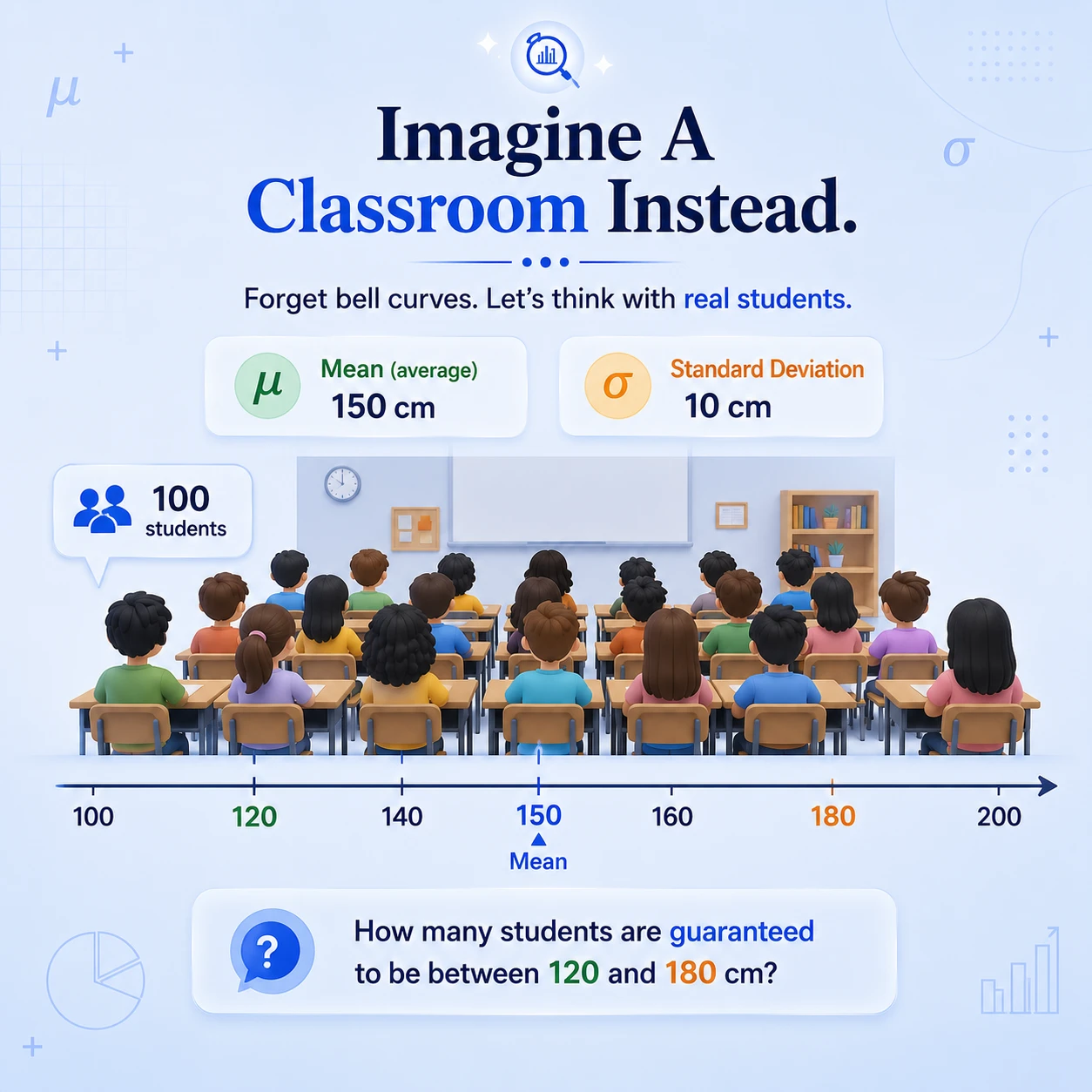

04

What interval is three standard deviations from the mean?

INTUITION

With mean 150 cm and standard deviation 10 cm, the three-standard-deviation interval is 120 to 180 cm.

  • Learning goalExplain classroom setup and state the assumptions behind the bound.
  • Helpful foundationsmean · variance · standard deviation
  • Common trapThe Empirical Rule is approximately valid for bell-shaped data; Chebyshev is a conservative guarantee for any distribution with finite nonzero variance.
  • Next connectionUnknown shape calls for a guarantee
Picture 5 of 16 · tap to inspect in full resolution

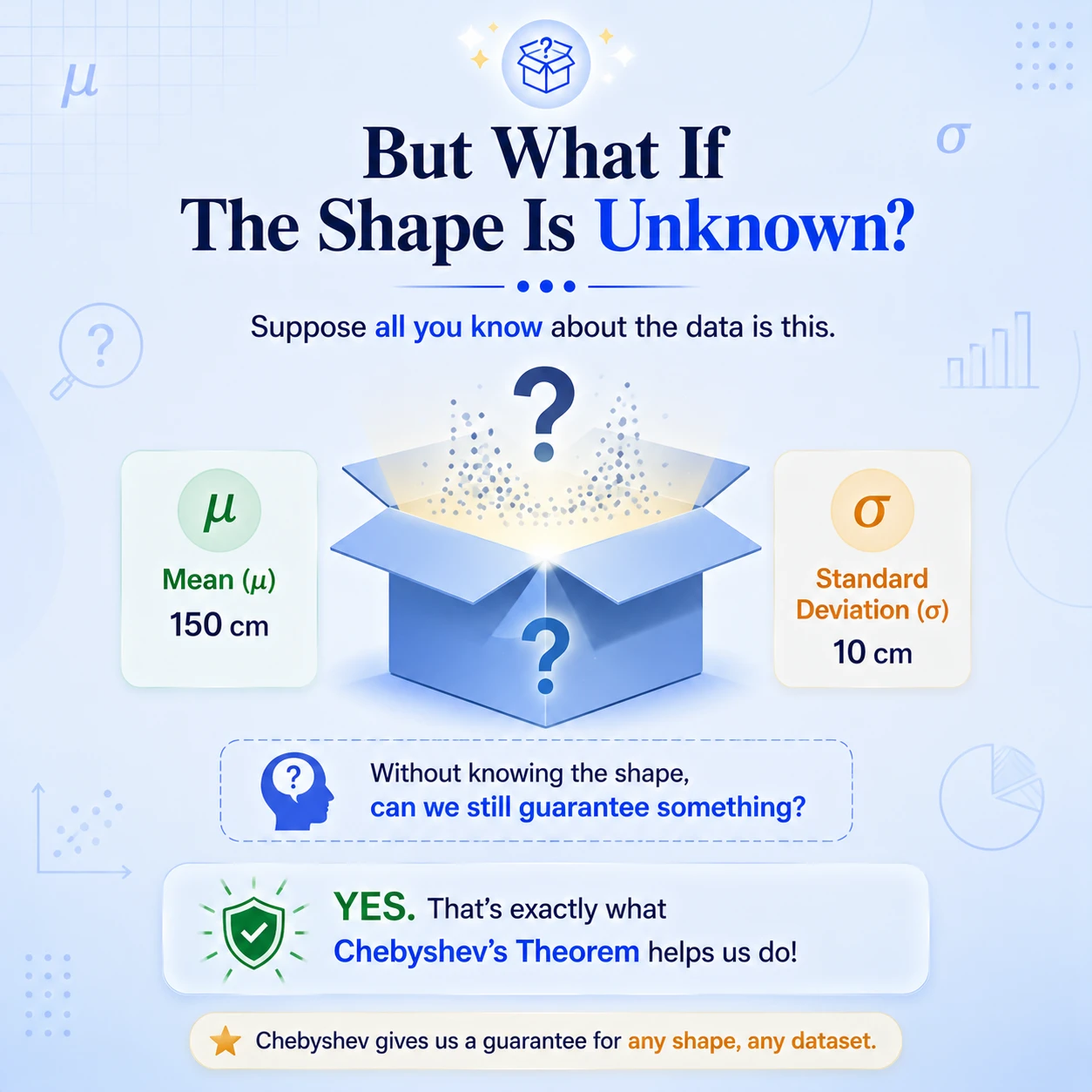

05

What if the distribution shape is unknown?

INTUITION

Chebyshev's theorem gives a minimum fraction near the mean without assuming normality.

  • Learning goalExplain shape free motivation and state the assumptions behind the bound.
  • Helpful foundationsmean · variance · standard deviation
  • Common trapThe Empirical Rule is approximately valid for bell-shaped data; Chebyshev is a conservative guarantee for any distribution with finite nonzero variance.
  • Next connectionVariance charges squared distance
Picture 6 of 16 · tap to inspect in full resolution

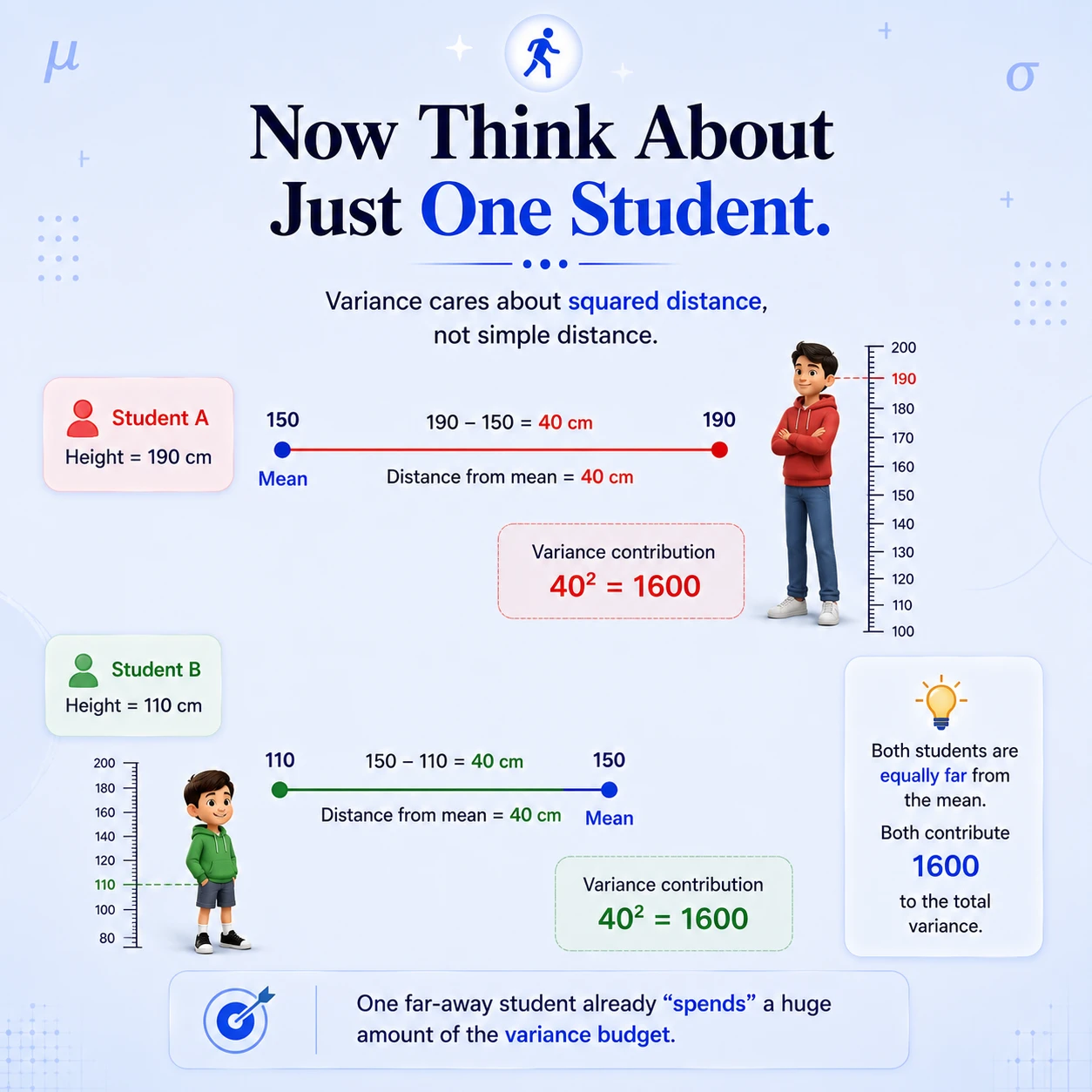

06

How does one far-away observation use the variance budget?

INTUITION

A height 40 cm from the mean contributes 40 squared, or 1600, to the total squared deviation.

  • Learning goalExplain squared distance and state the assumptions behind the bound.
  • Helpful foundationsmean · variance · standard deviation
  • Common trapThe Empirical Rule is approximately valid for bell-shaped data; Chebyshev is a conservative guarantee for any distribution with finite nonzero variance.
  • Next connectionThe dataset has a fixed variance budget
Picture 7 of 16 · tap to inspect in full resolution
07

What does SD 10 cm imply for 100 students?

INTUITION

Using population variance, total squared deviation is n times sigma squared: 100 times 100 equals 10000 square-centimetres.

MATHEMATICAL STATEMENT
  1. Using population variance, total squared deviation is n times sigma squared: 100 times 100 equals 10000 square-centimetres.
  • Learning goalExplain variance budget and state the assumptions behind the bound.
  • Helpful foundationsmean · variance · standard deviation
  • Common trapThe Empirical Rule is approximately valid for bell-shaped data; Chebyshev is a conservative guarantee for any distribution with finite nonzero variance.
  • Next connectionStandard deviation is horizontal spread
Picture 8 of 16 · tap to inspect in full resolution

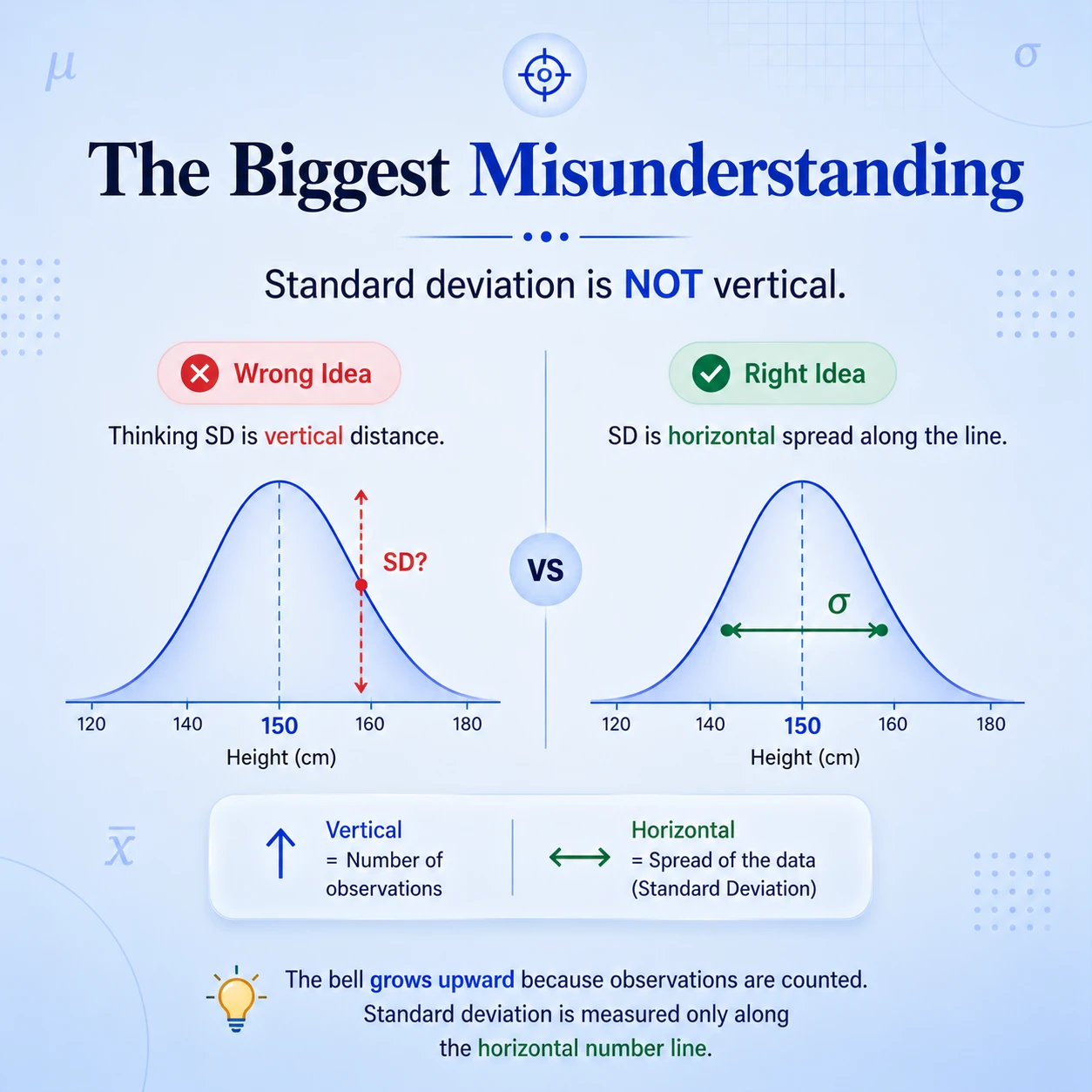

08

What is the biggest standard-deviation misunderstanding?

INTUITION

Standard deviation measures distance along the value axis, not the vertical height of a density curve.

  • Learning goalExplain sd misconception and state the assumptions behind the bound.
  • Helpful foundationsmean · variance · standard deviation
  • Common trapThe Empirical Rule is approximately valid for bell-shaped data; Chebyshev is a conservative guarantee for any distribution with finite nonzero variance.
  • Next connectionThree SD defines a region, not a headcount
Picture 9 of 16 · tap to inspect in full resolution

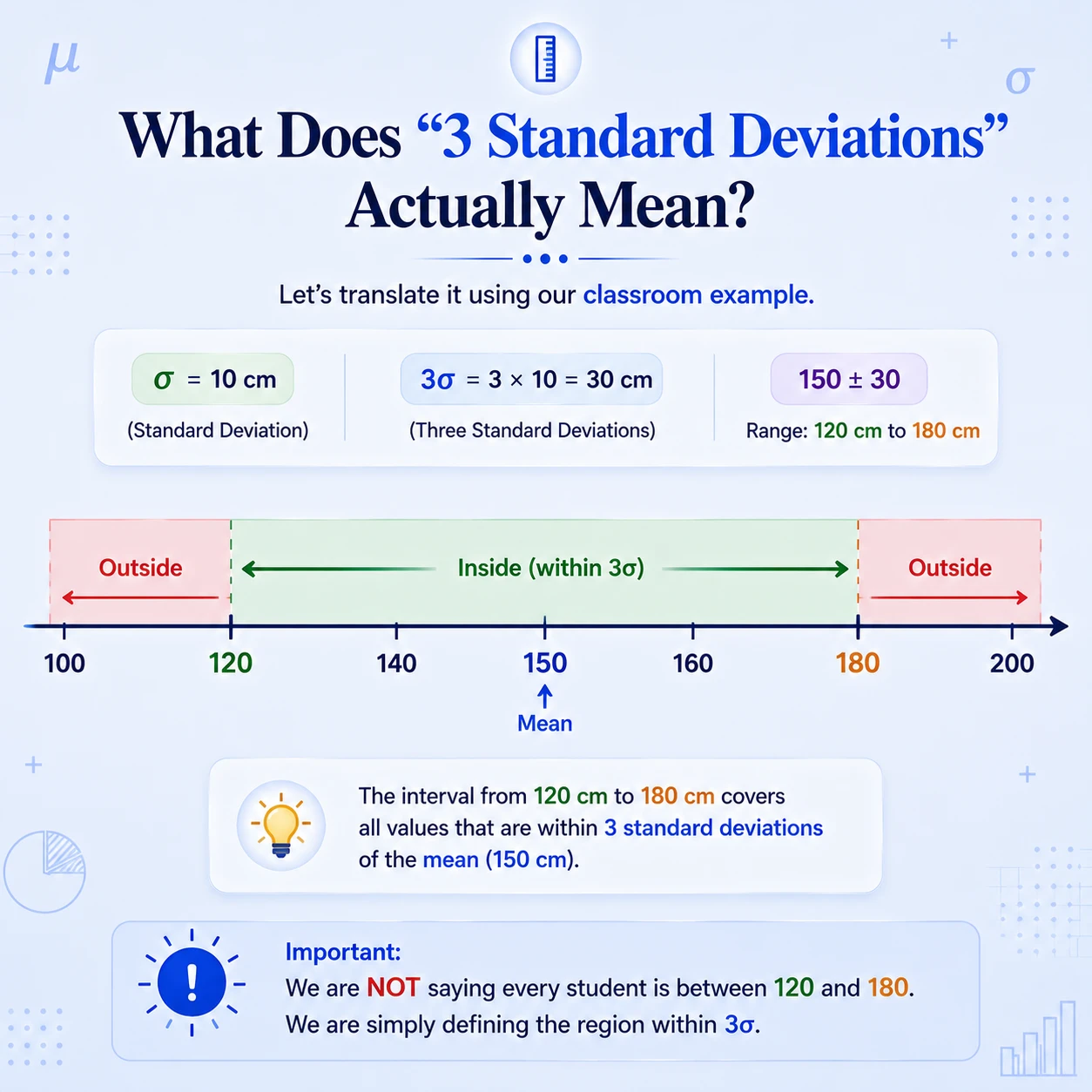

09

What does within three standard deviations actually mean?

INTUITION

Three standard deviations is 30 cm, so the region is 150 plus or minus 30, namely 120 to 180 cm; a theorem is still needed to guarantee a count.

  • Learning goalExplain interval meaning and state the assumptions behind the bound.
  • Helpful foundationsmean · variance · standard deviation
  • Common trapThe Empirical Rule is approximately valid for bell-shaped data; Chebyshev is a conservative guarantee for any distribution with finite nonzero variance.
  • Next connectionCan 80 students be outside the interval?
Picture 10 of 16 · tap to inspect in full resolution

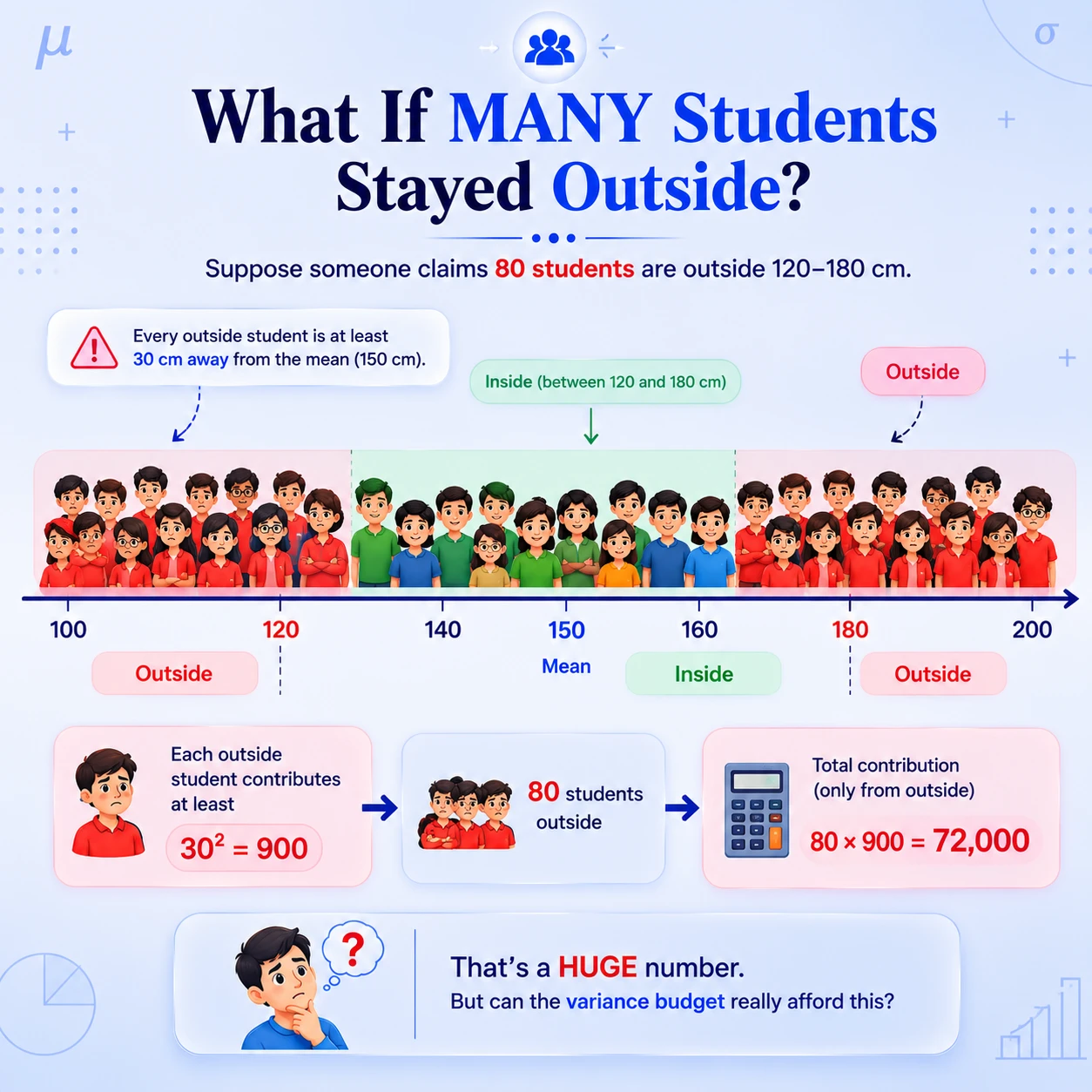

10

Could most students lie more than three SD from the mean?

INTUITION

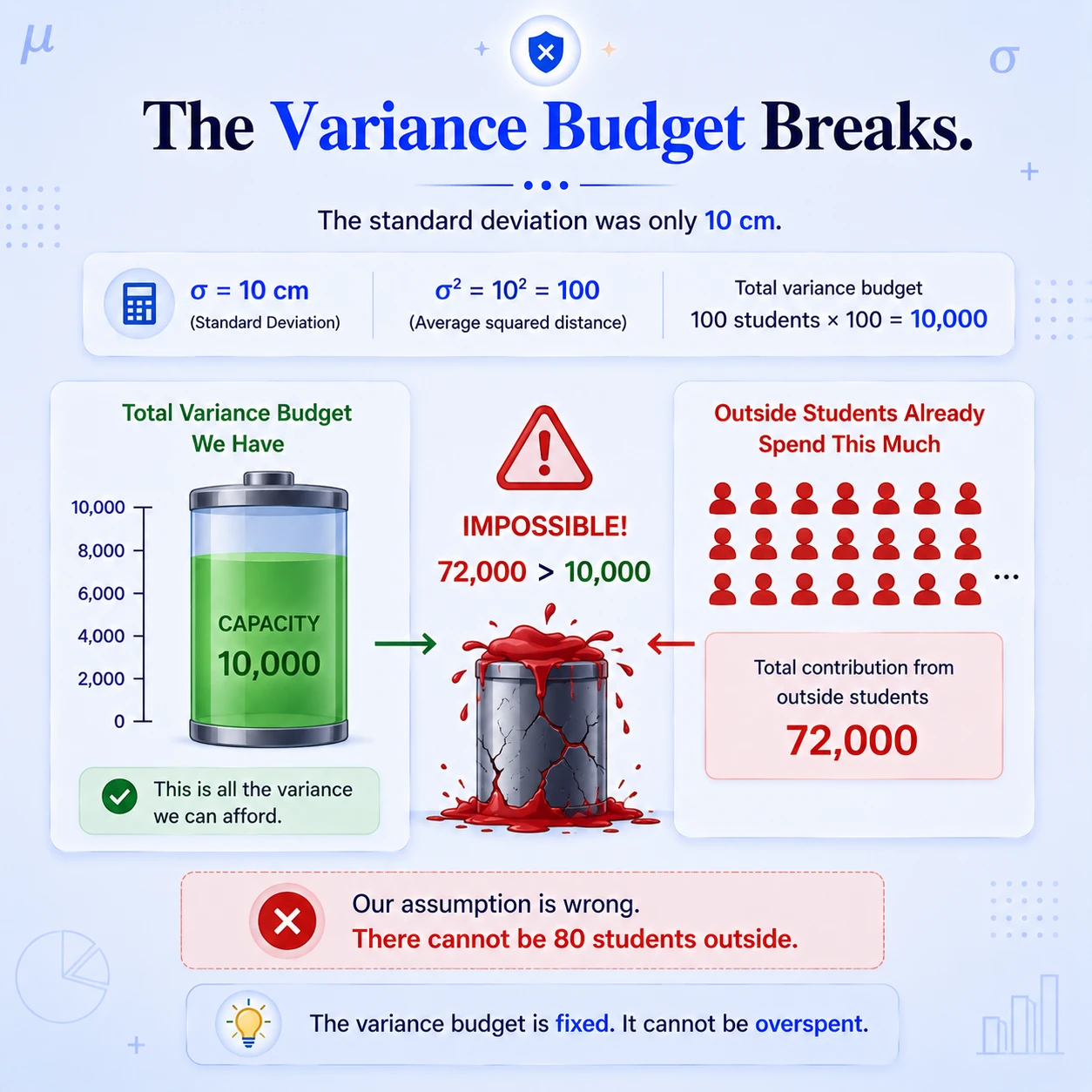

If 80 students were at least 30 cm away, they would consume at least 80 times 900 equals 72000 units of squared deviation.

MATHEMATICAL STATEMENT
  1. If 80 students were at least 30 cm away, they would consume at least 80 times 900 equals 72000 units of squared deviation.
  • Learning goalExplain contradiction setup and state the assumptions behind the bound.
  • Helpful foundationsmean · variance · standard deviation
  • Common trapThe Empirical Rule is approximately valid for bell-shaped data; Chebyshev is a conservative guarantee for any distribution with finite nonzero variance.
  • Next connectionThe variance budget limits outsiders
Picture 11 of 16 · tap to inspect in full resolution

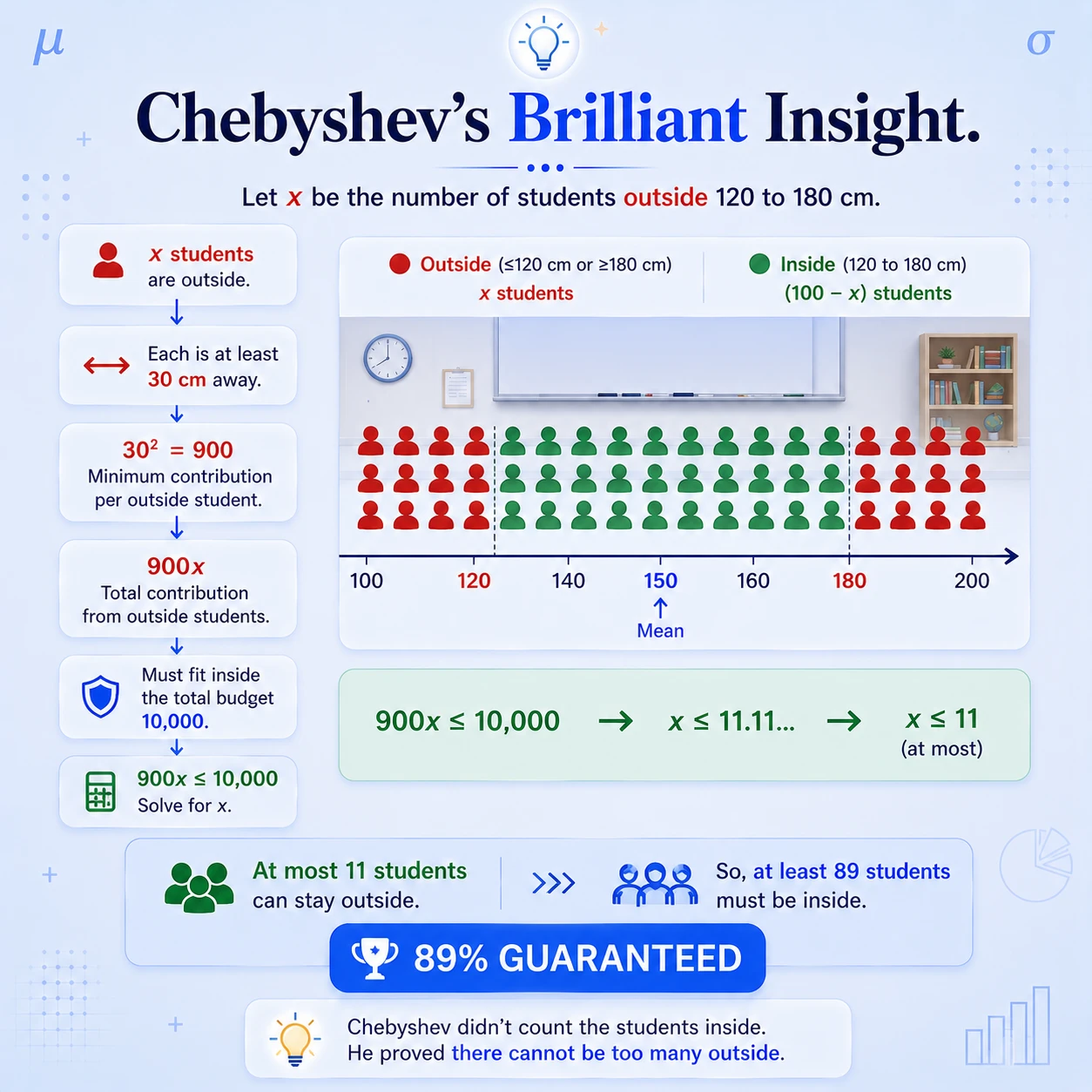

11

How many students can remain outside 120 to 180 cm?

INTUITION

If x students are outside, then 900x is at most 10000, so x is at most 11.11; with whole students, at most 11 are outside and at least 89 are inside.

  • Learning goalExplain chebyshev intuition and state the assumptions behind the bound.
  • Helpful foundationsmean · variance · standard deviation
  • Common trapThe Empirical Rule is approximately valid for bell-shaped data; Chebyshev is a conservative guarantee for any distribution with finite nonzero variance.
  • Next connectionGeneralize the variance-budget argument
Picture 12 of 16 · tap to inspect in full resolution
12

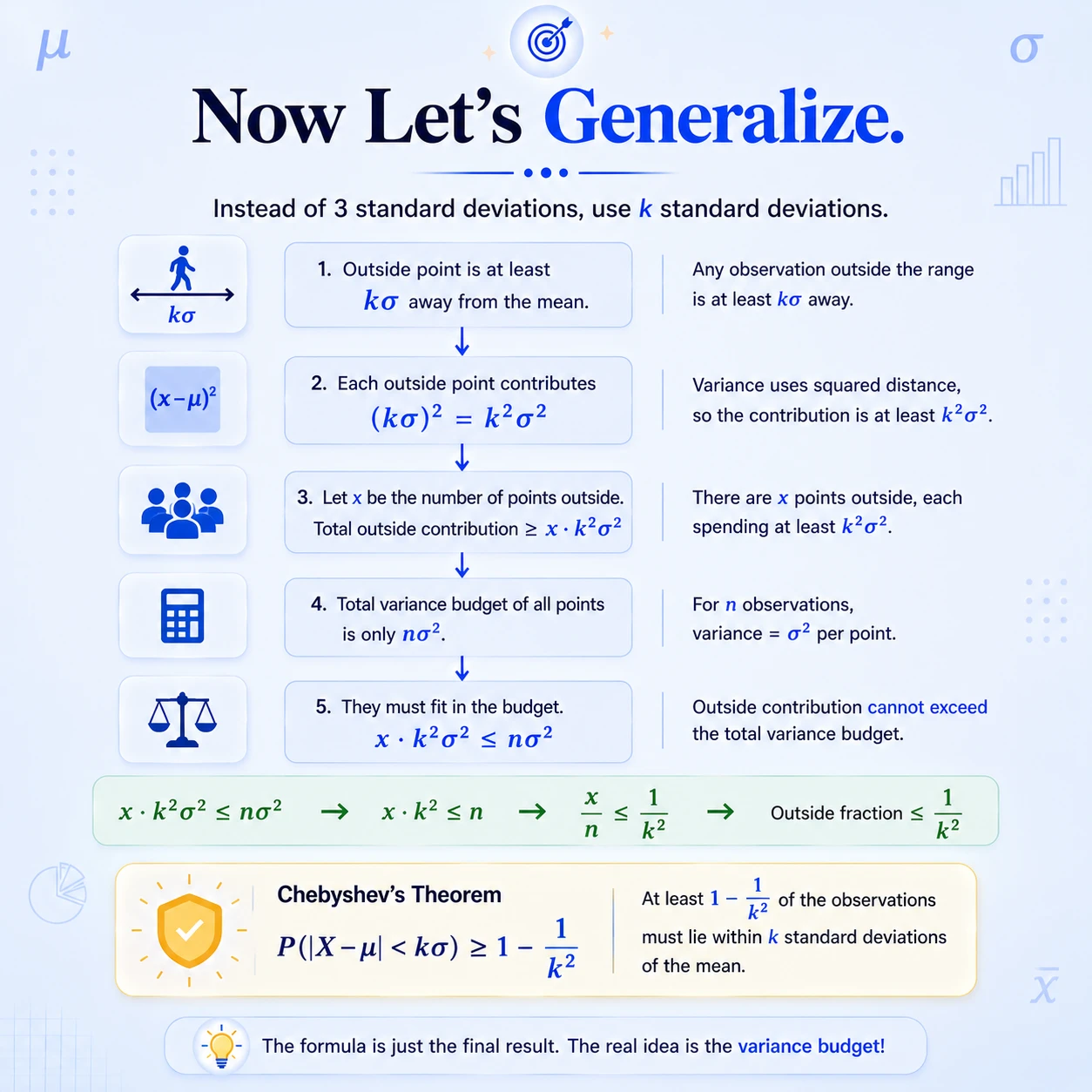

What guarantee holds for any k greater than 1?

INTUITION

Chebyshev guarantees P(|X-mu| less than k sigma) at least 1 minus 1 over k squared for finite nonzero variance.

  • Learning goalExplain chebyshev formula and state the assumptions behind the bound.
  • Helpful foundationsmean · variance · standard deviation
  • Common trapThe Empirical Rule is approximately valid for bell-shaped data; Chebyshev is a conservative guarantee for any distribution with finite nonzero variance.
  • Next connectionOne spread measure, two ways to reason
Picture 13 of 16 · tap to inspect in full resolution
13

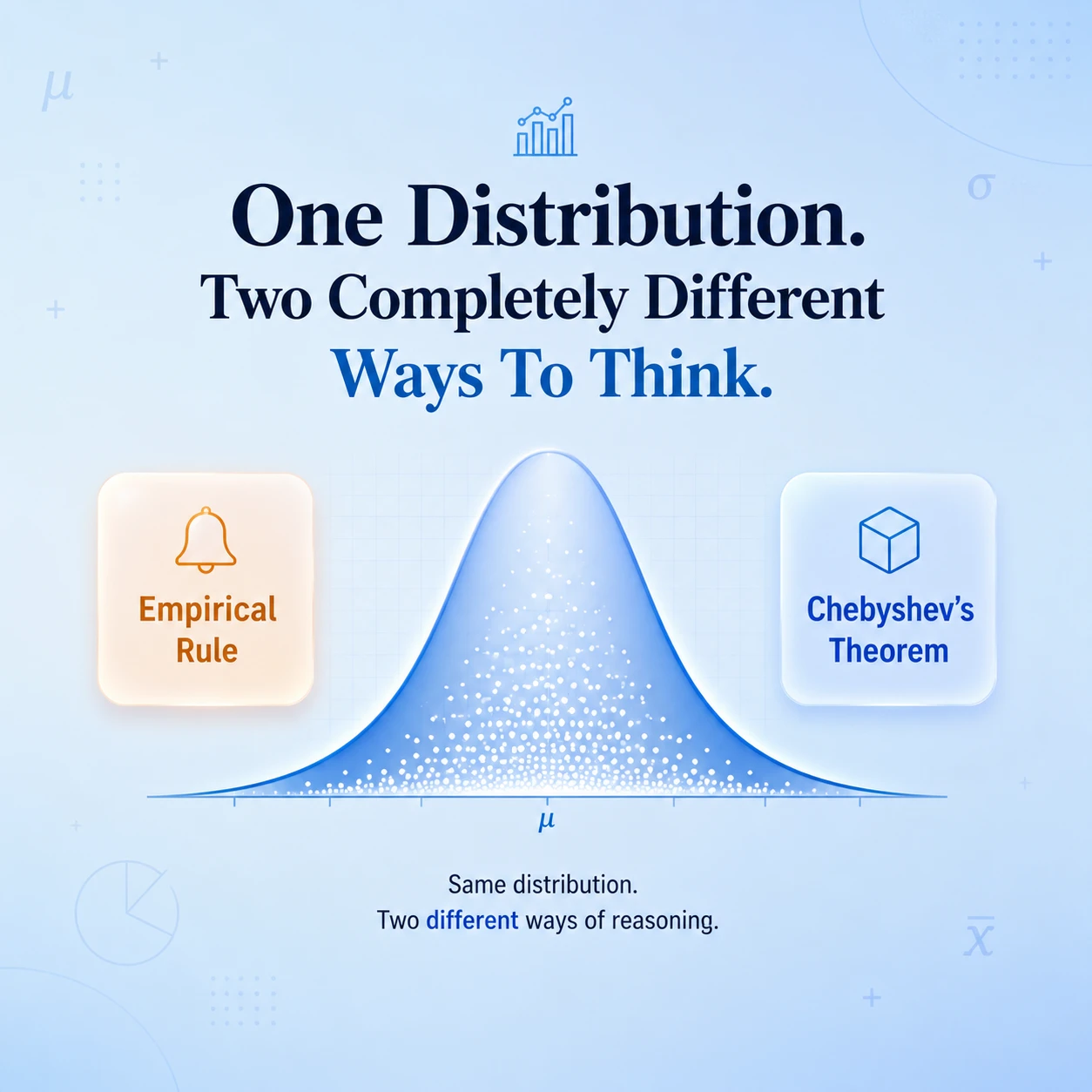

Can two differently shaped distributions share mean and variance?

INTUITION

Yes. Mean and variance do not determine distribution shape, so shape-free and normal-specific rules answer differently.

  • Learning goalExplain same moments different shapes and state the assumptions behind the bound.
  • Helpful foundationsmean · variance · standard deviation
  • Common trapThe Empirical Rule is approximately valid for bell-shaped data; Chebyshev is a conservative guarantee for any distribution with finite nonzero variance.
  • Next connectionWhy bell curves often appear
Picture 14 of 16 · tap to inspect in full resolution

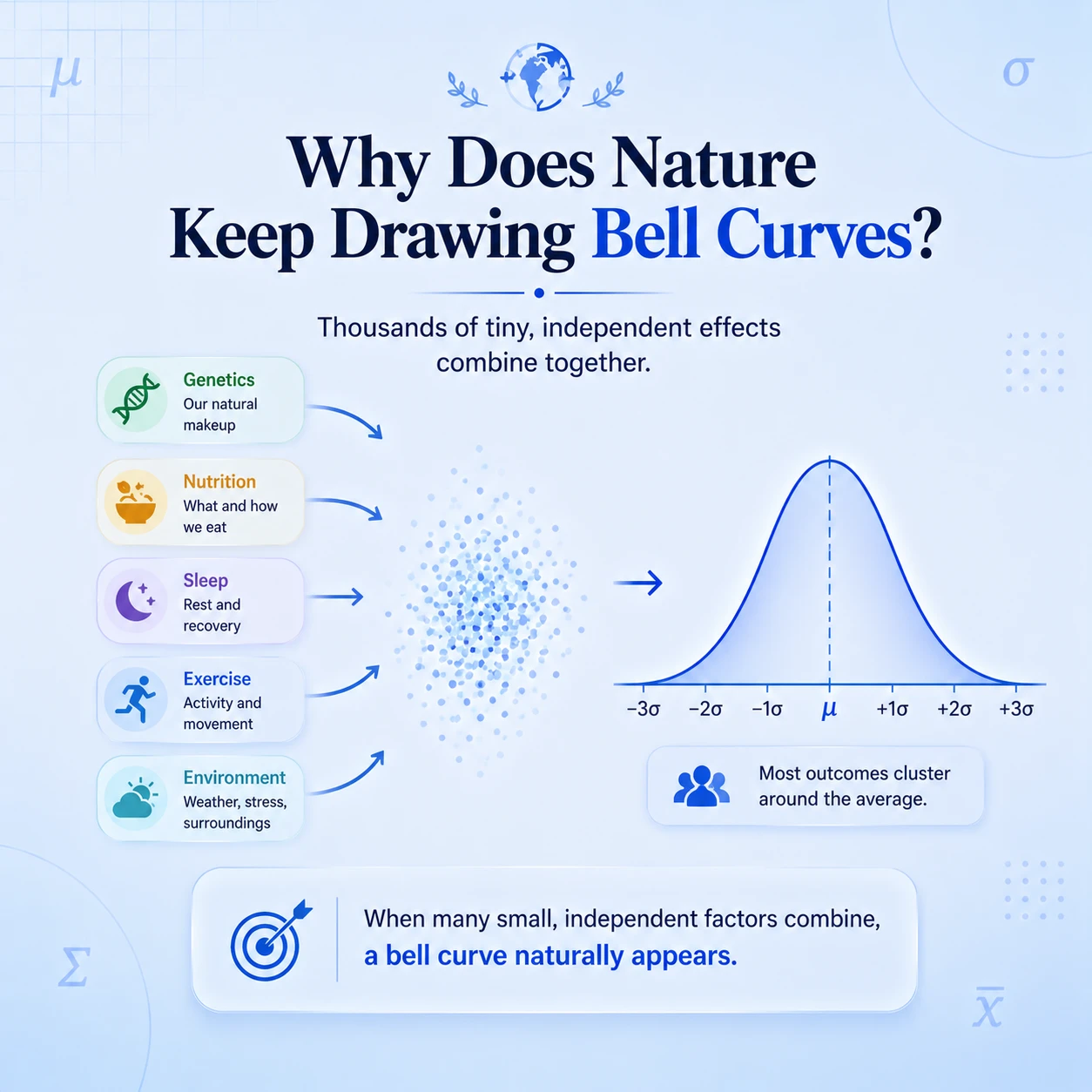

14

Why does nature produce many bell-shaped patterns?

INTUITION

Many small, roughly independent additive effects can combine into an approximately normal pattern.

  • Learning goalExplain bell shape intuition and state the assumptions behind the bound.
  • Helpful foundationsmean · variance · standard deviation
  • Common trapThe Empirical Rule is approximately valid for bell-shaped data; Chebyshev is a conservative guarantee for any distribution with finite nonzero variance.
  • Next connectionNot every dataset is bell-shaped
Picture 15 of 16 · tap to inspect in full resolution
15

Should every dataset use the Empirical Rule?

INTUITION

Skewed, heavy-tailed or multi-peaked data may violate the bell-shape assumption; use a shape-free bound when shape is unknown.

  • Learning goalExplain non normal shapes and state the assumptions behind the bound.
  • Helpful foundationsmean · variance · standard deviation
  • Common trapThe Empirical Rule is approximately valid for bell-shaped data; Chebyshev is a conservative guarantee for any distribution with finite nonzero variance.
  • Next connectionChoose the rule from the evidence
Picture 16 of 16 · tap to inspect in full resolution
16

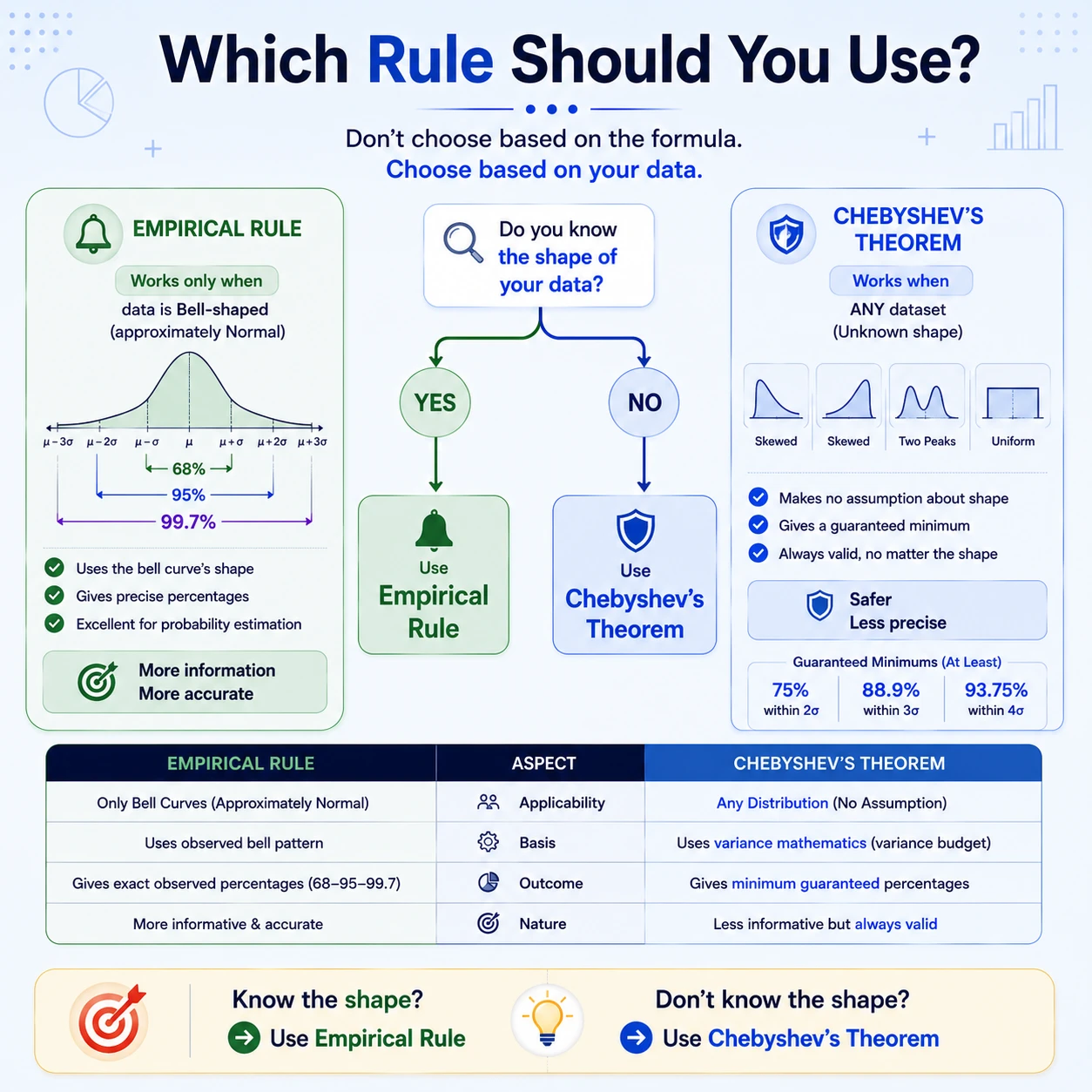

Which rule should you use?

INTUITION

Use the Empirical Rule for approximately normal data and Chebyshev's theorem when only finite mean and variance are justified.

  • Learning goalExplain method selection and state the assumptions behind the bound.
  • Helpful foundationsmean · variance · standard deviation
  • Common trapThe Empirical Rule is approximately valid for bell-shaped data; Chebyshev is a conservative guarantee for any distribution with finite nonzero variance.
  • Next connectionApply the correct spread rule to a new dataset
