From Zero Covariance to Independence

When does zero covariance mean independence, and when does it not?

MODULE 4 / 6LESSON 17 / 46PICTURE 1 / 19
Progress stays on this device · no login
BEFORE THE FIRST PICTURE

How this lesson unfolds.

Begin with What relationship can speed and fuel efficiency reveal? The sequence then connects Relationships live inside pairs and builds toward Use the implication in the right direction.

Picture 1 of 19 · tap to inspect in full resolution
01

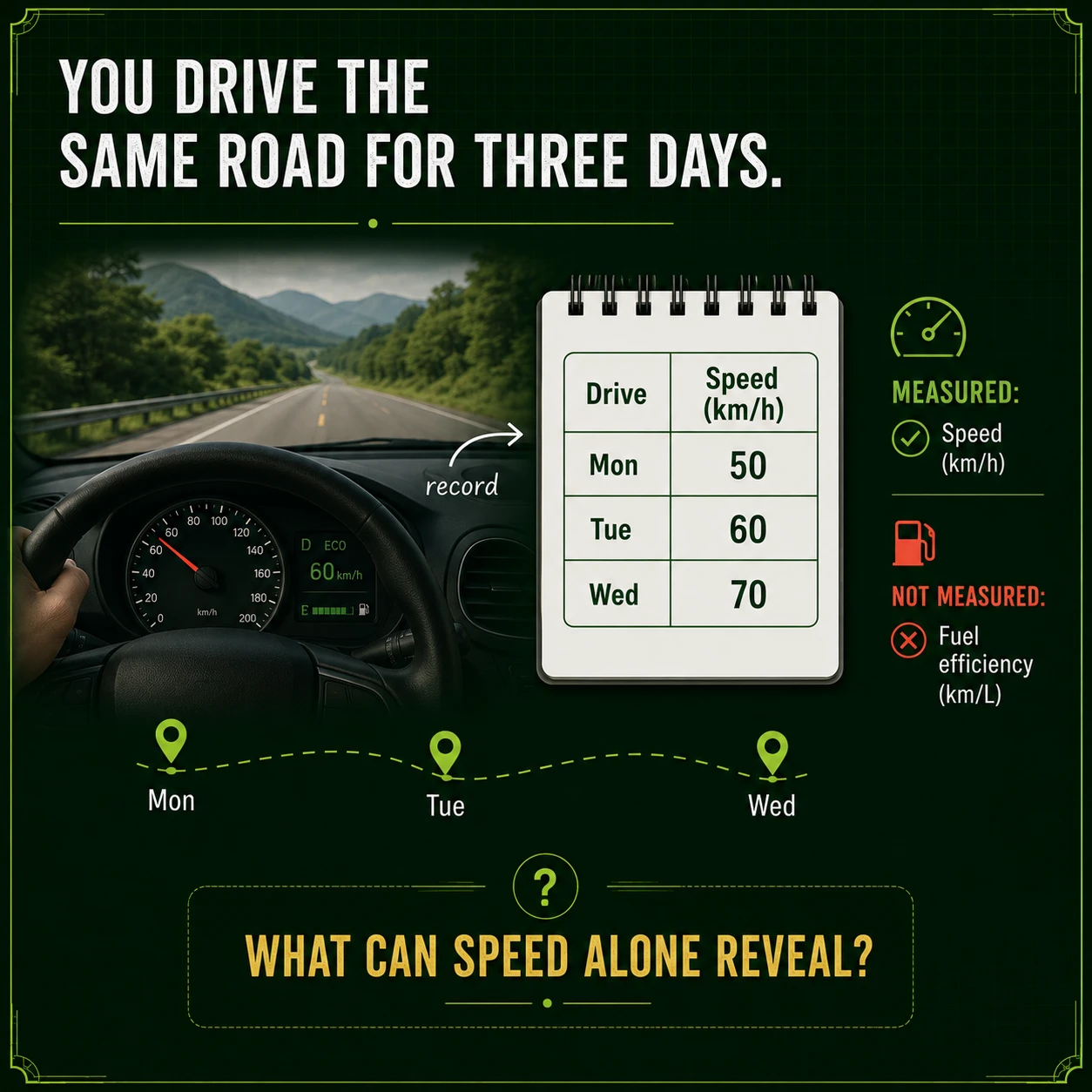

What relationship can speed and fuel efficiency reveal?

INTUITION

Each drive gives one pair: speed X and fuel efficiency Y. Covariance studies how the two variables move together across paired observations, so the pairing must be preserved.

  • Learning goalExplain paired data question and its role in separating covariance from independence.
  • Helpful foundationsexpected value · mean and deviations · paired observations
  • Common trapZero covariance is not, in general, proof of statistical independence.
  • Next connectionRelationships live inside pairs
More context

The portrait diagram reads top to bottom through paired-data cards, exact formulas, and restrained directional marks.

Picture 2 of 19 · tap to inspect in full resolution
02

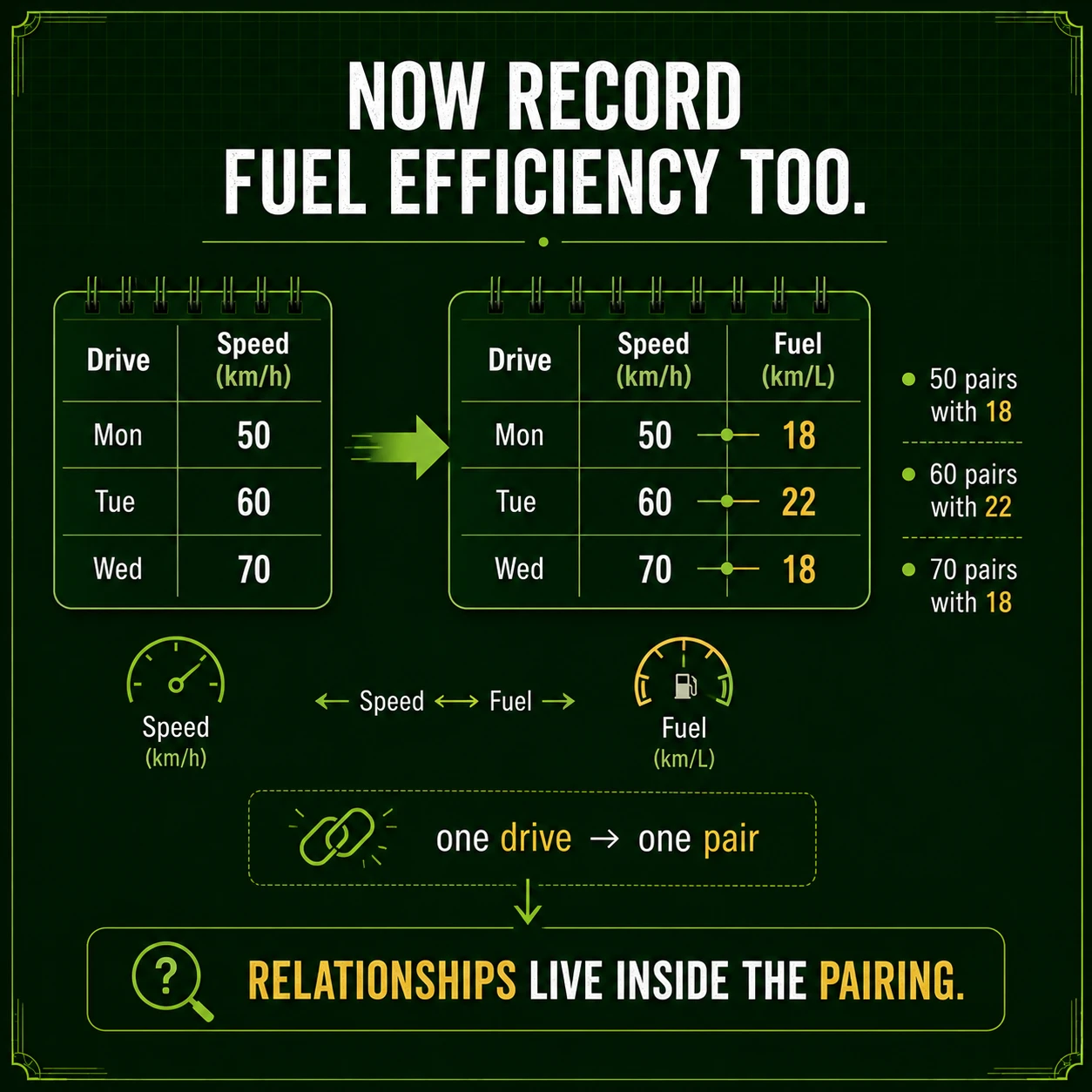

Why can we not analyze the columns separately?

INTUITION

A row links one speed to the fuel efficiency from the same drive. Shuffling either column keeps both marginal distributions but destroys the observed relationship.

  • Learning goalExplain pairing preservation and its role in separating covariance from independence.
  • Helpful foundationsexpected value · mean and deviations · paired observations
  • Common trapZero covariance is not, in general, proof of statistical independence.
  • Next connectionEach variable has its own center
More context

The portrait diagram reads top to bottom through paired-data cards, exact formulas, and restrained directional marks.

Picture 3 of 19 · tap to inspect in full resolution
03

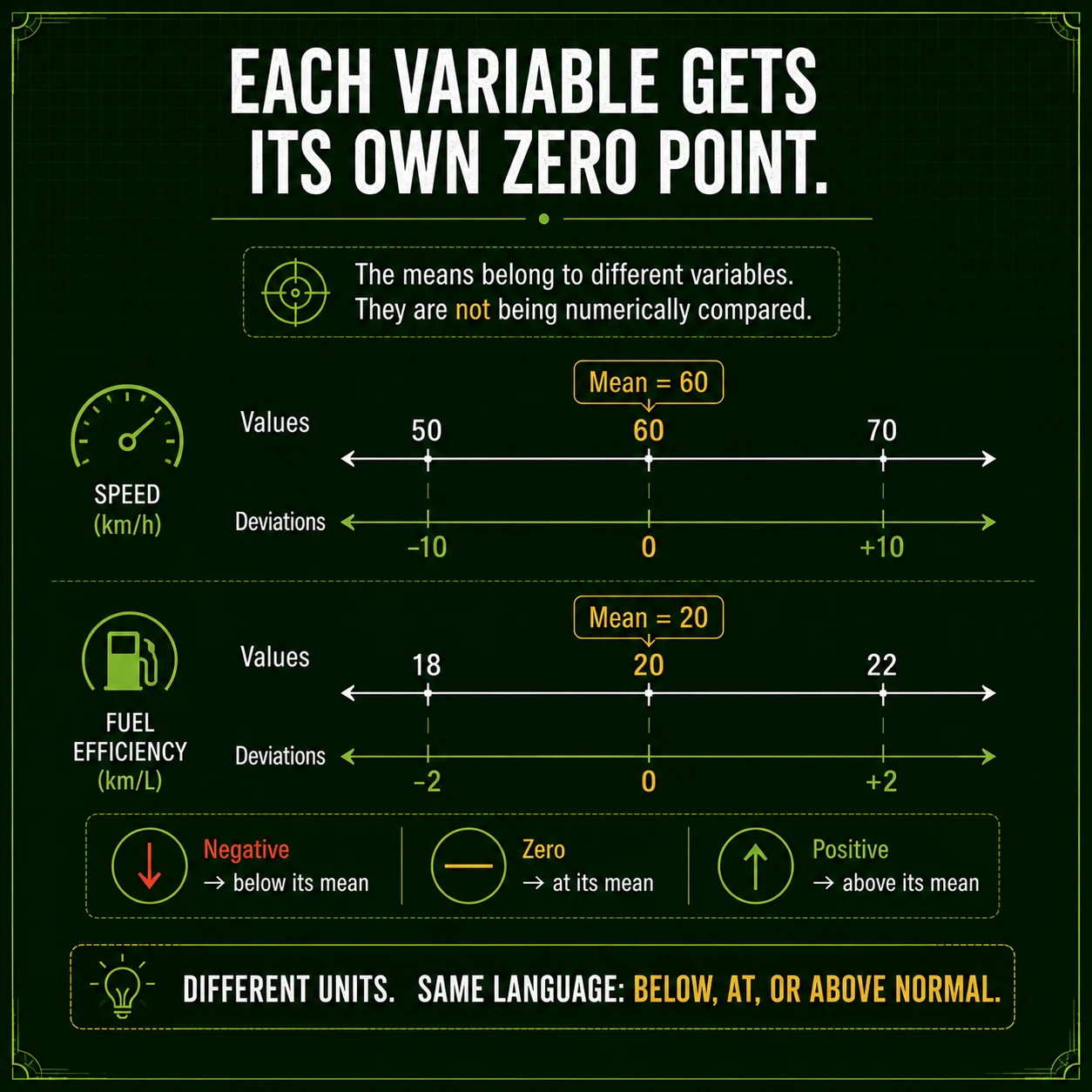

What is the zero point for each variable?

INTUITION

Center X around its mean and Y around its mean. Deviations X-E[X] and Y-E[Y] put different units on a common directional language: below, at, or above the variable's own center.

  • Learning goalExplain separate centering and its role in separating covariance from independence.
  • Helpful foundationsexpected value · mean and deviations · paired observations
  • Common trapZero covariance is not, in general, proof of statistical independence.
  • Next connectionReplace values with deviations
More context

The portrait diagram reads top to bottom through paired-data cards, exact formulas, and restrained directional marks.

Picture 4 of 19 · tap to inspect in full resolution
04

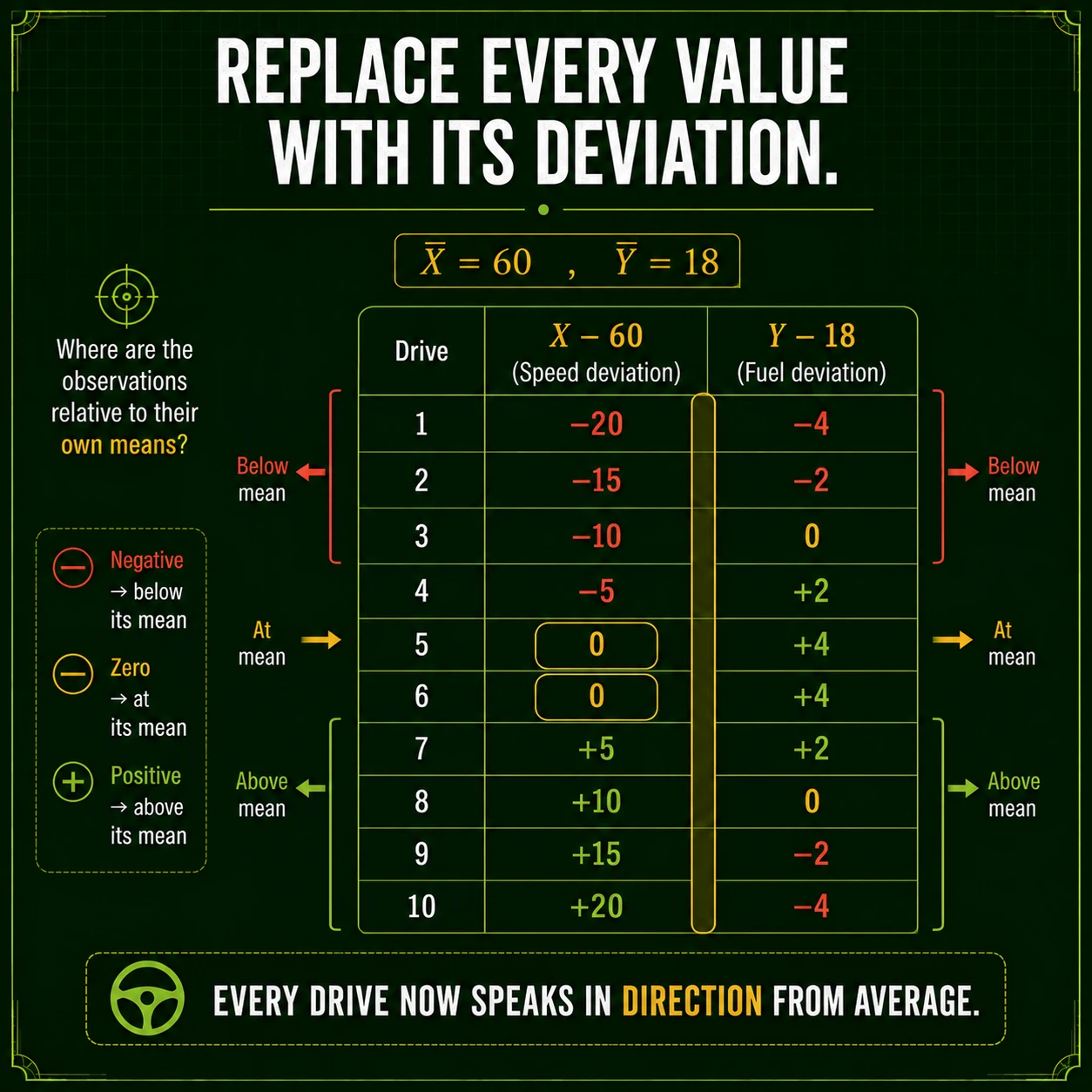

How do raw values become directional evidence?

INTUITION

Subtract the appropriate mean from every value. For means 60 and 18, the pair (50,14) becomes (-10,-4), while (70,18) becomes (10,0).

  • Learning goalExplain deviation table and its role in separating covariance from independence.
  • Helpful foundationsexpected value · mean and deviations · paired observations
  • Common trapZero covariance is not, in general, proof of statistical independence.
  • Next connectionThe mean is a reference, not a data row
More context

The portrait diagram reads top to bottom through paired-data cards, exact formulas, and restrained directional marks.

Picture 5 of 19 · tap to inspect in full resolution
05

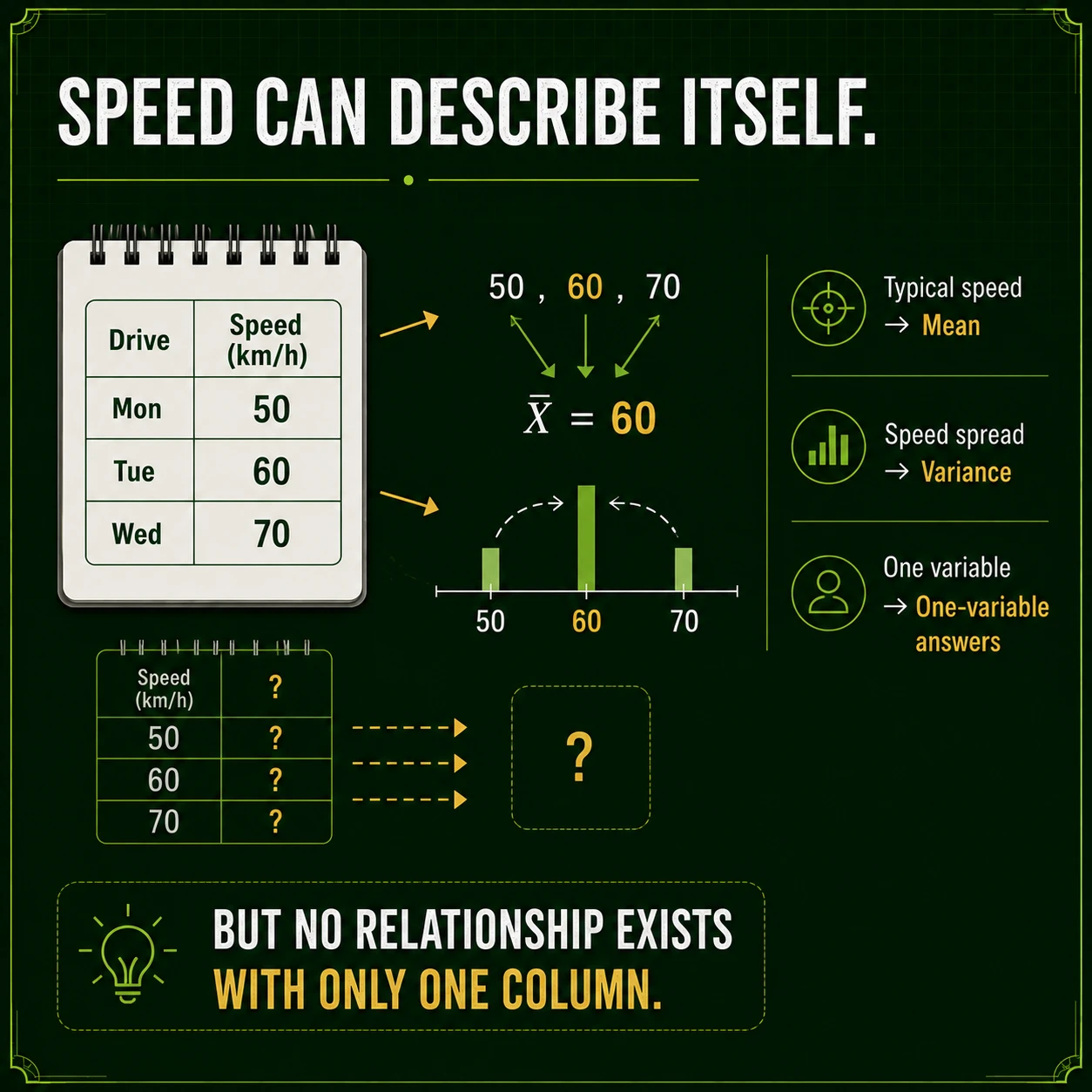

What does an average speed actually tell us?

INTUITION

The mean speed is the balance point used to interpret every observation. It need not be one of the recorded speeds, and it does not by itself reveal the relationship with fuel efficiency.

  • Learning goalExplain mean reference and its role in separating covariance from independence.
  • Helpful foundationsexpected value · mean and deviations · paired observations
  • Common trapZero covariance is not, in general, proof of statistical independence.
  • Next connectionOne pair casts one covariance vote
More context

The portrait diagram reads top to bottom through paired-data cards, exact formulas, and restrained directional marks.

Picture 6 of 19 · tap to inspect in full resolution
06

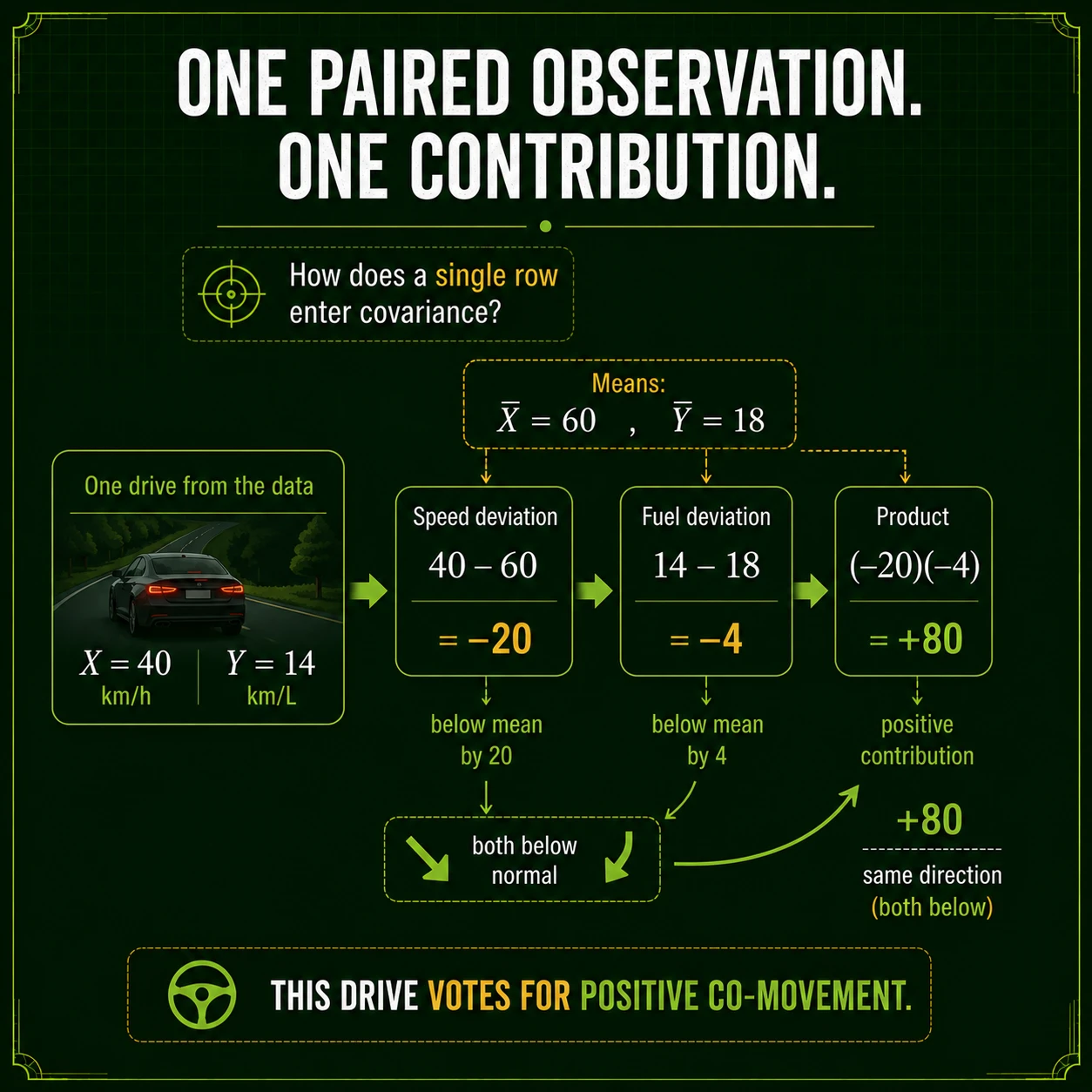

How does a single observation contribute?

INTUITION

For one paired observation, multiply its two deviations. At speed 40 with efficiency 14, (-20)(-4)=+80: both values lie below their own means, so the pair contributes positively.

MATHEMATICAL STATEMENT
  1. At speed 40 with efficiency 14, (-20)(-4)=+80: both values lie below their own means, so the pair contributes positively.
  • Learning goalExplain single contribution and its role in separating covariance from independence.
  • Helpful foundationsexpected value · mean and deviations · paired observations
  • Common trapZero covariance is not, in general, proof of statistical independence.
  • Next connectionMultiplication records agreement
More context

The portrait diagram reads top to bottom through paired-data cards, exact formulas, and restrained directional marks.

Picture 7 of 19 · tap to inspect in full resolution
07

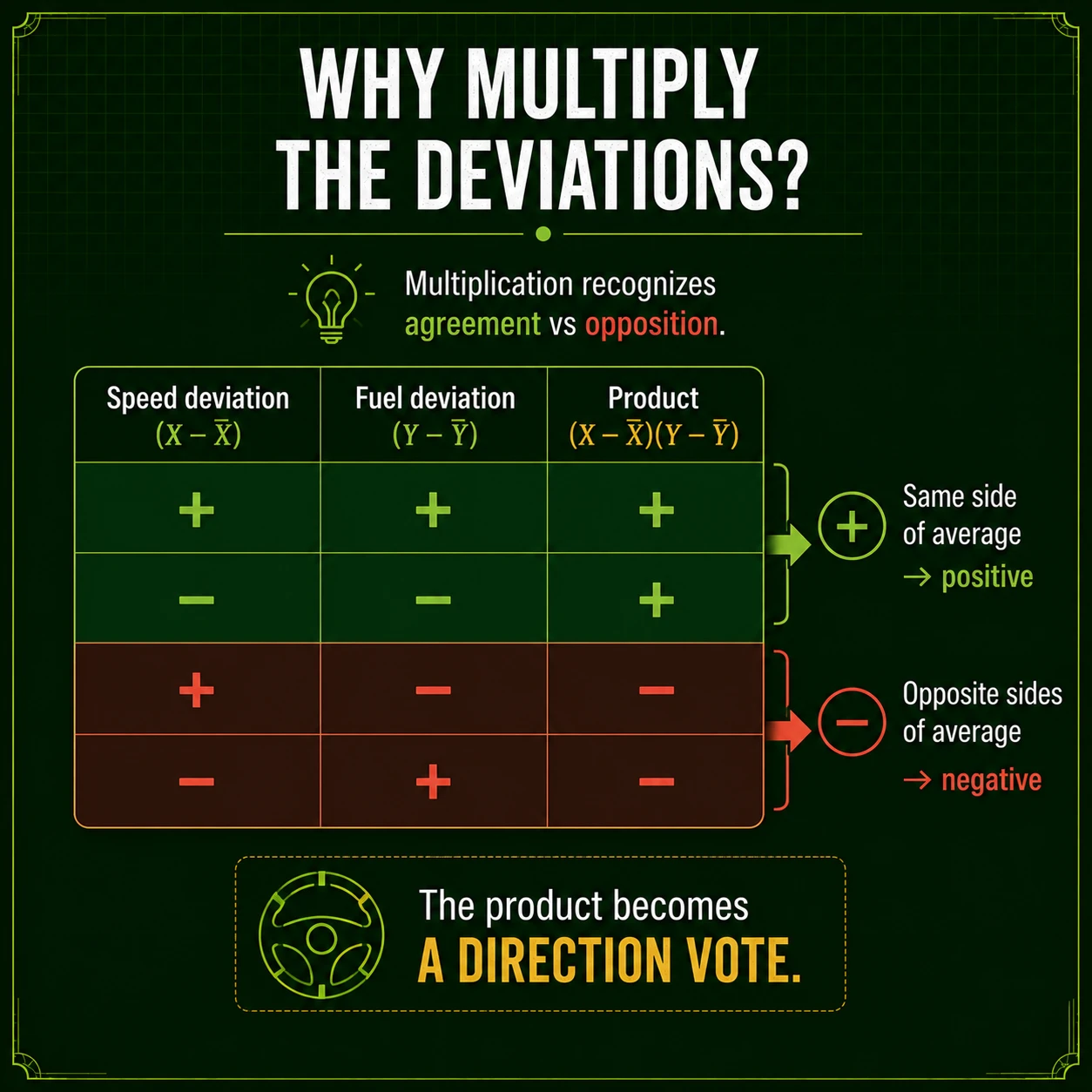

Why multiply the two deviations?

INTUITION

Same-direction deviations give a positive product, opposite-direction deviations give a negative product, and a point on either mean gives zero. The product turns two directions into one signed contribution.

  • Learning goalExplain product sign rule and its role in separating covariance from independence.
  • Helpful foundationsexpected value · mean and deviations · paired observations
  • Common trapZero covariance is not, in general, proof of statistical independence.
  • Next connectionDirection matters more than point counts
More context

The portrait diagram reads top to bottom through paired-data cards, exact formulas, and restrained directional marks.

Picture 8 of 19 · tap to inspect in full resolution
08

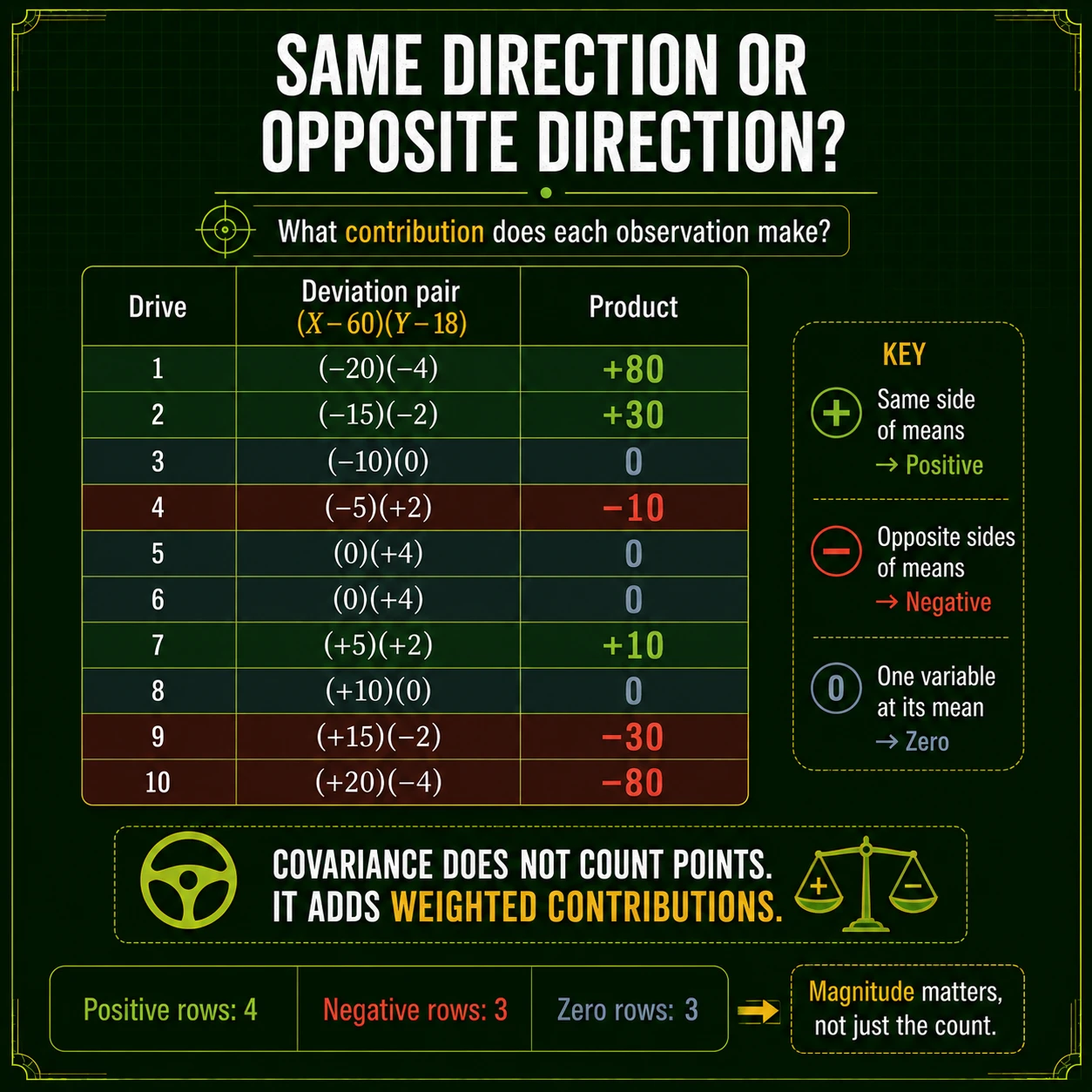

How do all observations combine?

INTUITION

Covariance averages signed products, not positive and negative point counts. Large deviations carry more weight because their products have larger magnitude.

  • Learning goalExplain weighted contributions and its role in separating covariance from independence.
  • Helpful foundationsexpected value · mean and deviations · paired observations
  • Common trapZero covariance is not, in general, proof of statistical independence.
  • Next connectionOpposing contributions can cancel
More context

The portrait diagram reads top to bottom through paired-data cards, exact formulas, and restrained directional marks.

Picture 9 of 19 · tap to inspect in full resolution
09

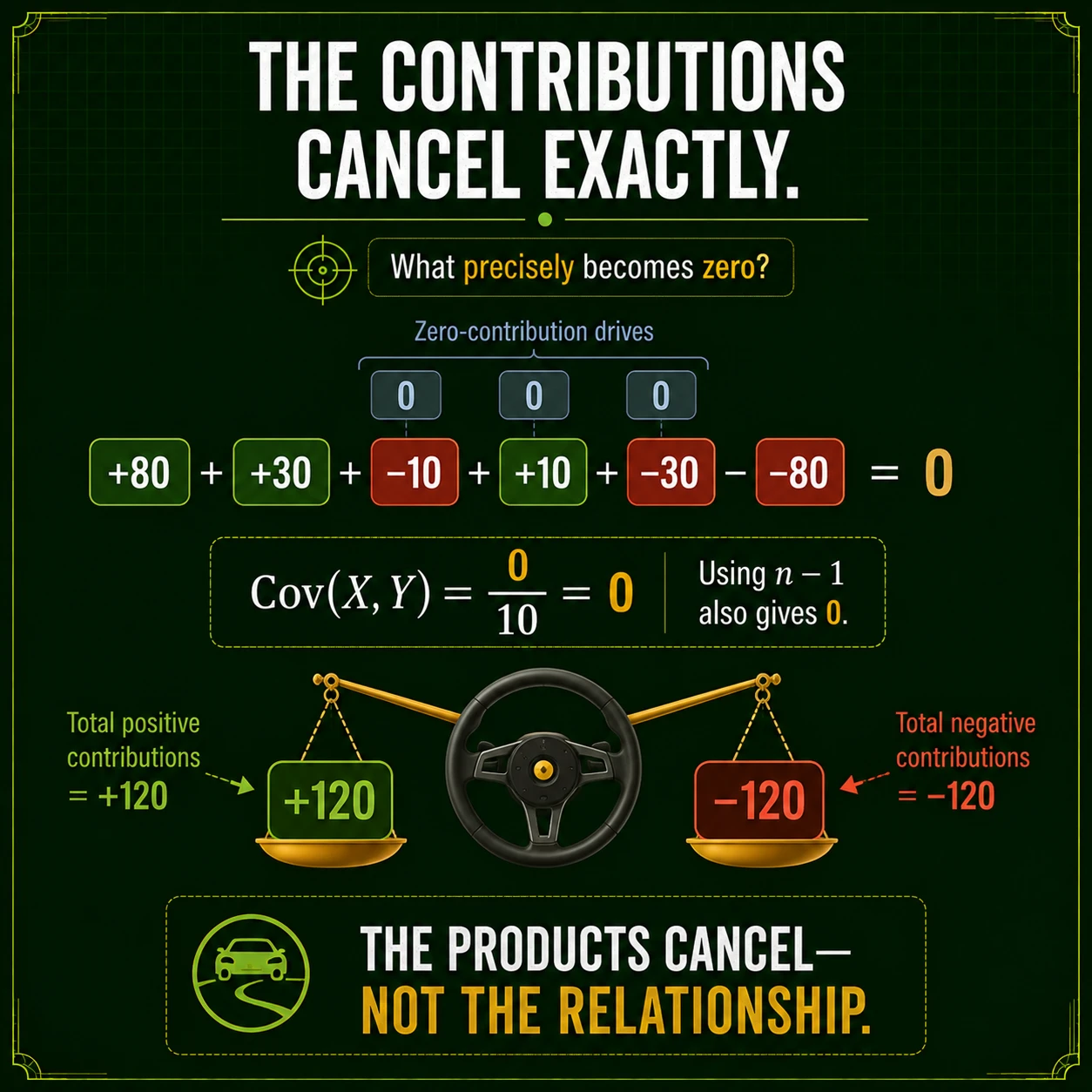

How can covariance become exactly zero?

INTUITION

Positive and negative deviation products can sum to zero. Their cancellation means no net linear co-movement; it does not erase the individual contributions or any nonlinear structure.

  • Learning goalExplain exact cancellation and its role in separating covariance from independence.
  • Helpful foundationsexpected value · mean and deviations · paired observations
  • Common trapZero covariance is not, in general, proof of statistical independence.
  • Next connectionCompute covariance from the complete data
More context

The portrait diagram reads top to bottom through paired-data cards, exact formulas, and restrained directional marks.

Picture 10 of 19 · tap to inspect in full resolution
10

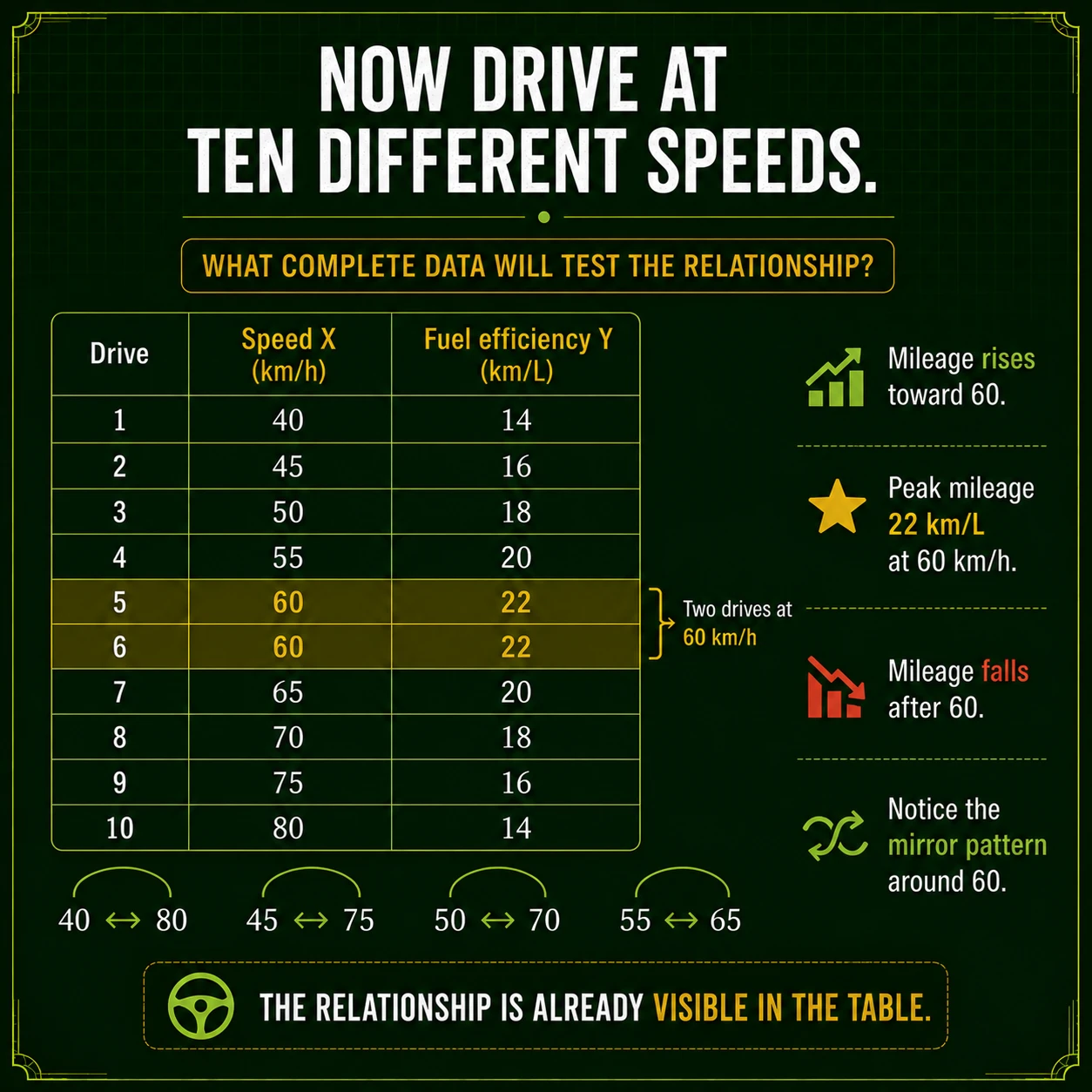

What calculation summarizes the relationship?

INTUITION

For population covariance, average every product (x-E[X])(y-E[Y]). For a sample covariance, use sample means and divide the product sum by n-1.

  • Learning goalExplain covariance formulas and its role in separating covariance from independence.
  • Helpful foundationsexpected value · mean and deviations · paired observations
  • Common trapZero covariance is not, in general, proof of statistical independence.
  • Next connectionCovariance carries product units
More context

The portrait diagram reads top to bottom through paired-data cards, exact formulas, and restrained directional marks.

Picture 11 of 19 · tap to inspect in full resolution
11

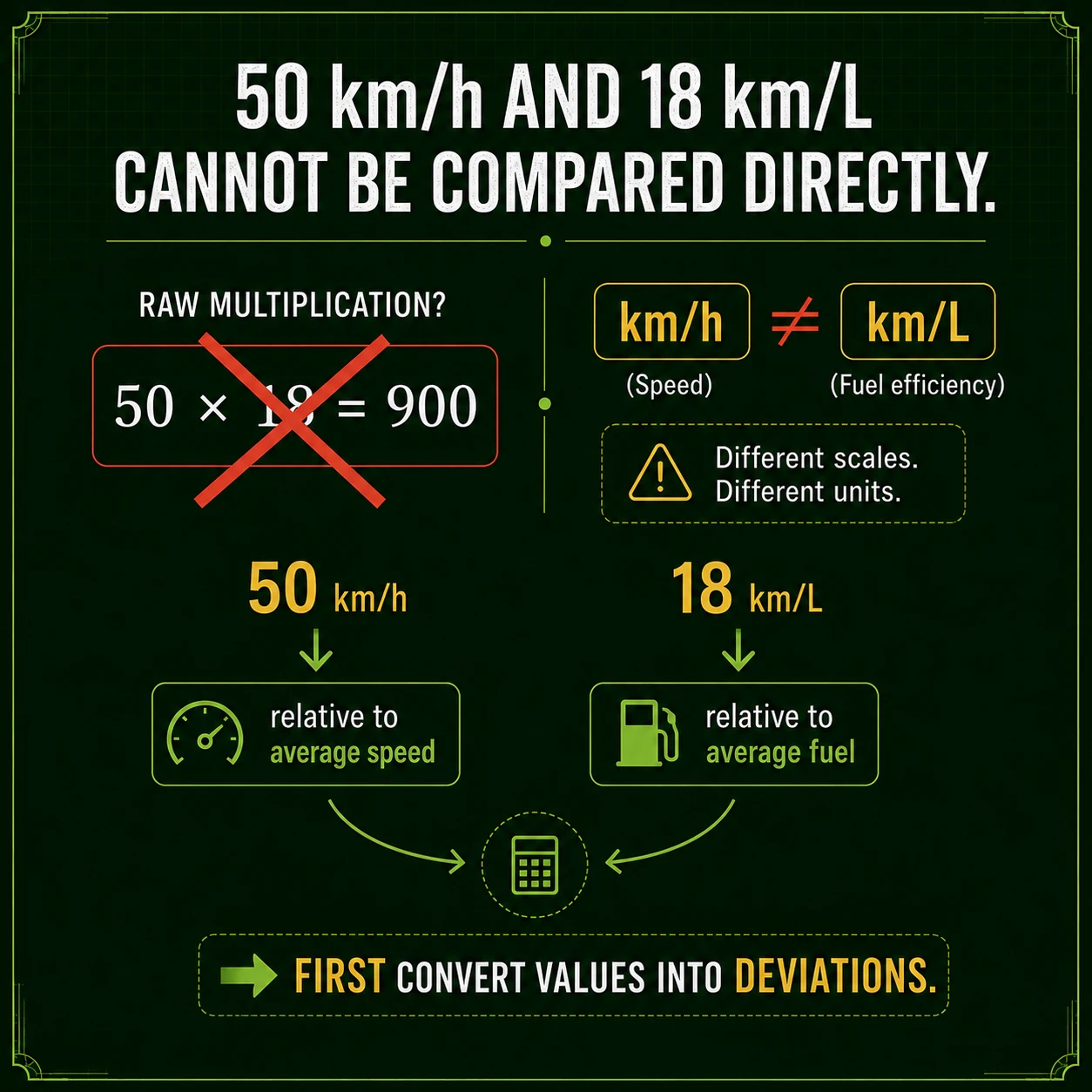

Can covariance be compared across different scales?

INTUITION

Covariance has units equal to the product of X's and Y's units. Rescaling either variable rescales covariance, so use correlation when a unit-free comparison is needed.

MATHEMATICAL STATEMENT
  1. Covariance has units equal to the product of X's and Y's units.
  • Learning goalExplain units and scaling and its role in separating covariance from independence.
  • Helpful foundationsexpected value · mean and deviations · paired observations
  • Common trapZero covariance is not, in general, proof of statistical independence.
  • Next connectionVariance looks inward; covariance looks across
More context

The portrait diagram reads top to bottom through paired-data cards, exact formulas, and restrained directional marks.

Picture 12 of 19 · tap to inspect in full resolution
12

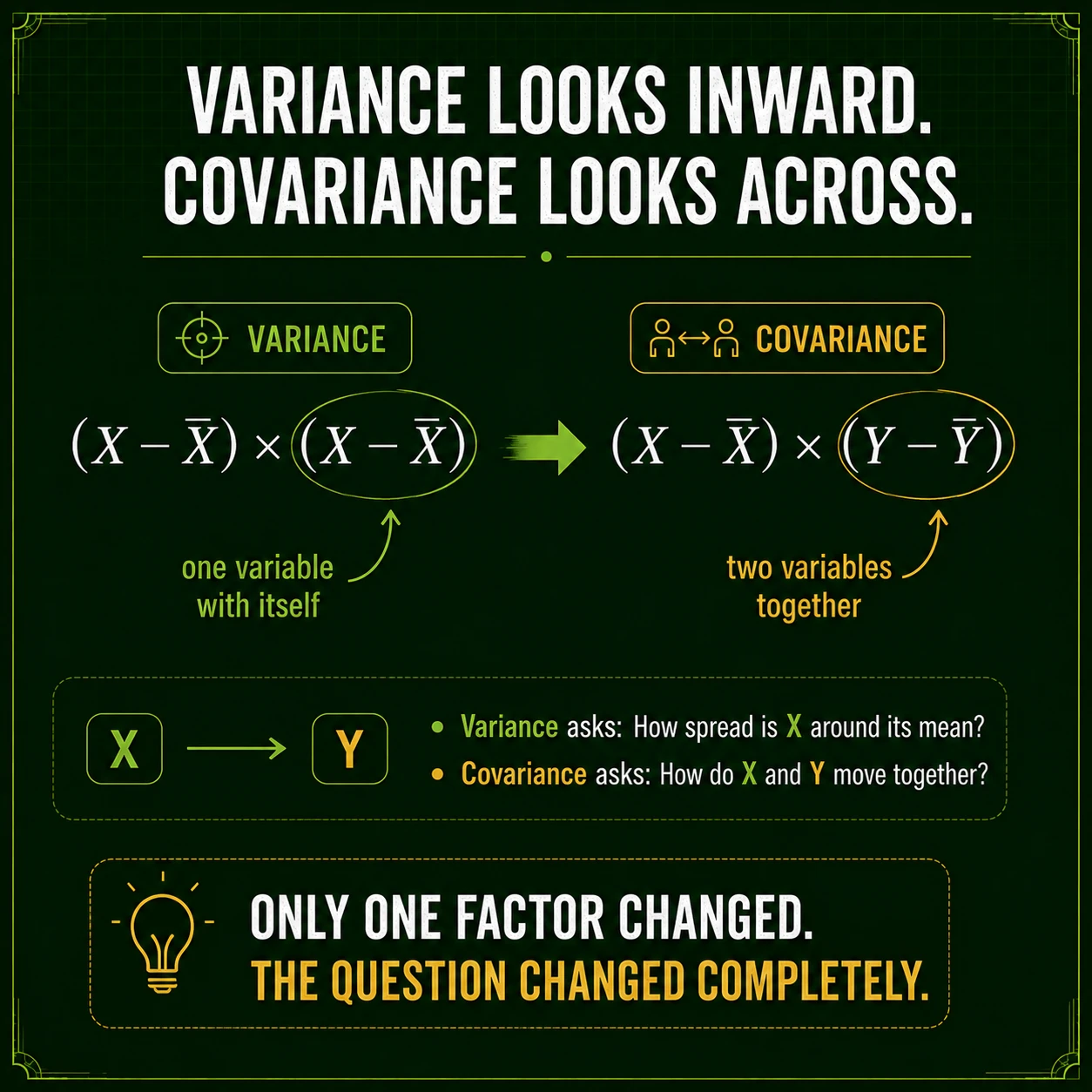

How is covariance different from variance?

INTUITION

Variance multiplies one variable's deviation by itself. Covariance multiplies deviations from two variables. Variance measures spread; covariance measures linear co-movement.

  • Learning goalExplain variance versus covariance and its role in separating covariance from independence.
  • Helpful foundationsexpected value · mean and deviations · paired observations
  • Common trapZero covariance is not, in general, proof of statistical independence.
  • Next connectionRead covariance as linear direction
More context

The portrait diagram reads top to bottom through paired-data cards, exact formulas, and restrained directional marks.

Picture 13 of 19 · tap to inspect in full resolution
13

What does the sign of covariance report?

INTUITION

Positive covariance indicates net same-direction linear movement; negative covariance indicates net opposite-direction linear movement; zero indicates no net linear direction.

  • Learning goalExplain sign interpretation and its role in separating covariance from independence.
  • Helpful foundationsexpected value · mean and deviations · paired observations
  • Common trapZero covariance is not, in general, proof of statistical independence.
  • Next connectionA curve can cancel its own direction
More context

The portrait diagram reads top to bottom through paired-data cards, exact formulas, and restrained directional marks.

Picture 14 of 19 · tap to inspect in full resolution
14

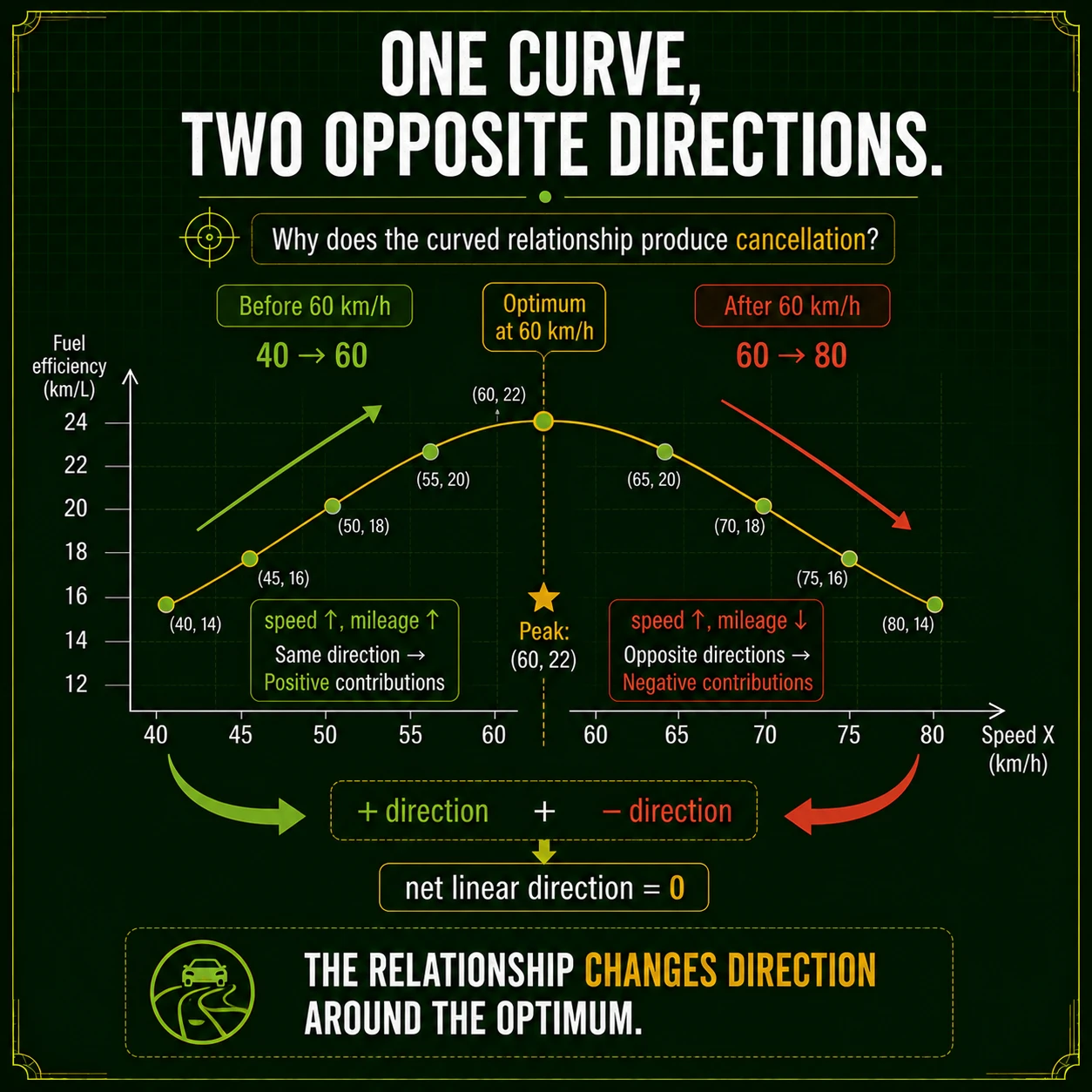

Can a strong relationship have zero covariance?

INTUITION

Yes. In a symmetric inverted-U or U-shaped relationship, one side contributes positive products and the other negative products. The linear votes cancel even though Y is determined by X.

  • Learning goalExplain nonlinear cancellation and its role in separating covariance from independence.
  • Helpful foundationsexpected value · mean and deviations · paired observations
  • Common trapZero covariance is not, in general, proof of statistical independence.
  • Next connectionZero covariance is not independence
More context

The portrait diagram reads top to bottom through paired-data cards, exact formulas, and restrained directional marks.

Picture 15 of 19 · tap to inspect in full resolution
15

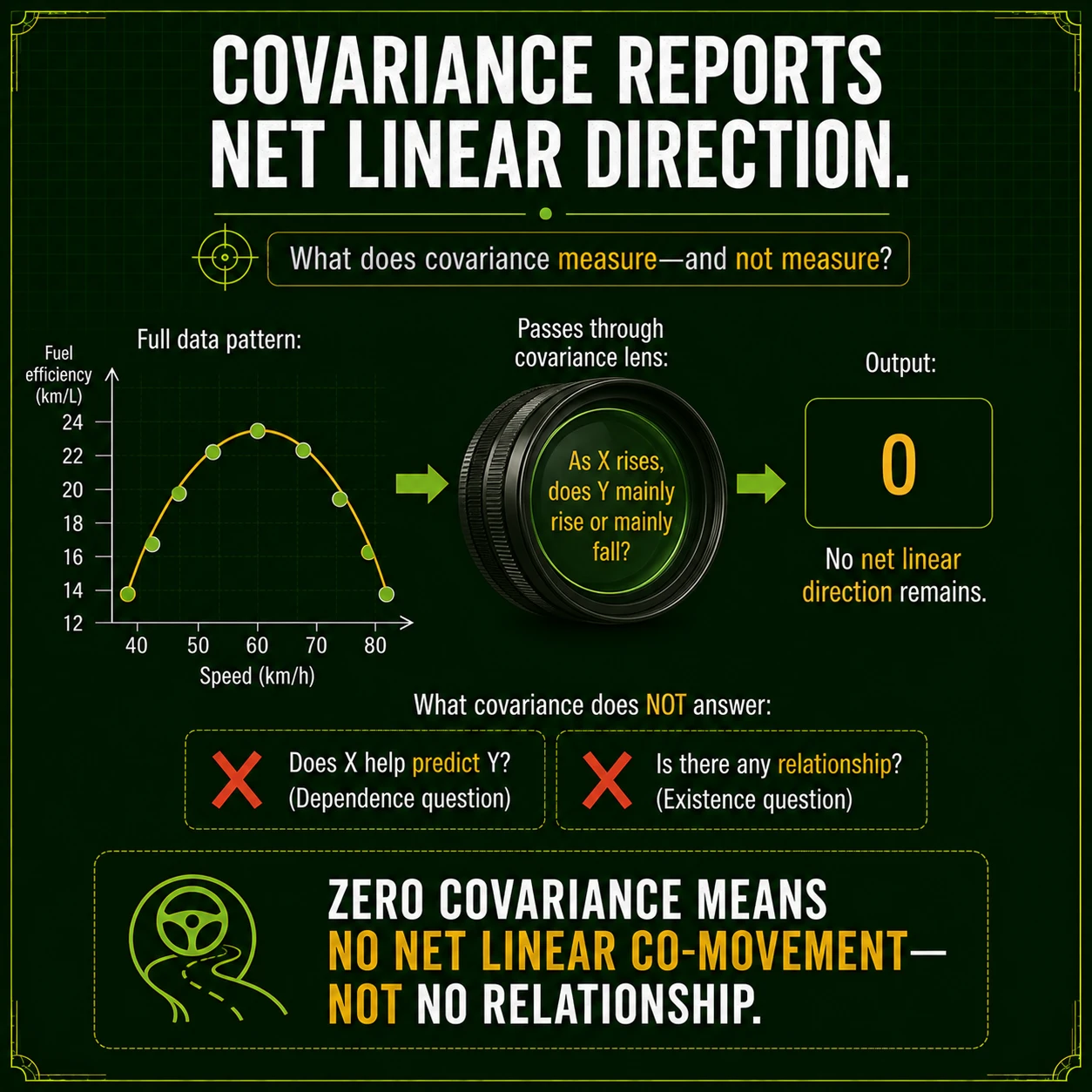

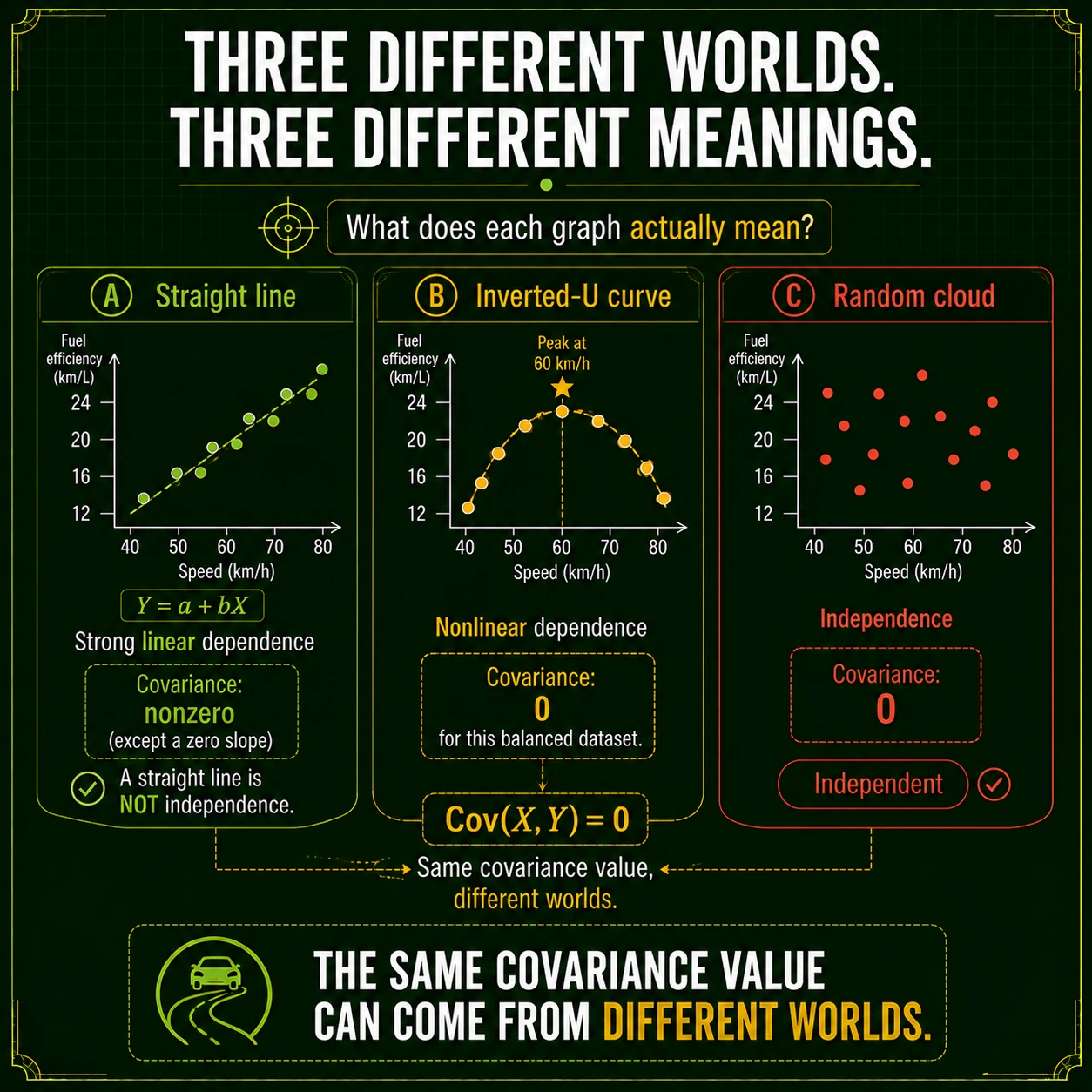

What does zero covariance fail to prove?

INTUITION

Zero covariance rules out only net linear co-movement. Independence is much stronger: learning X must leave the entire distribution of Y unchanged.

  • Learning goalExplain converse warning and its role in separating covariance from independence.
  • Helpful foundationsexpected value · mean and deviations · paired observations
  • Common trapZero covariance is not, in general, proof of statistical independence.
  • Next connectionBuild an exact counterexample
More context

The portrait diagram reads top to bottom through paired-data cards, exact formulas, and restrained directional marks.

Picture 16 of 19 · tap to inspect in full resolution
16

Can zero covariance coexist with perfect dependence?

INTUITION

Let X be equally likely to be -1, 0, or 1 and set Y=X^2. Then E[X]=0, E[XY]=E[X^3]=0, so covariance is zero; yet Y is completely determined by X.

MATHEMATICAL STATEMENTS
  1. Let X be equally likely to be -1, 0, or 1 and set Y=X^2.
  2. Then E[X]=0, E[XY]=E[X^3]=0, so covariance is zero; yet Y is completely determined by X.
  • Learning goalExplain discrete counterexample and its role in separating covariance from independence.
  • Helpful foundationsexpected value · mean and deviations · paired observations
  • Common trapZero covariance is not, in general, proof of statistical independence.
  • Next connectionIndependence factorizes expectations
More context

The portrait diagram reads top to bottom through paired-data cards, exact formulas, and restrained directional marks.

Picture 17 of 19 · tap to inspect in full resolution
17

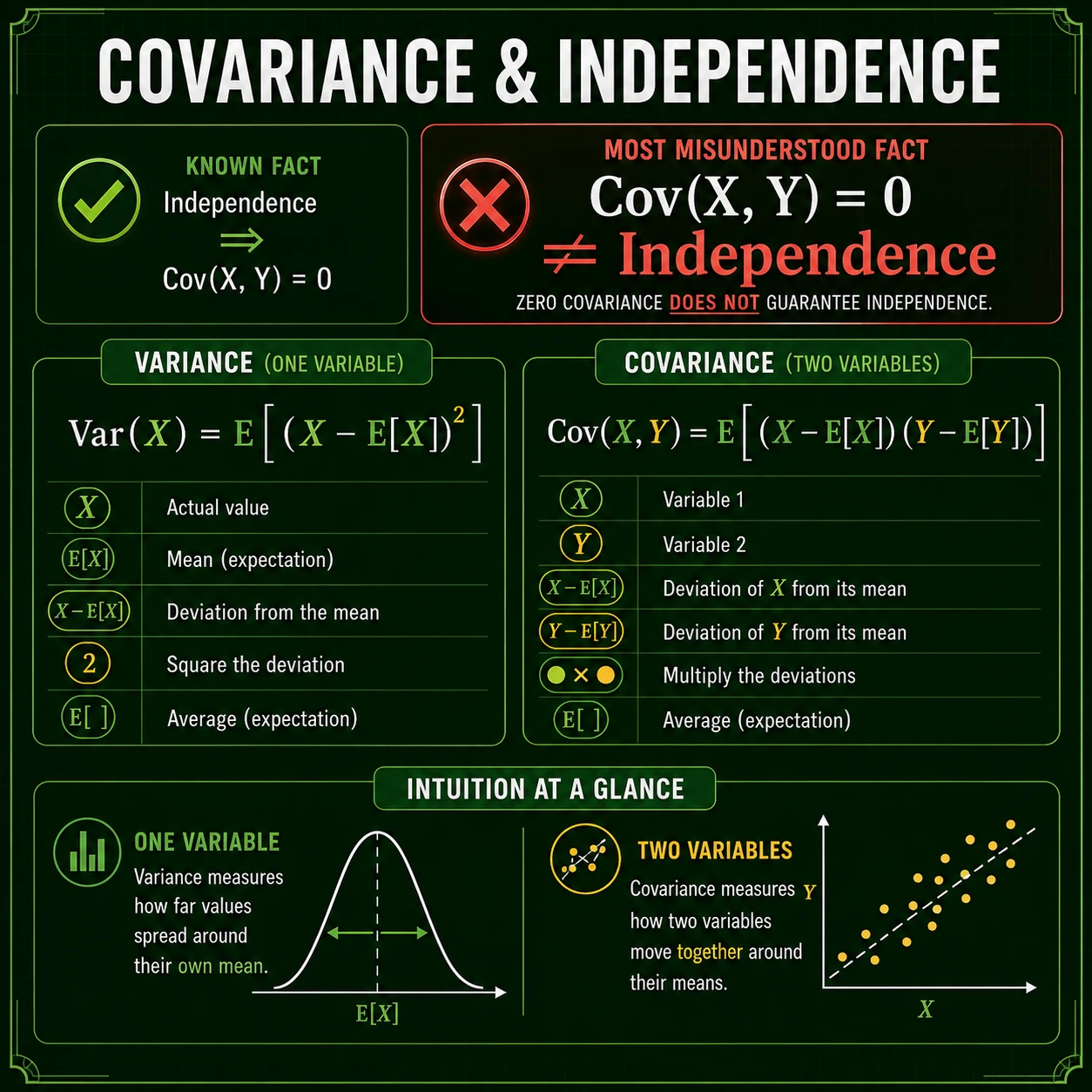

Why does independence imply zero covariance?

INTUITION

If X and Y are independent and the required moments exist, E[XY]=E[X]E[Y]. Substituting into Cov(X,Y)=E[XY]-E[X]E[Y] gives zero.

MATHEMATICAL STATEMENTS
  1. If X and Y are independent and the required moments exist, E[XY]=E[X]E[Y].
  2. Substituting into Cov(X,Y)=E[XY]-E[X]E[Y] gives zero.
  • Learning goalExplain independence proof and its role in separating covariance from independence.
  • Helpful foundationsexpected value · mean and deviations · paired observations
  • Common trapZero covariance is not, in general, proof of statistical independence.
  • Next connectionKnow the special Gaussian exception
More context

The portrait diagram reads top to bottom through paired-data cards, exact formulas, and restrained directional marks.

Picture 18 of 19 · tap to inspect in full resolution
18

When can zero covariance imply independence?

INTUITION

For a jointly Gaussian pair, zero covariance does imply independence. Merely having two separately normal marginal distributions is not enough; the pair must be jointly Gaussian.

  • Learning goalExplain joint gaussian qualification and its role in separating covariance from independence.
  • Helpful foundationsexpected value · mean and deviations · paired observations
  • Common trapZero covariance is not, in general, proof of statistical independence.
  • Next connectionUse the implication in the right direction
More context

The portrait diagram reads top to bottom through paired-data cards, exact formulas, and restrained directional marks.

Picture 19 of 19 · tap to inspect in full resolution
19

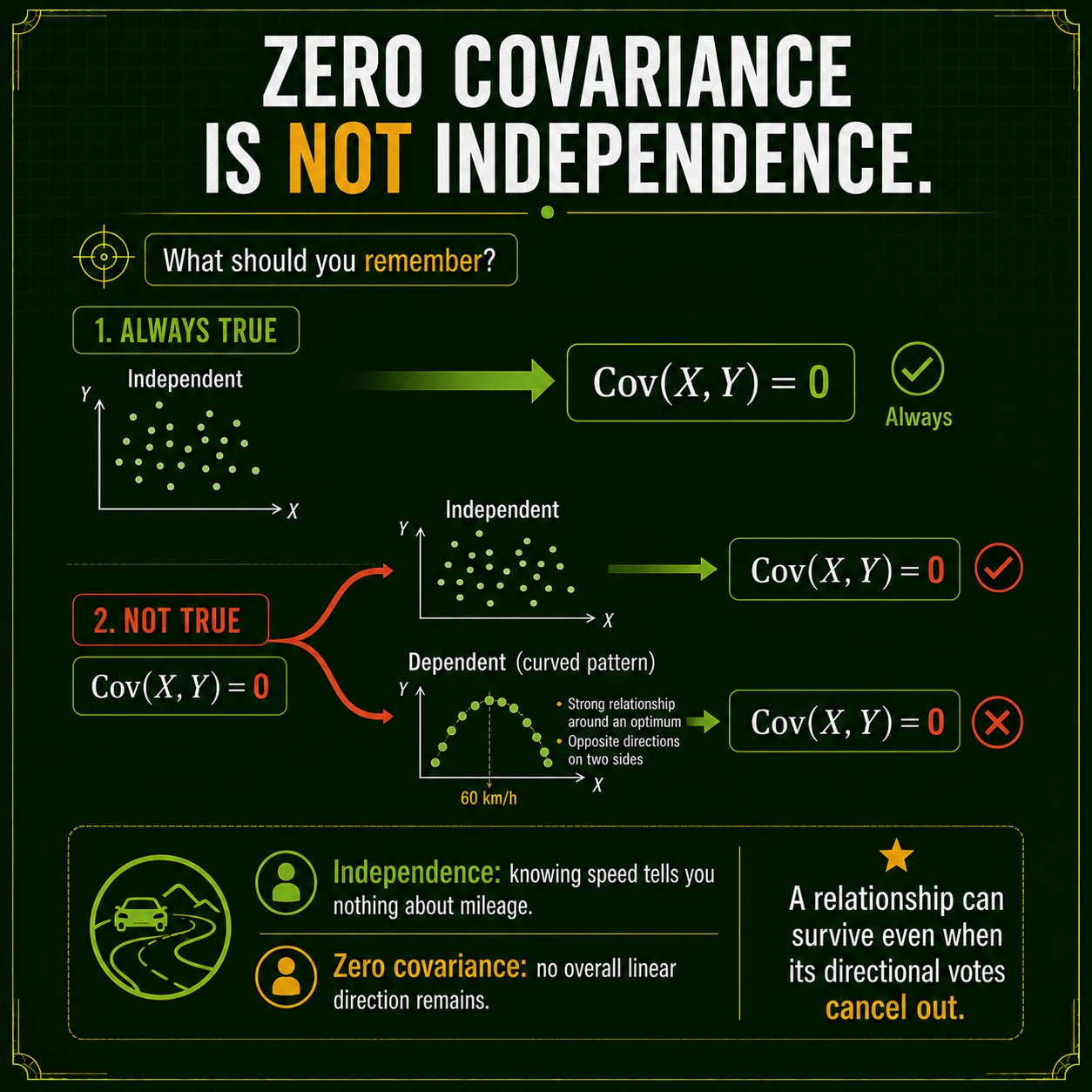

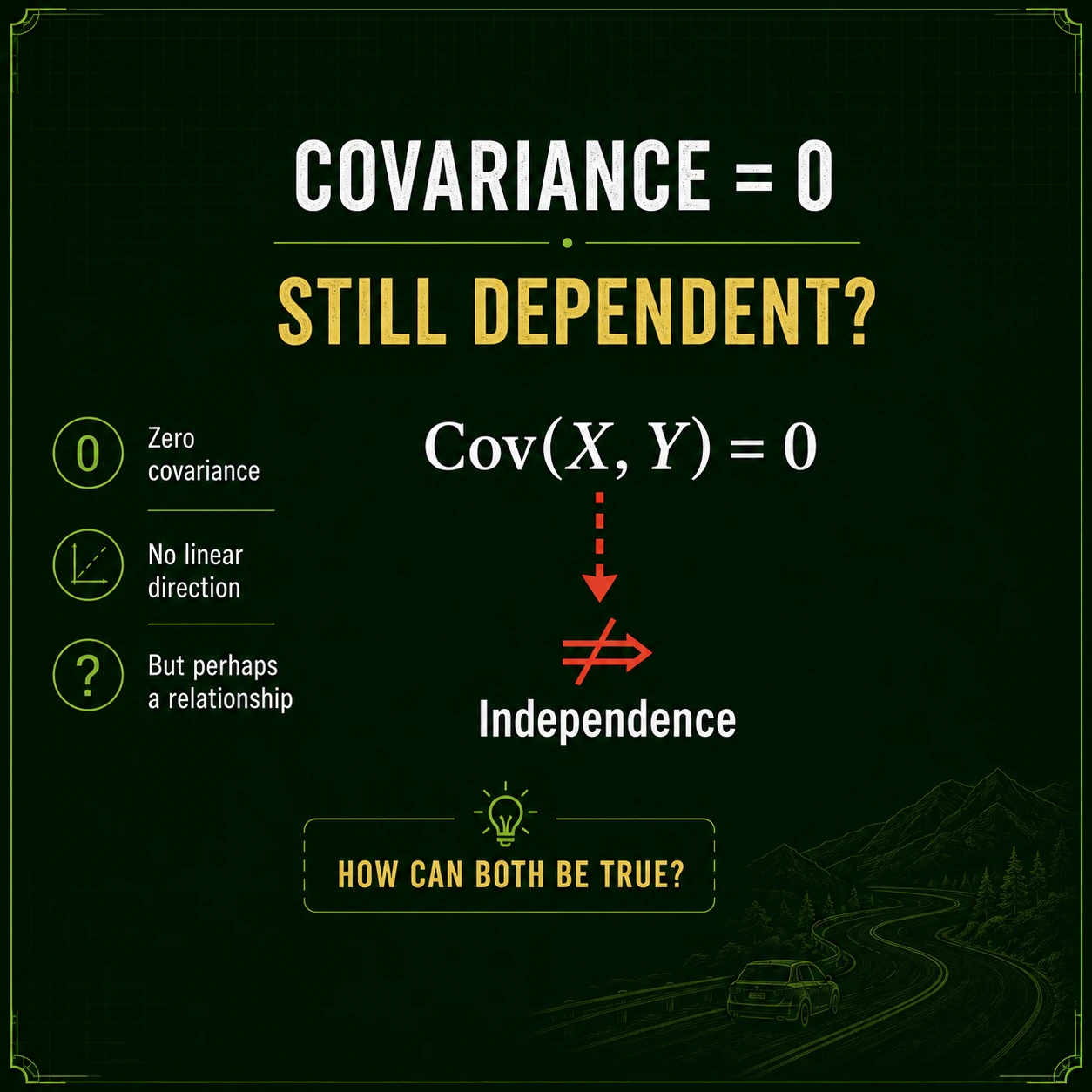

What should you conclude from covariance zero?

INTUITION

Conclude only that the linear covariance signal is zero. To claim independence, justify factorization or a condition such as joint Gaussianity; otherwise inspect nonlinear structure and conditional behavior.

  • Learning goalExplain decision checklist and its role in separating covariance from independence.
  • Helpful foundationsexpected value · mean and deviations · paired observations
  • Common trapZero covariance is not, in general, proof of statistical independence.
  • Next connectionTest dependence with plots and conditional distributions
More context

The portrait diagram reads top to bottom through paired-data cards, exact formulas, and restrained directional marks.
