The Indicator Counting Trick

How can a difficult global count be built from small yes-or-no questions?

MODULE 3 / 6LESSON 40 / 50PICTURE 1 / 17
Progress stays on this device · no login
BEFORE THE FIRST PICTURE

How this lesson unfolds.

Begin with How can one idea count many different things? The sequence then connects A truth value becomes a number and builds toward The complete indicator pipeline.

Picture 1 of 17 · tap to inspect in full resolution
01

How can one idea count many different things?

INTUITION

Turn each candidate object into a precise yes-or-no question, encode yes as 1 and no as 0, then add the answers. The surrounding story may change, but the counting engine stays the same.

  • Learning goalExplain indicator counting hook and identify the local candidate set before summing.
  • Helpful foundationsfinite sets · basic probability · summation notation
  • Common trapLinearity of expectation does not require independence, although product probabilities such as p^3 and (1-p)^4 do require the stated independent-edge model.
  • Next connectionA truth value becomes a number
More context

The portrait diagram reads from the defining formula through three checks, a concrete five-person visual, and one conclusion.

Picture 2 of 17 · tap to inspect in full resolution

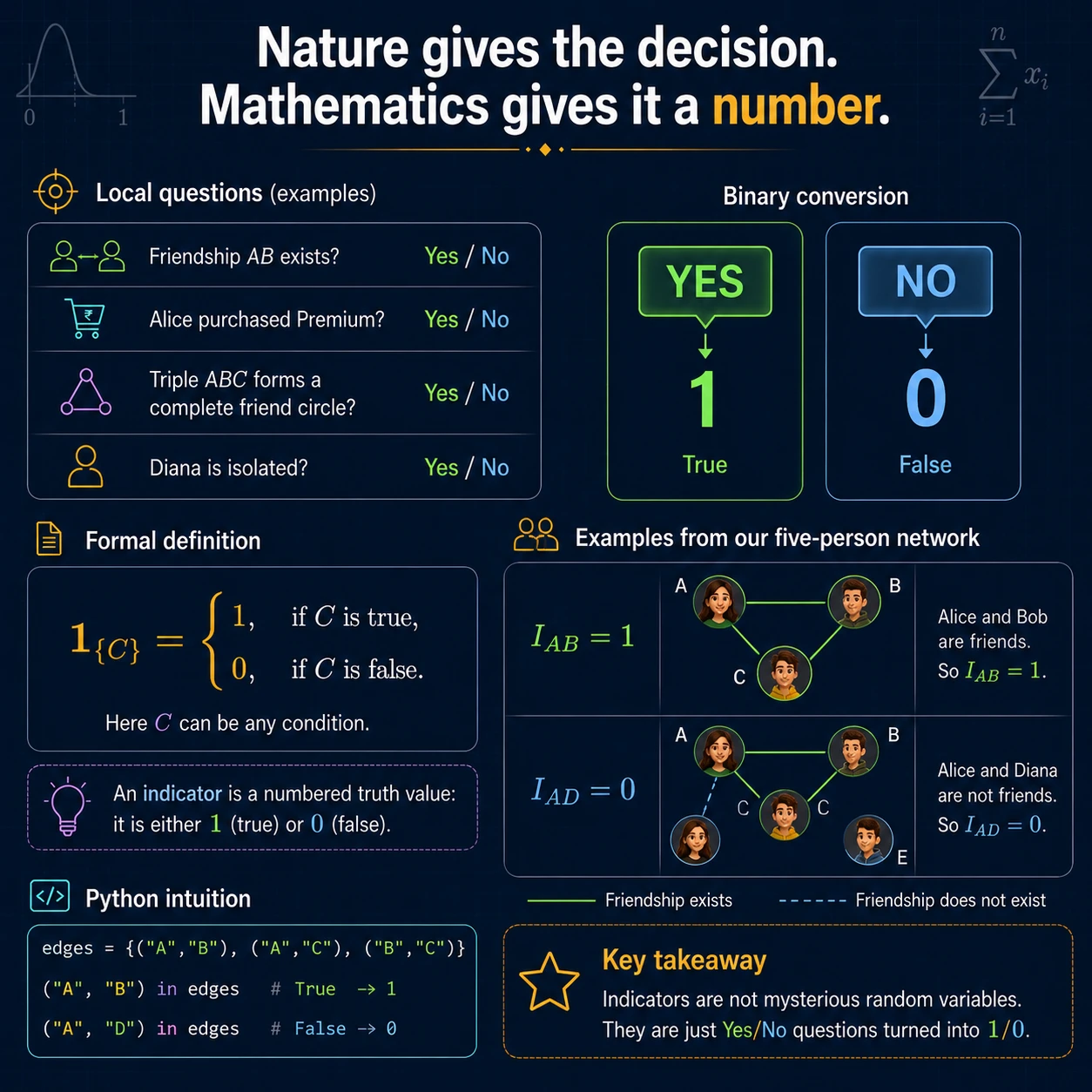

02

What exactly is an indicator?

INTUITION

For any condition C, the indicator 1{C} equals 1 when C is true and 0 otherwise. An indicator is a numbered truth value, not a mysterious extra object.

MATHEMATICAL STATEMENT
  1. For any condition C, the indicator 1{C} equals 1 when C is true and 0 otherwise.
  • Learning goalExplain indicator definition and identify the local candidate set before summing.
  • Helpful foundationsfinite sets · basic probability · summation notation
  • Common trapLinearity of expectation does not require independence, although product probabilities such as p^3 and (1-p)^4 do require the stated independent-edge model.
  • Next connectionA snapshot is not yet probability
More context

The portrait diagram reads from the defining formula through three checks, a concrete five-person visual, and one conclusion.

Picture 3 of 17 · tap to inspect in full resolution

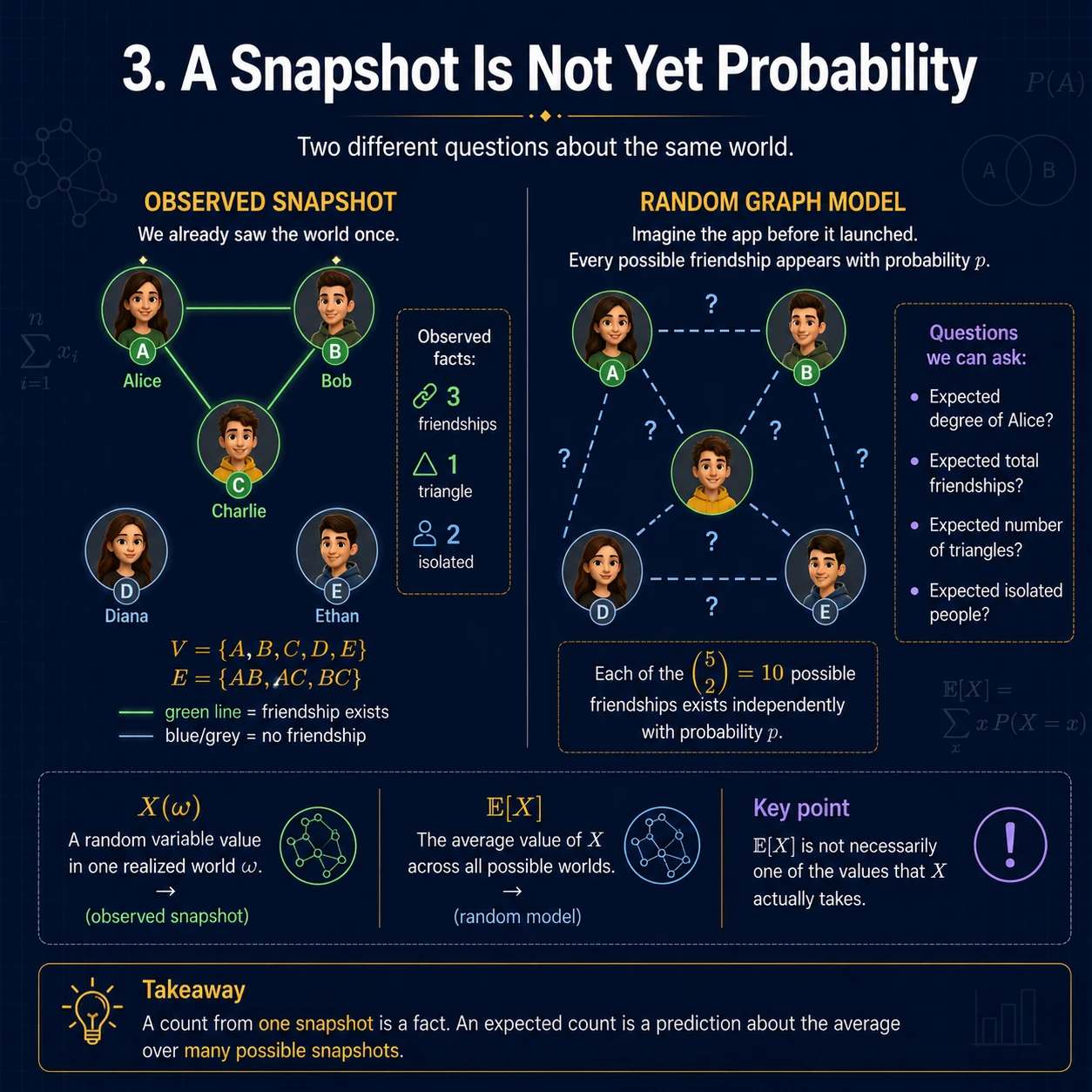

03

What changes when one observed count becomes an expectation?

INTUITION

A realized graph gives one value X(omega). A random graph model describes many possible graphs, and E[X] is the probability-weighted average across those possible worlds—not necessarily a value observed in this snapshot.

  • Learning goalExplain observation versus random model and identify the local candidate set before summing.
  • Helpful foundationsfinite sets · basic probability · summation notation
  • Common trapLinearity of expectation does not require independence, although product probabilities such as p^3 and (1-p)^4 do require the stated independent-edge model.
  • Next connectionMeet one world with many questions
More context

The portrait diagram reads from the defining formula through three checks, a concrete five-person visual, and one conclusion.

Picture 4 of 17 · tap to inspect in full resolution

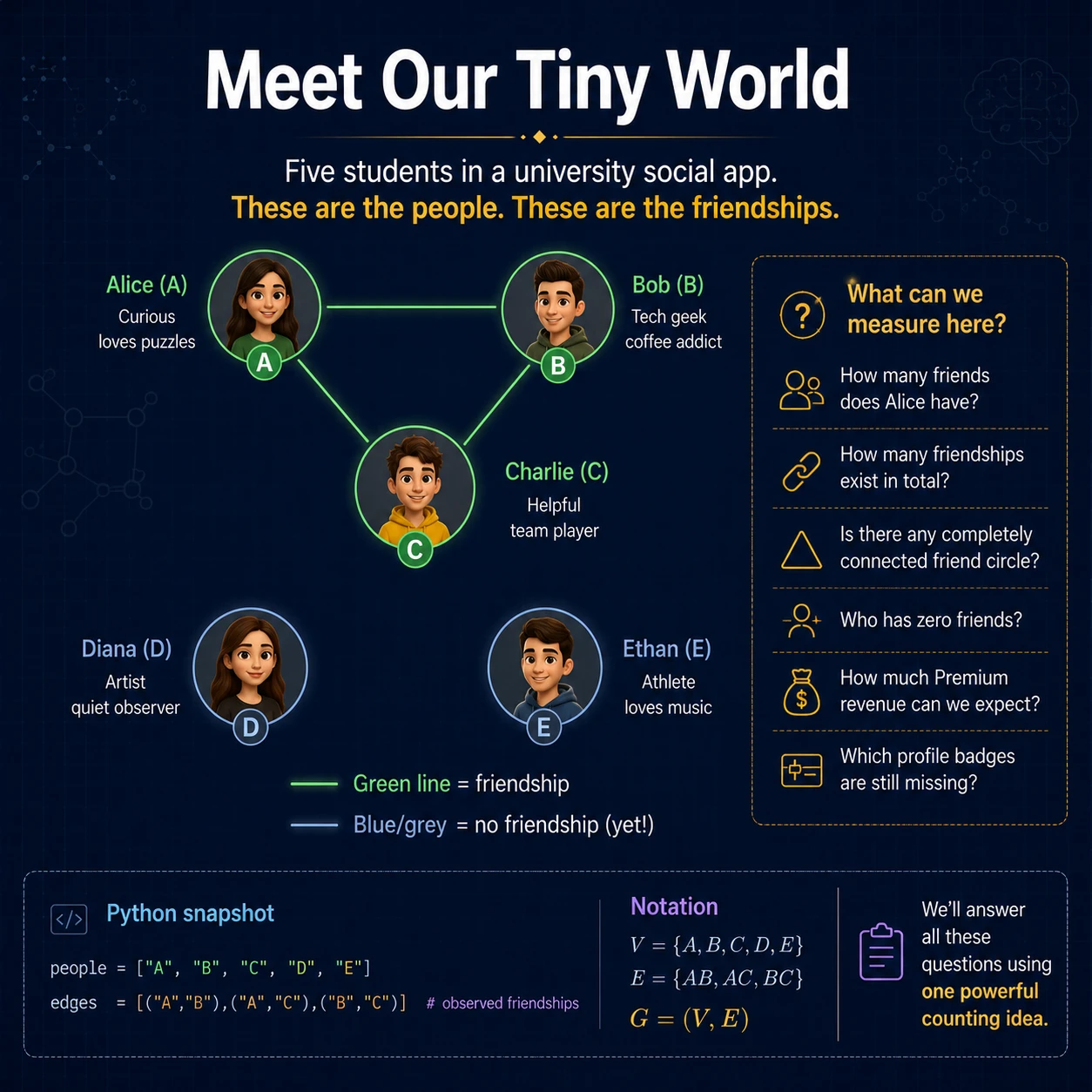

04

What will we count in the five-person app?

INTUITION

Use V={A,B,C,D,E} and observed friendships E={AB,AC,BC}. The same world supports questions about Alice's degree, total friendships, triangles, isolated people, premium revenue, and badge types.

MATHEMATICAL STATEMENT
  1. Use V={A,B,C,D,E} and observed friendships E={AB,AC,BC}.
  • Learning goalExplain shared five person world and identify the local candidate set before summing.
  • Helpful foundationsfinite sets · basic probability · summation notation
  • Common trapLinearity of expectation does not require independence, although product probabilities such as p^3 and (1-p)^4 do require the stated independent-edge model.
  • Next connectionChoose the building block first
More context

The portrait diagram reads from the defining formula through three checks, a concrete five-person visual, and one conclusion.

Picture 5 of 17 · tap to inspect in full resolution

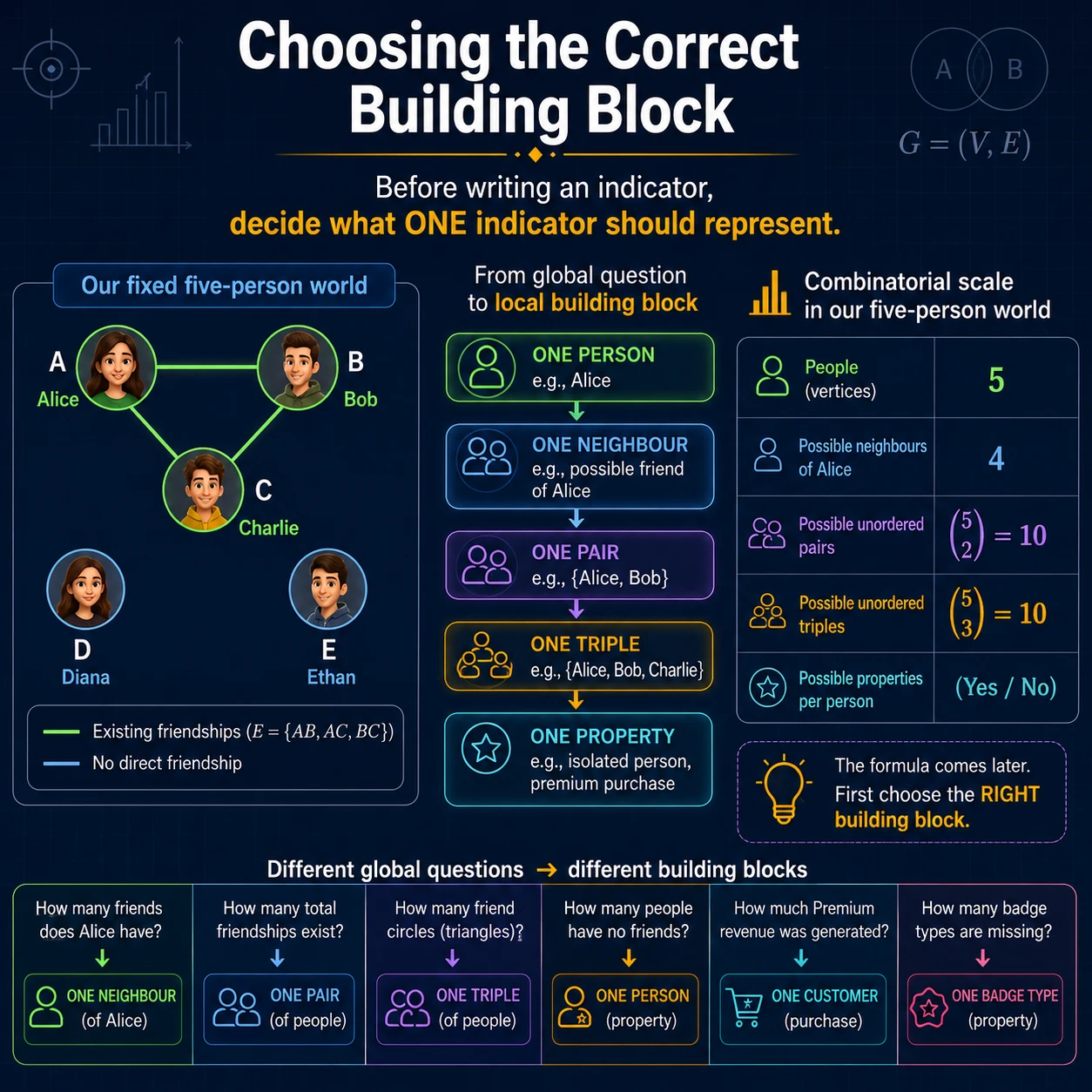

05

What should one indicator represent?

INTUITION

Match the global target to one local candidate: a neighbour, unordered pair, unordered triple, person, customer, or badge type. The formula becomes natural only after this unit is chosen.

  • Learning goalExplain local building block and identify the local candidate set before summing.
  • Helpful foundationsfinite sets · basic probability · summation notation
  • Common trapLinearity of expectation does not require independence, although product probabilities such as p^3 and (1-p)^4 do require the stated independent-edge model.
  • Next connectionIndices reveal the question
More context

The portrait diagram reads from the defining formula through three checks, a concrete five-person visual, and one conclusion.

Picture 6 of 17 · tap to inspect in full resolution

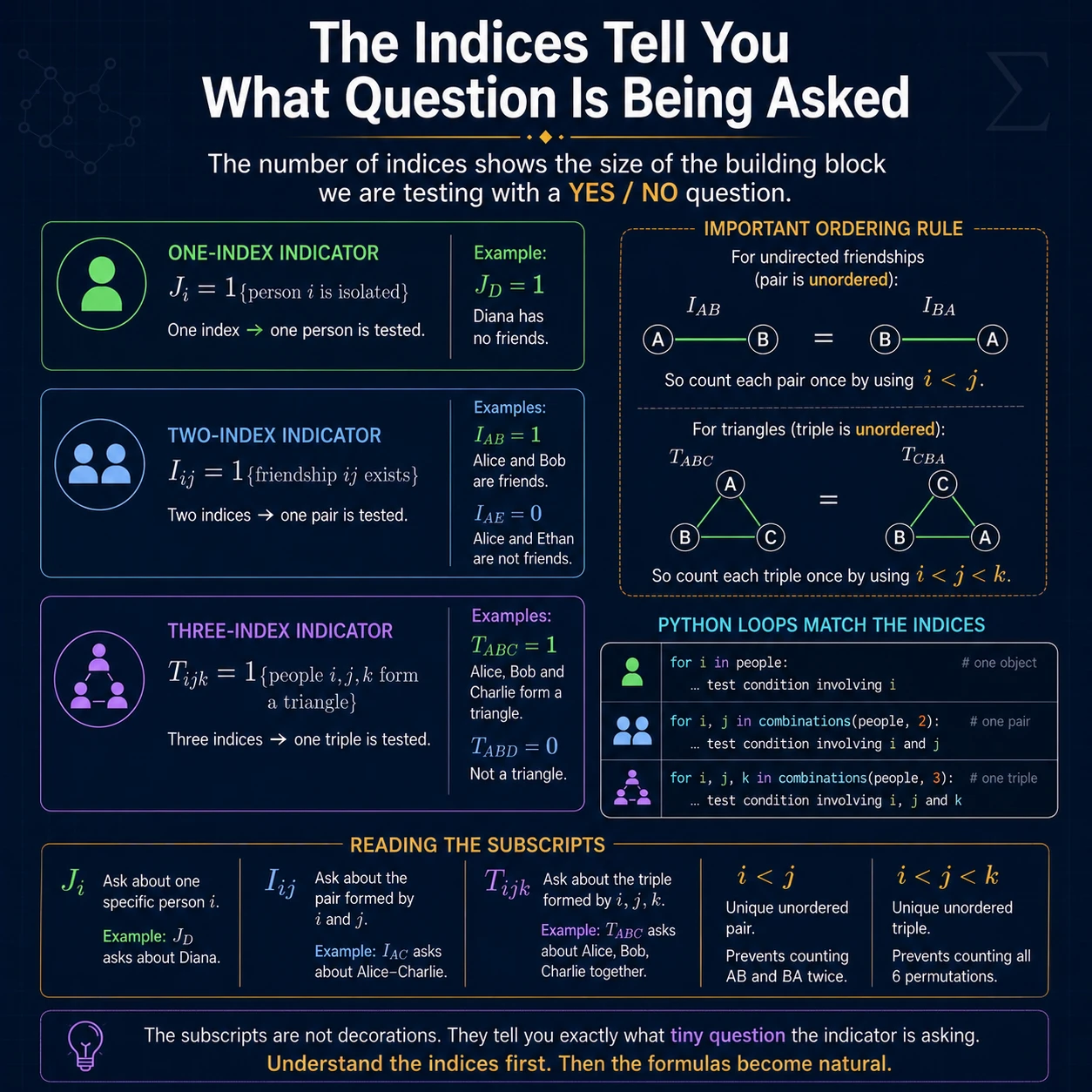

06

Why do some indicators have one, two, or three indices?

INTUITION

One index tests one person, two indices test one pair, and three indices test one triple. For unordered objects, restrictions such as i<j and i<j<k give one representation and prevent duplicate counting.

  • Learning goalExplain indicator indices and identify the local candidate set before summing.
  • Helpful foundationsfinite sets · basic probability · summation notation
  • Common trapLinearity of expectation does not require independence, although product probabilities such as p^3 and (1-p)^4 do require the stated independent-edge model.
  • Next connectionCoverage plus uniqueness gives an exact count
More context

The portrait diagram reads from the defining formula through three checks, a concrete five-person visual, and one conclusion.

Picture 7 of 17 · tap to inspect in full resolution

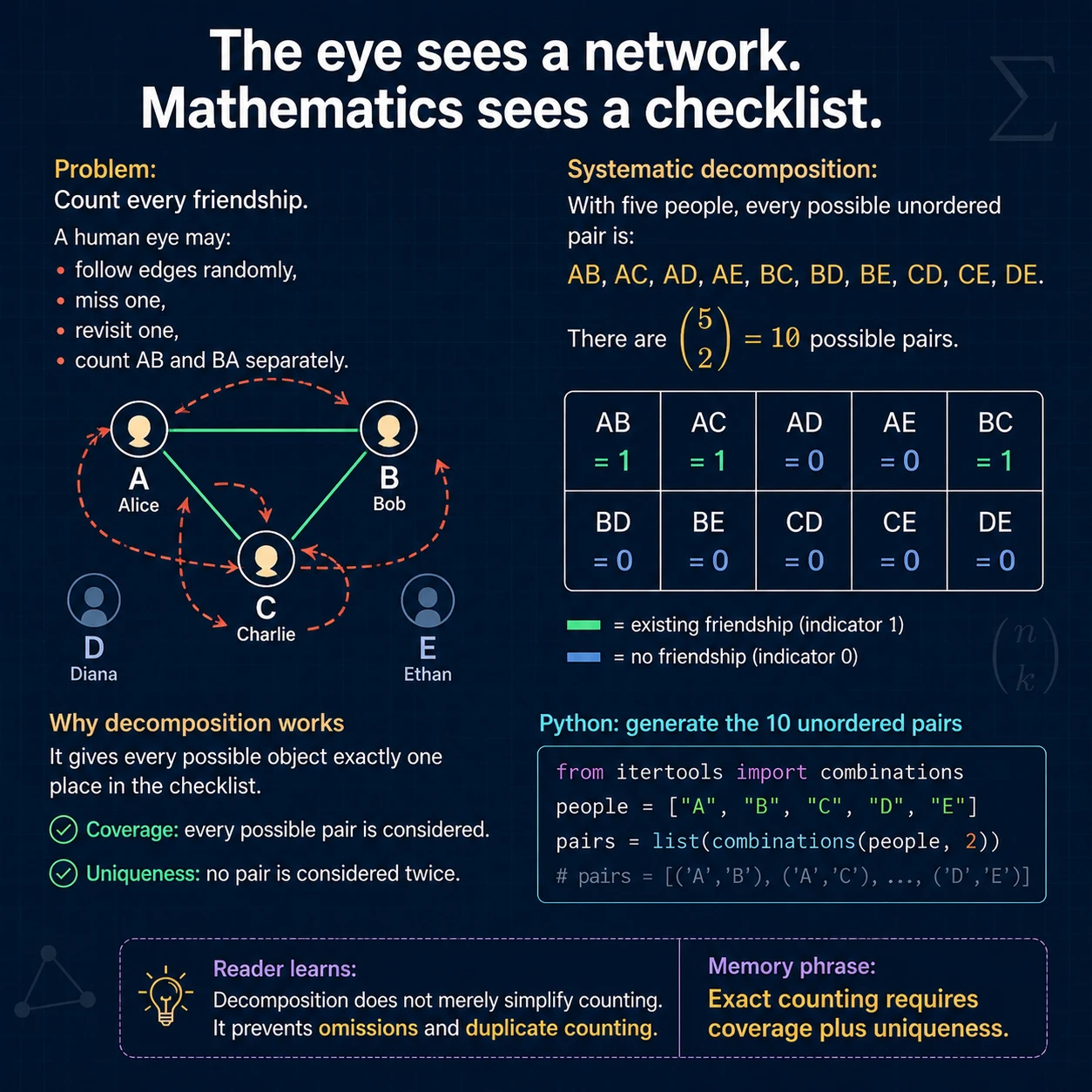

07

How does a checklist prevent counting mistakes?

INTUITION

List every possible candidate and list each exactly once. Coverage prevents omissions; uniqueness prevents duplicates such as counting AB and BA as two friendships.

  • Learning goalExplain coverage and uniqueness and identify the local candidate set before summing.
  • Helpful foundationsfinite sets · basic probability · summation notation
  • Common trapLinearity of expectation does not require independence, although product probabilities such as p^3 and (1-p)^4 do require the stated independent-edge model.
  • Next connectionSigma simply adds local answers
More context

The portrait diagram reads from the defining formula through three checks, a concrete five-person visual, and one conclusion.

Picture 8 of 17 · tap to inspect in full resolution

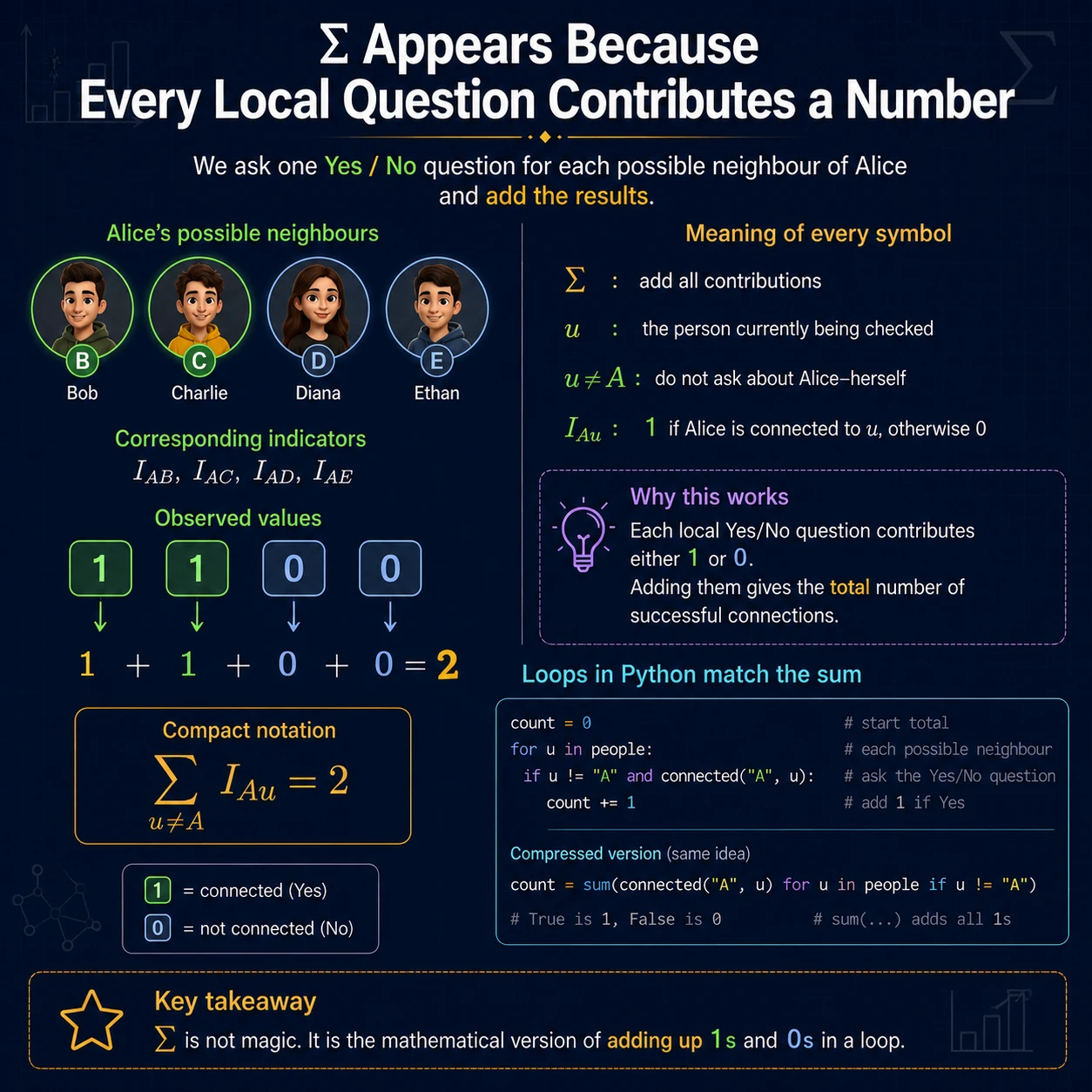

08

What does summation notation mean here?

INTUITION

For every possible neighbour u of Alice, I_Au contributes either 1 or 0. The sum over u not equal to A is the mathematical version of a loop that adds every successful local answer.

MATHEMATICAL STATEMENT
  1. The sum over u not equal to A is the mathematical version of a loop that adds every successful local answer.
  • Learning goalExplain indicator summation and identify the local candidate set before summing.
  • Helpful foundationsfinite sets · basic probability · summation notation
  • Common trapLinearity of expectation does not require independence, although product probabilities such as p^3 and (1-p)^4 do require the stated independent-edge model.
  • Next connectionCount Alice's friends
More context

The portrait diagram reads from the defining formula through three checks, a concrete five-person visual, and one conclusion.

Picture 9 of 17 · tap to inspect in full resolution

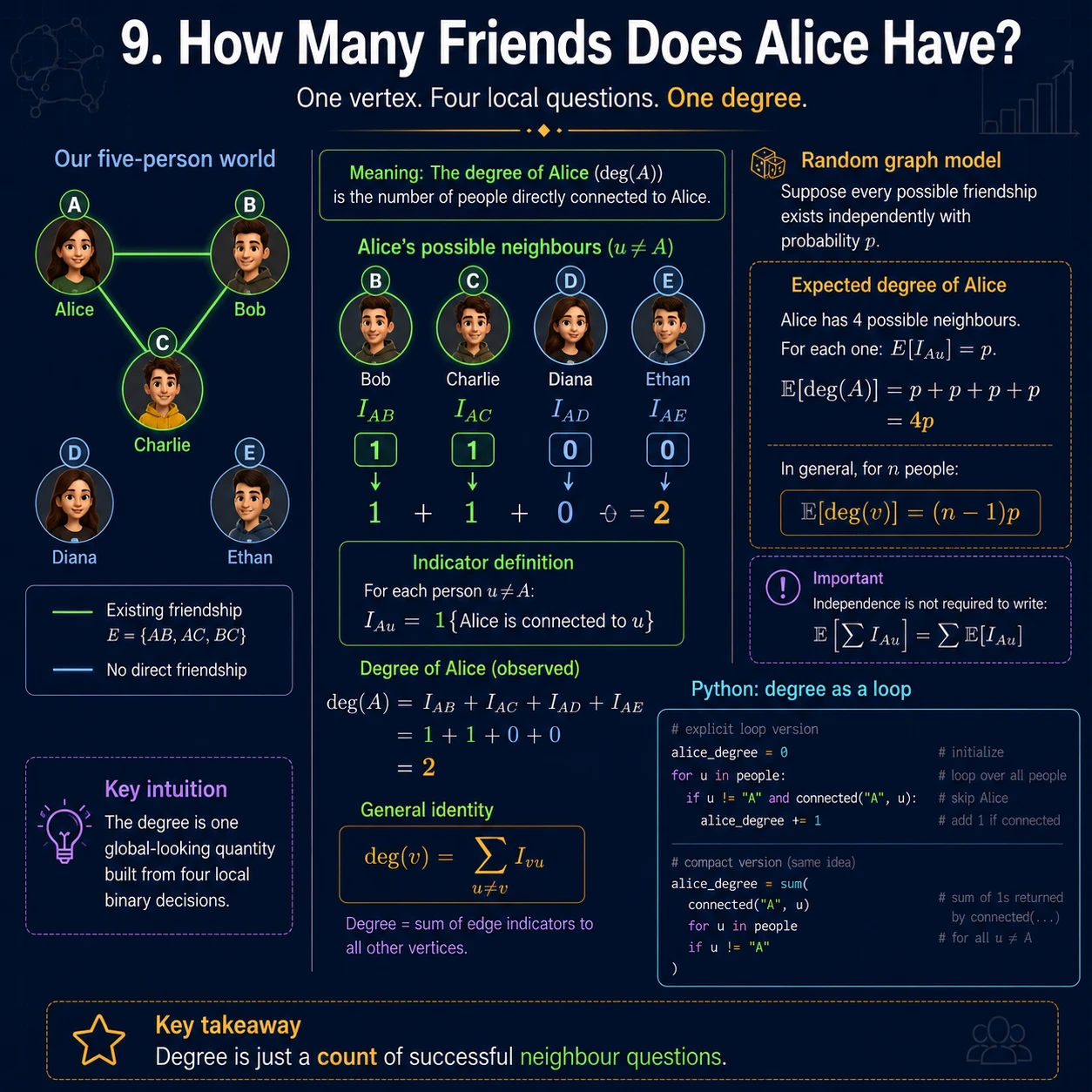

09

How do four neighbour questions become one degree?

INTUITION

Alice's indicators against B,C,D,E are 1,1,0,0, so deg(A)=2. If every possible Alice-edge has marginal probability p, linearity gives E[deg(A)]=4p; independence is not needed for this expectation.

MATHEMATICAL STATEMENTS
  1. Alice's indicators against B,C,D,E are 1,1,0,0, so deg(A)=2.
  2. If every possible Alice-edge has marginal probability p, linearity gives E[deg(A)]=4p; independence is not needed for this expectation.
  • Learning goalExplain degree by indicators and identify the local candidate set before summing.
  • Helpful foundationsfinite sets · basic probability · summation notation
  • Common trapLinearity of expectation does not require independence, although product probabilities such as p^3 and (1-p)^4 do require the stated independent-edge model.
  • Next connectionCount every friendship once
More context

The portrait diagram reads from the defining formula through three checks, a concrete five-person visual, and one conclusion.

Picture 10 of 17 · tap to inspect in full resolution

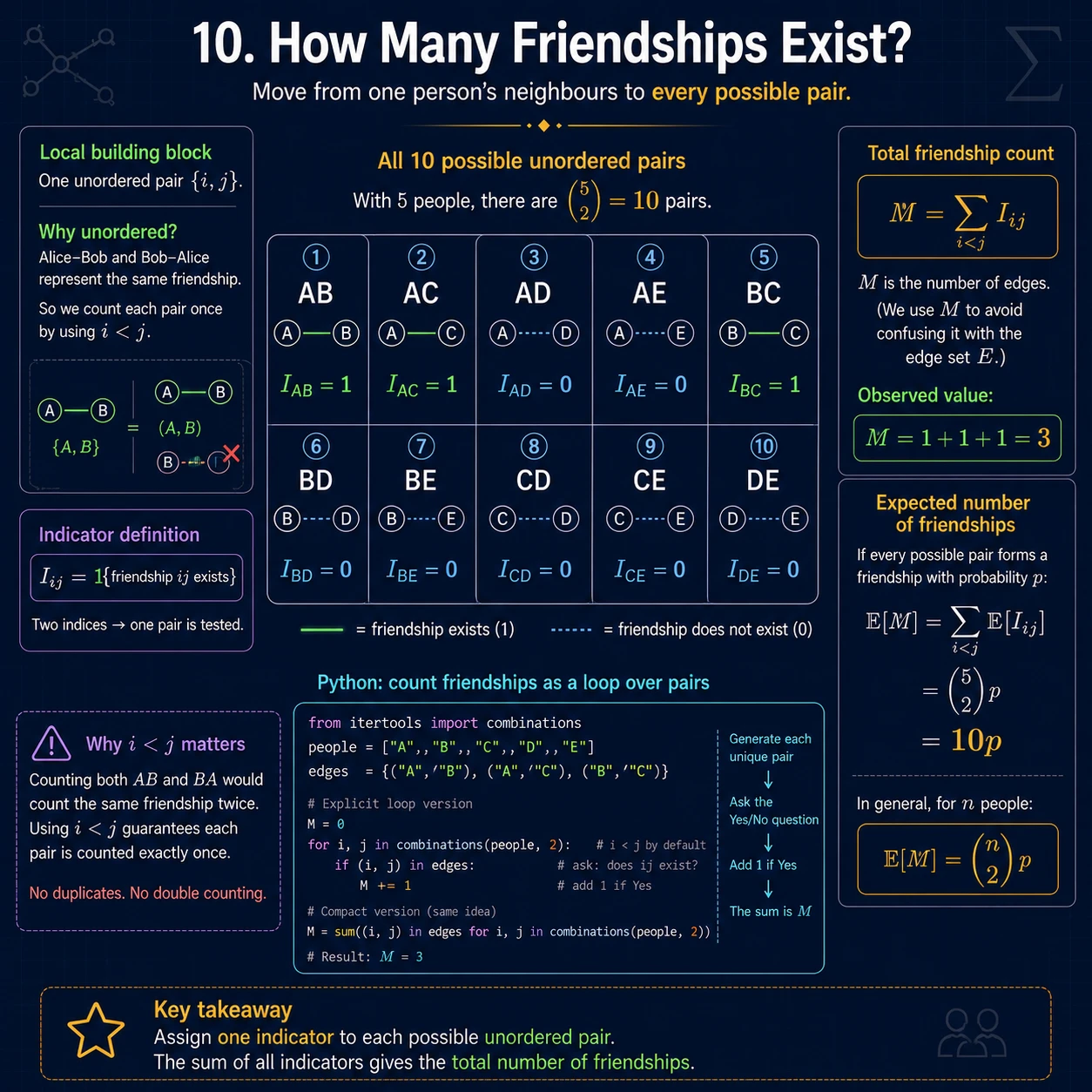

10

How do pair indicators count all edges?

INTUITION

Five people create C(5,2)=10 unordered pairs. Summing I_ij over i<j gives M=3 in the observed graph and E[M]=10p when each pair has marginal friendship probability p.

MATHEMATICAL STATEMENTS
  1. Five people create C(5,2)=10 unordered pairs.
  2. Summing I_ij over i<j gives M=3 in the observed graph and E[M]=10p when each pair has marginal friendship probability p.
  • Learning goalExplain edge count by pairs and identify the local candidate set before summing.
  • Helpful foundationsfinite sets · basic probability · summation notation
  • Common trapLinearity of expectation does not require independence, although product probabilities such as p^3 and (1-p)^4 do require the stated independent-edge model.
  • Next connectionCount completely connected triples
More context

The portrait diagram reads from the defining formula through three checks, a concrete five-person visual, and one conclusion.

Picture 11 of 17 · tap to inspect in full resolution

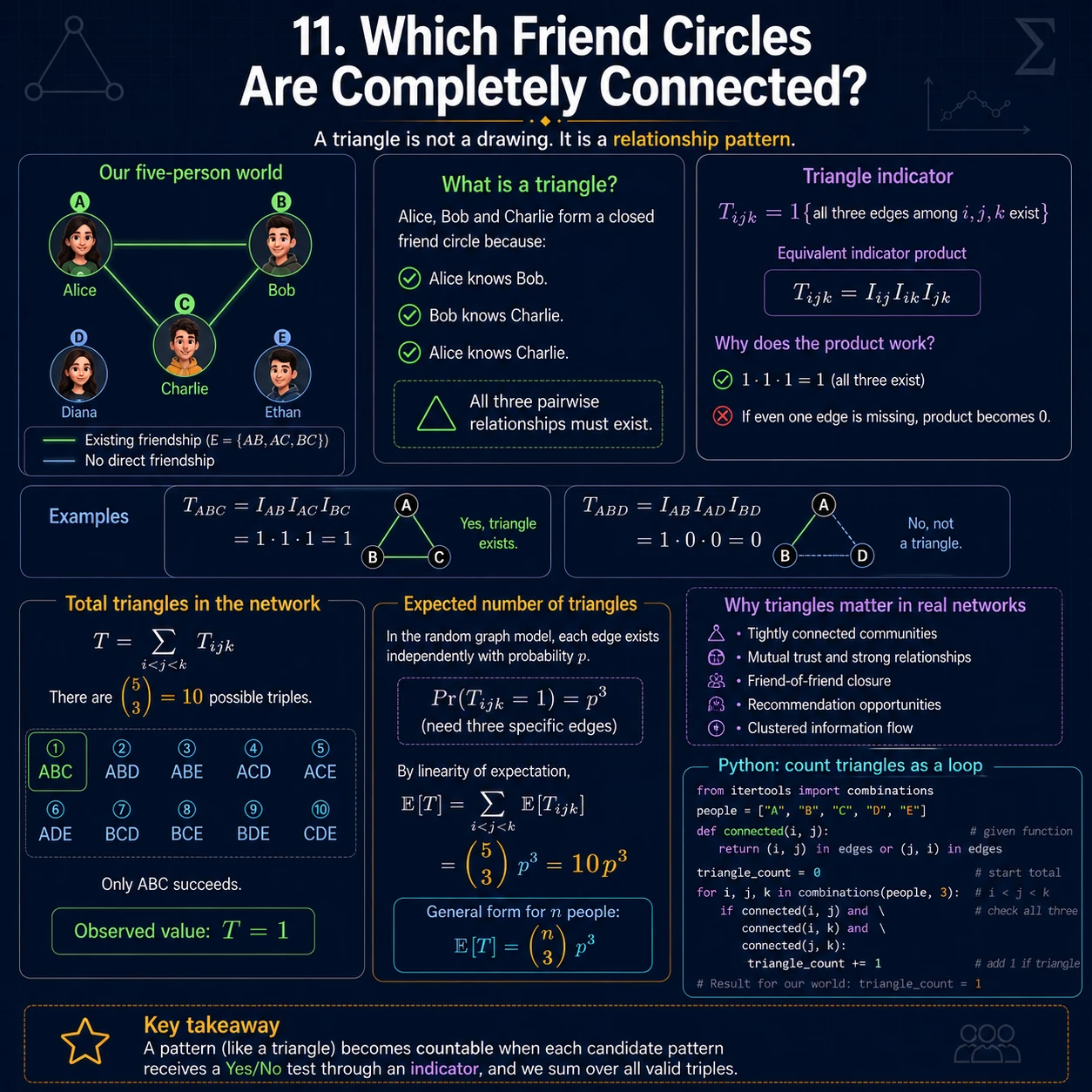

11

When does one triple form a triangle?

INTUITION

For i<j<k, the triangle indicator is T_ijk=I_ij I_ik I_jk. Only ABC succeeds in the observed graph. With independent edges of common probability p, E[T]=C(5,3)p^3=10p^3.

MATHEMATICAL STATEMENTS
  1. For i<j<k, the triangle indicator is T_ijk=I_ij I_ik I_jk.
  2. With independent edges of common probability p, E[T]=C(5,3)p^3=10p^3.
  • Learning goalExplain triangle count by products and identify the local candidate set before summing.
  • Helpful foundationsfinite sets · basic probability · summation notation
  • Common trapLinearity of expectation does not require independence, although product probabilities such as p^3 and (1-p)^4 do require the stated independent-edge model.
  • Next connectionCount people with no friends
More context

The portrait diagram reads from the defining formula through three checks, a concrete five-person visual, and one conclusion.

Picture 12 of 17 · tap to inspect in full resolution

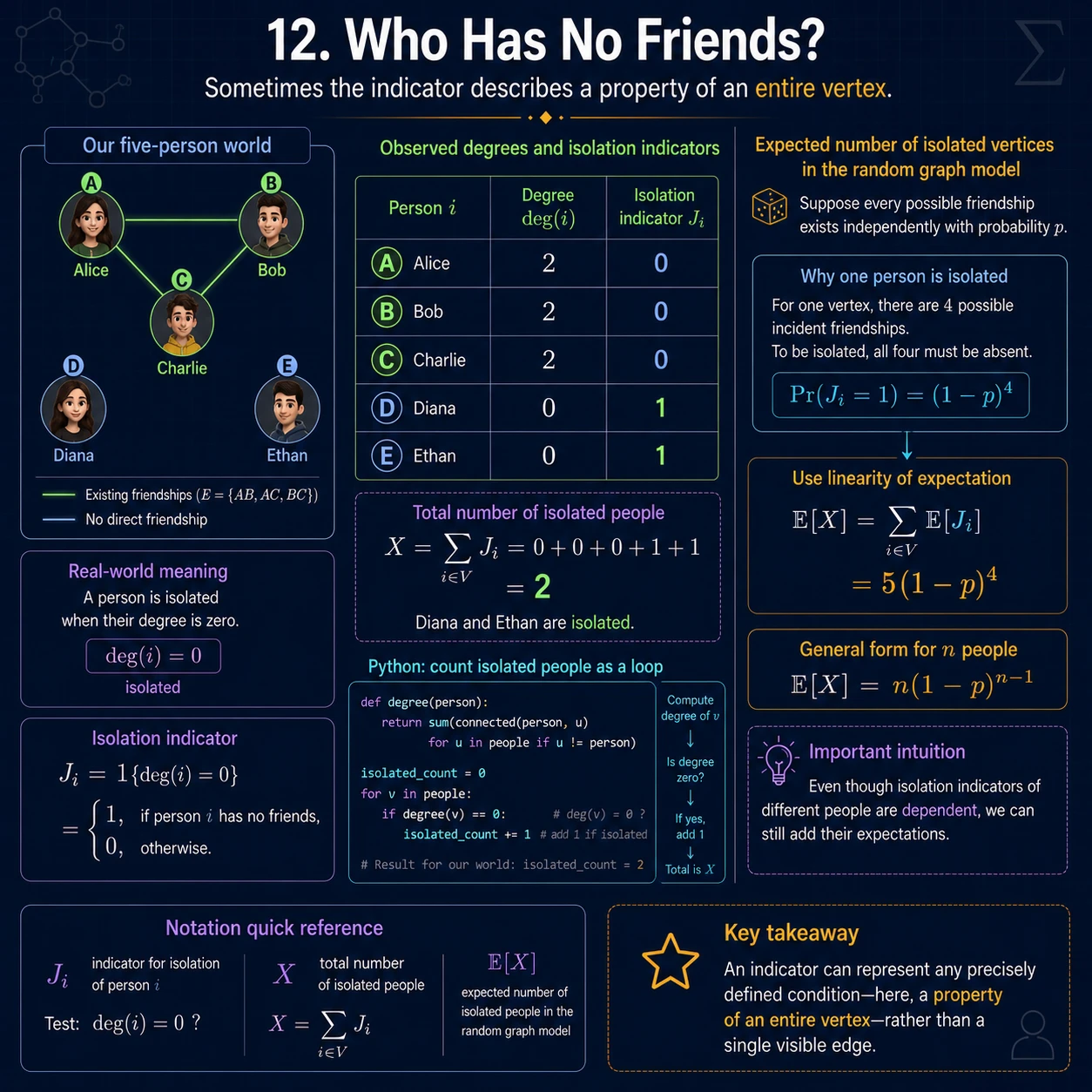

12

Can an indicator test a property of an entire person?

INTUITION

Let J_i=1 when deg(i)=0. Diana and Ethan are isolated, so the observed total is 2. Under independent edge probability p, E[sum_i J_i]=5(1-p)^4; the J_i themselves need not be independent for linearity.

MATHEMATICAL STATEMENTS
  1. Let J_i=1 when deg(i)=0.
  2. Under independent edge probability p, E[sum_i J_i]=5(1-p)^4; the J_i themselves need not be independent for linearity.
  • Learning goalExplain isolated vertex count and identify the local candidate set before summing.
  • Helpful foundationsfinite sets · basic probability · summation notation
  • Common trapLinearity of expectation does not require independence, although product probabilities such as p^3 and (1-p)^4 do require the stated independent-edge model.
  • Next connectionLet each yes carry a weight
More context

The portrait diagram reads from the defining formula through three checks, a concrete five-person visual, and one conclusion.

Picture 13 of 17 · tap to inspect in full resolution

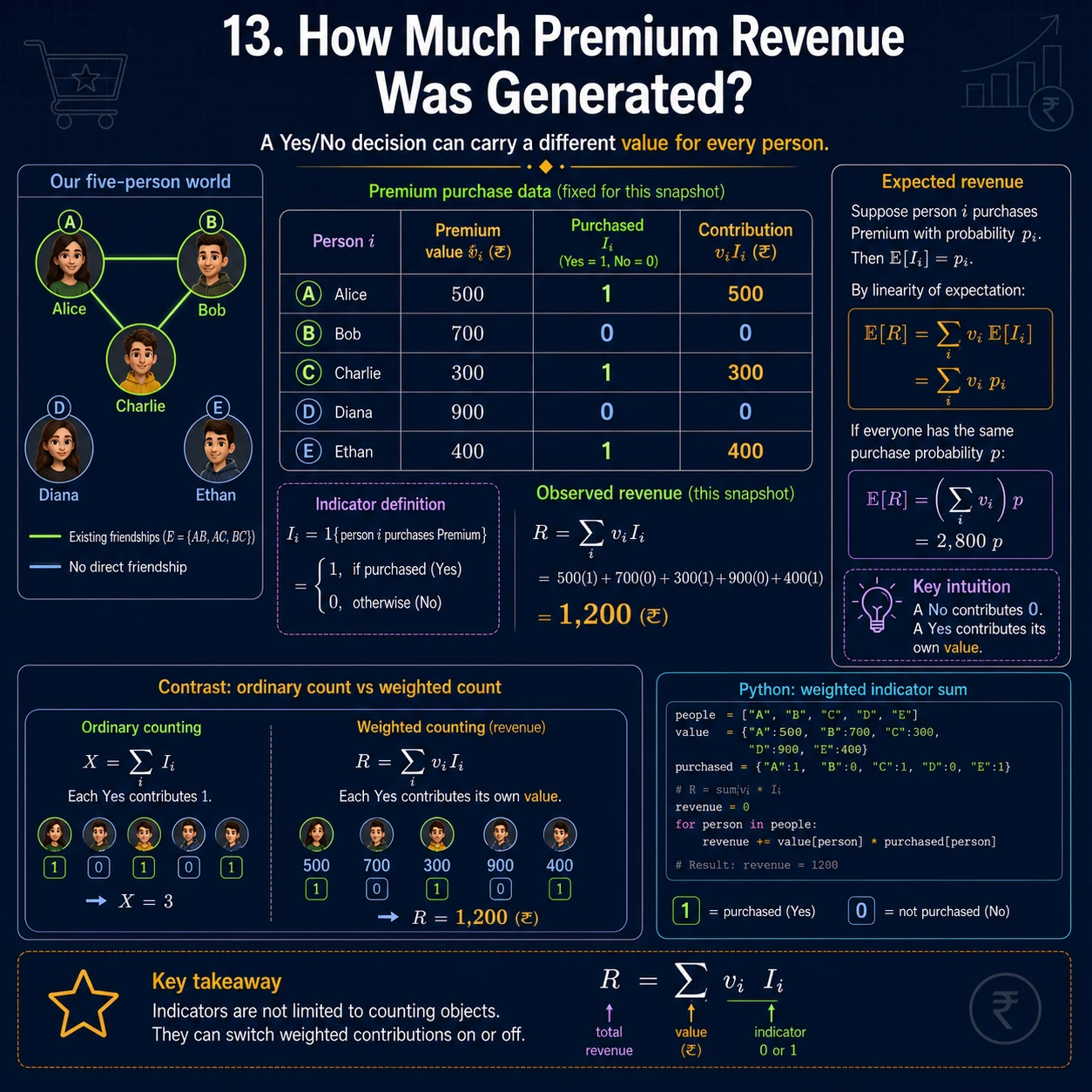

13

How can indicators total premium revenue?

INTUITION

Multiply customer i's purchase indicator by value w_i. The observed weighted sum is 500+300+400=1200. In general E[R]=sum_i w_i p_i; with common purchase probability p and total value 2800, E[R]=2800p.

MATHEMATICAL STATEMENTS
  1. The observed weighted sum is 500+300+400=1200.
  2. In general E[R]=sum_i w_i p_i; with common purchase probability p and total value 2800, E[R]=2800p.
  • Learning goalExplain weighted indicator sum and identify the local candidate set before summing.
  • Helpful foundationsfinite sets · basic probability · summation notation
  • Common trapLinearity of expectation does not require independence, although product probabilities such as p^3 and (1-p)^4 do require the stated independent-edge model.
  • Next connectionCount missing badge types
More context

The portrait diagram reads from the defining formula through three checks, a concrete five-person visual, and one conclusion.

Picture 14 of 17 · tap to inspect in full resolution

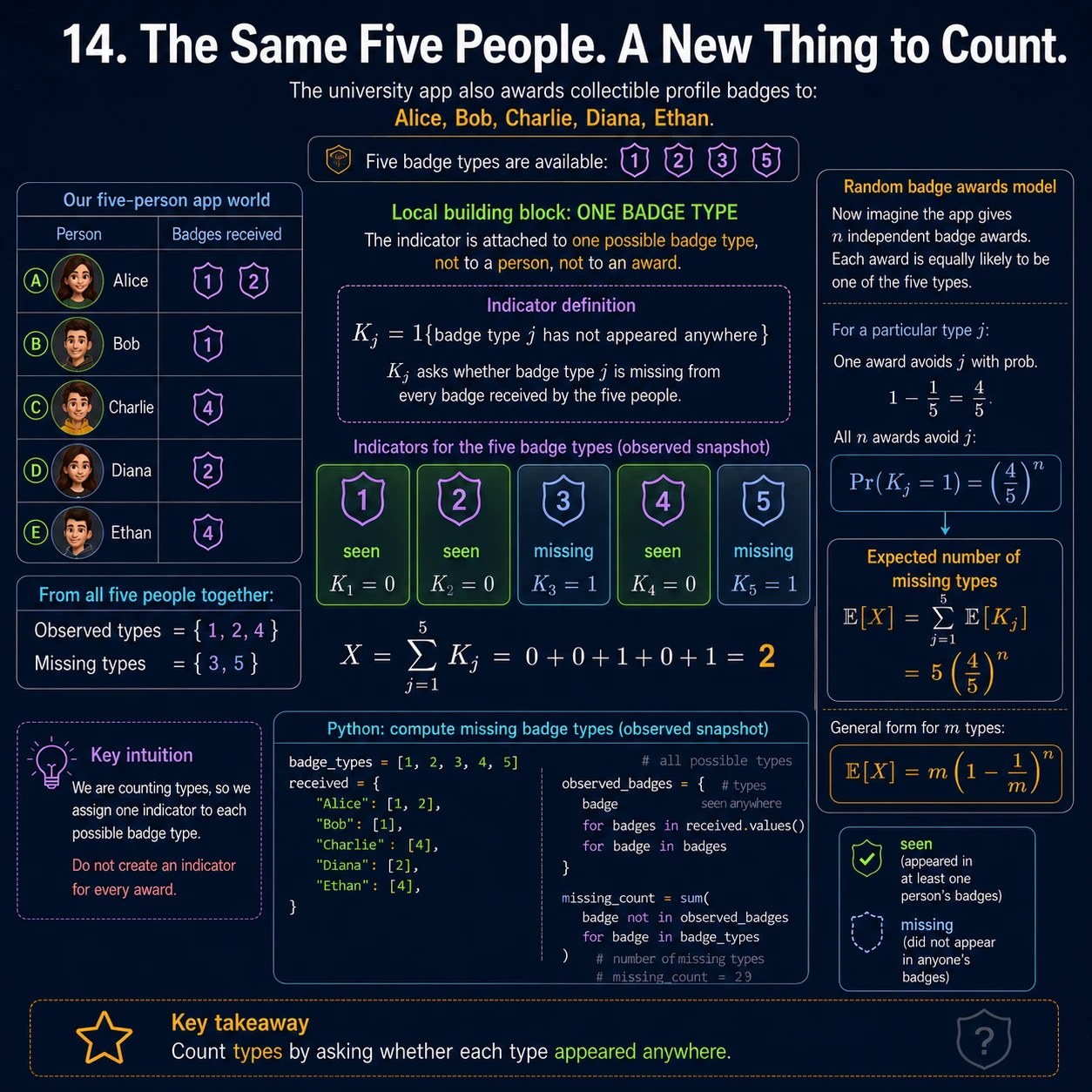

14

What is the right indicator when the target is a type?

INTUITION

Attach K_j to badge type j, not to each award: K_j=1 when type j never appears. Types 3 and 5 are missing in the snapshot. With n independent uniform awards among five types, E[X]=5(4/5)^n.

MATHEMATICAL STATEMENTS
  1. Attach K_j to badge type j, not to each award: K_j=1 when type j never appears.
  2. With n independent uniform awards among five types, E[X]=5(4/5)^n.
  • Learning goalExplain missing types indicators and identify the local candidate set before summing.
  • Helpful foundationsfinite sets · basic probability · summation notation
  • Common trapLinearity of expectation does not require independence, although product probabilities such as p^3 and (1-p)^4 do require the stated independent-edge model.
  • Next connectionCount the complement when it is simpler
More context

The portrait diagram reads from the defining formula through three checks, a concrete five-person visual, and one conclusion.

Picture 15 of 17 · tap to inspect in full resolution

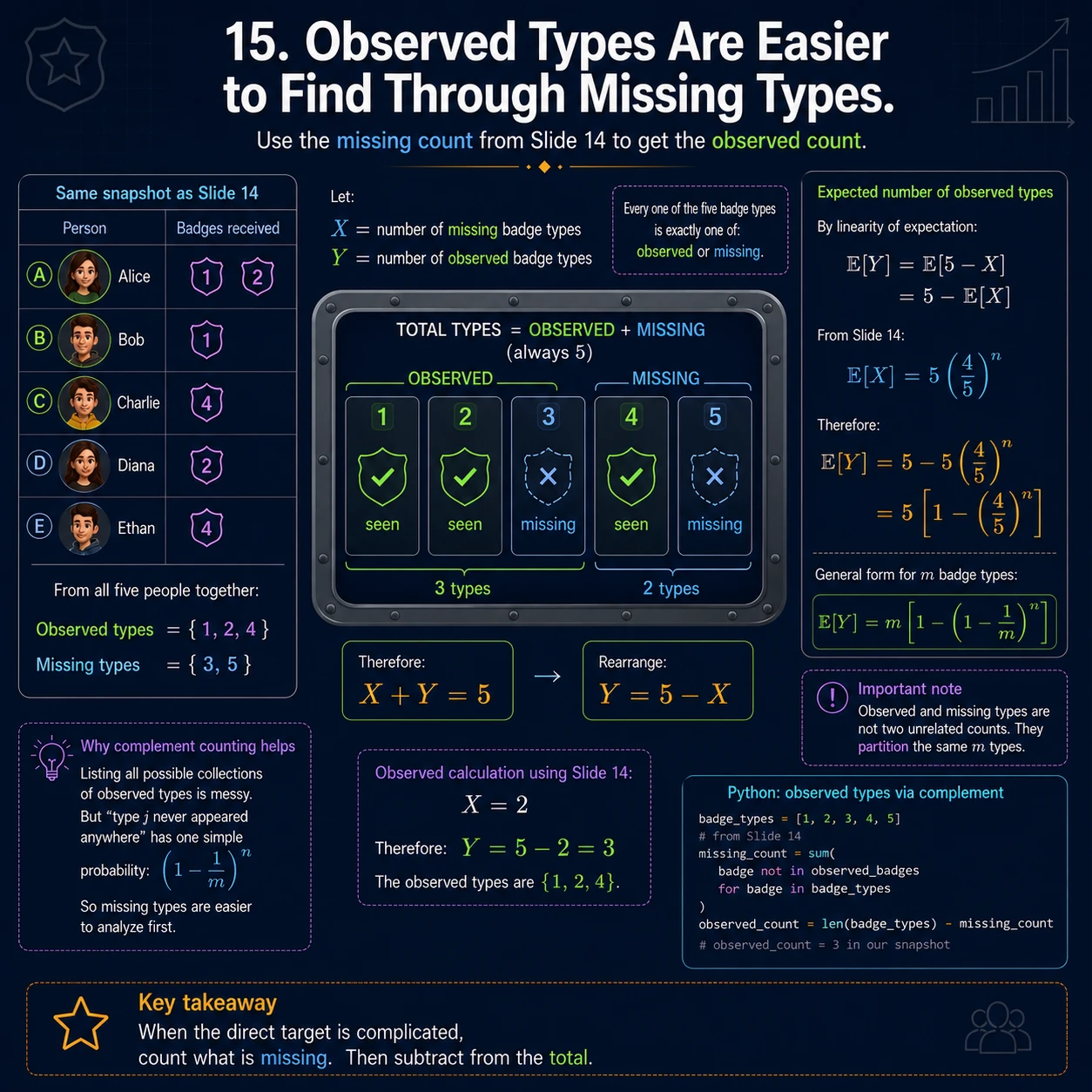

15

How can missing types reveal observed types?

INTUITION

Every type is either observed or missing, so Y=5-X. The snapshot has 3 observed types, and the random model gives E[Y]=5-E[X]=5[1-(4/5)^n]. Complement counting replaces a difficult direct event with a simpler absence event.

MATHEMATICAL STATEMENTS
  1. Every type is either observed or missing, so Y=5-X.
  2. The snapshot has 3 observed types, and the random model gives E[Y]=5-E[X]=5[1-(4/5)^n].
  • Learning goalExplain complement counting and identify the local candidate set before summing.
  • Helpful foundationsfinite sets · basic probability · summation notation
  • Common trapLinearity of expectation does not require independence, although product probabilities such as p^3 and (1-p)^4 do require the stated independent-edge model.
  • Next connectionOne world supports four counting lenses
More context

The portrait diagram reads from the defining formula through three checks, a concrete five-person visual, and one conclusion.

Picture 16 of 17 · tap to inspect in full resolution

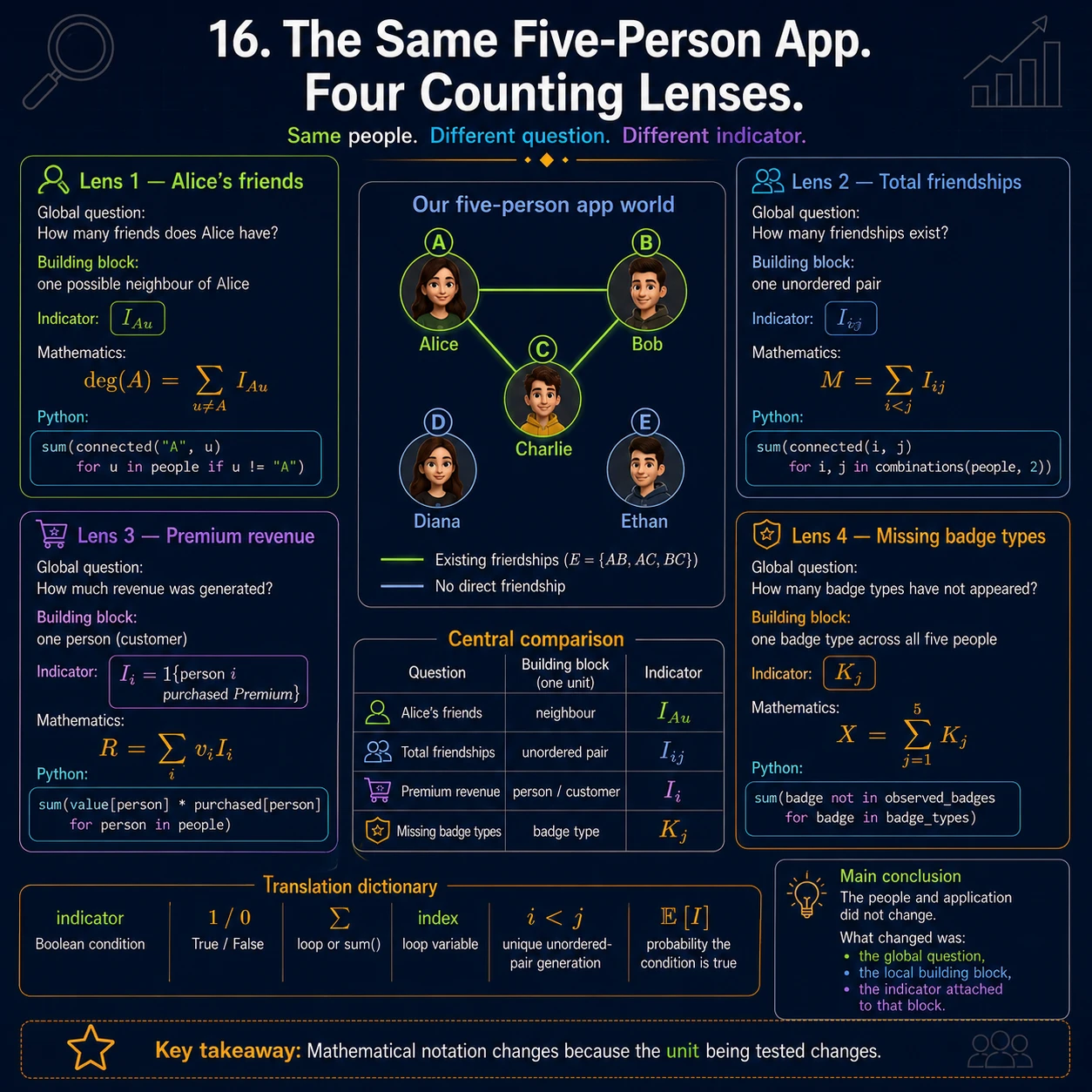

16

What changes when the question changes?

INTUITION

Alice's degree uses neighbours, total friendships use unordered pairs, revenue uses customers with weights, and missing badges use types. The people stay fixed; the local building block and indicator change.

  • Learning goalExplain compare counting lenses and identify the local candidate set before summing.
  • Helpful foundationsfinite sets · basic probability · summation notation
  • Common trapLinearity of expectation does not require independence, although product probabilities such as p^3 and (1-p)^4 do require the stated independent-edge model.
  • Next connectionThe complete indicator pipeline
More context

The portrait diagram reads from the defining formula through three checks, a concrete five-person visual, and one conclusion.

Picture 17 of 17 · tap to inspect in full resolution

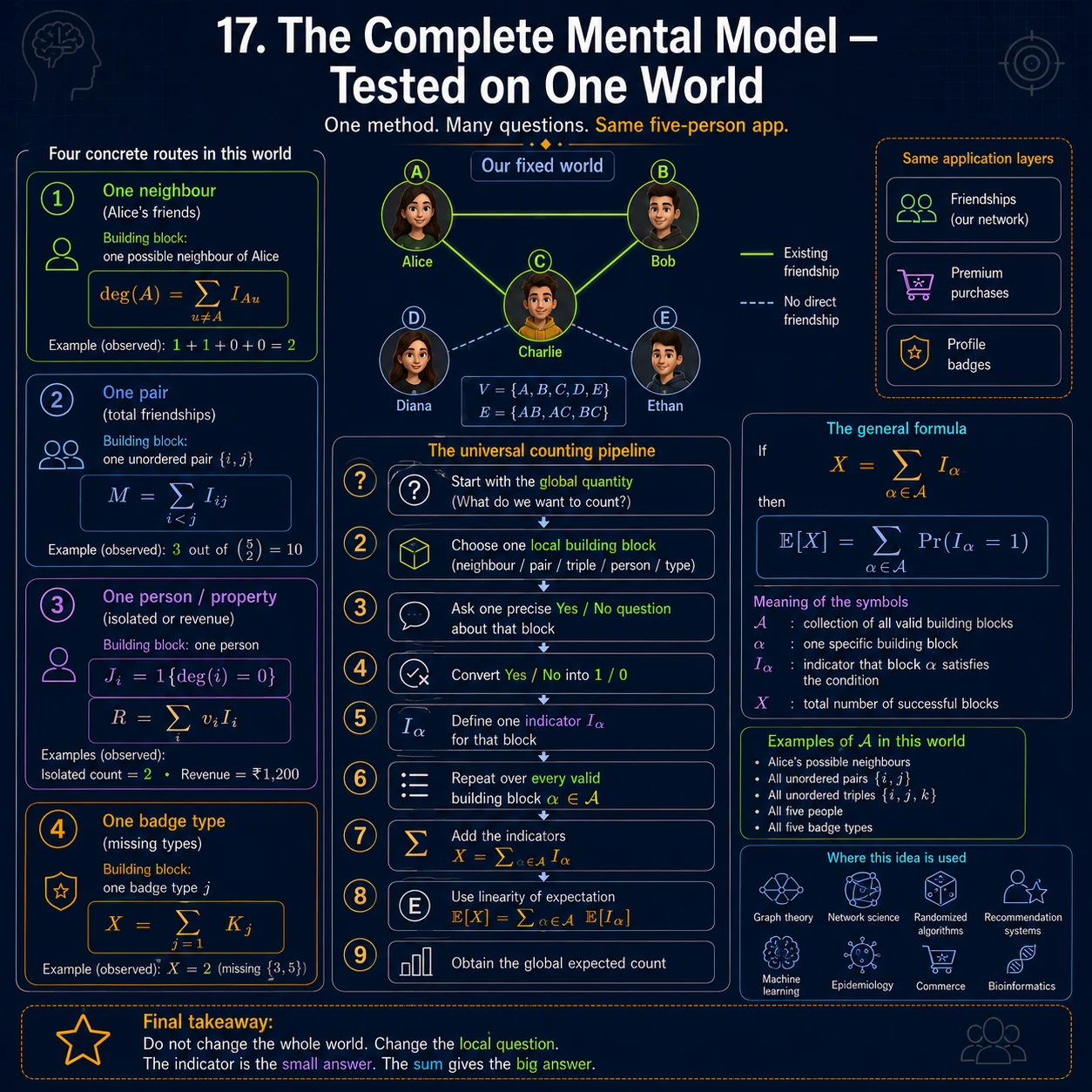

17

How can the counting trick be reused safely?

INTUITION

Define the global target, choose all valid local blocks, ask one precise condition per block, encode it as an indicator, sum once over the candidate set, then use linearity of expectation when an average count is needed.

  • Learning goalExplain indicator counting pipeline and identify the local candidate set before summing.
  • Helpful foundationsfinite sets · basic probability · summation notation
  • Common trapLinearity of expectation does not require independence, although product probabilities such as p^3 and (1-p)^4 do require the stated independent-edge model.
  • Next connectionUse indicators in a new probability model
More context

The portrait diagram reads from the defining formula through three checks, a concrete five-person visual, and one conclusion.
