VISUAL LESSON · 8 PICTURES

Central Limit Theorem

Why do standardized sample means approach a standard normal distribution?

MODULE 4 / 6LESSON 3 / 46PICTURE 1 / 8
Progress stays on this device · no login
BEFORE THE FIRST PICTURE

How this lesson unfolds.

Begin with What object does the Central Limit Theorem describe? The sequence then connects Sample means are centered at the population mean and builds toward The Central Limit Theorem connects sampling to inference.

Picture 1 of 8 · tap to inspect in full resolution
01

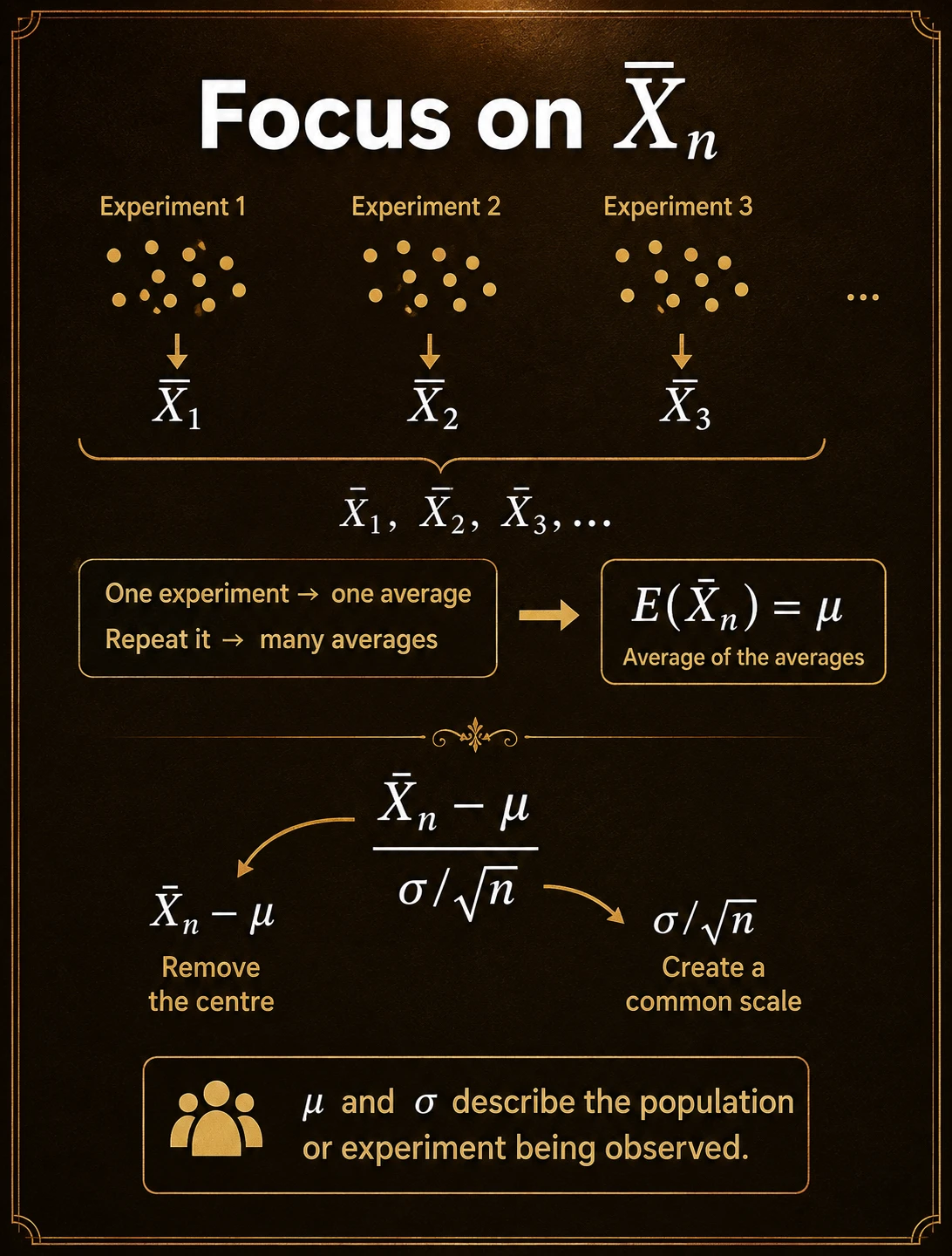

What object does the Central Limit Theorem describe?

INTUITION

The CLT describes the distribution of a statistic across repeated samples. One sample gives one mean; repeated samples give a sampling distribution of means.

  • Learning goalExplain the CLT through repeated sampling, centering, standard error, scaling and convergence.
  • Helpful foundationsexpectation · variance · independent samples
  • Common trapThe CLT concerns standardized sampling distributions, not a claim that raw observations become normally distributed.
  • Next connectionSample means are centered at the population mean
Picture 2 of 8 · tap to inspect in full resolution
02

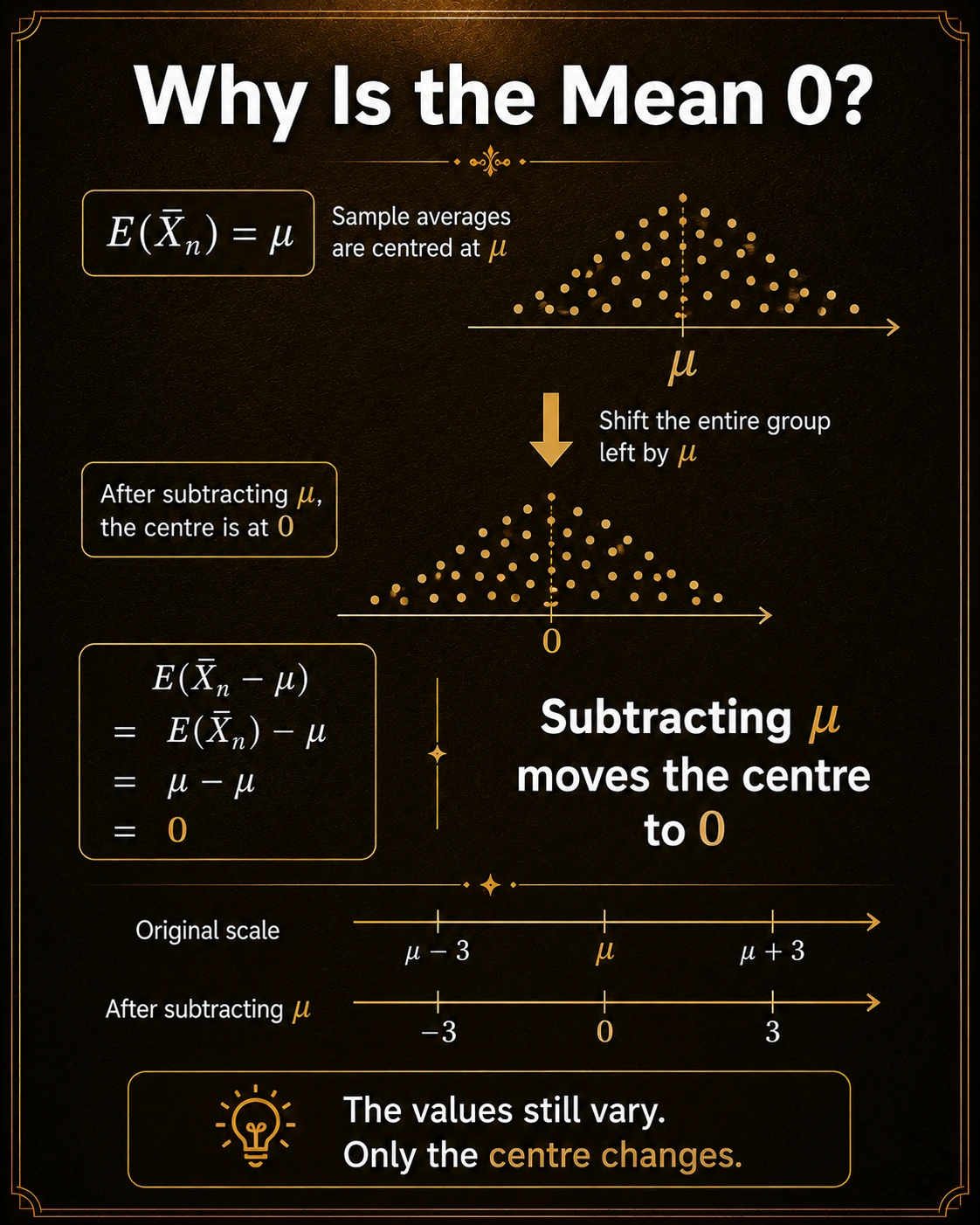

Why do we subtract μ from the sample mean?

INTUITION

Because E[X̄]=μ, subtracting μ moves the sampling distribution's center to zero without changing its shape.

MATHEMATICAL STATEMENT
  1. Because E[X̄]=μ, subtracting μ moves the sampling distribution's center to zero without changing its shape.
  • Learning goalExplain the CLT through repeated sampling, centering, standard error, scaling and convergence.
  • Helpful foundationsexpectation · variance · independent samples
  • Common trapThe CLT concerns standardized sampling distributions, not a claim that raw observations become normally distributed.
  • Next connectionThe sample mean has its own spread
Picture 3 of 8 · tap to inspect in full resolution
03

Why is the spread of sample means σ/√n?

INTUITION

Averaging n independent observations reduces variance from σ² to σ²/n, so the standard deviation of X̄ is σ/√n. This is the standard error.

MATHEMATICAL STATEMENT
  1. Averaging n independent observations reduces variance from σ² to σ²/n, so the standard deviation of X̄ is σ/√n.
  • Learning goalExplain the CLT through repeated sampling, centering, standard error, scaling and convergence.
  • Helpful foundationsexpectation · variance · independent samples
  • Common trapThe CLT concerns standardized sampling distributions, not a claim that raw observations become normally distributed.
  • Next connectionStandardization creates a common scale
Picture 4 of 8 · tap to inspect in full resolution
04

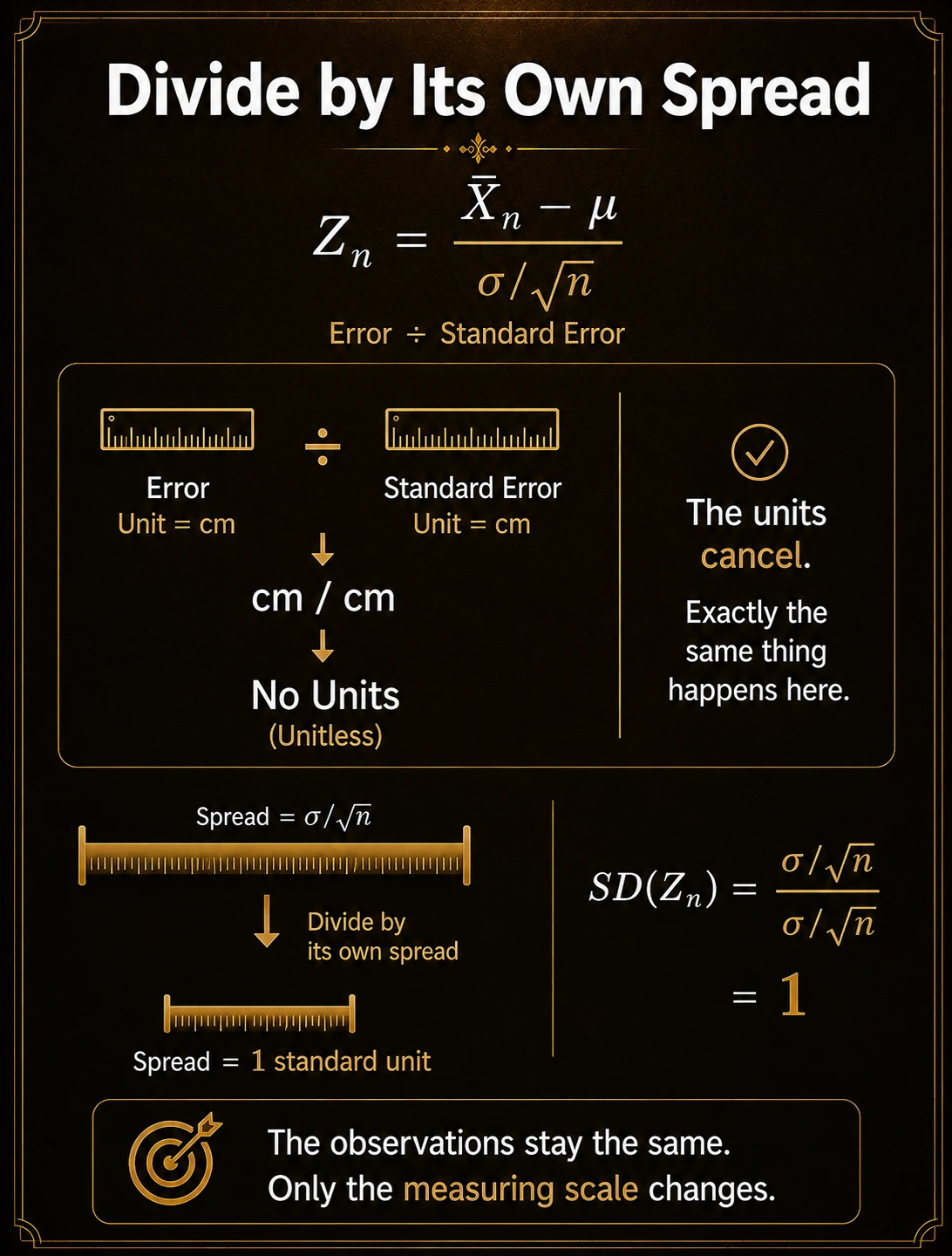

Why subtract the center and divide by the spread?

INTUITION

Subtracting μ centers the error at zero. Dividing by σ/√n measures it in standard-error units, creating a unitless variable with mean 0 and variance 1.

MATHEMATICAL STATEMENT
  1. Dividing by σ/√n measures it in standard-error units, creating a unitless variable with mean 0 and variance 1.
  • Learning goalExplain the CLT through repeated sampling, centering, standard error, scaling and convergence.
  • Helpful foundationsexpectation · variance · independent samples
  • Common trapThe CLT concerns standardized sampling distributions, not a claim that raw observations become normally distributed.
  • Next connectionN(0,1) names shape, center and spread
Picture 5 of 8 · tap to inspect in full resolution
05

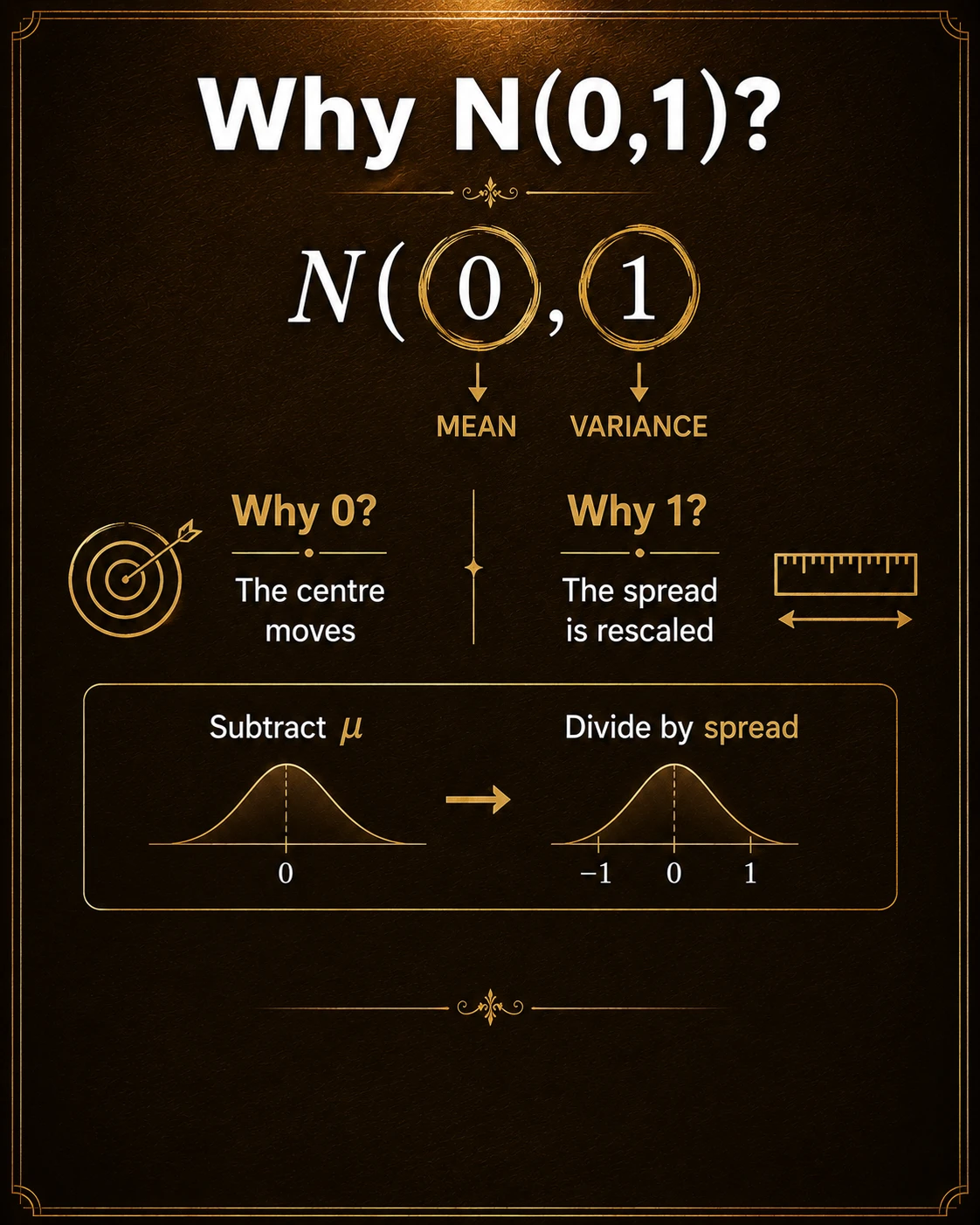

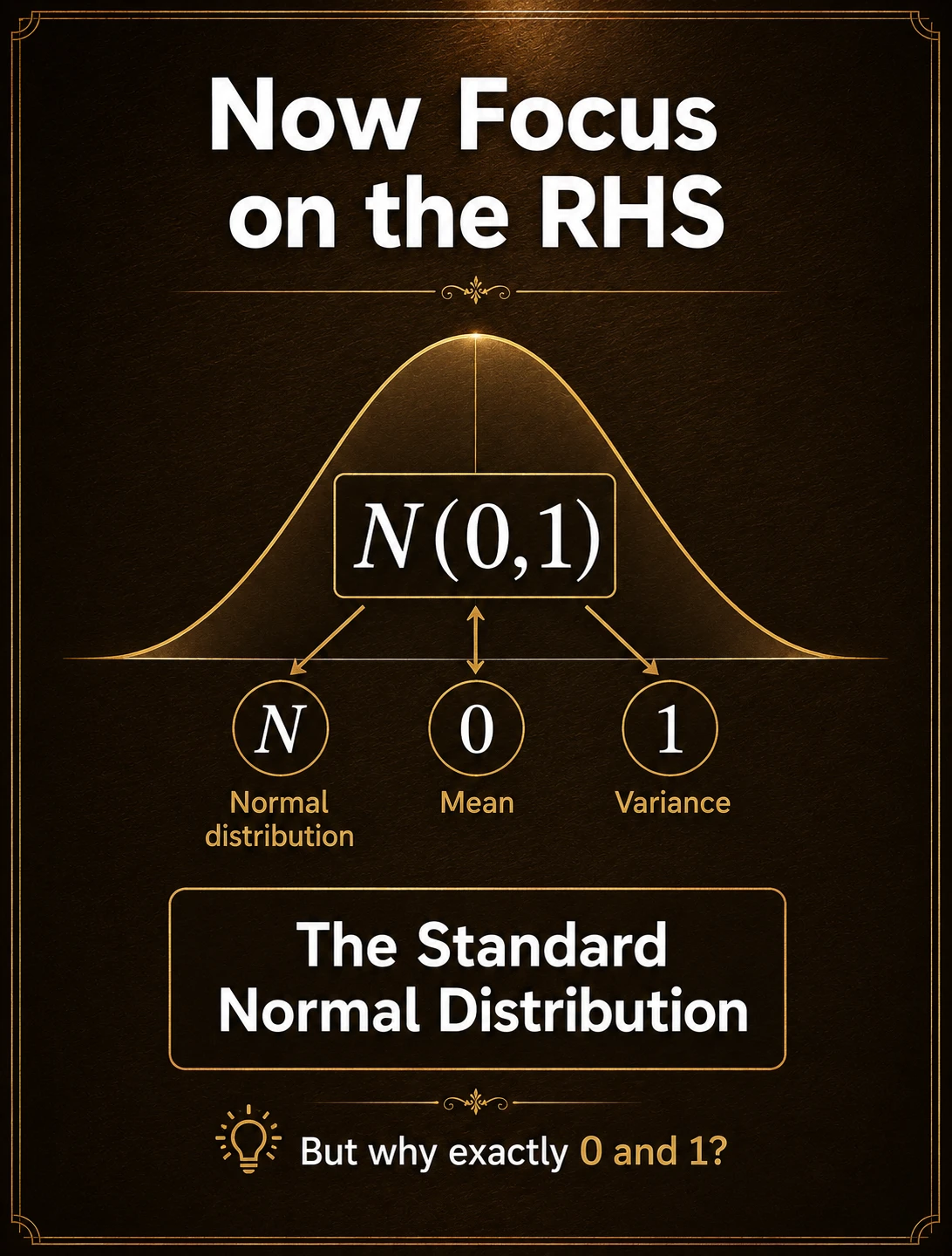

What does N(0,1) actually mean?

INTUITION

N indicates a normal distribution, 0 is its mean, and 1 is its variance. Standardization supplies the center and scale; the CLT supplies the limiting bell shape.

  • Learning goalExplain the CLT through repeated sampling, centering, standard error, scaling and convergence.
  • Helpful foundationsexpectation · variance · independent samples
  • Common trapThe CLT concerns standardized sampling distributions, not a claim that raw observations become normally distributed.
  • Next connectionDividing by standard error makes variance one
Picture 6 of 8 · tap to inspect in full resolution
06

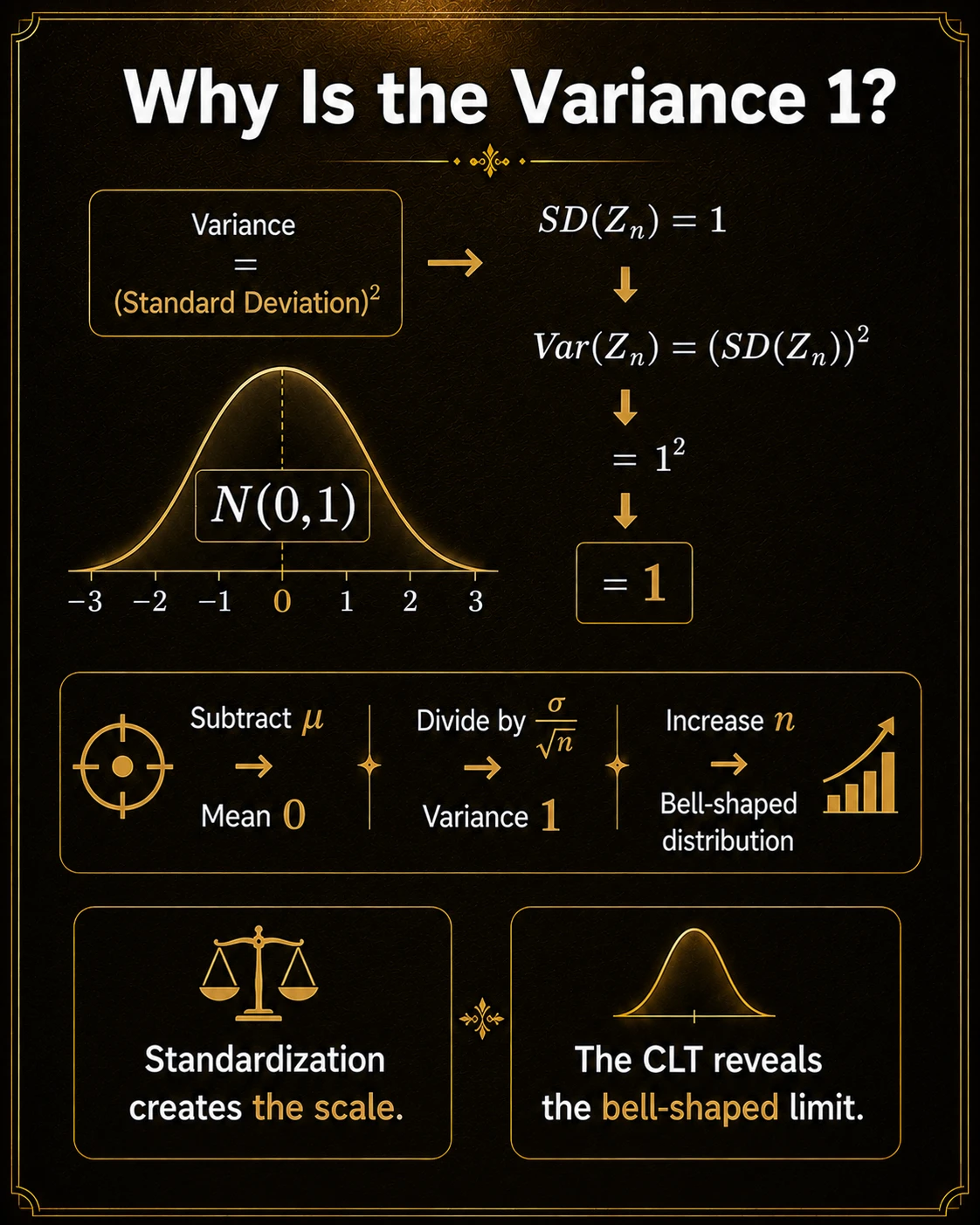

Why does the standardized error have variance 1?

INTUITION

The numerator has standard deviation σ/√n. Dividing it by that same spread gives standard deviation 1 and therefore variance 1.

MATHEMATICAL STATEMENT
  1. The numerator has standard deviation σ/√n.
  • Learning goalExplain the CLT through repeated sampling, centering, standard error, scaling and convergence.
  • Helpful foundationsexpectation · variance · independent samples
  • Common trapThe CLT concerns standardized sampling distributions, not a claim that raw observations become normally distributed.
  • Next connectionRead the theorem from left to right
Picture 7 of 8 · tap to inspect in full resolution
07

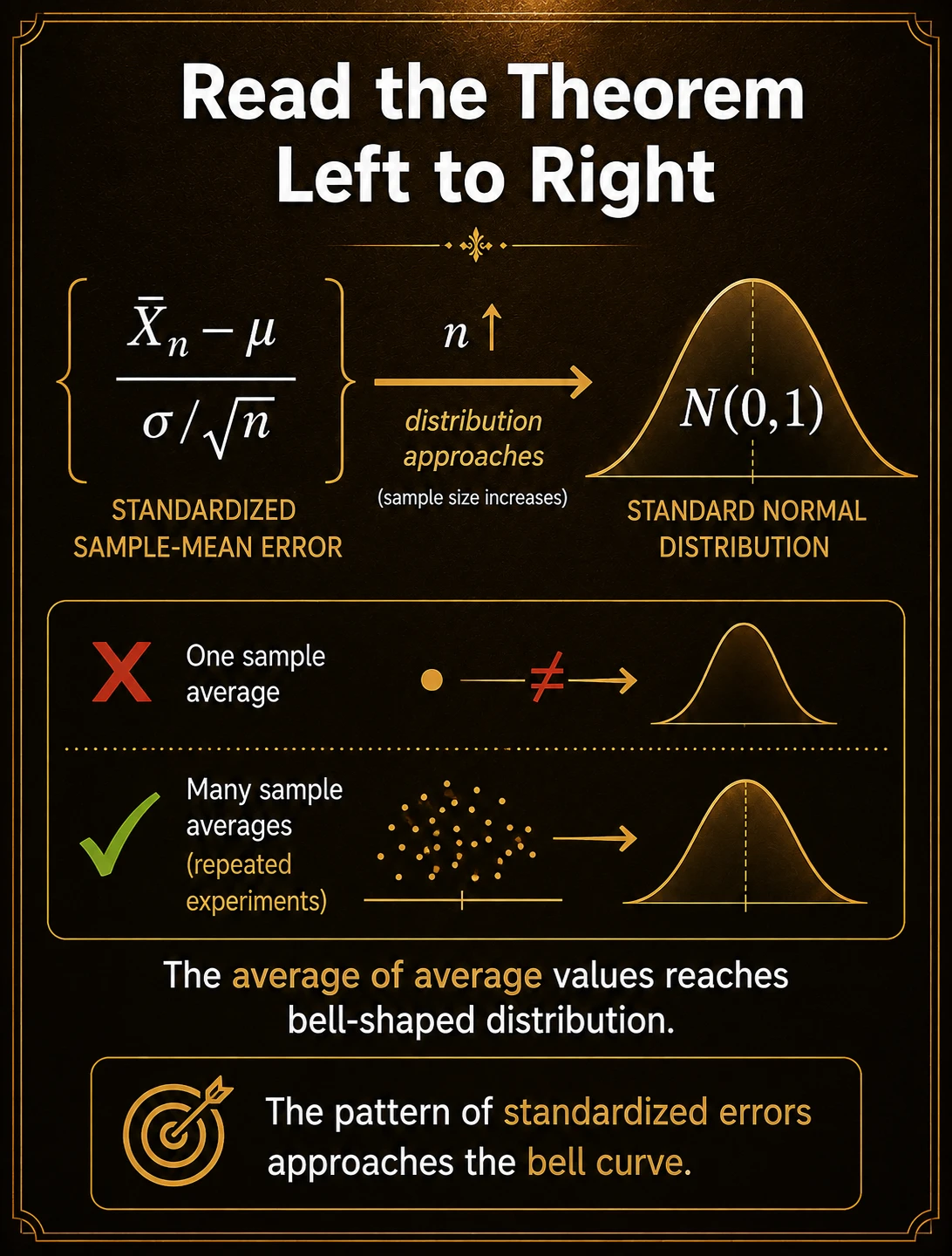

What exactly approaches the bell curve as n grows?

INTUITION

The standardized sample-mean error—not raw observations and not one average—converges in distribution to N(0,1), under the theorem's assumptions.

  • Learning goalExplain the CLT through repeated sampling, centering, standard error, scaling and convergence.
  • Helpful foundationsexpectation · variance · independent samples
  • Common trapThe CLT concerns standardized sampling distributions, not a claim that raw observations become normally distributed.
  • Next connectionThe Central Limit Theorem connects sampling to inference
Picture 8 of 8 · tap to inspect in full resolution
08

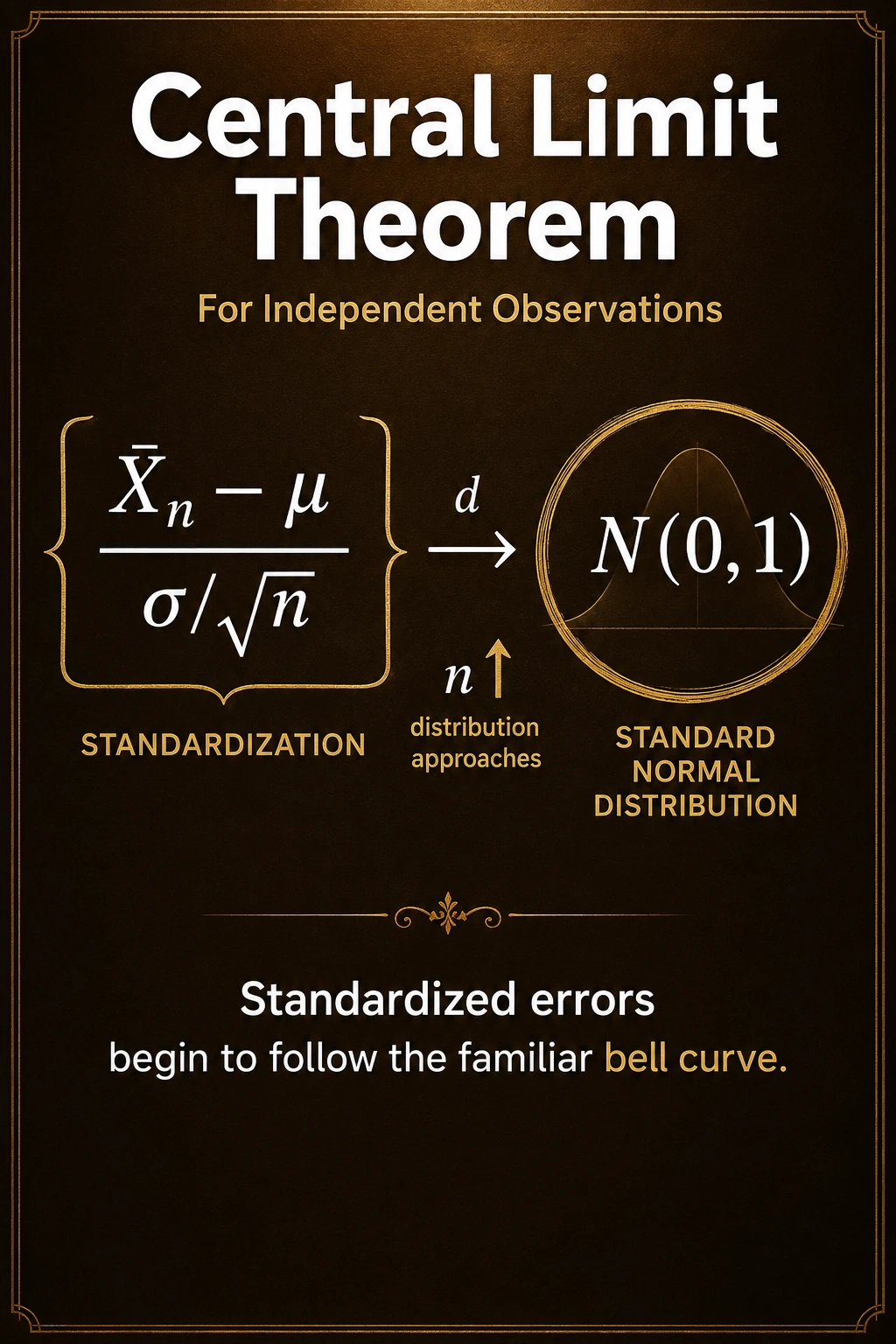

What is the reusable CLT story?

INTUITION

Repeated independent sampling creates means centered at μ with standard error σ/√n. After standardization, their distribution approaches the standard normal as n increases.

MATHEMATICAL STATEMENT
  1. Repeated independent sampling creates means centered at μ with standard error σ/√n.
  • Learning goalExplain the CLT through repeated sampling, centering, standard error, scaling and convergence.
  • Helpful foundationsexpectation · variance · independent samples
  • Common trapThe CLT concerns standardized sampling distributions, not a claim that raw observations become normally distributed.
  • Next connectionNormal approximations and confidence intervals
