Bring Statistics and Probability Together

How does a probability model become a statistical answer about data?

MODULE 4 / 6LESSON 2 / 46PICTURE 1 / 19
Progress stays on this device · no login
BEFORE THE FIRST PICTURE

How this lesson unfolds.

Begin with Where do probability and statistics meet? The sequence then connects Connect four ideas before calculating and builds toward One workflow connects model, data, and inference.

Picture 1 of 19 · tap to inspect in full resolution
01

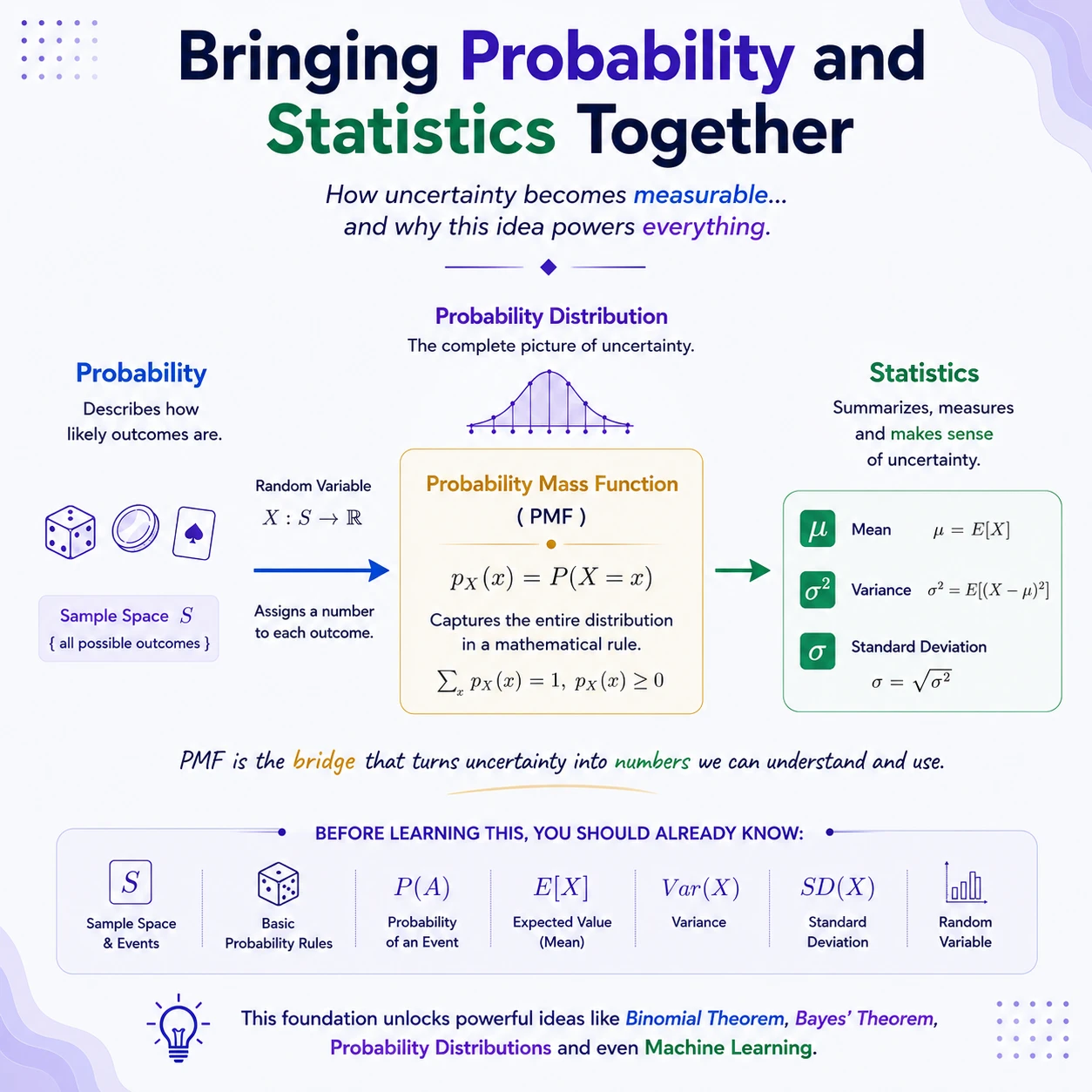

Where do probability and statistics meet?

INTUITION

Probability starts with a model and predicts possible data. Statistics starts with observed data and learns about the model. The random variable and its distribution are the shared language between them.

  • Learning goalExplain bridge map and its place between probability and statistics.
  • Helpful foundationsoutcomes and events · random variables · basic arithmetic
  • Common trapProbability and statistics are not disconnected formula collections; they are opposite directions through a shared model-and-data workflow.
  • Next connectionConnect four ideas before calculating
Picture 2 of 19 · tap to inspect in full resolution
02

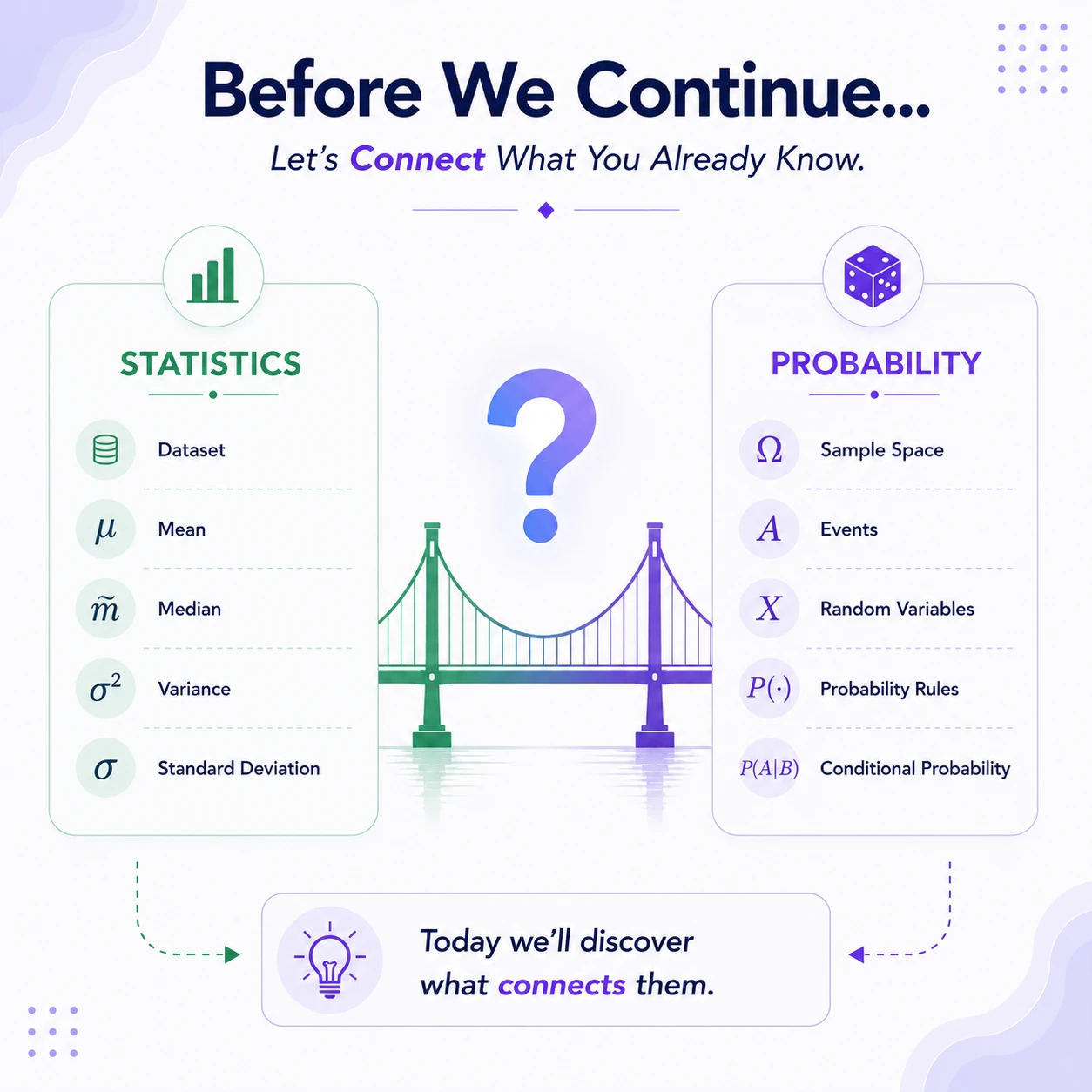

What must be connected first?

INTUITION

An experiment produces an outcome. A random variable assigns a number to that outcome. A probability distribution assigns probabilities to the possible numbers. Statistics summarizes or learns from realized values.

  • Learning goalExplain concept chain and its place between probability and statistics.
  • Helpful foundationsoutcomes and events · random variables · basic arithmetic
  • Common trapProbability and statistics are not disconnected formula collections; they are opposite directions through a shared model-and-data workflow.
  • Next connectionThe question chooses the random variable

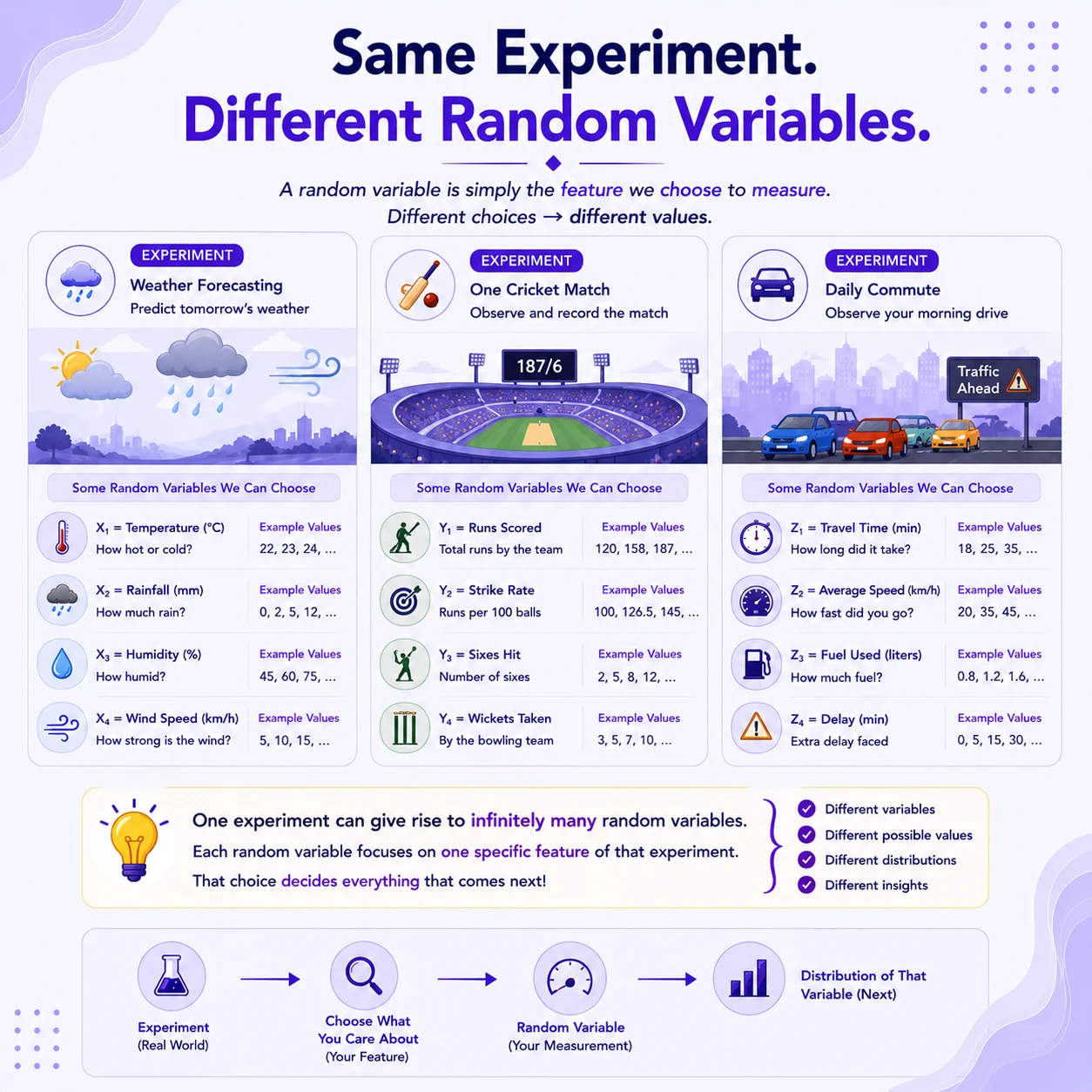

Picture 3 of 19 · tap to inspect in full resolution
03

Can one experiment create different variables?

INTUITION

Yes. From the same two-dice experiment, X can be the sum, Y an indicator that the sum is seven, and Z the maximum die. The experiment is unchanged; the numerical question changes.

  • Learning goalExplain variable choice and its place between probability and statistics.
  • Helpful foundationsoutcomes and events · random variables · basic arithmetic
  • Common trapProbability and statistics are not disconnected formula collections; they are opposite directions through a shared model-and-data workflow.
  • Next connectionA random variable inherits a distribution
Picture 4 of 19 · tap to inspect in full resolution
04

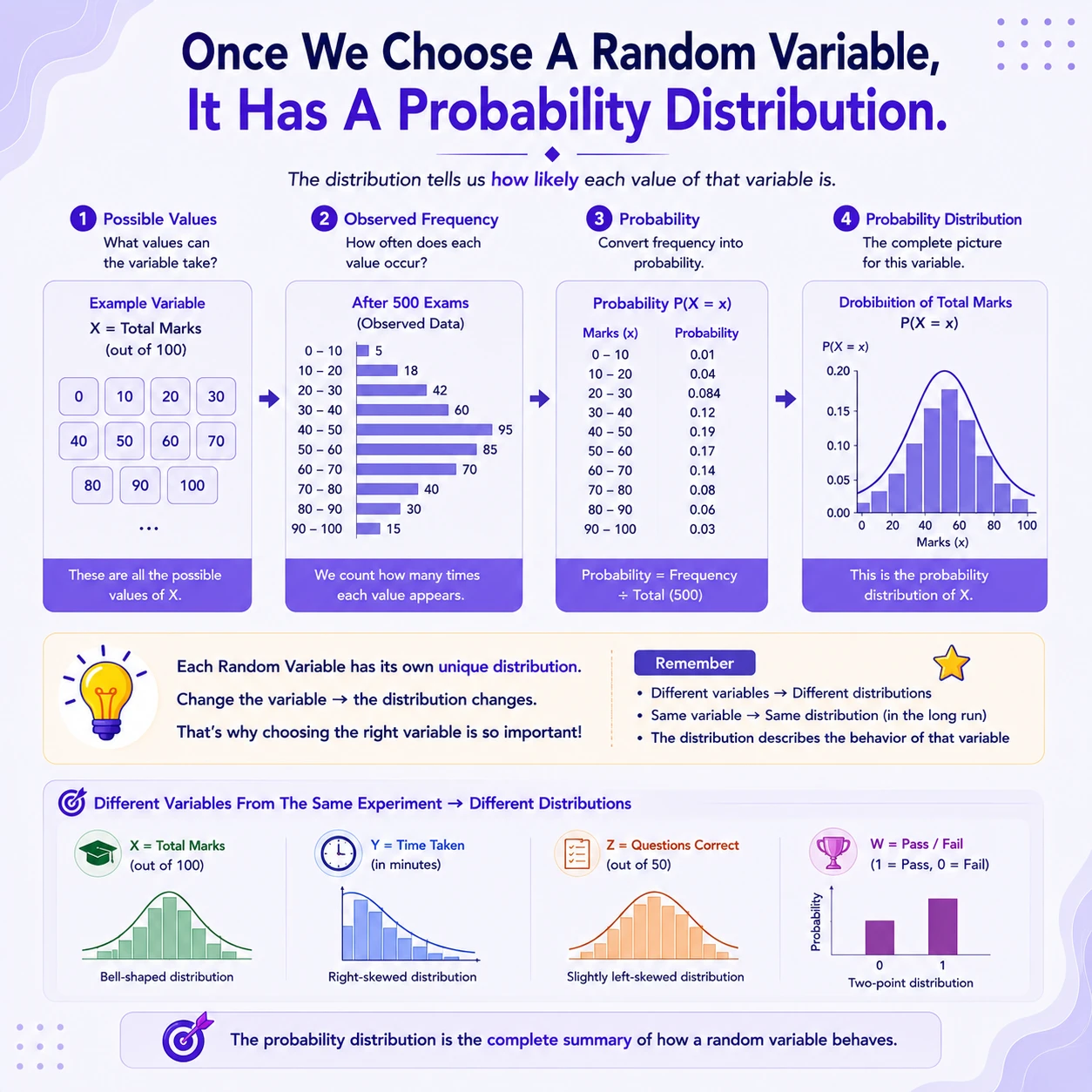

How does a variable acquire probabilities?

INTUITION

For every possible value x, collect the experiment outcomes that make X equal x and add their probabilities. This pushforward turns an outcome model into the probability distribution of X.

MATHEMATICAL STATEMENT
  1. For every possible value x, collect the experiment outcomes that make X equal x and add their probabilities.
  • Learning goalExplain induced distribution and its place between probability and statistics.
  • Helpful foundationsoutcomes and events · random variables · basic arithmetic
  • Common trapProbability and statistics are not disconnected formula collections; they are opposite directions through a shared model-and-data workflow.
  • Next connectionA PMF describes a discrete distribution

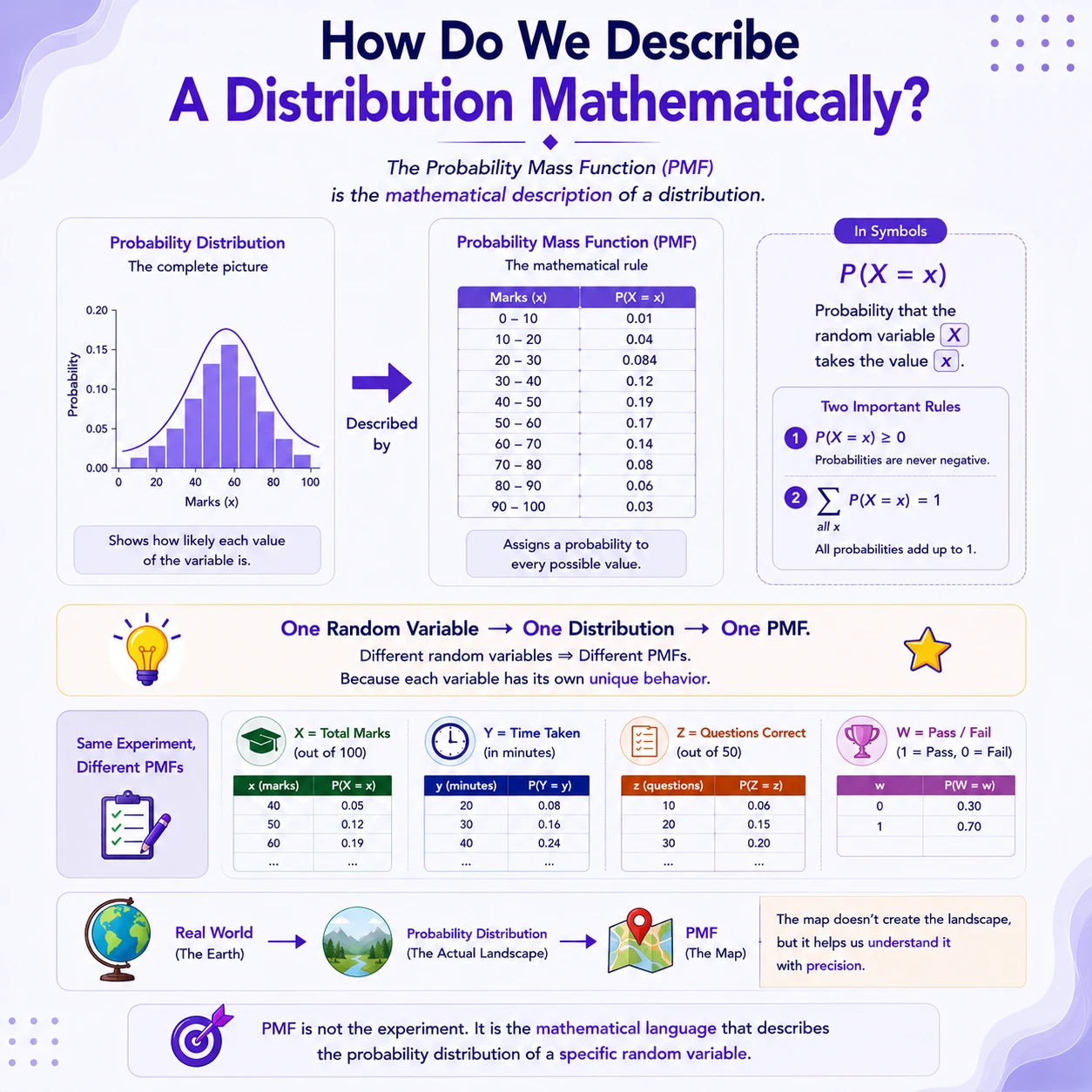

Picture 5 of 19 · tap to inspect in full resolution
05

How do we describe a discrete distribution exactly?

INTUITION

The probability mass function p(x)=P(X=x) lists the probability of each possible value. Every mass is nonnegative and all masses sum to one.

MATHEMATICAL STATEMENT
  1. The probability mass function p(x)=P(X=x) lists the probability of each possible value.
  • Learning goalExplain pmf definition and its place between probability and statistics.
  • Helpful foundationsoutcomes and events · random variables · basic arithmetic
  • Common trapProbability and statistics are not disconnected formula collections; they are opposite directions through a shared model-and-data workflow.
  • Next connectionExpectation turns a distribution into a balance point

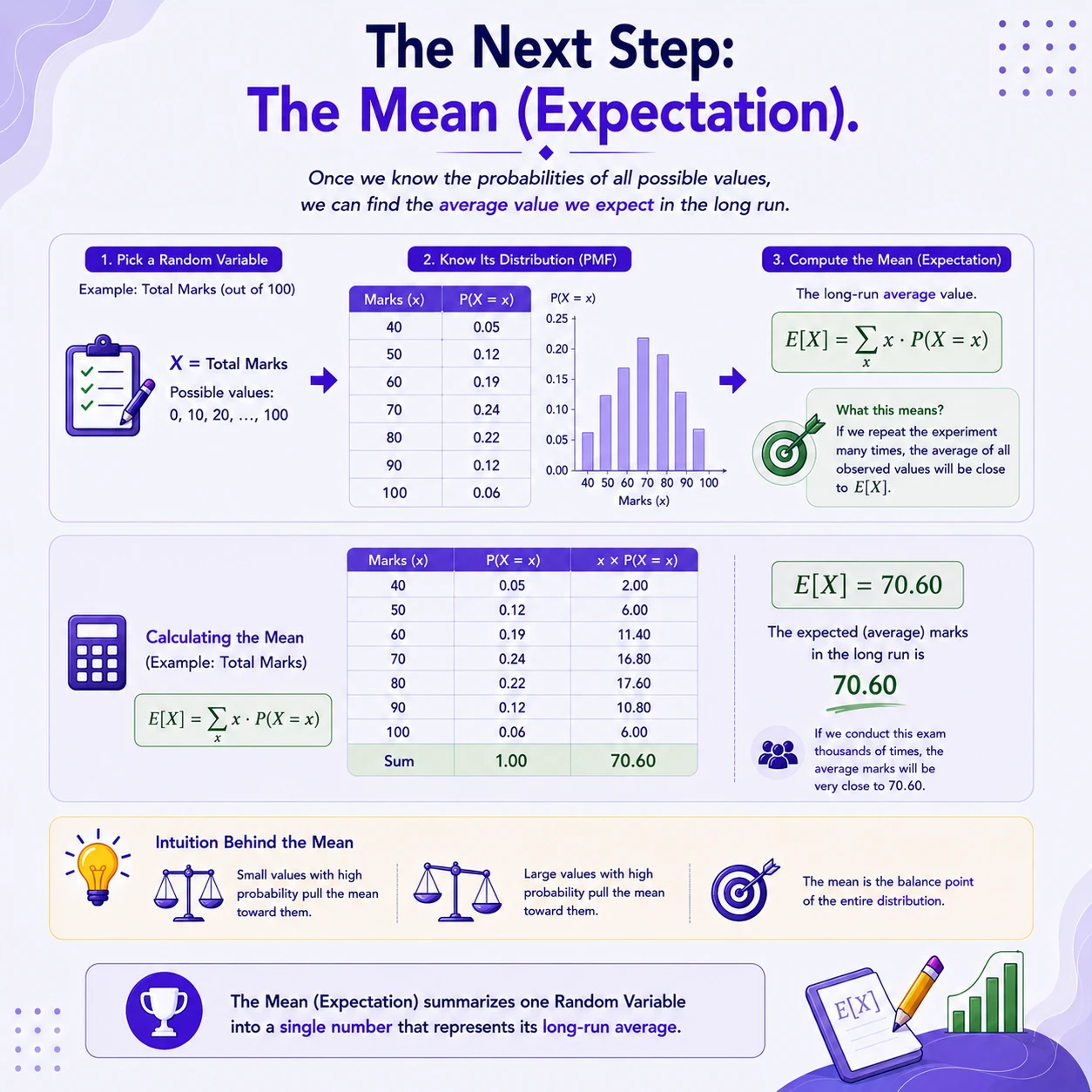

Picture 6 of 19 · tap to inspect in full resolution
06

How does probability produce a mean?

INTUITION

The expected value multiplies each possible value by its probability and adds the products. It is the distribution's probability-weighted balance point, not a guarantee for the next observation.

  • Learning goalExplain expectation and its place between probability and statistics.
  • Helpful foundationsoutcomes and events · random variables · basic arithmetic
  • Common trapProbability and statistics are not disconnected formula collections; they are opposite directions through a shared model-and-data workflow.
  • Next connectionThe mean locates center, not spread
Picture 7 of 19 · tap to inspect in full resolution

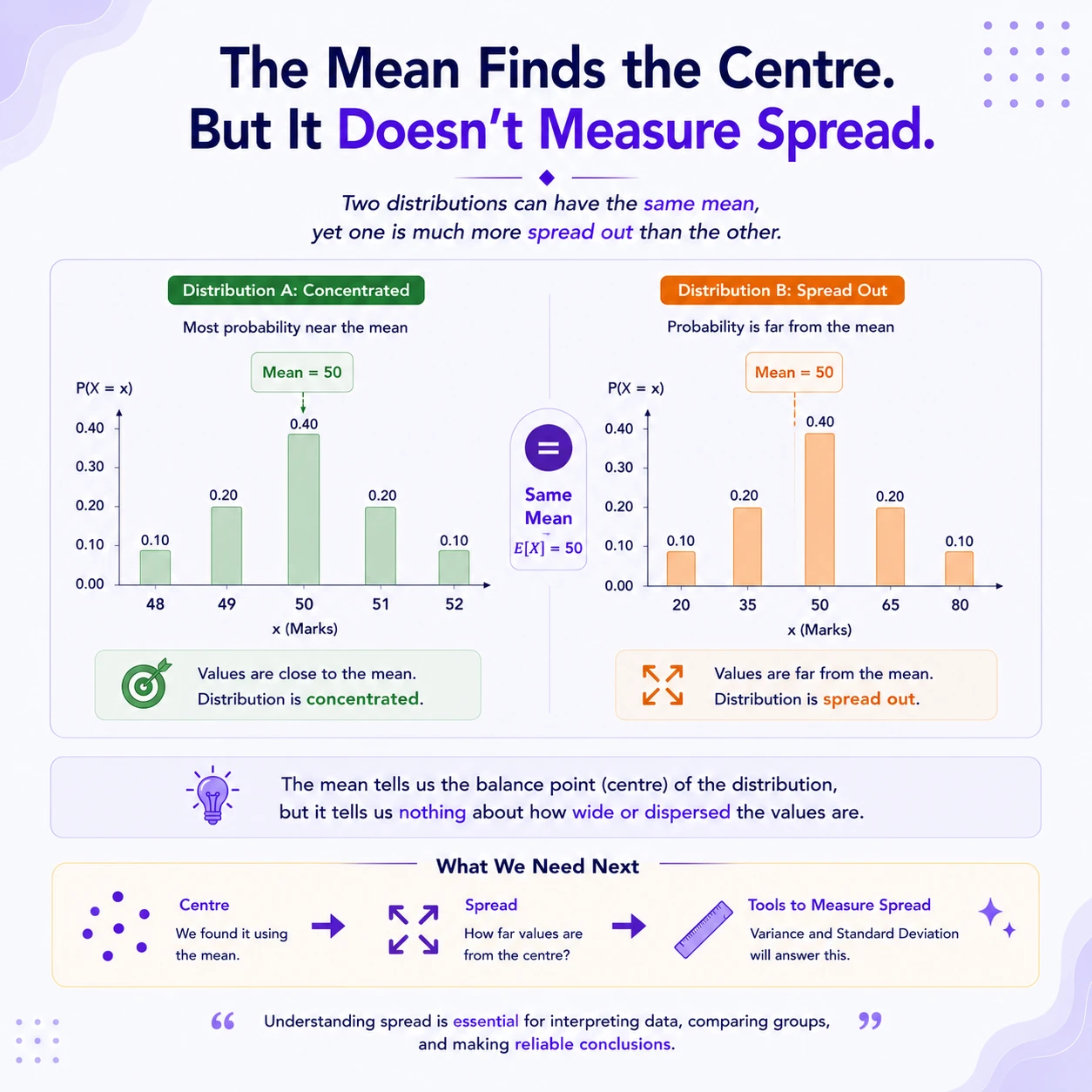

07

What does the mean tell us—and what does it miss?

INTUITION

Two distributions can have the same expected value while concentrating values very differently. Center answers where the distribution balances; spread answers how far values range around it.

  • Learning goalExplain same mean different spread and its place between probability and statistics.
  • Helpful foundationsoutcomes and events · random variables · basic arithmetic
  • Common trapProbability and statistics are not disconnected formula collections; they are opposite directions through a shared model-and-data workflow.
  • Next connectionA constant stays fixed inside expectation

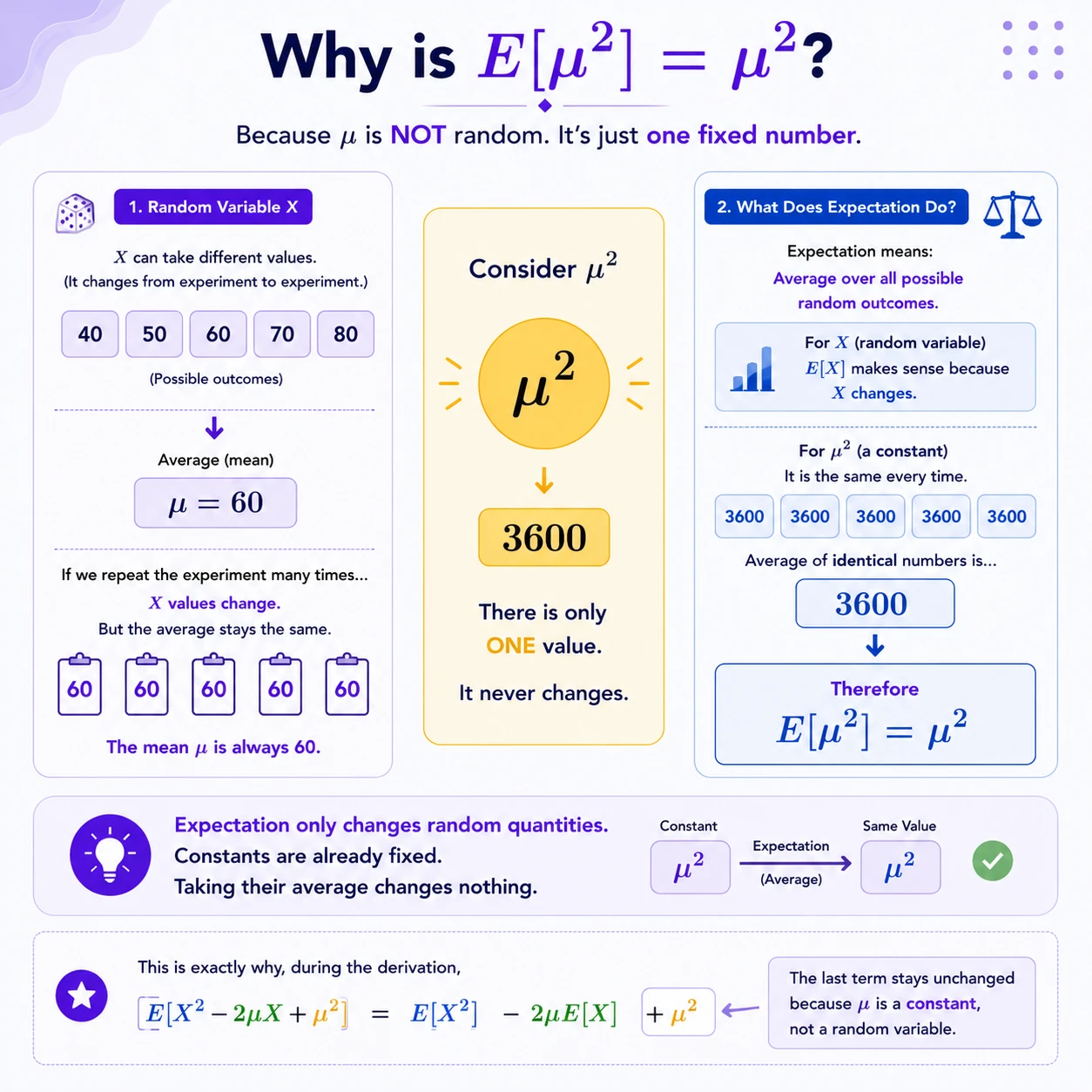

Picture 8 of 19 · tap to inspect in full resolution
08

Why is E[μ²] equal to μ²?

INTUITION

The population mean μ is a fixed parameter, not a random variable. Therefore μ² is constant, and the expectation of a constant is the constant itself.

  • Learning goalExplain constant expectation and its place between probability and statistics.
  • Helpful foundationsoutcomes and events · random variables · basic arithmetic
  • Common trapProbability and statistics are not disconnected formula collections; they are opposite directions through a shared model-and-data workflow.
  • Next connectionOne distribution can have three centers
Picture 9 of 19 · tap to inspect in full resolution

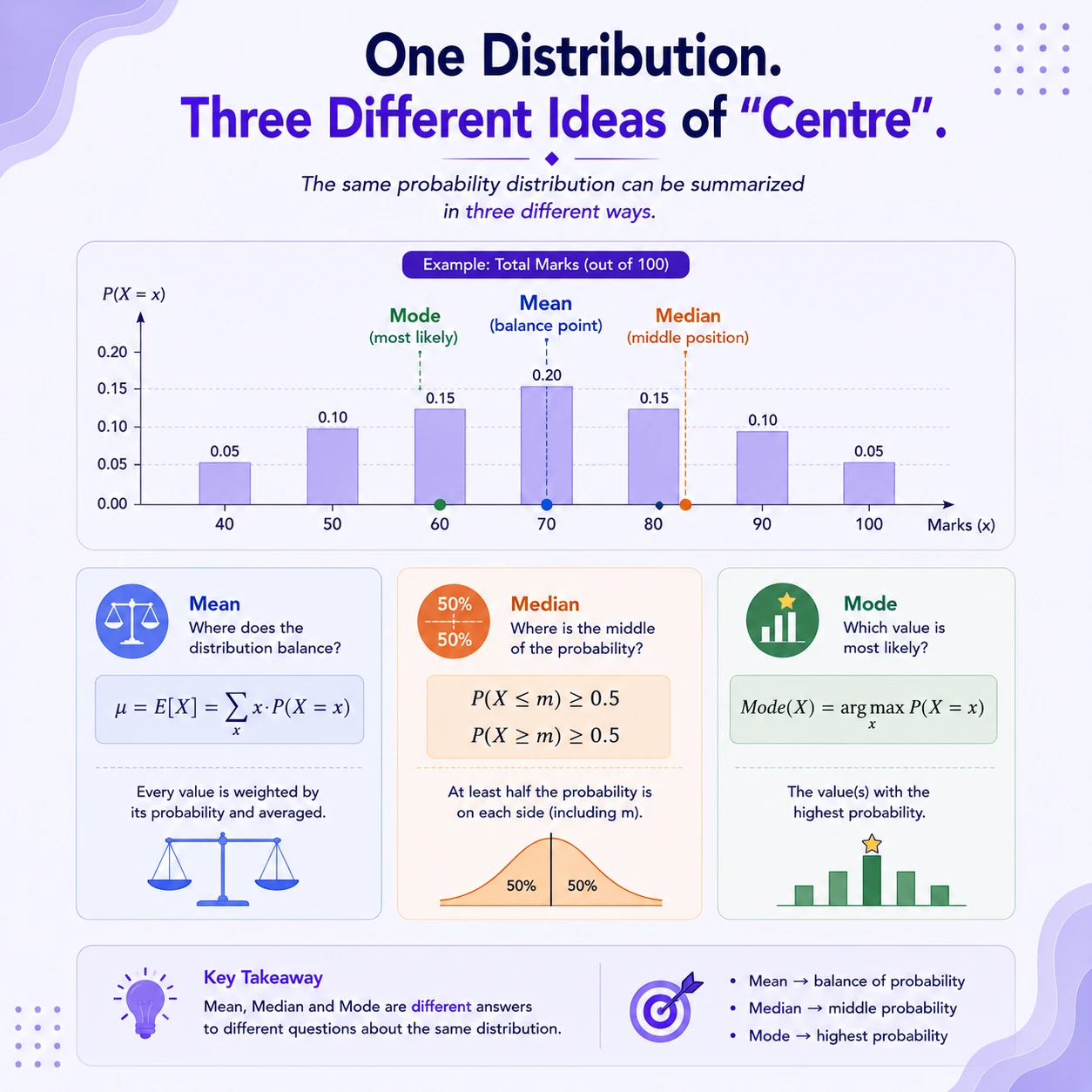

09

Do mean, median, and mode answer the same question?

INTUITION

Mean is the balance point, median splits probability in half, and mode is a most probable value. They may coincide in a symmetric unimodal distribution but can separate when shape is skewed or multimodal.

  • Learning goalExplain three centers and its place between probability and statistics.
  • Helpful foundationsoutcomes and events · random variables · basic arithmetic
  • Common trapProbability and statistics are not disconnected formula collections; they are opposite directions through a shared model-and-data workflow.
  • Next connectionA discrete median needs two inequalities

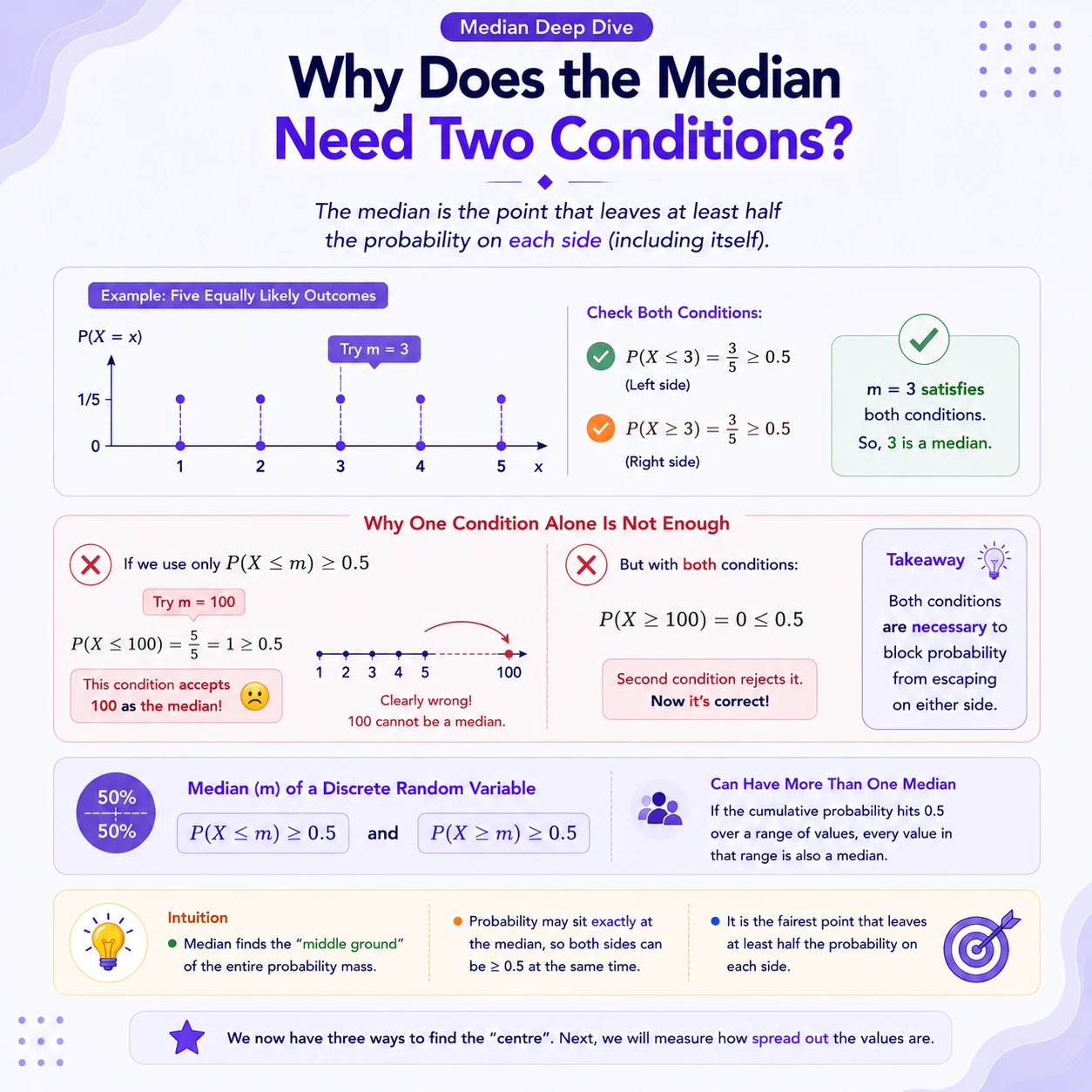

Picture 10 of 19 · tap to inspect in full resolution
10

What makes a value a median?

INTUITION

A value m is a median when at least half the probability is at or below m and at least half is at or above m. Both inequalities matter, and a distribution can have more than one median.

  • Learning goalExplain median definition and its place between probability and statistics.
  • Helpful foundationsoutcomes and events · random variables · basic arithmetic
  • Common trapProbability and statistics are not disconnected formula collections; they are opposite directions through a shared model-and-data workflow.
  • Next connectionThe mode is a maximizer, not always unique
Picture 11 of 19 · tap to inspect in full resolution
11

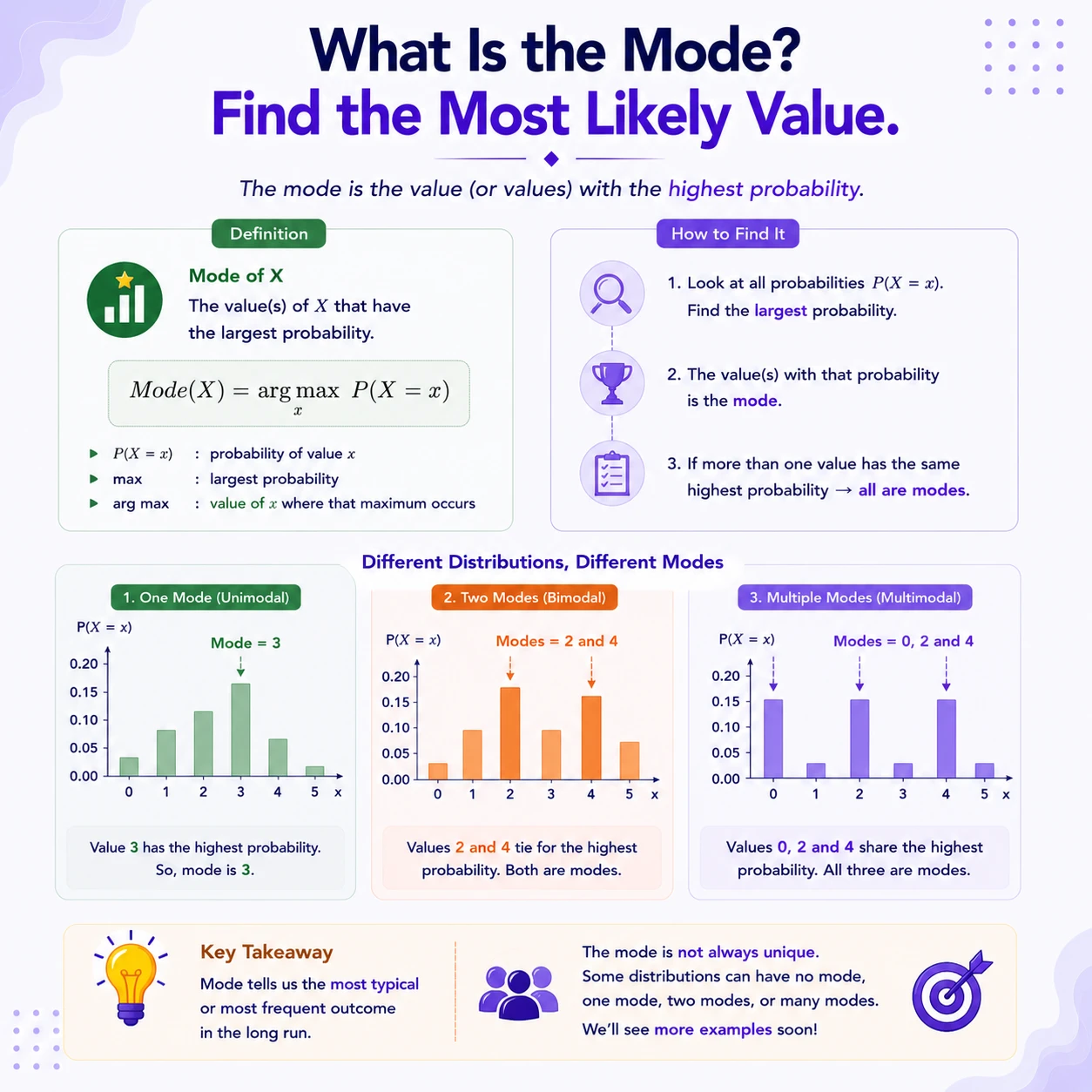

Which value is most likely?

INTUITION

A mode is any value that maximizes the PMF. One distribution can be unimodal, bimodal, or have several modes; the mode need not equal the mean or median.

MATHEMATICAL STATEMENT
  1. One distribution can be unimodal, bimodal, or have several modes; the mode need not equal the mean or median.
  • Learning goalExplain mode definition and its place between probability and statistics.
  • Helpful foundationsoutcomes and events · random variables · basic arithmetic
  • Common trapProbability and statistics are not disconnected formula collections; they are opposite directions through a shared model-and-data workflow.
  • Next connectionSigned deviations cancel around the mean
Picture 12 of 19 · tap to inspect in full resolution
12

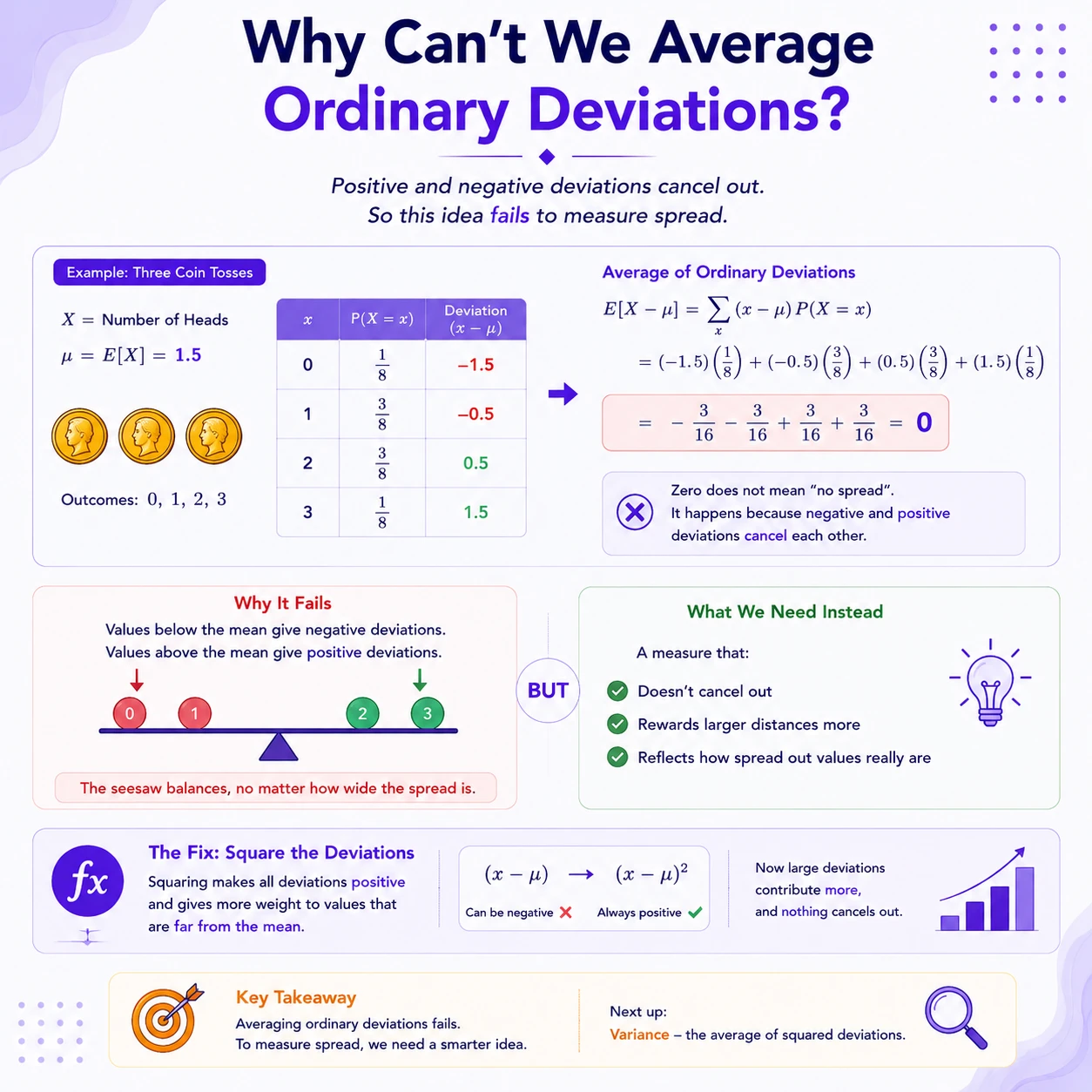

Why not average ordinary deviations?

INTUITION

Because E[X-μ]=0, positive and negative deviations cancel exactly. Absolute or squared deviations prevent cancellation; variance uses squares for smooth algebra and strong theoretical properties.

MATHEMATICAL STATEMENT
  1. Because E[X-μ]=0, positive and negative deviations cancel exactly.
  • Learning goalExplain deviation cancellation and its place between probability and statistics.
  • Helpful foundationsoutcomes and events · random variables · basic arithmetic
  • Common trapProbability and statistics are not disconnected formula collections; they are opposite directions through a shared model-and-data workflow.
  • Next connectionVariance is weighted squared distance

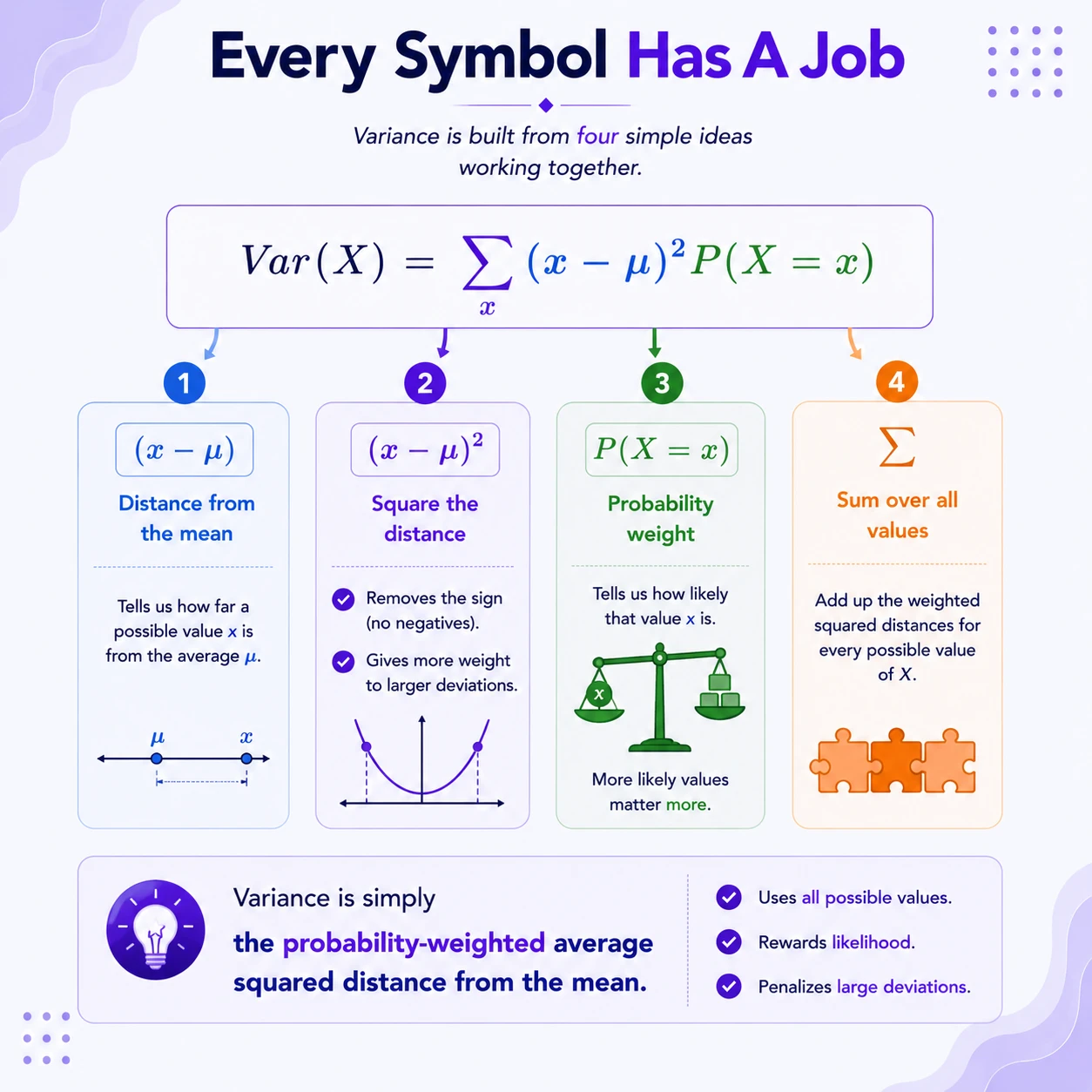

Picture 13 of 19 · tap to inspect in full resolution
13

What is variance measuring?

INTUITION

Variance averages squared distances from the mean, weighted by their probabilities. Squaring makes every contribution nonnegative and gives larger deviations greater influence.

  • Learning goalExplain variance definition and its place between probability and statistics.
  • Helpful foundationsoutcomes and events · random variables · basic arithmetic
  • Common trapProbability and statistics are not disconnected formula collections; they are opposite directions through a shared model-and-data workflow.
  • Next connectionStandard deviation restores the original units
Picture 14 of 19 · tap to inspect in full resolution

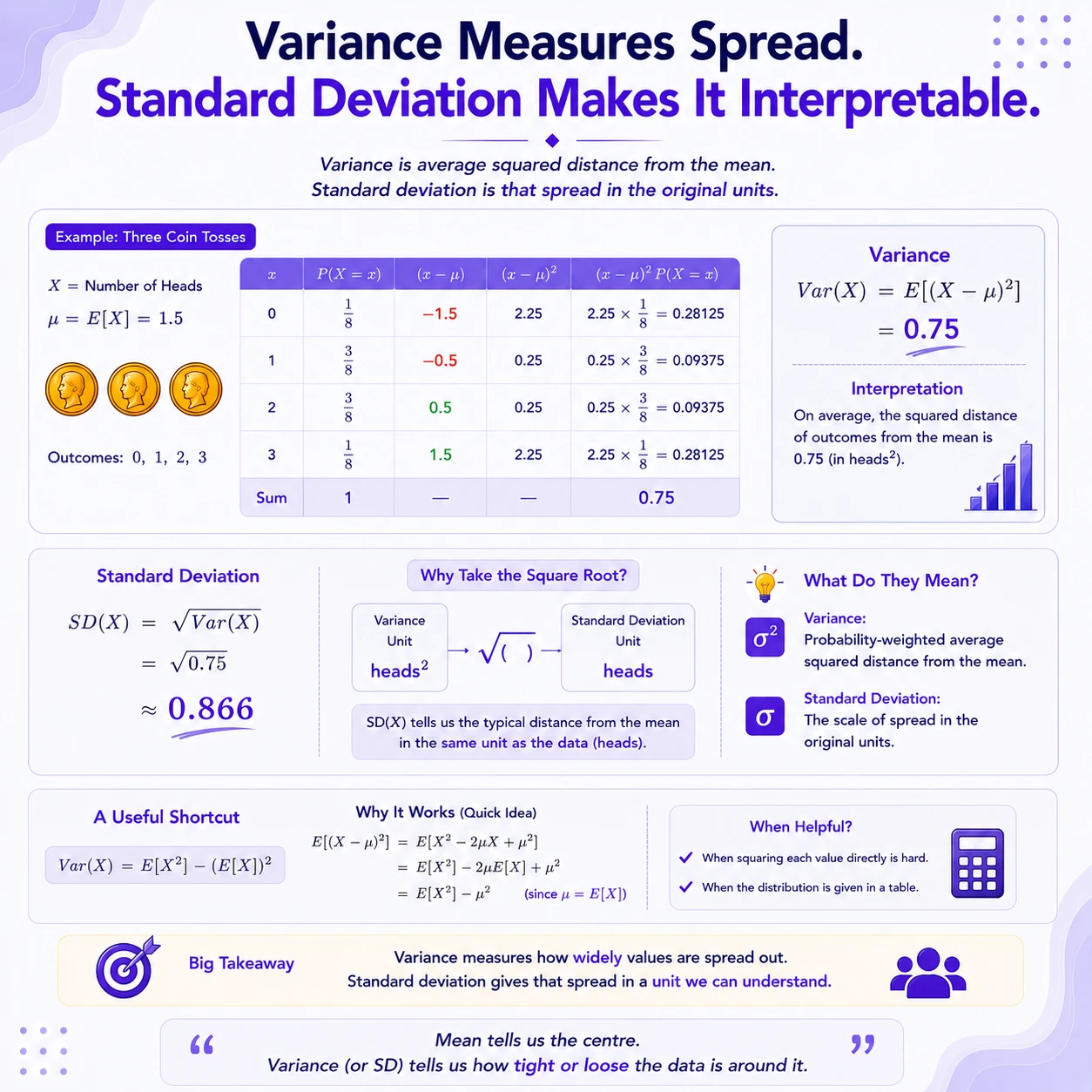

14

How do we interpret variance as spread?

INTUITION

Variance is measured in squared units. Its square root, the standard deviation, returns to the original units and describes a typical scale of distance from the mean without fixing an exact range.

  • Learning goalExplain standard deviation and its place between probability and statistics.
  • Helpful foundationsoutcomes and events · random variables · basic arithmetic
  • Common trapProbability and statistics are not disconnected formula collections; they are opposite directions through a shared model-and-data workflow.
  • Next connectionVariance has two equivalent formulas
Picture 15 of 19 · tap to inspect in full resolution
15

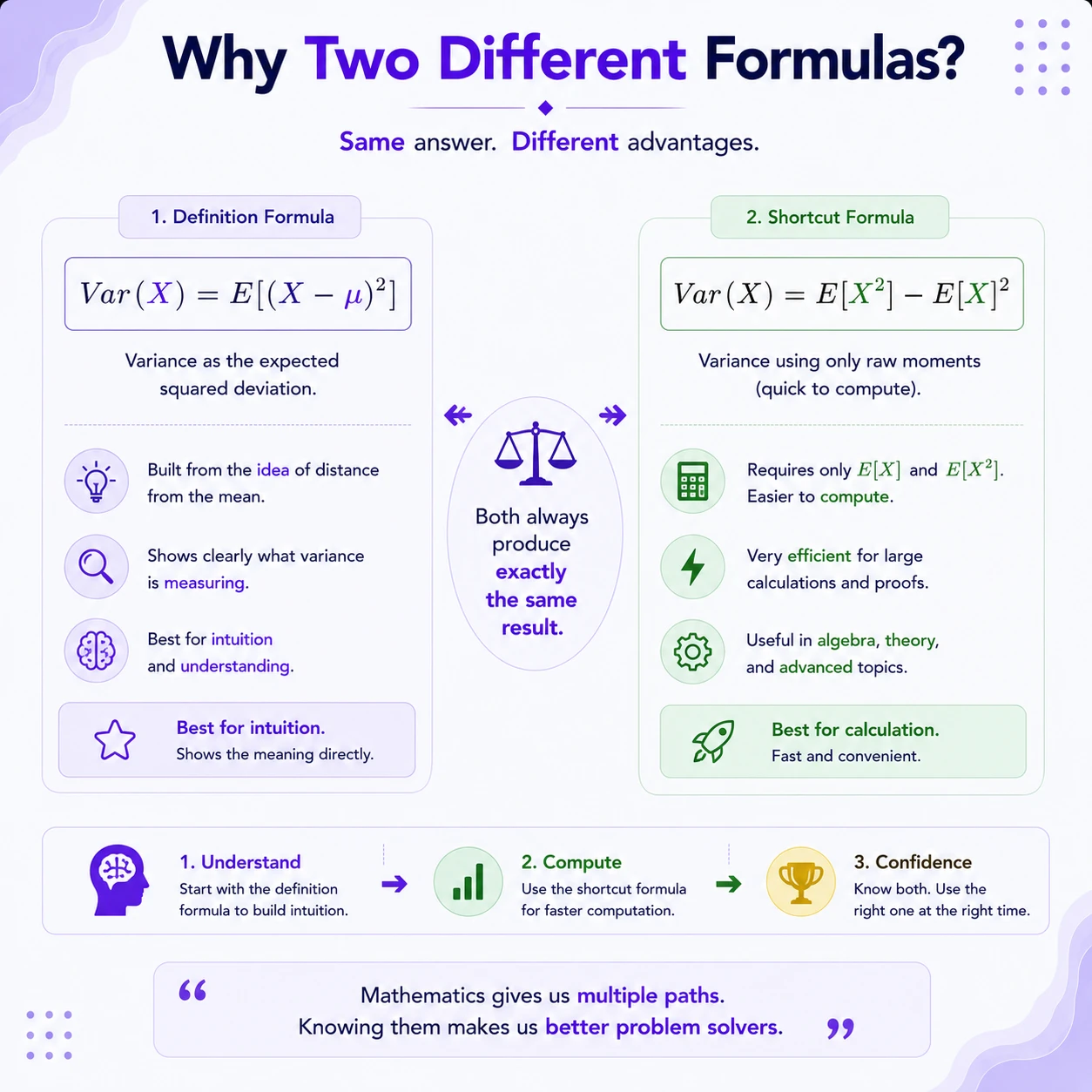

Why do two variance formulas give one answer?

INTUITION

Expanding (X-μ)² and using linearity gives Var(X)=E[(X-μ)²]=E[X²]-μ². The first formula explains distance from the mean; the second is often faster to compute.

MATHEMATICAL STATEMENT
  1. Expanding (X-μ)² and using linearity gives Var(X)=E[(X-μ)²]=E[X²]-μ².
  • Learning goalExplain variance equivalence and its place between probability and statistics.
  • Helpful foundationsoutcomes and events · random variables · basic arithmetic
  • Common trapProbability and statistics are not disconnected formula collections; they are opposite directions through a shared model-and-data workflow.
  • Next connectionThe shortcut is derived, not memorized
Picture 16 of 19 · tap to inspect in full resolution
16

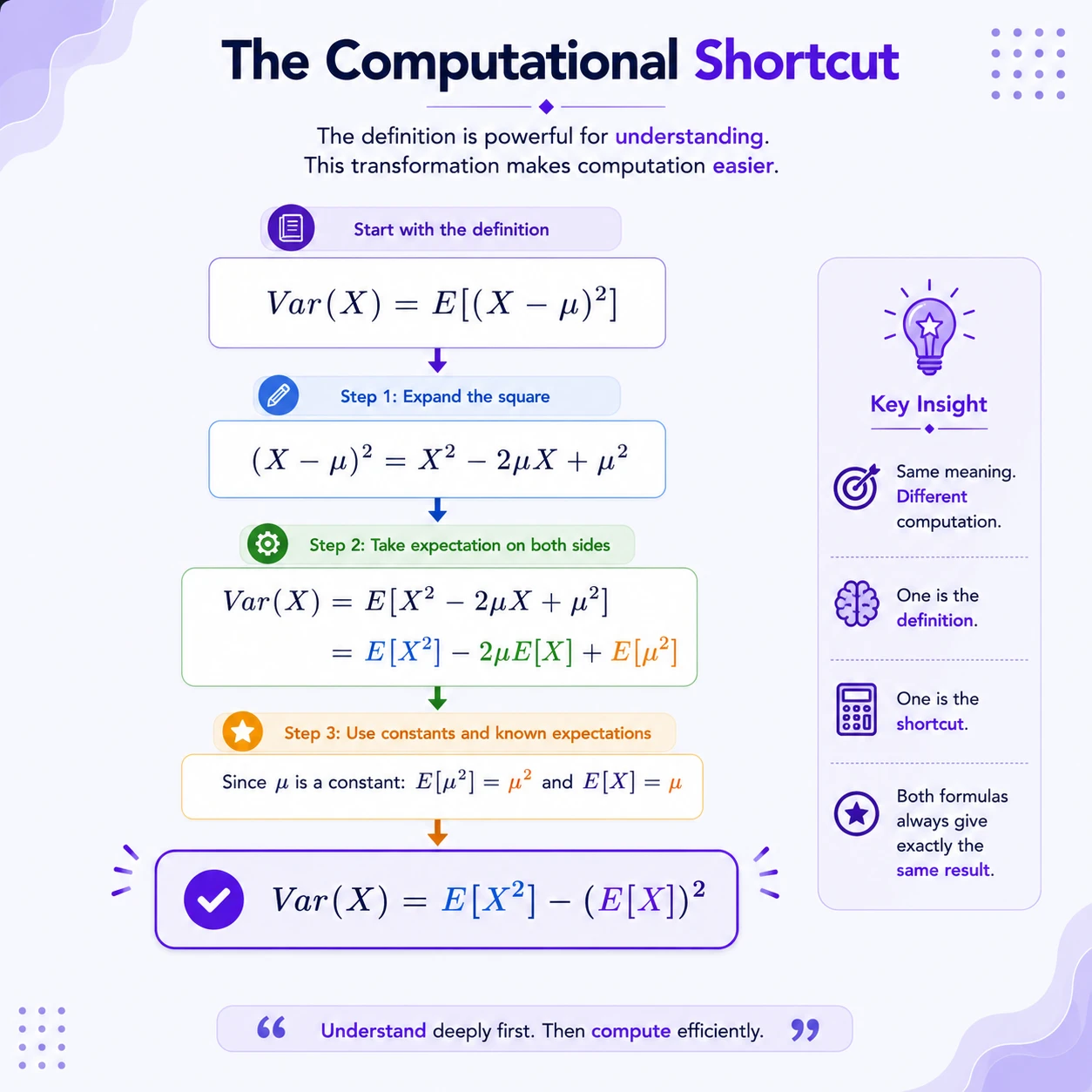

How does the computational shortcut appear?

INTUITION

Expand the square, take expectation term by term, replace E[X] with μ, and treat μ as constant. The cancellation leaves E[X²]-μ².

  • Learning goalExplain shortcut derivation and its place between probability and statistics.
  • Helpful foundationsoutcomes and events · random variables · basic arithmetic
  • Common trapProbability and statistics are not disconnected formula collections; they are opposite directions through a shared model-and-data workflow.
  • Next connectionVariance is another expected value
Picture 17 of 19 · tap to inspect in full resolution
17

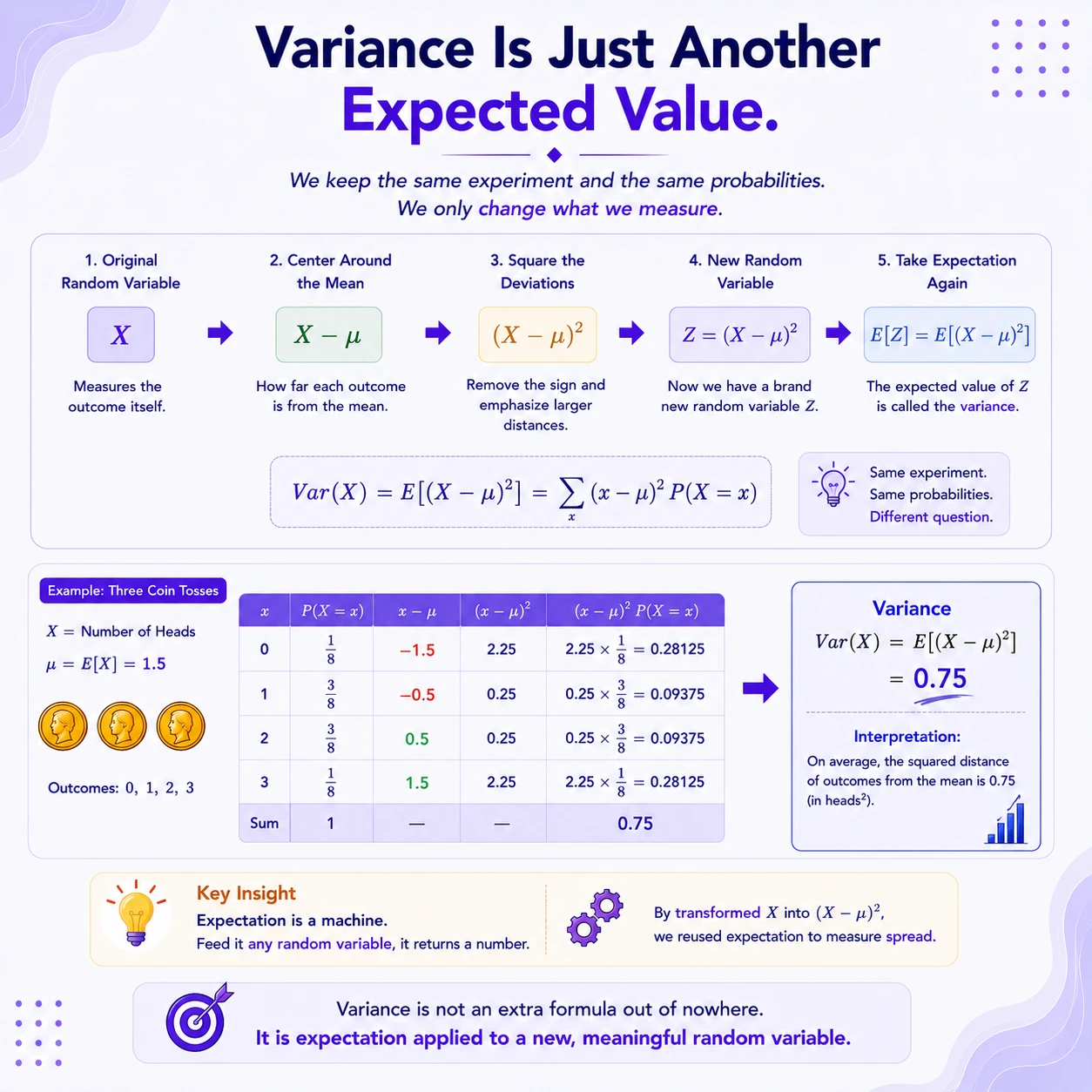

How is variance an expected value?

INTUITION

Define a new random variable D=(X-μ)². Then Var(X)=E[D]. The same probability-weighted averaging rule applies; only the quantity being averaged has changed.

MATHEMATICAL STATEMENTS
  1. Define a new random variable D=(X-μ)².
  2. Then Var(X)=E[D].
  • Learning goalExplain transformed variable and its place between probability and statistics.
  • Helpful foundationsoutcomes and events · random variables · basic arithmetic
  • Common trapProbability and statistics are not disconnected formula collections; they are opposite directions through a shared model-and-data workflow.
  • Next connectionStatistics can be computed from a probability model

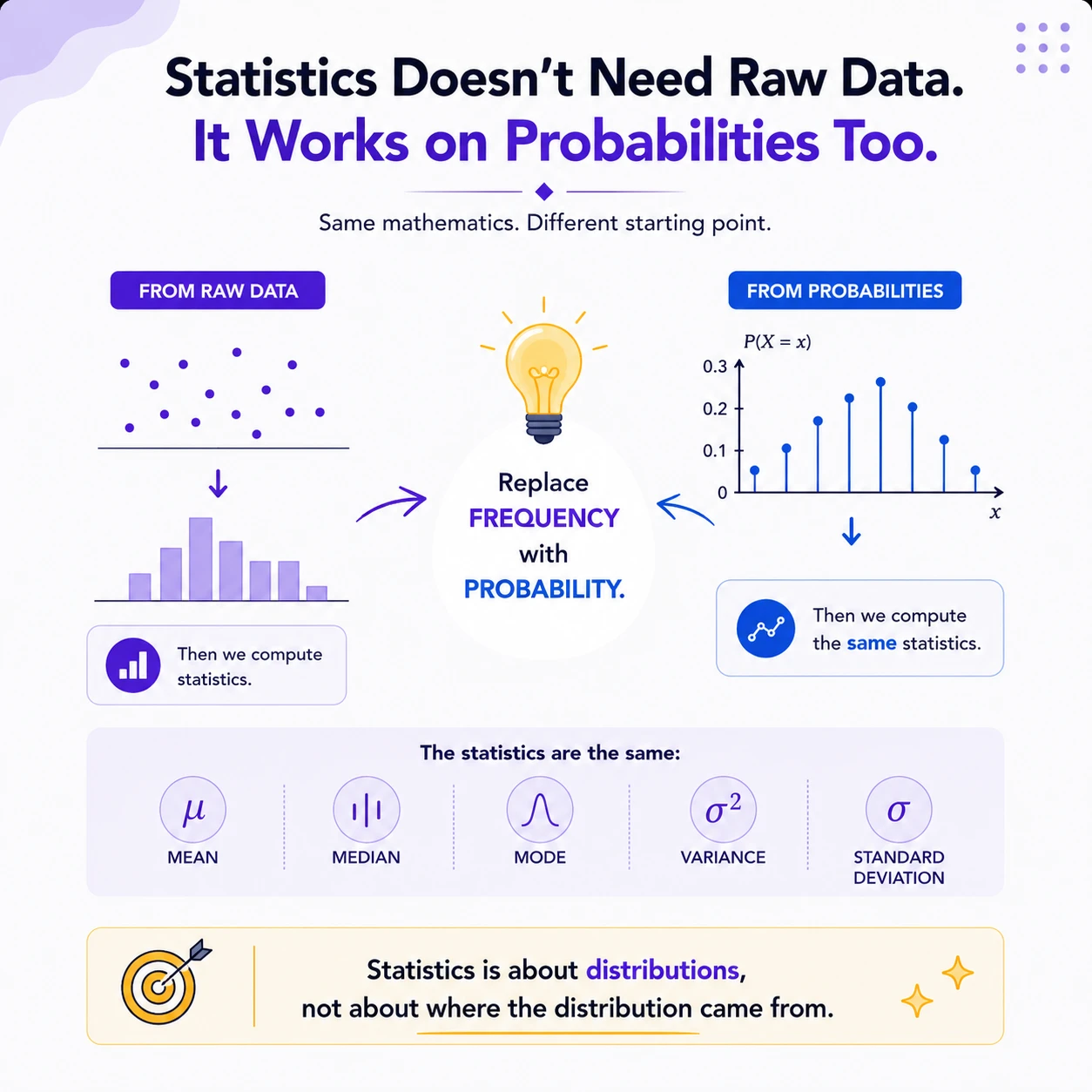

Picture 18 of 19 · tap to inspect in full resolution
18

Can statistics come from a model?

INTUITION

If the probability distribution is known, mean, median, mode, and variance can be computed directly from it. With sample data, statistics estimate corresponding population features and include sampling uncertainty.

  • Learning goalExplain model versus sample and its place between probability and statistics.
  • Helpful foundationsoutcomes and events · random variables · basic arithmetic
  • Common trapProbability and statistics are not disconnected formula collections; they are opposite directions through a shared model-and-data workflow.
  • Next connectionOne workflow connects model, data, and inference
Picture 19 of 19 · tap to inspect in full resolution
19

How does the bridge guide a decision?

INTUITION

Choose a variable, specify or learn its distribution, compute interpretable summaries, compare those summaries with observed data, quantify sampling uncertainty, and answer the original question without confusing a model feature with a sample estimate.

  • Learning goalExplain complete workflow and its place between probability and statistics.
  • Helpful foundationsoutcomes and events · random variables · basic arithmetic
  • Common trapProbability and statistics are not disconnected formula collections; they are opposite directions through a shared model-and-data workflow.
  • Next connectionApply the bridge to a real dataset
