Continuous Probability: From Area to Statistics

How does uncertainty over a continuum become probability, expectation and variance?

MODULE 3 / 6LESSON 5 / 50PICTURE 1 / 13
Progress stays on this device · no login
BEFORE THE FIRST PICTURE

How this lesson unfolds.

Begin with How does a battery lifetime become a probability question? The sequence then connects A density can have many shapes and builds toward The complete continuous-probability roadmap.

Picture 1 of 13 · tap to inspect in full resolution
01

How does a battery lifetime become a probability question?

INTUITION

Let X be battery lifetime. The question 'between 9 and 11 hours' selects an interval, and its probability is the density area over that interval.

  • Learning goalBuild continuous probability intuition from density areas and probability-weighted integrals.
  • Helpful foundationsbasic probability · area · functions
  • Common trapDensity height alone is not probability; interval probability is area under the density.
  • Next connectionA density can have many shapes
Picture 2 of 13 · tap to inspect in full resolution
02

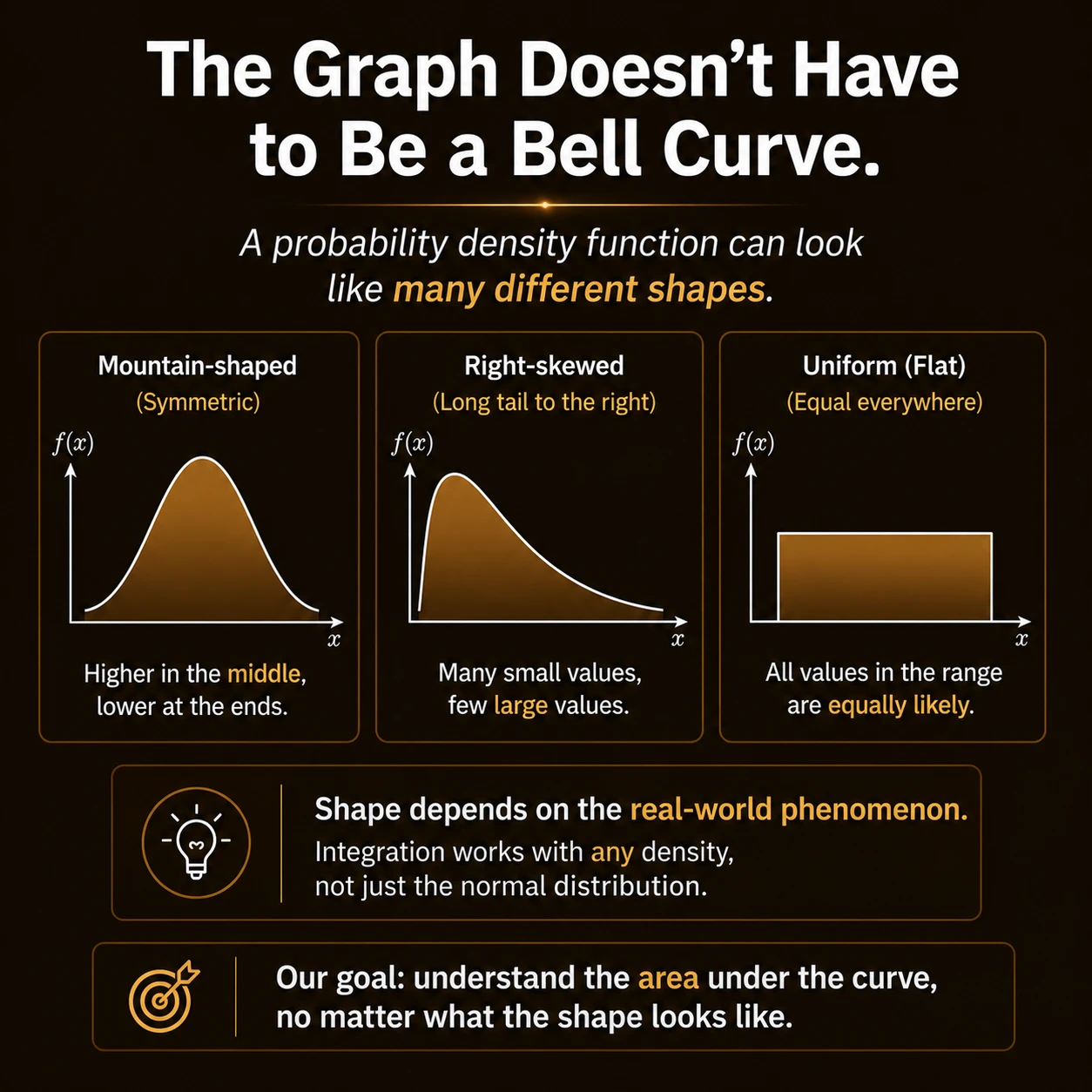

Must every probability curve be bell-shaped?

INTUITION

No. Continuous densities may be symmetric, skewed or flat. The real process determines the shape; the same area rule works for all valid densities.

  • Learning goalBuild continuous probability intuition from density areas and probability-weighted integrals.
  • Helpful foundationsbasic probability · area · functions
  • Common trapDensity height alone is not probability; interval probability is area under the density.
  • Next connectionIntervals carry continuous probability
Picture 3 of 13 · tap to inspect in full resolution
03

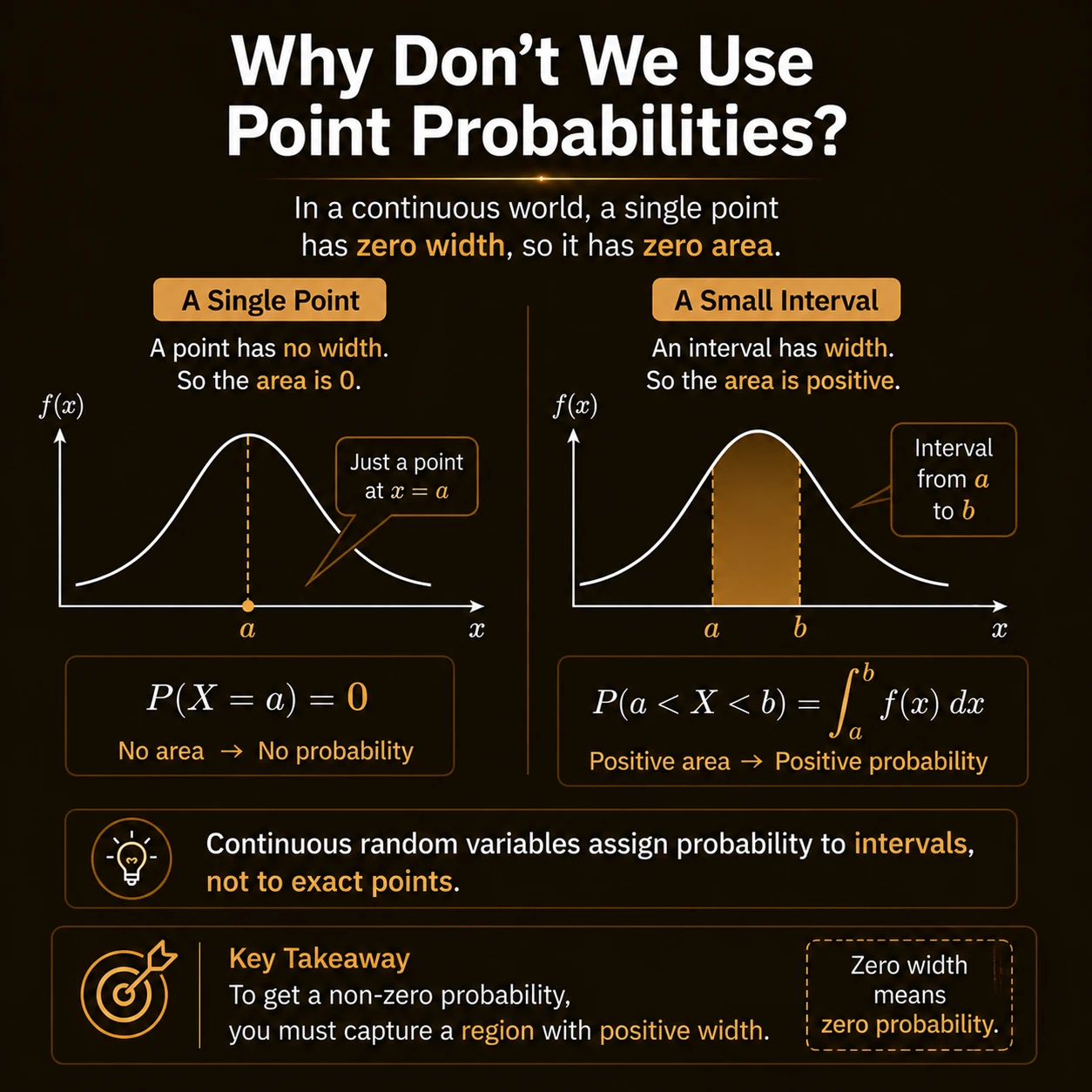

Why is the probability of one exact point zero?

INTUITION

A single point has zero width, hence zero area under a continuous density. An interval has positive width and may have positive probability.

  • Learning goalBuild continuous probability intuition from density areas and probability-weighted integrals.
  • Helpful foundationsbasic probability · area · functions
  • Common trapDensity height alone is not probability; interval probability is area under the density.
  • Next connectionDensity height is not probability
Picture 4 of 13 · tap to inspect in full resolution
04

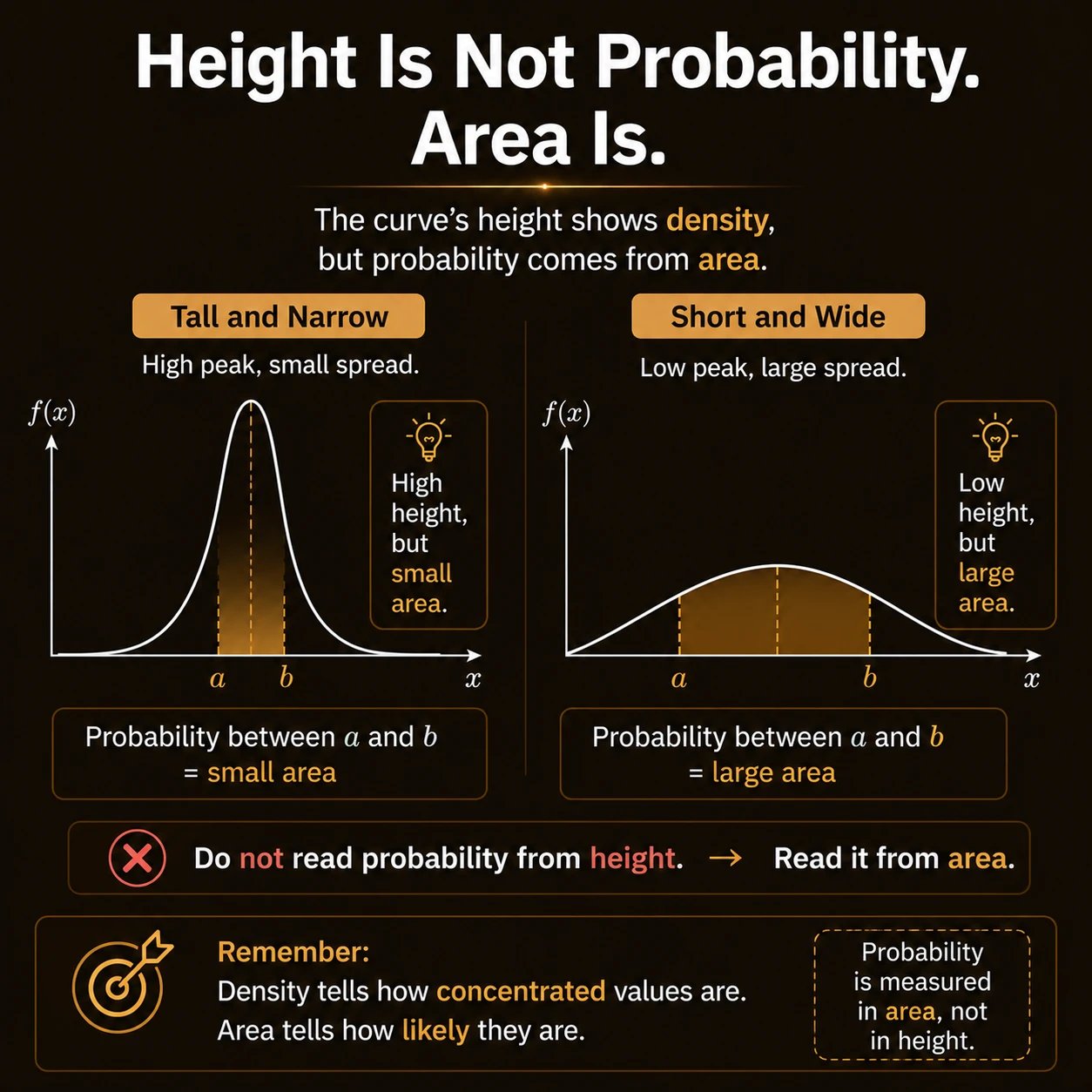

Should we read probability from a curve's height?

INTUITION

Height describes concentration near x. Probability is accumulated area across an interval, so a tall narrow region can contain less probability than a lower wide region.

  • Learning goalBuild continuous probability intuition from density areas and probability-weighted integrals.
  • Helpful foundationsbasic probability · area · functions
  • Common trapDensity height alone is not probability; interval probability is area under the density.
  • Next connectionAn integral measures interval probability
Picture 5 of 13 · tap to inspect in full resolution
05

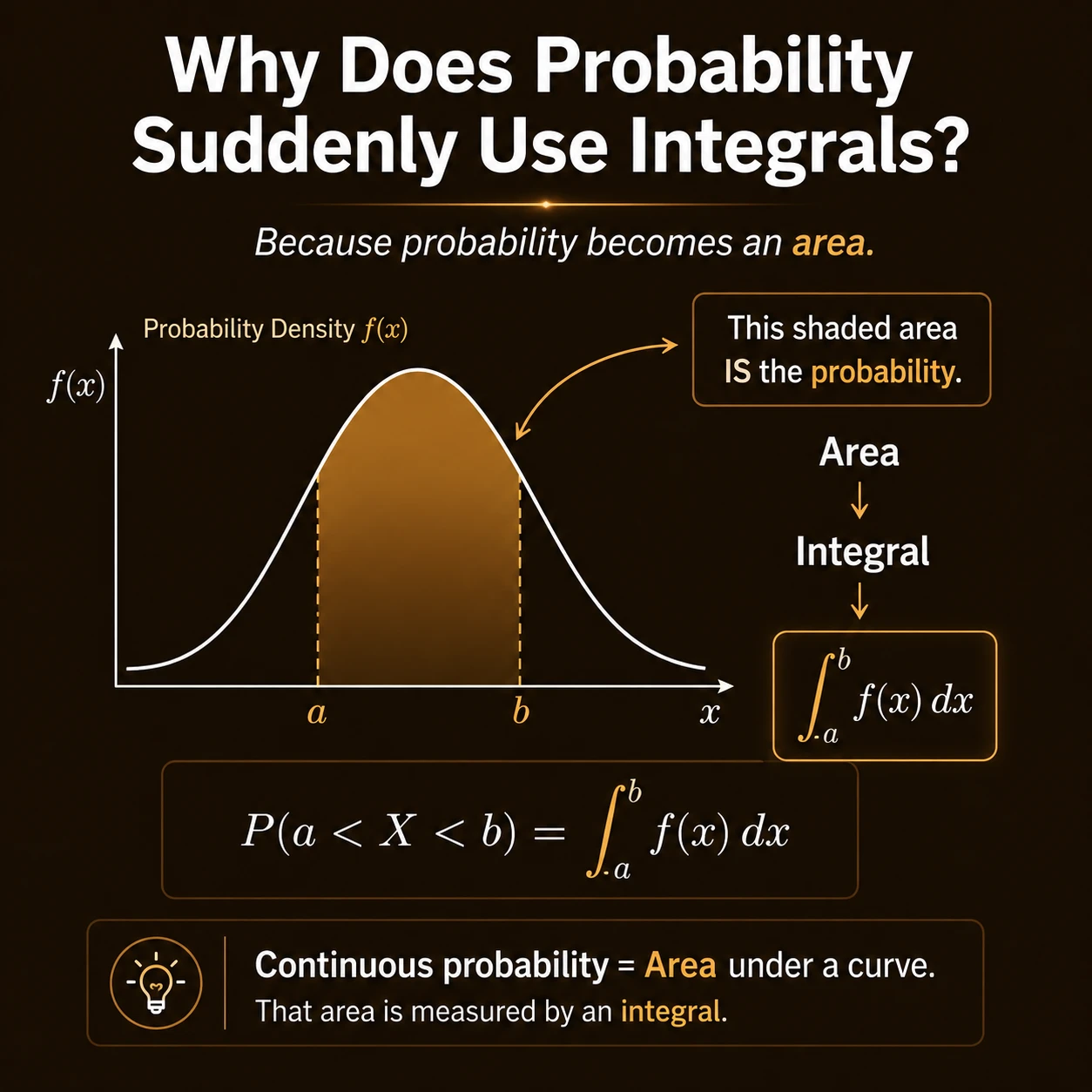

Why does continuous probability use integrals?

INTUITION

For a density f, the probability that X lies between a and b is the area under f from a to b, written as an integral.

  • Learning goalBuild continuous probability intuition from density areas and probability-weighted integrals.
  • Helpful foundationsbasic probability · area · functions
  • Common trapDensity height alone is not probability; interval probability is area under the density.
  • Next connectionIntegration is continuous addition
Picture 6 of 13 · tap to inspect in full resolution
06

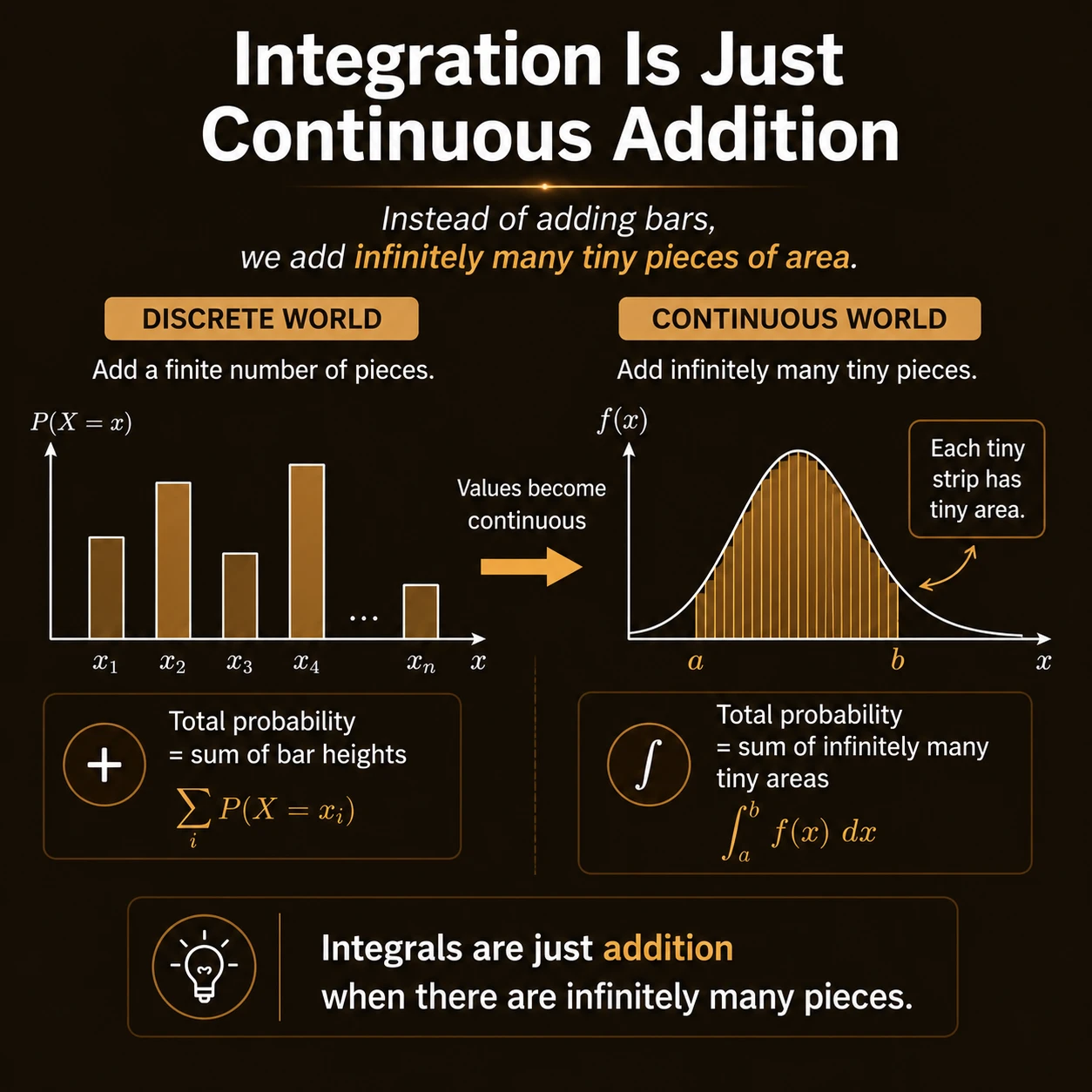

How does ordinary addition become an integral?

INTUITION

Discrete probability adds point masses. Continuous probability adds infinitely many tiny areas f(x) dx. The integral is the limiting form of that addition.

  • Learning goalBuild continuous probability intuition from density areas and probability-weighted integrals.
  • Helpful foundationsbasic probability · area · functions
  • Common trapDensity height alone is not probability; interval probability is area under the density.
  • Next connectionRectangles reveal how integration works
Picture 7 of 13 · tap to inspect in full resolution
07

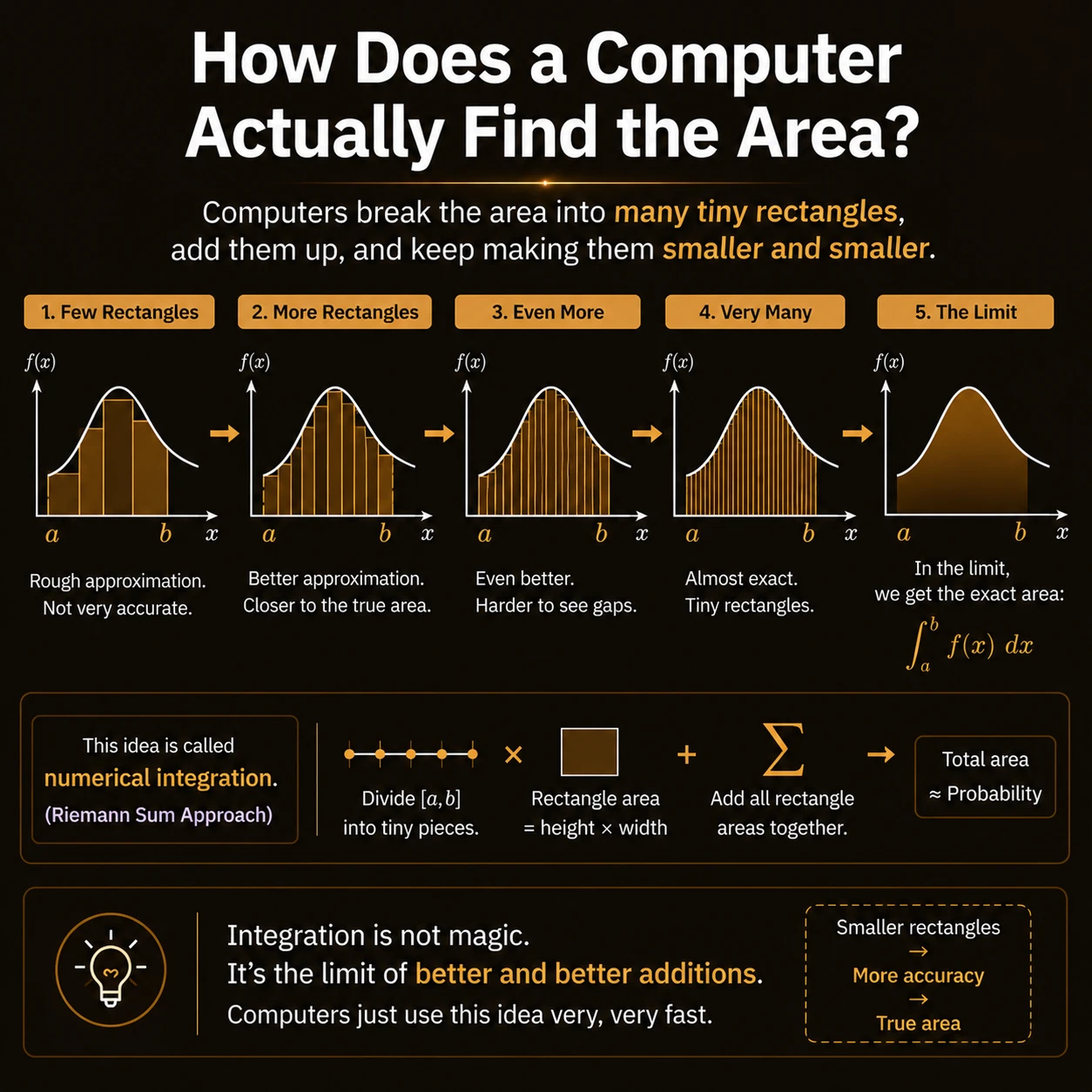

How can tiny rectangles recover the area under a curve?

INTUITION

Partition the interval, multiply each rectangle's height by its width, and add. Finer partitions reduce the gap; the limiting sum is the integral.

  • Learning goalBuild continuous probability intuition from density areas and probability-weighted integrals.
  • Helpful foundationsbasic probability · area · functions
  • Common trapDensity height alone is not probability; interval probability is area under the density.
  • Next connectionCalculators approximate the same area
Picture 8 of 13 · tap to inspect in full resolution
08

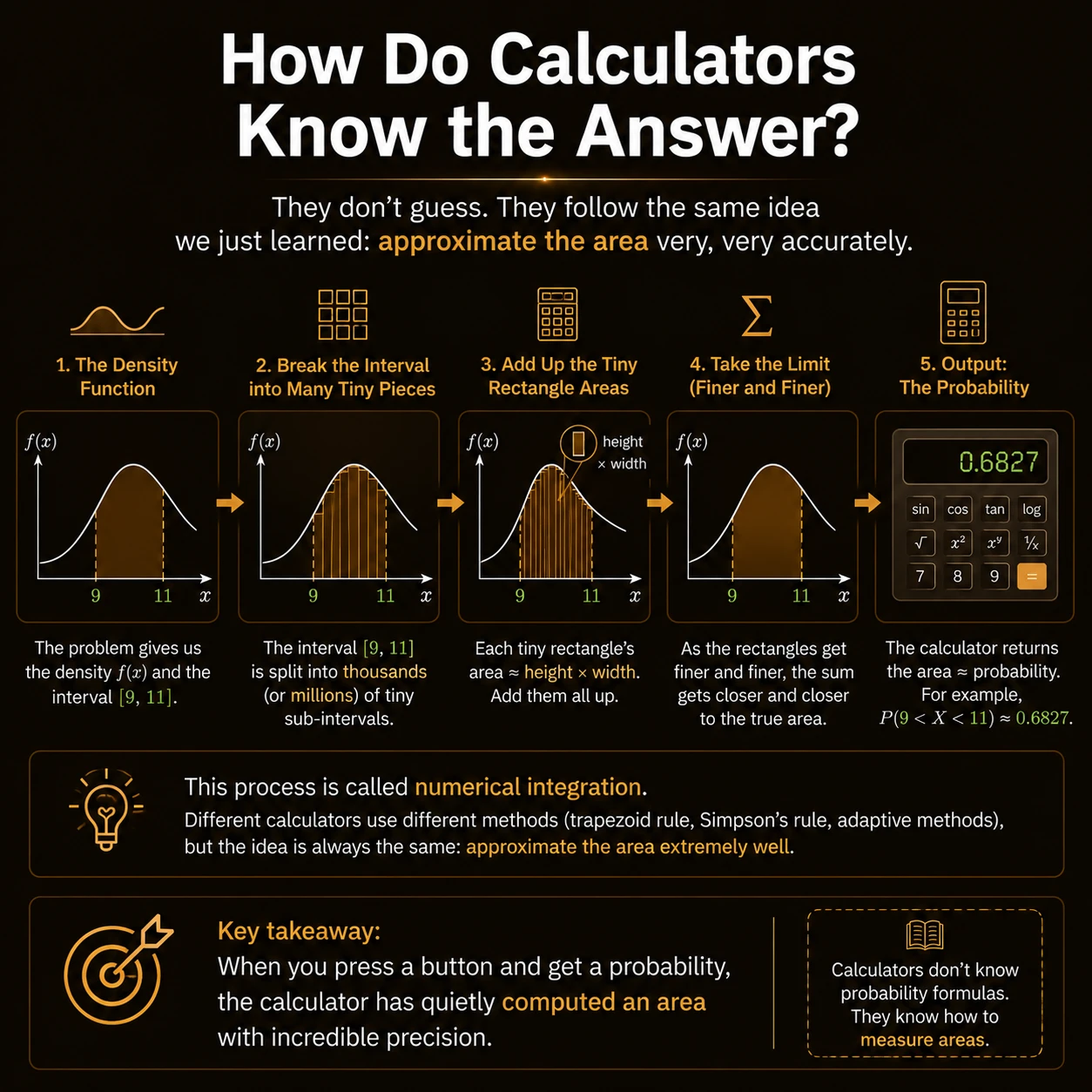

What happens when software returns a probability?

INTUITION

Software evaluates or approximates the density area using numerical integration. Different algorithms refine the partition, but the target remains the same interval probability.

  • Learning goalBuild continuous probability intuition from density areas and probability-weighted integrals.
  • Helpful foundationsbasic probability · area · functions
  • Common trapDensity height alone is not probability; interval probability is area under the density.
  • Next connectionExpectation is built from tiny weighted contributions
Picture 9 of 13 · tap to inspect in full resolution
09

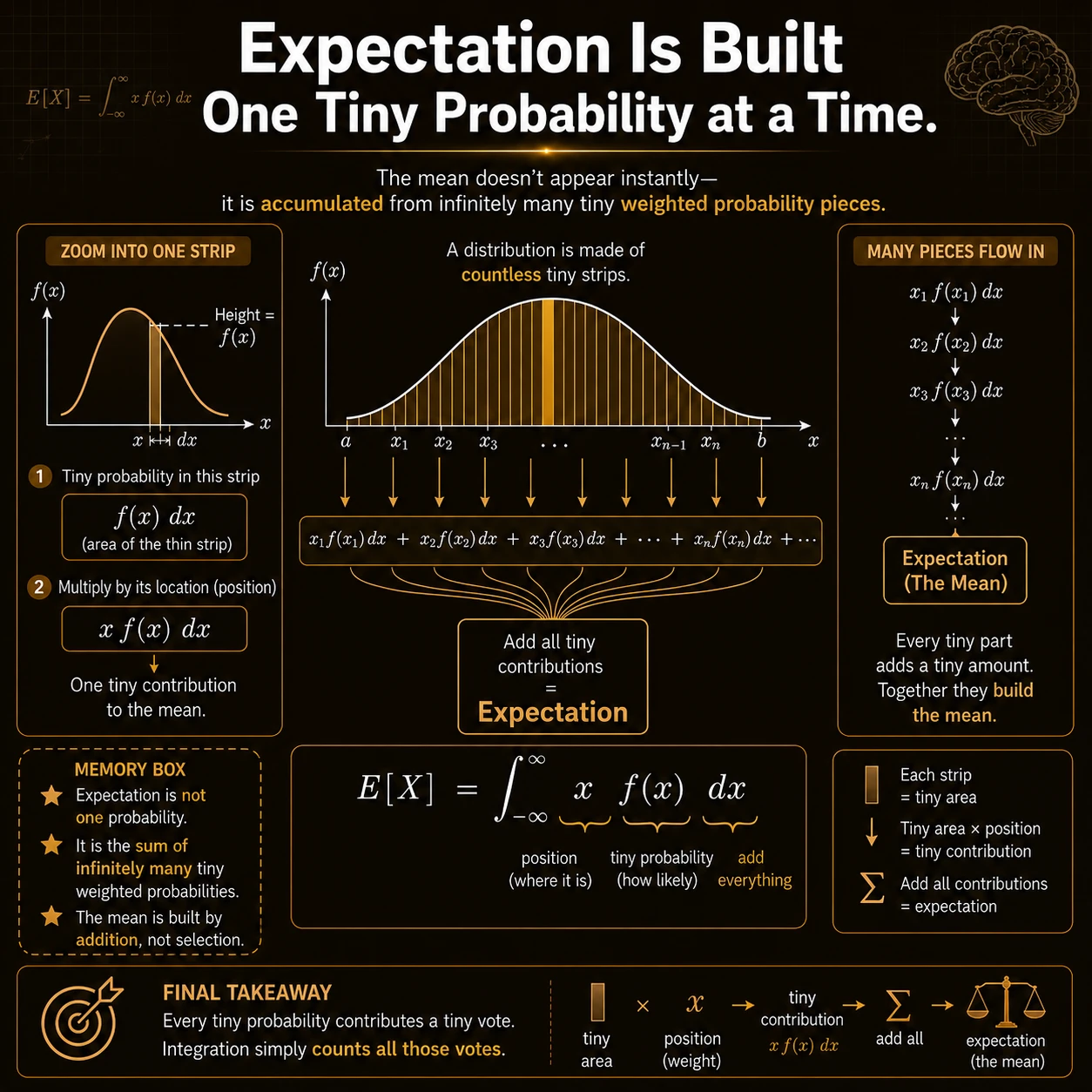

Where does the continuous mean come from?

INTUITION

A tiny strip contributes probability f(x) dx. Multiplying by its position x gives x f(x) dx; integrating all contributions produces E[X].

  • Learning goalBuild continuous probability intuition from density areas and probability-weighted integrals.
  • Helpful foundationsbasic probability · area · functions
  • Common trapDensity height alone is not probability; interval probability is area under the density.
  • Next connectionExpectation is the balance point
Picture 10 of 13 · tap to inspect in full resolution
10

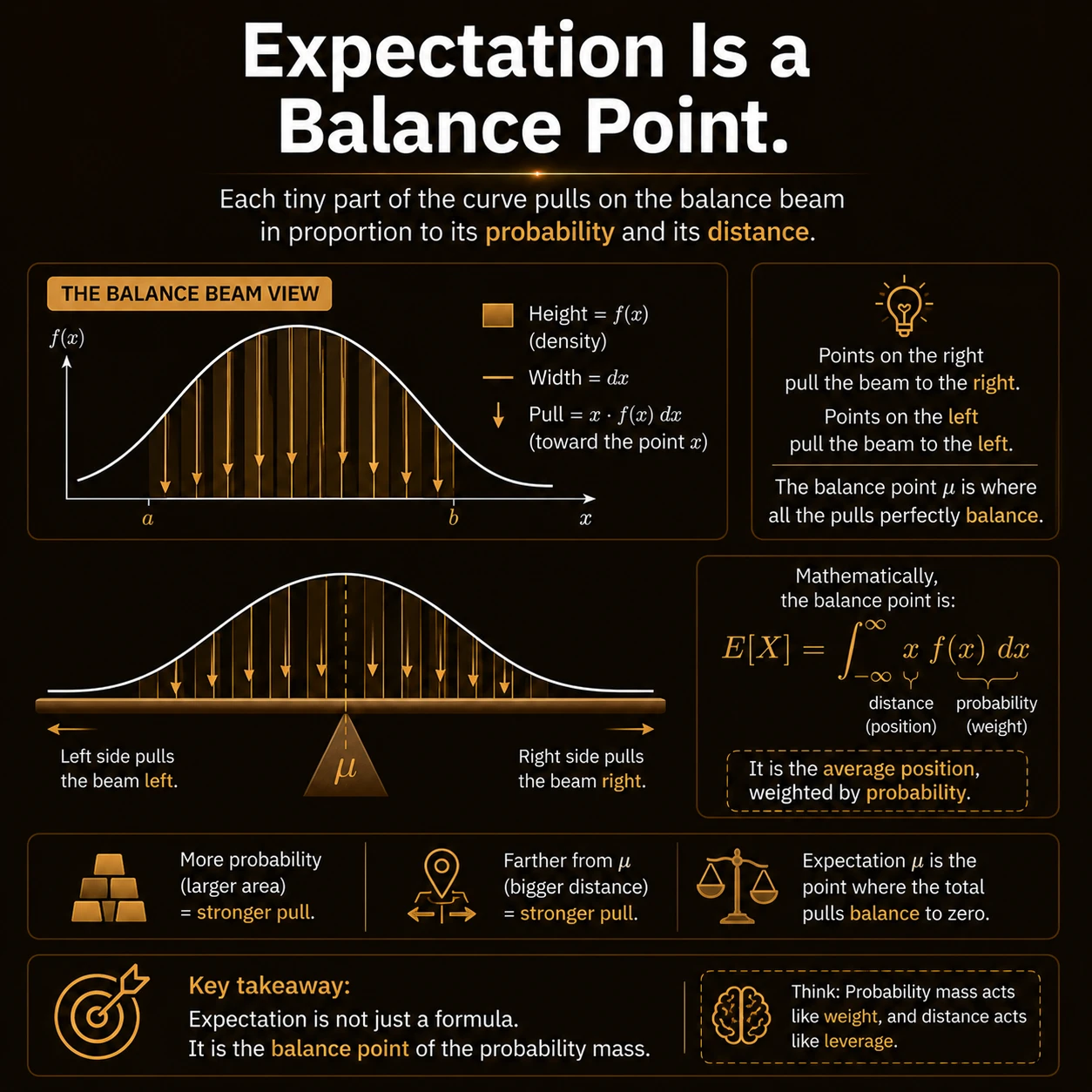

Why can the mean be pictured as a center of mass?

INTUITION

Probability acts like weight and position acts like leverage. At the mean, the probability-weighted pulls to the left and right balance.

  • Learning goalBuild continuous probability intuition from density areas and probability-weighted integrals.
  • Helpful foundationsbasic probability · area · functions
  • Common trapDensity height alone is not probability; interval probability is area under the density.
  • Next connectionVariance measures spread around the balance point
Picture 11 of 13 · tap to inspect in full resolution
11

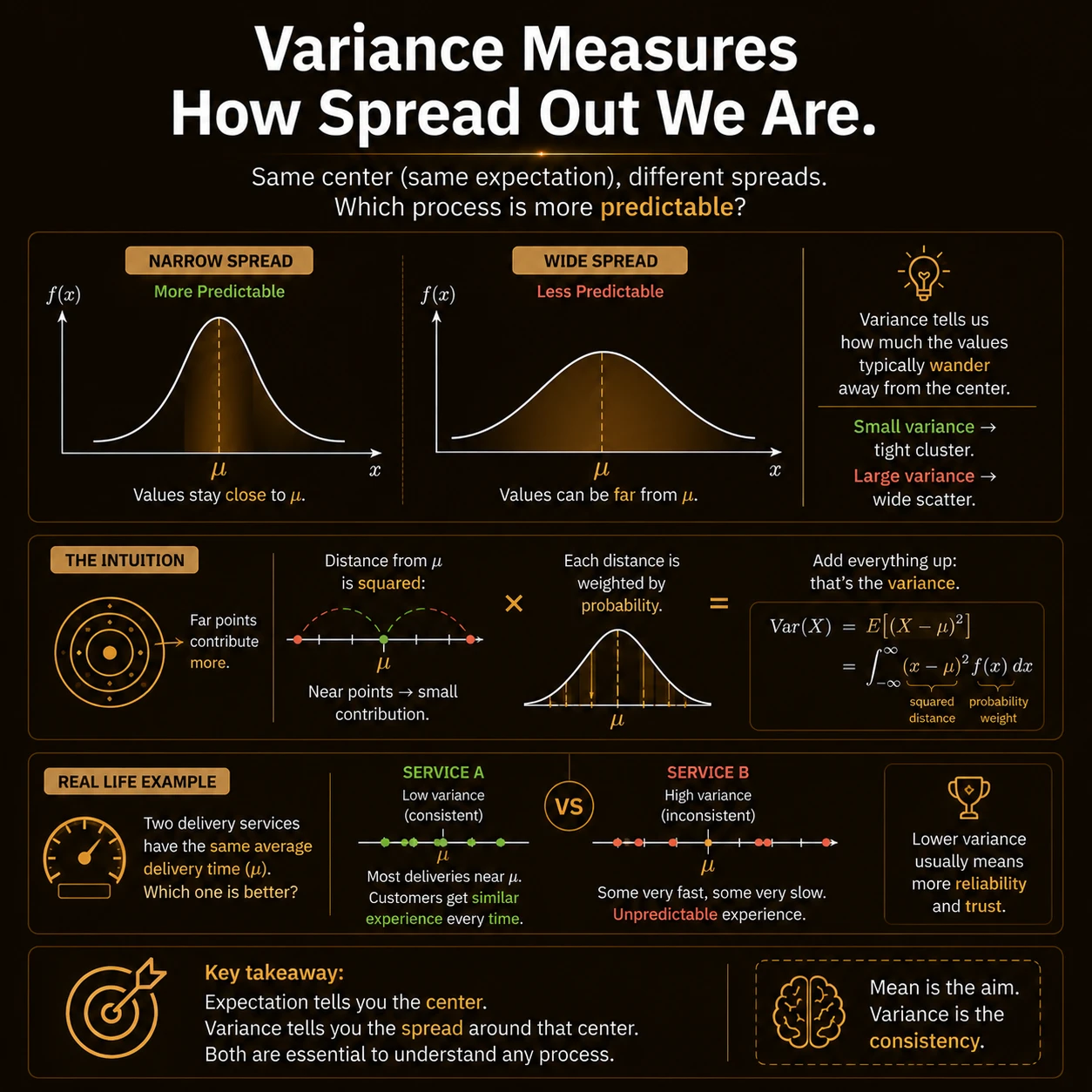

How do we measure how far values wander from the mean?

INTUITION

Variance averages squared distance from the mean, weighted by density. Narrow distributions have smaller variance than wide distributions with the same center.

  • Learning goalBuild continuous probability intuition from density areas and probability-weighted integrals.
  • Helpful foundationsbasic probability · area · functions
  • Common trapDensity height alone is not probability; interval probability is area under the density.
  • Next connectionOne integral language supports statistics
Picture 12 of 13 · tap to inspect in full resolution
12

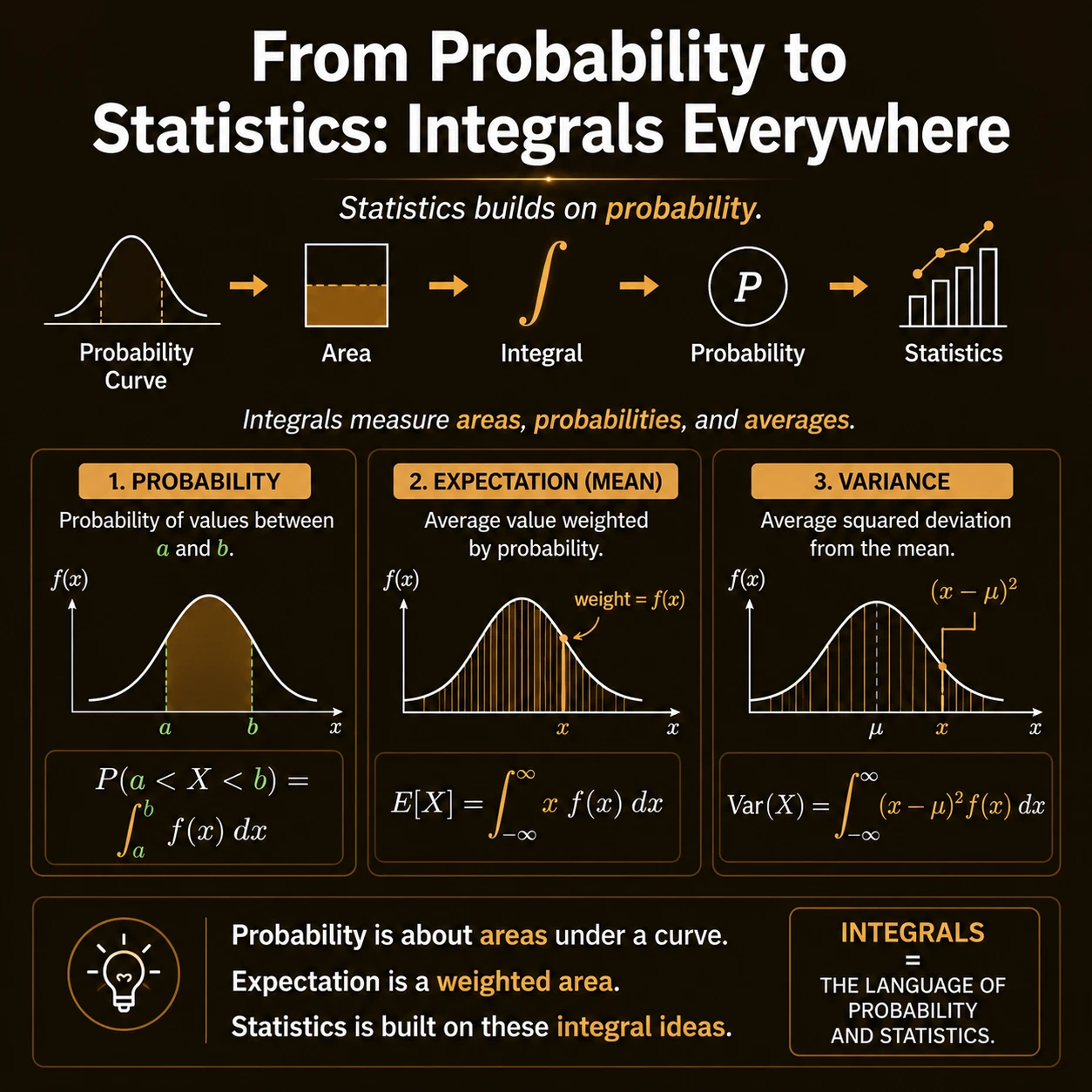

How do probability, expectation and variance fit together?

INTUITION

Interval probability integrates f(x), expectation integrates x f(x), and variance integrates squared distance times f(x). Each is a different probability-weighted area.

  • Learning goalBuild continuous probability intuition from density areas and probability-weighted integrals.
  • Helpful foundationsbasic probability · area · functions
  • Common trapDensity height alone is not probability; interval probability is area under the density.
  • Next connectionThe complete continuous-probability roadmap
Picture 13 of 13 · tap to inspect in full resolution
13

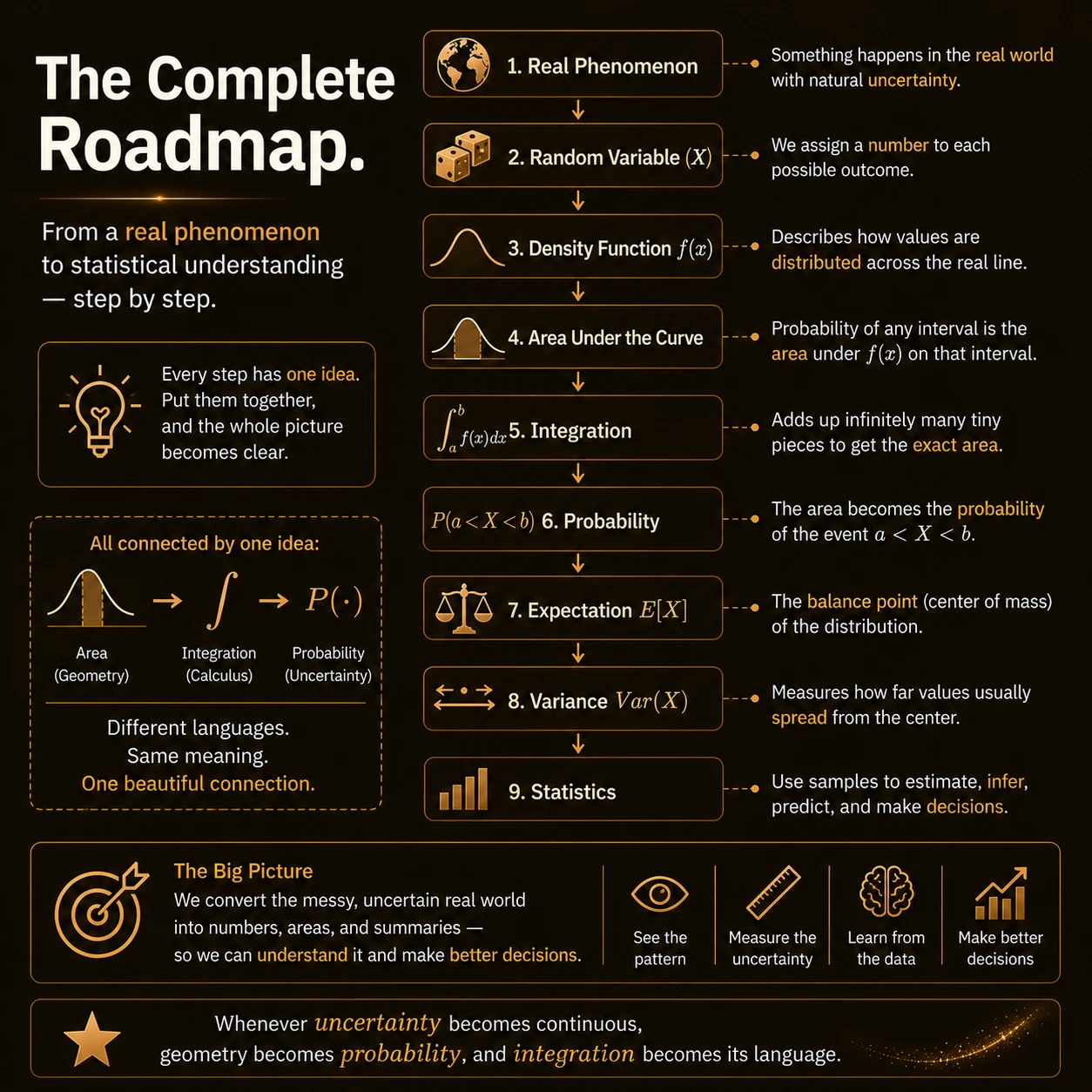

What is the full path from a real phenomenon to a decision?

INTUITION

Model a phenomenon with a random variable and density, use areas for probabilities, summarize with expectation and variance, then use data to estimate and decide.

  • Learning goalBuild continuous probability intuition from density areas and probability-weighted integrals.
  • Helpful foundationsbasic probability · area · functions
  • Common trapDensity height alone is not probability; interval probability is area under the density.
  • Next connectionCumulative distribution functions
